USER MANUAL Fiamme Cilindro Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technische Daten 4

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

TECHNISCHE DATEN

Simple line drawing of a window with sun and shadow elements (no text or symbols)

Line drawing of a cylindrical device with a handle and base, no text or symbols present

Line drawing of a cylindrical mechanical device with a small house-shaped component on top (no text or symbols)

Black-and-white photo of a glass with a lid and a circular object on a textured surface (no text or symbols visible)

Person pouring liquid from a circular container onto a glass, with shadow on the ground (no text or symbols visible)

Hand pouring liquid into a transparent cylindrical container on a tiled floor (no text or symbols visible)

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Specifications 18

Safety Instructions 19

General Information 23

Installation 23

Operation 24

Cleaning and Maintenance 28

Troubleshooting 29

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

TECHNICAL SPECIFICATIONS

Item number 10036070, 10036071
Product size 200×200×500 mm /	280×280×670 mm
Size of the burner opening	∅ 30 mm
Net weight 2.6 kg / 3.8 kg
Intended fuel 95 % C2H5OH
Maximum burner volume 0.23 L
Total fuel capacity of the device 0.3 L
Fuel consumption 25.1 g/h
Heating power 0.187 kW
Recommended minimum room volume 75 m3
1 The device is for decorative and domestic use only.2 Read the manual before installation and setup3 This unit complies with EN16647.4 Only use fuel with an alcohol concentration of at least 95%.5 Use only in a well-ventilated room not smaller than 75 m3.6 Never pour fuel into a hot or burning device.7 Do not overfill. Wipe up any spilled fuel before igniting the fuel.8 Only use the unit in a draft-free environment.9 Do not ignite the fuel while the appliance is hot.10 Do not move the unit during operation.11 Never leave small children or pets unattended near a burning appliance.
Manufacturer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

SAFETY INSTRUCTIONS

Note: Children must not use the device!

Notes on the fuel

Ethanol is a flammable liquid and poses a real danger if not used in direct compliance with all instructions and safety information. Keep fuel out of the reach of children and pets. Never allow children to come into contact with fuel, the lantern or fire accessories.

First aid measures in case of emergency

• Eyes: Immediately rinse the affected area with clear water. The eyes should be rinsed for at least 15 minutes. Then visit a doctor immediately. Contaminated clothing should be washed before reuse.
• Ingestion: If the subject is fully conscious and can swallow, have them drink water or milk to dilute the fuel. Never put anything in a person's mouth if he or she is unconscious or has cramps. See a doctor immediately. Induce vomiting only on the order of the doctor or the poison emergency center.
• Skin: Wash the skin with soap and water for at least 15 minutes.
• Inhalation: Remove affected person from the area to a location with fresh air. If the person has stopped breathing, start mouth-to-mouth resuscitation immediately and call an ambulance.

Handling and storage of fuel

• Keep the ethanol fuel away from heat, sparks, open flames and sources of ignition.
• Do not store ethanol fuel in direct sunlight. Ensure that it does not heat up. Always store the fuel in a dry, cool place.

Note: If fuel is stored in a very cold place, it may be difficult to ignite the fuel. Fill the fuel at room temperature.

Special Precautions

Never put fuel straight into the fire.	Never put fuel on hot surfaces.	Do not place any objects on the fireplace.
Avoid drafts. Do not blow into the fire.		Do not touch the fire.
Do not place the device near flammable objects.	Have a suitable fire extinguisher ready.	Follow the instructions for the fuel exactly.
Have a fire blanket ready.	Do not inhale fumes. Ventilate sufficiently.	Open fire and smoking is prohibited near the unit.

WARNING

Risk of suffocation! The fi re uses oxygen from the air in the room in which it is operated. The room in which this lantern is installed must be well ventilated and supplied with suffi cient fresh air. Never install or operate the lantern in an unventilated cellar or in an airtight room.

• Never leave a burning or hot lantern unattended.
• Keep children and pets away from the device. Do not allow children to operate the device.
• Do not use the device in rooms where oxygen tanks or flammable vapours are present.
• Do not use the device if people in the house or room suffer from breathing difficulties.
• Do not use the device in confined spaces. The flame consumes oxygen.
• Never open a fuel bottle near an open flame, otherwise the fuel could ignite.
• Never move the lantern while it is burning or still hot.
• After filling the lantern, replace the bottle cap and remove the fuel from around the lantern before lighting the lantern.
• The glass becomes hot when lit and remains hot for some time after the flame has gone out. Do not touch any glass surfaces. Keep children, pets, clothing, fabrics and furniture away from the device due to the high surface temperatures.
• Use only an extended stick lighter for lighting. Keep face, body and objects away from the lantern. Stretch your hand with the stick lighter far away from you and light the fire.
• Do not obstruct or prevent the flames from coming out.
• Do not use the device for cooking.
• Let the lantern cool down for at least 15-20 minutes before touching it, moving it or adding fuel.
• Take the same precautions for the lantern as for an open fi re (fi replace, barbecue and other products with open fi re).

In an emergency, dial 112. Extinguish the fire with a carbon dioxide fire extinguisher and then close the fire chamber to completely choke the fire. Place the extinguisher at a maximum distance of 30 cm from the device.

• This manual is part of the device. This device is for decorative and domestic use only.
• Please make sure that the wall, table or floor on which you place this device can support its weight.
• Do not cover the ventilation openings.
• Do not place any fl ammable objects on the device.
• Obtain a suitable fire extinguisher and a fire blanket and make sure that the appropriate fire extinguisher is within 1 meter of the equipment.
• Do not operate the device in a drafty environment.
• Observe the local laws.
• Use the device only in a well-ventilated area.
• Do not light the device while it is still hot.
• Do not modify the construction of the device.
• Only use spare parts that are approved by the manufacturer.
• The operation of several devices is only permitted if the output is less than or equal to 4.5 kW/h and care is taken to provide additional ventilation in the room.
• Remove any fuel which may have overflowed before lighting the device.
• Check the fuel chamber for overfi lling after fi lling. If the chamber is overfi lled, remove the excess fuel.
• The device is not suitable for continuous operation.
• Use only the fuel specified by the manufacturer.
• Store the fuel in a fireproof place.

CAUTION

Risk of burns! The lantern and the surfaces become very hot during use. Do not touch the lantern and keep children and pets away from it.

GENERAL INFORMATION

Bio-ethanol lanterns are the environmentally friendly solution for a real fire without the need for a chimney or gas supply. Suitable for homes without a chimney. All our lanterns are ventless, smokeless and ash-free, so no chimney or gas is needed. Our fireplaces are designed with stainless steel and/or black steel with a modern concept. A warm, peaceful and relaxing environment can be created with our lantern.

Simple line drawing of an open window with a sun and hills inside, enclosed in a rounded square frame (no text or symbols)

Bio-ethanol lanterns can be placed anywhere in the house or flat. You can enjoy the benefits of a real fire without having to install a chimney. Since bio-ethanol burns almost residue-free, ventilation through an open window is sufficient in most cases if the room is large enough.

Before using the device, read the operating instructions carefully and keep them in a safe place. If this device changes hands, the operating instructions must be included when it is passed on to the new owner.

INSTALLATION

Note: The ethanol is not included and must be purchased separately from a DIY store or fuel retailer.

• The freestanding lantern is fully assembled, no further assembly is required.
• Make sure that the lantern has sufficient stability. For this, it must be absolutely straight. Otherwise ethanol may leak out.
• Place the lantern on a heat-resistant and fireproof surface.
• Place the bioethanol burner in the lantern.

OPERATION

Notes on use

• Only use the device in a well and sufficiently ventilated room.
• Do not light the lantern when it is hot.
• The lantern is not suitable for continuous operation;
• Never leave the lantern unattended once you have lit the flame.
• Only use fuel with an ethanol concentration of at least 95%.
• Be aware that some parts of the lantern, especially the outer surfaces, become hot during operation.
• Only use the lantern in rooms with a room volume of at least 75 m ^-3 and ensure sufficient ventilation of 5 m ^3 .
• Never leave the device unattended during operation.
• Never pour fuel into a hot or burning lantern.
• Never overfill the device and carefully wipe away spilled fuel before lighting the device.
• Only use the device in a draught-free environment;
• Never light a hot device.
• Never move the device while it is in operation.
• Never leave small children or pets unattended near a burning device.
  • The safety distance is 50 cm.
• The safety distance when lighting the appliance is at least 140 mm.
• To extinguish the appliance, use only the appropriate flame extinguisher, (supplied with the appliance as a spare part), the handle must be close to the appliance to be able to extinguish in an emergency.
• Do not modify the construction of the device.
• Check the burner tank regularly for overflowing fuel. If you notice fuel overflowing, the tank must be emptied (e.g. before each refilling of the fuel tank).

Note: Do not touch the handle of the lantern when it is in use or has been used recently and has not yet cooled down.

Filling, lighting and refi lling the burner

• Fill the container with bio-ethanol, not more than 3/4 of the respective burner capacity.
• Use a funnel to fill it.
• Spilled ethanol must be removed with an absorbent cloth and the affected area cleaned with water to prevent ignition outside the burner container.
• Long lighters or long matches are ideal for lighting bio-ethanol. Otherwise there is a risk of defl agration. Never throw used matches into the burner.
• If the flame does not ignite, repeat the lighting process until the flame burns evenly.
• Wait at least 30 minutes after the flame has gone out before using the lantern again. Otherwise there is a risk of explosion.
• The flame glows slowly and small at first. It can take up to 15 minutes to reach the optimum temperature and flame height.

CAUTION

Risk of fi re! When lighting the lantern, always make sure that it is placed on a heat-resistant and fi reproof surface or ceramic tile, not directly on a carpet!

Note: The fuel should be stored at room temperature to facilitate lighting.

CAUTION

Risk of fire! The fuel must be kept at a safe distance (at least 1 m) from the lantern. Do not place ethanol fuel in front of the lantern. Note that the ethanol sometimes burns bluish and is difficult to see. Therefore, always make sure that the burner is switched off and cold before adding ethanol.

Filling up the burner

• Never pour fuel into an open flame!
• Let the burner cool down for at least 15 minutes before refi lling.
• Do not refi ll ethanol while a flame is burning or heat is present in the burner.

Extinguish flame

• If possible, let the ethanol burn off completely. This will prevent any ethanol remaining in the burner and defl agrating when it is re-lit.

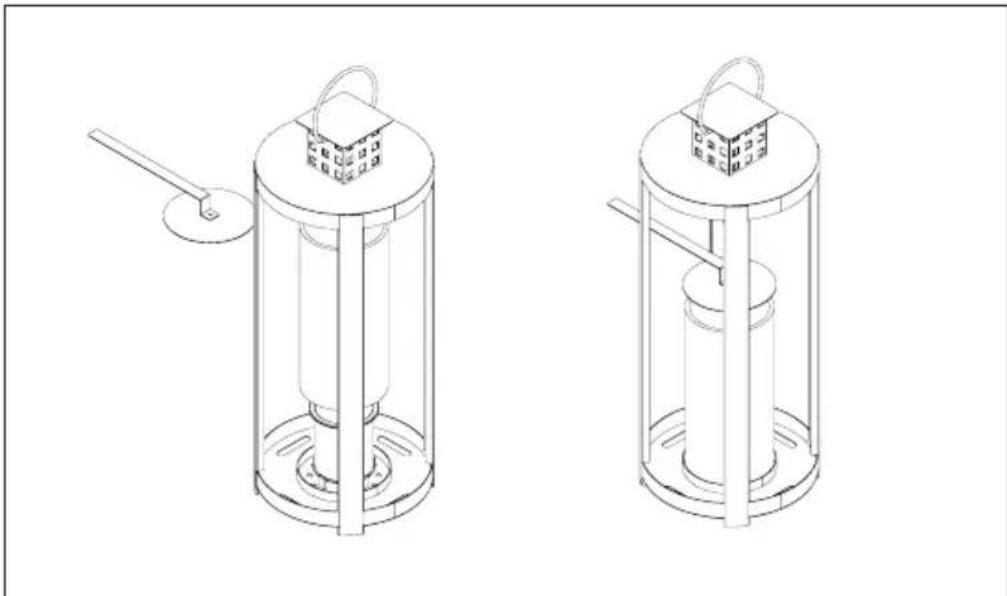

• If you want to extinguish the flame before the fuel is completely used up, use the flame extinguisher supplied. Wait approx. 30 minutes until the burner has reached room temperature. Only then dispose of the remaining fuel.
• Only use the tool included in the scope of delivery, never a wooden or plastic tool, and do not reach in with bare hands.

CAUTION

Risk of fi re! Never try to extinguish the fl ame with water!

Two wireframe diagrams of a birdcage with a small house on top, shown from different angles (no text or symbols)

Notes for emergencies

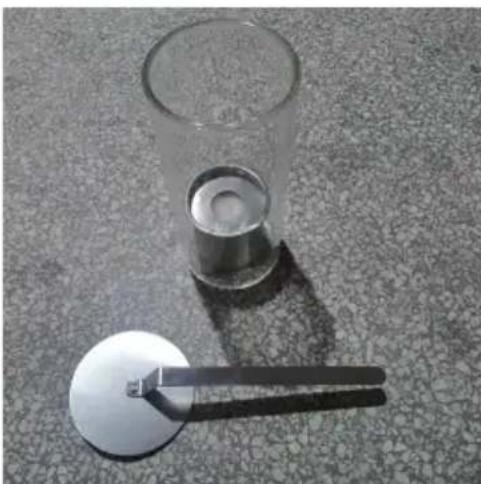

Note: The flame extinguisher should always be near the device so that the flame can be extinguished in an emergency.

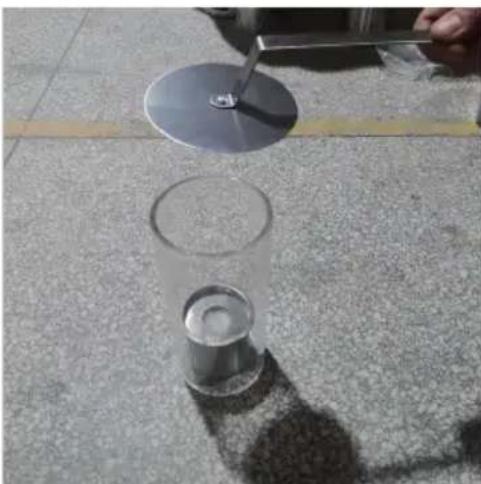

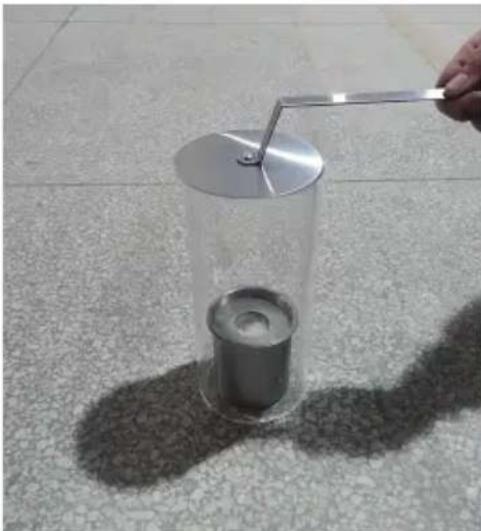

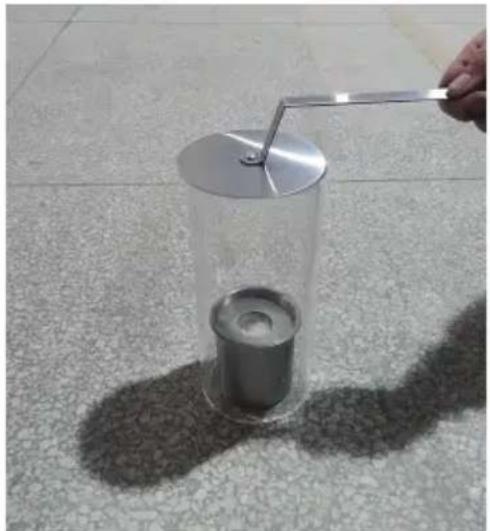

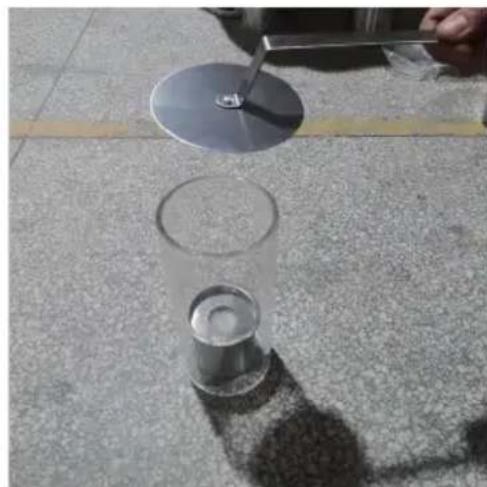

Extinguish the flame in the burner container with the flame extinguisher as shown below.

Black-and-white photo of a glass with a lid and a circular object on a textured surface (no text or symbols visible)

Person pouring liquid from a circular container onto a glass, with shadow on the ground (no text or symbols visible)

Hand pouring liquid into a transparent cylindrical container on a tiled floor (no text or symbols visible)

Make sure that the flame in the burner is completely extinguished.

Storage and disposal of fuels

Always store fuels in a fire safe area.

Note: Ethanol fuel can cause severe burns, property damage or even death if used improperly and unsafely. Dispose of unburned fuel. Dispose of unused fuel and empty fuel bottles in accordance with local hazardous materials regulations. We recommend that you always burn all the fuel in the burner.

CLEANING AND MAINTENANCE

• The lantern and reservoirs must be cleaned regularly. Use warm water and soap.
• Marks can be best removed with a soft cloth and a mixture of lukewarm water and a small amount of soap. We recommend cleaning the stainless steel regularly to prevent contamination.
• Do not put the water inside the burning tank, as the ceramic wool inside will absorb the liquid.

Note: Never use chemicals, steel-wool or scrubbing sponges as stainless steel surface can be scratched by these items. The manufacturer will not be held responsible for any damages resulting out of false use and/or cleaning of the product.

TROUBLESHOOTING

Problem Possible cause	Solution
Soot formation Wrong fuel	Use only 100 % bio-	ethanol.
	The burner orifice is covered by foreign objects.	Expose the burner opening and place the decoration only around the burner slot.
Burning time too short W	Wrong fuel (e.g. gel, alcohol).	Use only 100 % bio- ethanol.
	The burner is not completely filled.	Extinguish the burner, refill it after 30 minutes of cooling time.
Flames too high Wrong fuel	(e.g. gel, alcohol).	Use only 100 % bio- ethanol.
The flame does not go out when the flap is closed.	This can happen with large burners because ethanol vapour can get through the smallest opening.	Repeat the closing process several times and faster to interrupt the oxygen supply.

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 32

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

Royaume Uni

FICHE TECHNIQUE

Simple line drawing of an open window with a sun and wave elements inside (no text or symbols)

Line drawing of a cylindrical device with a handle and base, featuring a small object on top (no text or symbols)

Line drawing of a cylindrical industrial or storage unit with a small box on top (no text or symbols)

Black-and-white photo of a glass with a lid and a circular object on a textured surface (no text or symbols visible)

Person pouring liquid from a circular container onto a glass, with shadow on the ground (no text or symbols visible)

Hand pouring liquid into a transparent cylindrical container on a tiled floor (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Datos técnicos 46

Chal-Tec UK limited.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

Reino Unido

DATOS TÉCNICOS

Simple line drawing of an open window with a sun and hills inside, enclosed in a rounded square frame (no text or symbols)

Line drawing of a cylindrical device with a handle and base, featuring a small object on top (no text or symbols)

Line drawing of a cylindrical mechanical device with a small house-shaped component on top (no text or symbols)

Close-up of a glass with a submerged object and a circular base, placed on a textured surface (no text or symbols visible)

Person pouring liquid from a circular container onto a glass on a paved surface (no text or symbols visible)

Hand using a metal lever to lift a cylindrical container on a tiled floor (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text

INDICE

Dati tecnici 60

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

Regno Unito

DATI TECNICI

Simple line drawing of an open window with a sun and wave, enclosed in a rounded square frame (no text or symbols)

Line drawing of a cylindrical device with a handle and top panel, no text or symbols present

Line drawing of a cylindrical mechanical device with a small house-shaped component on top (no text or symbols)

Black-and-white photo of a glass with a lid and a circular object on a textured surface (no text or symbols visible)

Two glasses on a tiled floor, one with a lid and the other casting a shadow (no text or symbols visible)

Hand pouring liquid into a transparent cylindrical container on a tiled floor (no text or symbols visible)
