USER MANUAL Air Cube OneConcept

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Technical Data 11
Producer 11
Safety Instructions 12
Product Overview 14
Control Panel 15
Use Of Cooling Function 16
Cleaning and Care 17
Disposal Considerations 18

TECHNICAL DATA

Item number 10035826, 10035827

Rated Voltage & Frequency 220-240 V~ 50/60 Hz

Rated Power 65W

Capacity of water tank 3.0 litres

PRODUCER

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

SAFETY INSTRUCTIONS

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
  Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Connect to a main power supplier of 220-240V~ 50-60 Hz only.
• Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage.
• Do not place the cord under carpets. Do not cover the cord with small clothes, shirts or other similar elements. Place the cord away from traffic areas in order to avoid any risk of tripping over.
• Do not operate the appliance if the cable or plug damaged.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Indoor use only.
• Do not cover the machine during using.
• Always operate on a stable flat horizontal surface.
• Ensure the appliance is switched OFF before connecting to the mains power supply.
• Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and mains supply connections.
• Do not leave this appliance unattended when it's in use. Turn off and disconnect the appliance when you leave the room for an extended period.
• Switch off the appliance and unplug from the mains socket when not in use, before filling, cleaning or other maintain.
• To disconnect the appliance, switch it "OFF", and then remove the plug from outlet. Do not pull the cord to disconnect the plug.
• Use the appliance only as described in this manual.
• Do not insert your fingers in the openings of the guard.
• Do not leave hair, tissue, tablecloths, clothes or curtains near all openings of the fan, they could be sucked into the fan and be taken within the internal moving parts that could cause injury or damage.
• Do not use the appliance in wet or damp locations such as bathrooms.

• Do not operate the appliance when it's not mounted on its wheels or if it's lying on the side.

• Make sure the cord is completely extended before use.

• Place the appliance on a flat horizontal surface. It must not be at an incline during use.
• When in operation, evaporative coolers moisturize the ambient air. Overhumidification of residential rooms should be avoided. Recommendation: 40 - 50% relative humidity. (Excessive humidity of the air can damage the home and cause health problems.)
• The appliance may only be set up on water- and moisture-proof flooring materials (spilling some drops of water is unavoidable when the content of the tank is changed).
• With each and every change of tank content, completely remove residual water from the equipment. To prevent nucleation, remove residual water from the equipment and water tank every time after three days of use.

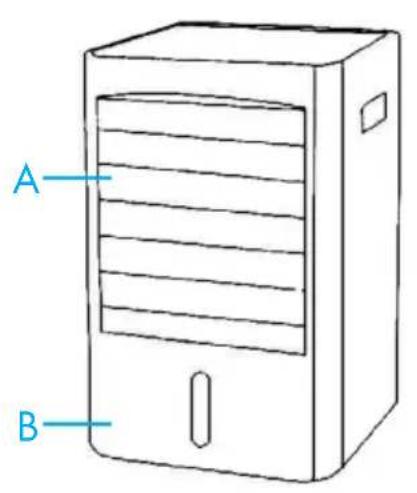

A Manual Louver frame

E Water tank

B Front Board

F Top cover

C Filter

G Control Panel

D Rear Board

H Ice crystal box

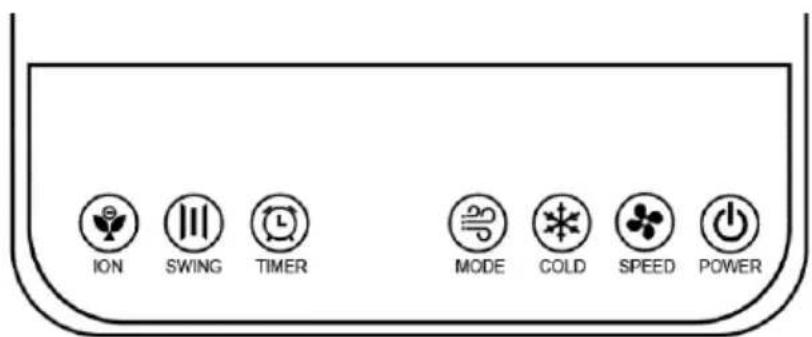

1. Touch POWER one time at any time, the product will be started/stopped working. But if in "COOL"function, when the product stopped will be delayed to shut down for about 3 minutes, to dry the wet filter.
2. SPEED: touch "SPEED" one time or more times, the wind speed is cycled as follows: LOW MED HIGH ( LOW ...)
3. COLD: touch "COLD", cool function start work and indicator light will be light up.
4. MODE: when the product is in working, touch "MODE" one time or more times, the corresponding icon will be light up and the mode is cycled as follows: NORMAL NATURAL SLEEP ( NORMAL ...)
5. TIMER: when the unit is working, touch "TIMER" one time or more times, timer will be cycled as follows: 1h 2h 12 0h ( 1h )
6. SWING: touch "SWING" one time or more times, automatic horizontal swing will be start or stop, corresponding indicator light will be on or off.
7. ION: touch "ION" one time, it can purify the air, touch the second time, this function will be off.

USE OF COOLING FUNCTION

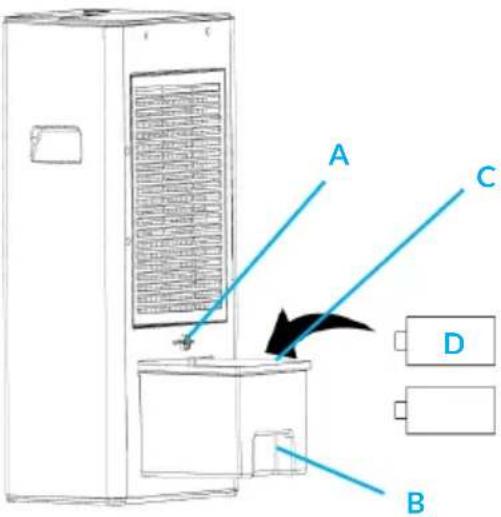

1. When using the appliance, make sure that it is on a flat and stable surface. Damage may occur if it is placed on an incline or decline. If you need cooler more, add ice block into upper water slot, see following image:

A Rotate the small knob.
B Pull out the water tank.
C Add the water from here into water tank.
D Put ice box into the water tank.

Note: the ice box should be far way from children to avoid eating.

1. Insert the plug directly into a standard AC 220-240V socket-outlet. Be sure plug fits tightly into outlet.
2. POWER button Press the button POWER to start the fan.
3. Press the COLD button.

Note: Do not use this button without water, to avoid damage to parts. Press the button, the water pump start to work, the wind will be cooler and wet.

• Before operating the unit in Cold mode, make sure the escape valve for the water tank is properly fixed. Then proceed to add clean water into the water tank. While adding the water, make sure that you keep an eye on the water level indicator to make sure that you do not OVER or UNDER FILL the unit. Press the button Cold after you have added the water and the unit should commence to blow cooler air. When you press the button Cold again, it will stop working.

• If you find that the air after Step 1) is still not cold enough, you can add additional ice block into the water tank directly by opening the water tank cover. Be sure not to exceed the icebox capacity otherwise damage to the unit or electric shock may occur.

• If you wish to use an Ice box instead of ice block, just place it directly into the tank by opening the water door. It will be good cooling efficiency if you place it in your refrigerator and let the ice pack freeze for 1 to 2 hours.

• You may complete pull out water tank, then replace water in the water tank or clean water tank.
• To turn off the unit just Touch the POWER.
• To completely shut the unit off, touch POWER, and remove plug from the socket-outlet.

CLEANING AND CARE

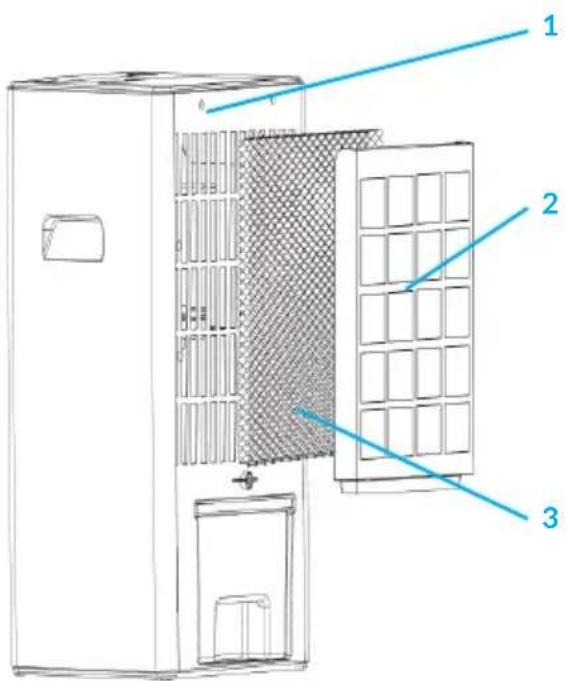

How to knock down the dust-proof bracket and filter

1. Pull down the buckle of the dust-proof bracket with hands
2. Pull out the dustproof bracket.
3. Lift up the filter.

Cleaning

WARNING

Danger of electric shock

Always remove the plug from the socket-outlet and allow the fan blower to stop acting before cleaning it.

Do not immerse the unit in water.

• Always remove the plug from the socket-outlet and allow the fan blower to stop acting before clean it.
• Clean the external surfaces of the unit with a soft damp (not dripping wet) cloth.
• Do not use any cleaning chemicals such as detergents and abrasives.
• Do not allow the interior (special for the PCB) to get wet as this could create a hazard.
• After extended periods of use, be sure to replace the water in the tank with fresh clean water at least weekly. Also remember to clean the filter by unscrewing the filter and removing the filter cradle. It should be cleaned in a mild soapy solution and then left to dry before replacing the filter.
• When the unit is not in use, make sure that it is unplugged from the wall socket, water is drained thoroughly and it is placed back into its original box for storage until later use.
• In case of malfunction or doubt, do not try to repair the fan yourself, it may result in a fire hazard or electric shock.

DISPOSAL CONSIDERATIONS

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
