USER MANUAL CarribeanBlue OneConcept

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SICHERHEITSHINWEISE

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 10

Product Description 11

Before first Use 12

Use and Operation 12

Cleaning and Care 13

Hints on Disposal 14

TECHNICAL DATA

Utem number 10028180, 10028181
Power supply 220-240 V ~ 50/60 Hz
Power 75 W
Water injection rate 4 L

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SAFETY INSTRUCTIONS

• Connect to a main power supplier of 220-240V\~50 Hz only.
• Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage.
• Do not place the cord under carpets. Do not cover the cord with small clothes, shirts or other similar elements. Place the cord away from traffic areas in order to avoid any risk of tripping over.
• Do not operate the appliance if the cable or plug damaged.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Indoor use only.
• Do not cover the machine during using.
  • Always operate on a stable flat horizontal surface.
• Ensure the appliance is switched OFF before connecting to the mains power supply.
• Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and mains supply connections.
• Do not leave this appliance unattended when it's in use. Turn off and disconnect the appliance when you leave the room for an extended period.
• Switch off the appliance and unplug from the mains socket when not in use, before filling, cleaning or other maintain.
• To disconnect the appliance, switch it "OFF", and then remove the plug from outlet. Do not pull the cord to disconnect the plug.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Use the appliance only as described in this manual.
• Do not insert your fingers in the openings of the guard.
• Do not leave hair, tissue, tablecloths, clothes or curtains near all openings of the fan, they could be sucked into the fan and be taken within the internal moving parts that could cause injury or damage.

• Do not use the appliance in wet or damp locations such as bathrooms.

• Do not operate the appliance when it's not mounted on its wheels or if it's lying on the side.

• Make sure the cord is completely extended before use.
• Place the appliance on a flat horizontal surface. It must not be at an incline during use.
• When in operation, evaporative coolers moisturize the ambient air. Over-humidification of residential rooms should be avoided. Recommendation: 40–50 % relative humidity. (Excessive humidity of the air can damage the home and cause health problems.)
• The appliance may only be set up on water- and moisture-proof flooring materials (spilling some drops of water is unavoidable when the content of the tank is changed).
• With each and every change of tank content, completely remove residual water from the equipment. To prevent nucleation, remove residual water from the equipment and water tank every time after three days of use.

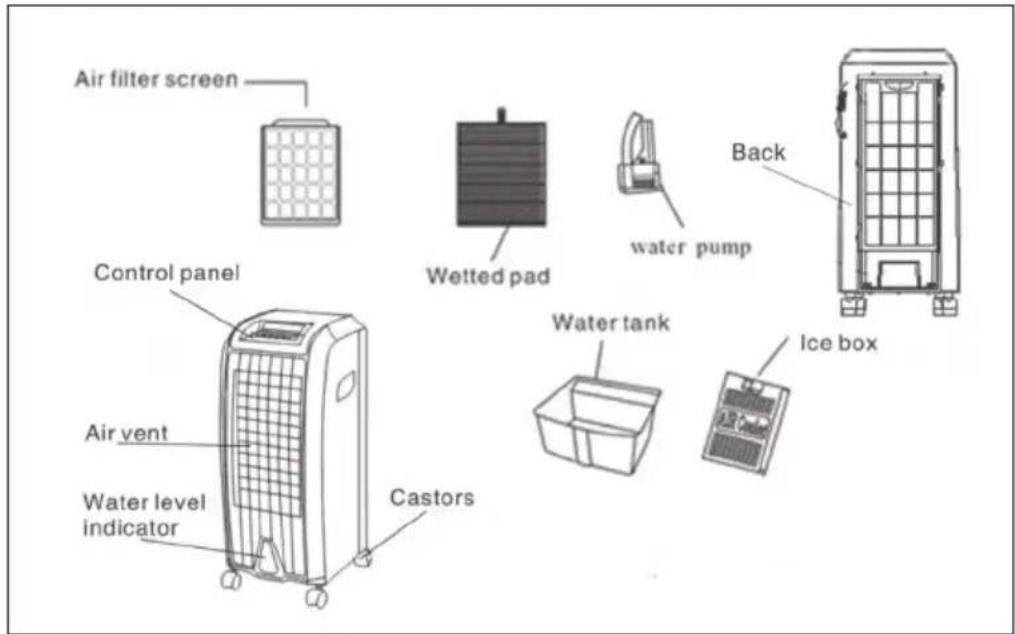

PRODUCT DESCRIPTION

Air filter screen Control panel Wetted pad Back water pump Water tank Ice box Air vent Castors Water level indicator

BEFORE FIRST USE

Assembling castors: put the appliance on a flat surface, take out the wrench from foam box, then assemble the castors.

Watering: pull 1/3 water tank, then add clean water. Pay attention to the level of water tank when add water. The level of water tank should not over “MAX” scale at any time, when humidifying, the total level of water tank should not below “MIN” scale.

Ice box: Put ice or frozen ice box to the water tank if you want to strengthen the efficiency of cooling. But the total level of water tank should not over "MAX" scale.

USE AND OPERATION

Controls

0 on control panel: Press the key, turn on the appliance, second press, shut it down.

1/2/3: press this key, start the appliance, the corresponding function changes as follows when you press the key serially: 1 > 2 > 3 > 1.

Swing: press this key, the wind direction can swing flatly, and the swing indicator light is on. It cancels this function when you press again. NOTE: You also can swing the blades transversely by your hands, choose the wind direction up and down.

Cool: press the key to start cooling system. It cancels this function when you press again. IMPORTANT: Please be sure there is enough water in the water tank before press this key. DO NOT PRESS THE KEY "COOL" WITHOUT OF WATER!

The Use of Ice Box

• Add water to the ice box (not full) and put it into the refrigerator to make sure that it iced absolutely.
• Open the door, put the frozen ice box into the water tank.
  • There have two ice boxes, can be used circularly.

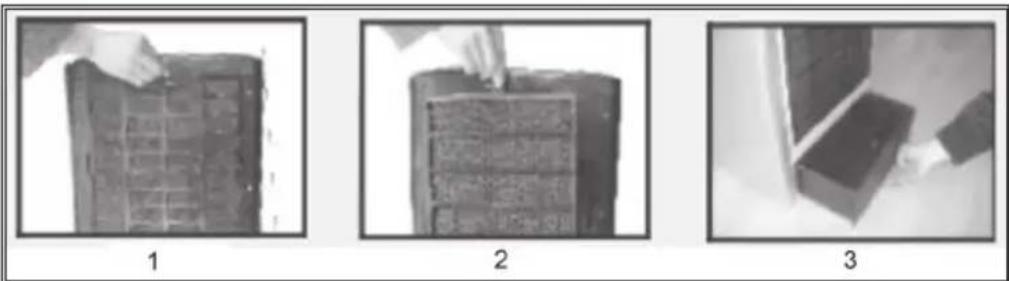

CLEANING AND CARE

Ensure that the fan is switched off from the supply mains before removing the air filter screen.

Clean the air filter screen: Cut off the power supply, pull the handle of air filter screen, remove it from appliance. Clean the air filter screen with neutral detergent and banister brush, then clean it with clear water. Finally, reinstall to the appliance.

Clean the wetted pad: Cut off the power supply, take down the air filter screen, then draw the wetted pad from support. Clean the wetted pad with neutral detergent and banister brush, then clean it with clear water. Finally, reinstall to the appliance. Attention: the wetted pad must be installed horizontally, in order to aviod leaking.

Clean the water tank: Cut off the power supply, open the door, take out the water tank, clean it with neutral detergent, and wash it with clear water, then reinstall to the appliance.

Clean the shell: Clean with neutral detergent and soft cloth. Attention: cut off the power supply when clean the appliance as there have a high pressure in the body. Do not leave any water on the surface of control panel.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
