äußeren Abmessung größer als 25cm sind, im Einzel- handelsgeschäft oder in unmittelbarer Nähe hierzu un- entgeltlich zurückzunehmen; die Rücknahme darf nicht an den Kauf eines Elektro- oder Elektronikgerätes ge- knüpft werden und ist auf drei Altgeräte pro Geräteart beschränkt. Der Vertreiber hat beim Abschluss des Kaufvertrags für das neue Elektro- oder Elektronikgerät den Endnutzer über die Möglichkeit zur unentgeltlichen Rückgabe bzw. Abholung des Altgeräts zu informieren und den Endnutzer nach seiner Absicht zu befragen, ob bei der Auslieferung des neuen Ge- räts ein Altgerät zurückgegeben wird. Dies gilt auch bei Vertrieb unter Verwendung von Fernkom- munikationsmitteln, wenn die Lager- und Versandflächen für Elektro- und Elektronikgeräte mindestens 400m² betragen oder die gesamten Lager- und Versandflächen mindestens 800m² betragen, wobei die unentgeltliche Abholung auf Elektro- und Elektronikgeräte der Kategorien 1 (Wärmeüber- träger), 2 (Bildschirmgeräte) und 4 (Großgeräte mit mindes- tens einer äußeren Abmessung über 50cm) beschränkt ist. Für alle übrigen Elektro- und Elektronikgeräte muss der Ver- treiber geeignete Rückgabemöglichkeiten in zumutbarer Ent- fernung zum jeweiligen Endnutzer gewährleisten; das gilt auch für Altgeräte, die in keiner äußeren Abmessung größer als 25cm sind, die der Endnutzer zurückgeben will, ohne ein neues Gerät zu kaufen. Akkus/Batterien: Li-Ion: Bitte beachten Sie die Hinweise im Abschnitt Transport (sie- he „Transport“, Seite13). English Safety Instructions General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Bosch Power Tools 1 609 92A 8AJ | (24.10.2022)14 | English Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. u Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. u If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. u Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. 1 609 92A 8AJ | (24.10.2022) Bosch Power ToolsEnglish | 15 Battery tool use and care u Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of bat- tery pack may create a risk of fire when used with another battery pack. u Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. u When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. u Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Safety information for screwdrivers Safety instructions for all operations u Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting ac- cessory or fasteners may contact hidden wiring. Cut- ting accessory or fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Safety instructions when using long drill bits u Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contact- ing the workpiece, resulting in personal injury. u Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contact- ing the workpiece, resulting in personal injury. u Apply pressure only in direct line with the bit and do not apply excessive pressure.Bits can bend causing breakage or loss of control, resulting in personal injury. Additional safety information u Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. u Always wait until the power tool has come to a com- plete stop before placing it down. The application tool can jam and cause you to lose control of the power tool. u Switch the power tool off immediately if the applica- tion tool becomes blocked. Be prepared for high torque reactions which cause kickback. The applica- tion tool becomes blocked when it becomes jammed in the workpiece or when the power tool becomes over- loaded. u Use suitable detectors to determine if there are hid- den supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to ex- plosion. Breaking water pipes causes property damage. u Hold the power tool securely. When tightening and loosening screws be prepared for temporarily high torque reactions. u In case of damage and improper use of the battery, va- pours may be emitted. The battery can set alight or ex- plode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. u Do not open the battery. There is a risk of short-circuit- ing. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Only use the battery with products from the manufac- turer. This is the only way in which you can protect the battery against dangerous overload. Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting. u Caution! When using the power tool with Bluetooth

, a fault may occur in other devices and systems, aero- planes and medical devices (e.g. pacemakers, hearing aids). Also, damage to people and animals in the im- mediate vicinity cannot be completely excluded. Do not use the power tool with Bluetooth

in the vicinity of medical devices, petrol stations, chemical plants, areas with a potentially explosive atmosphere or in blasting areas. Do not use the power tool with Bluetooth

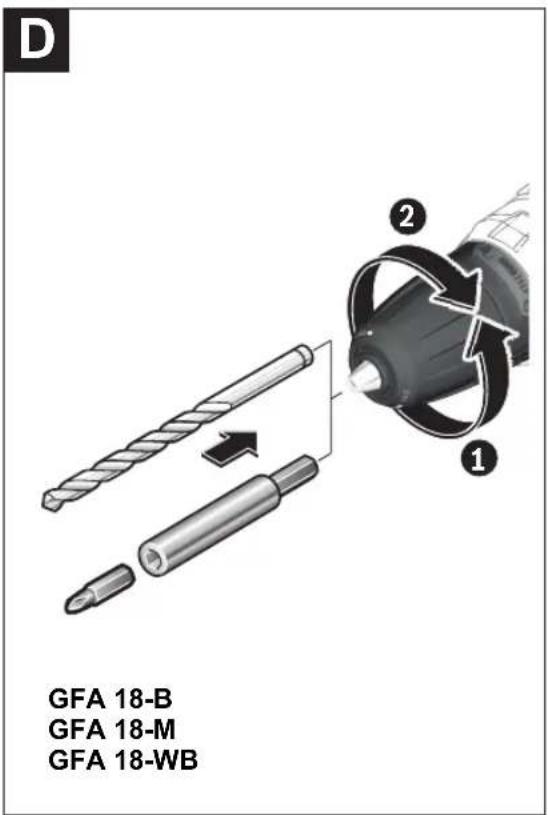

in aircraft. Avoid using the product near your body for extended periods. Bosch Power Tools 1 609 92A 8AJ | (24.10.2022)16 | English The Bluetooth® word mark and logos are registered trade- marks owned by Bluetooth SIG, Inc. and any use of such marks by Robert Bosch Power Tools GmbH is under li- cense. Product Description and Specifications Read all the safety and general instructions. Failure to observe the safety and general in- structions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this oper- ating manual. Intended use The power tool is intended for driving and loosening screws and for drilling in wood, metal and plastic. The power tool can be used with an angle screw drill chuck adapter (GFA 18-W or GFA 18-WB), an off-set angle adapter (GFA 18-E), a drill chuck adapter (GFA 18-B) or a metal drill chuck adapter (GFA 18-M). With the Bluetooth

Low Energy Module GCY30-4 / GCY 42 inserted, power tool data and settings can be transferred between the power tool and a mobile device by means of Bluetooth

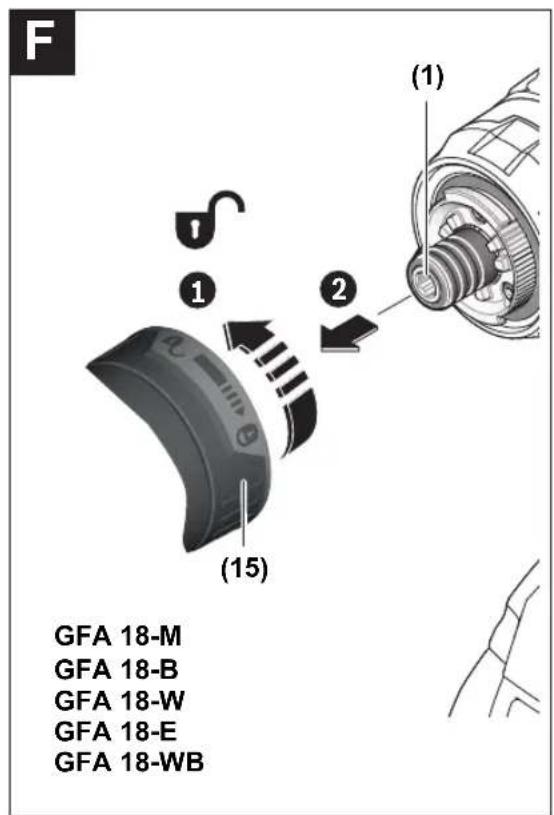

wireless technology. Product Features The numbering of the product features refers to the diagram of the power tool on the graphics page. (1) Holder (2) Locking sleeve (3) Torque presetting ring (4) Gear selector switch (5) Cover for GCY 30-4 Bluetooth® Low Energy Module (6) Battery

(7) Battery release button

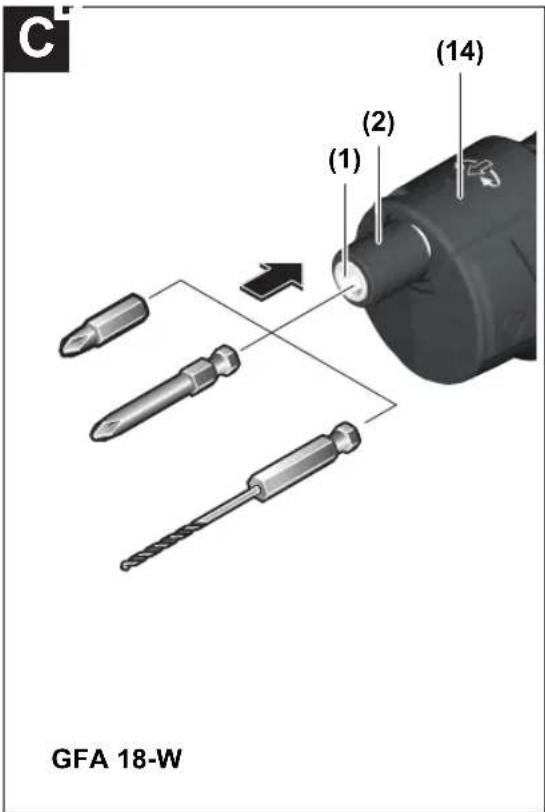

(13) Angle screw drill chuck adapter GFA 18-W

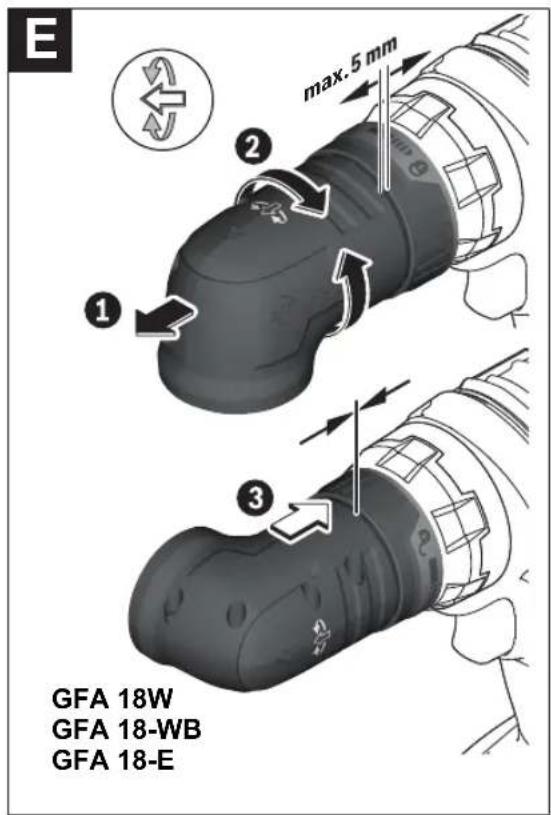

(14) Off-set angle adapter GFA 18-E

(15) Angle screw drill chuck adapter GFA 18-WB

(16) Locking ring (17) Handle (insulated gripping surface)

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Cordless Drill/Driver GSR 18V-60 FC GFA 18-M GFA 18-B GFA 18-W GFA 18-E GFA 18-WB Article number 3 601 JG7 100

Rated voltage V= 18 – – – – – No-load speed

0–600 – – – – – – Second gear min

0–1900 – – – – – Torque, hard/soft screwdriving applica- tion based on ISO 5393 (2017)

Nm 60/31 – – – – – Max. drilling diameter – Wood mm 38 – – – – – – Steel mm 13 – – – – – Max. screw diameter mm 10 Tool holder 6.35 (¼") 1.5–13 1.5–13 6.35 (¼") 6.35 (¼") 1.5–13 Weight according to EPTA-Proced- ure01:2014 kg 1.3–2.3

Recommended ambi- ent temperature dur- ing charging °C 0 to +35 Permitted ambient temperature during °C –20 to +50 1 609 92A 8AJ | (24.10.2022) Bosch Power ToolsEnglish | 17 Cordless Drill/Driver GSR 18V-60 FC GFA 18-M GFA 18-B GFA 18-W GFA 18-E GFA 18-WB operation and during storage Recommended re- chargeable batteries GBA 18V... ProCORE18V...

Measured at 20–25°C with rechargeable battery GBA 18V 5.0Ah.

Measured withGBA 18V 1.5Ah andGBA 18V 12.0Ah. Noise/Vibration Information GSR 18V-60 FC GFA 18-M GFA 18-B GFA 18-W GFA 18-E GFA 18-WB Noise emission values determined according to EN62841-2-1 for GFA 18-M, GFA 18-B, GFA 18-WB. Noise emission values determined according to EN62841-2-2 for GSR 18V-60 FC, GFA 18-W, GFA 18-E. Typically, the A-weighted noise level of the power tool is Sound pressure level Sound power level Uncertainty K Wear hearing pro- tection! dB(A) dB(A)

(triax vector sum) and uncertainty K determined according to EN62841-2-1 for GFA 18-M GFA 18- B, GFA 18-WB: Vibration total values a

(triax vector sum) and uncertaintyK determined according to EN62841-2-2 for GSR 18V-60 FC GFA 18-W, GFA 18-E: Drilling into metal:

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ap- plication tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly. Assembly u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. Inserting the Bluetooth® Low Energy Module GCY30-4 / GCY 42 (Accessory) Read the corresponding operating instructions for informa- tion about the Bluetooth® Low Energy ModuleGCY30-4 / GCY 42. Bosch Power Tools 1 609 92A 8AJ | (24.10.2022)18 | English Charging the Battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery. The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool no longer rotates. u Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged. Follow the instructions on correct disposal. Removing the Battery The battery (6) is equipped with two locking levels to pre- vent the battery from falling out when pushing the battery re- lease button (7) unintentionally. As long as the battery is in- serted in the power tool, it is held in position by means of a spring. To remove the battery (6), press the release button (7) and pull the battery out of the power tool. Do not use force to do this. Battery charge indicator The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation. Press the button for the battery charge indicator or to show the state of charge. This is also possible when the bat- tery is removed. If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced. Battery model GBA 18V... LEDs Capacity 3× continuous green light 60−100% 2× continuous green light 30−60% 1× continuous green light 5−30% 1× flashing green light 0−5% Battery model ProCORE18V... LEDs Capacity 5× continuous green light 80−100% 4× continuous green light 60−80% 3× continuous green light 40−60% 2× continuous green light 20−40% 1× continuous green light 5−20% 1× flashing green light 0−5% Changing the Tool Inserting the application tool (seefigure A) Push the locking sleeve (2) back and insert the application tool by turning it into the holder (1). Release the locking sleeve (2) to lock the application tool. Removing the application tool Push the locking sleeve (2) back and pull the application tool out of the holder.(1). Fitting the adapter (see figure B) Remove the application tool. Insert the adapter into the holder (1). Turn the locking ring (16) until it audibly clicks into place. Inserting the application tool into the adapter GFA18-E/GFA18-W (see figure C): Push the locking sleeve (2) back and insert the application tool by turning it into the holder (1). Release the locking sleeve (2) to lock the application tool. GFA 18-M/GFA 18-B/GFA 18-WB (see figure D): Open the drill chuck adapter by turning it in the direction of rotation ❶ until the application tool can be inserted. Insert the application tool. Firmly tighten the sleeve of the drill chuck adapter by turning it by hand in the direction of rotation ❷. This will automatic- ally lock the drill chuck. Turning the adapter (see figure E) Pull the locked adapter approx. 5mm away from the power tool. Turn the adapter to the required position and then let it go. Removing the adapter (see figure F) Remove the application tool. Unlock the adapter in direction and pull it off the holder (1). Dust/Chip Extraction Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. 1 609 92A 8AJ | (24.10.2022) Bosch Power ToolsEnglish | 19 Certain dust, such as oak or beech dust, is considered carci- nogenic, especially in connection with wood-treatment ad- ditives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the ma- terials to be worked. u Avoid dust accumulation at the workplace. Dust can easily ignite. Operation Starting Operation Inserting the battery Note: The use of batteries unsuitable for your power tool can lead to malfunctions or damage to the power tool. Set the rotational direction switch (9) to the middle position to avoid unintentionally switching it on. Insert the charged battery (6) into the handle until you feel it engage and it is flush with the handle. Setting the rotational direction (see figureG) u Only operate the rotational direction switch (9) when the power tool is not in use. The rotational direction switch (9) is used to change the ro- tational direction of the power tool. However, this is not pos- sible while the on/off switch (10) is being pressed. Right rotation: To drill and to drive in screws, press the ro- tational direction switch (9) through to the left stop. Left Rotation: To loosen and unscrew screws and nuts, press the rotational direction switch (9) through to the right stop. Preselecting the Torque The torque presetting ring (3) can be used to preselect the required torque in 15 stages. When the correct setting is used, the application tool will be stopped when the screw is driven flush into the material or once the set torque has been reached. In position the overload clutch is deactivated, e.g. for drilling. When unscrewing screws, it may be advisable to select a higher setting or the symbol. Mechanical gear selection u Only operate the gear selector (4) when the power tool is not in use. You can preselect two speed ranges with the gear selector (4). First gear: Low speed range; for working with a large drilling diameter or for screwdriving. Second gear: High speed range; for working with a small drilling diameter. u Always push the gear selector switch as far as it will go. Otherwise, the power tool may become damaged. Switching on/off To start the power tool, press and hold the on/off switch (10). The worklight (8) lights up when the on/off switch (10) is lightly or fully pressed, allowing the work area to be illumin- ated in poor lighting conditions. The worklight (8) will remain lit for approximately ten seconds after the on/off switch (10) has been released. Adjusting the speed You can adjust the speed of the power tool when it is on by pressing in the on/off switch (10) to varying extents. A light pressure on the on/off switch (10) results in a low ro- tational speed. Increased pressure on the switch causes an increase in speed. Fully automatic spindle lock (Auto-Lock) The drill spindle, and therefore the holder (1), are locked when the on/off switch (10) is not pressed. This enables screws to be screwed in even when the battery is empty and allows the power tool to be used as a screw- driver. Temperature-dependent overload protection In normal conditions of use, the power tool cannot be over- loaded. If the power tool is overloaded or not kept within the permitted battery temperature range, the power output is reduced or the power tool is switched off. The power tool will not run at full power output again until the permitted bat- tery temperature has been reached. Connectivity functions In conjunction with the Bluetooth® Low Energy Module GCY30-4 / GCY 42, the following connectivity functions are available for the power tool: – Registration and personalisation – Status check, output of warning messages – General information and settings – Management Read the corresponding operating instructions for informa- tion about the Bluetooth® Low Energy ModuleGCY30-4 / GCY 42. Practical advice u With the GCY 30-4 Bluetooth

www.bosch-pt.com/serviceaddresses

0–600 – – – – – – 2단 min

www.bosch-pt.com/serviceaddresses

1 609 92A 8AJ | (24.10.2022) Bosch Power Tools| 247 1 600 A01 3P6 (GFA 18-M) 1 600 A02 EP6 (GFA 18-WM) 1 600 A00 1SJ (GFA 18-E) 1 600 A01 3P7 (GFA 18-W) 1 600 A00 1SL (GFA 18-B) Bosch Power Tools 1 609 92A 8AJ | (24.10.2022)248 | Licenses Copyright © 2009–2020 ARM LIMITED All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. – Neither the name of ARM nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMI- TED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER- RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN- CLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright © 2012–2020 STMicroelectronics All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. – Neither the name of STMicroelectronics nor the names of its contributors may be used to endorse or promote products de- rived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMI- TED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER- RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN- CLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. 1 609 92A 8AJ | (24.10.2022) Bosch Power ToolsI

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Cordless Drill/ Driver Article number

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations lis- ted below and are in conformity with the following standards. Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom The Supply of Machinery (Safety) Regulations 2008 The Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 EN 62841-1:2015 EN 62841-2-1:2018+A11:2019 EN 62841-2-2:2014

EN IEC 63000:2018 Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom Vonjy Rajakoba Managing Director - Bosch UK Martin Sibley Head of Sales Operations and Aftersales Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany Place of issue: Uxbridge Date of issue: 06/09/2022 Bosch Power Tools 1 609 92A 8AJ | (24.10.2022)
