Product type	Inverter generator
Brand	Güde
Model	ISG 1200 ECO
Rated voltage	1 x 230 V ~ 50 Hz
Rated current	4 A / AC
Continuous power	1000 W / 1000 VA
Rated power	1200 W / 1200 VA
Performance class	G1
Power factor	1.0
Engine type	Single-cylinder 4-stroke
Displacement	53.5 cm³
Engine power	1.5 kW / 2.0 HP
Rated speed	4000-5200 rpm
Tank capacity (Gasoline)	4.2 L
Consumption at half load	0.74 L/h
Engine oil capacity	0.26 L (recommended 10W-40)
Weight	12 kg
Dimensions (L x W x H)	320 x 350 x 365 mm
Protection rating	IP 23 M
Sound pressure level L_PA	74.39 dB(A)
Guaranteed sound power level L_WA	95 dB(A)
Inverter technology	Yes, stabilized voltage 50 Hz
Overload protection	Yes, resettable circuit breaker
Low oil level protection	Yes, automatic shutdown
Eco function	Yes, automatic RPM adjustment
12 V output	Yes, battery charging function
Warranty	24 months for end consumer

Frequently Asked Questions - ISG 1200 ECO Güde

How to start the ISG 1200 ECO generator?

Check the oil and fuel levels. Open the fuel valve, set the on/off switch to ON, engage the choke if the engine is cold, then pull the starter cord firmly. After starting, gradually push back the choke.

What to do if the engine does not start?

Check that the fuel valve and switch are ON, that there is enough fuel and oil. If the oil indicator is lit, top up the oil. Clean or replace the spark plug (gap 0.6-0.8 mm) and make sure the unit is on a level surface.

What type of engine oil to use?

Use a quality 10W-40 engine oil. The required oil volume is 0.26 L. Check the level before each use and change the oil after the first 50 hours of operation, then regularly.

How to connect an electrical device?

Make sure the device power does not exceed the generator's rated power (1200 W). Connect the device only when the generator is running at full speed. Disconnect before stopping the generator. Never connect a second device if one is already connected to avoid damage.

What is the fuel consumption?

Consumption at half load is approximately 0.74 L/h. The tank has a capacity of 4.2 L of unleaded gasoline. Use the Eco function to reduce consumption when full power is not needed.

Can I use the generator indoors?

No, it is very dangerous. Exhaust gases contain toxic carbon monoxide. Always use the generator outdoors in a well-ventilated area, at least 5 meters from doors and windows. Never use it in a confined space.

How to clean the air filter?

Unscrew the filter cover, remove the filter element. Clean it with soapy water, rinse and dry completely. If heavily soiled, replace it. Never use gasoline or flammable solvents.

What does the oil control indicator mean?

The indicator lights up when the oil level is too low to start. It prevents starting to protect the engine. Check the oil level and top up if necessary with 10W-40 oil. If the indicator stays on after filling, contact customer service.

How to transport the generator?

Empty the fuel tank and oil before transport. Use the transport handle. Ensure the unit is securely fastened so it does not slip or tip over. Never transport the unit while it is running.

What is the warranty of the ISG 1200 ECO?

The warranty is 24 months for the end consumer (12 months for professional use). It covers material and manufacturing defects. For any claim, attach the original purchase receipt and contact Güde service. The warranty does not cover normal wear, overload or damage caused by improper use.

USER MANUAL ISG 1200 ECO Güde

EN Translation of the original instructions

ENGLISH Please read the instructions carefully before starting the machine.

1

2

Collection of cleaning tools including screwdriver, tool holder, and spray bottle (no text or symbols visible)

DE	Montage	PL	Uruchomienie
EN	Assembly	ES	Puesta en marcha
FR	Montage
IT	Montaggio
NL	Montage
CZ	Montáž
SK	Montáž
HU	Szerelés

DE	Ölstand kontrollieren	PL	Sprawdź poziom oleju
EN	Oil level inspection	ES	Comprobar el nivel de aceite
FR	Contrôle du niveau d'huile
IT	Controllo livello d'olio
NL	Oliepeil controleren
CZ	Kontrola stavu oleje
SK	Kontrola stavu oleja
HU	Olajszint ellenőrzése

DE	Betrieb	PL	Eksploatacja
EN	Operation	ES	Funcionamiento
FR	Fonctionnement
IT	Esercizio
NL	Gebruik
CZ	Provoz
SK	Prevádzka
HU	Üzemeltetés

DE	Reinigung / Wartung	PL	Czyszczenie / Konserwacja
EN	Cleaning / Maintenance	ES	Limpieza/mantenimiento
FR	Nettoyage / Entretien
IT	Pulizia / Manutenzione
NL	Schoonmaken / Onderhoud
CZ	Čištění / Údržba
SK	Čistenie / Údrzba
HU	Tisztítás / Karbantartás

DE	Transport / Lagerung	PL	Transport / przechowywanie
EN	transport / storage	ES	Transporte/almacenamiento
FR	Transport / Stockage
IT	Trasporto / Stoccaggio
NL	Transport / Bewaring
CZ	Přeprava / Uložení
SK	Transport / Uloženie
HU	Szállítás / Tárolás

2

Warning symbol with exclamation mark, mechanical device, and open book (no text or labels)

2

10W-40

1

2

Blue and black portable electricity cooker with a downward arrow indicating airflow or change (no text or symbols visible)

3

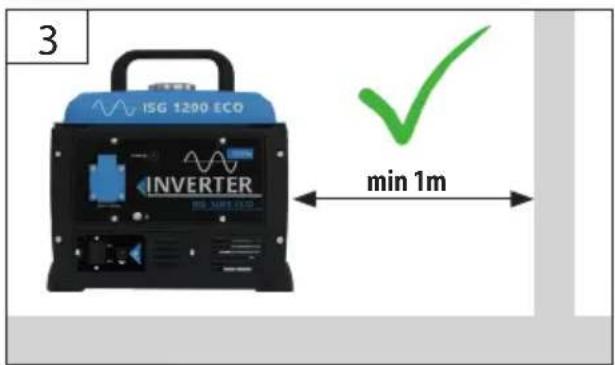

Exterior view of a blue industrial electrical unit with black casing and ventilation grille (no visible text or symbols)

Close-up of a mechanical component with a pointed tip, no visible text or symbols

2

EN To ensure quality, every piece of equipment is subject to a test operation and filled with motor oil. Oil is drained before transport; however, there can be some motor oil remains on the dip stick. Please check carefully the oil level and add motor oil again.→ 3 - 4

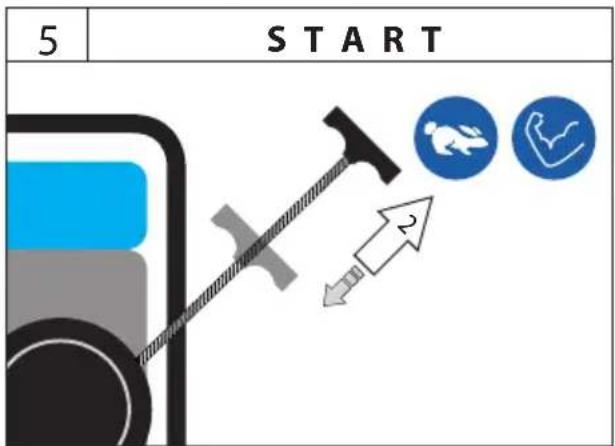

START

3

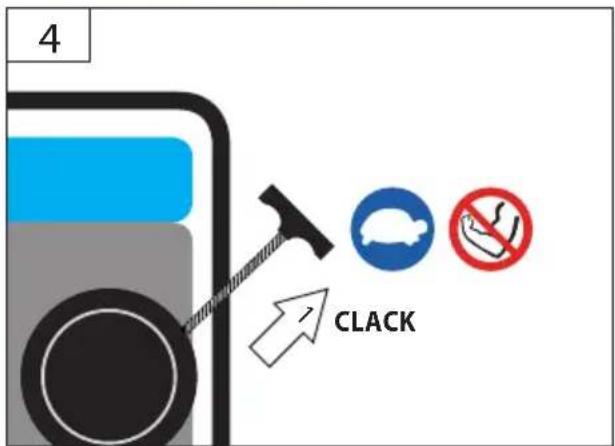

4

Front view of a blue industrial electrical device with control panel and indicator lights (no visible text or symbols)

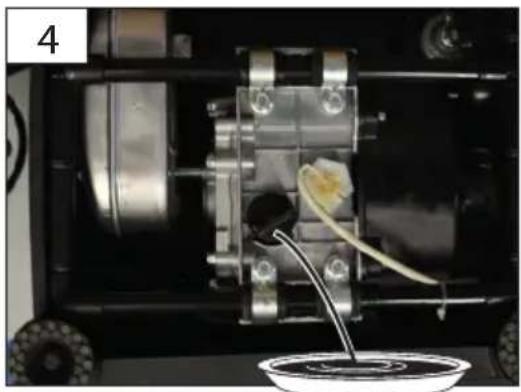

Mechanical assembly diagram showing a motor, gears, and a bowl with wires (no text or symbols visible)

Interior view of a mechanical device with visible components and wiring, labeled '10W-40' (no readable text or symbols beyond label)

4

Mechanical assembly with a lock icon and directional arrow, no visible text or symbols

4

4

Diagram of a cylindrical object with an upward arrow rising above a blue liquid surface, labeled '2' in the top-left corner (no text or symbols on the object itself)

Simple diagram showing a container with liquid and a downward arrow, no text or symbols present

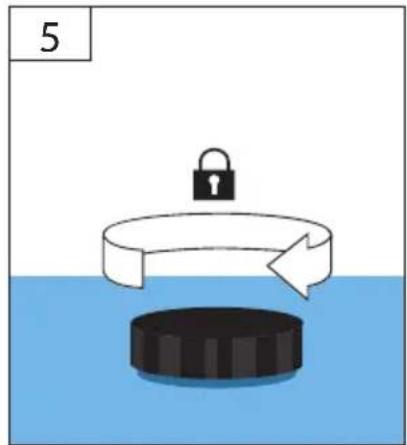

Simple diagram showing a lock placed on a curved ramp above a circular object, with no text or symbols present.

5

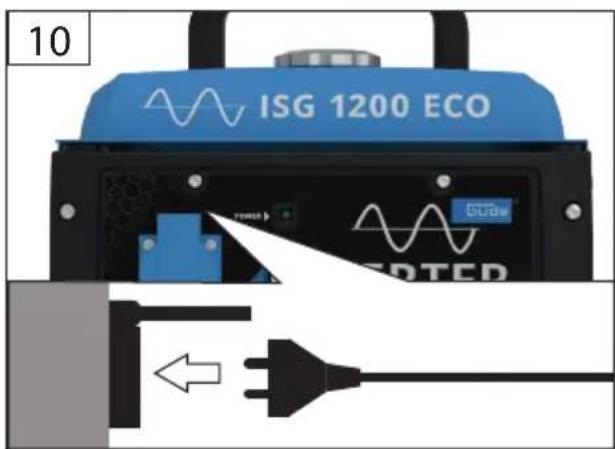

Diagram of a mechanical or electrical component with a curved cable and arrow indicating direction (no text or symbols)

Technische Daten

Service connection....1 x 230 V \~ 50 Hz

Rated current....4 A / AC

stant power 1000 W / 1000 VA

Rated power....1200 W / 1200 VA

Power class....G1

Power factor....1,0

Contents....53,5 ccm

Engine type 1-cylinder 4-stroke

Motor output....1,5 kW / 2,0 PS

Rated speed 4000-5200 min ^-1

tank capacity (Petrol)....4,2 l

Consumption at half load 0,74 l/h

Oil amount....0,26 l

Weight....12 kg

Dimensions L x B x H.....320 x 350 x 365 mm

Degree of protection IP 23 M

Noise and Vibration Information

Sound pressure level L_PA 74,39 dB (A)

Uncertainty K = 1,07 dB (A)

Measured sound power level

Guaranteed sound power level

Measured according to ^1) 2000/14/EG

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.

Children must be supervised in order not to play with the machine.

Specified Conditions Of Use

This power unit has solely been designed for the operation of electrical equipment with a maximum power within the power unit performance data.

Higher starting current of induction appliances must be considered.

The unit has been designed for operation of common effective and induction appliances such as light chains, electric hand tools (drills, electric chain saws, compressors).

Inverter

The rotor generates a 3-phase AC voltage of up to 500 Hertz depending on rotation speed. The inverter then converts this to 50 Hertz AC. This achieves a very high quality electrical waveform with minimal distortion and optimum voltage stability. A clean sine wave and minimal power fluctuations means it can also be used to operate electrically controlled consumers.

When connected to a stationary device such heating, electrical power, air conditioning equipment or for the supply of mobile homes, it is necessary to contact a professional electrician and heating manufacturer as far as connection and grounding is concerned.

Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Protective equipment „Protective separation with potential balancing“ is provided and integrated by the producer.

Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability.

The machine may only be used in a technically perfect condition and taking into account all safety information.

Connection, installation and operation

Caution: Before using the product it is essential to check whether the appliance is suitable to be operated with the unit. Specifications of the appliance must always match the details and safety instructions of the unit.

Do not connect the appliance before the unit is running at full speed. Disconnect the appliance before turning the unit off.

Never connect another appliance when there is one being operated. This would inevitably lead to fluctuations able to destroy electronically controlled equipment.

The electric energy consumption is the critical point of an induction appliance ehen starting. Electric energy consumption can be 3-5 times higher than the rated power that must necessarily be considered.

Residual risks

Even when the device is used properly and all safety

regulations are complied with, there still may be some residual risks.

Risk of fire!

Never operate the unit near highly flammable materials.

Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

After use, let the unit cool down for at least 10 minutes before refuelling.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated..

Replace all fuel tank and container caps securely.

Fuel tank to be emptied outdoors only.

Risk of poisoning!

Exhaust gases, fuel and lubricants are toxic. Inhaling exhaust gases may be fatal!

Do not operate the unit in closed spaces where dangerous carbon monoxide gases may accumulate.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Contacting hot parts of the unit may cause burns. Do not touch any hot parts, e.g. engine and muffler. Let the unit cool down after its operation is over.

Risk of explosion!!

Petrol and petrol vapours are highly flammable, explosive.

Do not work with the unit in an environment with a risk of explosion where there are flammable liquids, gases or dust.

Refuel the engine only when switched off.

Do not store any fuel near the unit.

Never keep the unit with petrol in the tank inside a building where petrol vapours could get in contact with open fire or sparks.

Risk of electric shock.

Direct electrical contact may cause electric shock. Never touch the unit with wet hands.

Provide adequate grounding.

Hearing damage

A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2.

Accident type, 3. Number of injured persons, 4. Injury type(s)

General safety information

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Keep children and bystanders away while operating a power tool. Minimum safe distance is 5 m.

Wear personal protective equipment.

Fuel is highly flammable. Refuel the engine only when switched off. The appliance may only be refuelled outdoors and not near open fire or burning cigarettes. Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated..

Oil products must not come into contact with skin, eyes and clothing.

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler. Contacting hot parts of the unit may cause burns. Pay attention to the warnings on the advice.

Exhaust gases, fuel and lubricants are toxic. Do not operate the unit in closed spaces where dangerours carbon monoxide gases may accumulate.

When operating the generator in rooms with good ventilation, the exhaust gases must be channeled directly outdoors through an exhaust hose.

WARNING! Toxic exhaust gases can escape despite the exhaust hose. Due to the fire hazard, never direct the exhaust hose towards inflammable materials.

No change can be made in respect of engine and unit setting.

It is strictly prohibited to disassemble, modify and purposely remove the protective equipment on unit and fit other protective equipment instead.

The appliance must not be used if damaged or not yet equipment is defective. Replace any burn-out and damaged parts.

Electrical safety

Electric supply cables and connected equipment must be in perfect condition.

Do not connect the unit with other energy sources.

Do not connect the unit to home network.

Protection against electrical shock depends on circuit breakers specially matched to the generating set. If the circuit breakers require replacement they must be replaced with a circuit breaker having identical ratings and performance characteristics.

Due to high mechanical stresses only tough rubber-sheathed flexible cable (in accordance with IEC 245-4) or the equivalent should be used.

Extension cables (H07RN...) approved to be used outdoors and properly marked to be used outdoors only. Provide adequate grounding.

When using extension cables, their total length may not exceed 50 m in respect of 1.5 mm2 and 100 m in respect of 2.5 mm2.

Before start-up

Safe operation requires sufficient operator knowledge of the functions and positions of the controls and indicators or meters. Pay attention to the illustrated pages in the front section of the manual.

The appliance should only be used when in a perfect state. Carry out a visual inspection before switching the appliance on. Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately. Replace any damaged parts before the appliance is put into operation if necessary.

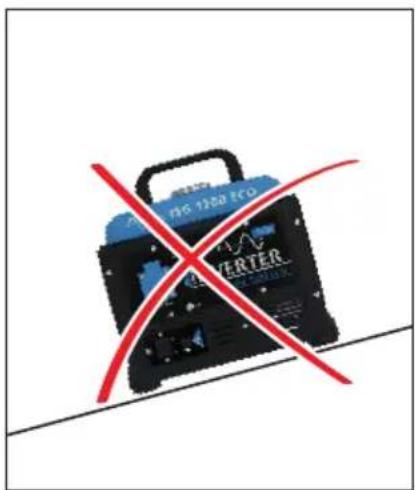

The unit may only be operated in the operating position (flat surface) as fuel or oil may leak or lubrication will no longer be provided.

Starting the engine

The unit is protected against low oil level. When the oil level is too low, the unit cannot be started (oil indicator turns on in case of attempted starting).

WARNING: When starting with the reserve starter, the motor may recoil suddenly as it starts up, resulting in hand injuries. Wear protective gloves when starting the equipment.

Operation

Generating sets may only be loaded up to their rated power under the rated ambient conditions.

The equipment must not get exposed to moisture or dust. The allowed ambient temperature is from -10°C to +40°C, height: 1,000 m above the sea level, relative air humidity: 90% (non-condensing)

engine protection

The generator is fitted with an overload cut-out. This isolates the relevant sockets if an overload occurs. Important. If this happens, reduce the electric power you are taking from the generator or remove any defective connected appliances.

Always place the unit on a firm and flat surface! No turning or tilting or moving during operation.

The unit must never be uncovered.

Turn the unit immediately off in the following cases:

• When the engine is running restlessly or unstably
• When the electrical power output has decreased
• When the connected appliance gets overheated
  • Excessive vibrations of the unit
• Sparking
• When there is smoke or fire
  • Abnormal vibrations or noise
• When the engine seems to be overloaded or is about to fail

Eco throttle valve

ECO: The engine speed will automatically adapt to idle speed when the electric appliance is disconnected. If the electric appliance is reconnected, the engine reassumes speed corresponding to the load. If full output of the generator is not required, the engine speed will automatically reduce. This position is recommended for fuel consumption reduction.

OFF: The engine speed is kept at a higher level than the nominal speed.

The Eco throttle valve switch must be put to the OFF position under DC operation.

12 V Charging

Also pay attention to the instructions and information provided by the battery and vehicle manufacturer.

Danger of short circuit! Make sure that the two clips of the pole connecting cables do not touch or are connected by a conductive object, such as a tool.

Never hold both clips at the same time when the device is running.

Transport and storage

Secure the device against shifting and toppling during transport.

Take care to prevent from fuel and oil leakage during transport. Handling equipment to be used only when handling the machine.

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Symbols

Caution!

Warning against hot surfaces!

Danger of burns!

Warning against dangerous electric voltage

Observe to keep out of dangerous zone

Read the operating instructions to reduce the risk of injury.

Wear ear protectors!

Slow

Quickly

Use of crane

Do not press too much

Switch off the engine before any work on it.

Provide adequate grounding when connected to the building's electrical system.

Risk of explosion! Refuel the engine only when switched off.

Risk of poisoning! Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Keep dry at all times. Never expose tool to rain.

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Dispose of old oil in an environmentally friendly manner. Make sure the oil products do not enter the soil.

CE marking

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until the unit has cooled down.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only. Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts. Carry out a visual inspection before switching the appliance on.

Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Inspection and maintenance plan

Repairs and works specified in these Instructions may only be performed by qualified authorised staff. Use only original accessories and original spare parts.

Regular servicing period Before any		start-up	After 1 month	After 3 months or 50 hours of operation	After 6 months	After 12 months
Engine oil(10W-40)	Inspection	√
	Change		√		√
Petrol hose Exhaust system Choke Cable starter	Inspection	√
Air filter	Clean			√
	Change			√	√
Petrol filter Clean					√
Spark plug	Inspection Clean			√

Tip: To ensure reliable operation of the electric generator, we strongly recommend using fuel additives and performing 2-3 test operations after a longer time of not using the unit. [14]

Failure removal

Failures	Causes	Removal
The motor does not start.	Closed fuel tap Make sure the fuel tap and On/Off are in the „ON" position
	Lack of fuel Add some fuel
	Weak tension on the starter Pull strongly the starting cord.
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor, add fresh petrol
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
	Little oil in the engine Add oil
	Unit is not in a horizontal position. Lack of oil being signalled	Place the unit in a horizontal position

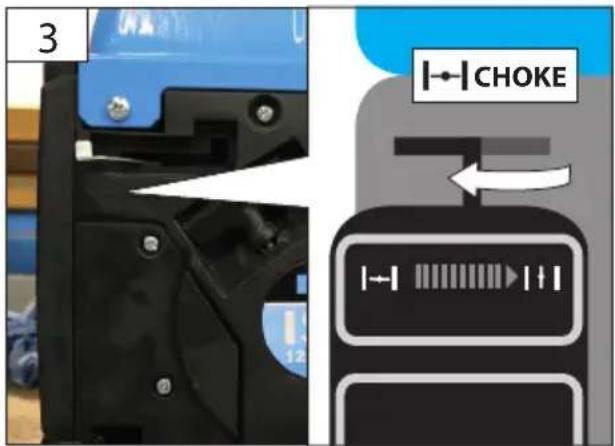

	Choke has not been used	Use the choke → 8
Engine running irregularly	Too small applianceProblem with ignition	Make sure the spark plug is fitted properly. Make sure the spark plug cable is on the spark plug. Clean the spark plug and check the electrodes if correct.
	Wrong fuel (propellant) Make sure proper fuel has been used.
Unit not producing any current.	Short circuitBroken cableLoose cable	Indicator is off:An error that you can remove yourself. Contact the GÜDE service centre.Indicator is on:Press the overloading protection for the used output.Check the cables.Check for a short circuit or overloading.
Engine stopping	The Starting current is too big.	Reduce the appliance
	Too long cable Shorten the cable

Kolísavost K =....1,07 dB (A)

Kolísavost' K =....1,07 dB (A)

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

2016/1628/EU

Emission No.: e9*2016/1628*2016/1628SHB1/P*1187*00 (V)

2000/14/EC_2005/88/EC
