| Product type | Electric chain hoist |
| Brand | Güde |
| Model | GEKZ 300 |
| Supply voltage | 230 V |
| Frequency | 50 Hz |
| Rated power | 410 W |
| Rated current | 1.70 A |
| Max. load capacity | 300 kg |
| Max. lifting height | 3 m |
| Lifting speed | 3 m/min |
| Protection degree | IP 54 |
| Chain dimension (diameter) | 5 mm |
| Chain dimension (outer width) | 16.25 mm |
| Chain dimension (inner length) | 15 mm |
| Remote control cable length | 1.85 m |
| Power cable length | 0.68 m |
| Net weight | 14.3 kg |
| Gross weight | 15.2 kg |
| Sound pressure level | < 78 dB (A) |
| Recommended use | Vertical lifting of solid loads |
| Residual current protection required | Yes (RCD) |
| Consumer warranty | 24 months |
Frequently Asked Questions - GEKZ 300 Güde
User questions about GEKZ 300 Güde
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric hoist in PDF format for free! Find your manual GEKZ 300 - Güde and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GEKZ 300 by Güde.
USER MANUAL GEKZ 300 Güde
Translation of the original instructions Electric Chain Hoist
01707
GÜDE GmbH & Co. KG
Birkichstrasse 6
74549 Wolpertshausen
Deutschland
ENGLISH Please read the instructions carefully before starting the machine.
EN Starting-up the machine
FR mise en service
IT Messa in funzione
NL Inbedrijfstelling
CZ Uvedení do provozu
SK Uvedenie do prevádzky
PL Uruchamianie
HU Üzembe helyezés
1
2-4
DE Betrieb
EN Operation
FR Fonctionnement
IT Esercizio
NL Gebruik
CZ Provoz
SK Prevádzka
PL Operacja
HU Üzemeltetés
2
5
DE Wartung
EN Maintenance
FR Entretien
IT Manutenzione
NL Onderhoud
CZ Údržba
SK Údrzba
PL Konserwacja
HU Karbantartás
3
6
EN Starting-up the machine
FR mise en service
IT Messa in funzione
NL Inbedrijfstelling
CZ Uvedení do provozu
SK Uvedenie do prevádzky
PL Uruchamianie
HU Üzembe helyezés
EN Starting-up the machine
FR mise en service
EN Starting-up the machine
FR mise en service
IT Messa in funzione
NL Inbedrijfstelling
CZ Uvedení do provozu
SK Uvedenie do prevádzky
PL Uruchamianie
HU Üzembe helyezés
EN Operation
FR Fonctionnement
IT Esercizio
NL Gebruik
CZ Provoz
SK Prevádzka
PL Operacja
HU Üzemeltetés
START
| EN | Maintenance |
| FR | Entretien |
| IT | Manutenzione |
| NL | Onderhoud |
| CZ | Údržba |
| SK | Údrzba |
| PL | Konserwacja |
| HU | Karbantartás |
Illustration of a hand cleaning a blue hook with a cloth, alongside a yellow and black electrical plug (no text or symbols)


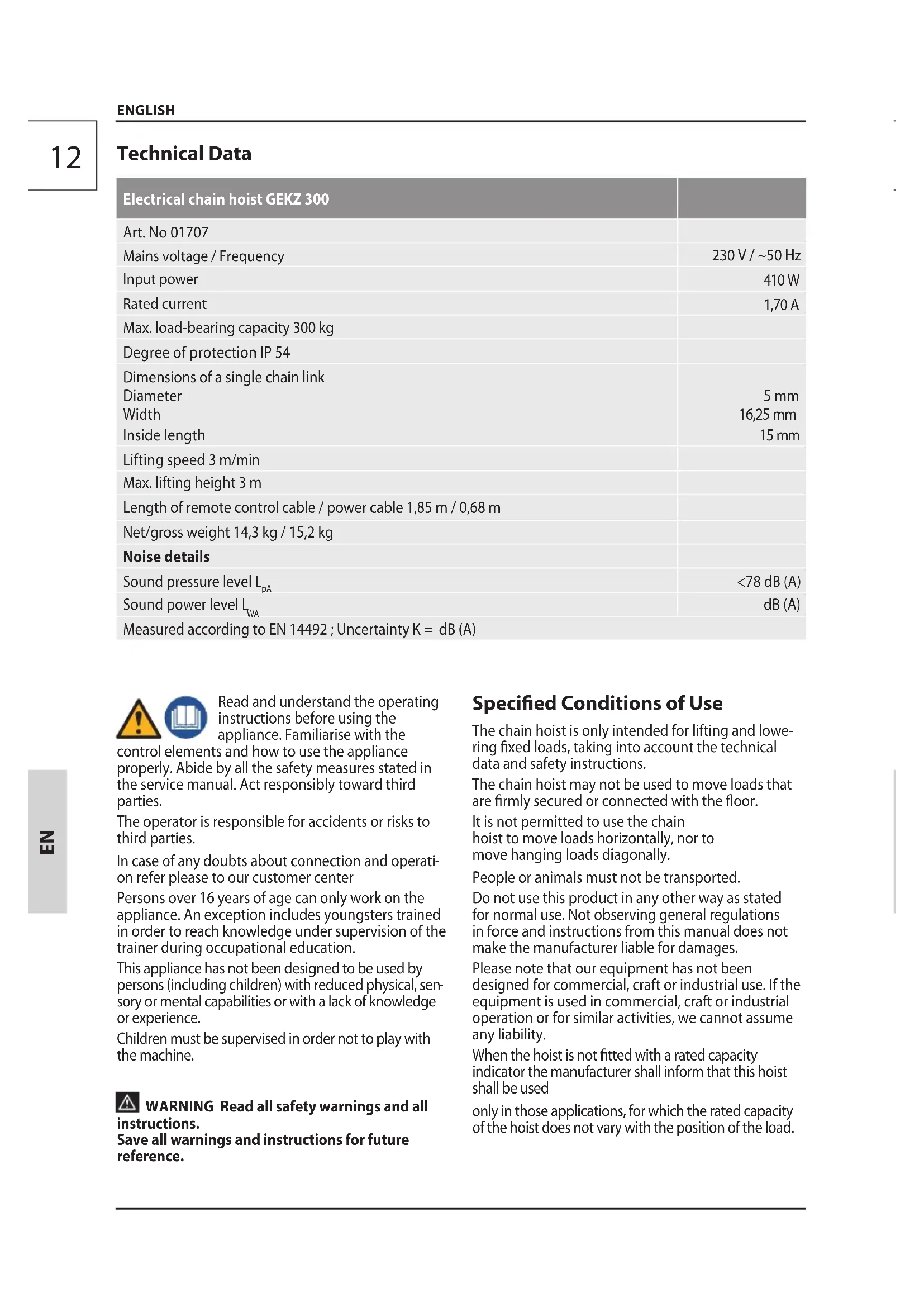

2 - ✓ No NoTechnische Daten
Read and understand the operating instructions before using the appliance. Familiarise with the
control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.
The operator is responsible for accidents or risks to third parties.
In case of any doubts about connection and operation refer please to our customer center
Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.
Children must be supervised in order not to play with the machine.
WARNING Read all safety warnings and all ruptions.
Save all warnings and instructions for future reference.
Specified Conditions of Use
The chain hoist is only intended for lifting and lowering fixed loads, taking into account the technical data and safety instructions.
The chain hoist may not be used to move loads that are firmly secured or connected with the floor.
It is not permitted to use the chain hoist to move loads horizontally, nor to move hanging loads diagonally.
People or animals must not be transported.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability.
When the hoist is not fitted with a rated capacity indicator the manufacturer shall inform that this hoist shall be used
only in those applications, for which the rated capacity of the hoist does not vary with the position of the load.
Safety instructions for electrical chain hoists
The chain hoist may only be use to lift loads that do not exceed the maximum load capacity set out in the technical data and on the nameplate provided by the manufacturer.
Do not overload the chain hoist!
The permanent suspension of objects is not permitted.
Before using the chain hoist, check that the chain and the fastening hooks are in good condition and only use lifting aids that are permitted for and suitable for the load in question for securing the load.
Before carrying out the intended work with the chain hoist, you must check the load-carrying capacity of the weight-bearing structures.
Loads that are not secured in accordance with the regulations and could fall to the floor may not be lifted.
Check the cable and/or socket for damages before the appliance putting into operation. To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer.
Do not move loads that could roll or fall over by themselves. If necessary, take action to avoid this.
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.
It is prohibited to stand or work under suspended loads.
Switch off the apparatus, disconnect it from mains by unplugging and allow it to cool down before setting up, retrofitting, cleaning, performing maintenance, storing or transporting the apparatus.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Pulling the cable could damage both the cable and plug. As a result, electric safety would no longer be guaranteed.
Only use splash proof extension cables approved for outdoor purposes.
Wear suitable protective clothing such as sturdy shoes with non-slip sole, robust long trousers, gloves, safety glasses and hearing protection!
Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.
Do not overreach. Keep proper footing and balance at all times.
Do not use the appliance in bad weather, especially when there is a risk of storm.
Provide adequate lighting or good lighting conditions when working with the machine..
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not touch any dangerous moving parts before the machine has been disconnected from the power supply and the moving parts have come to a complete standstill. Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.
The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.
The machine must not be used under any circumstances if the machine or the safety devices are damaged.
The chain hoist has a limit stop that stops the motor in the event the chain is retracted entirely.
Do not expose tools to rain. Do not use tools in damp or wet locations.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Do not use the device near flammable liquids or gases. Risk of fire and explosion in case of short circuit. Store the device and its accessories in a dark, dry and frost free place, which cannot be accessed by children.
The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.
Residual Risk
Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.
⚠ Limbs may be crushed when lowering the load. When lowering the chain hoist, do not reach or stand under the load.
Working Instructions
- Do not lift the load in one go. After lifting the load (chain tensioned), test the brake function approx. 10 cm above the floor by lifting and lowering the load.
- Avoid excessive inching (e.g. giving short pulses to the motor).
- Never drag the load over the floor.
- Loads to be lifted may only be hoisted vertically! Never hoist or pull diagonally!
- Ensure that the chain never has any knots.
- Never lift the load with 2 chain hoists.
- Never swing the load to move the load outside the axis of the chain hoist.
- Never secure the load on the tip of the karabiner.
- Never lift loads that are hooked on outside the priority axis.
- Never wrap the chain around the load to be lifted.
- The mechanical gear brake holds the weight of the load even after the system has been switched off or in the event of a power outage.
Requirements for operating staff
The appliance may only be operated and maintained by persons familiarised with it and informed about possible risks.
Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.
Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)
Symbols
Warning! / Caution!
The device may only be connected to a 230 V socket with RCD!
230 V + RCD
Keep bystanders out the dangerous area (5 m).
Read the operating instructions to reduce the risk of injury.
Wear eye protective goggles!
Wear safety shoes with steel reinforcement.
Wear gloves!
Keep your hands in safe distance.
Keep dry at all times. Never expose tool to rain.
Cable pulling / transport prohibited
Ensure that there are no persons or animals under the load!
People or animals must not be transported.
TÜV / GS conformity mark
CE marking
Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.
Class III tool.
Maintenance
Unplug the machine before any work on it.
Do not modify the device. Modifications are considered to be a use other than as intended and can result in injuries and damage.
Repairs and works specified in these Instructions may only be performed by qualified authorised staff.
Use only original accessories and original spare parts.
The appliance should only be used when in a perfect state. Carry out a visual inspection before switching the appliance on. Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately.
Keep the chain clean and slightly oiled.
Always keep the device clean, as well as the ventilation slots in particular. Never spray water on the device body! Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
If necessary, a list of spare parts can be found at www.guede.com.
Disposal
Any damaged or disposed devices must be delivered to appropriate collection centres.
Guarantee
Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.
The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.
The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.
Important information for the customer
Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.
Service
Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.
Tel.: +49 (0) 79 04 / 700-360
Fax: +49 (0) 79 04 / 700-51999
E-Mail: support@ts.guede.com
Translation of the EC-Declaration of Conformity
We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.
In case of any change to the appliance not discussed with us the Declaration expires.
Notified Body Name: No: Adress:
Type Ex. Cert.-No.:
□ 97/68/EC_ & 2016/1628/EU
Emission No.:
2000/14/EC_2005/88/EC
