USER MANUAL MXC36 H.KOENIG

GENERAL SAFETY INSTRUCTIONS

Symbols in these Instructions for use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the recipe and, if possible, the box with the internal packing, If you give this device to other people, please also pass on the operating instructions.

The appliance is designed exclusively for private use and for the envisaged purpose.

This appliance is not fit for commercial use.

Do not use it outdoors. It has not been designed to be used in the following cases not covered by the warranty: - In corners of kitchens reserved for staff in shops, offices

and other professional environments, - On farms, - Hotel guests, motels and other residential environments, - In guest-type environments.

Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges.

Do not use the appliance with the wet hands. If the appliance is humid or wet, unplug it immediately.

When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket(pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

Do not operate the machine without supervision, If you leave the room you should always turn the device off. Remove the plug from the socket.

The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used. Do not try to repair the appliance on your own. Always contact an authorized technician. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. If its mains cord is damaged, to prevent from risks, it must be replaced by the manufacturer the nearest service agent or a qualified person.

Use only original spare parts.

In order to ensure your children's safe, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING

Don't let small children play with foils for danger of suffocation!

Pay careful attention to the following "Special Safety Instructions"

Special Safety Instructions for this Machine

On the product, you will find the following symbol with the warning information:

WARNING: Hot surface! Risk of burns!

During cooking, the temperature of the touchable stainless steel surface may be very hot.

Therefore, please only touch the mixing appliance by its handle.

Please exercise extreme caution when opening the lid.

Do not reach into the filler opening the lid!

Be aware of the hot steam escaping from the unit when you remove the lid after making soup.

WARNING:

Risk of cuts! The mixer blades are sharp!

Before replacement of accessories or additional parts which move during operation, the device must be switched off and cut off from the mains.

Do not touch moving parts.

Be careful the mixer blades are very sharp. Handle slides carefully when emptying the bowl and clean them thoroughly.

Place the appliance on a firm and even surface, Set it up so that it cannot tip over.

The machine should only be used under supervision.

Do not manipulate any of the safety switches. They prevent the appliance being operated without an attached mixing jug and without a closed lid.

Do not remove the lid during operation.

Do not use the appliance without any content.

Do not carry or lift the appliance during operation, but turn it off first and then disconnect the mains plug. Always carry the appliance with both hands!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children should be supervised to ensure that they do not play with the heater blender. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.. Use of the appliance with the mixer function must not be used by children. The appliance should not be cleaned or serviced by children unless they are over 8 years old and are under the supervision of an adult. Keep the device and its cable out of the reach of children.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

DESIGNATED USE

This device is used for :

• Mixing of liquids
• Heating, cooking and pureeing of dishes.

It is intended for household use and similar fields of application such as :
*in staff kitchens of shops, offices and other work areas;
*by guests in hotel, motels and other accommodation facilities; properties.
*in bed & breakfast accommodation.
It is not intended for use on agricultural properties.
It is only to be used as instructed in this user manual. The appliance is not intended for commercial use.

Any other use shall be considered as not intended use and can lead to material damage or even personal injury.

The manufacturer shall not be liable for damages caused by not intended use.

Supplied parts

1 base device with motor
1 cap for the filler opening
1 lid with filler opening for mixing vessel
1 mixing vessel

Unpacking the appliance

1.Remove the device from its packaging.
2. Remove all packaging materials like foils, filling materials, cable holders, and carton packaging.
3. Check the scope of deliveries for completeness.
4. Check the appliance for possible transport damage in order to prevent hazards.
5. Should the packaging contents be incomplete or should you notice any damage, do not use the appliance. Return it to the dealer immediately.

Note : There may still be dust or production remains on the device. We recommend that you clean the device as described under "Cleaning".

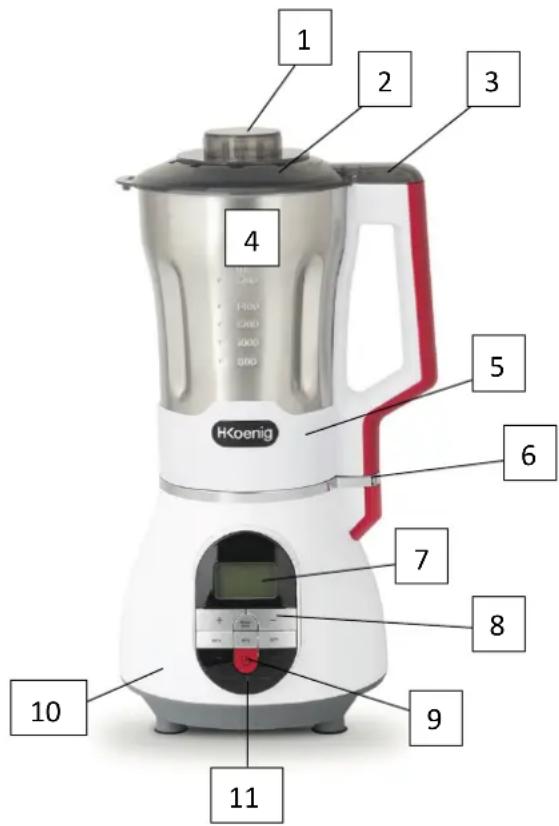

Designated use

1. Fill opening cap / Measuring cup
   2.Mixing jug lid with fill opening
   3.Safety lock
   4.Mixing jug
   5.Blade block
   6.Markings to attach the mixing jug
   7.Display(Time display)
2. Button + and - for setting the time and adjusting the power of blending
3. Button start/stop
   10.Base unit with motor
   11.Function keys with integrated control lights:

CRUSHED ICE = GLACE PIEE (Preset Mixing)
100^ (Cooking program)
80^ C (Cooking program)
60^ (Cooking program)
PULSE (Mixing at intervals)

Assembly

Attach the mixing jug

Place the mixing jug onto the base unit.

Pay attention to the symbols while dong so.

The marking on the mixing jug beneath the handle and the marking on the base unit have to be precisely aligned one above the other.

Put the lid on

1. Place the lid onto the mixing jug so that the latch with the lock is situated on the right beside the handle.
2. Twist the lid clockwise up to the stop. The lock must sit securely in the handle of the mixing jug.

NOTE: Incorrect assembly will prevent the appliance from being operated.

INSTRUCTIONS FOR USE

Electrical connection

1. Check if the mains voltage that you want to use matches the one of the appliance. You will find the information about this on the rating plate.
   2.Only connect the appliance to a properly installed earthed socket. You will heat a beep when the appliance is assembled correctly together with the lid.

Functionality of the appliances

The appliance is operated with the power control.

Each push of a button is confirmed with ON/OFF button.
Press the BLEND button together with the "+"-"you will set the mixing speed.
*With the "+"-"" you will set the mixing speed

With the function buttons you will be able to heat, cook and puree dishes. Use the HIGH, MEDIUM, LOW buttons for the heating function.

You can stir the dish with the STIR button, the cooking time can be changed at minute intervals with the + and - buttons. You wanna make chunky or smooth soup with CHUNKY, SMOOTH button, JUICE and BLEND buttons for mixing fruits and other ingredients.

ON/OFF

Press the ON/OFF button. The indicator light will flash, the appliance will be in standby mode. If you donot operate the appliance in one hour, The indicator of ON/OFF will go out, and then power off, you should press the ON/OFF again to enter in standby mode.

Press the relevant button once, The indicator light in the selected will flash

Press the ON/OFF button, the relevant programme will start (except Stir), Meanwhile, the ON/OFF button light turn red to green.

Press the ON/OFF button once more, the relevant programme will stop.

NOTE:

The appliance can only be blended on when mixing jug is closed with the lid.

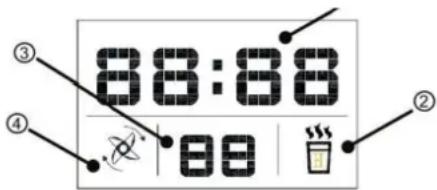

DISPLAY

The appliance has a display on which you can read the remaining time of cooking and blending program in minutes and seconds and the blending speed.

1.Time (minutes and seconds)
2.Heating symbol
3.Blending speed (setting 1 to 4)
4.Blending symbol

JUICE (Preset Mixing)

It is perfect for making juice, press the JUICE button and then press the ON/OFF button to enter this programme, the appliance will run at speed setting 4 and it will automatically stop after 50 seconds.

Cooking programs

100^ : Heating up to 100^ and cooking
80^ : Heating or keeping warm up to approx. 80^
60^ : Heating, keeping warm up to approx. 60^
The durations of the cooking programs are preset :25 minutes each.
You may individually adjust the times with the + and - buttons between 1 and 90 minutes.
You may switch to another cooking setting during the cooking program. The previous duration of the program will be kept.
* Press the ON/OFF button to enter programme.
After finish, you will hear 4 beeps.

STIR(Mixing at intervals)

As long as you keep this button pressed down.

You can stir Ingredients during the cooking programme.

BLEND (Mixing program)

The blending speed can be changed, press the with ^+ or - buttons.

Setting 1 = low speed

Setting 2 = medium speed

Setting 3 = high speed

Setting 4 = top speed

The durations of the blending programs are preset :1 minutes each.
You may individually adjust the times BLEND button together with the + and - buttons between 1 and 3 minutes.
Press the ON/OFF button to enter programme.
Once this was completed, you will hear 4 beeps.

CHUNKY (Preset Cooking program)

When you are making chunky soup, the soup maker will automatically heat the ingredients to a preset program.

This process will take approximately 28 minutes.

This programme does not have an automatic blend function.

• Press the ON/OFF button to enter programme.

SMOOTH (Preset Cooking program)

When making smooth soup, the soup maker will automatically heat and blend the ingredients to preset programme, this process will taks approximately 25 minutes. Press the ON/OFF button to enter programme.

Scale on the mixing container

Please observe the maximum capacity on the mixing jug:

COLD for cold liquids: max. 1700 ml (approx. 60 oz)

SOUP for hot dishes: max. 1400ml (approx. 49 oz)

NOTE:

Foam requires a lot of volume. Reduce the capacity in liquids that foam excessively.

Closing the filling opening/ Measuring cup

You may also use the cap of the filling opening in the lid as a measuring cup. Always close the lid with the cap during mixing.

NOTE:

Measuring cup

*Swing clockwise to closed the cup

*Swing anticlockwise to remove the cup.

Ingredients

Cut the ingredients into small pieces before putting them into the mixing jug.

Operation

CAUTION : Always switch off the device before removing the mixing vessel from the base.

Do not overfill the mixing vessel! Observe the gradation on the vessel.

Never put hard ingredients into the mixing jug! Ingredients such as nuts or blocks of chocolate damage the appliance.

Preparation

1.Prepare the ingredients
2. Set the mixing vessel onto the base device, if that has not yet been done.
3. Fill the jug with the ingredients.
4. Set the lid with the cap onto the vessel.
5.Plug the mains plug into a properly installed earthed socket.
6.Use the ON/OFF button to switch on the appliance.

Mixing cold dishes/ beverages

NOTE:

Do you want to add sugar or spices to your mixed drink?

First switch off the device.

Remove the cap and fill in through the opening.

Reinsert the cap into the lid.

WARNING:

Do not put your hand into the mixing jug!

The blades are sharp and rotate at high speed. Serious injuries could result.

Proceed ad described under "Preparation"

Preparing hot dishes

NOTE:

Observe the sequence: First cooking, then pureeing.

Always add the amount of liquid indicated in the recipes while cooking.

Proceed as described under "Preparation"

1. Select a heating function.

2. Decrease or increase the cooking time with the + and - buttons, if necessary..

9.If you want to terminate the preparation before the cooking time has elapsed, press the ON/OFF.

10.Put on the cap of the filler opening. Press

End operation

1. Turn off the appliance with ON/OF button.

2. Disconnect the main plug from the outlet.

CLEANING

WARNING:

Before cleaning always disconnect from mains power supply

Under no circumstances should you immerse the device in water for cleaning purposes.

Otherwise this might result in an electric shock or fire.

The mixer blades are sharp! Risk of injury!

Clean the blade assembly by rinsing it under water. Do not touch the blades because they are very sharp.

CAUTION:

Do not use a wire brush or any abrasive items.

Do not any acidic or abrasive detergents

The mixing jug is not dishwasher safe.

Do not rinse the mixing jug in a bowl of water either. The base of the mixing jug contains electronic components that must not get wet!

Should water however penetrate the base of the mixing jug, allow to dry completely before you use it again.

For cleaning the outside of the machine use only a damp washing-up cloth.

Clean the Mixing jug

1. Fill the mixing jug with about 1 liter water by adding a few drops of dishwashing liquid.

CAUTION:

Water with dishwashing liquid will foam up during heating and mixing.

1. Heat up the water for about 8 minutes at cooking setting HIGH.
2. Press the STIR button briefly.
3. Allow the water to cool before cleaning the inside wall of the mixing jug.
   5.Clean the mixing jug from the inside with the cleaning brush provided.
   6.Rinse off the mixing jug with clean water and carefully dry it off.

Lid and cap

1. Clean these components in a rinsing bath.
2. Rinse with clean water.
3. Dry the parts off.

Storage

Clean the device as described. Let the accessories dry completely.

We recommend that you store the device in its original packaging when it is not to be used for a longer period. Always store the device at a well ventilated and dry place outside the reach of children.

TROUBLESHOOTING

Malfunction	Possible cause	Remedy
The device does not funtion	The device is not supplied with power	Check the outlet with a different device
		Insert the power plug correctly.
		Check your domestic fuse
	The safety switch is not closed	Check that the mixing jug and the lid are fitted correctly
	The device is defective	Contact our our Service or a specialist
Liquids are not mixed correctly	You have too much or too little liquids in the bowl	Vary the quantity of the liquid
	The speeds is too high	Start with a lower speed which you can increase later
The blades becomes blocked after turning on	The selected speed is too low.	Start at a higher speed

Technical Data

Power supply: 220 240 ~V, 50 ~Hz

Power consumption of motor : 450W

Power consumption of heater: 700-900W

Protection class: 1

Net weight L approx. 2.9kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

Subject to technical changes without prior notice!

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?". This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (^*)
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates

that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - [e-mail] - [e-mail] - Tél: [phone]

FRANÇAIS

INSTRUCTIONS À PROPOS DES PRECAUTIONS GÉNÉRALES

CONDITIONS DE GARANTIE
