USER MANUAL UPX22 H.KOENIG

Cordless vacuum cleaner

aspirateur balai à batterie aufladbarer staubsauger oplaadbare stofzuiger aspiradora recarcable aspirapolvere ricaricaricabile odkurzacz bezprzewodwy

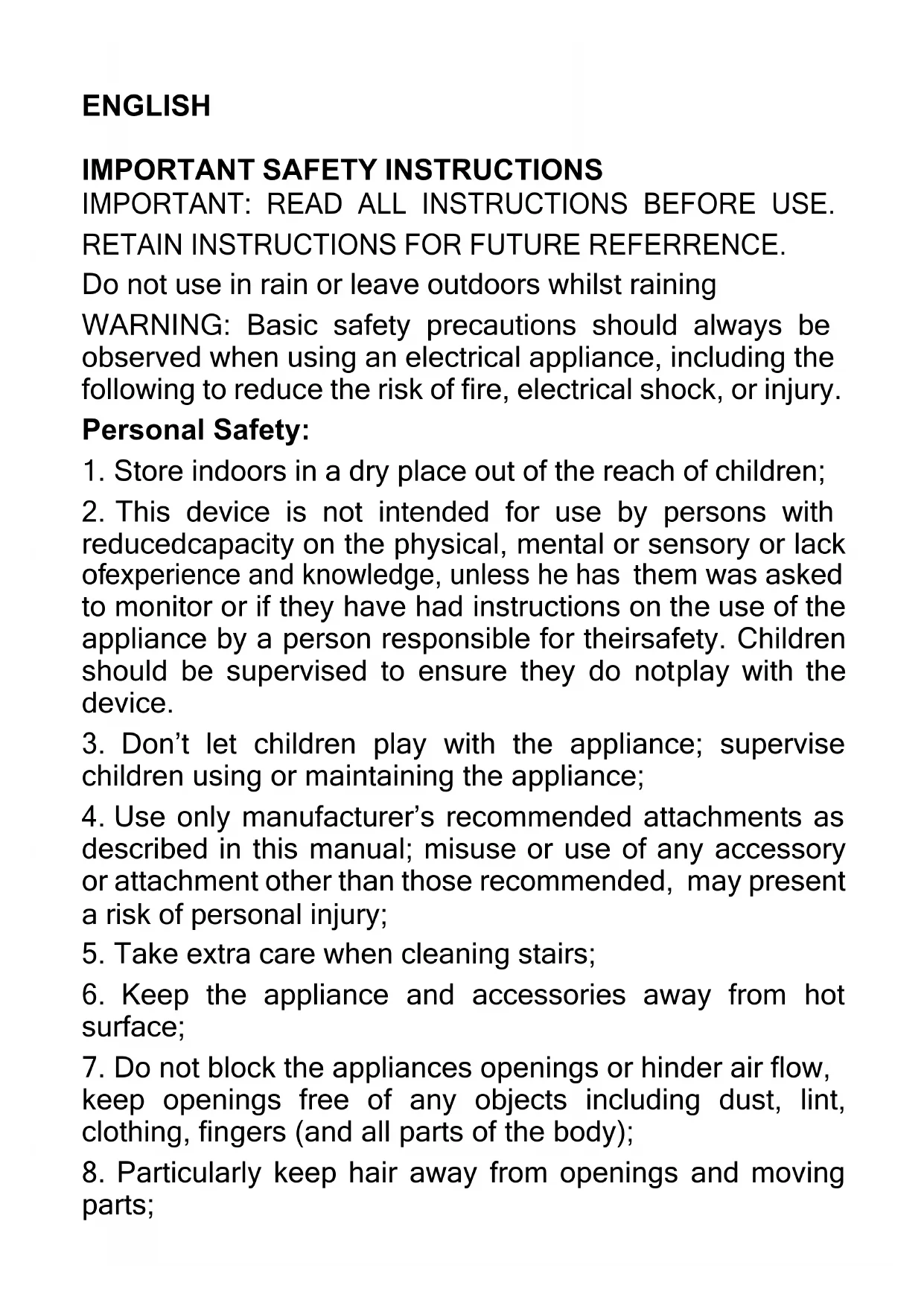

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Do not use in rain or leave outdoors whilst raining

WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury.

Personal Safety:

1. Store indoors in a dry place out of the reach of children;
2. This device is not intended for use by persons with reducedcapacity on the physical, mental or sensory or lack ofexperience and knowledge, unless he has them was asked to monitor or if they have had instructions on the use of the appliance by a person responsible for theirsafety. Children should be supervised to ensure they do not play with the device.
3. Don't let children play with the appliance; supervise children using or maintaining the appliance;
4. Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury;
5. Take extra care when cleaning stairs;
6. Keep the appliance and accessories away from hot surface;
7. Do not block the appliances openings or hinder air flow, keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body);

8. Particularly keep hair away from openings and moving parts;

9. This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

10. Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
11. Keep the appliance and its power cord out of reach of children under 8 years of age.
12. When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
13. Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit
14. Never leave the unit unattended while in operation.
15. Please keep this document at hand and give it to the future owner in case of transfer of your device

Electrical Safety:

1. Only use batteries and chargers supplied by the manufacturer;
2. Never modify the charger in any way;
3. The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate;
4. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack;

5. Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cordincreases the risk of fire and electric shock

6. Do not abuse the charger cord;

7. Never carry the charger by the cord;
8. Do not pull the cord to disconnect from a socket, grasp the plug and pull to disconnect;
9. Don't wrap the cod around the charger when storing;
10. Keep the charger cord away from hot surfaces and sharp edges;
11. The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.
12. Do not handle the charger or the appliance with wet hands;
13. Do not store or charge the appliance outdoors
14. The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.

Battery safety:

1. This appliance includes Li-ion batteries, do not incinerate batteries or expose to high temperatures, as they may explode;
2. Liquid ejected from the battery may cause irritation or burns;
3. In an emergency situation contact professional help immediately;

4. Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid that gets on skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery an dispose of immediately in accordance with local regulations;

5. Shorting the battery terminals may cause burns or fire;

6. When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
7. When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.

Service:

1. Before using the appliance and after any impact, check for signs of wear of damage and repair as necessary;
2. Do not use the appliance if any part is damaged or defective;
3. Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous;
4. Never modify the appliance in any way as this may increase the risk of personal injury;
5. Only use replacement parts or accessories provided or recommended by manufacturer.

Intended use:

1, This appliance has been designed for domestic dry vacuum cleaning only;
2. Do not pick up liquids or use on wet surfaces;
3. Do not pick up anything that is flammable, burning or smoking;
4. Use only as described in this manual;
5. Don't use on concrete, tarmacadam or other rough surfaces.

WARNING:

1. Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth;
2. Never immerse the unit in water and do not clean in a dish washer.

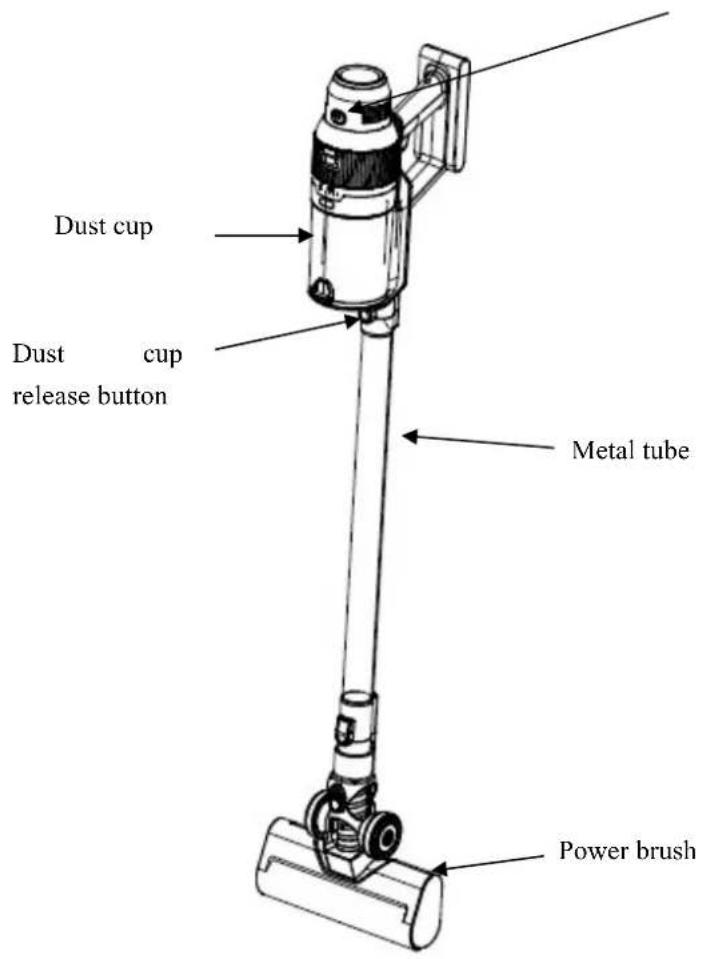

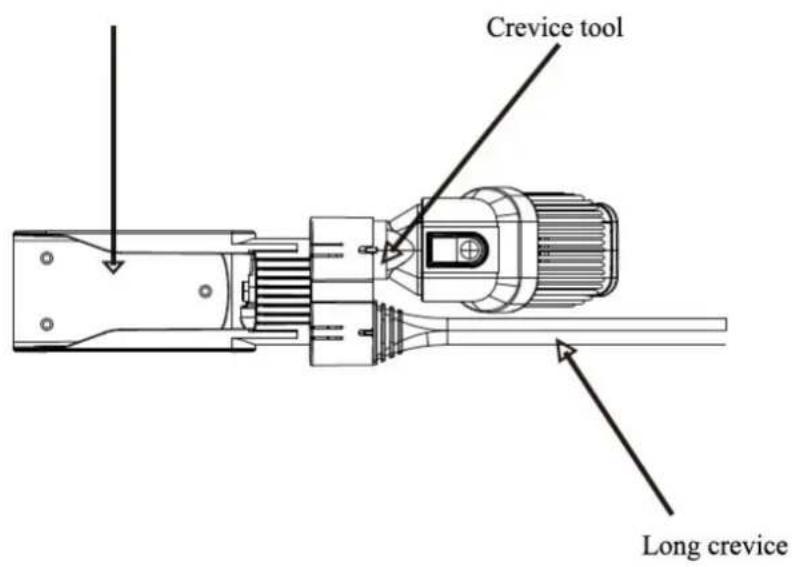

INTRODUCTION OF COMPONENTS:

Battery pack release button

Charging base & charger Charging base & charger

PRODUCT INSTALLATION:

1.Use as stick vacuum cleaner

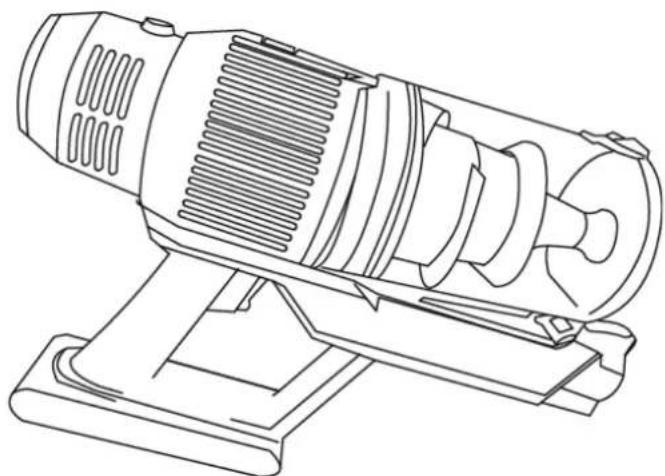

a)Assemble the battery pack with handle assembly , make sure the battery bolt head insert thedust cup slot rightly as below

Put the slot in the right position

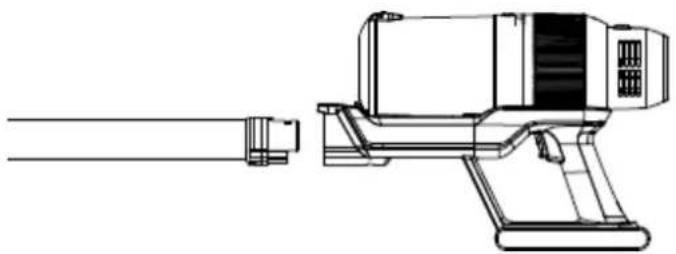

b) Attached the metal tube to the body as below until hear click sound

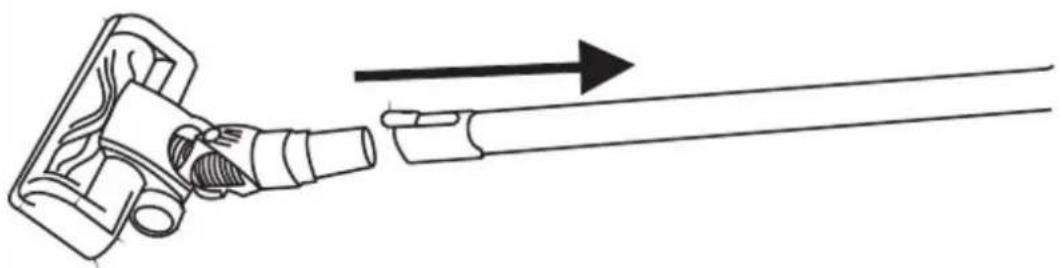

c) attached the brush to another head of metal tube as below shown

d) Turn on the switch, vacuum cleaner start to work.

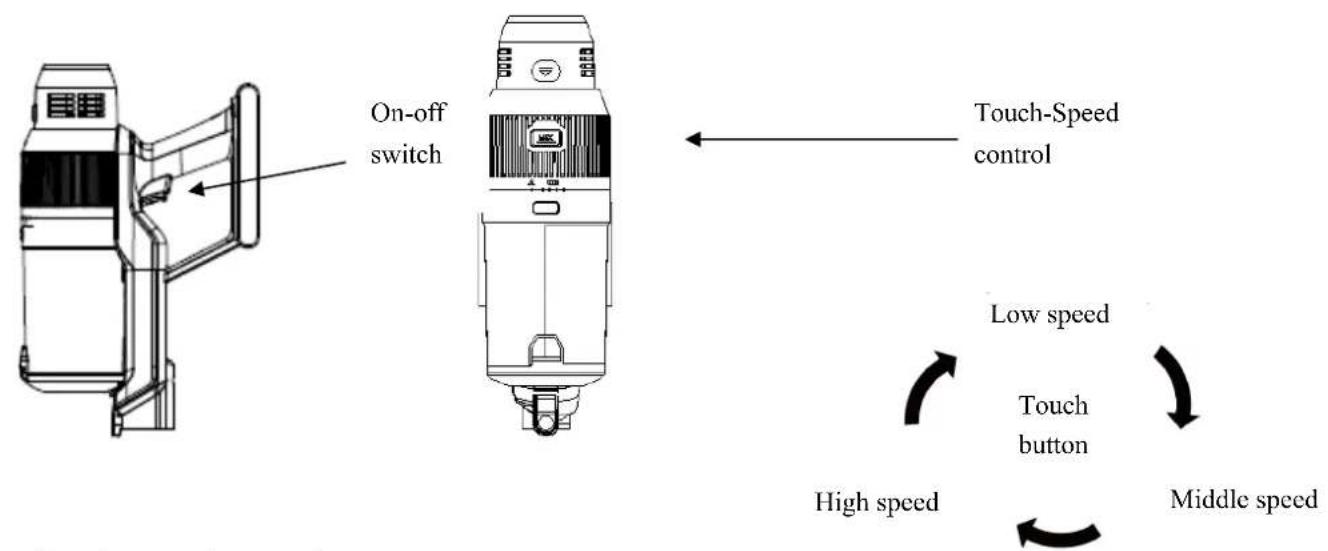

Three levels speed control

a) Lower speed :It's lower speed when you press switch button first time ,vacuum cleaner stop work right after turn off the button .
b) Touch the speed control button .it will turn to middle, and again to high speed .
c) No matter which speed vacuum cleaner on , it will stop to work when you push on-off button

II. Use as handy vacuum

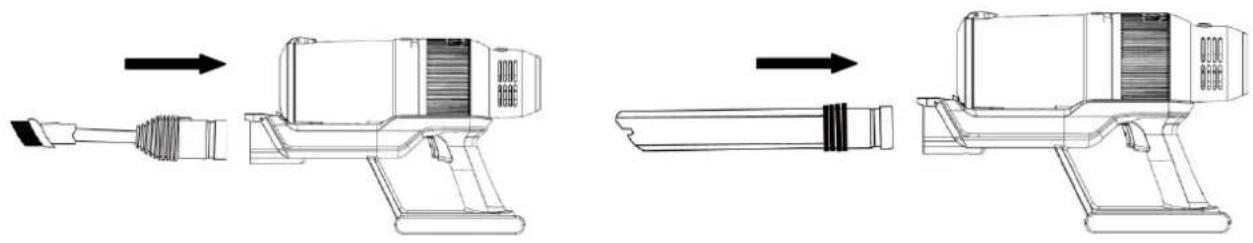

Insert the accessory to body as shown below.

II. Battery charging:

1) When the battery power indicator is blinking, lease power off the machine, then put it back to charge base for charging.
2) Plug in & indication will blink, it shows charging. Battery will be self-cutting when battery is full.

3) If battery indication is not blinking, it shows battery is full.

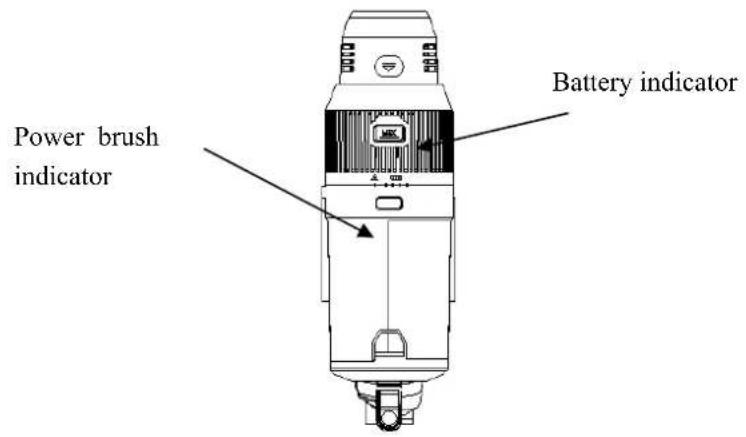

4) Brush indicator normally is light, in case the power brush is blocked, it will blink, to warning customer turn off the vacuum cleaner & clean the brush, or check any other abnormal of brush.

III. How to empty the dust cup

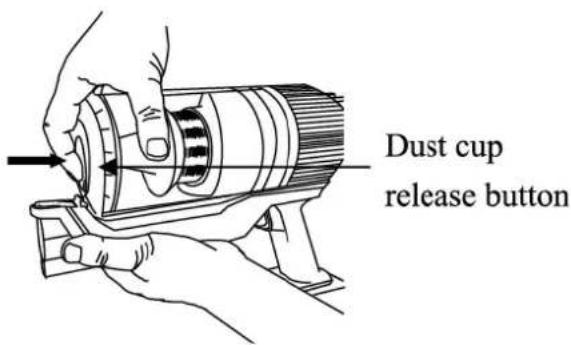

1) release dust cup release button

2) remove dust cup with direction shown as below

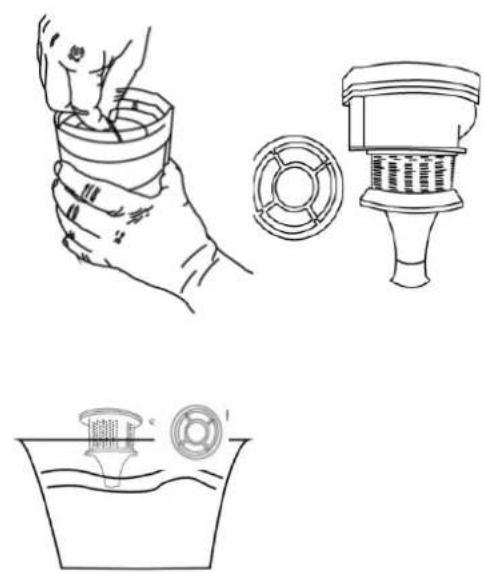

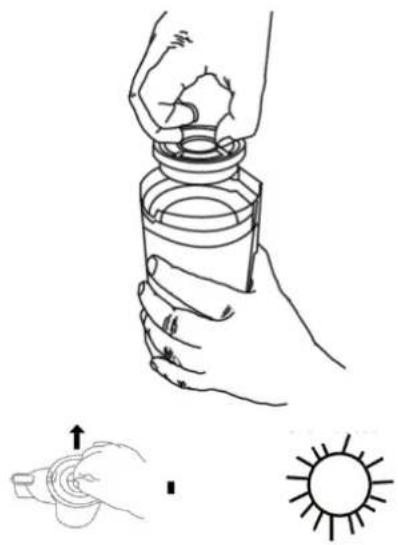

3) take out HEPA filter as shown below

4) wash HEPA & filter cone

5) make sure HEPA filter and filter case dry completely.

6) Assemble the filter to case

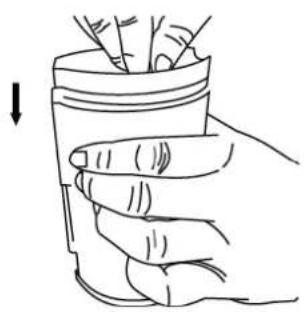

7) Put the filter case back to dust cup

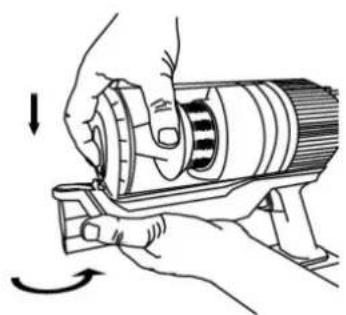

8) Assemble the dust cup to handle correctly after a "click" sound.

TROUBLESHOOTING :

Not cleaning well	1, Empty the dust bin 2, Checked dust bin is correctly assembled 3, Check the filter is correctly fitted 4, Clean the filter
Stop or doesn’t work	1, Charge battery 2, Clean the filter
Battery not charge	1, Check connections with power cord 2, Check wall socket
Power brush doesn’t work	1. Make sure dust cup assembled correctly & locked 2. Make sure power brush & metal tube connected tightly 3. Check the brush blocked or not

TECHNICAL SPECIFICATION

Battery	25.9V/2200mAh
Charging period	4 .5hours
Input	31V/500mA
Weight	1.8kg
Using time	40min (low speed), 20min (middle speed), 10min (low speed)
Motor power	220W
airflow	20dm3/s
Packing dimension	690*270*145mm

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?" This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (^*)
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products

contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.
