Product Type	Three-wheel scooter with LED
Brand	Playtive
Model	IAN 312058
Recommended age	From 3 years old
Maximum user weight	50 kg
Front wheel diameter	2 x 120 mm
Rear wheel diameter	1 x 100 mm
Handlebar height	Adjustable to 3 positions
Brake type	Not specified (likely foot brake)
Lighting	Integrated non-replaceable LED
Usage	Private use, do not use on public roads
Required protective equipment	Helmet, wrist guards, elbow pads, knee pads
Assembly	By an adult, simple tool-free assembly
Maintenance	Clean after use, store in dry place
Front wheels replaceable	Yes, with Allen key
Warranty	3 years from date of purchase
After-sales service France	Tel. [phone], email [e-mail]
Manufacturing date	01/2019

Frequently Asked Questions - IAN 312058 Playtive

From what age can my child use this scooter?

This scooter is designed for children over 3 years old, with a maximum weight of 50 kg. Not suitable for children under 36 months due to small parts.

How to assemble the Playtive IAN 312058 scooter?

Assembly is simple: press the pin (3) at the back of the lower part and insert the handlebar grip (2) until it clicks. Make sure the locking button is fully engaged before use.

Can I adjust the handlebar height?

Yes, the handlebar is adjustable to 3 heights. Unscrew the quick-lock mechanism, pull the T-tube until the button snaps into one of the three holes, then retighten the mechanism.

What protective equipment should I use?

Always wear a helmet, wrist guards, elbow pads, and knee pads, as well as closed-toe shoes. Never use without adult supervision.

Where can I use this scooter?

Use it on smooth, clean, dry surfaces, away from roads and obstacles. Avoid slopes, stairs, wet areas, and traffic. Do not ride at night or in poor visibility.

How to maintain the scooter?

Clean it after each use, remove stones from the wheels, and store it in a dry place. Regularly check that screws and connections are tight.

Are the front wheels replaceable?

Yes, you can replace the front wheels. Loosen the screws with an Allen key, install the new wheels, and retighten. Only use wheels of the same diameter (120 mm) for your safety.

What to do if the LED stops working?

The LED is not replaceable. If it stops working, the scooter can still be used without lighting. No repair is possible for this component.

What is the warranty period?

The warranty is 3 years from the date of purchase, covering defects in materials and workmanship. Keep the receipt. For any claim, contact after-sales service.

How to contact after-sales service in France?

You can reach the France service at 0800 919270 (toll-free) or by email at [e-mail]. For Belgium, see the manual.

USER MANUAL IAN 312058 Playtive

Two identical gray electric scooter scooters with visible wheels and metal handles, no text or symbols present.

www.lidl-service.com PDF online

TRI-SCOOTER MIT LED-ROLLEN TRI-SCOOTER WITH LED WHEELS TROTTINETTE À TROIS ROUES LED

DE AT CH

TRI-SCOOTER MIT LED-ROLLEN

Gebrauchsanweisung

FR BE

TROTTINETTE À TROIS ROUES LED

TRI-SCOOTER WITH LED WHEELS

Instructions for use

NL BE

TRI-STEP MET LED-WIELEN

Gebruiksaanwijzing

CZ

TRI-SCOOTER S LED KOLEČKY

Návod k obsluze

CE

IAN 312058

DE AT CH GB IE FR

BE NL PL CZ SK

A 1 2

B 1 2 3 3


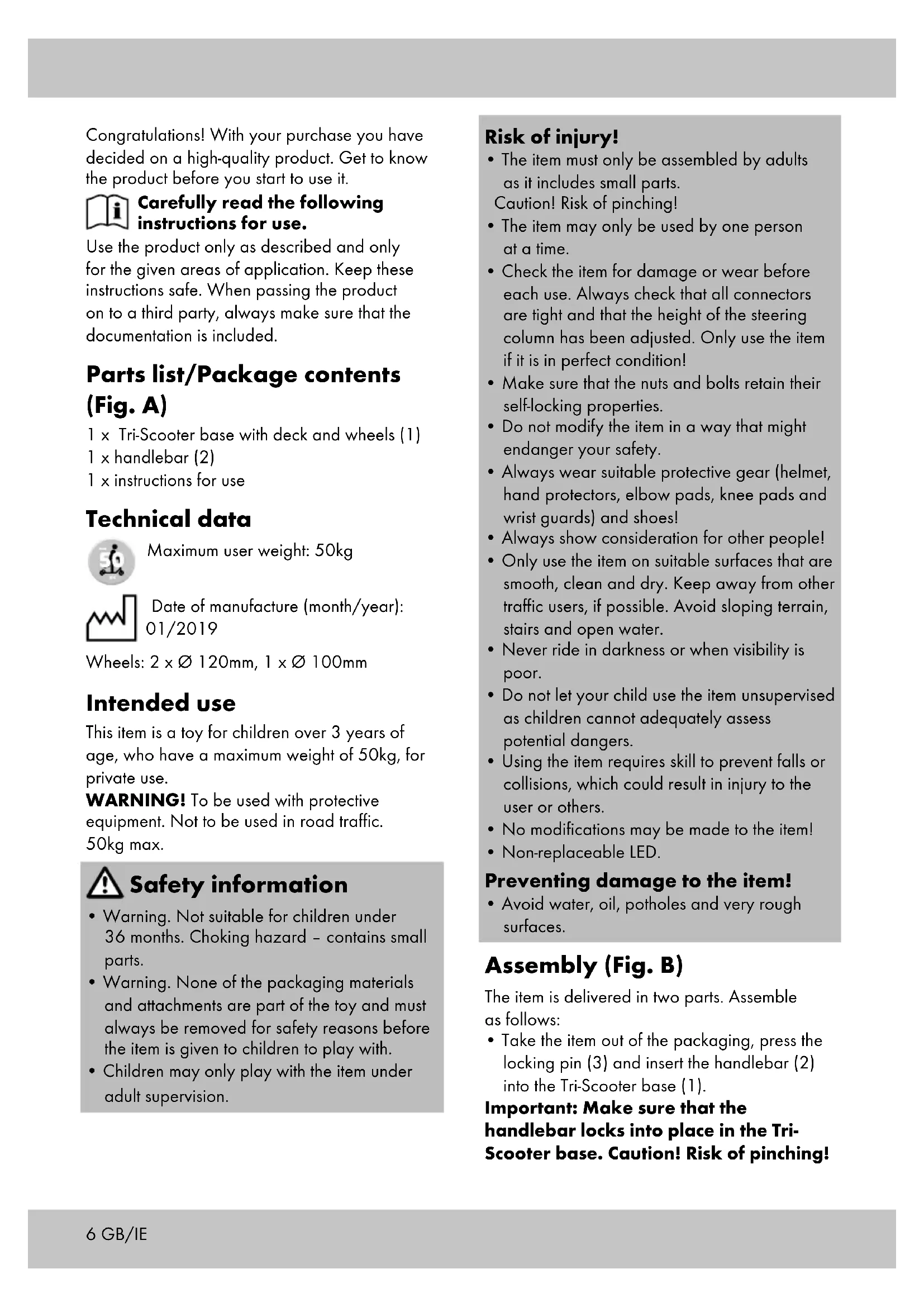

Congratulations! With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Parts list/Package contents (Fig. A)

1 x Tri-Scooter base with deck and wheels (1)
1 x handlebar (2)
1 x instructions for use

Technical data

Maximum user weight: 50kg

Date of manufacture (month/year): 01/2019

Wheels: 2 x ∅ 120mm, 1 x ∅ 100mm

Intended use

This item is a toy for children over 3 years of age, who have a maximum weight of 50kg, for private use.

WARNING! To be used with protective equipment. Not to be used in road traffic. 50kg max.

Safety information

• Warning. Not suitable for children under 36 months. Choking hazard – contains small parts.
• Warning. None of the packaging materials and attachments are part of the toy and must always be removed for safety reasons before the item is given to children to play with.
  • Children may only play with the item under adult supervision.

Risk of injury!

• The item must only be assembled by adults as it includes small parts.
  Caution! Risk of pinching!
• The item may only be used by one person at a time.
• Check the item for damage or wear before each use. Always check that all connectors are tight and that the height of the steering column has been adjusted. Only use the item if it is in perfect condition!
• Make sure that the nuts and bolts retain their self-locking properties.
• Do not modify the item in a way that might endanger your safety.
• Always wear suitable protective gear (helmet, hand protectors, elbow pads, knee pads and wrist guards) and shoes!
  • Always show consideration for other people!
• Only use the item on suitable surfaces that are smooth, clean and dry. Keep away from other traffic users, if possible. Avoid sloping terrain, stairs and open water.
• Never ride in darkness or when visibility is poor.
• Do not let your child use the item unsupervised as children cannot adequately assess potential dangers.
• Using the item requires skill to prevent falls or collisions, which could result in injury to the user or others.
• No modifications may be made to the item!
  • Non-replaceable LED.

Preventing damage to the item!

- Avoid water, oil, potholes and very rough surfaces.

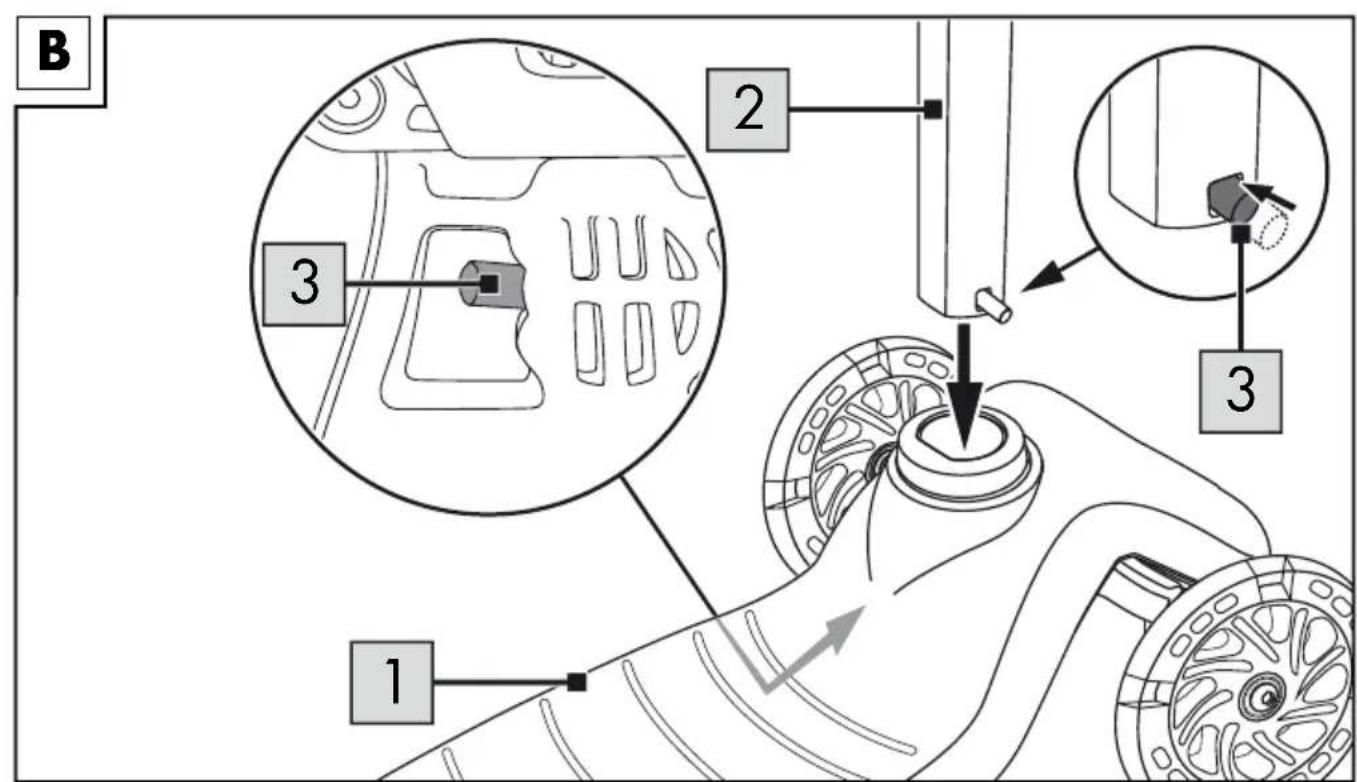

Assembly (Fig. B)

The item is delivered in two parts. Assemble as follows:

• Take the item out of the packaging, press the locking pin (3) and insert the handlebar (2) into the Tri-Scooter base (1).

Important: Make sure that the handlebar locks into place in the Tri-Scooter base. Caution! Risk of pinching!

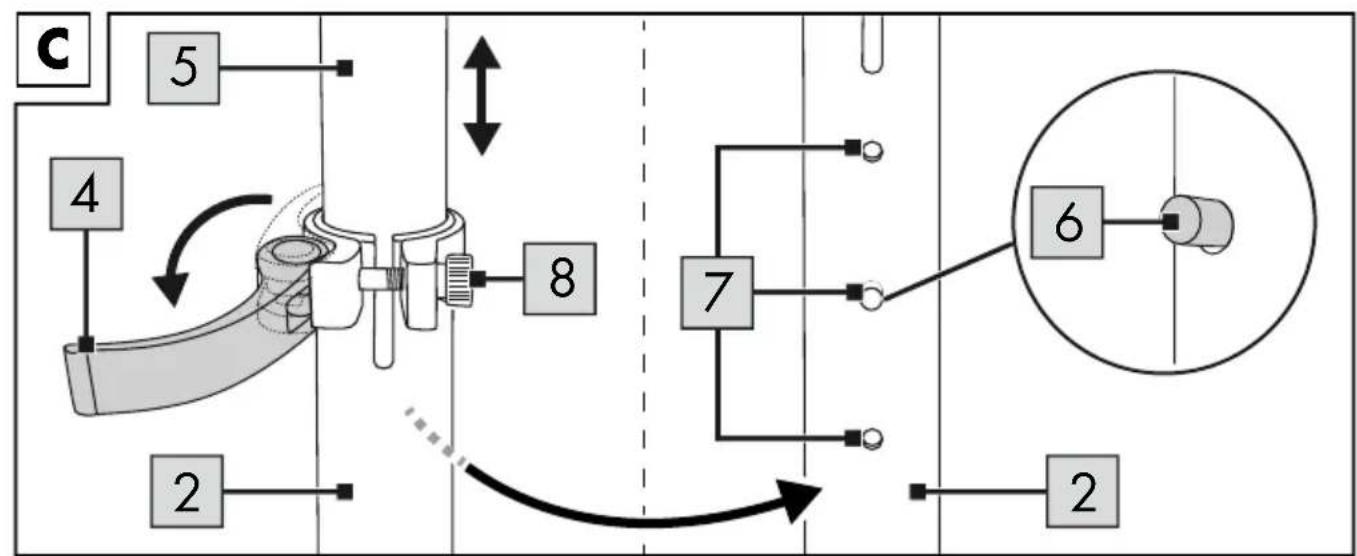

Adjusting the height of the handlebar (Fig. C)

The handlebar can be adjusted to three different heights. The item may only be used if the locking knob is locked in place in one of the three holes provided and the T-tube is then secured using the quick-release fastener.

1. Loosen the quick-release fastener (4) on the handlebar (2).
2. Pull the T-tube (5) upwards, until the locking knob (6) locks into place in one of the three holes (7).
3. Secure the T-tube (5) by locking the quick-release fastener (4).

Note: If the quick-release fastener (4) is too loose, you can manually adjust the knurled screw (8) on the back of the fastener.

Disassembly

Press the pin (3) on the back of the Tri-Scooter's base and pull out the handlebar (2) (Fig. B).

Use

Riding

Put one foot on the deck and give momentum by regularly pushing off with the other foot. The Tri-Scooter can be steered by moving the handlebars, by shifting your weight or using a combination of both.

Maintenance

Replacing the front wheels

The front wheels can be replaced. Important! Pay attention to the technical specifications. Wheels with a different diameter may alter the riding properties and possibly endanger the user. Do not use wheels that cannot be installed properly. Never use wheels that are larger than the original wheels on the item.

Wheels wear out. This wear depends on many factors, including the terrain, the size and weight of the user, the weather conditions, the material of the wheels and their hardness, etc. Therefore, it is necessary to replace them now and then.

1. Using a suitable Allen key, loosen the screws on the two front wheels.
2. Install the new wheels and secure them with the screws.

After replacing the wheels: After the first few minutes of riding, make sure that the screws are still tight and that nothing has detached or become loose. Tension the wheel once more to make sure that it runs smoothly.

Storage, cleaning

We recommend that you clean and dry the item thoroughly after use. Remove small stones or other objects that may have become stuck to the wheels. Always store the item in a dry place.

Disposal information

Dispose of the item and the packaging materials according to current local regulations. Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Dispose of the item and packaging in an environmentally friendly manner.

The recycling code serves to identify various materials that are recyclable.

The code consists of the recycling symbol and a number which identifies the material.

Devices with the following symbol may not be disposed of with household waste. You must dispose of disused

electrical and electronic appliances separately. Please ask your local authority about options for appropriate disposal.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 312058

GB Service Great Britain

Tel.: [phone]

E-mail: [e-mail]
