USER MANUAL EG411LTUU Atag

instructions for use

mode d'emploi

Gebrauchsanweisung

afzuigkap

cooker hood

hotte d'aspiration

Dunstabzugshaube

EG...L-WG...L

EG...P-WG...P

EG...R-WG...R

symbolen afstandsbediening

symbols - remote control

① on/off key
capacity control
intensive setting
lighting

control panel indicator lights

1 setting 1 green
2 setting 2 green
3 setting 3 green
4 intensive setting orange
5 automatic continued operation green
B grease filter indicator light red
① on/off key

introduction

When you have read these instructions for use, you will quickly be aware of all the facilities the appliance can offer you. You can read about safety and how you should look after the appliance. In addition you will find environmental tips and instructions that can help to save energy.

Keep the instructions for use and the installation instructions. Any later user of this appliance could benefit from them.

Enjoy your cooking!

table of contents

introduction 1
for your safety 2
use 3
maintenance 4
dealing with faults yourself 5
removing packaging and appliance 5

for your safety

flambée and frying

When deep-frying, always keep a close watch.

Never flâme under an extractor hood. The high flames can cause fire. Even if the ventilator is switched off.

air supply

If you are using the appliance for the first time, then check if the air supply is sufficient. Dangerous situations can arise if there is a combination of insufficient air supply and the use of naked flames.

cleaning

Clean the appliance regularly, as shown in 'maintenance'.

This minimizes the chance of a fire starting.

use

switching the lighting on and off

Press the remote control key. The halogen lighting will light up. Press the key of the remote control to switch the lighting off.

switch the fan on

Press the remote control key ①. The extractor hood will switch on at setting 3.

control the extraction capacity

By using the remote control key can choose a lower setting and next a higher setting.

The setting is indicated by the lights on the operating panel.

intensive setting

Press the remote control key. After 5 minutes the hood will automatically switch off. Press the button lower setting.

automatic continued operation

Press the remote control key ①. After 12 minutes the extractor hood will switch off. The extractor hood will automatically switch from setting 3 to setting 1.

switch the fan off

Press the remote control key ① twice to switch the fan off immediately. The lights on the circle will go out.

clean the grease filter

Clean the grease filter every two weeks. Clean the grease filter immediately if the grease filter indicator lights up after a shorter period.

Put the cleaned filter back in the appliance. Press the switch ① on the operating panel for about five seconds. The indicator will go out.

without remote control

Press key ① of the control panel.

The halogen lighting will light up. The extractor hood will switch on at setting 3. You cannot choose a higher or a lower setting now.

The battery is chemical waste. The battery should be transported in a responsible way and in accordance with government regulations.

maintenance

cooker hood

Clean the cooker hood two to four times a year. Clean both the grease filter as well as the rest of the appliance. Use a liquid detergent to clean the cooker hood.

Never use abrasive cleaning agents, (such as Vim, steel wool, green scouring pads or other abrasive pads) or cleaning agents (such as liquid scouring powder and Jif). With stainless steel hoods in particular, you risk damaging the structure so that the result is a smudgy surface.

Never use aggressive chemical cleaning agents. These may cause discolouration, both on varnish and stainless steel.

filters

Remove the filter as follows:

• Switch off the fan and the halogen lamp.
• Rotate the filter anticlockwise.
• Slowly remove the filter. Un-click the safety-chain hook.

You can clean the filter in the dishwasher.

Re-hook the hook of the safety chain. Place the filter in the holder. Fasten it by rotating clockwise.

Erase the electronic memory as instructed under "instructions for use".

trouble shooting

If your appliance does not operate as required, check first if you can solve the problem yourself by using the table below. The cause of the problem is often a simple one.

problem

The remote control does not work.

cause

Batteries empty

remedy

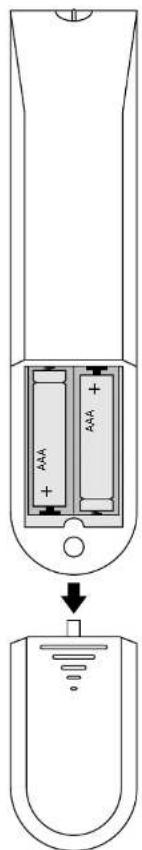

Remove the cap at the backside of the remote control and replace the batteries (type "AAA"). The battery is chemical waste and should be transported in a responsible way in accordance with government regulations.

The lighting does not work.

Halogen bulb defective.

Replace the reflector with the lamp (50 W). Pull the reflector with the lamp straight down and out of the fitting (article number 72264500).

Extractor hood is noisy.

Exhaust duct is too long or has too many curves; diameter is too small.

Change the outlet duct.

Defective motor.

Call Service Department.

disposal of packaging and appliance

The packaging of the appliance is recyclable. It can be made up of:

-cardboard
polyethylene
CFC free polystyrene (PS rigid foam)
polypropylene straps around the box
CFC free foam (soft)

Please dispose of these materials in a responsible way in accordance with the regulations of your local authority.

Your local authority will also be able to give you information about disposing disused household appliances in a responsible way.

Le filtered must be nettoyed in the lavevaisselle.

installation instructions

An extractor hood should be installed in accordance with national and local regulations.

These state, for example, that the distance between the bottom of the extractor hood and a gas cooking appliance should be at least 75~cm . For electric cooking appliances, this distance should be at least 65~cm .

please note:

When an extractor hood and a heat source (e.g. gas, oil, coal stoves, etc.) requiring air are used together in the same room, attention is required since the hood may exhaust the necessary combustion air creating a depression in the room. Maximum depression allowed in the room is 4Pa in order not to pipe exhaust gas from the heat source into the room. To ensure this condition, an air source is necessary in the room to feed the room constantly with fresh air.

electrical connection

When making the electrical connections, make sure the current socket has an earth wire connection and check if the voltage corresponds with the rating plate inside the hood.

After the extractor hood has been installed, the socket should be easily accessible so that the appliance can be switched off. When connecting the appliance to the mains supply, national regulations must always be observed.

outlet

The outlet should, under no circumstances, be connected to a duct which is also being used for other purposes.

The air can be discharged directly outside through the wall opening, provided this is protected by a grid to shield against rain and leaves, etc.

The grid should not restrict the outlet hole by more than 20% .

We advise the fitting of the widest possible outlet duct. A smaller diameter will result in a lower extraction capacity and a higher noise level.

Ensure that the connections fit well.

Aluminium or plastic tape can be used to connect the pipes.

Bends in the duct will have a negative influence on the extracting capacity and should therefore be avoided as much as possible.

ATAG provides accessories for extractor ducts of extractor hoods. A list of the product assortment and the relevant type numbers can be found in the model/price list.

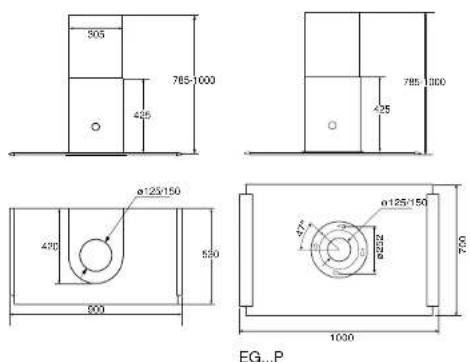

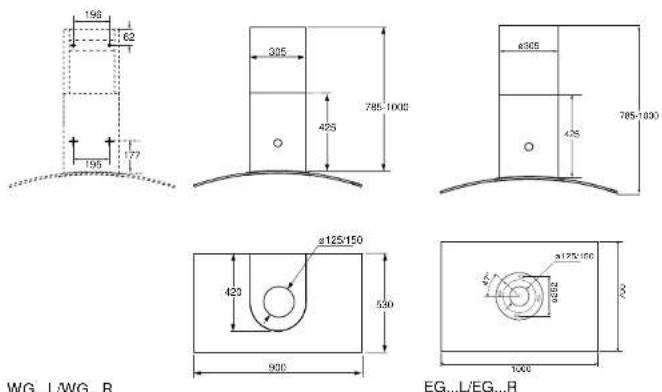

building-in dimensions

installation wall hood

The key dimensions are indicated on page 10. Set the height of the telescopic pipe within the allowable range.

Position the discharge and the electrical connection in such a way that it will be easy to hook up the hood.

NB:

To prevent deformation, the tower should not be placed on its flanged edge. Lay the tower on its rear.

hanging the telescopic pipe

• Draw a centre line on the wall. Hold the template supplied against the wall (centre line to centre line). Slide the templates over each other until you have reached the correct height. Mark the drill holes.

• Drill the holes (10 mm). Insert plugs. Twist two nuts in the opposite direction on the ends of the studs and twist the studs about 20 mm into the wall. Remove the nuts.

• Secure the upper telescopic pipe.

• Attach the connecting cable and discharge hose from the inside. Make sure the connecting cable is not pinched or folded.

installation wall hood

fitting extractor hood

• Slide the extractor hood onto the telescopic pipe.
• NB: The upper telescopic pipe slides between the motor housing and the lower telescopic pipe (2 mm clearance).
• Adjust the telescopic pipe and fasten the extractor hood with the washers and nuts supplied.
• Place the glass plate on the filter holder. The arrow should point in the direction of the control panel. Slide the filter holder into the extractor hood.
  Screw the 5 nuts on loosely. Adjust the glass plate and secure it.
• Connect up the light cable.
• Attach the filter to the chain and secure the filter by turning it clockwise.

installation island hood

The key dimensions are indicated on page 10. Set the height of the telescopic pipe within the allowable range.

It is advisable to suspend the hood with the help of an assembly lift. If there is no lift present, it is advisable to carry out the mounting with more than one person.

Position the discharge and the electrical connection in such a way that it will be easy to hook up the hood.

marking

• Mark out the holes on the ceiling using the template. Make sure that one of the holes is at the front. Mark the drill hole for the mounting plate too.
• Drill the holes (5 x 10 mm).

hanging telescopic pipe

Fix the plugs and the studs to the ceiling. Screw the studs 20mm into the plugs in the ceiling. The locking hole should only have a plug placed in it.
- Screw the washers and nuts onto the bolts up to 6mm under the ceiling.
- Put the top telescopic pipe over the studs.
Screw down the washers and the nuts.
Fasten the mounting plate to the ceiling with a safety screw.

fastening glass plate

• Place the glass plate on the filter holder. The arrow should point in the direction of the control panel. Slide the filter holder into the extractor hood.
  Screw the 5 nuts on loosely. Adjust the glass plate and fasten it.

measuring

• Slide the lower telescopic pipe (with motor and glass plate) over the already-fitted upper telescopic pipe.
  Determine the length of the telescopic pipe. Remember the minimum height above the hob.
• Mark the drill holes and slide the two sections apart again.
• Drill fixing holes (3,7 mm) at the side of the upper telescopic pipe using the drill bit supplied. Deburr the holes.

fitting extractor hood

• Fit the connecting cable and the discharge hose from the inside. Make sure that there are no kinks in the discharge hose.
• Slide the hood over the telescopic pipe. Secure it with the three screws.

technical data

type number see identification plate power supply 230V50Hz

power consumption see identification plate dimensions (h x w x d) see drawings

The connection cable corresponds to type Y and should only be replaced by qualified personnel of the service department.

This appliance complies with the CE directives.
