Product type	Extractor hood
Brand	Atag
Model	ES1211NAMUU
Power supply	220-240 V, 50/60 Hz
Installation type	Wall-mounted
Minimum distance above a gas hob	65 cm
Grease filter	Dishwasher-safe metal filter
Charcoal filter (optional)	Compatibility with activated charcoal filter
Lighting	Integrated LED lighting
Controls	Touch or mechanical control panel (not specified)
Noise level	Approx. 45-65 dB depending on speed (estimate)
Suction power	Typical airflow rate: 300-600 m³/h (estimate)
Number of speeds	3 speeds + intensive (likely)
Maintenance	Regular cleaning of grease filters (at least once a month)
Safety	Automatic shutdown in case of overheating (not specified but assumed)
Spare parts	Grease and charcoal filters available as options
Warranty	2 years (manufacturer standard)
Country of manufacture	European Union (not specified)

Frequently Asked Questions - ES1211NAMUU Atag

What is the minimum distance to observe between the hood and a gas hob?

The minimum distance is 65 cm between the lowest point of the hood and the gas hob. If the hob's manual specifies a larger distance, that takes precedence.

How to clean the grease filter of the Atag ES1211NAMUU hood?

The grease filter is metal and can be washed in the dishwasher. Use a short, intensive cycle. After washing, check that no components are detached and replace the filter if necessary.

Is a charcoal filter required for this hood?

The charcoal filter is optional. It is necessary if you use the hood in recirculation mode (without external venting). In that case, replace it regularly according to the instructions.

Can I use the hood without the grease filter?

No, the hood must never be used without the grease filter properly installed, as this poses a fire risk.

How to replace the LED bulb of the hood?

The hood is equipped with integrated LED lighting. If a bulb needs replacement, contact an authorized technician as replacement may require opening the appliance body.

What to do if the hood does not turn on?

First check the power supply (plug, fuse). If the problem persists, unplug the appliance and call a qualified professional.

Is there a risk of electric shock during cleaning?

Yes, to avoid any risk of electric shock, always turn off and unplug the appliance before cleaning. Never use steam or high-pressure cleaners.

What is the maximum ambient temperature for installation?

The appliance should be installed in an environment with a temperature between +5°C and +40°C, with a humidity level of 30 to 70% RH.

Can I use the hood above an induction hob?

Yes, the hood is suitable for all types of cooking, including induction. Observe the recommended minimum distance of 65 cm (or that indicated by the hob manufacturer).

How to obtain a translation of the manual?

You can request a free translation by selecting your language on notice-facile.com and providing your email address. The translated manual will be sent to you by email.

USER MANUAL ES1211NAMUU Atag

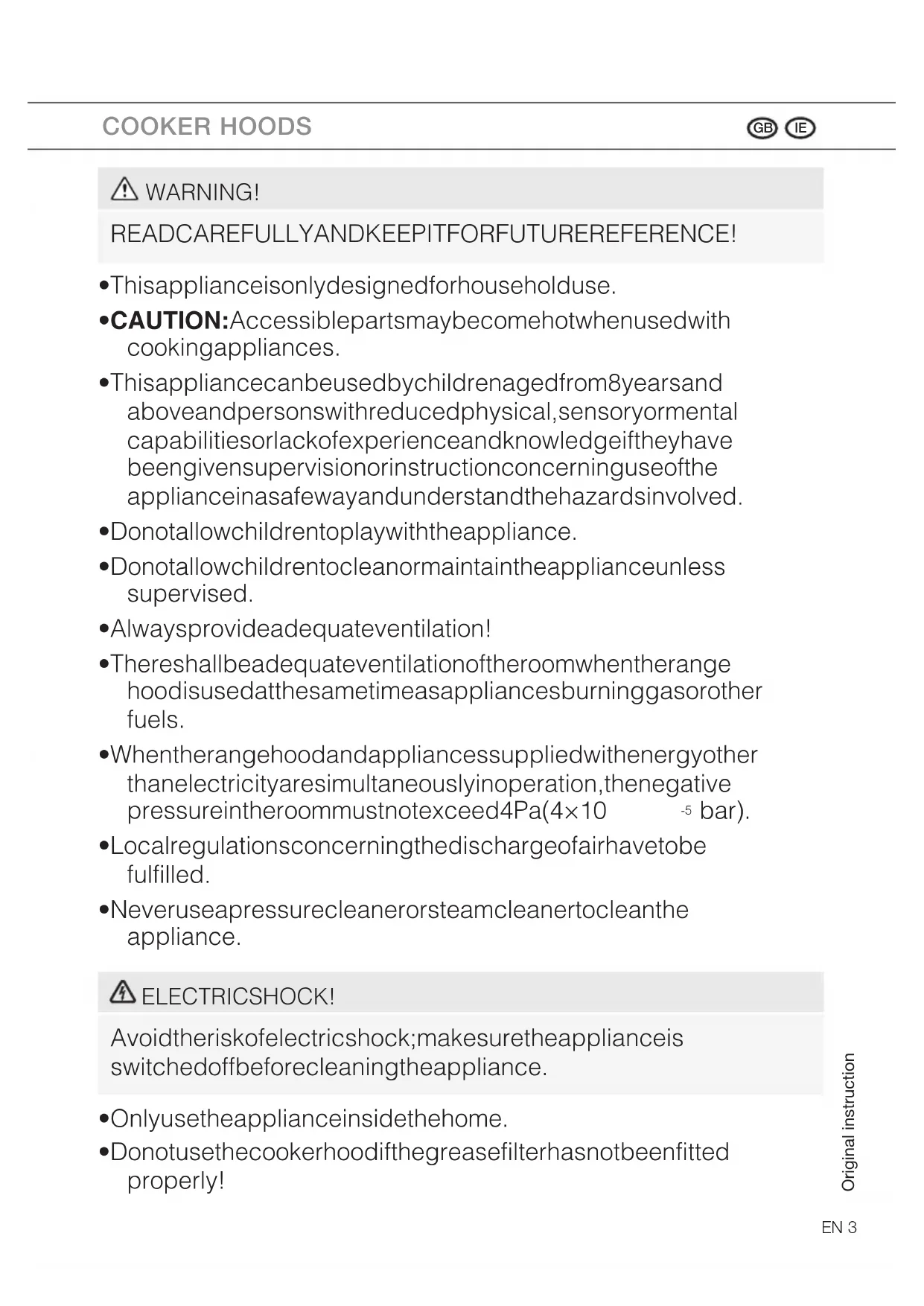

Safety regulations Cooker hoods

It is important that you carefully read the instructions.

• Thisapplianceisonlydesignedforhouseholduse.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Donotallowchildrentplaywiththeappliance.
• Donotallowchildrenrentocleanormaintaintheapplianceunless supervised.
• Alwaysprovideadequateventilation!
• Thereshallbeadequateventilationoftheroomwhentherange hoodisusedatthesametimeasappliancesburninggasorother fuels.
• Whentherangehoodandappliancessuppliedwithenergyother thanelectricityaresimultaneouslyinoperation,thenegative pressureintheroommustnotexceed4Pa(4×10 -5 bar).
• Localregulationsconcerningthedischargeofairhavetobefulfilled.
• Neveruseapressurecleanerorsteamcleanertocleanthe appliance.

ELECTRICSHOCK!

Avoidtheriskoflectricshock;makesuretheapplianceis switchedoffbeforecleaningtheappliance.

• Onlyusetheapplianceinsidethehome.

• Donotusethecookerhoodifthegreasefilterhasnotbeenfitted properly!

• Donotleanagainstthecookerhood.

• Neverusethecookerhoodasaworkingsurfaceunlessthis is indicatedexplicitly.
• Greaseandoilareinflammablewhenoverheated.Remaininthe cookingareawhenpreparingmeals.
• Topreventhotfatfromcatchingfire, you should only deep-fry undercontinuoussupervision.
• The cookerhoodshouldbecleanedregularlyboththeoutside aswellastheinside(atleast1xpermonth).Insufficientcleaning oradelayinthereplacementofffilterscancauseafirehazard.
• Cleanthefiltersontime.
• Thegreasefilterscanbecomehotduringuse. Aftercookingwait atleast30minutesbeforecleaning.
• Please note! Intensive use can lead to condensation on the cookerhood. Condensationissimpletoremovewith drycloth.
• Followtheinstructionsinthemanicalforcleaningorreplacing the greasefiltersand/orcarbonfilters!

DANGEROFFIRE!

Thereisariskoffireiftheinstructionsforcleaningorreplacing greasefiltersand/orcarbonfiltersarenotfollowed.

Throughgreasedepositsinthemetalgreasefilter.Neverwork withopenflameundertheappliance(eg.flambéing).Alwaysuse theappliancewiththemetalgreasefilter.Cleanthegreasefilter regularly.

Throughoverheatedfatoroil.Neverextinguishafirewithwater; alwaysuseafireblanket,lidorplate.

• Theappliancemayhavesharpedges;pleasebecarefulduring cleaning.

• ThelightemittedbyLEDlightsisverydazzlingandcandamage theeeyes.DonotlookdirectlyintotheswitchedonLEDlightsfor longerthan100seconds.

• When washing grease filters in the dishwasher is recommended to use as short, non-intensive programme. Check the grease filter after washing in the dishwasher for wear (loose material). Wear canoccuras results of frequent washing. If loose material is visible, replace the filters in order to prevent this loose material from ending up in the food that is cooked.

• Donotusetheapplianceintemperaturesbelow 5^ C .
• Keepa20cmseparationdistancetotheappliance.

WARNING!

This appliances should only be connected by are registered installer.

• Alwaysfollowtheinstallationinstructionsintheinstallationmanual provided.
• Check the appliance for transport damage. Donot connect a damaged appliance.
• Faultypartsmayonlybereplacedbyoriginalparts. Themanufacturercanonlyguaranteethatoriginalpartsmeet safetyrequirements.
• Ifthisupplycordisdamaged, it mustbereplacedby the manufacturer, its service agents similarly qualified persons in ordertoavoidahazard.
• AlwaysusetheoriginalSupplycordtoconnecttheappliance.
• Theelectricalconnectionmustcomplywithnationalandlocal regulations.
• Thewallplugsocketandplugshouldalwaysbeaccessible.
• Ifastationaryapplianceisnotfittedwithasupplycordanda plug,orwithothermeansfordisconnectionfromthesupplymains havingacontactseparationinalpolesthatprovidefull disconnectionunderovervoltagecategoryllconditions,the meansfordisconnectionmustbeincorporatedinthefixedwiring inaccordancewiththewiringrules. This is also applicable for applianceswithasupplycordandplugwhentheplugisnot accessible afterinstallingtheappliance.Usinganomnpolar switchwithacontactseparationofatleast3mmfittedinthefixed wiringwillfulfilthisrequirement.
• The appliances should not be connected to themainsviaa multi-plugapterorextensioncable,asthesafeuseofthe equipmentcannotbeguaranteed.

WARNING!

Extractionhoodsandotherappliancesthatextractcooking vapourscanaffectthesafeoperationofappliancesthatburn gasorotherfuel(includingthoseinotherrooms)bybackflowing combustion gases. These gases can potentially lead to carbon monoxide poisoning. Afterinstallinganextractionhoodorther vapourextractor, the operation of appliances with fluegas extraction must be tested by a competent person to ensure that the combustion gases donot flowback.

WARNING!

Neveropenthecasingoftheappliance.

• Disconnecttheappliancefromthemainssupplybeforestarting anyrepairwork.
• Weadvertiseoutowearprotectivegloveswhenassemblingthe cookerhoodbecauseofthepossiblesharpedges.
• Thedistancebetweenthellowestpointofthecookerhood and thesupportingsurfaceforthecookingvesselsgashobshould beatleast65cm.
• If the instruction of the hash obspecify agreaterdistance, this hastobetakenintoaccount.

WARNING!

Failuretoinstallscrewtorfixingdevicesinaccordancewiththese instructionsmayresultinanelectricalhazard.

Ifthesafetyinstructionsand warningsarenotfollowed,the manufacturercannotbeheldresponsibleforanyresultingdamage.

If you decide to continue using the appliance because of a fault, we recommend you cut off the cable after removing the plug from the plug socket. Take the appliance to your municipality's waste disposalsite.

Placetheapplianceinanenvironmentthatmeetsthefollowing conditions:

Ambienttemperaturerange: +5 .... +40^
- Humidity:30...70%RH;
- Maximumaltitude:2000metersabovesealevel.

WARNING!

BITTEAUFMERKSAMLESENUNDSORGFÄLTIGAUFBEWAHREN!
