CE3531 - Juicer Concept - Free user manual and instructions

Brand	Concept
Model	CE3531
Product type	Juice extractor (electric citrus press)
Voltage	220-240 V ~ 50/60 Hz
Power	650 W
Noise level	85 dB(A)
Features	Two cones (large and small), automatic stop when releasing the arm, manual pressing possible without dome
Recommended capacity	10 citrus fruits per cycle, with a 10-minute break
Continuous operation time	15 seconds maximum, then 15 seconds pause
Recommended maximum pressure	Approximately 3 kg
Maintenance	Clean removable parts with warm water; do not immerse the body, use a damp sponge
Safety	Automatic stop, overload protection, supervision required for children under 8 years
Included accessories	1 dome, 1 articulated arm, 1 juice collector, 2 cones (large and small), 1 strainer, 1 pitcher

Frequently Asked Questions - CE3531 Concept

How to use the Concept CE3531 juice extractor?

Place a glass under the juice collector, lower it to release the flow. Cut the citrus fruit in half, choose the appropriate cone (small for oranges/lemons, large for grapefruits), attach it to the shaft, place the half fruit on the cone and lower the arm. The motor starts automatically. Release to stop.

What types of citrus fruits can be juiced with the CE3531?

It is designed for all citrus fruits: oranges, lemons, grapefruits, etc. For large fruits like grapefruit, use the large cone after attaching the small cone. You can also press manually by removing the dome.

What is the power of the appliance?

The rated power is 650 W at a voltage of 220-240 V ~ 50/60 Hz. The noise level is 85 dB(A).

How to clean the juice extractor?

Unplug the appliance before any cleaning. Clean the exterior with a slightly damp sponge. Wash the removable parts (cones, strainer, collector, pitcher) with warm water. Never immerse the appliance body or place it under running water.

What to do if the appliance does not work properly?

If the appliance does not start, check that it is properly plugged in and the arm is lowered. If the problem persists, do not attempt to repair it yourself. Contact an authorized service center for inspection and repair.

Can you juice fruits other than citrus?

No, this appliance is specifically designed for citrus fruits only. Using it for other fruits could damage the appliance or not produce good results.

What safety precautions should be followed?

Never leave the appliance unattended while running. Do not immerse the cord or appliance in water. Keep out of reach of children under 8 years. Use on a flat, stable surface. Unplug before cleaning. Do not exceed 15 seconds of continuous operation.

How long can I use the appliance continuously?

The maximum recommended continuous operation time is 15 seconds. After that, let the appliance rest for 15 seconds. After juicing 10 citrus fruits, allow a rest of 10 minutes to avoid overheating.

How to install the cones on the CE3531?

Small cone: place it directly on the shaft. Large cone: attach it onto the small cone, then install the assembly on the shaft. The large cone cannot be used alone. Make sure they are properly clipped.

Where can I get spare parts or repair the appliance?

For any spare parts or repairs, contact a Concept authorized service center. Use only original accessories. Unauthorized repairs void the warranty.

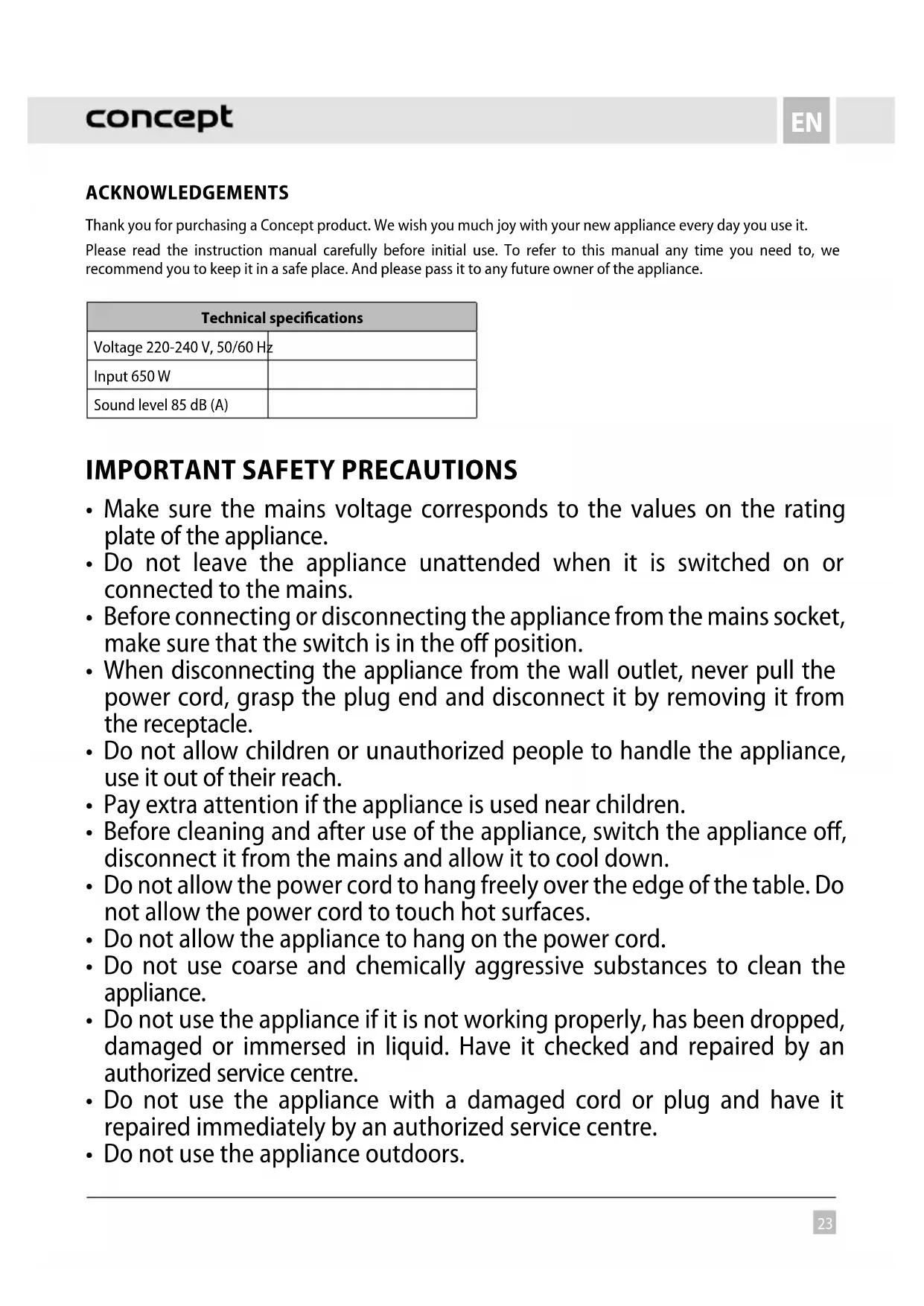

USER MANUAL CE3531 Concept

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it.

Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 220-240 V, 50/60 Hz
Input 650 W
Sound level 85 dB (A)

IMPORTANT SAFETY PRECAUTIONS

• Make sure the mains voltage corresponds to the values on the rating plate of the appliance.
• Do not leave the appliance unattended when it is switched on or connected to the mains.
• Before connecting or disconnecting the appliance from the mains socket, make sure that the switch is in the off position.
• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Pay extra attention if the appliance is used near children.
• Before cleaning and after use of the appliance, switch the appliance off, disconnect it from the mains and allow it to cool down.
• Do not allow the power cord to hang freely over the edge of the table. Do not allow the power cord to touch hot surfaces.
• Do not allow the appliance to hang on the power cord.
• Do not use coarse and chemically aggressive substances to clean the appliance.
• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.
• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.

• Do not use the appliance outdoors.

• The appliance is only suitable for home use and is not intended for commercial use.

• Do not use the appliance for purposes other than those specified in the instructions for use.
• Do not immerse the power cord, plug or appliance in water or any other liquid.
• Do not use any accessories other than those recommended by the manufacturer.
• Place the appliance on a stable, flat surface.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

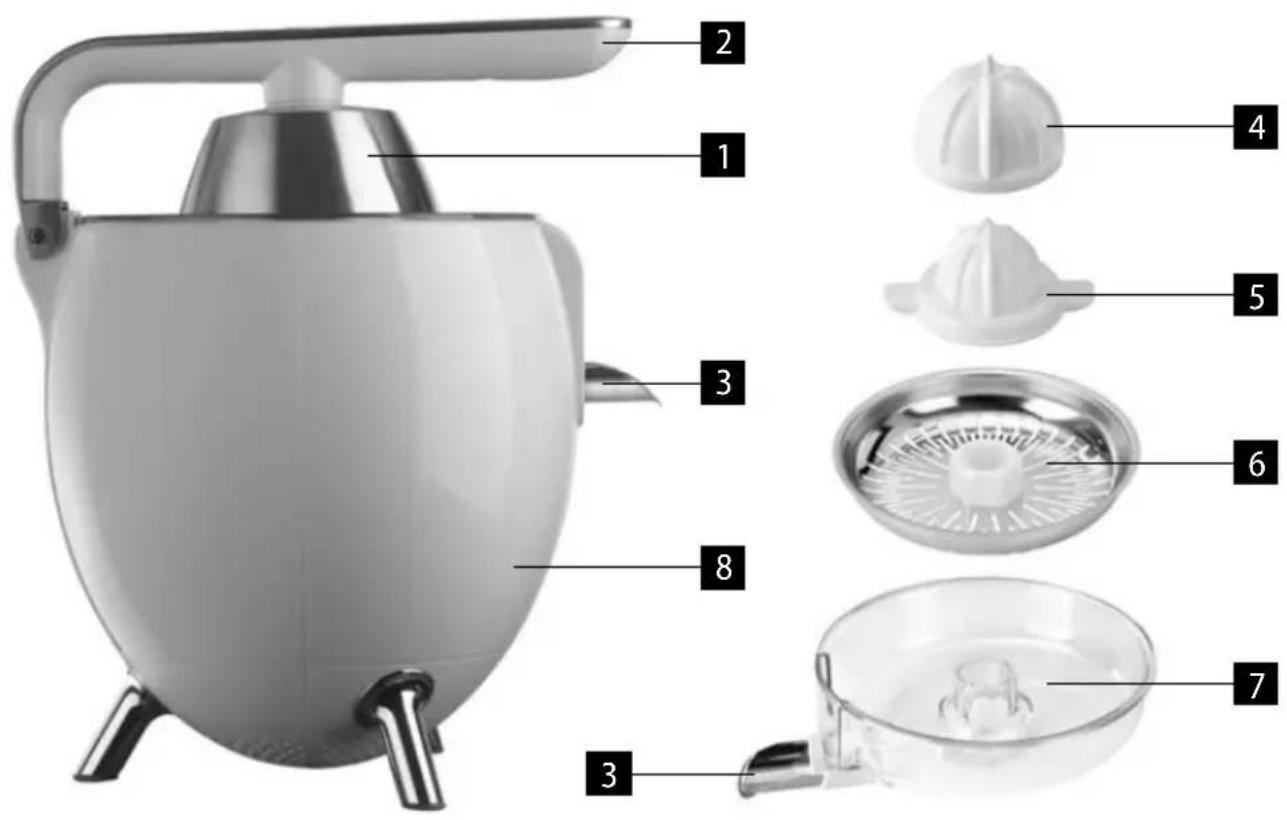

PRODUCT DESCRIPTION

1 Citrus holder
2 Press arm
3 Outlet
4 Big cone
5 Small cone
6 Strainer
7 Container with juice outlet
8 Appliance body

INSTRUCTIONS FOR USE

Lower the outlet so that the squeezed juice can flow out of it and place a glass under it. Cut oranges or lemons in half. Select the appropriate cone size according to the size of the citrus.

Small cone: place the cone on the shaft of the appliance.

Big cone: place the big cone on the small cone and place them on the shaft of the appliance.

Place half of a citrus on the cone and lower the press arm. The motor starts to work. When the press arm is released, the appliance stops working.

Note: The big cone can be used only when placed on the small cone.

NOTICE:

1. Place oranges or lemons on the top of the cone. The citrus press will work better if you keep the citrus on the top of the cone.
2. Do not press too hard on the press arm (pressure approx. 3kg ) Follow the recommended 15 seconds of operation and 15 seconds of pause. After pressing 10 pieces of citruses, let the appliance rest for 10 minutes.
3. You can squeeze juice from oranges and lemons by hand after removing the citrus holder. It is useful when pressing juice from larger fruits (such as grapefruit).

CLEANING AND MAINTENANCE

Before each cleaning of the appliance, unplug the power cord from the electrical outlet!

To clean the surface of the appliance, use only a damp cloth, no detergents or hard objects, as they can damage the surface of the appliance!

Wash removable parts in warm water.

Never clean the appliance body under running water, do not rinse it or immerse it in water!

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

C E

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.
