USER MANUAL IAN 297400 Playtive

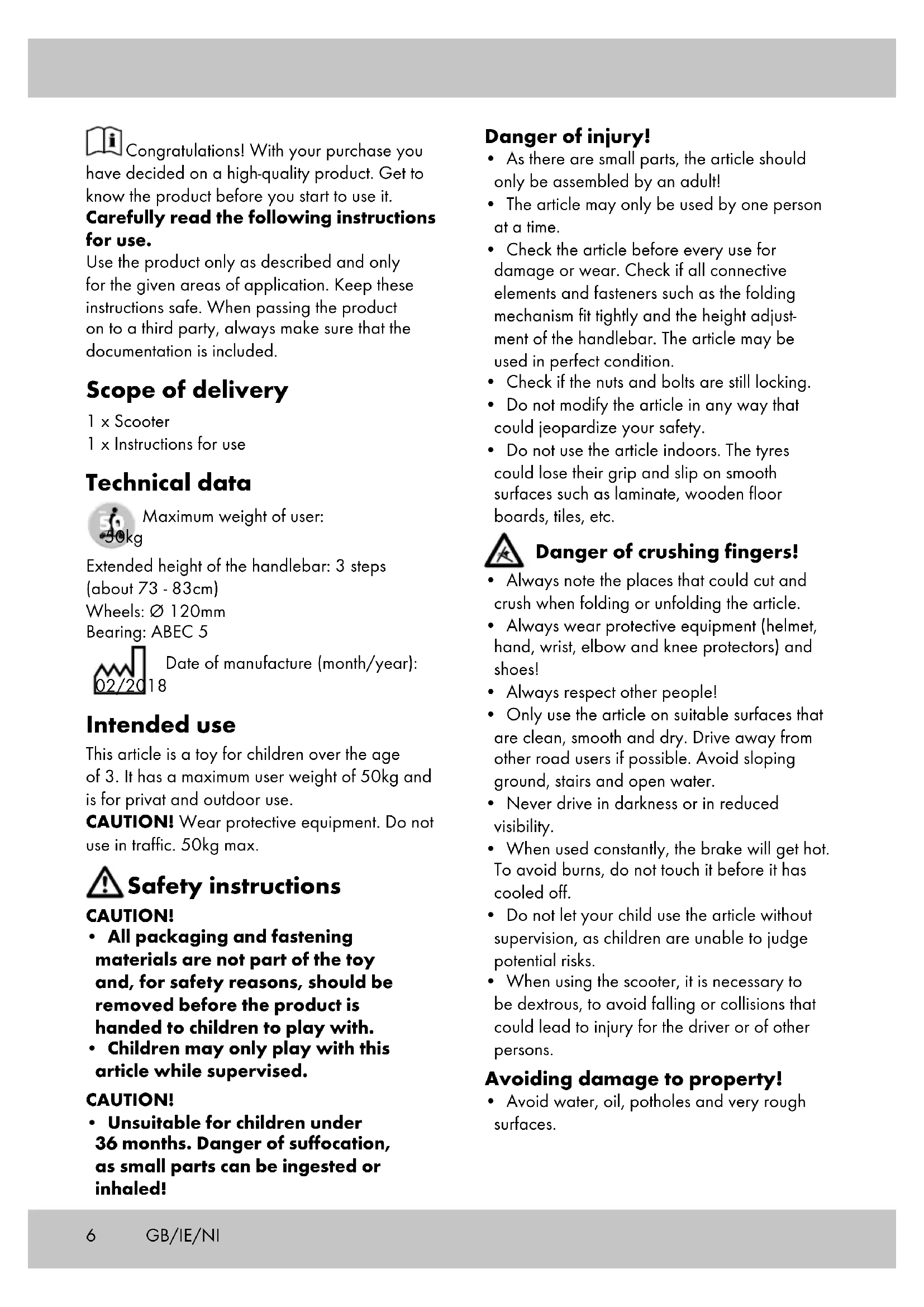

• All packaging and fastening materials are not part of the toy and, for safety reasons, should be removed before the product is handed to children to play with.

• Children may only play with this article while supervised. CAUTION!

• Unsuitable for children under 36 months. Danger of suffocation, as small parts can be ingested or inhaled! Danger of injury!

• As there are small parts, the article should only be assembled by an adult!

• The article may only be used by one person at a time.

• Check the article before every use for damage or wear. Check if all connective elements and fasteners such as the folding mechanism fit tightly and the height adjust- ment of the handlebar. The article may be used in perfect condition.

• Check if the nuts and bolts are still locking.

• Do not modify the article in any way that could jeopardize your safety.

• Do not use the article indoors. The tyres could lose their grip and slip on smooth surfaces such as laminate, wooden floor boards, tiles, etc. Danger of crushing fingers!

• Always note the places that could cut and crush when folding or unfolding the article.

• Always wear protective equipment (helmet, hand, wrist, elbow and knee protectors) and shoes!

• Always respect other people!

• Only use the article on suitable surfaces that are clean, smooth and dry. Drive away from other road users if possible. Avoid sloping ground, stairs and open water.

• Never drive in darkness or in reduced visibility.

• When used constantly, the brake will get hot. To avoid burns, do not touch it before it has cooled off.

• Do not let your child use the article without supervision, as children are unable to judge potential risks.

• When using the scooter, it is necessary to be dextrous, to avoid falling or collisions that could lead to injury for the driver or of other persons. Avoiding damage to property!

• Avoid water, oil, potholes and very rough surfaces. GB/IE/NI7GB/IE/NI Fitting For transport, the article is delivered folded up. To make the product ready for use, proceed as follows: Unfolding (Fig. A)

1. Loosen the bottom quick fastener (1).

2. Pull the lever (2) upwards and push the

handlebar (3) forward until it clicks in.

3. Secure the folding mechanism by locking the

2. Press the lock buttons (6) on the handles

downwards and push the handles in the T-bar (7) of the handlebar. The lock buttons have to audibly lock into the drilled holes (8). Adjusting the height of the handle- bar (Fig. C) The handlebar is adjustable to three different heights. The article may only be used when the lock button is clicked into one of the drilled holes provided and the handlebar is subsequently locked with the quick fastener!

1. Loosen the quick fastener (9) at the handle-

2. Pull the handlebar (3) upwards, until the

lock button (10) clicks into one of the three drilled holes (11).

3. Secure the handlebar by locking the quick

fastener. Headset (Fig. D) When the article is delivered, the headset is pre-adjusted. Should the handlebar be too loose or too stiff after a certain time, have the headset adjusted by a specialist dealer or a cycle shop. Making the article ready for transport (Fig. E)

1. Loosen the quick fastener (9) on the steering

the locking knob (10) clicks into place in the bottom drill hole (11).

3. Secure the steering column (3) by locking the

4. Press on the locking knobs of the handles (4),

pull the handles (4) out of the T-tube (7) and fix to the mounts (5).

5. Loosen the bottom quick fastener (1) and pull

up the lever (2). Push the steering column (3) towards the deck (12) until it clicks into place. Lock the bottom quick fastener (1). Use Driving, braking (Fig. F)

• Put one leg on the deck (12) and propel yourself forward by regularly pushing off with the other leg. The scooter can be steered by moving the handlebar, moving your weight and by a combination of both.

• For braking, step onto the brake plate (13). Maintenance Changing the wheels (Fig. G) Important! Please observe the technical data. Wheels with a different diameter can change the handling characteristics and may lead to danger for the user. Never use wheels that cannot be fitted properly. Never fit larger wheels than the original wheels of the article. The wheels wear. Wear is dependent on many factors, such as the ground, the height and width of the user, the weather conditions, the material of the wheels and their hardness. Therefore, it is necessary to change them from time to time.

• Loosen the axle bolts (14) using two Allen keys size 5.

• Pull out the axle bolts and remove the roll.

• Insert a new roll (15) and fasten it, using the axle screws. After the exchange: Should the wheel rub on the side, do not use it! Ensure that all screws are still tight after a few minutes of driving and that nothing has loosened or come loose. Tighten the wheel again, to ensu- re, that it runs smoothly and that there are no bearing noises.8 Any repairs under the warranty, statutory gua- rantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge. IAN: 297400 Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: deltasport@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: deltasport@lidl.ie Swapping the ball bearings (Fig. H)

• Remove the roll (15) as described.

• Press the bearing out by pressing onto the spacer (16) using an Allen key and remove the spacer.

• Press the other bearing (17) out by pressing with an Allen key.

• Press in a new bearing. Turn the wheel around, insert the distance pieces and press in a second new bearing.
