IAN 366851 - Watch AURIOL - Free user manual and instructions

Product type	Analog wrist watch
Brand	Auriol
Model	IAN 366851
Power supply	Battery (replacement at specialist shop)
Display	Analog: hour, minute and second hands
Functions	Date and day of week display (bilingual on some models), rotating bezel (models Z31970B), time and date adjustment
Water resistance	3 bar or 5 bar depending on model (DIN 8310 standard) – check annually
Case material	Not specified
Diameter	Not specified
Weight	Not specified
Care and cleaning	Clean exterior with a soft dry cloth
Safety instructions	Do not open the watch yourself; have the battery replaced by a professional; respect water resistance
Warranty	3 years from date of purchase (excluding normal wear, loss of water resistance, unauthorized opening)
Repairability	Battery replacement at specialist shop; repair by professionals only
Waste disposal	Follow local regulations for batteries and product at end of life
Special features	Rotating bezel for time marking on certain models (Z31970B); bilingual day display (e.g. German/English) on models Z31970C and Z31970E

Frequently Asked Questions - IAN 366851 AURIOL

How to set the hour and minutes?

Pull the crown to position 2 (setting position). Turn it to adjust the hours and minutes. Once set, push the crown back to normal position; the second hand resumes.

How to set the date?

Pull the crown to position 1 (date setting position). Turn it until the desired date appears. Then push the crown back.

How to set the day of the week on bilingual models?

To change the day language, pull the crown to position 2 and turn the hands clockwise to 3:45. Then turn counterclockwise to the 9:00-23:15 zone, then clockwise again to 3:45: the language toggles. Repeat to switch between languages.

What is the water resistance of the watch?

Depending on the model, water resistance is 3 bar or 5 bar (DIN 8310 standard). This provides resistance to splashes and rain, but not diving. Have the water resistance checked annually.

How to change the battery?

It is recommended to have the battery replaced by a watchmaker or a specialist shop, as opening the watch may compromise water resistance.

How to use the rotating bezel?

On equipped models (Z31970B), turn the bezel counterclockwise to mark the start of a time measurement. Then read the elapsed time using the graduation.

How to clean the watch?

Clean the outside of the watch with a soft dry cloth. Do not use chemicals or abrasives.

What to do if the watch leaks or loses water resistance?

Loss of water resistance is not covered by warranty. Have the seals checked and replaced by a professional.

What is the warranty period?

The watch has a 3-year warranty from the date of purchase, against any material or manufacturing defects. Keep the receipt as proof of purchase.

How to dispose of the watch at end of life?

Do not throw the watch in household waste. Dispose of it at a suitable collection point. Used batteries must be recycled in accordance with Directive 2006/66/EC.

USER MANUAL IAN 366851 AURIOL

Operation and Safety Notes

F

RANNEKELLO

GB/IEOperation and Safety NotesPage 9

FI Käytö- ja turvallisuusohjeet Sivu 17
SE Bruksanvising och sakerhetsanvisiningar Sidan 25
DK Brugs- og sikkerhedsanvisninger Side 32
FR / BE Instructions d'utilisation et consignes de sécurité		Page 40
NL/BE	Bedienings- en veiligheidsinstructies	Pagina 59
DE/AT/CH	Bedienungs- und Sicherheitshinweise	Seite 60

6

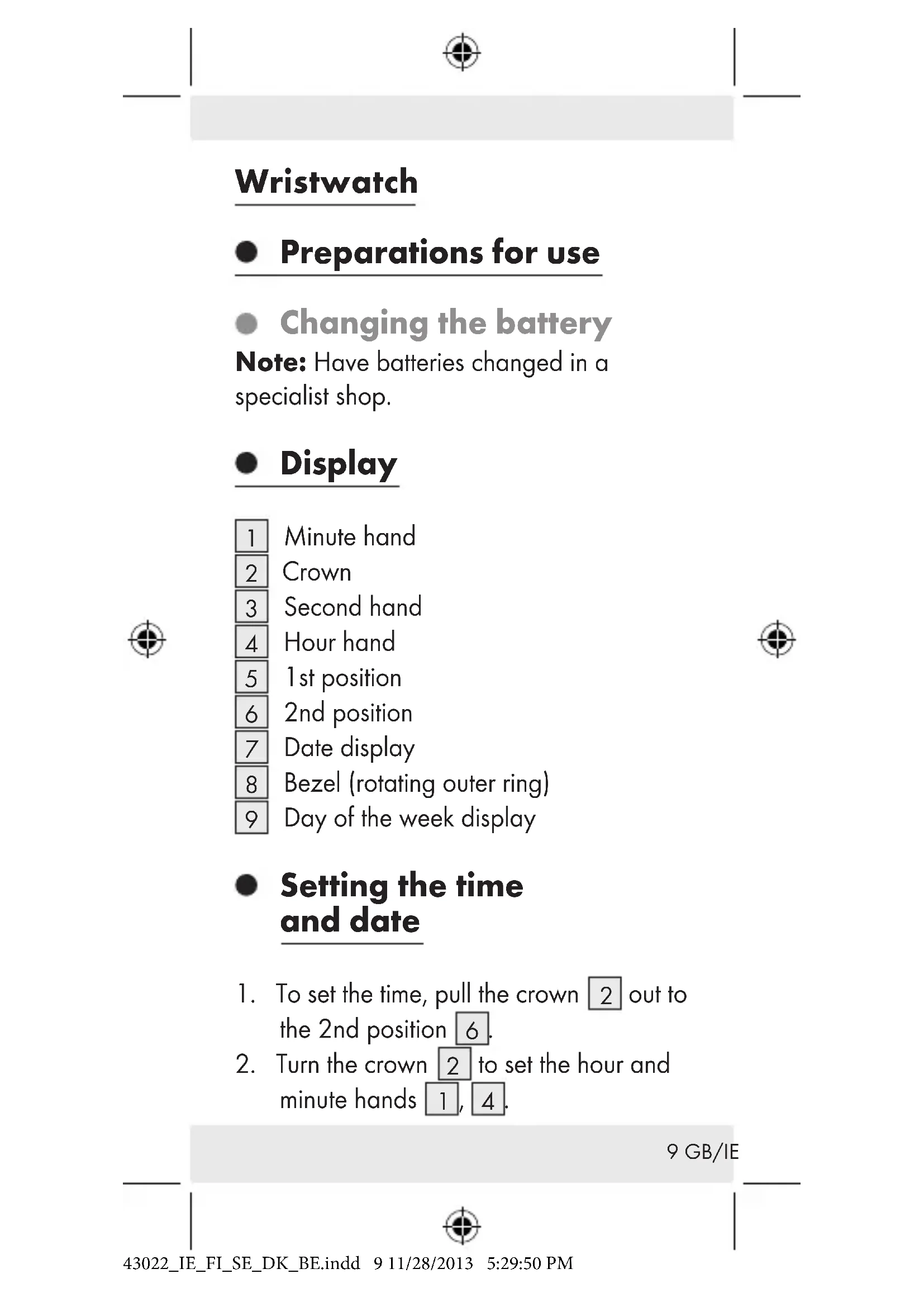

Wristwatch

Preparations for use

- Changing the battery

Note: Have batteries changed in a specialist shop.

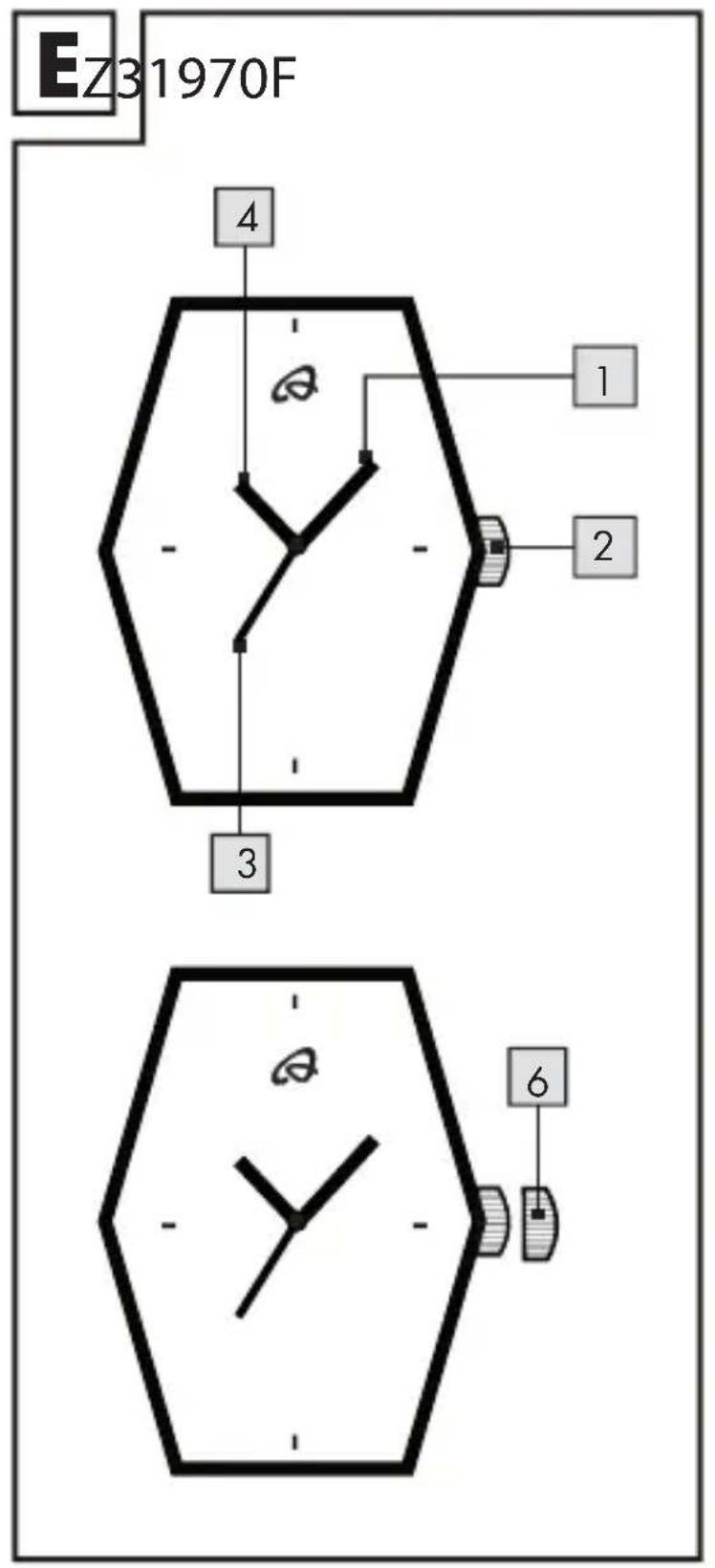

- Display

1 Minute hand
2 | Crown
3 Second hand
4 Hour hand
5 1st position
6 2nd position
7 Date display
8 Bezel (rotating outer ring)
Day of the week display

Setting the time and date

1. To set the time, pull the crown 2 out to the 2nd position 6.
2. Turn the crown 2 to set the hour and minute hands 1, 4.

9GB/IE

1. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

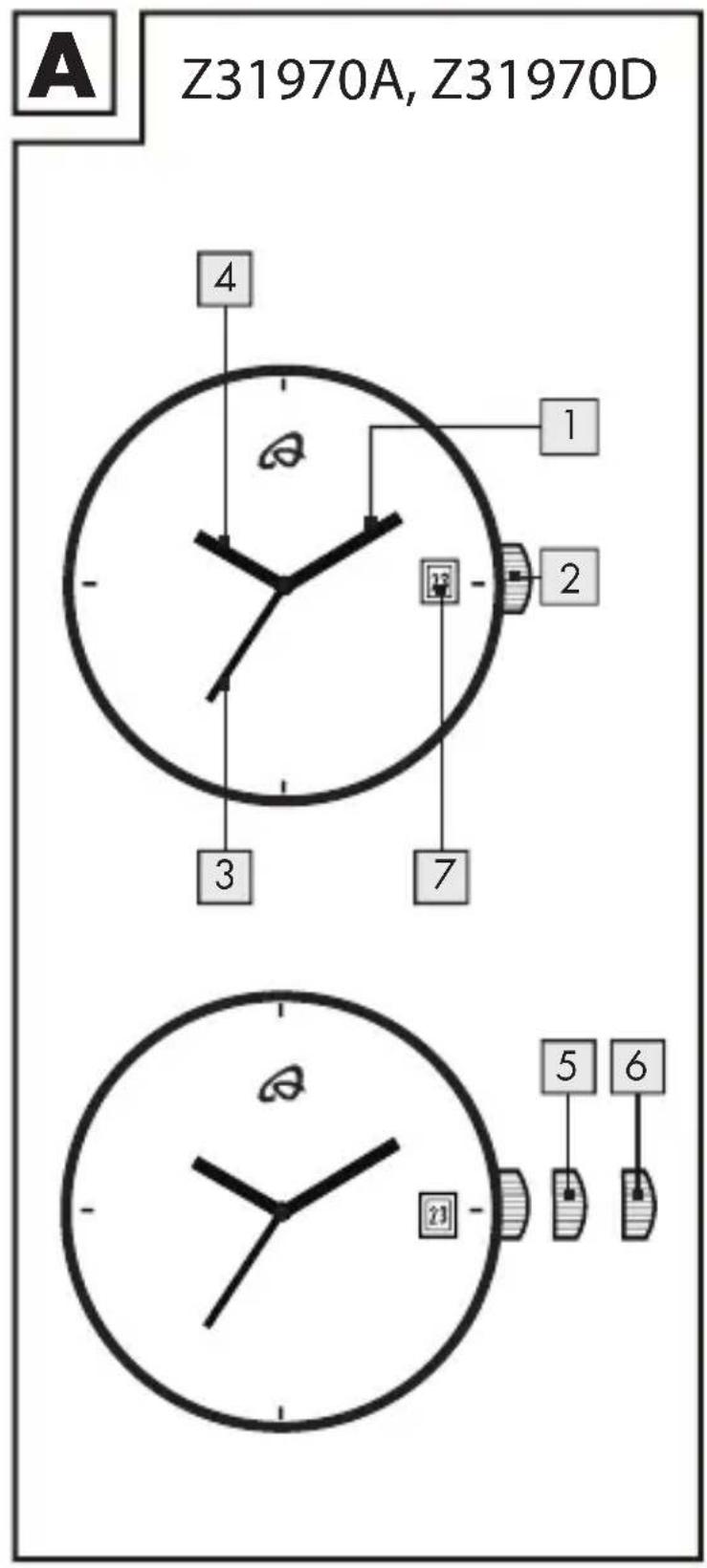

2. To set the date, pull the crown 2 out to 1st position 5. Turn the crown 2 until the required date is set on the date display 7. (Z31970A, Z31970C, Z31970D, Z31970E)

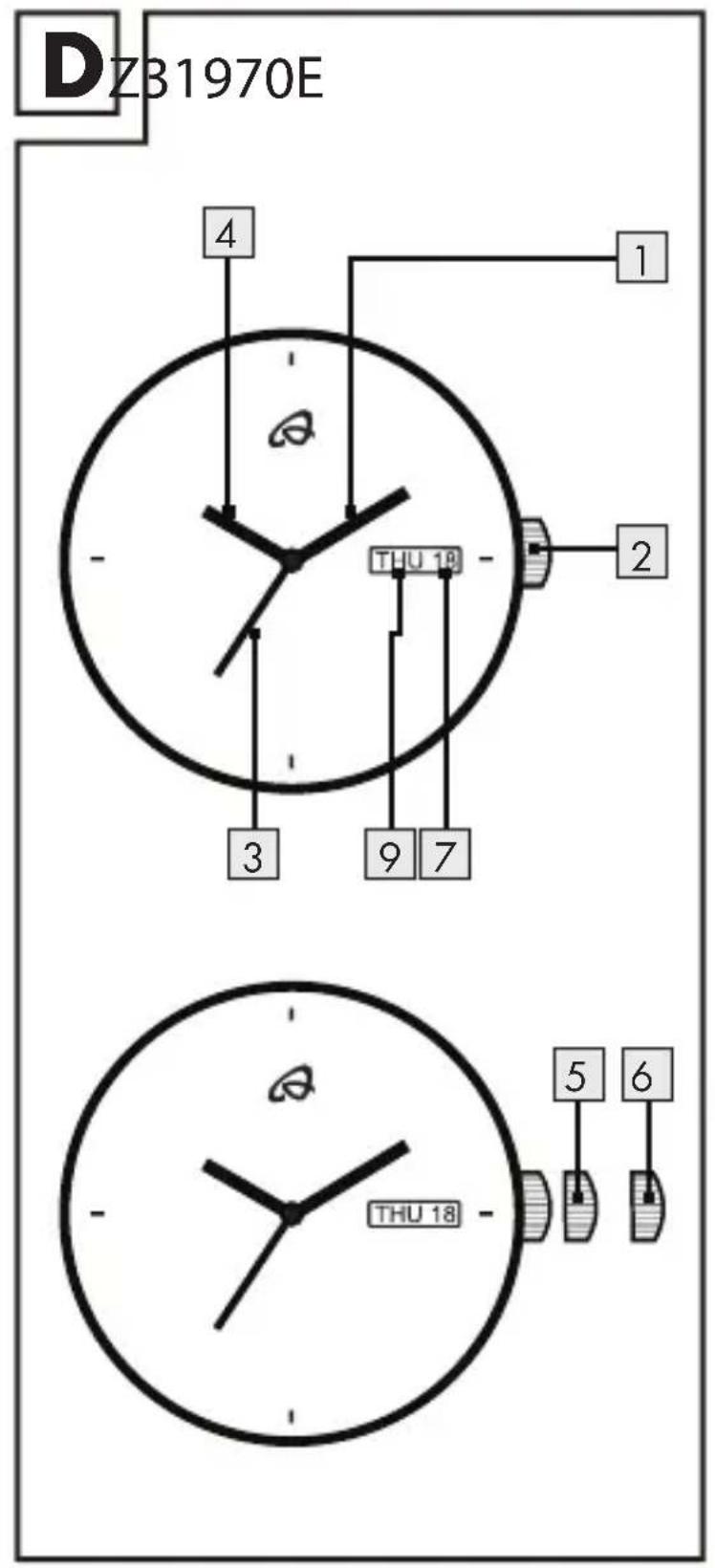

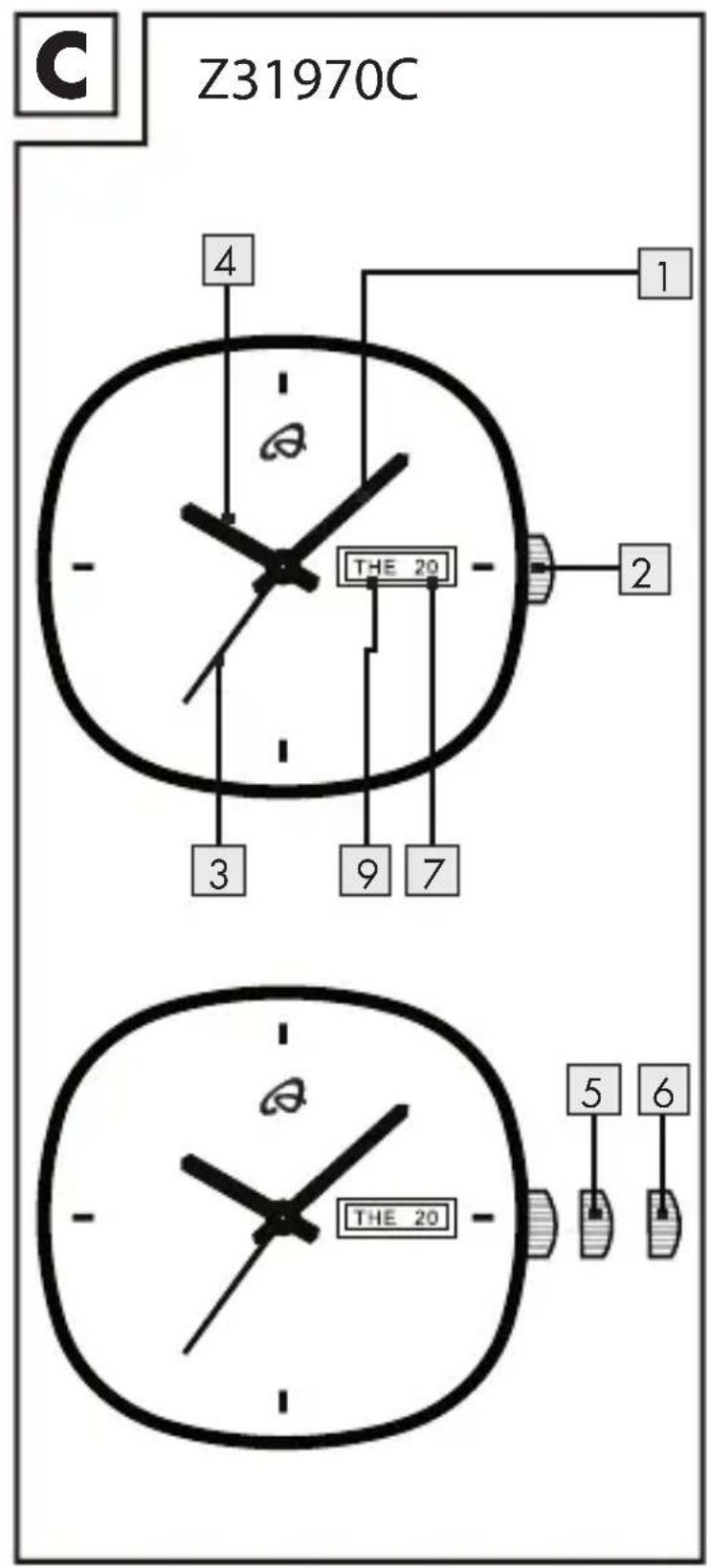

Language setting for week day display (Z31970C, Z31970E)

Pull out the crown to the 2nd position [6] and turn the hour and minute hands clockwise to set the desired day of the week [9]. (Example: Bilingual day display: English - German)

1. After the desired day appears in the calendar frame (the hands indicate 3:45 AM at this time), turn the hands counterclockwise. Day display - "SUN"
2. Turn the hands counterclockwise until they indicate the time zone between

10 GB/IE

9:00 PM and 11:15 PM.

Day display - "SAM"

1. Then, turn the hands clockwise again up to 3:45 AM and language of the day changes over to the other. Day display - "SON"
2. By repeating these procedures 1-3, the language of the day changes over to the other successively. Example: "SUN" "SON" "MON" "MON" "TUE" "DIE"

- Watertightness

This watch has the following water resistance classification in accordance with DIN 8310: Z31970A : 5 bar Z31970B : 5 bar Z31970C : 3 bar Z31970D : 5 bar Z31970E : 5 bar Z31970F : 3 bar

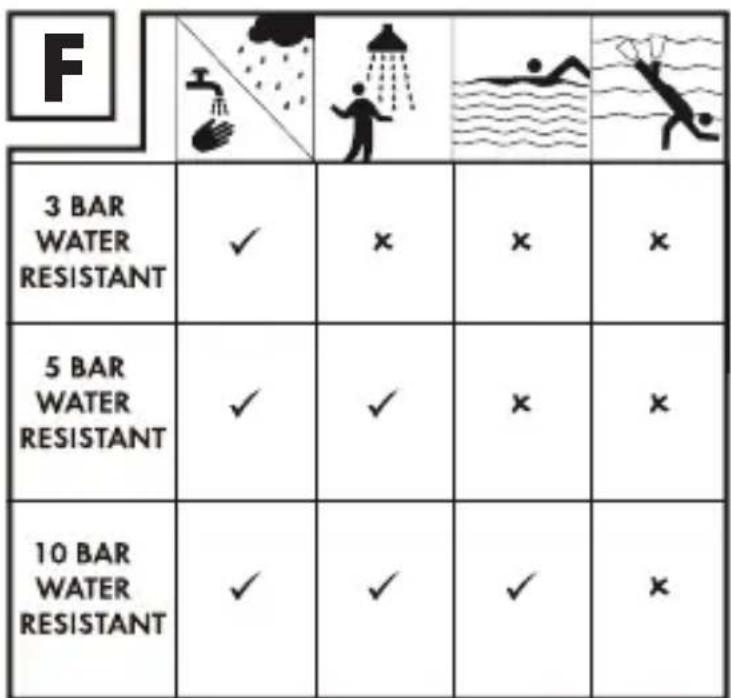

Figure F shows the permissible areas of use. Please note that the watertightness is not a permanent feature. It should be checked annually and particularly

11 GB/IE

before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

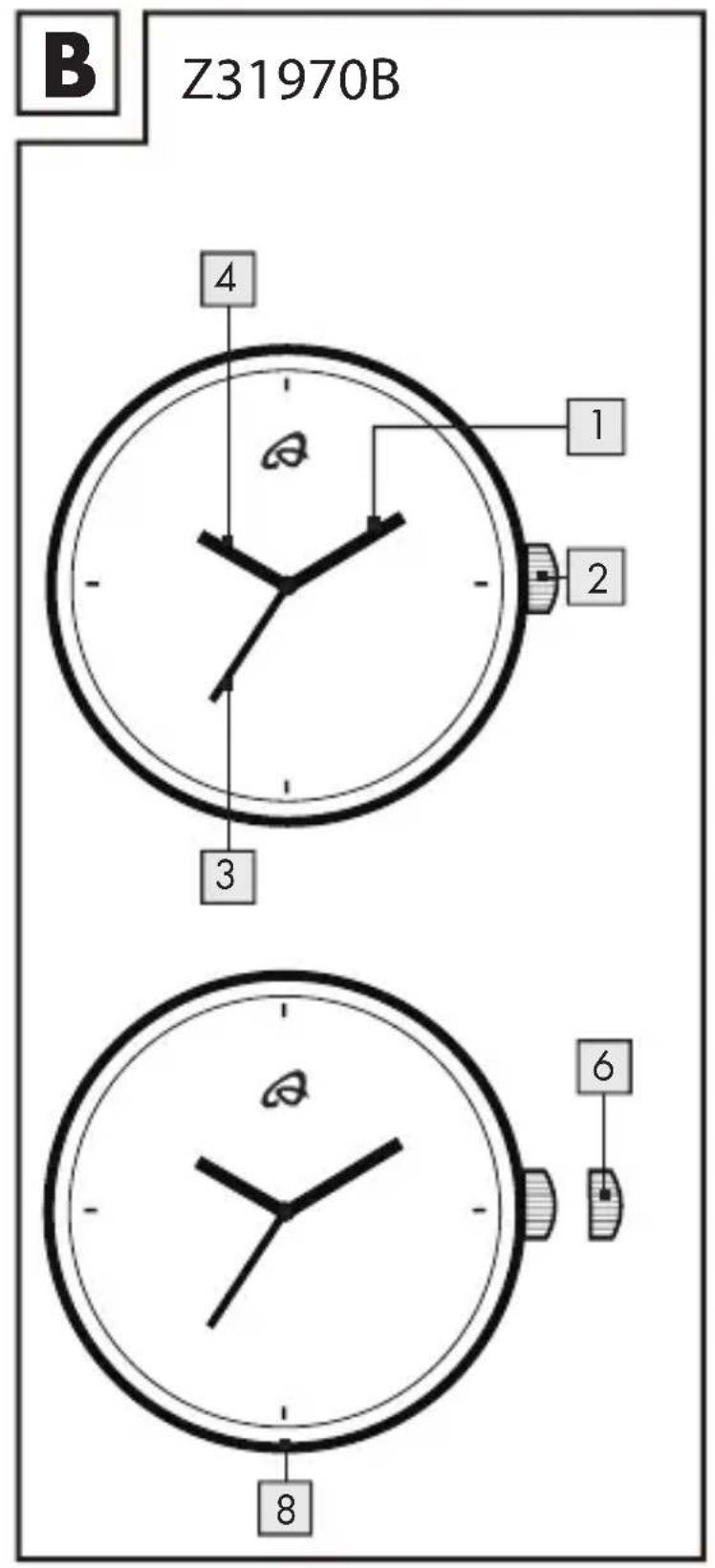

- Timing (Z31970B)

The bezel 8 is used to indicate a period of time (e.g. jogging time). The amount of time elapsed can be read easily from the bezel.

Turn the bezel 8 in anti-clockwise direction to mark the start of timing.
- Removing Segments (Z31970A, Z31970B, Z31970C)

Note: The segments that can be removed are marked with an arrow. They are connected together with pins. The pins can be pushed out in the direction of the arrow.

12 GB/IE

- Cleaning and maintenance

Clean the product on the outside only with a soft, dry cloth.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

13 GB/IE

Faulty or used batteries must be recycled in accordance with Directive 2006/66/EC. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries must not be disposed off with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

WARRANTY

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

14 GB/IE

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained.

15 GB/IE

Please note, opening and repairs performed by unauthorized individuals will void any warranty.

16 GB/IE
