Product type	Non-motorized three-wheel scooter with LED wheels
Brand	Playtive
Model	IAN 331258
Recommended age	From 3 years
Maximum user weight	50 kg
Adjustable handlebar height	Yes, 3 levels up to approx. 76 cm
Front wheel diameter	120 mm
Rear wheel diameter	100 mm
Bearing type	ABEC5
Frame material	Steel (estimate)
Product weight	Approx. 3.5 kg
Dimensions (L × W × H)	Approx. 70 × 30 × 76 cm
Lighting	Integrated LED in wheels
Power supply	None (manual propulsion)
Spare parts available	Replaceable front wheels
Warranty	3 years
Maintenance	Clean with water, dry, avoid harsh products
Required safety equipment	Helmet, hand guards, wrist guards, elbow pads, knee pads

Frequently Asked Questions - IAN 331258 Playtive

How to assemble the Playtive IAN 331258 scooter?

Insert the handlebar stem into the lower part of the scooter until it clicks into place. Make sure the locking pin is secure. Caution: risk of pinching during assembly.

How to adjust the handlebar height?

Loosen the quick-lock mechanism, pull the T-tube upward until the locking button engages in one of the three holes, then retighten the mechanism. The maximum height is approximately 76 cm.

How to replace the front wheels?

Loosen the front wheel screws with a hex key, replace with wheels of the same diameter (120 mm), then retighten. Check the tightness after the first few minutes of riding.

What is the maximum user weight?

The maximum user weight is 50 kg. Do not exceed this limit for safety reasons.

From what age can this scooter be used?

This scooter is designed for children from 3 years, under adult supervision.

Can the scooter be used on public roads?

No, it is prohibited to use the scooter on public roads. Reserve it for private, smooth, dry surfaces.

How to maintain the scooter?

Clean the scooter with water and dry it thoroughly. Do not use harsh cleaning products. Remove small stones from the wheels.

What protective equipment is recommended?

Always wear a helmet, wrist guards, elbow pads, knee pads, and closed-toe shoes.

What is the warranty period?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects.

Are spare parts available?

Yes, the front wheels are replaceable. Other parts may be available from customer service.

USER MANUAL IAN 331258 Playtive

TRI-SCOOTER WITH LED WHEELS

GB IE NI

TRI-SCOOTER WITH LED WHEELS

Instructions for use

FR BE

TROTTINETTE À TROIS ROUES LED

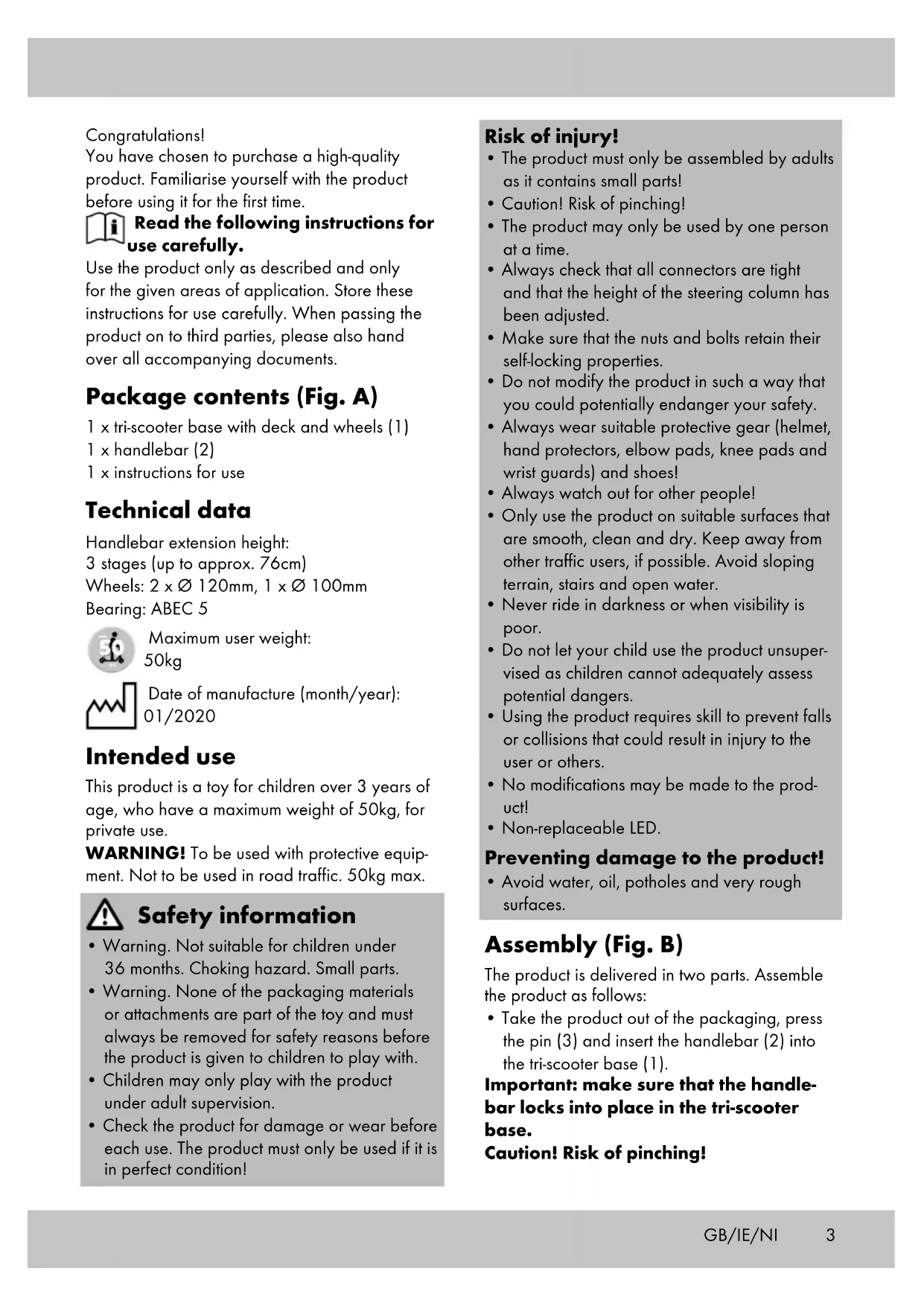

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents (Fig. A)

1 x tri-scooter base with deck and wheels (1)
1 x handlebar (2)
1 x instructions for use

Technical data

Handlebar extension height:

3 stages (up to approx. 76cm)

Wheels: 2 × 0.120mm, 1 × 0.100mm

Bearing: ABEC 5

Maximum user weight:

50kg

Date of manufacture (month/year):

01/2020

Intended use

This product is a toy for children over 3 years of age, who have a maximum weight of 50kg , for private use.

WARNING! To be used with protective equipment. Not to be used in road traffic. 50kg max.

Safety information

• Warning. Not suitable for children under 36 months. Choking hazard. Small parts.
• Warning. None of the packaging materials or attachments are part of the toy and must always be removed for safety reasons before the product is given to children to play with.
  Children may only play with the product under adult supervision.
• Check the product for damage or wear before each use. The product must only be used if it is in perfect condition!

Risk of injury!

• The product must only be assembled by adults as it contains small parts!
• Caution! Risk of pinching!
  The product may only be used by one person at a time.
• Always check that all connectors are tight and that the height of the steering column has been adjusted.
• Make sure that the nuts and bolts retain their self-locking properties.
• Do not modify the product in such a way that you could potentially endanger your safety.
• Always wear suitable protective gear (helmet, hand protectors, elbow pads, knee pads and wrist guards) and shoes!
  Always watch out for other people!
• Only use the product on suitable surfaces that are smooth, clean and dry. Keep away from other traffic users, if possible. Avoid sloping terrain, stairs and open water.
• Never ride in darkness or when visibility is poor.
• Do not let your child use the product unsupervised as children cannot adequately assess potential dangers.
• Using the product requires skill to prevent falls or collisions that could result in injury to the user or others.
• No modifications may be made to the product!
  Non-replaceable LED.

Preventing damage to the product!

• Avoid water, oil, potholes and very rough surfaces.

Assembly (Fig. B)

The product is delivered in two parts. Assemble the product as follows:

• Take the product out of the packaging, press the pin (3) and insert the handlebar (2) into the tri-scooter base (1).

Important: make sure that the handlebar locks into place in the tri-scooter base.

Caution! Risk of pinching!

Adjusting the height of the handlebar (Fig. C)

The handlebar can be adjusted to three different heights.

The product may only be used if the locking knob is locked in place in one of the three holes provided and the T-tube is then secured using the quick-release fastener!

1. Loosen the quick-release fastener (4) on the handlebar (2).
2. Pull the T-tube (5) upwards, until the locking knob (6) locks into place in one of the three holes (7).
3. Secure the T-tube (5) by locking the quick-release fastener (4).

Note: if the quick-release fastener (4) is too loose, you can manually adjust the knurled screw (8) on the back of the fastener.

Disassembly

Press the pin (3a) on the left side of the tri-scooter's base and pull out the handlebar (2) (Fig. B).

Use

• Put one foot on the deck and give momentum by regularly pushing off with the other foot.
• Steer the tri-scooter to the left and right by shifting your weight.

Maintenance

Replacing the front wheels

The front wheels can be replaced. Important!

Pay attention to the technical specifications. Wheels with a different diameter may alter the riding behaviour and possibly endanger the user.

Do not use wheels that cannot be installed properly. Never use wheels that are larger than the original wheels on the product.

Wheels wear out. This wear depends on many factors, such as, for example, the terrain, the size and weight of the user, the weather conditions, the material of the wheels and their hardness, etc. Therefore, it is necessary to replace them now and then.

1. Use a suitable hex key (not included in the package contents) to loosen the screws on the two front wheels.
2. Install the new wheels and secure them with the screws.

After replacing the wheels: After the first few minutes of riding, make sure that the screws are still tight and that nothing has detached or become loose. Tension the wheel once more to make sure that it runs smoothly.

Storage, cleaning

We recommend that you clean and dry the product thoroughly after use.

Remove small stones or other objects that may have become stuck to the wheels.

When not in use, always store the product clean and dry at room temperature. Clean only with water and wipe dry afterwards.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol - which is used to reflect the recycling cycle - and a letter which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN:331258_1907

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

NI Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
