USER MANUAL iGen600s WESTINGHOUSE

DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571. User Manual iGen600s Portable Power StationWestinghouse Outdoor Power Equipment - ENGLISH - 2

HOW TO POWER DC APPLIANCES

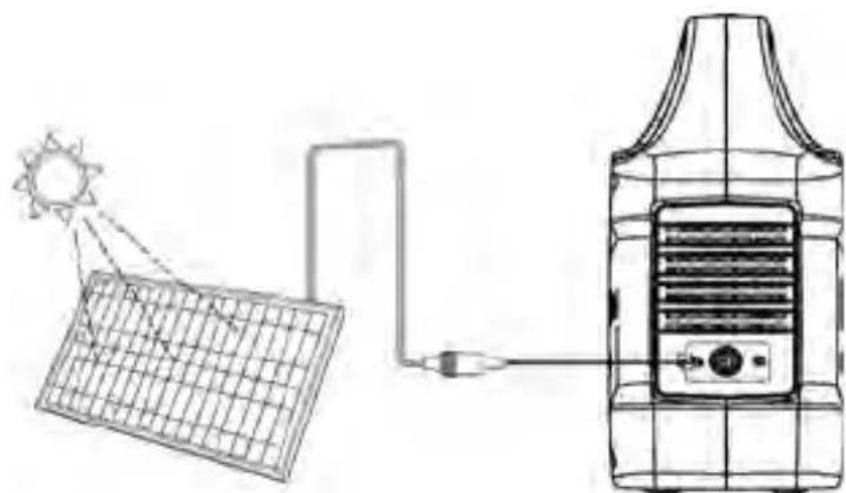

RECHARGING WITH SOLAR PANELS (OPTIONAL) 15

PRODUCT FOR ANY REASON. If you have a question or experience a problem with your Westinghouse purchase, call us at 855-944-3571 to speak with a service representative SAVE THIS MANUAL FOR FUTURE REFERENCE.Westinghouse Outdoor Power Equipment - ENGLISH - 3 CHARGE FIRST! Before reading through the manual, you can begin to charge up this device by connecting it to the power supply provided and plugging into a wall socket

WARNING: Lithium-ion batteries and products that contain

lithium-ion batteries can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm For more information, go to www P65Warningscagov

DANGER: This manual contains important instructions for operating

this product For your safety and the safety of others, be sure to read this manual thoroughly before operating the battery/charger Failure to properly follow all instructions and precautions can cause serious injury or death INTENDED USE: The iGen600s Portable Power Station is a power supply for electronic devices with a maximum power consumption of 600W Our product is not suited for use with equipment that relates to one‘s own personal safety and relies heavily on electricity, such as medical devices, equipment for nuclear facilities, manufacture of air and spacecraft, etc We assume no liability for accidents involving personal safety, res, or machine failures caused by using our product with the aforementioned devices

Power Station DC Car Charger AC Charger Accessories Bag User ManualWestinghouse Outdoor Power Equipment - ENGLISH - 4 ATTENTION Not permitted on airplanes Use original or certied charger & cables To preserve the battery lifespan, use & recharge at least once every 3 months Avoid extreme temperature Dispose of batteries and electronic goods in accordance with local regulations Do not expose to liquids Avoid dropping Do not disassembleWestinghouse Outdoor Power Equipment - ENGLISH - 5

SAFETY GUIDELINES - DEFINITIONS

It is important to read and understand this manual The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS The symbols below are used to help you recognize this information

DANGER: Indicates an imminently hazardous situation which, if not

avoided will result in death or serious injury

WARNING: Indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury NOTICE: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage DISCLAIMERS: All information, illustrations and specications in this manual are based on the latest information available at the time of publishing The illustrations used in this manual are intended as representative reference views only Moreover, because of our continuous product improvement policy, we may modify information, illustrations and/or specications to explain and/or exemplify a product, service or maintenance improvement We reserve the right to make any change at any time without notice Some images may vary depending upon which model is shown Our company cannot be held liable for damages caused by re, earthquake, use by a third party, other accidents, intentional misconduct on the part of the customer, abuse or other abnormal conditions Do not repair any damage to the AC plug or power supply on your own The warranty covers all terms and conditions of the warranty Contents that are not specied in the warranty terms and conditions are beyond our responsibility Our company assumes no liability for damages caused by incorrect use or non-compliance with this instruction manualWestinghouse Outdoor Power Equipment - ENGLISH - 6 ALL RIGHTS RESERVED: No part of this publication may be reproduced or used in any form by any means – graphic, electronic or mechanical, including photocopying, recording, taping or information storage and retrieval systems – without the written permission of Westinghouse Outdoor Power

REGISTERING YOUR PRODUCT

Register your product online at wpowereqcom/register To register your power station you will need to locate the serial number on a decal on the bottom of the power station

• DO NOT place the unit close to or in a re or expose it to heat. Keep out of direct sunlight

• DO NOT charge, use or store the unit in a bathroom or in an area exposed to rain or moisture

• Only use the output socket to power external devices Never connect the output to mains power under any circumstances

• DO NOT touch the unit or the plug-in points if your hands are wet

• DO NOT connect any metallic objects to the AC input or output

• DO NOT rub your eyes if uid from inside the unit gets on your hands

• DO NOT dispose the unit together with household waste

• DO NOT use any inappropriate or damaged power cords

• DO NOT move the unit if it is recharging or in useWestinghouse Outdoor Power Equipment - ENGLISH - 7

• Use and store the unit only in a clean and dry environment DO NOT use and store in dusty or wet environment

• Check the unit prior to every use DO NOT use the unit if it is damaged or broken

• Do not use the unit if the power cord is damaged or broken

• Keep the unit away from children. DO NOT let children use the power supply unit

• Keep this product away from pets.

• DO NOT use or store the unit in an area or environment with high temperature

• Should uid from inside of the unit come in contact with your skin or clothing, wash the affected areas with tap water

• In a storm, unplug the power cord from the socket

• DO NOT charge the unit via power supply systems that operate outside of 100-240V

• DO NOT place the unit on its side or upside down while in use or storage CAUTION:

• If rust, peculiar odors, overheating or other abnormal circumstances are observed, stop using the unit immediately and contact our customer service team

• The unit complies with all legal requirements for transport of dangerous goods

• Make sure that the unit is properly secured when transporting it in a motor vehicle

• Only charge, use and store the unit within an ambient temperature of -10 to 40°C (14° - 104°F)

• Switch the unit off immediately if it has accidentally fallen, was dropped or was exposed to vibrations

• Carefully read the instructions for the electric devices that you intendWestinghouse Outdoor Power Equipment - ENGLISH - 8 to connect to your portable power station

• Make sure that the device you are connecting is switched off before you connect it SPECIFICATIONS Model Name: iGen600s Battery Cell Chemistry: Lithium Ion (Li-ion) NMC Capacity: 592Wh Total mAh: 64x2500mAh=160,000mAh Running Watts: 600W Peak Watts: 1200W AC Output Voltage: 120V DC Output Voltage: 12V Sine Wave Type: Pure Sine Wave Frequency: 60Hz Life Cycle: 500 Cycles to 80% Capacity Charge Time: 8 hours with AC charger Working Temperature: -10°c to 40°C (14° - 104°F) Parallel Capable: No Warranty: 2 Years Certications: FCC, RoHS, UN383Westinghouse Outdoor Power Equipment - ENGLISH - 9 PRODUCT FEATURES

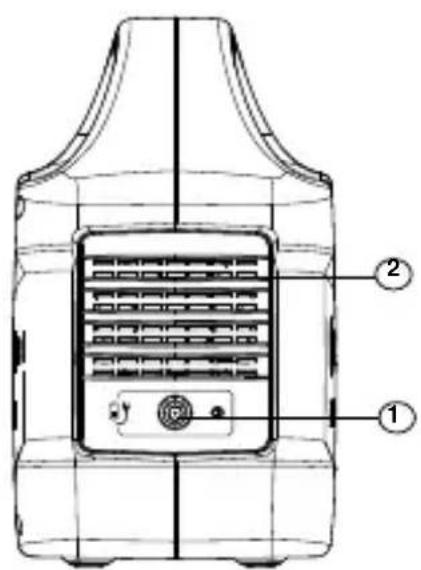

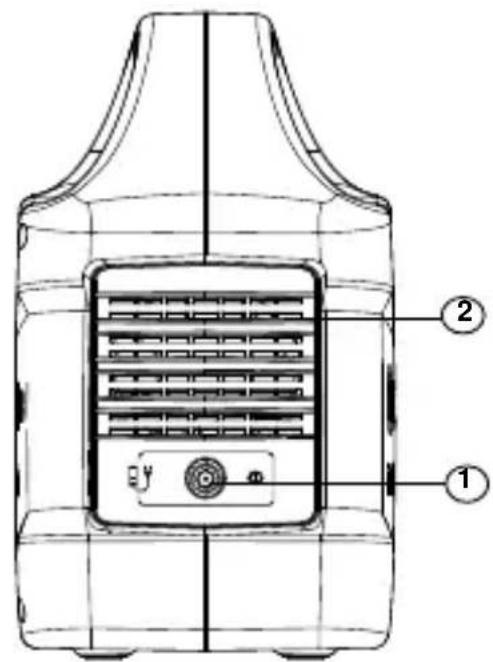

1. Input for charging from solar panels, or AC

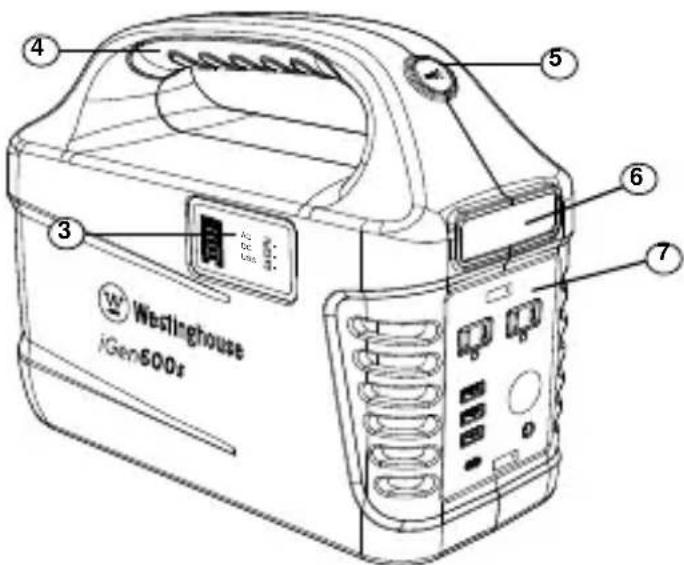

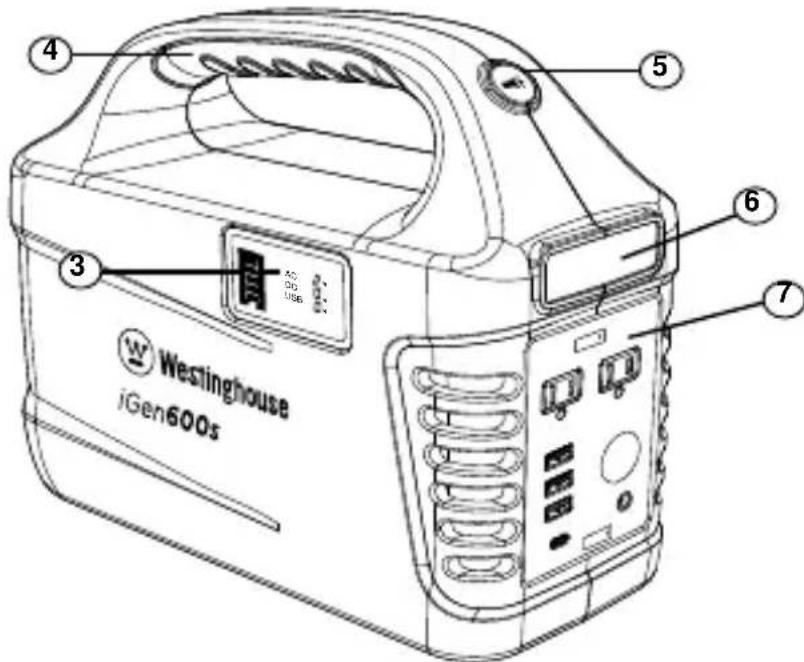

7. Control PanelWestinghouse Outdoor Power Equipment - ENGLISH - 10

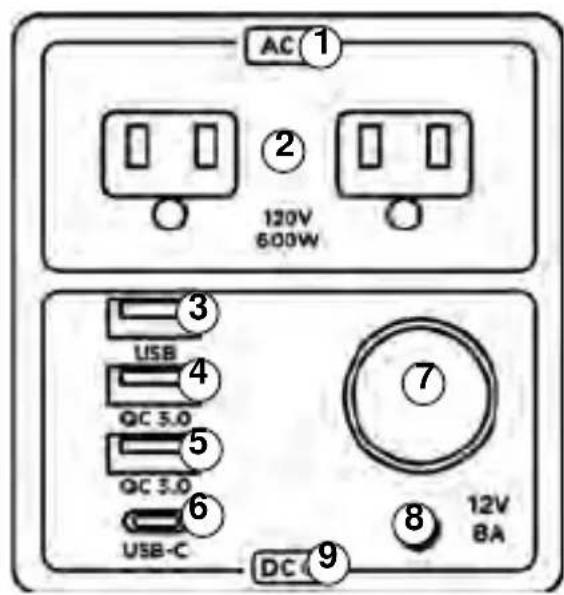

4. USB-A QC (Quick Charge) 30,

5/9/12VDC, up to 30A, 18W Max

5. USB-A QC (Quick Charge) 30,

5/9/12VDC, up to 30A, 18W Max

6. USB-C, PD (Power Delivery), 5/9/12V

DC, up to 30A, 18W Max

7. Car Cigarette Lighter Port, 12V DC, Up to 8A, 96W Max

8. 6mm, 12V DC, up to 8A

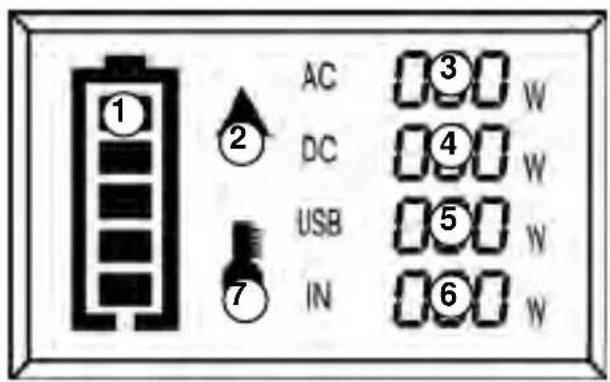

2. Equipment Failure Warning

3. AC Output Indicator (in watts)

4. DC Output Indicator (in watts)

5. USB Output Indicator (in watts)

6. Charging Input Indicator (in watts)

4Westinghouse Outdoor Power Equipment - ENGLISH - 11

The output voltage of a sine-wave inverter has a sine wave-form like the sine wave-form of the mains/utility voltage In a sine wave, the voltage rises and falls smoothly with a smoothly changing phase angle and also changes its polarity instantly when it crosses 0 Volts The unit provides Pure Sine Wave output and can be compatible with AC electric appliance that works with Sinusoidal waveform (power≤300W). Appliances that use an AC motor are going to work to full capacity on a pure sine wave, such as an electrical fan Appliances like refrigerators, microwaves, and compressors that use AC motors and some delicate equipment will be better use with our pure sine wave inverter

HOW TO POWER AC APPLIANCES

1. Make sure the appliance you are plugging in is turned off

2. Connect the power cable plug of the electrical appliance to the AC

outlet of the product

3. Press the “AC Power ON/OFF” button to turn on The button will

illuminate when it is on

4. Turn AC appliance on The LED Display will display real-time wattage

5. When nished, turn off device, remove power cable and press “AC

Power ON/OFF” to turn outlets off (If you leave the AC Power button on it will drain the battery) NOTICE: If the total output exceeds 300W, the power station will automatically shut off Please ensure the power consumption is less than 300W, then press the AC Power button

WARNING: The AC outlets, AC voltage, and frequency are different

according to different countries; please carefully check whether the product specications are consistent with the appliance specications before use, otherwise, it can lead to dangerous situationsWestinghouse Outdoor Power Equipment - ENGLISH - 12 NOTE: When the AC port is not in use, turn “AC Power ON/OFF” button off to conserve power CAN’T SUPPORT DEVICES MORE THAN 600W Hair Dryer Induction Cooker Heater Rice Cooker Electric Drill Electric Kettle Microwave Oven Toaster Blender

HOW TO POWER DC APPLIANCES

1. Connect the power cable plug of the electrical appliance to USB

outlets or 12V ports

2. Press the “DC Power ON/OFF” button to turn on The button will

illuminate when it is on

3. The LED Display will display real-time wattage of the appliance

4. When nished, press “DC Power ON/OFF” to turn off DC power.

NOTICE: If the total output exceeds the wattage output of the DC outlet, the power station will automatically shut off Please ensure the power consumption is less than what the outlet is rated for before using the device QUICK CHARGE OUTPUT: This product supports Type-A QC30 and Type-C PD that output 5V/3A, 9V/2A, and 12V/15A, for smart devices The actual output voltage and current depend on the smart devices, itWestinghouse Outdoor Power Equipment - ENGLISH - 13 can be obtained by consulting the smart device manufacturer 12V 6MM OUTPUT: The device comes with a 12V 6mm port This can output 12V DC, up to 8A If you plan on using the 6mm outlet without adapter please conrm whether your DC 12V appliance supports charging with a 6mm DC plug (The diameter of the DC port of the product is 6 mm) PROTECTION MODE: Short-circuit/Overload Protection: If the AC or DC output is short-circuited or overloaded (- Load(s) power output is greater than 300W), the unit will shut down power output to protect itself Some devices, such as refrigerator, ice maker or a laser printer may require a surge power, the surge power could exceed 600W or even higher, this could cause overload protection with this unit Please remove the devices and consult with the device manufacturers for more information

2. Press button again to make light 50% brightness

3. Press a third time to turn light off

SOS MODE: While the light is on, hold down ashlight button for 3 seconds to activate SOS mode Single press to turn SOS mode off

WARNING: Do not look directly into the light May cause damage

due to the strong lightWestinghouse Outdoor Power Equipment - ENGLISH - 14

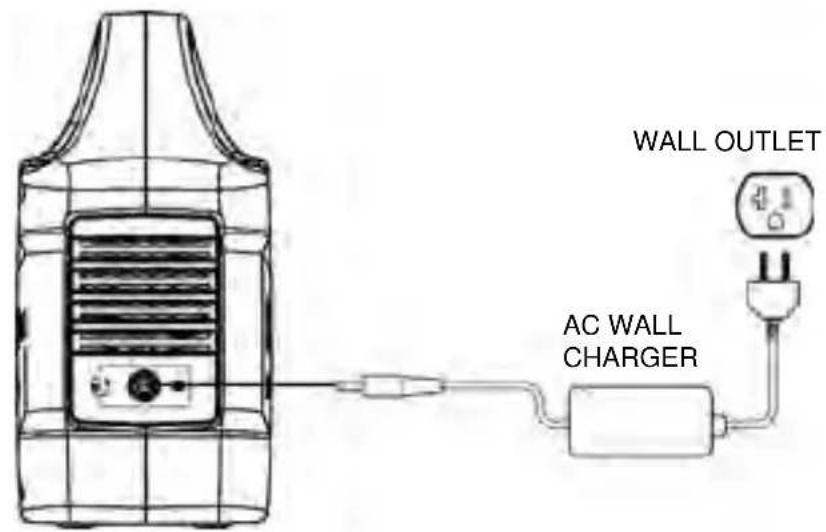

RECHARGING WITH AC CHARGER

Using the included AC Wall Charger cable, plug the unit into standard wall outlet to charge the unit You will know the unit is charging when the red LED battery indicator light is on The unit is fully charged when all battery indicators on the LED display are illuminated After the unit is fully charged, please remove the AC wall charger WALL OUTLET AC WALL CHARGER

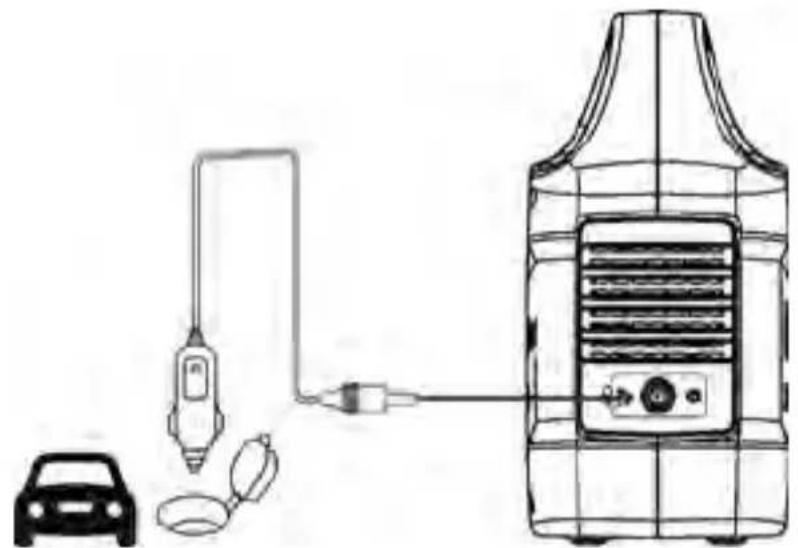

RECHARGING WITH 12V CAR CHARGER

Using the included car charger, plug the unit into a 12V cigarette lighter (carport) in your car You will know the unit is charging when the red LED battery indicator light is on The unit is fully charged when all battery indicators on the LED display are illuminated Note: To avoid car battery power loss Charging this unit through your car cigarette lighter is only available when your car engine is startedWestinghouse Outdoor Power Equipment - ENGLISH - 15 RECHARGING WITH SOLAR PANELS (OPTIONAL) Make sure to use panel with 8mm output plug Place solar panel where it will get as much direct sunlight as possible Plug the output of the solar panel into the input on the back of the power station to start charging You will know the unit is charging when the red LED battery indicator light is on The unit is fully charged when all battery indicators on the LED display are illuminated NOTICE: When solar recharging your power station, take note of the voltages of the solar panels and do not exceed 19V Individual solar panels, or solar panels chained in series in excess of 19V cannot be used with the power station and can cause serious damage to the unit For help on chaining solar panels, call our Customer Service Center at 1-855-944-3571

Cold temperatures (below freezing) can affect the unit’s battery capacity due to chemical characteristics of the battery If you’ll be living off-grid in sub-zero conditions, we recommend you keep your unit in an insulated cooler, and connected to a power source (solar panels) The natural heat generated by the unit contained in an insulated cooler will keep battery capacity at its highestWestinghouse Outdoor Power Equipment - ENGLISH - 16 RECYCLE Always return your used electronic products, batteries, and packaging materials to dedicated collection points This way you help prevent uncontrolled waste disposal and promote the recycling of materials MAINTENANCE Having your power station connected to a power source, like a solar panel or wall plug, between adventures or while in storage keeps its battery healthy and topped off This prolongs battery life and will ensure your power station is charged and ready to go all day, every day If you can’t keep your power station plugged into a power source during storage, fully-charge your power station every 3 months and store it in a cool, dry place Failure to maintain your power station by following these steps can result in battery damage which will void the product warranty FCC STATEMENT The operation meets the following two conditions: (1) The equipment will not cause harmful interference (2) The equipment must accept any interference received, including interference that may result in accidental operation Note: The equipment has been tested and meets the restrictions of Category B digital equipment in Part 15 of FCC Rules These restrictions are designed to provide reasonable protection against harmful interference in housing installation This equipment will generate, use and radiate radio frequency energy If it is not installed and used according to the instructions, it may cause harmful interference to radio communication However, there is no guarantee that interference will not occur in a particular installation If the device does cause harmful interference to radio or television reception (which can be determined by switching off and switching onWestinghouse Outdoor Power Equipment - ENGLISH - 17 devices), users are advised to attempt to correct the interference by one or more of the following measures:

• Re-adjusting or placing the receiving antenna

• Increase the distance between the device and the receiverWestinghouse Outdoor Power Equipment - ENGLISH - 18 WARRANTY

Westinghouse Outdoor Power Equipment (hereinafter “Westinghouse”) warrants to the original purchaser that its Westinghouse line of portable solar generators will be free from defects in material and workmanship Subject to normal use and maintenance from the date of purchase, Westinghouse agrees to repair or replace at Westinghouse’s sole discretion, any defective product free of charge at any authorized Westinghouse Service Dealer within the below listed applications, time periods, limitations, and exclusions

CONSUMER’S RESPONSIBILITY

To ensure trouble free warranty coverage it is important that you register your Westinghouse portable solar generator You may register on-line at wwwwestinghouseoutdoorpowercom/register-your-product/, or by automated phone at 1-855-944-3571. Registering your product conrms your warranty coverage and provides a direct link between you and Westinghouse if we nd it necessary to contact you regarding your portable solar generator Transportation charges on a product submitted for repair or replacement under this warranty are the sole responsibility of the purchaser Your receipt for purchase including date of purchase, model purchased, and product serial number must be maintained and presented to a Westinghouse Authorized Service Dealer for warranty service You must demonstrate reasonable care and use and follow suggested maintenance guidelines as prescribed in the operator’s manual for your Westinghouse portable solar generator Proof of purchase rests solely with you, the original purchaser

PRODUCT WARRANTY PERIOD

The warranty period for your Westinghouse portable solar generator is 24 months In each case, the warranty period is measured starting on the date of purchase by the original consumer purchaser The sales receipt from the rst consumer purchase, model, and serial number are required in order to establish the start date for the warranty period REMEDY Westinghouse will repair or replace (at Westinghouse’s sole option and expense) any Westinghouse portable solar generator product that fails to operate during the applicable warranty period due to defect in workmanship or material If a valid claim is made during the applicable period, Westinghouse, at its option, will either (1) repair the product, or (2) exchange the product with a product that is of equal value A replacement product assumes the remaining warranty of the original product or ninety (90) days from the date of replacement, whichever is greater The customer is fully responsible for the return shipping costs The customer is fully responsible for any and all associated ship cost of replacement plastic parts For questions regarding coverage, please contact support@wpowereqcom or 1-855-944-3571

LIMITED TO ORIGINAL CONSUMER BUYER

The warranty on Westinghouse’s portable solar generators are limited to the original consumer purchaser and are not transferable to any subsequent owner EXCLUSIONS Westinghouse portable solar generator warranty does not apply to any of the following:

• Cosmetic defects such as paint, decals, etc

• Costs of normal maintenance and adjustments

• Repairs or diagnostics performed by individuals other than a Westinghouse Authorized Service Dealer (unless approved by Westinghouse)

• Failures due to normal wear and tear, accident, misuse, abuse, negligence or improper use

• Failures caused by any external cause or act of God, including but not limited to, collision, theft, vandalism, riot, war, re, freezing, lightning, earth-quake, windstorm, hail, water, ood, tornado, or hurricane.

• Damage related to rodent and/or insect infestation

• Products that are modied or altered in a manner not authorized in writing by Westinghouse.

• Any incidental, consequential or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the defective part(s)

• Failure due to misapplication

• Telephone, cellular phone, facsimile, Internet access, or other communication expenses

• Expenses related to “customer instruction” or troubleshooting where no manufacturing defect is found

• Overnight freight or special shipping costs for replacement part(s)

• Overtime, holiday or emergency laborWestinghouse Outdoor Power Equipment - ENGLISH - 19 NON-WARRANTABLE APPLICATIONS Westinghouse portable solar generators are expressly not recommended nor warranted for the following applications:

• Primary Power - power used in place of utility power where utility power service is present or where utility power service does not normally exist

HOW TO RECEIVE SERVICE

Should you require assistance or have questions about warranty service, please email our customer service and support team at service@wpowereqcom or call 1-855-944-3571 For the Westinghouse Authorized Service Dealer nearest to you, call Westinghouse’s customer service and support team at 1-855-944-3571 or you may locate a Westinghouse Authorized Service Dealer at www WestinghousePortablePowercom TERMS

COMPLETE TERMS OF AGREEMENT

This warranty and returns policy constitutes the full and nal agreement of the parties. Any communication, promises, or decisions made before the existence of this agreement are null unless specically included in this document Likewise, this warranty supersedes all previous warranty policies

DISCLAIMER OF IMPLIED WARRANTIES

This limited warranty is in lieu of all other expressed or implied warranties, including any warranty of tness for a particular purpose or use and any implied warranty of merchantability otherwise applicable to Westinghouse portable solar generators. Westinghouse and its afliated companies shall not be liable for any special, incidental or consequential damages, including lost prots. There are no warranties extended other than as provided herein. This limited warranty may be modied only by Westinghouse Outdoor Power Equipment. Any implied warranties allowed by law shall be limited in duration to the terms of the express warranty provided herein Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specic legal rights. You also have other rights from state to state. Westinghouse Outdoor Power Equipment’s only liability shall be the repair or replacement as stated above In no event shall Westinghouse Outdoor Power Equipment be liable for any incidental or consequential damages, even if such damages are a direct result of Westinghouse Outdoor Power Equipment’s negligence Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specic legal rights and you may also have other rights from state to state.

GOVERNING LAW AND FORUM SELECTION

These Terms shall be construed and controlled by the laws of the State of Ohio The consumer consents to exclusive jurisdiction and venue in the federal and state courts located or nearest to Franklin County, Ohio The consumer waives all defenses of lack of personal jurisdiction and Forum non Conveniens SEVERABILITY If, but only to the extent that, any provision of this Warranty and Returns Agreement is found to be illegal, unenforceable, or void, both Westinghouse and the consumer shall be relieved of all obligations arising under such provision, it being the intent and agreement of the Parties that this Agreement shall be deemed amended by modifying such provision to the extent necessary to make it legal and enforceable while preserving its original intent If such amendment is impossible, another provision that is legal and enforceable and achieves the same objective shall be substituted ,WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation Used under license by Westinghouse Outdoor Power Equipment All Rights Reserved Westinghouse Outdoor Power Equipment 777 Manor Park Drive Columbus, OH 43228 1-855-944-3571Westinghouse Outdoor Power Equipment - ESPAÑOL - 2
