SV 1260 - Iron Orbegozo - Free user manual and instructions

Product Type	Dry Iron
Brand	Orbegozo
Model	SV 1260
Rated Voltage	220-240 V
Frequency	50/60 Hz
Power	1200 W
Soleplate Material	Stainless Steel
Temperature Control	Yes, dial
Indicator Light	Yes: heating and off
Handle	Ergonomic
Power Cord Protection	Yes, at handle level
Approximate Weight	1 kg
Dimensions (L x W x H) approx.	25 x 12 x 15 cm
Cord Length	1.8 m
Storage	Vertical, on heel
Usage	Domestic
Cleaning	Unplug and let cool, wipe with a damp cloth
Safety	Do not leave plugged in unattended, keep out of reach of children
Spare Parts and Repairability	Contact Orbegozo authorized service
General Information	Compliant with directives 2014/35/EU and 2014/30/EU

Frequently Asked Questions - SV 1260 Orbegozo

How to adjust the temperature of the Orbegozo SV 1260 iron?

Turn the temperature control to the desired position according to the fabric type (wool, cotton, synthetic). Wait for the indicator light to turn off and then on again before ironing.

What to do if the indicator light does not come on?

Check that the iron is plugged in and the socket works. If the problem persists, contact an authorized technical service.

Can I use the iron on all types of fabrics?

Yes, thanks to the temperature control. Set the appropriate temperature: low for synthetics, medium for wool, high for cotton and linen.

How to clean the stainless steel soleplate?

Let the iron cool down, then wipe the soleplate with a soft damp cloth. Do not use abrasive products.

Does the iron heat up quickly?

Yes, the 1200 W power allows for quick heat-up. The light turns off when the temperature is reached.

How to store the iron after use?

Set the thermostat to minimum, unplug, and let it cool 30 minutes in vertical position (on the heel). Store it that way to protect the soleplate.

Can children use the iron?

Yes, under adult supervision. Children over 8 years can use it if they understand the safety instructions. Never leave a child unsupervised.

What to do if the power cord is damaged?

Do not use the appliance. Contact an authorized technical service to replace it.

Is there an automatic shut-off system?

No, the model SV 1260 does not have automatic shut-off. Never leave the iron plugged in unattended.

Where can I download the full manual?

The PDF manual is available for free at notice-facile.com or on the manufacturer's website orbegozo.com.

USER MANUAL SV 1260 Orbegozo

White iron shaver with a small orange button, no visible text or symbols on the body

SV 1260

Sonifer,S.A.

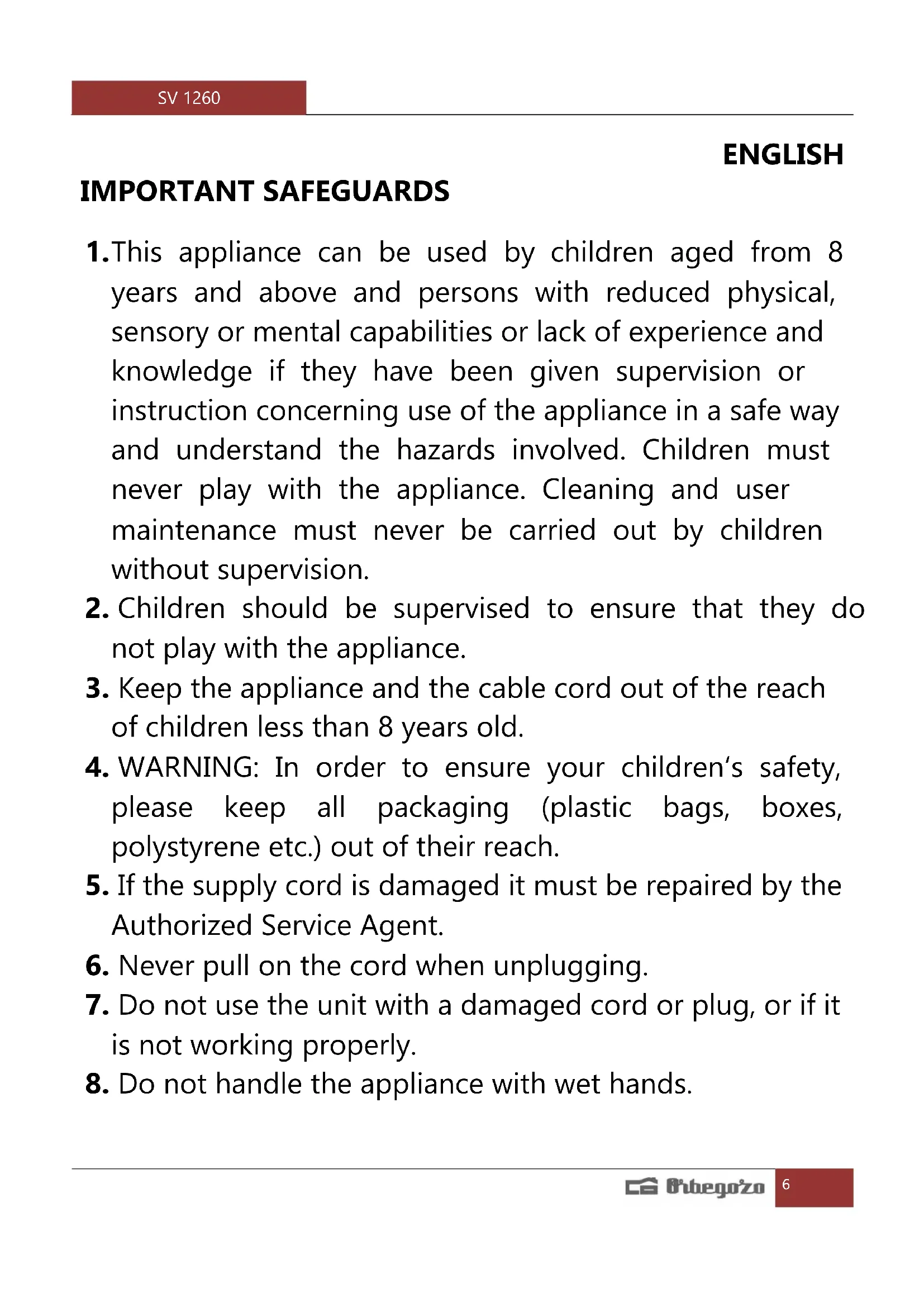

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in our website: www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

Specific Instructions

• The iron must not be left unattended while it is connected to the supply mains.
• The appliance must be used and placed on a stable surface.
• When placed on its stand, make sure that the surface on which the stand is placed is stable.
• The iron should not be used if it has been dropped or if there are visible signs of damage..
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
• ATTENTION: Hot surface. The surface can remain hot during or after use, or when it is

getting hot.

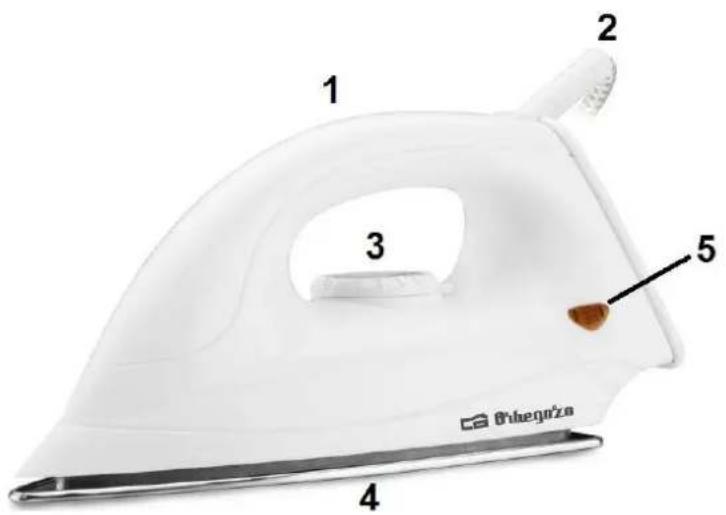

CHARACTERISTICS AND STRUCTURE

1. Handle
2. Cord Protect
3. Temperature controller
4. Soleplate
5. Indicator light

OPERATING

• Set the temperature control to the suitable position.
• Wait until the pilot light goes off and it comes on again. Then you can start ironing.
• The pilot light will turn on and off during the ironing process. It does not affect to the process.
• While the iron is hot and not in use, place it upright on a stable surface.

• Once finished:

• Set the temperature control to the minimum level and unplug the device

• Let the iron gets cold during 30 minutes. Put the iron on its rear side.
• Store it in this position to prevent damage in the soleplate.

MAIN TECHNICAL PARAMETERS

Model	Voltage	Frequency	Power
SV 1260	220-240V	50/60Hz	1200 W

Disposal of old electrical appliances.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for

information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
