USER MANUAL Indoor Cam Mini 2K eufy
Anker Innovations Limited. All rights reserved. Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.
51005002986 V01
KURZANLETUNG
GUIA DE INICIO RAPIDO
GUIDE DE DEMARRAGE RAPIDE
GUIDA RAPIDA
SNELSTARTGIDS
GUIA DE INICIO RAPIDO
| English | |
| Deutsch | |
| Espanol | |
| François | |
| Italiano | |
| Nederland | |
| Portuguese |
PRODUCT OVERVIEW
Model: T8414
Lens
Microphone
SD card slot
4 Status LED
5 Speaker
6 Power input
SYNC button
EN 01
2/ POWERING INDOORCAM
EN
3 / ADDING TO EUFY SECURITY APP
- Download and install the eufy Security app, then sign up for an account.
EN 0302
- Follow on-screen instructions to complete the setup.

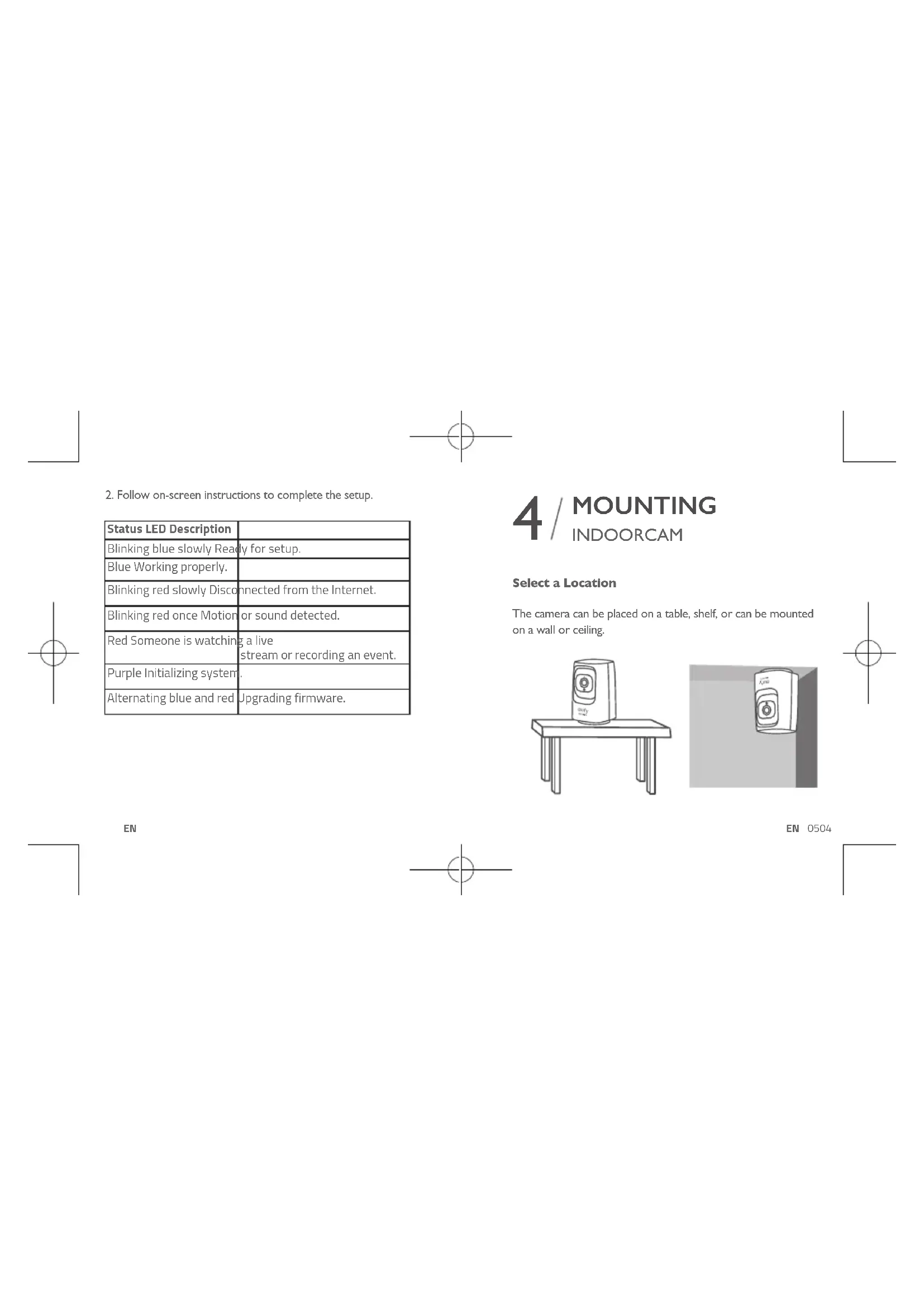

| Status LED Description | |
| Blinking blue slowly Ready for setup. | |
| Blue Working properly. | |
| Blinking red slowly Disconnected from the Internet. | |
| Blinking red once Motion or sound detected. | |
| Red Someone is watching a live stream or recording an event. | |
| Purple Initializing system. | |
| Alternating blue and red | Upgrading firmware. |
4 / MOUNTING INDOORCAM
Select a Location
The camera can be placed on a table, shelf, or can be mounted on a wall or ceiling.
EN
EN 0504

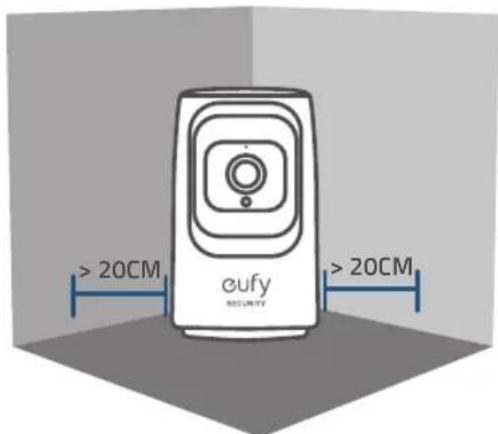

Keep the camera at least 0.7 ft / 20 cm away from walls or thing that may obstruct the view. Do this to avoid infrared action which can have a negative impact on the night vision performance.
EN
Ceiling Mount
- Place the positioning card against the ceiling and then mark the points.
- Drill holes with a 5/16" (8 mm) drill bit.
EN 0706
- Insert the anchors into the holes, align the holes on the mounting plate with those in the ceiling, and fix the screws with a Phillips-head screwdriver to fasten the mounting plate to the ceiling.
Ceiling. Ceiling.

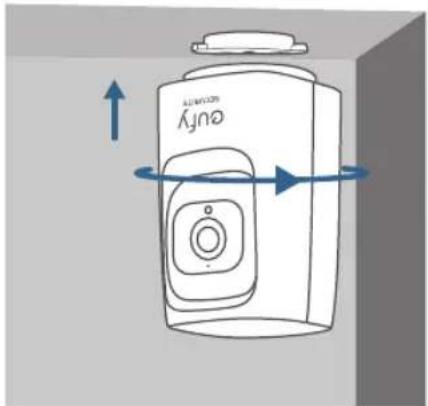

- Align the grooves with the mounting plate and rotate the camera clockwise until it clicks into place.
EN
EN 0908

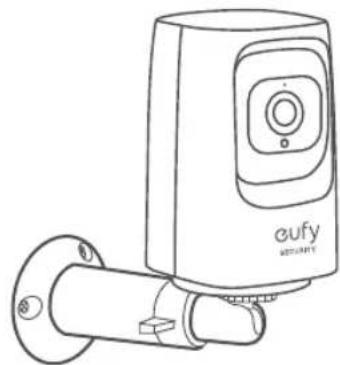

Wall Mount
To mount the camera on a wall, we recommend using a mounting bracket (not provided) as illustrated below.
EN
5 / SETTING ANGLES
Open the eufy Security app, and set a default angle and a privacy angle for the camera on Camera Settings > Angle Settings.
Default Angle
The camera will automatically rotate to this angle when turned on and when motion tracking ends.
Privacy Angle
If Privacy Mode (Camera Settings > Privacy Mode) is turned on, the camera will be turned off and automatically rotates to the privacy angle you set. If no angle is set and Privacy Mode is turned on, the camera will turn 180^ from the Default Angle.
EN 1110
6/NOTICE
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
EN
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/ TV technician for help.
FCC Radio Frequency Exposure Statement
The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm
Notice: Shielded cables
EN 1312
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
The following importer is the responsible party.
Company Name: POWER MOBILE LIFE, LLC
Address: 10900 NE 8th St, Ste 501, Bellevue WA 98004
Telephone: 1-800-988-7973
IC Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.
CE This product complies with the radio interference requirements of the European Community.
Declaration of Conformity
Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit https://uk.eufylife.com/ This product can be used across EU member states. The adapter shall be installed near the equipment and shall be easily accessible. Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment. The suitable temperature for T8414 and accessories is -20^ - 45^ (-4^ - 113^) . When supplying, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to supply the device in an environment with a temperature that ranges from 5^ - 25^ . Please ensure to use only the adapter offered by the
EN
manufacturer. Using unauthorized adapter may cause danger and violate the authorization of the device and the guarantee article.
This adapter is for indoor use only.
The adapter type is TEKA-UCAI0EU, output voltage/ current is 5VDC/IA. The plug is considered as disconnect device of adapter.
RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d = 20cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body.
Wi-Fi Operating Frequency Range: 2412~2472MHz; Wi-Fi Max Output Power: 19.64dBm
The following importer is the responsible party (contact for EU matters only)
This product is designed and manufactured with high quality materials and components, which can be recycled and reused.
This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.
This product complies with the radio interference requirements of the United Kingdom
Declaration of Conformity
Hereby, Anker Innovations Limited declares that this product T8414 is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address:
EN
https://uk.eufylife.com
Anker Technology (UK) Ltd I Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B1 2AA, United Kingdo
EN 1918
