USER MANUAL VS30 Bimar

FLOOR FAN WITH RECHARGEABLE BATTERY

BODENVENTILATOR MIT AKKUBETRIEB,

VENTILATEUR DE PLANCHER À BATTERIE RECHARGEABLE

VENTILADOR DE PISO CON BATERIA RECARGABLE

type VS30 (mod. FE30-HD)

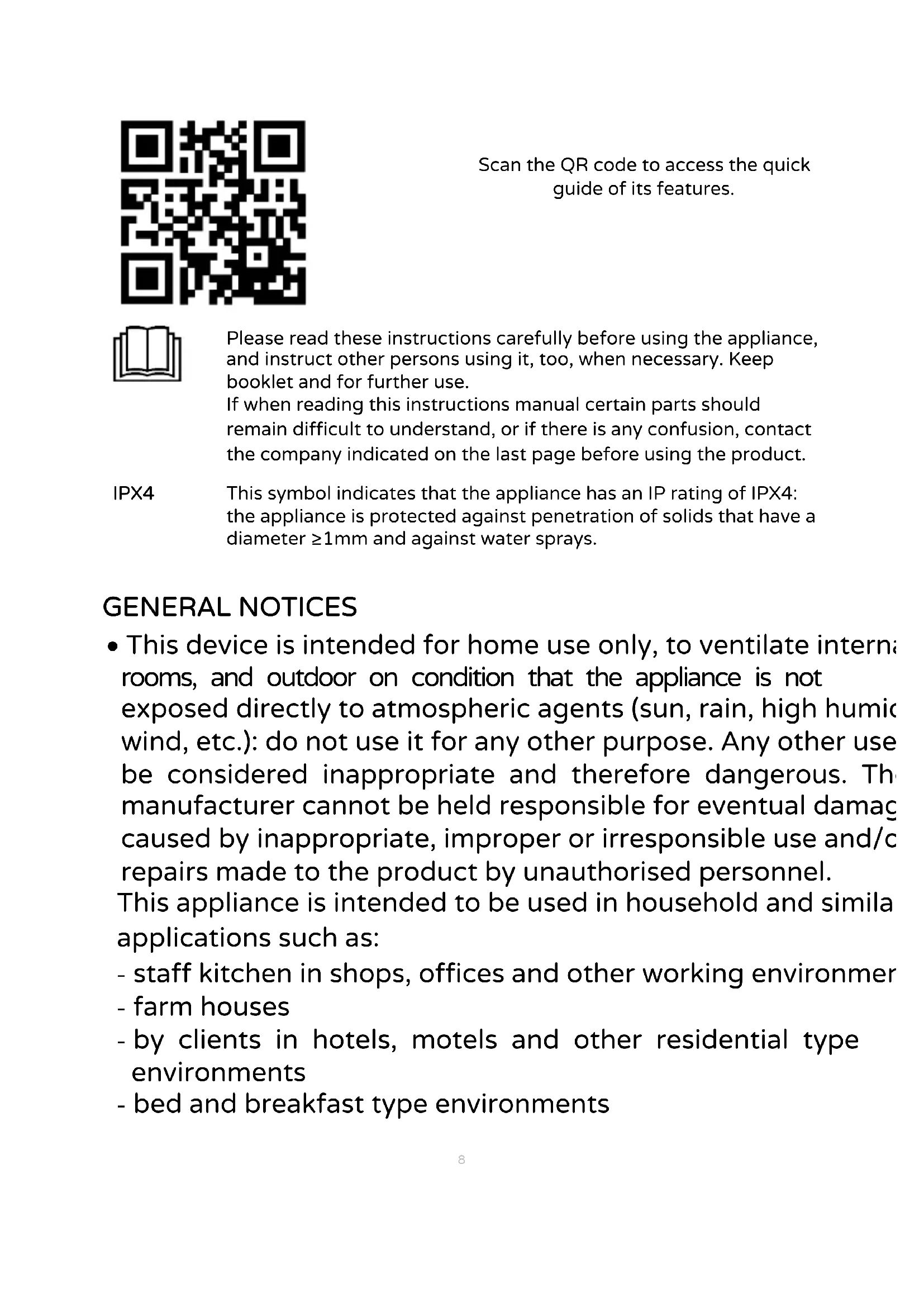

Scan the QR code to access the quick guide of its features.

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary. Keep booklet and for further use.

If when reading this instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.

IPX4 This symbol indicates that the appliance has an IP rating of IPX4: the appliance is protected against penetration of solids that have a diameter ≥ 1mm and against water sprays.

GENERALNOTICES

• This device is intended for home use only, to ventilate internal rooms, and outdoor on condition that the appliance is not exposed directly to atmospheric agents (sun, rain, high humid wind, etc.): do not use it for any other purpose. Any other use be considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for eventual damage caused by inappropriate, improper or irresponsible use and/c repairs made to the product by unauthorised personnel. This appliance is intended to be used in household and simila applications such as:

• staff kitchen in shops, offices and other working environmer
  -farm houses

• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• Do not touch the appliance with wet hands or feet.

• Do not insert any tool, or your fingers, into the grille protecting the blades.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or me capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliars a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The appliance must be kept out of children's reach.
• This appliance can be used by children aged 8 and older and persons with reduced physical, sensory or mental capabilities lack of experience and knowledge if they are properly supervised or if they have received instructions regarding the safe use of appliance and have understood the related dangers. Children should not play with the appliance. Cleaning and maintenance should not be performed by children unless they are older than years of age and are supervised.
• Ensure that the fan is switched off from the supply mains before removing the guard.
• Attention: when using electric appliances, the basic safety precautions must always be observed to avoid risks of fire, electro shocks and physical injury.
• Do not use the appliance if it is not operating correctly or see damaged; if in doubt, contact professionally qualified person
• Make sure that the appliance is working correctly: if not, turn appliance off and have it checked by professionally qualified personnel.
• Do not move the appliance when it is operating.

• Do not use the device at room temperatures above 40^ .

• Do not move the appliance when it is in function.

• Do not leave the device exposed to the weather (sun, rain, et

• Do not pull on the cord to disconnect the plug from the sock the adapter

• If the electric cord is damaged, it has to be replaced by the supplier or an authorized service center or a professionally qualified, to avoid any risks.

• Do not use the appliance with a timer or a programmer or with system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered positioned incorrectly.

• In the event of a breakdown or poor operation, turn the fan off and ask for professionally qualified help: repairs made unqualified persons can be dangerous and render void the warranty.

INSTALLATION

• After removing the packing materials, check the integrity of the heater; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger. Attention: any stickers or advertising material applied to the grid removed before using the appliance. The manufacturer declines all responsibility in case this is not safe working practices will be respected.
• Before connecting the appliance, check that the voltage shown on the data plate of the adapter matches that of your electricity. In the event of incompatibility between the electric outlet and the plug of the appliance, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the adapter is appropriate for the absorbed power of the appliance. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum of the appliance.
• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.

• Do not place the fan on a shelf and/or near sinks or other container of liquids (minimum distance of 2 meters) to avoid the risk of it falling in.

• Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).

• Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.
• Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset).

• Do not place the appliance near an open flame, cooking or other heating appliance.

• This appliance must only be used with the adapter supplied.

Description

The appliance is equipped with the following controls and accessories:

Battery: at the rear; recharge as shown below:

• place the fan on a flat and stable surface

• make sure that the selector knob is set to OFF

• Insert the connector

of the adapter into the port (open the rubber cap

if previously closed) with the symbol: " "in

• Plug the adapter into the socket.

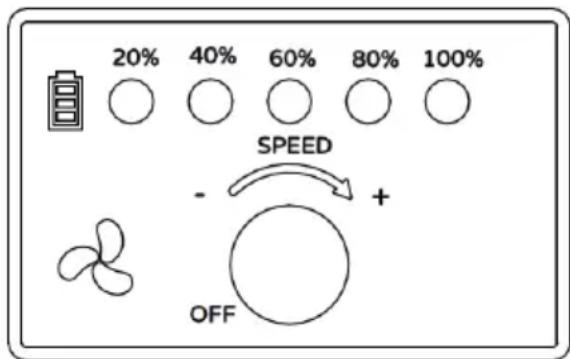

• The complete battery charging time is about 4 hours, each indicator light indicates the battery charge status, with intervals of 20% (minimum 20% , up to the maximum: 100% ). At the end of the charge ( 100% light on), unplug the adapter from the socket and the connector from the port, and close the charging port with the rubber cap.

• Selector: turn the knob clockwise to the desired speed, in position (-) the fan speed will be minimal, in middle position the speed will be average, while if fully rotated, in position (+), the fan speed will be maximum.

To switch the appliance off, turn the knob anticlockwise to pos. OFF.

• Autonomy (100% charge status): if the fan operates at the minimum speed (pos. "-") it can operate continuously up to a maximum of about 48 hours, if it operates at maximum speed (pos. "+"), it can work uninterrupted up to a maximum of about 4 hours. It is advisable to completely discharge the ventilator battery for longer life.

• Power bank function: the fan battery (first check the charge status) can charge an electronic device (smartphone, tablet, etc.) via the USB port

out

Vertical tilt (top-bottom): loosen the side handles, rotate the motor head in the desired direction (top-middle-bottom) and tighten them appropriately.

USE

To turn the appliance fan on, turn the selector to the desired speed. To switch the fan off, turn the selector switch to the OFF position.

CLEANING AND MAINTENANCE

Attention: before normal cleaning, remove the plug from the socket of the adapter.

• Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
• Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket. Carefully dry the appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help.
• If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.
• Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them (such as the adapter).
• The old battery must be disposed of at an appropriate collection centre in your area or in special bins. This assures full compliance with legal regulations.
  IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
