USER MANUAL TLG 1000 D6 TRONIC

Operating instructions

NL BE

SNELLADER

Gebruiksaanwijzig

CZ

RYCHLONABIJEČKA

Návod k obsluze

IAN 340111_2001

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions Page 15

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Index

Introduction 16

Information regarding these operating instructions. 16
Copyright 16
Limited liability 16
Intended use. 16
Warnings used 17

Safety 18

Basic Safety Instructions 18
Interaction with rechargeable batteries (cells) 19

Initial use. 20

Items supplied and transport inspection 20

Operating components 20

Handling and operation 21

Charging batteries 21
Operating status displays. 22
Calculating the average charging time 22
Automatic charging control / Retention charging. 22
Timer control. 22

Cleaning 23

Cleaning the housing 23

Troubleshooting 23

Malfunction causes and remedies 23

Storage/Disposal 24

Storage. 24
Disposal of the device 24
Disposal of batteries. 24
Disposal of the packaging 24

Appendix 25

Notes on the EU Declaration of Conformity. 25
Technical data 25
Kompernass Handels GmbH warranty 26
Service 27
Importer 27

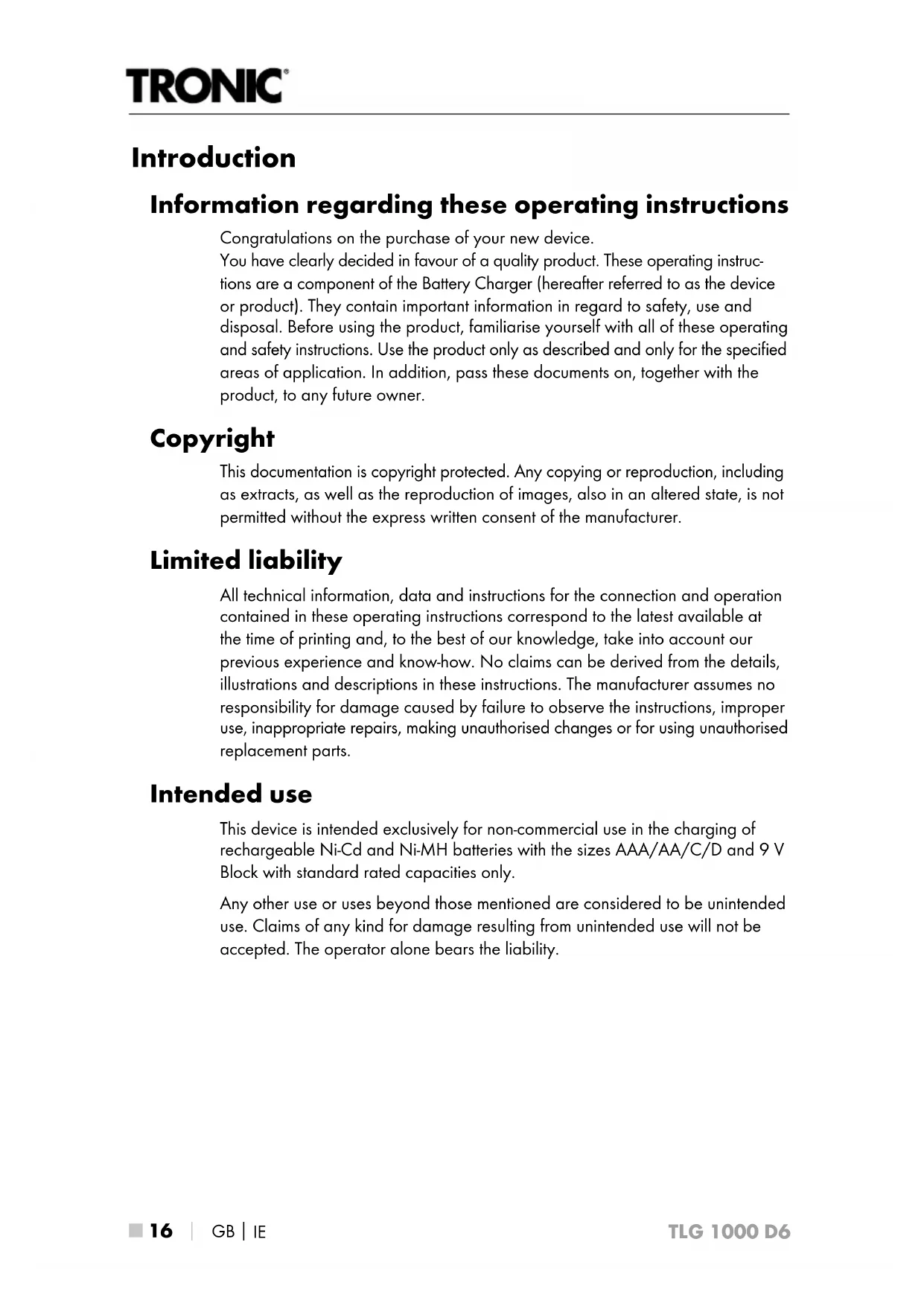

Introduction

Information regarding these operating instructions

Congratulations on the purchase of your new device.

You have clearly decided in favour of a quality product. These operating instructions are a component of the Battery Charger (hereafter referred to as the device or product). They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

Copyright

This documentation is copyright protected. Any copying or reproduction, including as extracts, as well as the reproduction of images, also in an altered state, is not permitted without the express written consent of the manufacturer.

Limited liability

All technical information, data and instructions for the connection and operation contained in these operating instructions correspond to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how. No claims can be derived from the details, illustrations and descriptions in these instructions. The manufacturer assumes no responsibility for damage caused by failure to observe the instructions, improper use, inappropriate repairs, making unauthorised changes or for using unauthorised replacement parts.

Intended use

This device is intended exclusively for non-commercial use in the charging of rechargeable Ni-Cd and Ni-MH batteries with the sizes AAA/AA/C/D and 9 V Block with standard rated capacities only.

Any other use or uses beyond those mentioned are considered to be unintended use. Claims of any kind for damage resulting from unintended use will not be accepted. The operator alone bears the liability.

Warnings used

In these extant operating instructions the following warning notices are used:

DANGER

A warning at this risk level indicates a threatening dangerous situation.

In the event that the dangerous situation is not avoided it could lead to death or serious physical injury.

Comply with the directives in this warning to avoid the risks of death or serious physical injury.

IMPORTANT

A warning of this risk level indicates possible property damage.

If the situation is not avoided it could lead to property damage.

Comply with the directives in this warning to avoid property damage.

NOTICE

A notice indicates additional information that may assist you in the handling of the device.

Safety

In this section you will receive important safety information regarding the handling of the device. This device complies with the statutory safety regulations. Incorrect usage can lead to injuries and property damage.

Basic Safety Instructions

For safe handling of the device observe the following safety instructions:

Before use check the device for visible external damage. Do not put into operation a device that is damaged or has been dropped.
- To avoid possible risks, arrange for damaged cables or connectors to be exchanged by an authorised specialist or the Customer Service Department.
This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use of the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.
A repair to the device during the warranty period may only be carried out by a customer service department authorised by the manufacturer, if it is not, additional warranty claims cannot be considered for subsequent defects.
- Do not make any changes or modifications to the appliance yourself.
- Protect the device from moisture and liquid penetration. Never submerge the device in water, do not place the device in the vicinity of water and do not stand any object filled with liquid (i.e. vases) on the device.

• Do not operate the device in the vicinity of open flames (e.g. candles).

Avoid direct sunlight.

Charge exclusively rechargeable batteries of the types "Ni-Cd" and "Ni-MH".

NEVER recharge batteries of other types or non-rechargeable batteries. These are not suitable for recharging. Batteries not suitable for recharging can overheat and explode. It could irreparably damage the device and the inserted batteries.

This product is intended exclusively for indoor operation in dry and enclosed rooms.

Interaction with rechargeable batteries (cells)

• Do not use damaged or corroded rechargeable batteries in the device.

• Rechargeable batteries (cells) can be fatal if swallowed. Therefore, always keep the device and the rechargeable batteries out of the reach of children!

If a rechargeable battery is swallowed medical assistance must be sought IMMEDIATELY.

Should a battery have leaked, you must avoid contact by the battery fluid with the skin! The battery liquid can cause acid burns on the skin!

Remove the leaked battery liquid with a dry, absorbent cloth and avoid contact by it with the skin by wearing, for example, a pair of gloves.

Initial use

Items supplied and transport inspection

The device is delivered with the following components as standard:

Fast charger
This operating manual

NOTICE

• Check the contents to make sure everything is there and for visible damage.
• If the items supplied are incomplete, or damaged due to defective packaging or transportation, contact the Service Hotline (see section Service).

Remove the device and the operating instructions from the carton.
Remove all packing material.

DANGER

• Packaging material should not be used as a play thing. There is a risk of suffocation!

Operating components

LEDs (Operating status indicators)
2 Loading slots for types AAA/AA/C/D (loading slots 1 to 4; see fold-out page)
3 Loading slots for 9V blocks (loading slots 5 and 6; see fold-out page)
4 Display

Handling and operation

In this chapter you will receive important information for the handling and operation of the device.

Charging batteries

Place the device on a smooth, level and slip resistant surface.
Compare the technical details with those of your power supplier. If they match, insert the plug into a mains power socket. The LEDs light up in red three times. The battery charger is now ready for use.
Insert the batteries into the charging slots. Press the 9 V Block batteries into the charging slot until they audibly engage.

NOTICE

1 to 8 batteries can be individually charged:
- 4 x Type C or Type D batteries in the charging slots 1 to 4, with additionally 2 x Type 9 Volt Block batteries in the charging slots 5 and 6

or

• 6 × Type AA or AAA in the charging slots 1 to 4 and additionally 2 × Type 9 Volt Block batteries in the charging slots 5 and 6.

The charging process now begins. The battery charger has an LED for each compartment in the charging slot. The LEDs of the respective charging slots show the charge status of the individual batteries. In addition, the current charge status of each battery is shown as a percentage on the display 4.

NOTICE

If the LED on the charging slot blinks red for longer than 5 seconds, the battery is either improperly inserted into the loading slot or it is defective.

Operating status displays

The various displays have the following meanings:

The LED flashes red and green once per second: The batteries are being alternately charged and discharged. (Refresh-Function: older or long stored batteries are being refreshed.)
The LED flashes green once per second: A deeply discharged battery is being gently recharged with a reduced current.
The LED glows constantly red: The batteries are being charged with the maximum charge current.
The LED glows constantly green: The batteries are fully charged and the battery charger has switched to trickle charge.

In addition, the current charge status of each battery is shown as a percentage on the display 4.

Calculating the average charging time

Depending on the type, age and remaining charge in the batteries, the charging process can take various lengths of time. The average charge time can be calculated using the following formula. Take note however that the times given are only guiding values.

$$ \text {C h a r g i n g T i m e (m i n)} = \text {B a t t e r y c a p a c i t y (m A h)} \times 1. 4 \times 6 0 $$

$$ \text {C h a r g i n g c u r r e n t o f t h e d e v i c e (m A)} $$

Automatic charging control / Retention charging

This battery charger controls the charging time for batteries of the types Ni-Cd and Ni-MH separately. This control is based on the - U ("minus Delta U") calculation. In mathematics, with Delta differences are indicated. In this case, "Minus Delta U" means a negative voltage difference.

This charge identification makes itself useful in the following effects: Should a battery be charged with a constant current, its voltage rises continuously. When a battery is full, its voltage reaches a maximum but falls again slightly with further current flow. This light fall in voltage is recognised by the charging electronics and the charge process is terminated. The battery charger automatically switches to "Retention charging". This means that the batteries are no longer being loaded with constant current, instead, with short current pulses. This counteracts the self-discharge and the batteries are kept in a state of full charge.

Timer control

In addition, this battery charger has a timer control which automatically switches over to retention charging after 17 hours. This serves as an additional protection against overcharging should the charge termination not respond due to a possibly defective battery.

Cleaning

DANGER

Always remove the plug before cleaning the device. There is the risk of an electric shock!.
- When you are cleaning the device ensure that no moisture gets inside it, so as to avoid irreparable damage to it.

IMPORTANT

• Do not use aggressive or abrasive cleaning agents, as these can damage the upper surfaces.

Cleaning the housing

Clean the surfaces of the device with a soft, dry cloth. For stubborn soiling use a lightly moistened cloth.
Never clean the insides of the charging slots with moist cloths. Instead, use a clean soft brush to clean them.
If soiled, clean the charging contacts with a dry cloth.

Troubleshooting

In this section you will receive important information for the localisation and remedying of malfunctions.

Malfunction causes and remedies

The following table will help with localising and remedying minor malfunctions:

Defect Possible cause Solution
The battery charger is not functioning.	The power cable is not plugged in.	Insert the power cable into a mains power socket.
	Mains power socket is not supplying power.	Check the circuit fuse.
The inserted batteries are not being charged.	The batteries are not inserted as per their polarity.	Insert the batteries as per their polarity (see marking in the charging slot).
	The inserted batteries are not suitable for charging.	Insert exclusively rechargeable Ni-Cd and Ni-MH batteries of the types AAA/AA/C/D and 9 V Block batteries.
	The temperature monitoring was initiated.	Disconnect the plug from the mains power socket and allow the device to cool down.

NOTICE

If you cannot solve the problem with the aforementioned methods, please contact Customer Services.

Storage/Disposal

Storage

If you do not intend to use the device for a longer time, remove the batteries and store it in a clean, dry place away from direct sunlight.

Disposal of the device

Do not dispose of the device in your normal domestic waste. This product is subject to the provisions of the European Directive 2012/19/EU WEEE (Waste Electrical and Electronic Equipment).

Dispose of the device through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

Disposal of batteries

Used batteries/cells may not be disposed of in household waste. All consumers are statutorily obliged to dispose of batteries at a collection site of his community/ city district or at a retail store. The purpose of this obligation is to ensure that batteries are disposed of in a non-polluting manner. They may contain poisonous heavy metals and must be disposed of in accordance with the rules for the treatment of hazardous waste. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Only dispose of batteries/cells when they are fully discharged.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:Plastics,

20-22: Paper and cardboard,

80-98: Composites.

Appendix

Notes on the EU Declaration of Conformity

With regard to conformity with essential requirements and other relevant provisions, this device complies with the guidelines of the Electromagnetic Compatibility Directive 2014/30/EU as well as the Directive for Low Voltage Devices 2014/35/EU.

The entire EU Declaration of Conformity is available from the importer.

Technical data

Input voltage 100 - 240 V ~ (alternating current) 50/60 Hz
Current consumption 390 mA
Fuse	T1AL, 250 V
Protection class	II / [double insulation)
Operating temperature 0° - 25°C
Storage Temperature -5° - 40°C
Humidity (no condensation) ≤ 75 %
Output voltages	6 x 1,4 V = (direct current) Loading slots 1 - 4) 2 x 9 V = (direct current) Loading slots 5 - 6)
Charge currents	6 x 1000 mA (Type AA) 6 x 500 mA (Type AAA) 4 x 1000 mA (Type C or D) 2 x 70 mA (9 V Block)
Maximum assessment capacity	AAA: 1000 mAh AA: 3000 mAh C: 5000 mAh D: 8000 mAh 9 V Block: 300 mAh
Measurements (W x H x D): approx. 24 x 6 x 16,9 cm
Weight approx. 645 g

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 340111_2001) available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 340111.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Servicelreland

Tel.: [phone]

(0,08 EUR / Min., (peak))

(0,06 EUR / Min., (off peak))

E-Mail: [e-mail]

IAN 340111_2001

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
