USER MANUAL EKWC 5 A2 Ernesto

MECHANISCHE KÜCHENWAAGE BALANCE DE CUISINE MÉCANIQUE TRADITIONAL KITCHEN SCALES EKWC 5 A2

DE AT CH

MECHANISCHE KÜCHENWAAGE

Bedienungsanleitung

FR BE

BALANCE DE CUISINE MÉCANIQUE

Mode d'emploi

PL

MECHANICZNA WAGA KUCHENNA

Instrukcja obstugi

SK

MECHANICKÁ KUCHYNSKA VAHA

Návod na obsluhu

GB IE

TRADITIONAL KITCHEN SCALES

Operating instructions

NL BE

MECHANISCHE KEUKENWEEGSCHAAL

Gebruiksaanwijzing

CZ

MECHANICKA KUCHYNSKA VAHA

Návod k obslúze

IAN 339189_2001

DE BE NL

PL CZ SK

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions Page 11

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Contents

Introduction 12

Information concerning these operating instructions 12
Intended use 12

Package contents 12

Components. 13

Technical data 13

Safety guidelines 13

Preparation 14

Unpacking 14
Disposal of packaging materials 15
Installation 15

Weighing food 16

Cleaning and care 16

Storage 17

Disposal of the appliance 17

Kompernass Handels GmbH warranty 18

Service 19
Importer 19

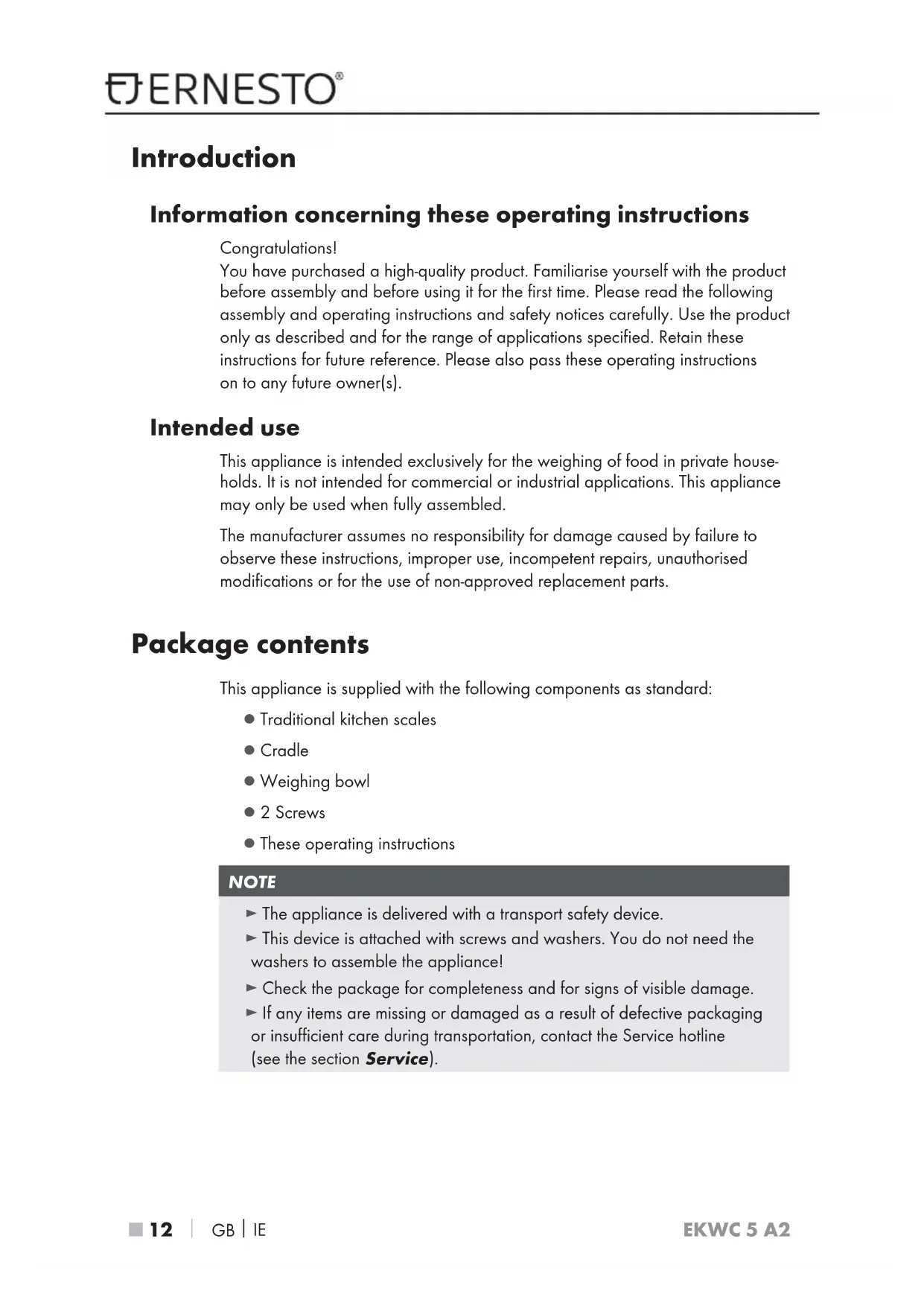

Introduction

Information concerning these operating instructions

Congratulations!

You have purchased a high-quality product. Familiarise yourself with the product before assembly and before using it for the first time. Please read the following assembly and operating instructions and safety notices carefully. Use the product only as described and for the range of applications specified. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s).

Intended use

This appliance is intended exclusively for the weighing of food in private households. It is not intended for commercial or industrial applications. This appliance may only be used when fully assembled.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifications or for the use of non-approved replacement parts.

Package contents

This appliance is supplied with the following components as standard:

• Traditional kitchen scales
• Cradle
  Weighing bowl
  2 Screws
  These operating instructions

NOTE

The appliance is delivered with a transport safety device.
This device is attached with screws and washers. You do not need the washers to assemble the appliance!
- Check the package for completeness and for signs of visible damage.
If any items are missing or damaged as a result of defective packaging or insufficient care during transportation, contact the Service hotline (see the section Service).

Components

Weighing bowl
Screw
3 Cradle
4 Pins
Zero setting wheel
6 Pointer
Scale

Technical data

Maximal weighing capacity 5 kg
Weight increments 20 g
Capacity: Weighing bowl 1.6 liter
	All of the parts of this appliance that come into contact with food are food-safe.

Safety guidelines

To ensure safe operation of the appliance, follow the safety guidelines set out below:

WARNING - RISK OF INJURY!

Prior to use, check the appliance for visible external damage. Do not operate an appliance which has been damaged or dropped.
People who, due to their physical, intellectual or motor abilities, are incapable of operating the appliance safely may only use the appliance under the supervision or direction of a responsible person.
Do not allow children to use the appliance unless they are being supervised.
■ Ensure that you do not put your fingers between the bowl and the scale when you are filling the bowl. Risk of crush injuries!
All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs can pose significant risks to the user. They will also invalidate any warranty claim.

CAUTION - PROPERTY DAMAGE

Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used.
Do not allow any liquids or moisture to get into the appliance.
Do not place any objects on the scale when it is not in use.
- Protect the appliance against knocks, dust, chemicals, extremes of temperature, etc. and keep it away from sources of heat (ovens, radiators).
Do not press down on the weighing mechanism.
Do not press on the plastic cover of the weight display.
Do not expose the appliance to high temperatures.
- Do not load the scale with more than 5kg . The scale could be irreparably damaged.

Preparation

Unpacking

1. Remove all parts of the scale and the operating instructions from the box.
2. Remove all packaging material from the scales.
3. Remove the transport safety device (white polystyrene foam):
4. Unscrew the two screws ② using a slotted screwdriver. Remove the screws and washers. Keep the screws ②. You can dispose of the washers.

5. Remove the transport safety device and dispose of it.

6. Clean the appliance as described in the section "Cleaning and Care".

WARNING - RISK OF SUFFOCATION!

• Do not allow children to play with packaging materials. There is a risk of suffocation.

Disposal of packaging materials

The packaging protects the appliance from damage during carriage. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the materials cycle conserves raw materials and reduces the amount of waste that is generated. Dispos of packaging materials that are no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the original packaging of the appliance during the warranty period so that the appliance can be packed properly for returning in the event of a warranty claim.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:Plastics
20-22: Paper and cardboard
80-98: Composites

Installation

1. Place the scales on a level, firm surface.
2. Place the cradle 3 on the two protruding pins 4. The holes for the screws 2 must be above the gaps for the pins 4.
3. Push the screws 2 through the holes in the cradle 3 from above and screw them in using a Phillips screwdriver.
4. Place the weighing bowl 1 on the cradle 3

NOTE

The appliance may only be used when fully assembled.

Weighing food

CAUTION - PROPERTY DAMAGE!

• Do not load the scale with more than 5kg . The scale could be irreparably damaged.

• If you have not done this already: place the weighing bowl ① on the cradle ③.

• Turn the zero setting wheel 5 until the pointer 6 points to zero (5 kg).
• Place the food in the weighing bowl 1

The pointer 6 shows the weight on the scale 7.

Cleaning and care

CAUTION - PROPERTY DAMAGE!

Do not allow any liquids to get into the scale.

This could impair the functionality of the appliance.

Do not use abrasive cleaners or solvents.

These could damage the upper surfaces of the appliance.

1. Wipe the scales with a damp cloth. For stubborn soiling use a mild detergent on the cloth. Wipe off any detergent residue using a cloth moistened with clean water only.
2. Remove the weighing bowl 1 from the cradle 3 and wash it in warm water and a mild detergent. Afterwards, rinse it with plenty of clean water to remove all detergent residues. Dry the weighing bowl 1 thoroughly.

NOTE

You can also wash the bowl ① in the dishwasher!

Storage

Store the scales in a clean and dry location.
Do not place any objects in the weighing bowl 1 during storage.

Disposal of the appliance

Dispose of the appliance in an environmentally friendly manner.

Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations.

Please contact your waste disposal facility if you are in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 339189_2001

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
