CECWC24BC - Wine cellar CONTINENTAL EDISON - Free user manual and instructions

Brand	Continental Edison
Model	CECWC24BC
Product type	Wine cellar
Capacity	24 bottles (Bordeaux type 75 cl)
Dimensions (W x H x D)	480 x 642 x 440 mm
Weight	23 kg
Storage volume	66 L
Power supply	220-240 V, 50 Hz
Rated current	0.5 A
Lamp power	0.6 W
Refrigerant	R600a, 18 g
Energy class	G
Annual consumption	140 kWh/year
Climate class	SN/N/ST (ambient temperature +10 to +38 °C)
Noise level	40 dB(A)
Number of removable shelves	2
Temperature setting	Yes, built-in control
Adjustable feet	Yes, front
Maintenance and cleaning	Unplug, clean the exterior with warm water and mild detergent, clean the water tank
Safety	Check the power cord, do not use flammable liquids, keep 10 cm free space at the rear
Spare parts and repairability	Available for at least 7 years in accordance with European regulations
Warranty	24 months from the date of purchase
General information	Domestic use, do not store perishable food

Frequently Asked Questions - CECWC24BC CONTINENTAL EDISON

How many bottles can I store in the Continental Edison CECWC24BC wine cellar?

The wine cellar can hold up to 24 bottles of Bordeaux type 75 cl.

What is the energy class of this model?

The energy class is G, with an annual consumption of 140 kWh.

How to set the temperature of the wine cellar?

Use the built-in control to adjust the temperature. An external thermometer can be left inside for regular checking. Avoid opening the door too often.

What to do if the appliance does not cool enough?

Check the temperature setting, move the appliance away from heat sources and sunlight, and limit opening the door.

How to clean the wine cellar?

Unplug the appliance, remove the bottles, clean the exterior with warm water and mild detergent, and wash the water tank at the back.

What are the normal noises emitted by the appliance?

A sound of flowing liquid is normal, due to the refrigerant. If the noise is excessive, check the stability by adjusting the front feet and move the appliance away from walls.

Can I use this appliance in a garage or basement?

The appliance is designed for indoor use, with an ambient temperature between +10 °C and +38 °C. It is not recommended for a basement or cabinet.

What to do in case of an unpleasant odor inside?

A slight plastic smell is normal for a new appliance; it disappears after a few days. Clean the compartment and ventilate it for a few hours.

How to move the wine cellar?

Remove the bottles, unplug the appliance, fix the moving parts with adhesive tape, set the feet to minimum and tape the door. Always transport it in an upright position.

Where to find spare parts?

Spare parts are available for at least 7 years. Refer to the document 'Spare parts and repair' on the website www.marquepropre.ext for ordering details.

USER MANUAL CECWC24BC CONTINENTAL EDISON

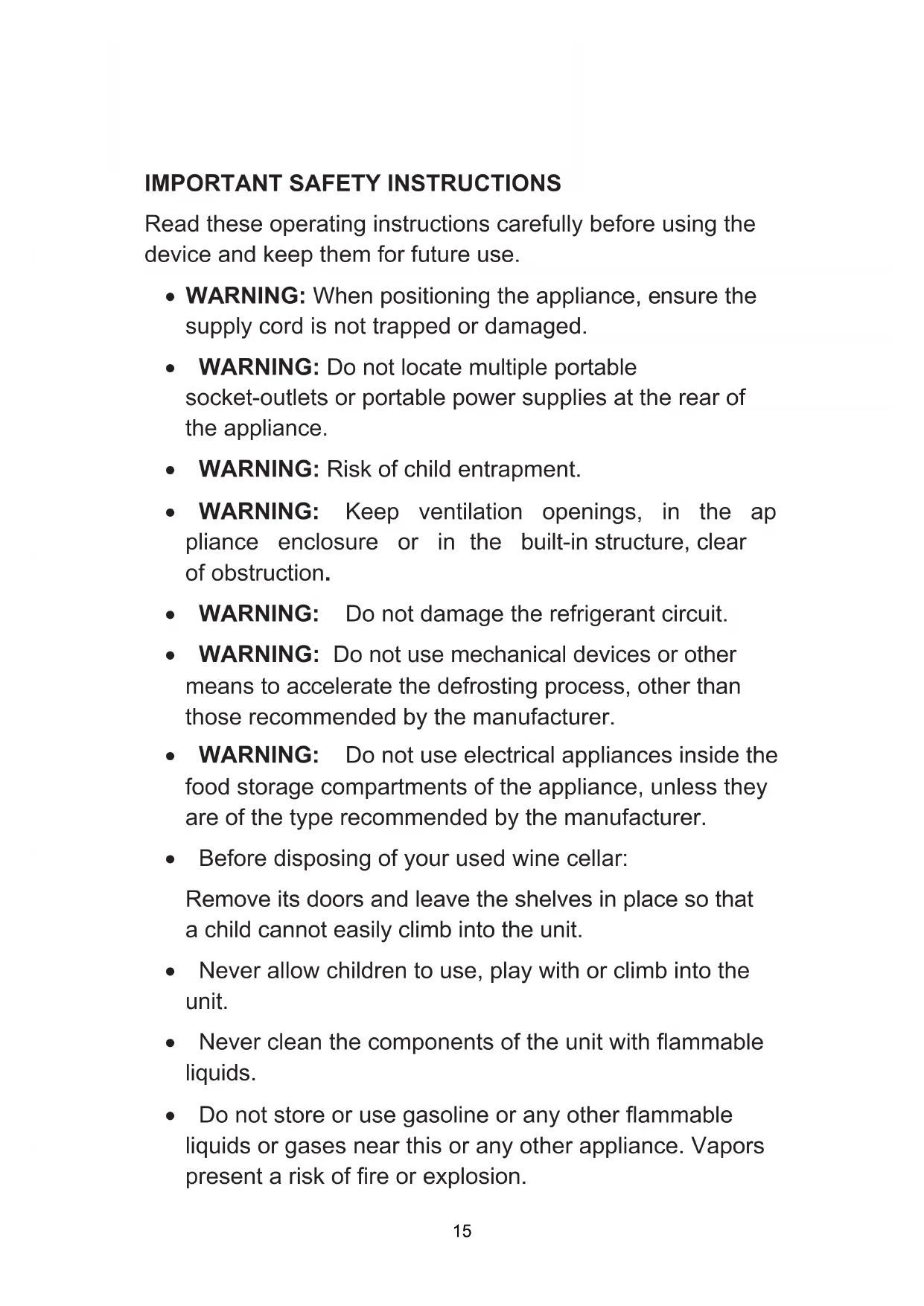

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the device and keep them for future use.

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  WARNING: Risk of child entrapment.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
  WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Before disposing of your used wine cellar:

Remove its doors and leave the shelves in place so that a child cannot easily climb into the unit.

• Never allow children to use, play with or climb into the unit.
• Never clean the components of the unit with flammable liquids.

• Do not store or use gasoline or any other flammable liquids or gases near this or any other appliance. Vapors present a risk of fire or explosion.

• To clean your wine cellar, do not use abrasive cleaners or solvents. Glass cleaners or soapy water give excellent results.

Symbol ISO 7010 W021

This symbolmeans that a firehazardexists.

• Leave 10cm of free space at the back of the unit to allow for ventilation of the cooling system.
• In order to store your wines at a stable temperature, avoid leaving the door open for too long.
• Do not install your wine cellar near a heat source and avoid direct sunlight.
  Install your cellar on a flat, clean and stable floor.
• Do not install any other electrical equipment on your cellar.
• To ensure your safety, do not place your cellar in damp places.
• Do not store perishable food in this appliances as the indoor

temperature may not be cold enough for proper storage.

• This appliance is intended to be used in household and similar applications but not in the following cases:

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• catering and similar non-retail applications.

• This device is designed for use inside a house or apartment. It is essential that the temperature of the room in which it is used is not lower than 10^ or higher than 38^ for optimal use.
  Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• This device may be used by children 8 years of age or older and by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they are properly supervised, experience or knowledge, if they are properly supervised or instructions on the safe use of the device have been given to them and the risks involved have been addressed.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

• To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• • If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

By purchasing this wine cellar, you own a device that combines unique advantages:

Less vibration: to preserve the quality of the wines.
Small size, taking up less space.

WARNING: Do not use this product in a place where children can touch it and do not leave children to use it alone.

• This refrigerating appliance is not intended to be used as built-in appliance."
• this refrigerating appliance is not suitable for freezing foodstuffs.

Disposal of waste

To avoid any harm to the environment or human health caused by the uncontrolled disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose.

Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.

INSTALLATION INSTRUCTIONS

Before putting your wine cellar into service

• Remove all inner and outer packaging components.
• Check that none of the following parts are missing:

2 removable shelves
1 ERP label
1 operating manual
2 door hinges

• Before connecting your device to a power supply, allow it to stand upright for about 2 hours. This reduces the risk of malfunction of the refrigeration system due to handling during transport.
• Clean the inner surfaces of the unit with a soft cloth and warm water.
• Place your unit on a floor strong enough to support the weight of the fully filled unit.

• Make sure the unit is level by adjusting the front feet underneath the unit. Make sure that the cellar rests on its feet in a stable manner.

• Install the appliance away from direct sunlight and heat sources (radiator, hot plate, etc.). Direct sunlight can damage the unit's coating and heat can increase its power consumption. If the ambient temperature is extremely cold or hot, this may prevent the unit from operating properly.

• The unit is not designed to be installed in a basement or cellar.
  This unit is designed exclusively for indoor use.

Caution: Make sure that the unit is kept away from any substance that may cause combustion.

• Check that the water tank is in place before connecting the unit.

CLEANING AND MAINTENANCE

Cleaning your wine cellar

• Unplug your wine cellar and take out all the bottles.
• Clean the outside of the unit with hot water and a mild detergent.
• Remove the water tank at the bottom of the unit, then wash it.

Moving your wine cellar

• Remove all bottles and disconnect the wine cellar.
• Tape all loose parts inside your wine cellar.
• Turn the feet to adjust their height to the minimum to avoid damage.
• Tighten the door to keep it closed.
• Be sure to keep the wine cellar upright during transport.

TECHNICAL SPECIFICATIONS

Model	CECWC24BC
Model No.	HS-86WEN(3N)
Rated Current	0.5A
Lamp Rated Power	0.6W
Refrigerant,Amount	R600a,18g
Capacity	24 bouteilles
Voltage	220-240V
Power consumption	/
Frequency	50Hz
Weight	23Kg
Dimensions (W x H x D)	480x642x440mm
Energy class	G
Energy consumption of 140kWh per year, calculated on the basis of the result obtained for 24 hours under standardized test conditions. Actual energy consumption depends on the operating conditions and location of the unit.
Storage volume	66l
Climate class SN/N/ST
This unit is designed for use at an ambient temperature between +10°C and +38°C
Noise emissions	40 dB

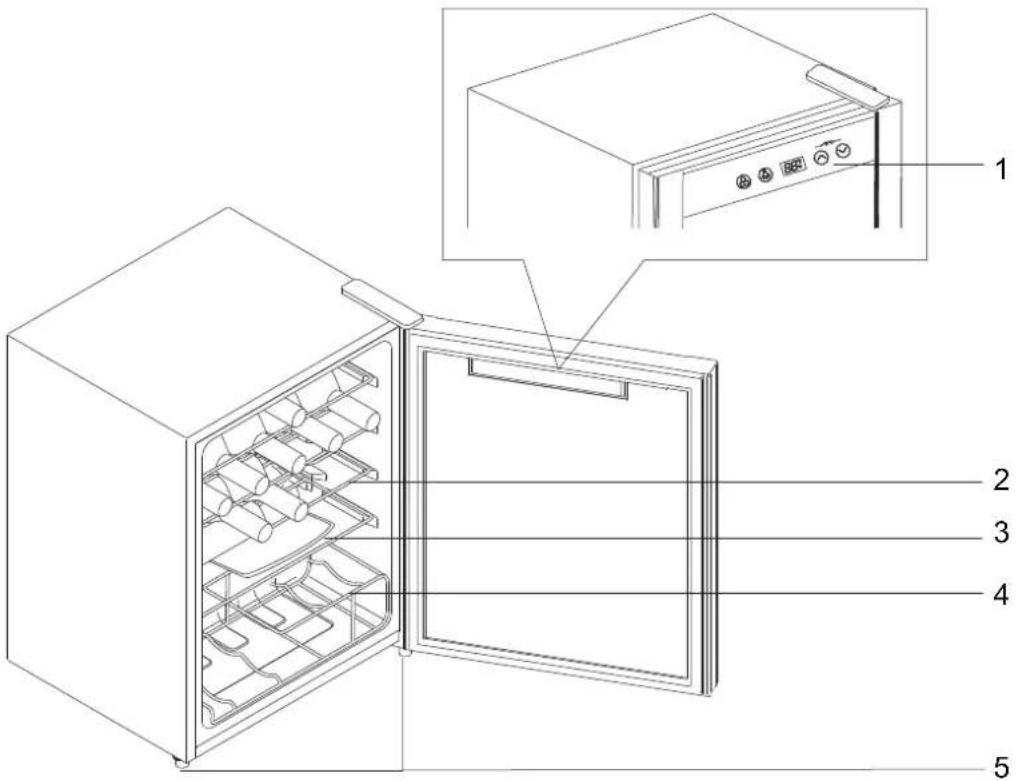

1	Temperature control display

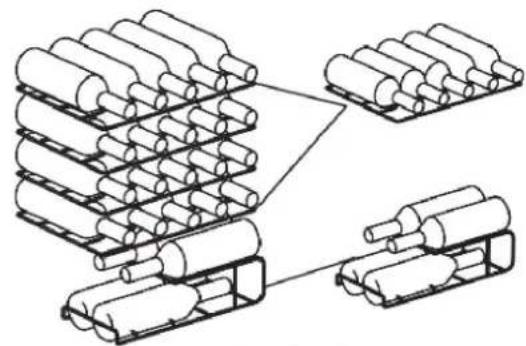

2	Wine Shelf
3	Water tray
4	Wine rack
5	Adjustable feet

To minimize energy consumption, be sure to respect the filling capacity of your cellar-18 "Bordeaux 75cl" size bottles. The combination of drawers, baskets and shelves that result in the most efficient use of energy for the appliance.

"This device is intended for wine storage only."

The product information sheet, according to EU Regulation No. 2019/2016 on the energy labeling of refrigeration appliances, can be viewed via the link below or by scanning the QR code on the energy label of the product.

Reference CECWC24BC: https://eprel.ec.europa.eu/qr/403426

GUARANTEE

Your refrigerating appliance is guaranteed by the manufacturer during a period of 24 months from the purchasing date (The dated invoice as proof).

EXCLUSIONS OF GUARANTEE :

The guarantee do not cover the normal wear of the product, nor the problems or damages resulting from :

(1) superficial deteriorations due to the normal wear of the product;
(2) defect or deteriorations due to contact with food or liquids and due to the corrosion generated by rust;
(3) any incident, abuse, misuse, modification, disassembly or unauthorized repairs ;
(4) any wrong maintenance operation, use not conforming to the instruction for use of the product and connection to an improper power supply;
(5) any use of not initially provided accessories or approved by the manufacturer.

Information : The guaranteewon'tbe applicable in case of missing rating plate or/and product serial number.

REPAIRS SERVICES

In case of malfunction during the guarantee period of the manufacturer: any repairs request must be addressed to the professional retailer you purchase your product to.

After the expiry of the manufacturer guarantee period : refer tothe document « Spare parts and repairs » in the documentationrelated to your refrigerating appliance available on the websitewww.marquepropre.ext

SPARE PARTS

The necessary spare parts for your product repairs are available at least 7 years, in conformity with the European regulation related to the eco-design of refrigerating appliances.

Refer to the document « spare parts and repairs » inside the documentation related to your refrigerating appliance, available on the website www.marquepropre.ext , it will inform you about :

• the availability for each spare part;
• the spare parts purchasing terms;
• someprofessionalrepairs services.

BREAKDOWNS AND SOLUTIONS

Some malfunctions can be easily resolved. Before calling customer service or a repairer, please consult the following table:

PROBLEM	POSSIBLE CAUSES & SOLUTIONS
The appliance makes lots of noise?	● Please adjust the front foot, keep the appliance leveling. ● Please keep the appliance a bit space from walls.
Liquid flowing sound inside the cabinet?	● It is normal because of the refrigerant working inside.
The appliance does not start?	● Make sure the appliance is connected to the power properly. ● Make sure switch on the power. ● The compressor re-starts after 5 minutes for a power cut.
Compressor runs continuously?	● If no cold is being produced, call the retailer's after-sale service.
Door does not seal tightly?	● After long time use, the door seal might get stiff & distorted partially. ● Heat the door seal with hot-wind blower or hot towel. ● The door seal gets softened and close the door.
The appliance does not cool sufficiently?	● Please adjust temperature setting. ● Keep the appliance away from sunlight or heat. ● Please do not open the door frequently.
Unpleasant smells inside cabinet?	● A little bit plastic smell for newly-buy appliance is normal and will disappear after a short time. ● Clean the compartment and ventilate it for a few hours.
Condensate on the glass door?	● Please do not open the door frequently or for a long time. ● Please do not set the temperature too low. ● High ambient temperature and humidity would cause condensate.
The light is not working?	● Check the power supply first. ● Call the retailer's after-sale service if the light is broken.
Disposal of the device
	To avoid any harm to the environment or human health caused by improper disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose. Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.

Continental Edison

120-126 Quai de Bacalan

CS11584

33000 Bordeaux

LOT#:A.M.C.122020

IMPORTE PAR

A.M.C

123 quai Jules Guesde,

94400, VITRY SUR SEINE,

France
