CECWC2Z77C - Wine cellar CONTINENTAL EDISON - Free user manual and instructions

Product type	Wine cellar
Brand	Continental Edison
Model	CECWC2Z77C
Capacity	77 bottles (75 cl)
Storage volume	193 L
Dimensions (W x D x H)	480 x 575 x 1285 mm
Power supply	220-240 V, 0.8 A, 50 Hz
Energy class	G
Annual consumption	152 kWh/year
Climate class	SN/N/ST (10°C to 38°C)
Acoustic emissions	41 dB
Adjustable temperature range	5°C to 22°C (two zones)
Interior lighting	LED, dedicated switch
Number of shelves	5 removable shelves
Control panel functions	On/Off, temperature adjustment, light, child lock, audible alarm
Door reversal	Possible, kit provided
Carbon filter	Yes
Maintenance and cleaning	Unplug, clean with warm water and mild detergent
Warranty	24 months
Availability of spare parts	7 years minimum

Frequently Asked Questions - CECWC2Z77C CONTINENTAL EDISON

How to adjust the temperature of the wine cellar?

Use the control panel. Press the Zone change key to select the upper or lower zone, then press Up or Down to adjust the temperature in 1°C increments. The range is 5°C to 22°C.

How to reverse the door opening direction?

Close the door. Remove the upper right hinge cover and unscrew the hinge. Lift the door to remove it from the lower hinge. Unscrew the lower hinge and install it on the left side. Replace the door and attach the upper hinge on the left. Refer to the manual for details.

What to do if the wine cellar makes an abnormal noise?

Check the stability of the appliance by adjusting the front feet. Move the appliance away from walls. A flowing liquid noise is normal, due to the refrigerant.

How to clean the wine cellar?

Unplug the appliance and remove all bottles. Clean the exterior with warm water and a mild detergent. Take out the rear water tank and wash it. Leave the door open to dry.

What is the maximum storage capacity?

The cellar can hold up to 77 bottles of 75cl (Bordeaux type) distributed on 5 shelves. Do not place more than two layers of bottles per shelf.

What to do if the interior light does not work?

First check the power supply. If the LED light is defective, contact after-sales service.

How to lock the control panel?

Press and hold the On/Off and Light keys simultaneously for 3 seconds. The panel locks. To unlock, repeat the same operation.

Why is there condensation on the door glass?

This may be due to too frequent or prolonged door opening, too low temperature setting, or high ambient temperature and humidity. Reduce openings and adjust the temperature.

How to change the temperature display to Fahrenheit?

Press the Fahrenheit/Celsius display change key on the control panel to switch between the two units.

What to do if the wine cellar does not cool sufficiently?

Check the temperature setting. Make sure the appliance is not exposed to sunlight or a heat source. Avoid opening the door too often. Leave a 10 cm space at the back for ventilation.

USER MANUAL CECWC2Z77C CONTINENTAL EDISON

1. Nettoyage du compartment

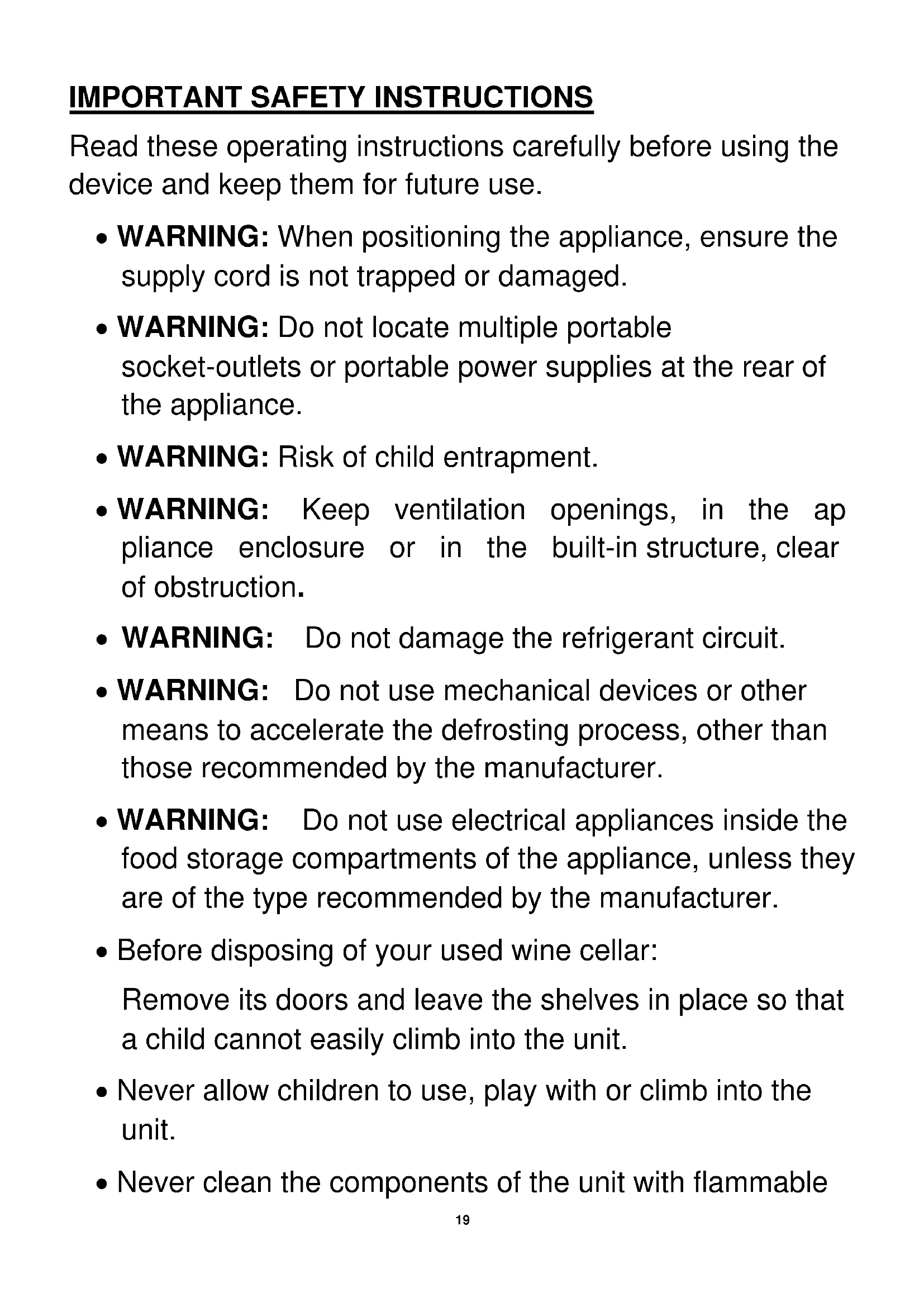

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the device and keep them for future use.

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• WARNING: Risk of child entrapment.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Before disposing of your used wine cellar: Remove its doors and leave the shelves in place so that a child cannot easily climb into the unit.
• Never allow children to use, play with or climb into the unit.
• Never clean the components of the unit with flammable

liquids.

• Do not store or use gasoline or any other flammable liquids or gases near this or any other appliance. Vapors present a risk of fire or explosion.
• To clean your wine cellar, do not use abrasive cleaners or solvents. Glass cleaners or soapy water give excellent results.

Symbol ISO 7010 W021

This symbolmeansthat a firehazardexists.

• Leave 10cm of free space at the back of the unit to allow for ventilation of the cooling system.
• In order to store your wines at a stable temperature, avoid leaving the door open for too long.
• Do not install your wine cellar near a heat source and avoid direct sunlight.
• Install your cellar on a flat, clean and stable floor.
• Do not install any other electrical equipment on your cellar.
• To ensure your safety, do not place your cellar in damp places.
• Do not store perishable food in this appliances as the indoor

temperature may not be cold enough for proper storage.

• This appliance is intended to be used in household and similar applications but not in the following cases:

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;

• catering and similar non-retail applications.

• This device is designed for use inside a house or apartment. It is essential that the temperature of the room in which it is used is not lower than 10^ or higher than 38^ for optimal use.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• This device may be used by children 8 years of age or older and by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they are properly supervised, experience or knowledge, if they are properly supervised or instructions on the safe use of the device have been given to them and the risks involved have been addressed.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• To avoid contamination of food, please respect the

following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• • If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

By purchasing this wine cellar, you own a device that combines unique advantages:

Less vibration: to preserve the quality of the wines.
Small size, taking up less space.

WARNING: Do not use this product in a place where children can touch it and do not leave children to use it alone.

• This refrigerating appliance is not intended to be used as built-in appliance."
• this refrigerating appliance is not suitable for freezing foodstuffs.

Disposal of waste

To avoid any harm to the environment or human health caused by the uncontrolled disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose.

Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.

INSTALLATION INSTRUCTIONS

Before putting your wine cellar into service

• Remove all inner and outer packaging components.
• Check that none of the following parts are missing:

5 removable shelves
1 handle with screws
1 ERP lable
1 operating manual
2 door hinges

• Before connecting your device to a power supply, allow it to stand upright for about 2 hours. This reduces the risk of malfunction of the refrigeration system due to handling during transport.
• Clean the inner surfaces of the unit with a soft cloth and warm water.
• Place your unit on a floor strong enough to support the

weight of the fully filled unit.

• Make sure the unit is level by adjusting the front feet underneath the unit. Make sure that the cellar rests on its feet in a stable manner.
• Install the appliance away from direct sunlight and heat sources (radiator, hot plate, etc.). Direct sunlight can damage the unit's coating and heat can increase its power consumption. If the ambient temperature is extremely cold or hot, this may prevent the unit from operating properly.
• The unit is not designed to be installed in a basement or cellar.
• This unit is designed exclusively for indoor use.

Caution: Make sure that the unit is kept away from any substance that may cause combustion.

• Check that the water tank is in place before connecting the unit.

CLEANING AND MAINTENANCE

Cleaning your wine cellar

• Unplug your wine cellar and take out all the bottles.
• Clean the outside of the unit with hot water and a mild detergent.
• Remove the water tank at the bottom of the unit, then wash it.

Moving your wine cellar

• Remove all bottles and disconnect the wine cellar.
• Tape all loose parts inside your wine cellar.
• Turn the feet to adjust their height to the minimum to avoid damage.
• Tighten the door to keep it closed.
• Be sure to keep the wine cellar upright during transport.

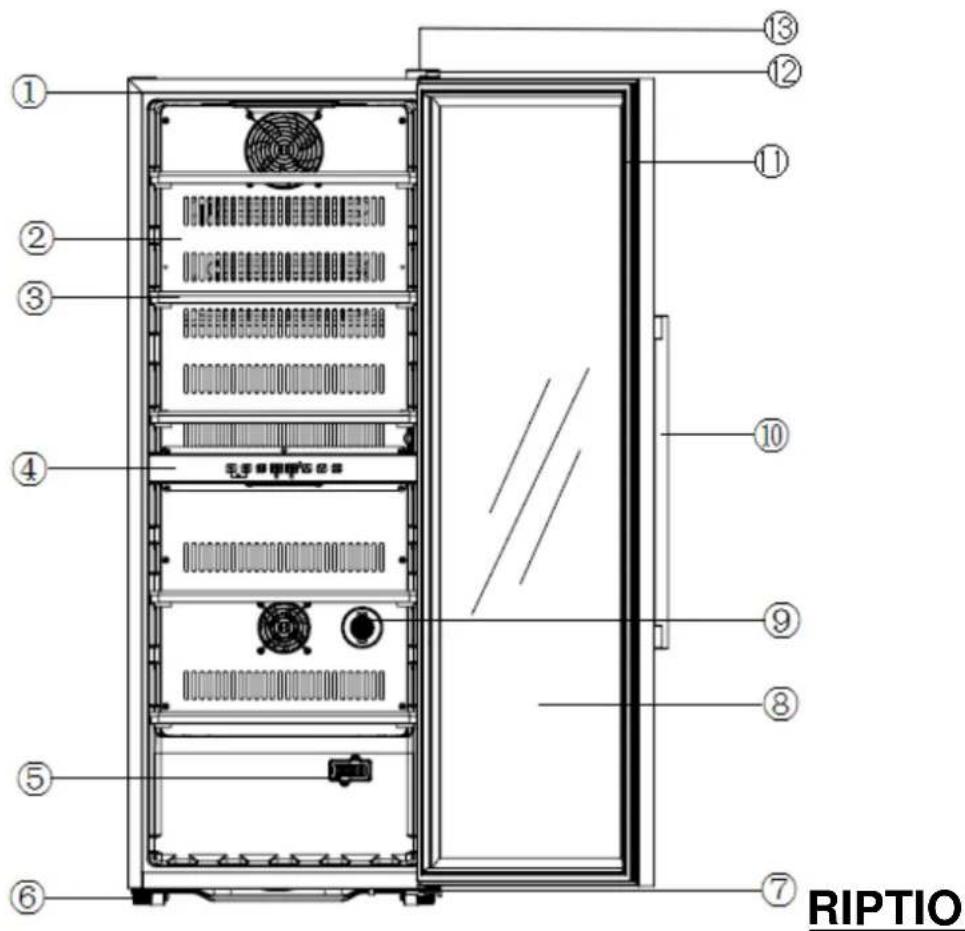

PRODUCT DESCRIPTION

1	Housing
2	Cover board
3	Shelf
4	Control panel
5	Sensor shield
6	Adjustable foot
7	Lower hinge
8	Door
9	Carbon filter
10	Door
11	Door seal
12	Upper hinge
13	Upper hinge cover

TECHNICAL SPECIFICATIONS

Model	CECWC2Z77C
Model No.	JCF-201S
Capacity	77 bottles 75cl
Voltage	220-240V
Current Input	80W
Frequency	50Hz
Dimensions (W x H x D)	480x 575x1285mm
Energy class	G
Energy consumption of 152 kWh per year, calculated on the basis of the result obtained for 24 hours under standardized test conditions. Actual energy consumption depends on the operating conditions and location of the unit.
Storage volume	193L
Climate class	SN/N/ST
This unit is designed for use at an ambient temperature between +10°C and +38°C
Noise emissions	41dB

152 kWh/annum

9102/6102

"This device is intended for wine storage only."

The product information sheet, according to EU Regulation No. 2019/2016 on the energy labeling of refrigeration appliances, can be viewed via the link below or by scanning the QR code on the energy label of the product.

Door reserving

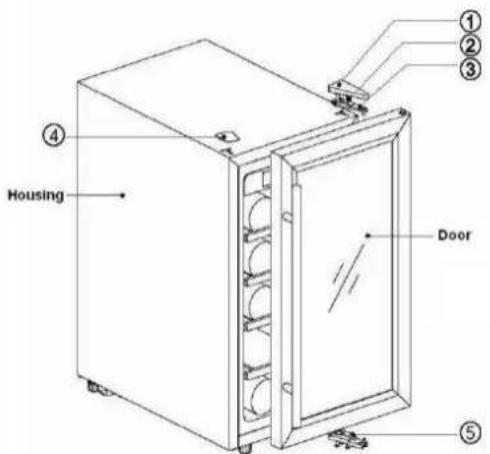

1. Parts for door reversing

①Door hinge cover

② Flange screw

③Door hinge

(4) Cap

⑤Lower door hinge

⑥ Handle screw ⑦ Handle

2. Handle installation

Our wine cooler is delivered with the handle in a separate package.

To install the handle:

① Take out the handle; point it precisely to the two holes on the left side of the door.
② Push aside the door seal to reveal two holes; insert the screws and screw the handle up.

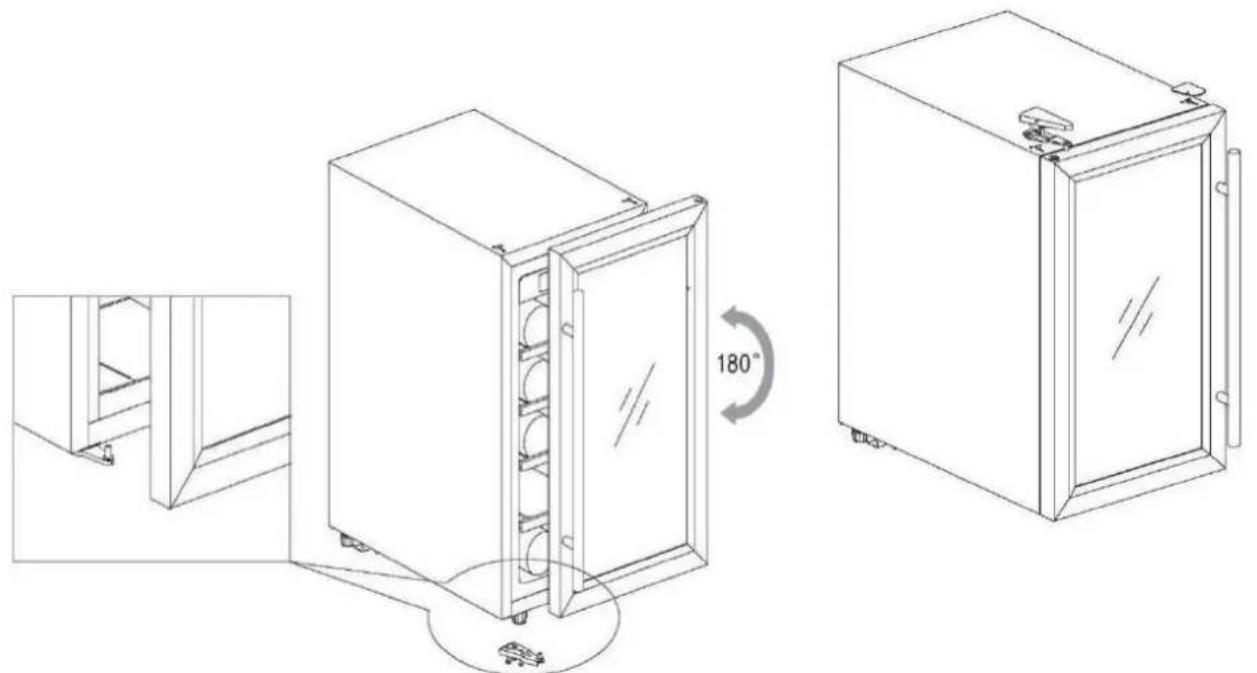

4. Reversing the door

Our wine coolers are delivered with the door opening from left to right. To reverse the opening direction:

1) Close the door.
2) Take off the door hinge cover

① on the up right corner; Unscrew the flange screws②; Take off door hinge③; Remove the up left side cap④.
3) Lift the door up until the door gets off the lower door hinge⑤.
4) Unscrew the lower door hinge.

5) Fit the lower door hinge ⑤ to the down left corner; Put the door above and insert into the lower door hinge.
6) Fit the door hinge③ to the up left corner and screw the flange screws②; Put on the door hinge cover①; Put the cap to the up right side④.

USE YOUR WINE CELLAR

The temperature setting allows you to adjust it according to your needs:

Setting temperature before tasting red wines: Temperature recommended 5- 22^ .

If the ambient temperature is higher or lower than the recommended temperatures, this will have a negative impact on its performance. For example, placing the unit in an extremely cold or hot place can cause variations in the internal temperature of the unit.

The internal temperature may vary depending on the location of the bottles, at the top, middle or bottom.

Adjustment may be necessary depending on the ambient temperature.

Do not hesitate to leave a thermometer inside the cellarin order to carry out regular monitoring.

Start operation

1. Cleaning the compartment

Before power on, clean inside of the appliance and check the drainage pipe in good connection. (For details, please refer to the "Maintenance and cleaning")

2. Put the appliance stand still

Before power on, level the appliance on the firm & dry floor for at least 30 minutes.

3. Power on

The appliance start operation and it will cool down inside after 1 hour, otherwise you should check the power connection.

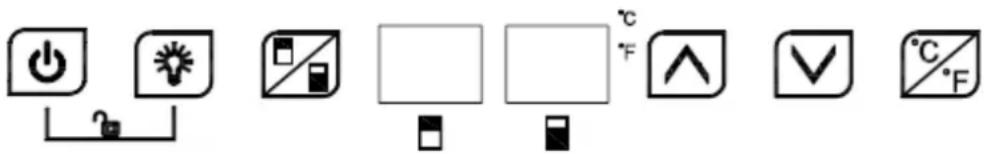

Control panel

If the keys are not active, please unlock first by pressing "on/off" and "Light" simultaneously for 3 seconds

ON/OFF

1. Keep pressing the key 3 seconds, power down, goes to stand-by mode.
2. Keep pressing the key again 3 seconds to return back to normal working.

Light

Press the key, turn on or turn off the LED lights inside. In stand-by mode, the key is invalid.

Zone switch

Press the key to switch between upper zone and lower zone for choosing which zone to set temperature. Press the key once, the LED display in chosen zone flash regularly. Press up and down key to set temperature. Press the key again; switch the zone to set temperature.

UP

Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press increase 1^ . Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual

temperature inside.

Down

Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press reduce 1^ . Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual temperature inside.

Child Lock (Combination key)

1. Lock: Press both keys at the same time for 3 seconds to lock.
2. Unlock: Press both keys at the same time for 3 seconds to unlock.

Fahrenheit/Celsius display interchange

Switch temperature display between Fahrenheit and Celsius by pressing the key.

Attention

1. For both upper and lower zone, the cooling temperature could be set from 5^ (lowest temperature)- 22^ (highest temperature). But lower zone temperature will equal to or be higher than upper zone.
2. When it is used for the first time, the pre-set temperature for both zone is 12^
3. Alarm sound: when the system malfunction occurs and alarm sound, press any key on the control panel to cancel the alarm sound.
4. Temperature & defrost sensor failure:

When the temperature sensor of upper zone failure occur, error code displays:

E1 for open circuit; E2 for short circuit.

When the temperature sensor of lower zone failure occur, error code displays:

E5 for open circuit; E6 for short circuit.

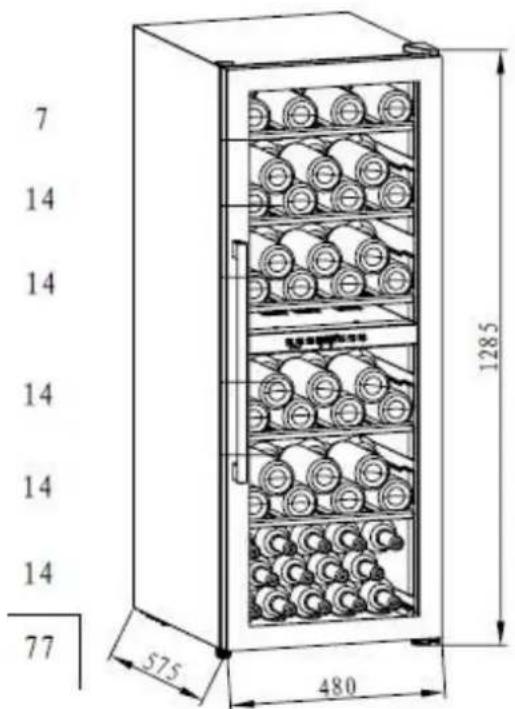

Wine storage

The appliance is equipped with sufficient shelves to allow your collection of wine get mature quietly and peacefully.
5 wood shelves loading capacity: 77bottles (standard Bordeaux with 75cl). In order to reach the best energy efficiency, pls refer to the below bottles loading way.

Loading capacity will vary in terms of different way of bottle arrangement or different bottle sizes.

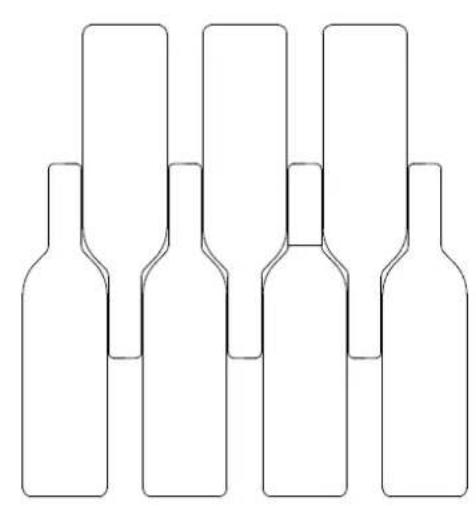

Each shelf is designed to put on 1 or 2 layers of wine bottles. More than 2 layers of bottle arrangement on one shelf are not recommended.
Each shelf could pull out partly to store wine bottles easily.
Open the door straight enough before pulling out shelves.
The shelf should be avoided in front of the fan as much as possible to avoid blocking the air inlet and affecting the cooling efficiency.
If the wine cooler would have no load for a long time, it is recommended to power it off, clean it carefully, and open the door for ventilation.
If it is unnecessary, please avoid to open the door frequently. And it is suggested not to open door for a long time in order to save energy consumption.
Below table is the recommended temperature for wine storing &drinking:

Red Wine	15-18°C
White Wine	9-14°C
Rose wine	10-11°C
Champagne & sparkling wine	5-8°C

BREAKDOWNS AND SOLUTIONS

Some malfunctions can be easily resolved. Before calling customer service or a repairer, please consult the following table :

PROBLEM	POSSIBLE CAUSES & SOLUTIONS
The appliance makes lots of noise?	● Please adjust the front foot, keep the appliance leveling. ● Please keep the appliance a bit space from walls.
Liquid flowing sound inside the cabinet?	● It is normal because of the refrigerant working inside.
The appliance does not start?	● Make sure the appliance is connected to the power properly. ● Make sure switch on the power. ● The compressor re-starts after 5 minutes for a power cut.
Compressor runs continuously?	● If no cold is being produced, call the retailer's after-sale service.
Door does not seal tightly?	● After long time use, the door seal might get stiff & distorted partially. ● Heat the door seal with hot-wind blower or hot towel. ● The door seal get softened and close the door.
The appliance does not cool sufficiently?	● Please adjust temperature setting. ● Keep the appliance away from sunlight or heat. ● Please do not open the door frequently.
Unpleasant smells inside cabinet?	● A little bit plastic smell for newly-buy appliance is normal and will disappear after a short time. ● Clean the compartment and ventilate it for a few hours.
Condensate on the glass door?	● Please do not open the door frequently or for a long time. ● Please do not set the temperature too low. ● High ambient temperature and humidity would cause condensate.
The light is not working?	● Check the power supply first. ● Call the retailer's after-sale service if the light is broken.

Guarantee

Your refrigerating appliance is guaranteed by the manufacturer during a period of 24 months from the purchasing date (The dated invoice as proof).

EXCLUSIONS OFGUARANTEE:

The guarantee do not cover the normal wear of the product, nor the problems or damages resulting from :

(1) superficial deteriorations due to the normal wear of the product;
(2) defect or deterioration due to contact with foodor liquidsand due to the corrosion generated by rust ;
(3) any incident, abuse, misuse, modification, disassemblyorunauthorized repairs ;
(4) any wrong maintenance operation, use not conforming to the instruction for use of the product and connection to an improper power supply ;

(5) any use of not initially provided accessories or approved by the manufacturer.

Information : The guaranteeewon'tbe applicable in case of missing rating plate or/and product serial number.

REPAIRS SERVICES

In case of malfunction during the guarantee period of the manufacturer: any repairs request must be addressed to the professional retailer you purchase your product to.

After the expiry of the manufacturer guarantee period : refer to the document « Spare parts and repairs » in the documentation related to your refrigerating appliance available on the websitewww.marquepropre.ext

SPARE PARTS

The necessary spare parts for your product repairs are available at least 7 years, in conformity with the European regulation related to the eco-design of refrigerating appliances.

Refer to the document « spare parts and repairs » inside the documentation related to your refrigerating appliance, available on the website www.marquepropre.ext , it will inform you about :

• the availability for each spare part;
• the spare parts purchasing terms;
• someprofessionalrepairs services.

Disposal of the device

To avoid any harm to the environment or human health caused by improper disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose.

Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.

Continental Edison

120-126 Quai de Bacalan

CS11584

33000 Bordeaux

LOT#:A.M.C.122020

IMPORTE PAR

A.M.C

123 quai Jules Guesde,

94400, VITRY SUR SEINE,

France

LA

NOUVELLE

CAVE

-by

Continental Edison
