CECWC492ZC - Wine cellar CONTINENTAL EDISON - Free user manual and instructions

Product type	Wine cellar
Brand	Continental Edison
Model	CECWC492ZC
Dimensions (WxDxH)	480 x 575 x 855 mm
Net weight	33 kg
Power supply	220-240 V ~ 50 Hz
Climate class	SN, N, ST (10 °C to 38 °C)
Refrigerant gas	R600a (isobutane), 27 g
Storage capacity	49 bottles (Bordeaux 750 ml)
Temperature range	5 °C to 22 °C (adjustable)
Temperature zones	2 independent zones
Interior lighting	LED (switchable)
Lock	Yes, with key
Door reversibility	Yes, tools required
Display	LED, temperature in °C or °F
Cleaning	Interior: warm water and baking soda; exterior: mild detergent
Warranty	24 months
Spare parts available	Minimum 7 years after end of commercialization
Energy consumption	Consult energy label (class not specified)

Frequently Asked Questions - CECWC492ZC CONTINENTAL EDISON

How to install the CECWC492ZC wine cellar?

Place the appliance on a horizontal and stable surface, away from heat sources and sunlight. Let it rest for 2 hours after transport before plugging in. Ensure free ventilation around the appliance (15 cm minimum on the sides and back).

How to adjust the temperature of the wine cellar?

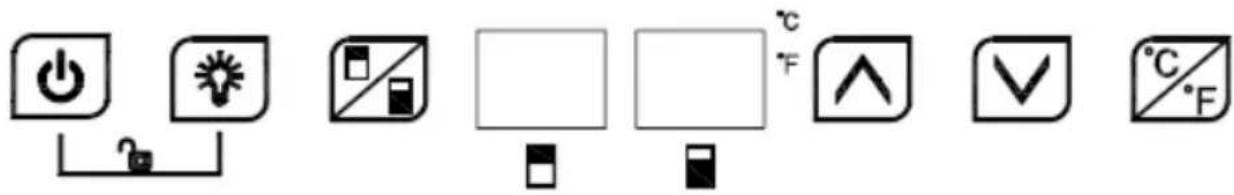

Use the control panel: press Zone to select the upper or lower zone, then press the + or - buttons to adjust. The recommended temperature is 12 °C. The display blinks and then solidifies after 5 seconds.

How to reverse the door opening direction?

Unscrew the upper and lower hinges, remove the door, then reposition the hinges on the opposite side. Use a screwdriver and a wrench. A reversibility kit is provided. Refer to the manual for detailed steps.

How to clean the interior of the wine cellar?

Unplug the appliance. Clean the interior surfaces with a solution of warm water and baking soda (2 tablespoons per cup). Wash the shelves with a mild detergent. Wipe with a clean cloth.

What to do in case of an error code (E1, E2, E5, E6)?

Codes E1/E2 indicate a problem with the upper zone sensor (open circuit/short circuit). E5/E6 concern the lower zone. If the audible alarm sounds, press any button to deactivate it. Contact customer service if the fault persists.

How to lock or unlock the wine cellar?

Use the provided key: turn it clockwise to lock, counterclockwise to unlock. Make sure the metal pin is fully engaged. Store the key in a safe place.

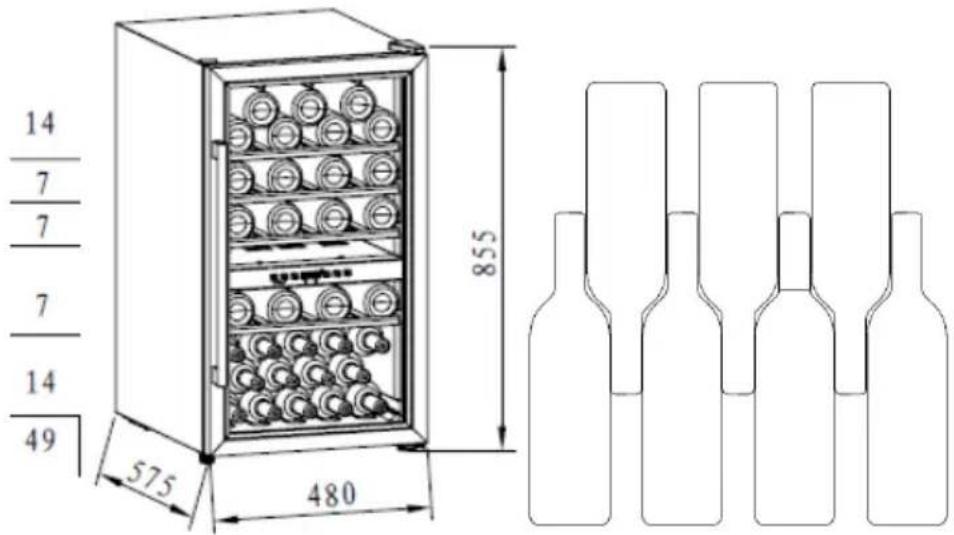

What is the maximum capacity of the wine cellar?

The capacity is 49 bottles of Bordeaux type (750 ml). The shelves support up to 8 kg each. Do not stack more than two layers of bottles per shelf.

What is the warranty period?

The manufacturer's warranty is 24 months from the date of purchase (proof required). It does not cover normal wear, damage due to misuse, or unauthorized repairs.

Where can I find spare parts for the wine cellar?

Spare parts are available for at least 7 years after the end of commercialization. Visit www.continentaledison.fr for orders and the list of authorized repairers.

How to reduce the energy consumption of the appliance?

Place the appliance in a cool and ventilated area, avoid sun exposure. Do not open the door for too long. Set the temperature according to the wines (e.g., 12 °C). Defrost and clean regularly.

USER MANUAL CECWC492ZC CONTINENTAL EDISON

Line drawing of a multi-level refrigerator with cylindrical enclosures (no text or symbols)

CECWC492ZC

Cave a vin 49 bouteilles - Wine cellar x€ bottles

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Diagram showing seven labeled mechanical components with numbered parts, likely for assembly or manufacturing instructions.

Technical diagram showing a door frame with labeled parts ⑥ and ⑦, including internal structure and directional arrows.

Inverser la porte

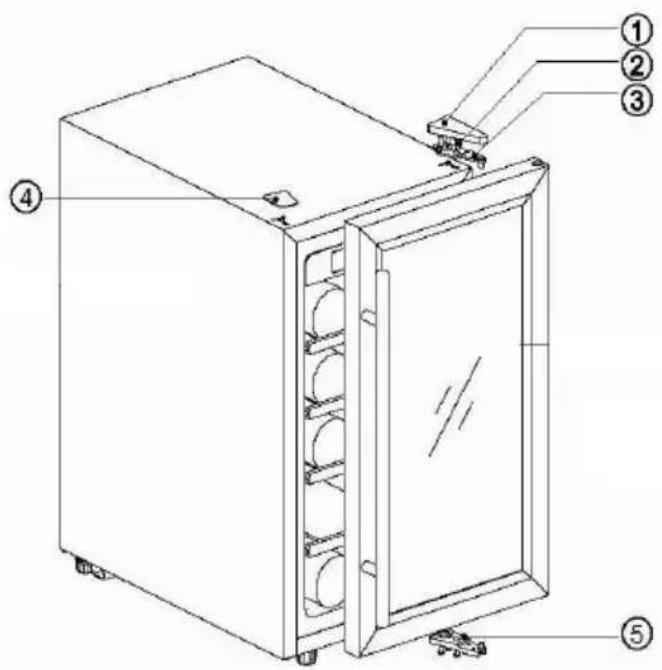

Technical diagram of a refrigerator with numbered parts labeled 1 to 5

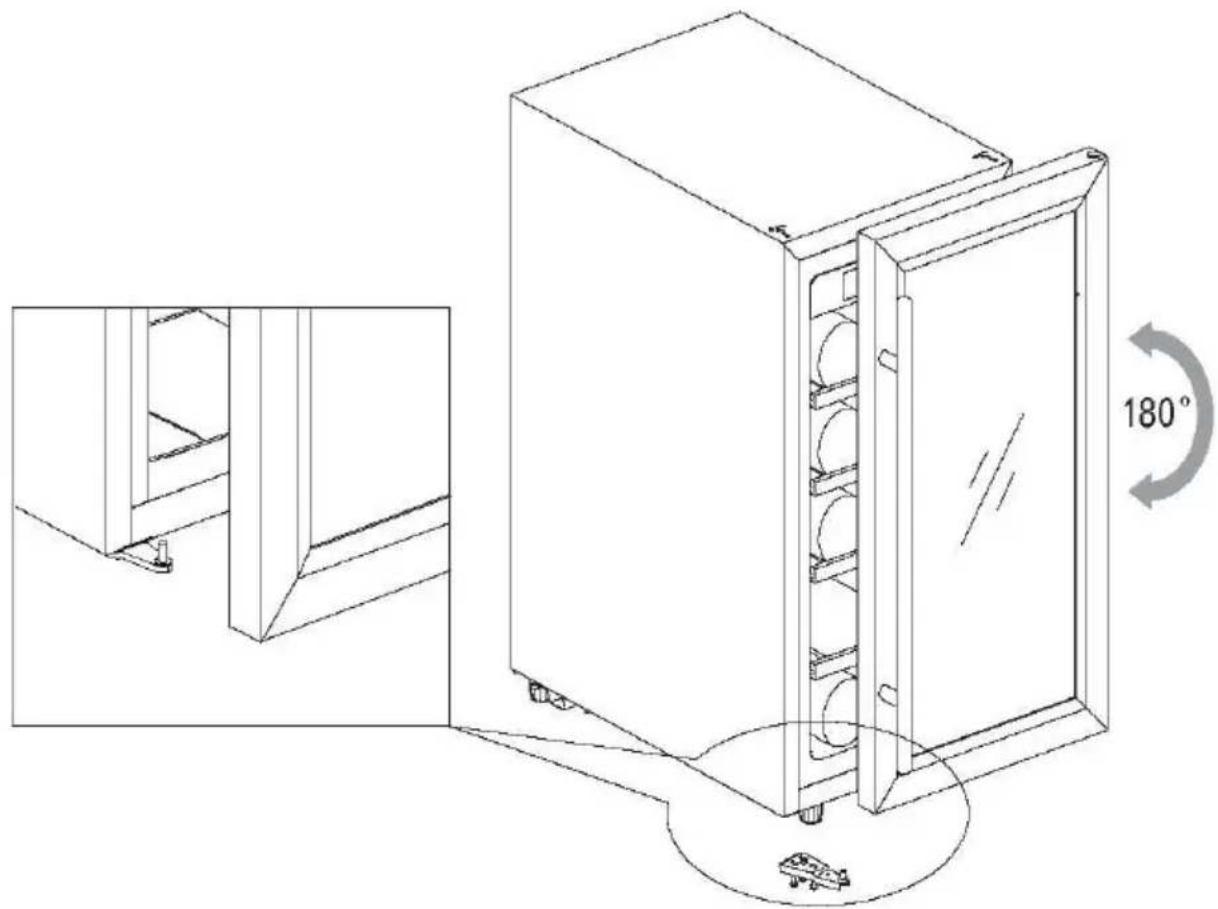

Technical line drawing of a mechanical device with a 180-degree rotation indicator (no text or symbols on the diagram itself)

Line drawing of a rectangular cabinet or enclosure with mounting feet and a side panel (no text or symbols)

V. UTILISATION

Nettoyage

Diagram showing various electrical and mechanical symbols including power, light bulb, square, rectangle, angle, checkmark, and angle indicators.

Enfant Lock (Combination key)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

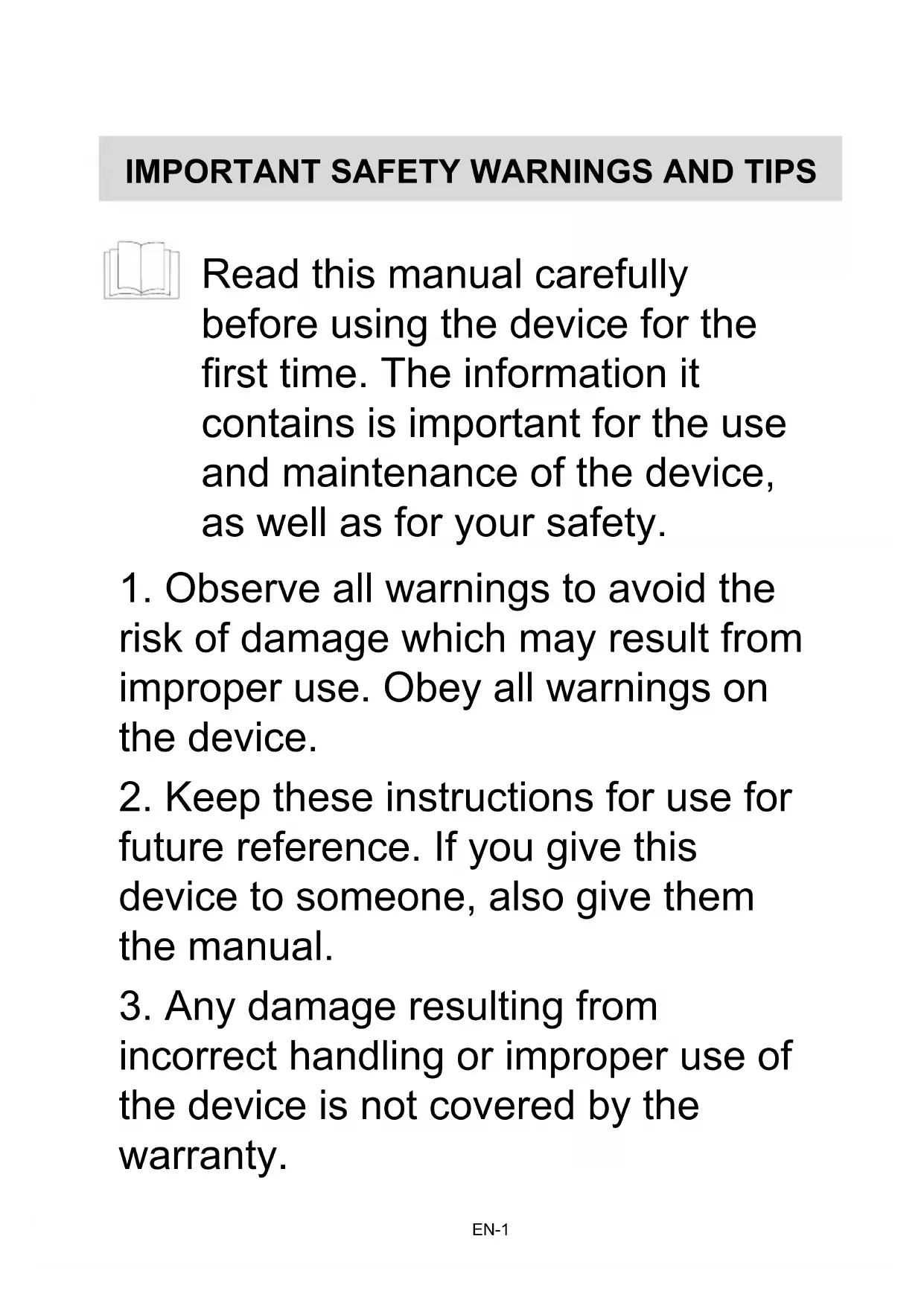

IMPORTANT SAFETY WARNINGS AND TIPS

Read this manual carefully before using the device for the first time. The information it contains is important for the use and maintenance of the device, as well as for your safety.

1. Observe all warnings to avoid the risk of damage which may result from improper use. Obey all warnings on the device.
2. Keep these instructions for use for future reference. If you give this device to someone, also give them the manual.

3. Any damage resulting from incorrect handling or improper use of the device is not covered by the warranty.

4. Do not use the appliance for any purpose for which it is not intended. This appliance is intended for indoor use only.

5. This appliance is designed for household use.

6. This device may only be used by children over 8 years of age and by persons with limited physical, sensory or mental abilities or with limited experience and / or knowledge, if they are supervised or have received instructions on the safe use of the device and understood the risks involved. Children must not play with this appliance. Cleaning and user maintenance shall not be made by children without supervision.

7. Regularly check the mains plug and power cord for damage!

If the electric wire of this appliance is damaged, it must be replaced with a special electric wire which is available from the manufacturer or its after-sales service.

1. Keep the device away from all hot surfaces and open flames. Always operate the appliance on a level, stable, clean and dry surface. The device is designed for climate class 4. Protect the device from heat (above 38°C) and extreme cold (below 10°C), dust, direct sunlight, humidity, water splashes and splashes.

2. Shelves should not be loaded more than 8 kg per rack.

3. Do not store any explosive substance such as an aerosol can with flammable propellant gas in this apparatus.

4. Dispose of the device at a specialized recycling center. Never subject the device to fire.
   12.2. This appliance is intended to used exclusively for the storage of wine.
   13.3. This refrigerating appliance is intended to be used as a built-in appliance.
   14.4. This refrigerating appliance is suitable for freezing foodstuffs
   15.5. LED lamp is non-replaceab
   16.6. This appliance is intended to used in household and similar applications such as

5. staff kitchen areas in shops, office and other working environments;
   – farm houses and by clients i hotels, motels and other residential type environments;
6. bed and breakfast typ environments;
7. catering and similar non-retai applications

17. To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

WARNING!

• Keep the ventilation openings in the frame of the device or its housing.
• Do not use mechanical devices or other means of accelerating defrosting other than those recommended by the manufacturer.
• Do not use heat sources such as candles or radiators to speed up defrosting.
• Do not damage the cooling circuit.
• Do not use any electrical device in the cooling chamber, except those recommended by the manufacturer.

WARNING!

- The device must be installed according to the instructions, in order to avoid the dangers due to instability.

1. Before plugging in the appliance, check that the voltage and type of current indicated on the appliance's nameplate match those of the outlets in your home.

2. Do not use the device if it is damaged! If the device is damaged, unplug it and notify customer service.

DANGER OF ELECTRIC

SHOCK!

Do not try to repair the device yourself. In the event of malfunction, the device must be repaired by a qualified professional.

1. Correct disposal of the refrigeration cabinet • Before disposing of the refrigeration cabinet:

2. Remove the doors.

3. Leave the shelves installed, to make it difficult for children to access.
4. Have the refrigeration circuit dismantled by a qualified technician.

Switch off the old appliance by unplugging the mains plug and the power cable.

1. Do not allow the cable to be crushed, pinched or damaged by rubbing against sharp edges. The cable must not come into contact with hot surfaces or open flames.

2. The cable should be laid out so that no one could trip over it or accidentally unplug it.

3. Do not place heavy objects on the apparatus. Do not place any object with naked flames (eg candle) on or near the appliance. Do not place any object filled with liquid (eg vase) on or next to the appliance.

4. As an additional protection, the installation in the circuit of a fault current protection device having a rated tripping current of not more than 30 mA is recommended.

5. This device complies with protection class I and must therefore be connected to a protective conductor.

6. Do not unplug the appliance by pulling on the cable or wrap the cable around the appliance.
7. The socket to which the appliance is plugged must be easily accessible, so that the appliance can be unplugged quickly in an emergency. To turn off the device completely, unplug it. The male plug allows the device to be completely disconnected.
8. Always unplug this apparatus before cleaning and before leaving it unused for long periods of time.

9. Switch off the device before removing the mains plug.

10. In the event of a fire, first disconnect the mains plug or disconnect the apparatus from the mains by other means before taking fire-fighting measures.

11. Never use an extension cable - there is a danger of overheating! If the mains cable is too short to reach the nearest terminal, rearrange the surfaces or have a qualified electrician fit an additional terminal.

CAUTION: Keep ventilation openings in the appliance enclosure or in the built-in structure clear. CAUTION: Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer.

CAUTION: Do not use electrical appliances inside the food storage compartment, unless they are of the type recommended by the manufacturer. If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or persons with similar qualifications in order to avoid any danger. The lamp is not replaceable.

Refrigerant

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Danger; risk of fire / flammable materials

Danger; risk of fire / flammable materials

The refrigerant gas contained in the circuit of this device is isobutane (R 600a), a low-polluting but flammable gas. When transporting and installing the appliance, take care not to damage any part of the refrigeration circuit. For installation, handling, cleaning and disposal of the device, refer to the following chapters of the user guide.

Suitable for food

Information on the meaning of the conformity mark

The marking indicates that the product meets the main requirements of European Directives: 2014/35 / EU (Low Voltage), 2014/30 / EU (Electromagnetic Compatibility), 2011/65 / EU (Limitation of the use of certain substances in equipment electronic)

SUMMARY

Important safety warnings and tips -1-
-14-
I. Description of the device
II. Technical characteristics -15-
III. Installation -16-
IV. Door reversibility -21-
V. Use -24-
VI. Guarantee -28-
VII. Disposal -29-

This user guide is available in the following languages:

- FR (original version)

Any other translation would be a translation of the original version.

This user guide, its possible modifications or any new version, is available on our website.

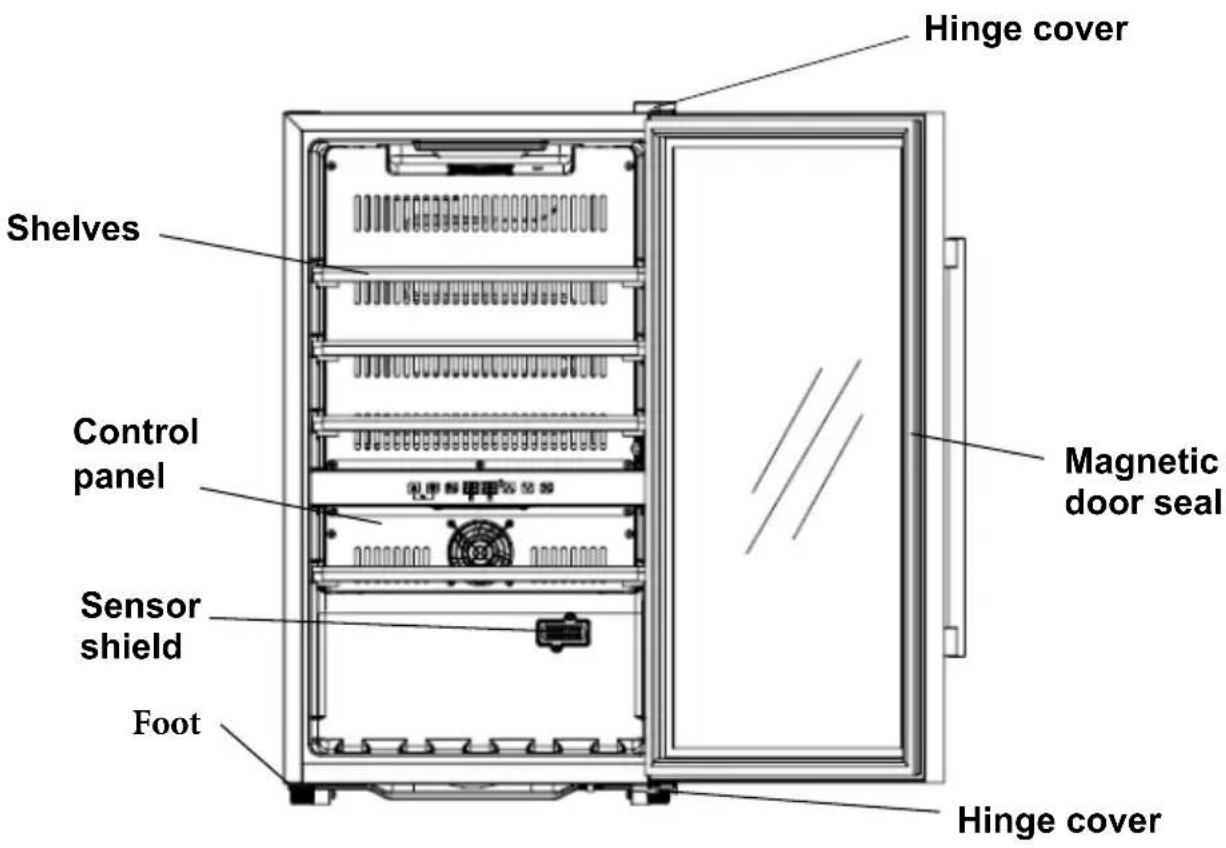

I. DESCRIPTION OF THE APPLIANCE

PARTS AND FEATURES

Hinge cover Shelves Control panel Sensor shield Foot Magnetic door seal Hinge cover

Note: Shelves, door frame, handle and other accessories may be different depending on models and configuration.

All photos or drawings in this manual are for reference. The device you buy may not be exactly the same as shown here. Please refer to the actual product.

II. TECHNICAL CHARACTERISTICS

TECHNICAL DATA :

Brand	Continental Edison
Reference	CECWC492ZC
Model	JCF-124S
Power supply 220-240V~
Electric power 50Hz
Dimensions (WxDxH)	480 x 575 x 855 mm
Net weight	33 kg
Refrigerant gas	R600a (27g)
Insulating Cyclopentane

ENERGY LABELING REGULATION DATA SHEET: 2019/2016 / EU

The product information sheet according to EU regulation 2019/2016 The energy labeling of refrigerating appliances can be found under the URL or QR code indicated on the energy label

CECWC492ZC - URL: https://eprel.ec.europa.eu/qr/402052

III. INSTALLATION

If this appliance, fitted with a magnetic closure, is intended to replace another fitted with a spring-loaded closure, we advise you to render the latter unusable before disposal. This will prevent children from locking themselves in and thus endangering their lives.

• Keep all packing materials away. • Warning! The packaging material is not a toy. Children should not play with the packaging material, as there is a risk that they will swallow or choke on it!
  • Make sure all parts of the appliance are completely dry.
• Place the appliance on a horizontal, stable and heat-resistant surface. Check that the refrigeration cabinet is in a horizontal position.

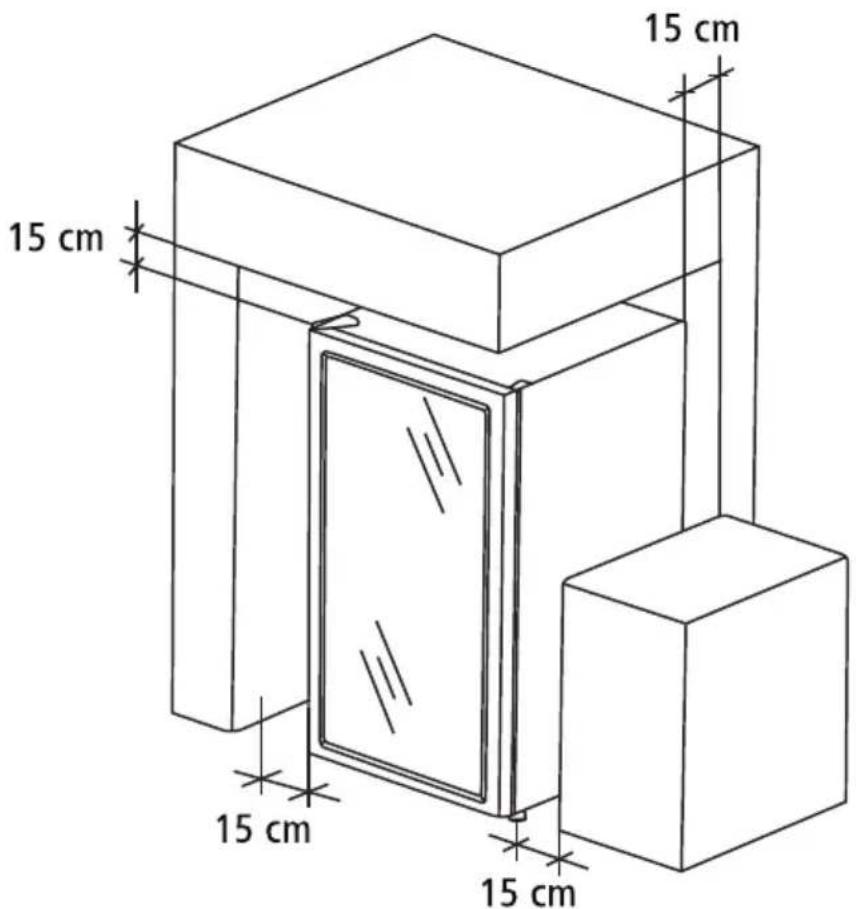

• When placing the electrical cabinet, keep a fixed distance from all walls or other objects. For more details, please refer to the following illustration:

15 cm 15 cm 15 cm 15 cm 15 cm

Placement

- Place your device away from a heat source (heating, cooking, sunlight). For the correct operation of your appliance, the ambient temperature of the room must be between

+ 10 °C and + 38 °C (class SN-N-ST). Outside of these limits; the device will no longer function normally.

-Make sure there is good air circulation behind the appliance, do not

Do not place it against a wall to avoid noise due to vibrations. Make sure that air circulates freely all around the device. Insufficient ventilation will cause malfunction and increased energy consumption.

This appliance must be installed so that the socket is accessible. Make sure after installing it that it is not resting on the power cable.

IMPORTANT: The installation of this device requires the intervention of 2 people.

Network connection

Your appliance is designed to operate under 230 volts single-phase. It must be connected to a wall socket equipped with an earth contact and protected by a fuse.

10 A in accordance with standard NF C15-100 and the prescriptions of your electricity supplier.

Unpacking the device and disposal of the packing materials

Remove all packing material from around the device, as well as any protective material inside the device compartments.

- The cardboard packaging and sheets of paper are recyclable. They must be disposed of in the collection bins provided for this purpose.

■ Materials bearing the symbol

PE <= polyethylene; > PE <= polypropyl sound ree; cycl ... ables: This means that they can be recycled by depositing them in appropriate collection containers.

- the other packaging elements (adhesive, fasteners ...) must be disposed of with household waste. For more information:

www.quefairedemesdechets.fr

Climate class

Information on the climatic class of the device can be found on the nameplate. It indicates at what ambient temperature (i.e. the ambient temperature, in which the device is operating) the functioning of the device is optimal (appropriate).

Climate class	Permissible ambient temperature
SN	from + 10 °C to + 32 °C
N	from + 16 °C to + 38 °C
ST	from + 16 °C to + 38 °C
T	from + 16 °C to + 43 °C

Note: The limit values of the ambient temperature range for the climatic classes for which the refrigerating appliance is designed and the fact that internal temperatures can be influenced by factors such as the location of the refrigerating appliance, the ambient temperature and how often the doors are opened, the setting of any temperature control device may need to be changed to account for these factors, if necessary.

Lock

If your refrigerator is fitted with a lock, keep the key out of reach and not near the appliance to prevent children from being trapped. When disposing of an old refrigerator, remove any old padlocks or locks for safety.

Wine cellar (R600a) and foaming insulation material Environmentally friendly (cyclopentane) are used for the refrigerator, do not damage the ozone layer and have a very low impact on global warming. R600a is flammable and sealed in a refrigeration system, leak-free during normal use. However, if there is a refrigerant leak due to a damaged refrigerant circuit, be sure to keep the unit away from open flames and open the windows for ventilation as quickly as possible.

Before using your wine cooler

• Remove the outer and inner packaging.
• Check that you have all the following parts:
• The shelves
• 2 keys
• Stainless steel handle
• Instruction manual

- Before connecting the wine cooler to the power source, allow it to stand in an upright position for approximately 2 hours. This will reduce the possibility of cooling system malfunction due to handling during transportation.

- Clean the interior surface with lukewarm water using a soft cloth.

- Install the handle on the left side of the door.

Installing your wine cooler

- This appliance is designed to be installed as a stand-alone or built-in.

- Place your wine cooler on a floor strong enough to support it when fully loaded. To level your wine cooler, adjust the front leveling feet at the bottom of the wine cooler.

- Place the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight can affect the acrylic coating and heat sources can increase power consumption. Extremely cold ambient temperatures can also cause the device to malfunction.

- Avoid placing the device in humid places.

- Plug the wine cooler into an exclusive, properly installed and grounded wall outlet. Do not cut or remove the third (ground) prong from the power cord under any circumstances. Any questions regarding power and / or grounding should be directed to a certified electrician or an authorized Products service center.

Electrical connection

Improper use of the grounding plug can result in a risk of electric shock. If the power cord is damaged, have it replaced by an authorized service center.

This appliance must be properly grounded for your safety. The power cord for this appliance is equipped with a three-prong plug that mates with standard three-prong wall outlets to minimize the risk of electric shock.

Do not cut or remove the third ground prong from the supplied power cord under any circumstances. For personal safety, this appliance must be properly earthed.

This appliance requires a standard 220V / 50Hz three-prong grounded plug. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard two-prong wall outlet is used, it is your responsibility and obligation to have it replaced with a properly grounded outlet. 3-prong wall outlet. The cord should be secured behind the appliance and should not be left exposed or suspended to avoid accidental injury.

The appliance must always be plugged into its own individual electrical outlet, the voltage of which corresponds to that indicated on the appliance label. This is to achieve the best performance and prevent overloading the electrical circuits of the house which could lead to a fire hazard if overheated. Never unplug the appliance by pulling on the power cord. Always grasp the plug firmly and pull straight out on the plug. Immediately repair or replace any power cords that are frayed or otherwise damaged. Do not use a cord that has cracks or abrasion damage along its length or at any end. When moving the device, be careful not to damage the power cord.

IV. DOOR REVERSIBILITY

Diagram showing seven labeled mechanical components with numbered parts, likely for assembly or manufacturing instructions.

① By hinged cover
② Flange screw
③ By hinge
④ Cap
⑤ Lowering by hinge
⑥ Handle screws
⑦ Handle

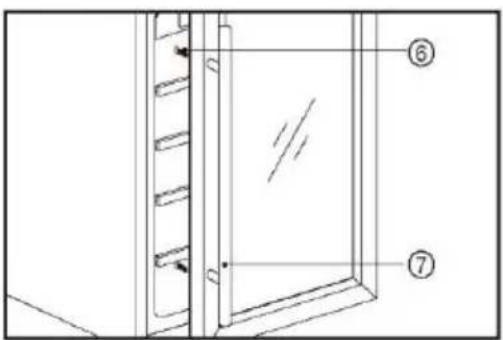

Installing the handle

Our wine cooler comes with the handle in a separate package.

To install the handle:

① Pull out the handle; orient it precisely towards the two holes on the left side of the door.

② Push the door seal aside to reveal two holes; insert the screws and tighten the handle.

Technical diagram showing a door frame with labeled parts ⑥ and ⑦, including internal structure and directional arrows.

Reverse the door

Our wine coolers come with the door opening from left to right. To reverse the opening direction:

1) Close the port 2) Remove the hinge cover from the door:

① in the upper right corner; Unscrew the flange screws ②; Remove the hinge door ③; Remove the upper left side cap ④.

Technical diagram of a laboratory oven with numbered components for identification

3) Lift the door until the door comes off the lower porch hinge ⑤. 4) Unscrew the lower hinge of the port.

Technical line drawing of a mechanical device with a 180-degree rotation indicator (no text or symbols on the diagram itself)

5) Install the lower hinge door ⑤ in the lower left corner; Put the door on top and insert it into the hinge of the lower door.

6) Fit the door hinge ③ in the upper left corner and tighten the flange screws ②; Fit the door hinge cover ①; Put the cap on the top right side ④.

Line drawing of a rectangular cabinet or enclosure with mounting feet and a side panel (no text or symbols)

V. USE

Cleaning

Check the accessories inside the wine cellar and wipe down the inside with a soft cloth.

Door Lock

Your device is equipped with a lock and a key. The keys are inside the plastic bag that contains the instruction manual. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door, reverse the operation making sure the metal pin is fully engaged. Remove the key and put it in a safe place to keep it.

Cleaning the wine cooler

Turn off the power, unplug the appliance and remove all items, including shelves. Wash interior surfaces with a solution of hot water and baking soda. The solution should be about 2 tablespoons of baking soda per 1 cup of water.

Wash the shelves with a mild detergent solution. Wring out the sponge or cloth to remove excess water when cleaning the control area, or any electrical part.

Wash the exterior cabinet in hot water and a mild liquid detergent. Rinse well and wipe dry with a clean, soft cloth. Do not use steel wool or a steel brush on stainless steel. These products will contaminate stainless steel with steel particles and rust may form.

Operation

Start up

The appliance starts up and cools down inside after one hour, otherwise the electrical connection must be checked.

Control panel

Diagram showing various electrical and mechanical symbols including power, light bulb, square, rectangle, triangle, checkmark, and angle/force labels.

All keys would be invalid in lock mode. Please unlock first.

ON / OFF

1. Keep the key pressed for 3 seconds, switch off, switch to standby mode.
2. Hold the button down for 3 seconds to return to normal operation.

Light

Press the key, turn on or off the LED lights inside. In standby mode, the key is not valid.

Switch Zone

Press the button to move from the upper zone to the lower zone in order to choose the temperature adjustment zone. Press the button once, the LED display of the selected zone flashes regularly. Press the up and down keys to adjust the temperature. Press the button again to switch to the setpoint temperature for the chosen zone.

UP

Press the button once, the LED display flashing regularly indicates the current set temperature. Continue to press the button to adjust the setpoint temperature, one press increases 1 °C. The regular flashing stops after 5 seconds when the absence of pressure is detected and the new set temperature is saved. The LED display returns to show the actual temperature inside.

DOWN

Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press reduce 1°C. Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual temperature inside.

The recommended temperature setting is 12^ C

Child Lock (Combination key)

1. Lock : Press both keys at the same time for 3 seconds to lock.
2. Unlock : Press both keys at the same time for 3 seconds to unlock.

Fahrenheit/Celsius display interchange

Switch temperature display between Fahrenheit and Celsius by pressing and holding the key for 3 seconds.

Attention

1. The ex-factory temperature of this product is 12^ C , and the corresponding temperature range need to be set according to the actual wine.
2. For both upper and lower zone, the cooling temperature could be set from 5^ C - 22^ C . But lower zone temperature will equal to or be higher than upper zone.
3. Alarm sound: when the system malfunction occur and alarm sound, press any key on the control panel to cancel the alarm sound.
4. Error code:

When the temperature sensor of upper zone failure occur, error code displays: E1 for open circuit; E2 for short circuit.

When the temperature sensor of lower zone failure occur, error code displays: E5 for open circuit; E6 for short circuit.

Wine storage

• The appliance is equipped with sufficient shelves to allow your collection of wine get mature quietly and peacefully.
• Full shelves loading capacity: 49 bottles (standard Bordeaux with 750ml).

14 7 7 7 14 49 575 855 480

• Loading capacity will vary in terms of different way of bottle arrangement or different bottle sizes.
  • Each shelf is designed to put on 1 or 2 layers of wine bottles. More than 2 layers of bottle arrangement on one shelf are not recommended.
  • Each shelf could pull out partly to store wine bottles easily.
• Open the door straight enough before pulling out shelves.
• The shelf should be avoided in front of the fan as much as possible to avoid blocking the air inlet and affecting the cooling efficiency.
• If the wine cooler would have no load for a long time, it is recommended to power it off, clean it carefully, and open the door for ventilation.
• Below table is the recommended temperature for wine storing & drinking:

Red Wine	15-18°C
White Wine 9-14°C
Rose wine	10-11°C
Champagne & sparkling wine	5-8°C

VI. GUARANTEE

Your refrigeration appliance is guaranteed by the manufacturer for a period of 24 months from the date of purchase (proof of purchase dated as proof).

WARRANTY EXCLUSIONS:

The warranty does not cover wear parts of the product, nor problems or damage resulting from:

(1)1) superficial deterioration due to normal wear and tear of the produ
(2)2) defects or deterioration due to contact of the product with food liquids and due to corrosion caused by rust;
(3)3) any unauthorized incident, abuse, misuse, modification, disassem or repair;
(4)4) any improper maintenance operation, use not in accordance with instructions concerning the product or connection to an incorrect voltage;
(5)5) any use of accessories not supplied or approved by manufacturer.

Information: The warranty cannot be applied in the absence of the nameplate and / or the serial number of the device.

REPAIR SERVICES

In the event of a malfunction during the period of the manufacturer's warranty: any request for support must be made to the professional dealer from whom you purchased your product.

After the expiration of the manufacturer's warranty period: see the "Spare parts and repair" document in the documentation for your refrigeration appliance available at www.continentaledison

SPARE PARTS

The spare parts needed to repair your refrigeration appliance are available for at least 7 years, in accordance with the European regulation on the ecodesign of refrigeration appliances.

Consult the “Spare parts and repair” document in the documentation relating to your refrigeration appliance available on the site www.continentaledison, it will provide you with information on:

• the duration of availability for each spare part
• the terms of ordering spare parts
• professional repair services

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

This logo affixed to the product means that it is a device whose treatment as waste falls within the framework of directive 2012/19 / EU of July 4, 2012, relating to waste electrical and electronic equipment (WEEE). This means that this product must be taken care of by a selective collection system in accordance with the European directive cited above so that it can either be recycled or dismantled in order to reduce any impact on the environment.

Hazardous substances contained in electrical and electronic equipment can have potentially dangerous effects on the environment and human health.

Thus, at the end of this device's life, it must not be disposed of with unsorted municipal waste. Return and collection systems are made available to you by local authorities (waste reception centers) and distributors.

This device must not be thrown on the public highway. You have an obligation to use the selective collection systems made available to you.

LA NOUVELLE CAVE

-by-

Continental Edison
