USER MANUAL CECWC2Z110C CONTINENTAL EDISON

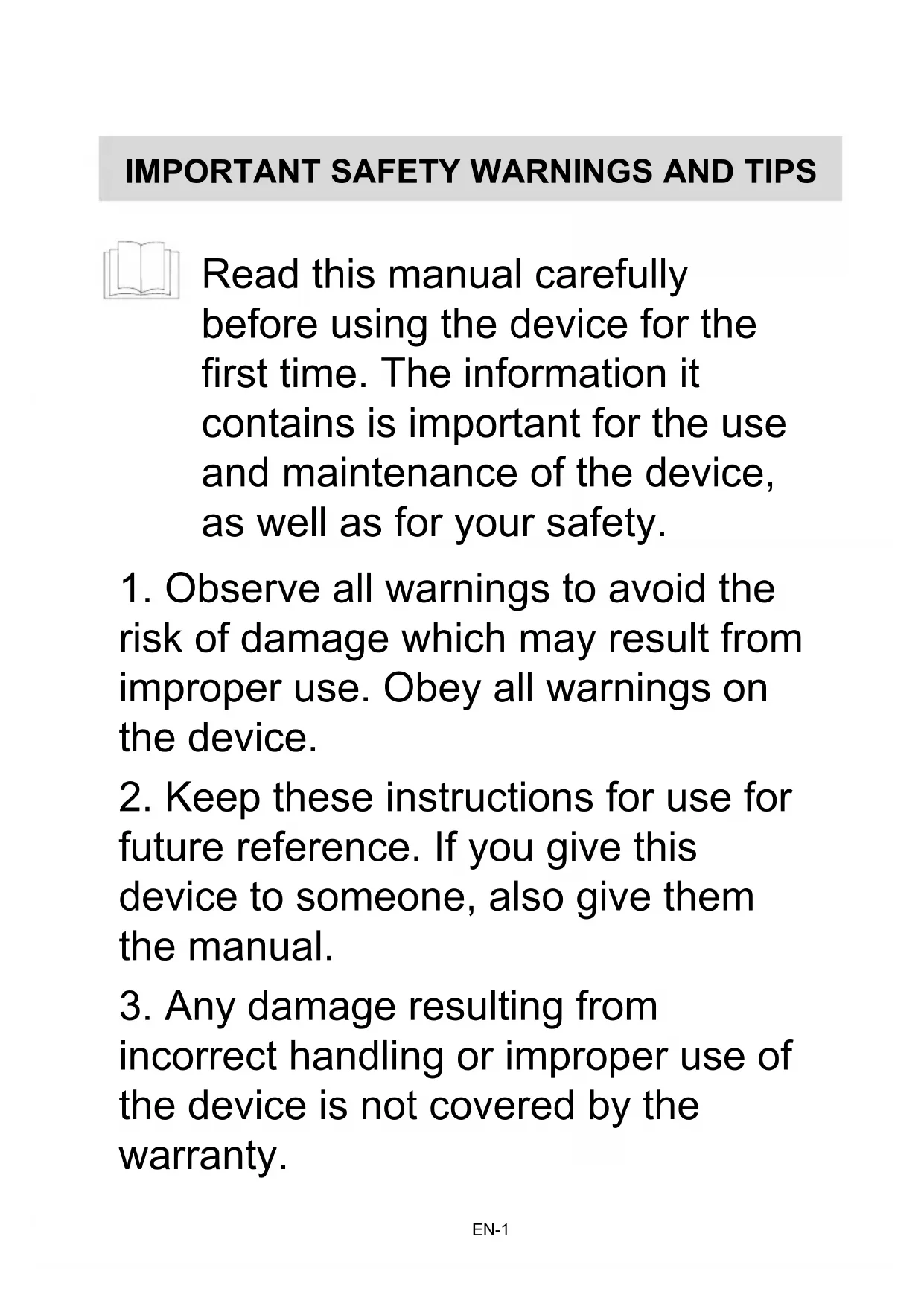

Read this manual carefully before using the device for the first time. The information it contains is important for the use and maintenance of the device, as well as for your safety.

1. Observe all warnings to avoid the

risk of damage which may result from improper use. Obey all warnings on the device.

2. Keep these instructions for use for

future reference. If you give this device to someone, also give them the manual.

3. Any damage resulting from

incorrect handling or improper use of the device is not covered by the warranty. EN-14. Do not use the appliance for any purpose for which it is not intended. This appliance is intended for indoor use only.

5. This appliance is designed for

6. This device may only be used by

children over 8 years of age and by persons with limited physical, sensory or mental abilities or with limited experience and / or knowledge, if they are supervised or have received instructions on the safe use of the device and understood the risks involved. Children must not play with this appliance. Cleaning and user maintenance shall not be made by children without supervision.

7. Regularly check the mains plug and

power cord for damage! EN-2If the electric wire of this appliance is damaged, it must be replaced with a special electric wire which is available from the manufacturer or its after-sales service.

8. Keep the device away from all hot

surfaces and open flames. Always operate the appliance on a level, stable, clean and dry surface. The device is designed for climate class 4. Protect the device from heat (above 38 °C) and extreme cold (below 10°C), dust, direct sunlight, humidity, water splashes and splashes.

9. Shelves should not be loaded more

substance such as an aerosol can with flammable propellant gas in this apparatus. EN-311. Dispose of the device at a specialized recycling center. Never subject the device to fire.

12. This appliance is intended to be

used exclusively for the storage of wine.

13. This refrigerating appliance is not

intended to be used as a built-in appliance.

14. This refrigerating appliance is not

suitable for freezing foodstuffs

15. LED lamp is non-replaceable.

16. This appliance is intended to be

used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications EN-417. To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. WARNING! - Keep the ventilation openings in the frame of the device or its housing. - Do not use mechanical devices or other means of accelerating defrosting other than those recommended by the manufacturer. - Do not use heat sources such as candles or radiators to speed up defrosting. - Do not damage the cooling circuit. - Do not use any electrical device in the cooling chamber, except those recommended by the manufacturer. EN-5WARNING! - The device must be installed according to the instructions, in order to avoid the dangers due to instability.

18. Before plugging in the appliance,

check that the voltage and type of current indicated on the appliance's nameplate match those of the outlets in your home.

19. Do not use the device if it is

damaged! If the device is damaged, unplug it and notify customer service.

EN-6DANGER OF ELECTRIC

SHOCK! Do not try to repair the device yourself. In the event of malfunction, the device must be repaired by a qualified professional.

20. Correct disposal of the

refrigeration cabinet • Before disposing of the refrigeration cabinet: - Remove the doors. - Leave the shelves installed, to make it difficult for children to access. - Have the refrigeration circuit dismantled by a qualified technician. Switch off the old appliance by unplugging the mains plug and the power cable. EN-721. Do not allow the cable to be crushed, pinched or damaged by rubbing against sharp edges. The cable must not come into contact with hot surfaces or open flames.

22. The cable should be laid out so

that no one could trip over it or accidentally unplug it.

23. o not place heavy objects on the

apparatus. Do not place any object with naked flames (eg candle) on or near the appliance. Do not place any object filled with liquid (eg vase) on or next to the appliance.

24. As an additional protection, the

installation in the circuit of a fault current protection device having a rated tripping current of not more than 30 mA is recommended. EN-825. This device complies with protection class I and must therefore be connected to a protective conductor.

26. Do not unplug the appliance by

pulling on the cable or wrap the cable around the appliance.

27. The socket to which the appliance

is plugged must be easily accessible, so that the appliance can be unplugged quickly in an emergency. To turn off the device completely, unplug it. The male plug allows the device to be completely disconnected.

28. Always unplug this apparatus

before cleaning and before leaving it unused for long periods of time.

29. Switch off the device before

removing the mains plug. EN-930. In the event of a fire, first disconnect the mains plug or disconnect the apparatus from the mains by other means before taking fire-fighting measures.

31. Never use an extension cable -

there is a danger of overheating! If the mains cable is too short to reach the nearest terminal, rearrange the surfaces or have a qualified electrician fit an additional terminal. CAUTION: Keep ventilation openings in the appliance enclosure or in the built-in structure clear. CAUTION: Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer. EN-10EN-11 CAUTION: Do not use electrical appliances inside the food storage

ompartment, unless they are of the type recommended by the manufacturer. If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or persons with similar qualifications in order to avoid any danger. The lamp is not replaceable.Refrigerant Danger; risk of fire / flammable materials Danger; risk of fire / flammable materials The refrigerant gas contained in the circuit of this device is isobutane (R 600a), a low-polluting but flammable gas. When transporting and installing the appliance, take care not to damage any part of the refrigeration circuit. For installation, handling, cleaning and disposal of the device, refer to the following chapters of the user guide. Suitable for food Information on the meaning of the conformity mark The marking indicates that the product meets the main requirements of European Directives: 2014/35 / EU (Low Voltage), 2014/30 / EU (Electromagnetic Compatibility), 2011/65 / EU (Limitation of the use of certain substances in equipment electronic) EN-12SUMMARY Important safety warnings and tips

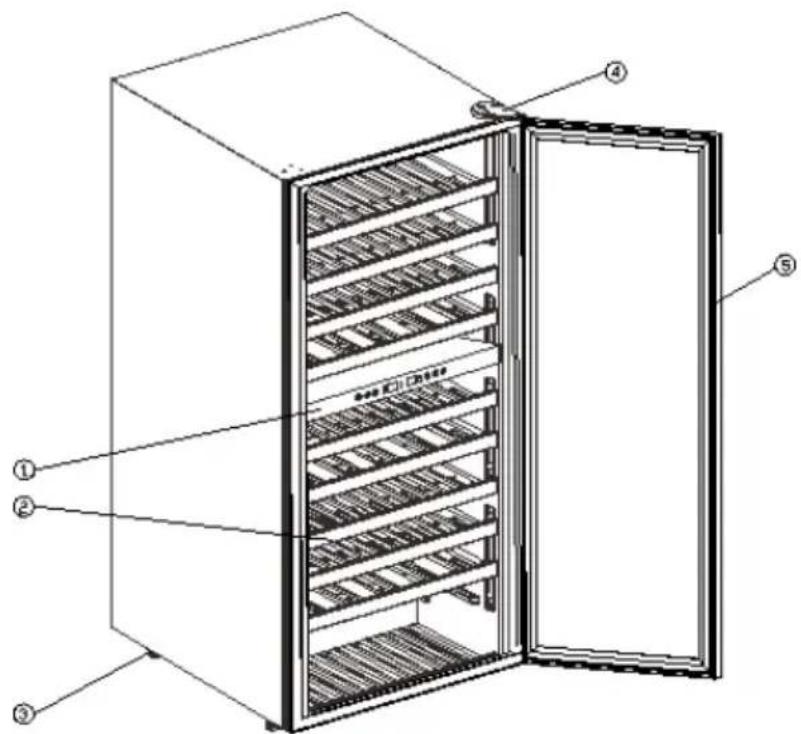

I. Description of the device

IV. Stainless steel handle installation

This user guide is available in the following languages: - FR (original version) Any other translation would be a translation of the original version. This user guide, its possible modifications or any new version, is available on our website. EN-13

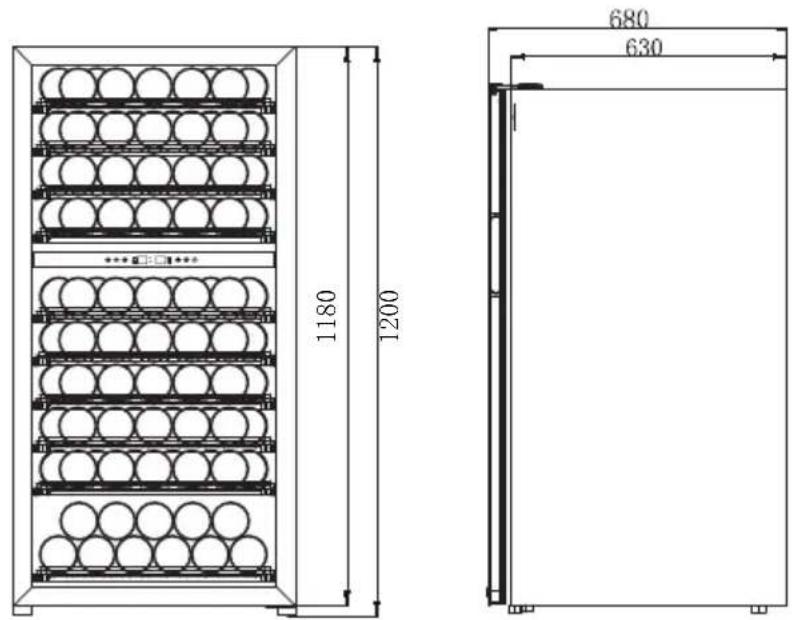

The drawing, the number of shelves are only indicative. Non-contractual document which may be subject to modifications.

EN-14 PARTS AND FEATURESIt is recommended to install the wine cooler in a location where the ambient temperature is between 19ºC and 24ºC (66ºF-75ºF) and the humidity is less than 60%. If the ambient temperature is higher or lower than the recommended temperatures, the performance of the device may be affected. For example, if you place your device in extreme cold or heat, the indoor temperature may fluctuate. Recommended temperature settings Wine storage: 12 ° C-14ºC (53 ° F-57ºF) Rosé and sparkling wines: 5 ° C-8ºC (41 ° F-46ºF) White / dry wines: 9 ° C-12ºC (48 ° F-53ºF) Red wines: 14 ° C-18ºC (59 ° F-65ºF)

• The temperature ºC can vary between <+ 2 ºC Temperature setting range ：

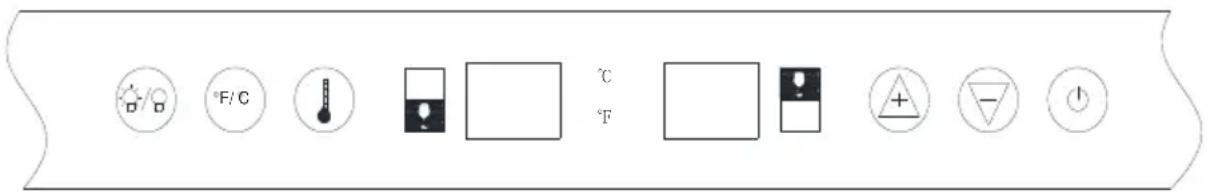

/ C Turn on or off interior light Toggles the temperature display between Celsius and Fahrenheit. Press this button to start setting the temperature of the upper or lower zone. Adjusts the temperature in 1 degree increments. Adjust the temperature by decrementing 1 degree. Press for 3 seconds to turn on / off the device. EN-15 The recommended temperature setting is 12 ° CII. TECHNICAL CHARACTERISTICS TECHNICAL DATA : Brand Continental Edison Reference

Power supply 220-240V~ Electric power 50Hz Dimensions (WxDxH) Net weight Refrigerant gas Insulating Cyclopentane ENERGY LABELING REGULATION DATA SHEET: 2019/2016 / EU The product information sheet according to EU regulation 2019/2016 The energy labeling of refrigerating appliances can be found under the URL or QR code indicated on the energy label CECWC2Z110C - URL: https://eprel.ec.europa.eu/qr/402051 YC-298B Model EN-16 598 x 690 x 1270mm 70 kg R600a (48g)III. INSTALLATION If this appliance, fitted with a magnetic closure, is intended to replace another fitted with a spring-loaded closure, we advise you to render the latter unusable before disposal. This will prevent children from locking themselves in and thus endangering their lives.

• Keep all packing materials away.

• Warning ! The packaging material is not a toy. Children should not play with the packaging material, as there is a risk that they will swallow or choke on it!

• Make sure all parts of the appliance are completely dry.

• Place the appliance on a horizontal, stable and heat-resistant surface. Check that the refrigeration cabinet is in a horizontal position.

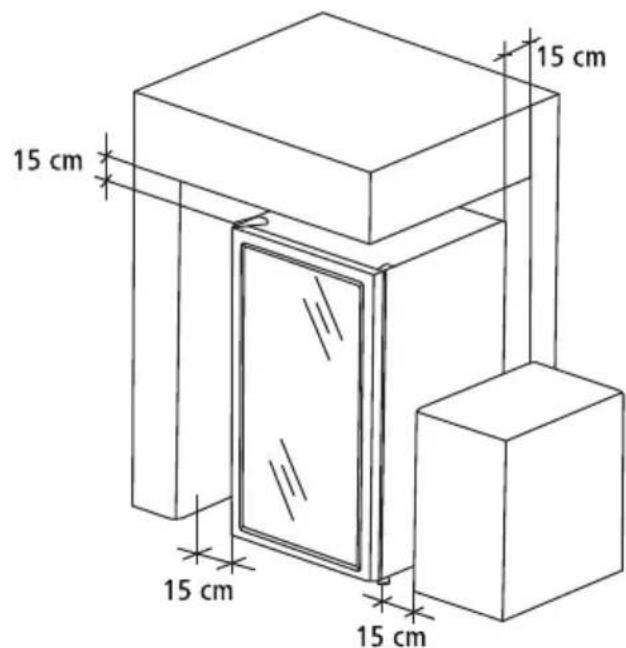

• When placing the electrical cabinet, keep a fixed distance from all walls or other objects. For more details, please refer to the following illustration: EN-17

1180▪ The cardboard packaging and sheets of paper are recyclable. They must be disposed of in the collection bins provided for this purpose.

• Materials bearing the symbol PE <= polyethylene; > PE <= polypropyl sound ree; cycl ... ables: This means that they can be recycled by depositing them in appropriate collection containers.

• the other packaging elements (adhesive, fasteners ...) must be disposed of with household waste. For more information: www.quefairedemesdechets.fr Placement - Place your device away from a heat source (heating, cooking, sunlight). For the correct operation of your appliance, the ambient temperature of the room must be between + 10 ° C and + 38 ° C (class SN-N-ST). Outside of these limits; the device will no longer function normally. -Make sure there is good air circulation behind the appliance, do not Do not place it against a wall to avoid noise due to vibrations. Make sure that air circulates freely all around the device. Insufficient ventilation will cause malfunction and increased energy consumption. This appliance must be installed so that the socket is accessible. Make sure after installing it that it is not resting on the power cable. IMPORTANT: The installation of this device requires the intervention of 2 people. Network connection Your appliance is designed to operate under 230 volts single-phase. It must be connected to a wall socket equipped with an earth contact and protected by a fuse. 10 A in accordance with standard NF C15-100 and the prescriptions of your electricity supplier. Unpacking the device and disposal of the packing materials Remove all packing material from around the device, as well as any protective material inside the device compartments. EN-18Note: The limit values of the ambient temperature range for the climatic classes for which the refrigerating appliance is designed and the fact that internal temperatures can be influenced by factors such as the location of the refrigerating appliance, the ambient temperature and how often the doors are opened, the setting of any temperature control device may need to be changed to account for these factors, if necessary. Lock If your refrigerator is fitted with a lock, keep the key out of reach and not near the appliance to prevent children from being trapped. When disposing of an old refrigerator, remove any old padlocks or locks for safety. Wine cellar (R600a) and foaming insulation material Environmentally friendly (cyclopentane) are used for the refrigerator, do not damage the ozone layer and have a very low impact on global warming. R600a is flammable and sealed in a refrigeration system, leak-free during normal use. However, if there is a refrigerant leak due to a damaged refrigerant circuit, be sure to keep the unit away from open flames and open the windows for ventilation as quickly as possible. Climate class Information on the climatic class of the device can be found on the nameplate. It indicates at what ambient temperature (i.e. the ambient temperature, in which the device is operating) the functioning of the device is optimal (appropriate). Climate class Permissible ambient temperature

from + 10 ° C to + 32 ° C from + 16 ° C to + 38 ° C from + 16 ° C to + 38 ° C from + 16 ° C to + 43 ° C EN-19Before using your wine cooler - Remove the outer and inner packaging. - Check that you have all the following parts:

• Stainless steel handle

• Instruction manual - Before connecting the wine cooler to the power source, allow it to stand in an upright position for approximately 2 hours. This will reduce the possibility of cooling system malfunction due to handling during transportation. - Clean the interior surface with lukewarm water using a soft cloth. - Install the handle on the left side of the door. Installing your wine cooler - This appliance is designed to be installed as a stand-alone or built-in. - Place your wine cooler on a floor strong enough to support it when fully loaded. To level your wine cooler, adjust the front leveling feet at the bottom of the wine cooler. - Place the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight can affect the acrylic coating and heat sources can increase power consumption. Extremely cold ambient temperatures can also cause the device to malfunction. - Avoid placing the device in humid places. - Plug the wine cooler into an exclusive, properly installed and grounded wall outlet. Do not cut or remove the third (ground) prong from the power cord under any circumstances. Any questions regarding power and / or grounding should be directed to a certified electrician or an authorized Products service center. EN-20Electrical connection Improper use of the grounding plug can result in a risk of electric shock. If the power cord is damaged, have it replaced by an authorized service center. This appliance must be properly grounded for your safety. The power cord for this appliance is equipped with a three-prong plug that mates with standard three-prong wall outlets to minimize the risk of electric shock. Do not cut or remove the third ground prong from the supplied power cord under any circumstances. For personal safety, this appliance must be properly earthed. This appliance requires a standard 220V / 50Hz three-prong grounded plug. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard two-prong wall outlet is used, it is your responsibility and obligation to have it replaced with a properly grounded outlet. 3-prong wall outlet. The cord should be secured behind the appliance and should not be left exposed or suspended to avoid accidental injury. The appliance must always be plugged into its own individual electrical outlet, the voltage of which corresponds to that indicated on the appliance label. This is to achieve the best performance and prevent overloading the electrical circuits of the house which could lead to a fire hazard if overheated. Never unplug the appliance by pulling on the power cord. Always grasp the plug firmly and pull straight out on the plug. Immediately repair or replace any power cords that are frayed or otherwise damaged. Do not use a cord that has cracks or abrasion damage along its length or at any end. When moving the device, be careful not to damage the power cord. EN-21This wine cooler includes a stainless steel handle. To install the handle, please follow the instructions below:

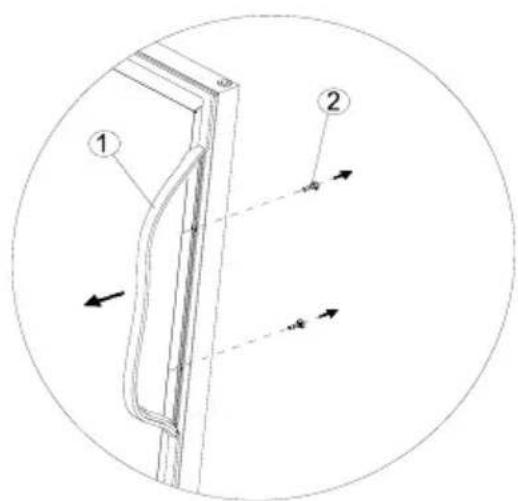

1. Remove the door seal in the area where the handle is to be installed

on the left side, as shown below in illustration # 1. The seal moves easily by hand, no tools are required.

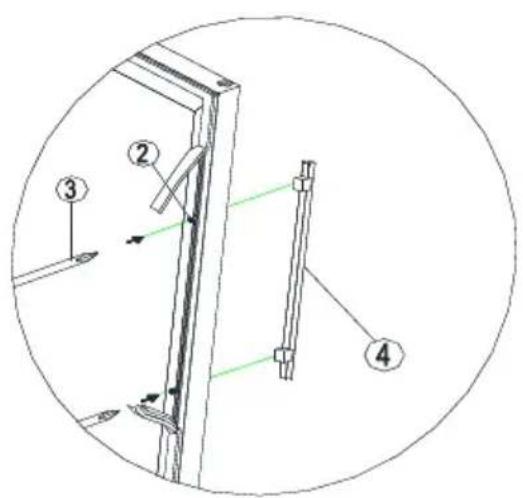

2. Align the handle with the installed screws. Tighten the screws using a

Phillips screwdriver until the handle is flush and snug against the door frame. (Do not over tighten, as this will damage the handle).

3. Return the door seal to its original position.

4. If you choose not to use the supplied handle, just follow step 1 to

access and remove the installation screws, then place the two decorative plugs in the two holes separately. Proceed to step 3 to return the door seal to its original position.

2. Phillips head screws

3. Phillips head screwdriver

Cleaning Check the accessories inside the wine cellar and wipe down the inside with a soft cloth. Door Lock Your device is equipped with a lock and a key. The keys are inside the plastic bag that contains the instruction manual. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door, reverse the operation making sure the metal pin is fully engaged. Remove the key and put it in a safe place to keep it. Cleaning the wine cooler Turn off the power, unplug the appliance and remove all items, including shelves. Wash interior surfaces with a solution of hot water and baking soda. The solution should be about 2 tablespoons of baking soda per 1 cup of water. Wash the shelves with a mild detergent solution. Wring out the sponge or cloth to remove excess water when cleaning the control area, or any electrical part. Wash the exterior cabinet in hot water and a mild liquid detergent. Rinse well and wipe dry with a clean, soft cloth. Do not use steel wool or a steel brush on stainless steel. These products will contaminate stainless steel with steel particles and rust may form. EN-23Shelves To remove the shelves from the rail, pull each shelf toward the shelf upright, as shown in figure A. Lift up again, then slowly remove the shelf, as shown in figure B. Power outage Most power outages are corrected within hours and shouldn't affect the temperature of your appliance if you minimize the number of times the door is opened. If the power supply is to be disconnected for a longer period of time, you must take the necessary measures to protect your contents. EN-24

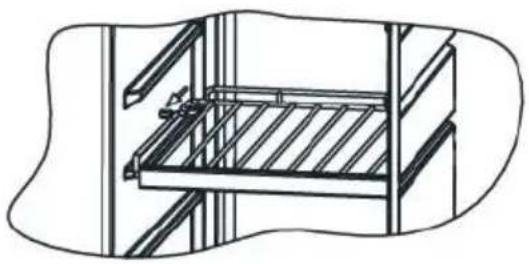

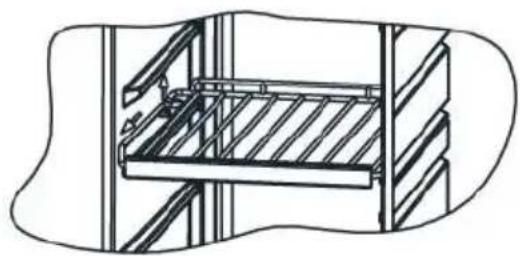

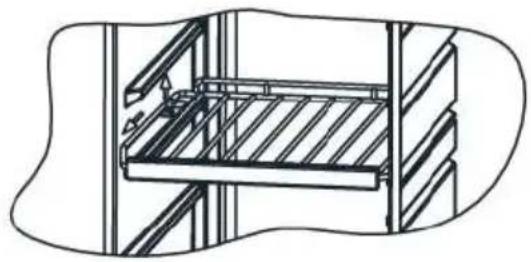

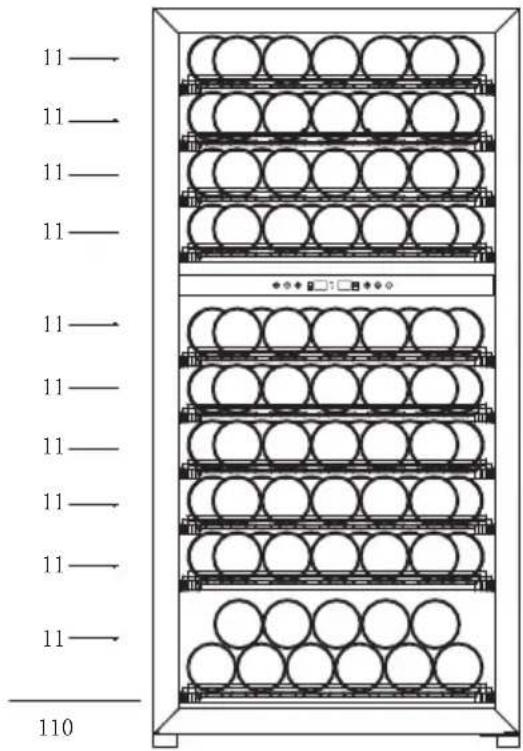

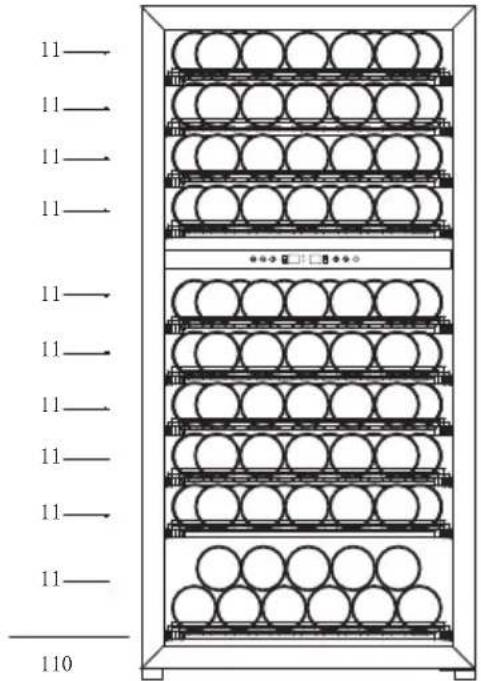

Wine storage The device is equipped with enough shelves to allow your wine collection to mature quietly and peacefully. Shelf loading capacity: 110 bottles (standard Bordeaux with 750ml).VI. GUARANTEE Your refrigeration appliance is guaranteed by the manufacturer for a period of 24 months from the date of purchase (proof of purchase dated as proof). WARRANTY EXCLUSIONS: The warranty does not cover wear parts of the product, nor problems or damage resulting from: (1) superficial deterioration due to normal wear and tear of the product; (2) defects or deterioration due to contact of the product with food or liquids and due to corrosion caused by rust; (3) any unauthorized incident, abuse, misuse, modification, disassembly or repair; (4) any improper maintenance operation, use not in accordance with the instructions concerning the product or connection to an incorrect voltage; (5) any use of accessories not supplied or approved by the manufacturer. Information: The warranty cannot be applied in the absence of the nameplate and / or the serial number of the device. REPAIR SERVICES In the event of a malfunction during the period of the manufacturer's warranty: any request for support must be made to the professional dealer from whom you purchased your product. After the expiration of the manufacturer's warranty period: see the "Spare parts and repair" document in the documentation for your refrigeration appliance available at www.continentaledison SPARE PARTS The spare parts needed to repair your refrigeration appliance are available for at least 7 years, in accordance with the European regulation on the ecodesign of refrigeration appliances. Consult the “Spare parts and repair” document in the documentation relating to your refrigeration appliance available on the site www.continentaledison, it will provide you with information on: - the duration of availability for each spare part; - the terms of ordering spare parts; - professional repair services.

This logo affixed to the product means that it is a device whose treatment as waste falls within the framework of directive 2012/19 / EU of July 4, 2012, relating to waste electrical and electronic equipment (WEEE). This means that this product must be taken care of by a selective collection system in accordance with the European directive cited above so that it can either be recycled or dismantled in order to reduce any impact on the environment. Hazardous substances contained in electrical and electronic equipment can have potentially dangerous effects on the environment and human health. Thus, at the end of this device's life, it must not be disposed of with unsorted municipal waste. Return and collection systems are made available to you by local authorities (waste reception centers) and distributors. This device must not be thrown on the public highway. You have an obligation to use the selective collection systems made available to you. Continental Edison - 120/126 quai de Bacalan - CS 11584 - 33000 Bordeaux Imported by SCHNEIDER CONSUMER GROUP 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE
