CECWC14BC - Wine cellar CONTINENTAL EDISON - Free user manual and instructions

Product type	Wine cellar
Brand	Continental Edison
Model	CECWC14BC
Capacity	14 bottles (75 cl)
Dimensions (W x H x D)	480 x 492 x 440 mm
Weight	18 kg
Nominal voltage	220-240 V
Frequency	50 Hz
Nominal current	0.8 A
Refrigerant	R600a (18 g)
Energy class	G
Annual consumption	130 kWh/year
Storage volume	43 L
Climate class	SN/N/ST (10°C to 38°C)
Temperature adjustment range	5°C to 18°C
Acoustic emissions	41 dB
Number of shelves	2 removable racks
Door type	Glass door
Adjustable feet	Yes
Warranty	24 months
Main functions	Wine storage with temperature adjustment, low vibration, compact size
Maintenance and cleaning	Unplug and clean the interior with a soft cloth and warm water; clean the water tank at the back
Safety	Do not use flammable cleaners; leave 10 cm of space at the back for ventilation; do not store perishable goods
Spare parts and repairability	Parts available for 7 years; consult www.marquepropre.ext

Frequently Asked Questions - CECWC14BC CONTINENTAL EDISON

How many bottles can I store in the CECWC14BC wine cellar?

The wine cellar can hold up to 14 bottles of 75 cl of Bordeaux type.

Why is my wine cellar making noise?

A flowing liquid sound is normal (refrigerant circulating). If the noise is loud, check the front feet to improve stability and move the appliance away from walls.

How to adjust the temperature of the wine cellar?

Turn the thermostat knob: the «Cold» position corresponds to the warmest setting, «Plus froid» to the coldest. The range is from 5°C to 18°C. The recommended setting is «Normal».

What to do if the wine cellar does not cool enough?

Adjust the temperature setting, move the appliance away from heat sources or sunlight, and avoid opening the door too often.

Why is there condensation on the door glass?

Condensation can appear if you open the door too long or if the ambient temperature is high. Avoid opening frequently and do not set the temperature too low.

How to clean my Continental Edison wine cellar?

Unplug the appliance and remove the bottles. Clean the outside with warm water and a mild detergent. Wash the water tank at the back and dry the inside.

What to do in case of unpleasant odor inside?

For a new appliance, a slight plastic smell is normal and disappears quickly. Otherwise, clean the inside and air it out for a few hours.

How to move the wine cellar safely?

Empty the appliance, unplug it, tape down moving parts, adjust feet to minimum, and close the door with adhesive tape. Keep the wine cellar in an upright position during transport.

What to do if the light does not turn on?

First check the power supply. If the lamp is defective, contact the after-sales service of the retailer.

What is the warranty on this product and how to get spare parts?

The warranty is 24 months from the date of purchase. Spare parts are available for 7 years. Consult the document «Spare parts and repair» on www.marquepropre.ext for more information.

USER MANUAL CECWC14BC CONTINENTAL EDISON

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the device and keep them for future use.

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  WARNING: Risk of child entrapment.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
  WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Before disposing of your used wine cellar:

Remove its doors and leave the shelves in place so that a child cannot easily climb into the unit.

• Never allow children to use, play with or climb into the unit.
• Never clean the components of the unit with flammable liquids.

• Do not store or use gasoline or any other flammable liquids or gases near this or any other appliance. Vapors present a risk of fire or explosion.

• To clean your wine cellar, do not use abrasive cleaners or solvents. Glass cleaners or soapy water give excellent results.

Symbol ISO 7010 W021

This symbolmeans that a firehazard exists.

• Leave 10cm of free space at the back of the unit to allow for ventilation of the cooling system.
• In order to store your wines at a stable temperature, avoid leaving the door open for too long.
• Do not install your wine cellar near a heat source and avoid direct sunlight.
  Install your cellar on a flat, clean and stable floor.
• Do not install any other electrical equipment on your cellar.
• To ensure your safety, do not place your cellar in damp places.
• Do not store perishable food in this appliances as the indoor

temperature may not be cold enough for proper storage.

• This appliance is intended to be used in household and similar applications but not in the following cases:

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• catering and similar non-retail applications.

• This device is designed for use inside a house or apartment. It is essential that the temperature of the room in which it is used is not lower than 10^ or higher than 38^ for optimal use.
  Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• This device may be used by children 8 years of age or older and by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they are properly supervised, experience or knowledge, if they are properly supervised or instructions on the safe use of the device have been given to them and the risks involved have been addressed.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

• To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• • If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

By purchasing this wine cellar, you own a device that combines unique advantages:

Less vibration: to preserve the quality of the wines.
Small size, taking up less space.

WARNING: Do not use this product in a place where children can touch it and do not leave children to use it alone.

• This refrigerating appliance is not intended to be used as built-in appliance."
• this refrigerating appliance is not suitable for freezing foodstuffs.

Disposal of waste

To avoid any harm to the environment or human health caused by the uncontrolled disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose.

Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.

INSTALLATION INSTRUCTIONS

Before putting your wine cellar into service

• Remove all inner and outer packaging components.
• Check that none of the following parts are missing:

2 removable shelves
1 ERP label
1 operating manual
2 door hinges

• Before connecting your device to a power supply, allow it to stand upright for about 2 hours. This reduces the risk of malfunction of the refrigeration system due to handling during transport.
• Clean the inner surfaces of the unit with a soft cloth and warm water.
• Place your unit on a floor strong enough to support the weight of the fully filled unit.

• Make sure the unit is level by adjusting the front feet underneath the unit. Make sure that the cellar rests on its feet in a stable manner.

• Install the appliance away from direct sunlight and heat sources (radiator, hot plate, etc.). Direct sunlight can damage the unit's coating and heat can increase its power consumption. If the ambient temperature is extremely cold or hot, this may prevent the unit from operating properly.

• The unit is not designed to be installed in a basement or cellar.
  This unit is designed exclusively for indoor use.

Caution: Make sure that the unit is kept away from any substance that may cause combustion.

• Check that the water tank is in place before connecting the unit.

CLEANING AND MAINTENANCE

Cleaning your wine cellar

• Unplug your wine cellar and take out all the bottles.
• Clean the outside of the unit with hot water and a mild detergent.
• Remove the water tank at the bottom of the unit, then wash it.

Moving your wine cellar

• Remove all bottles and disconnect the wine cellar.
• Tape all loose parts inside your wine cellar.
• Turn the feet to adjust their height to the minimum to avoid damage.
• Tighten the door to keep it closed.
• Be sure to keep the wine cellar upright during transport.

TECHNICAL SPECIFICATIONS

Model	CECWC14BC
Model No.	HS-60WN(S2N)
Capacity	14 bouteilles 75cl
Voltage	220-240V
Rated Current	0.8A
Refrigerant, Amount	R600a,18g
Frequency	50Hz
Weight	18Kg
Dimensions (W x H x D)	480x492x440mm

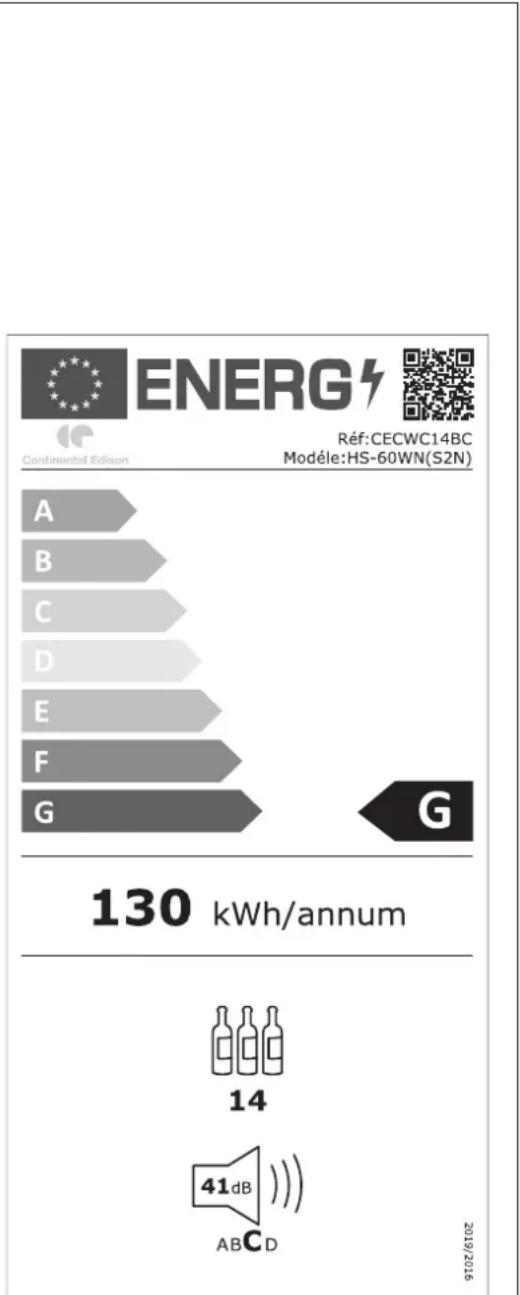

Energy class	G
Energy consumption of 130kWh per year, calculated on the basis of the result obtained for 24 hours under standardized test conditions. Actual energy consumption depends on the operating conditions and location of the unit.
Storage volume	43l
Temperate	SN/N/ST/T
This unit is designed for use at an ambient temperature between +10°C and +38°C
Noise emissions	41 dB

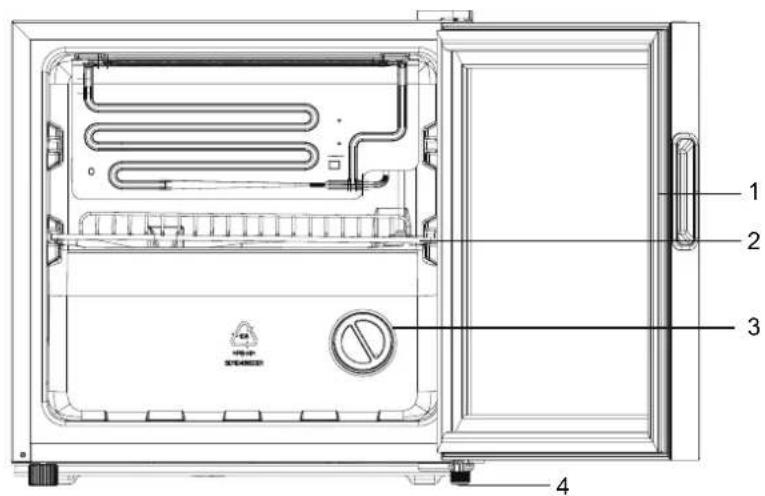

1	Door Handle
2	Steel wire shelf
3	Thermostat knob
4	Adjustable foot

Temperature Control

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

• After power on the wine cooler, it can turn the thermostat knob to set the inside temperature level.

"Cold" is the warmest setting.

"Colder" is the coldest setting.

"OFF" means stop cooling.

Recommended gear: "normal"

The setting range of centigrade temperature is 5^ 18^ and the setting range of Fahrenheit temperature is 41^ 64^

To minimize energy consumption, be sure to respect the filling capacity of your cellar-18 "Bordeaux 75cl" size bottles. The combination of drawers, baskets and shelves that result in the most efficient use of energy for the appliance.

"This device is intended for wine storage only."

The product information sheet, according to EU Regulation No. 2019/2016 on the energy labeling of refrigeration appliances, can be viewed via the link below or by scanning the QR code on the energy label of the product.

Reference CECWC14BC: https://eprel.ec.europa.eu/qr/403427

GUARANTEE

Your refrigerating appliance is guaranteed by the manufacturer during a period of 24 months from the purchasing date (The dated invoice as proof).

EXCLUSIONS OF GUARANTEE :

The guarantee do not cover the normal wear of the product, nor the problems or damages resulting from :

(1) superficial deteriorations due to the normal wear of the product;

(2) defect or deteriorations due to contact with food or liquids and due to the corrosion generated by rust ;

(3) any incident, abuse, misuse, modification, disassembly or unauthorized repairs ;

(4) any wrong maintenance operation, use not conforming to the instruction for use of the product and connection to an improper power supply ;

(5) any use of not initially provided accessories or approved by the manufacturer.

Information : The guaranteewon'tbe applicable in case of missing rating plate or/and product serial number.

REPAIRS SERVICES

In case of malfunction during the guarantee period of the manufacturer: any repairs request must be addressed to the professional retailer you purchase your product to.

After the expiry of the manufacturer guarantee period : refer to the document « Spare parts and repairs » in the documentation related to your refrigerating appliance available on the websitewww.marquepropre.ext

SPARE PARTS

The necessary spare parts for your product repairs are available at least 7 years, in conformity with the European regulation related to the eco-design of refrigerating appliances.

Refer to the document « spare parts and repairs » inside the documentation related to your refrigerating appliance, available on the website www.marquepropre.ext , it will inform you about :

• the availability for each spare part;
• the spare parts purchasing terms;
• someprofessionalrepairs services.

BREAKDOWNS AND SOLUTIONS

Some malfunctions can be easily resolved. Before calling customer service or a repairer, please consult the following table:

PROBLEM	POSSIBLE CAUSES & SOLUTIONS
The appliance makes lots of noise?	● Please adjust the front foot, keep the appliance leveling. ● Please keep the appliance a bit space from walls.
Liquid flowing sound inside the cabinet?	● It is normal because of the refrigerant working inside.
The appliance does not start?	● Make sure the appliance is connected to the power properly. ● Make sure switch on the power. ● The compressor re-starts after 5 minutes for a power cut.
Compressor runs continuously?	● If no cold is being produced, call the retailer's after-sale service.
Door does not seal tightly?	● After long time use, the door seal might get stiff & distorted partially. ● Heat the door seal with hot-wind blower or hot towel. ● The door seal gets softened and close the door.
The appliance does not cool sufficiently?	● Please adjust temperature setting. ● Keep the appliance away from sunlight or heat. ● Please do not open the door frequently.
Unpleasant smells inside cabinet?	● A little bit plastic smell for newly-buy appliance is normal and will disappear after a short time. ● Clean the compartment and ventilate it for a few hours.
Condensate on the glass door?	● Please do not open the door frequently or for a long time. ● Please do not set the temperature too low. ● High ambient temperature and humidity would cause condensate.
The light is not working?	● Check the power supply first. ● Call the retailer's after-sale service if the light is broken.
Disposal of the device
	To avoid any harm to the environment or human health caused by improper disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose. Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.
