Product type	Wine cellar
Brand	Continental Edison
Model	CECWC84B
Capacity	85 bottles (75 cl)
Dimensions (H × W × D)	1275 × 490 × 575 mm
Power supply	220-240 V ~ 50 Hz, 0.8 A
Energy class	G
Annual consumption	159 kWh/year
Storage volume	200 L
Temperature range	5 °C to 20 °C (adjustable in 1 °C increments)
Design temperature	17 °C
Refrigerant	R600a (27 g)
Noise level	41 dB
Climate class	N, ST (16 °C to 38 °C)
Main functions	Electronic temperature control, digital display, child lock, °C/°F conversion, interior LED lighting, ventilation, reversible door
Lighting	Interior LED, modes: on/off/normal
Safety	Child lock (simultaneous press of + and - for 5 s)
Display	Digital, temperature in °C or °F
Reversible door	Yes (can be reversed)
Adjustable feet	Yes (front)
Water collection tray	Yes (at bottom)
Maintenance	Clean exterior with warm water and mild detergent, empty the water tray
Warranty	2 years
Spare parts	Available for at least 7 years

Frequently Asked Questions - CECWC84B CONTINENTAL EDISON

How to set the temperature of my wine cellar?

First unlock the panel by pressing the + and - buttons simultaneously for 5 seconds. Then use + to increase or - to decrease the temperature in steps of 1 °C. The adjustable range is from 5 °C to 20 °C. The screen flashes and then saves the setting after 5 seconds of inactivity.

How to reverse the door opening direction?

Remove the hinge caps, unscrew the screws, remove the door and hinges. Install the hinges on the opposite side by following the reverse order. Refer to the diagram in the manual. The operation requires a screwdriver.

What to do if my wine cellar does not cool enough?

Check the set temperature (should be low enough). Make sure the door is properly closed, the seal is in place, and the appliance has at least 10 cm of free space at the back for ventilation. Avoid frequent door opening. If the problem persists, contact after-sales service.

How to clean my wine cellar?

Unplug the appliance and remove the bottles. Clean the exterior with a soft cloth and warm soapy water. Empty and clean the water tray located at the bottom. Do not use abrasive cleaners or solvents.

What does the child lock mean and how to disable it?

The child lock prevents any accidental changes to the settings. It activates automatically after a few seconds of inactivity. To disable it, press the + and - buttons simultaneously for 5 seconds until the lock indicator turns off.

Can I store perishable items in this cellar?

No, this appliance is designed only for wine storage. The temperature may not be low enough for perishable foods. Do not place fruits, vegetables, or dairy products in it.

What is the noise level and is it normal?

The noise level is 41 dB, which is normal for a wine cellar. A slight operational noise from the compressor and fan is normal. If the noise becomes excessive, check that the appliance is level and the feet are properly adjusted.

How to save energy with this appliance?

Place the wine cellar away from heat sources and direct sunlight. Leave a space of 10 cm at the back for ventilation. Do not open the door for too long and avoid leaving the door open. Respect the maximum capacity of 85 bottles.

What to do in case of a power outage?

Keep the door closed to maintain the internal temperature as long as possible. Wine bottles generally tolerate temporary variation. Once power is restored, the appliance resumes normal operation. If the outage is long, check the temperature before consumption.

Where to find spare parts?

Spare parts are available for at least 7 years after purchase. Visit www.continentaledison.fr, section 'Spare parts and repair'. You will find references, ordering information, and professional repair services.

USER MANUAL CECWC84B CONTINENTAL EDISON

Line drawing of a multi-tiered cylindrical storage cabinet with circular compartments (no text or symbols)

CECWC84B

CAVE Á VIN

INSTRUCTIONS D'INSTALLATION....8

NETTOYAGE ET ENTRETIEN....9

SPÉCIFICATIONS TECHNIQUES....12

RÉGLAGE DE LA TEMPÉRATURE....14

DÉPANNAGE....17

GARANTIE....18

CONSIGNES DE SÉCURITÉ IMPORTANTES

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Symbol ISO 7010 W021

IMPORTANT SAFETY INSTRUCTIONS....21

Disposal of waste....25

INSTALLATION INSTRUCTIONS....25

CLEANING AND MAINTENANCE....26

TECHNICAL SPECIFICATIONS....29

TEMPERATURE SETTING....31

BREAKDOWNS AND SOLUTIONS....33

GUARANTEE....34

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using device and keep them for future use.

• WARNING: When positioning the appliance, ensure t supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear the appliance.
• WARNING: Risk of child entrapment.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear obstruction.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless are of the type recommended by the manufacturer.
• WARNING: Do not use this product in a place where children can touch it and do not leave children to alone.
• Before disposing of your used wine cellar:

Remove its doors and leave the shelves in place s a child cannot easily climb into the unit.

• Never allow children to use, play with or climb into unit.
• Never clean the components of the unit with flamma liquids.
• Do not store or use gasoline or any other flammable liquids or gases near this or any other appliance. V present a risk of fire or explosion.
• To clean your wine cellar, do not use abrasive clean or solvents. Glass cleaners or soapy water give exc results.

Warning sign depicting a flame symbol in yellow and black on white background

Symbol ISO 7010 W021

This symbol means that a fire hazard exists.

• Leave 10cm of free space at the back of the unit for ventilation of the cooling system.
• In order to store your wines at a stable temperature avoid leaving the door open for too long.
• Do not install your wine cellar near a heat source avoid direct sunlight.
  • Install your cellar on a flat, clean and stable floor.
• Do not install any other electrical equipment on your cellar.

- To ensure your safety, do not place your cellar in places.

- Do not store perishable food in this appliance as the indoor

temperature may not be cold enough for proper stor

- This appliance is intended to be used in household similar applications but not in the following cases:

- staff kitchen areas in shops, offices, and other w environments.

– farmhouses and by clients in hotels, motels and residential type environments.

- bed and breakfast type environments.

- catering and similar non-retail applications.

- This device is designed for use inside a house or apartment. It is essential that the temperature of the room in which it is used is not lower than 16^ C than 38^ C for optimal use.

- Children aged from 3 to 8 years are allowed to lo unload refrigerating appliances.

- This device may be used by children 8 years of a older and by persons with reduced physical, sensory mental abilities or lack of experience or knowledge, they are properly supervised, experience or knowledge if they are properly supervised or instructions on the use of the device have been given to them and the involved have been addressed.

• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact food and accessible drainage systems.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the open to prevent mould developing within the appliance
• Do not store explosive substances such as aerosol with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

By purchasing this wine cellar, you own a device tha combines unique advantages:

♦ Less vibration: to preserve the quality of the wines.
◆ Small size, taking up less space.
- This refrigerating appliance is not intended to be used built-in appliance."
- This refrigerating appliance is not suitable for freezir foodstuffs.

Disposal of waste

To avoid any harm to the environment or human health caused by the uncontrolled disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at pul collection points provided for this purpose.

Older refrigerators may contain CFCs that destroy the o layer; contact your nearest waste treatment center for m details on proper disposal procedures.

INSTALLATION INSTRUCTIONS

Before putting your wine cellar into service

• Remove all inner and outer packaging components.
• Check that none of the following parts are missing:

NO.	Contents	JCS-201A (E)
1	Main device	1 unit
3	Operation Manual	1 copy

- Before connecting your device to a power supply, all to stand upright for about 2 hours. This reduces the of malfunction of the refrigeration system due to hard during transport.

• Clean the inner surfaces of the unit with a soft clc warm water.

• Place your unit on a floor strong enough to support weight of the fully filled unit.

• Make sure the unit is level by adjusting the front f underneath the unit. Make sure that the cellar rests feet in a stable manner.

• Install the appliance away from direct sunlight and hot sources (radiator, hot plate, etc.). Direct sunlight can damage the unit's coating and heat can increase its power consumption. If the ambient temperature is extremely cold or hot, this may prevent the unit from operating properly.
• The unit is not designed to be installed in a baser cellar.
  ● This unit is designed exclusively for indoor use.

Caution: Make sure that the unit is kept away from a substance that may cause combustion.

- Check that the water tank is in place before connecting the unit.

CLEANING AND MAINTENANCE

Cleaning your wine cellar

● Unplug your wine cellar and take out all the bottles
- Clean the outside of the unit with hot water and a detergent.
- Remove the water tank at the bottom of the unit, wash it.

Moving your wine cellar

- Remove all bottles and disconnect the wine cellar.

- Tape all loose parts inside your wine cellar.

- Turn the feet to adjust their height to the minimum avoid damage.

● Tighten the door to keep it closed.

- Be sure to keep the wine cellar upright during tra

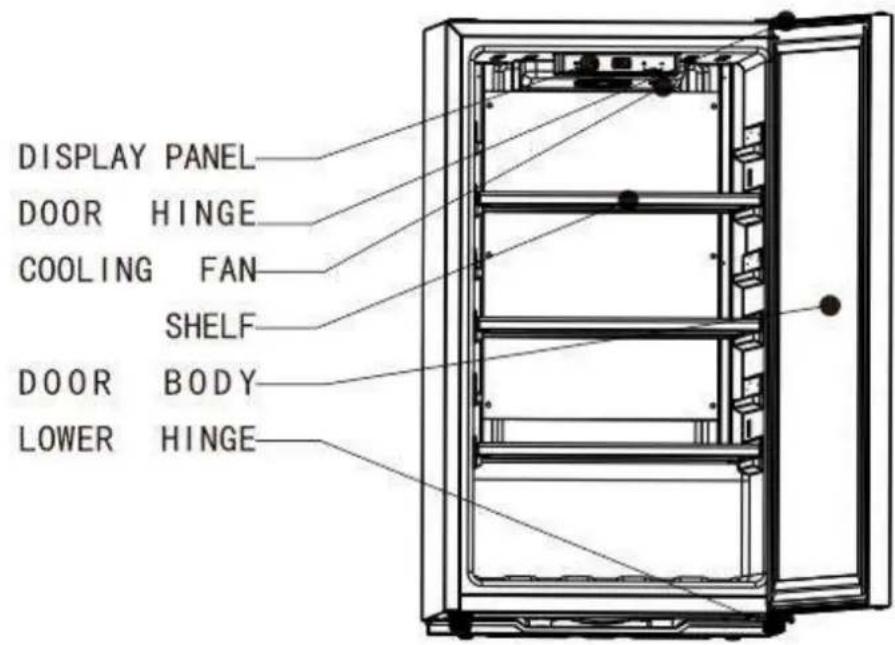

PRODUCT DESCRIPTION

DISPLAY PANEL DOOR HINGE COOLING FAN SHELF DOOR BODY LOWER HINGE

JCS-201A(E)

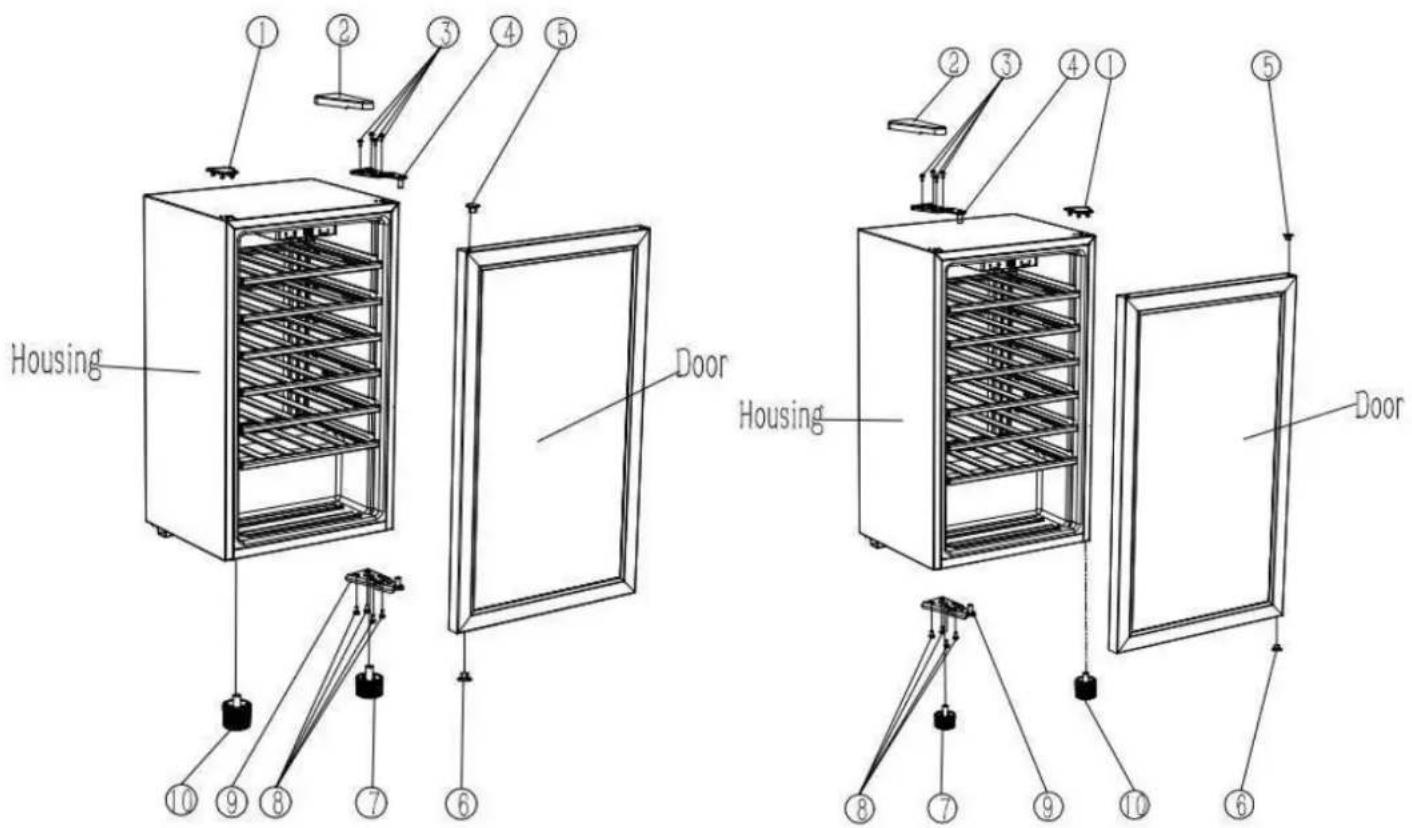

Reversing the door:

Housing Door Housing Door

Our wine coolers are delivered with the door opening from left to right. reverse the opening direction:

1, Close the door;
2. Take the door hinge hole caps①, and also take off the door hinge cover② unscrew the flange the screwsTake off the door hinge

1. Take off the door

4, Take off the sleeve ⑤ap ⑥

1. Take off the short adjustable⑦feeflange screws⑧、bottom hinge⑨、and high adjustable feet⑩

6, Install the high adjustable feet⑩ on the left; Install the bottom hinge⑨ with flange screws⑧; Install the short adjustable feet⑦

7, Put the sleeve cap ⑥ on the door;

8, Install the door;

9, Install the door hinge cover with the flange screws; Put the door hinge cover② on the door hinge; Install the door hinge hole caps

TECHNICAL SPECIFICATIONS

Model	CECWC84B
Model No.	JCS-201A(E)
Capacity	85 bottles 75cl
Voltage	220-240V~
Frequency	50Hz
Current	0.8 A
Insulation blowing gas	R600a(27g)
Dimensions(H*W*D/mm)	1275*490*575
Energy class	G
Energy consumption of 170 kWh per calculated on the basis of the resu obtained for 24 hours under standardi test conditions. Actual energy consumption depends on the operatin conditions and location of the unit.
Storage volume	200L
Design temperature	17°C
Climate class	N, ST
This unit is designed for use at an a temperature between +16°C and +38°C
Noise emissions	41dB

ENERG Continental Edison A B C D E F G Ref:CECWC84B Module:ICS-2014(E) G

170 kWh/annum

2019/2015

The product information sheet, according to EU Regulation No. 2019/2016 energy labeling of refrigeration appliances, can be viewed via the link below scanning the QR code on the energy label of the product.

https://eprel.ec.europa.eu/qr/ 716434

USE YOUR WINE CELLAR

The temperature setting allows you to adjust it according to your needs:

Setting temperature before tasting red wines: Temperature recommended 16-17°C.

If the ambient temperature is higher or lower than the recommended temperatures, this will have a negative impact on its performance. For explaining the unit in an extremely cold or hot place can cause variations in internal temperature of the unit.

The internal temperature may vary depending on the location of the bottle, the top, middle or bottom.

Adjustment may be necessary depending on the ambient temperature.

Do not hesitate to leave a thermometer inside the cellar in order to carr regular monitoring.

This wine cellar is designed for the maximum storage of 85 standard size bottles of wine.

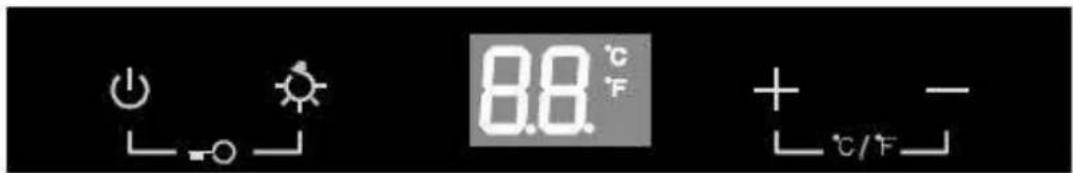

TEMPERATURE SETTING

8.8 °C + - °C/F-

Power button Illumination lamp button

+: temperature “+”button

一: temperature “-” button

Quick start

Child lock button (combined button)

1.

Lock: The button will be locked automatically after power-on or seconds if no button is operated, or the button will be locked button is pressed for long.

Unlock: To unlock the button, press both buttons at the same 5s. Any operation should be in unlock mode.

2.

Celsius degree/ Fahrenheit degree switchover button (combined button)

Press both buttons at the same time, and then you can switch between the Celsius degree and Fahrenheit degree for display. Time the button is pressed, a switchover will be made. When the system temperature, it is not allowed to switch over between Celsius degree and Fahrenheit degree.

3.

Power on/off button:

1. Press this button for 5S, and then all external power sources will disconnected and all external equipment will be turned off, with the or ready mode, the display screen will indicate "oF" for 60s.
2. When the cooler is in the ready mode, touch any button to light screen and then press this power button for 5S, the cooler will restore operation and work under real-time conditions.

Lamp on/off button

4.

The lamp control button is a cycling button: Normally on → Normally Normally on.

5.

Temperature “+” button

1. Functions of temperature “+” button: In locked mode, the action button is detected, the display screen will indicate the current set temp. After unlock operation, this button can be operated to increase the set temperature by 1^ C each time the button is pressed. The display screen indicates the current set temperature in a flashing way and at a certain and 5s later, if no further action of this button is detected, the setting after adjustment will be memorized, and the screen will exit from the flash and restore the indication of the set temperature.
2. Rules of temperature adjustment: For example: 5^ C (current set temperature) 6^ C 7^ C 8^ C 20^ C.

6.

Temperature“-” button:

1. Functions of temperature “-” button: this button can be operated to the set temperature by 1^ C each time the button is pressed. The disp will indicate the current set temperature in a flashing way and at a c interval, and 5s later, if no further action of this button is detected, t after adjustment will be memorized, and the screen will exit from the mode and restore the indication of the set temperature.

2. Rules of temperature adjustment: For example: 20^ C (current set temperature) 1 9^ C 1 8^ C 17^ C 5^ C.

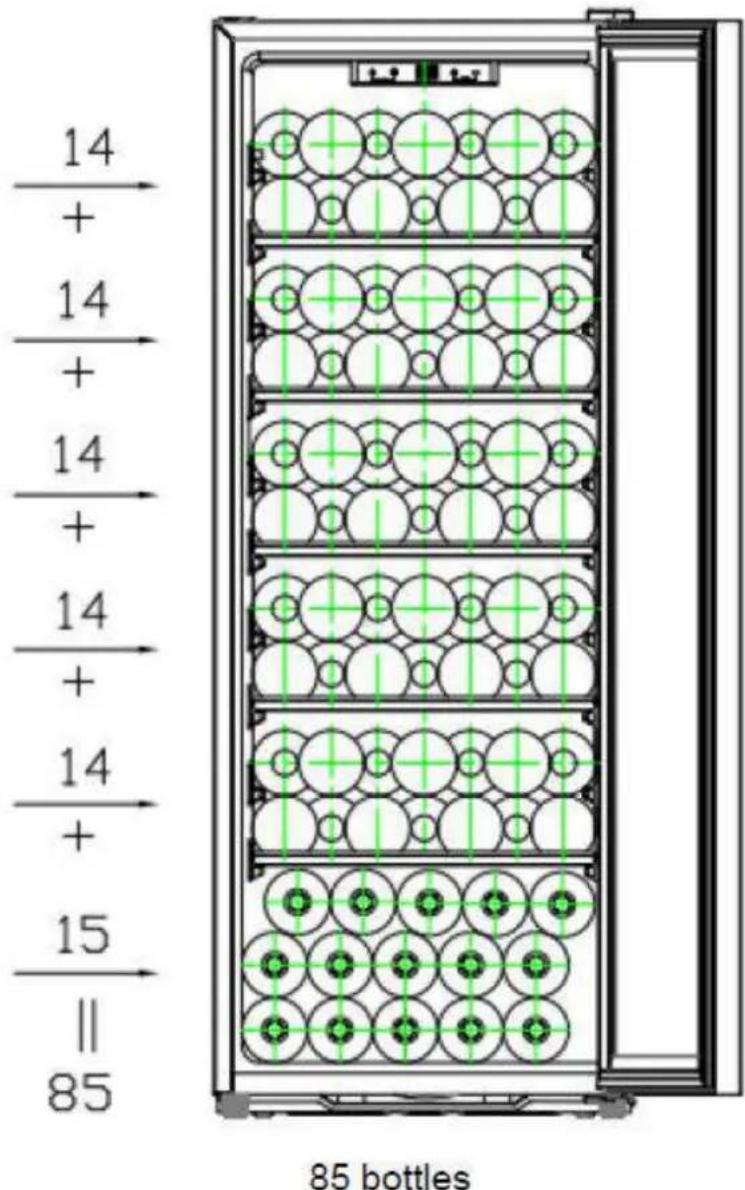

To minimize energy consumption, be sure to respect the filling capacity of your cellar—85 "Bordeaux 75cl" size bottles. The combination of drawers, baskets and shelves that result in the most efficient use of energy for the appliance.

14 + 14 + 14 + 14 + 14 + 15 || 85 85 bottles

"This device is intended for wine storage only."

BREAKDOWNS AND SOLUTIONS

Some malfunctions can be easily resolved. Before calling customer service or a repairer, please consult the following table, If they cannot be solved. You need to get access professional re

PROBLEM	POSSIBLE CAUSES & SOLUTIONS
The wine cellar does not work.	Not connected.The circuit-breaker is tripped, or the fuse is damaged.Check if the outlet is powered by connecting another electrical dev
The wine cellar is n cold enough	Check the temperature setting.High ambient temperature may require setting the wine cellar to a temperature.The door is being opened too often.The door is not completely closed.The door seal is not properly positioned.Not enough space around the wine cellar to allow ventilation.
The device operates continuously	The room temperature is higher than the maximum supported.Many bottles inside the wine cellar.The door is being opened too often.The door is not completely closed.Temperature control is not calibrated correctly.The door seal is not properly positioned.
The light doesn't wor	The wine cellar is not plugged in.The circuit-breaker has been tripped or a fuse is damaged.The LED lighting is out of order.The light button is set to "OFF".
Vibrations.	Check to make sure the wine cellar is level.
The wine cellar seen to be making too m noise.	The wine cellar is not level, or a foot is incorrectly adjusted.
The door does not close properly.	The wine cellar is not level.The shelves are out of position and blocking the door closure.
Water under the device	Water is being collected incorrectly in the water tank on the backCheck that the water tank is in place.

GUARANTEE

Your refrigerating appliance is guaranteed by the manufacturer during a pe 24 months from the purchasing date (The dated invoice as proof).

EXCLUSIONS OF GUARANTEE :

The guarantee do not cover the normal wear of the product, nor the problems or damages resulting from:

(1) superficial deteriorations due to the normal wear of the product ;
(2) defect or deteriorations due to contact with food or liquids and due to corrosion generated by rust ;
(3) any incident, abuse, misuse, modification, disassembly or unauthorized repairs;
(4) any wrong maintenance operation, use not conforming to the instruction use of the product and connection to an unproper power supply;
(5) any use of not initially provided accessories or approved by the manufacturer.

Information : The guarantee won't be applicable in case of missing rating or/and product serial number.

REPAIRS SERVICES

In case of malfunction during the guarantee period of the manufacturer: an repairs request must be addressed to the professional retailer you purchase product to.

After the expiry of the manufacturer guarantee period : refer to the docun Spare parts and repairs » in the documentation related to your refrigeratin appliance available on the website "www.continentaledison.fr"

SPARE PARTS

The necessary spare parts for your product repairs are available at least in conformity with the European regulation related to the eco-design of refrigerating appliances.

Refer to the document « spare parts and repairs » inside the document at related to your refrigerating appliance, available on the website "www.continentaledison.fr" it will inform you about:

• the availability for each spare part.
• the spare parts purchasing terms.
• some professional repairs services.

Disposal of the device
	To avoid any harm to the environment or human health caused by improper electrical waste, recycle the device responsibly to promote the reuse of mater resources. Disposal must be done safely at public collection points provided for purpose.Older refrigerators may contain CFCs that destroy the ozone layer; contact your waste treatment center for more details on proper disposal procedures.

IMPORTE BY Continental Edison

A.M.C. 120-126 Quai de Bacalan

123 quai Jules Guesde, CS11584

94400, VITRY SUR SEINE, 33000 Bordeaux

France

LOT #: A.M.C.

LA

NOUVELLE

CAVE

-by-

Continental Edison
