USER MANUAL GRSC2352AF FRIGIDAIRE

• care REFRIGERATOR A19894604 (November 2020) Introduction p. 2
• Important Safety Information p. 3
• Features p. 6
• Installation p. 7
• Door Removal p. 10
• Door Handle Installation p. 12
• Water Supply Connection p. 13
• Controls and Settings p. 15
• Automatic Ice and Water Dispenser p. 19
• Storage Features p. 21
• Normal Operating Sounds p. 22
• Filter Replacement p. 23
• Care and Cleaning p. 25
• Troubleshooting p. 29

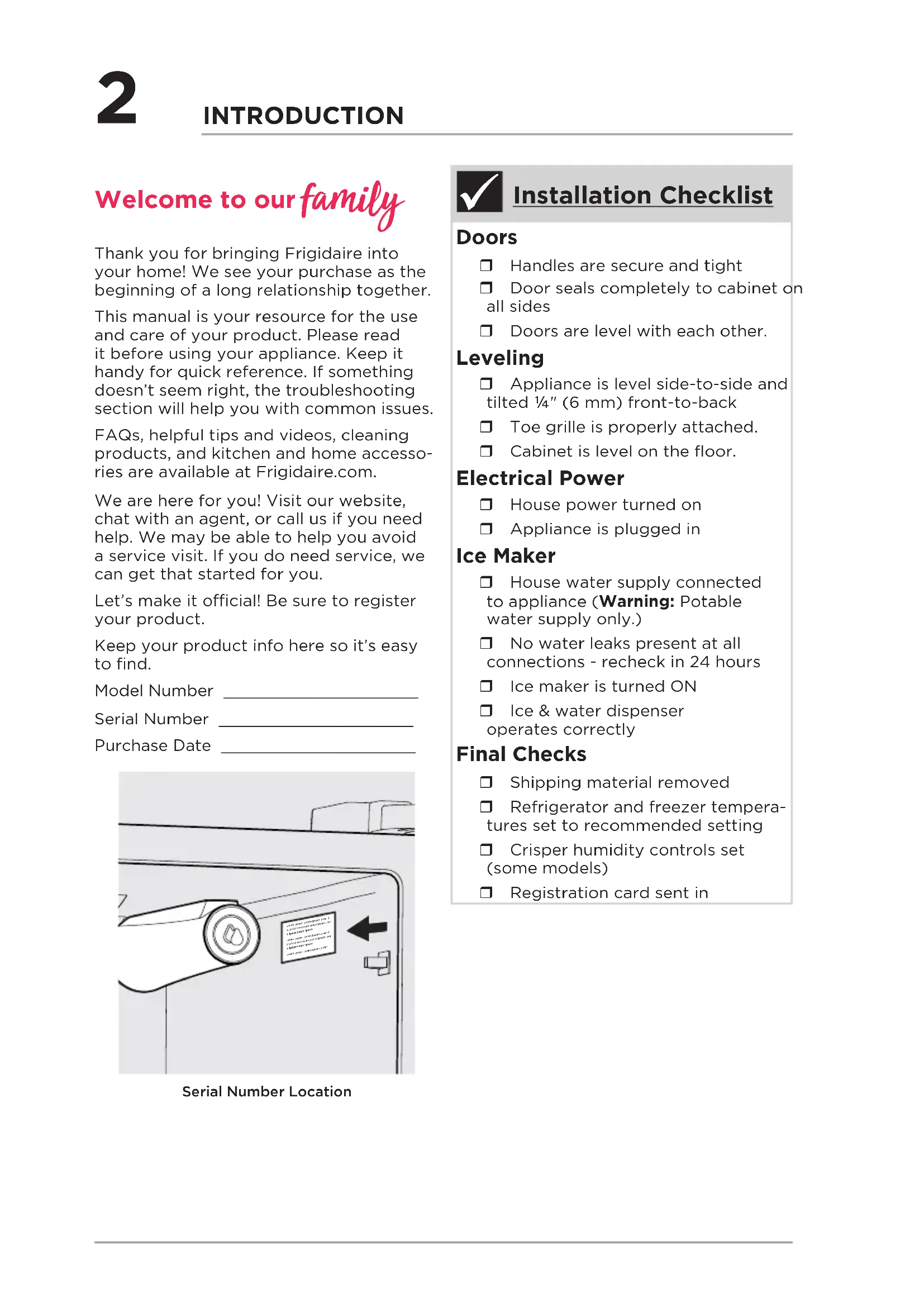

• Limited Warranty INTRODUCTION Doors Handles are secure and tight Door seals completely to cabinet on all sides Doors are level with each other. Leveling Appliance is level side-to-side and tilted ¼" (6 mm) front-to-back Toe grille is properly attached. Cabinet is level on the floor. Electrical Power House power turned on Appliance is plugged in Ice Maker House water supply connected to appliance (Warning: Potable water supply only.) No water leaks present at all connections - recheck in 24 hours Ice maker is turned ON Ice & water dispenser operates correctly Final Checks Shipping material removed Refrigerator and freezer tempera-tures set to recommended setting Crisper humidity controls set (some models) Registration card sent in Installation Checklist p. 332

Welcome to our family Thank you for bringing Frigidaire into your home! We see your purchase as the beginning of a long relationship together.This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn’t seem right, the troubleshooting section will help you with common issues.FAQs, helpful tips and videos, cleaning products, and kitchen and home accesso-ries are available at Frigidaire.com.We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you.Let’s make it ocial! Be sure to register your product. Keep your product info here so it’s easy to find.Model Number ____________________Serial Number ____________________Purchase Date ____________________Lorem ipsum Lorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsum Lorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsum Lorem ipsumLorem Serial Number Location3 WARNING WARNING indicates a potentially haz- ardous situation which, if not avoided, could result in death or serious injury. IMPORTANT IMPORTANT indicates installation, oper- ation or maintenance information which is important but not hazard-related. DANGER DANGER indicates an imminently haz- ardous situation which, if not avoided, will result in death or serious injury. CAUTION CAUTION indicates a potentially haz- ardous situation which, if not avoided, may result in minor or moderate injury. Safety Definitions This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING Please read all instructions before using this appliance.

IMPORTANT SAFETY INFORMATION

DANGER DANGER Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigera- tor. Do not puncture refrigerant tubing. DANGER Risk of fire or explosion. Flammable refrigerant used. To be re- paired only by trained service person- nel. Use only manufacturer-authorized service parts. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing. CAUTION CAUTION Risk of fire or explosion. Dispose of refrigerator properly in accordance with the applicable federal or local regulations. Flammable refrigerant used. CAUTION Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used. WARNING

CALIFORNIA RESIDENTS ONLY

Cancer and Reproductive Harm www.P65Warnings.ca.gov4

IMPORTANT SAFETY INFORMATION

WARNING These guidelines must be followed to ensure that safety mechanisms in this unit will operate properly. Proper Disposal of your Appliance Risk of child entrapment Child entrapment and suocation are not problems of the past. Junked or abandoned appliances are still dangerous – even if they will sit for “just a few days”. If you are getting rid of your old unit, please follow the instructions below to help prevent accidents. We strongly encourage responsible appli- ance recycling/disposal methods. Check with your utility company or visit energystar.gov/recycle for more informa- tion on recycling your old appliance. Safety Instructions

• DO NOT store or use gasoline, or other flammable liquids, or aerosols within or in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards.

• DO NOT operate the unit in the presence of explosive fumes.

• Avoid contact with any moving parts of automatic ice maker.

• Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture. Child Safety This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the appliance is unpacked. Children should never use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suocation. Before you throw away your appliance:

• Leave shelves in place so children may not easily climb inside.

• Have refrigerant removed by a qualified service technician.5 Electrical information

• The appliance must be plugged into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded 3-prong recepta- cle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified elec- trician. Avoid connecting the unit to a Ground Fault Interrupter (GFI) circuit. Do not use an extension cord or adapter plug.

• If the power cord is damaged, it should be replaced by an authorized service technician to prevent any risk.

• Never unplug the appliance by pull- ing on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent dam- aging the power cord.

• Performance may be aected if the voltage varies by 10% or more. Oper- ating the appliance with insucient power can damage the compressor. Such damage is not covered under your warranty.

• Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent the unit from being turned o accidentally. Grounding type wall receptacle Power cord with 3-prong grounded plug Do not, under any circumstances, cut, remove, or bypass the grounding prong. IMPORTANT CFC/HCFC Disposal Your old unit may have a cooling system that used CFCs or HCFCs (chlorofluoro- carbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere. If you are throwing away your old ap- pliance, make sure the refrigerant is re- moved for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation.

IMPORTANT SAFETY INFORMATION

CAUTION To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sud- den temperature change. IMPORTANT Turn o power to your appliance you must unplug the power cord from the electrical outlet.6 A Fixed Door Bins B Ice Maker C Ice Container D Shelves E Damper/Air Filter Housing F LED Lights G Water Filter H Dairy Compartment I Temperature Sensor/Thermistor J Adjustable Door Bins K Deli Drawer (some models) L Crisper Drawers M Toe Grille N Slide-Out Basket *Features may vary according to model

FEATURES IMPORTANT Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in Canada) or from an authorized seller.7 INSTALLATION

NOTE If your unit is placed with the door hinge side against a wall, you may have to allow additional space for the handle so the door can be opened wider.This Use & Care Manual provides general operating instructions for your model. Use the unit only as instructed in this Use & Care Manual. Before starting the appli-ance, follow these important first steps. Installation Installation clearances• Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections: Sides & Top ⅜" Back 1" Location

• Choose a place that is near a ground-ed electrical outlet. Do Not use an extension cord or an adapter plug.• If possible, place the unit out of direct sunlight and away from the range, dishwasher or other heat sources.• Install the appliance on a floor that is level and strong enough to support a fully loaded unit.• Consider water supply availability for models equipped with an automat-ic ice maker. If you do not hook up water to the appliance, remember to turn the ice maker o. CAUTION Do Not install the unit where the tem-perature will drop below 55°F (13°C) or rise above 110°F (43°C). The compres-sor will not be able to maintain proper temperatures inside the appliance.Do Not block the toe grille on the lower front of your unit. Sucient air circula-tion is essential for the proper opera-tion of your appliance. Toe Grille Installation and Removal To install toe grille1. Open both doors. Slide the left and right sides of the toe grille over the lower hinges of the appliance.2. While pushing the toe grille firmly against cabinet, fasten the bottom clips of toe grille to the cabinet.3. Fasten the top clips to the cabinet.4. Close the doors. Fasten the right and left side clips into the groove of the bottom hinge.To remove the toe grille1. With both doors closed, unfasten the right and left side clips of toe grille from the bottom hinge groove.2. Open both doors. Press firmly on the top of the toe grille until the top of the toe grille pops o.3. Pull the toe grille outward toward your body and o of the lower hinges.

Removing Toe Grille WARNING This appliance is intended to be used in household and similar applications such as:• sta kitchen areas in shops, oces and other working environments;• farm houses and by clients in hotels, motels and other residential type environments;• bed and breakfast type environments;• catering and similar non-retail applications.8 INSTALLATION Door Opening Position your unit to allow easy access to a counter or table when removing food. For the best use of drawers and freezer baskets, position the appliance where both doors can fully open. Guidelines for final positioning of your unit:

• Rest all 4 corners of the cabinet firmly on the floor.

• Level the cabinet at the front and rear.

• Tilt the sides ¼" (6 mm) from front to back (to ensure the doors close and seal properly).

• Align the doors with each other and level. Meet all of these conditions by raising or lowering the adjust- able front rollers. To level the cabinet using the front rollers:

1. Open both doors and remove the

toe grille (see “Toe Grille Installation and Removal” in INSTALLATION).

2. Close the doors and use a wrench

to raise (clockwise) or lower (counterclockwise) the front rollers.

3. Ensure both doors are bind-free with

their seals touching the cabinet on all 4 sides.

NOTE The doors are designed to shut by themselves within a 20 degree opening.9 Set Screw (some models) Hinge Hinge Flange Open Door 7/16" Wrench and 3/32" Hex Key (some models) Door Stop Flange 5. Reinstall the set screw, locking the door height.6. Replace the toe grille by fitting it into place (see “Toe Grille Installation and Removal” in INSTALLATION).4. After leveling, verify the door stop contacts the lower hinge and the top of the door does not contact the upper hinge through full movement of the door (from fully closed to fully open). INSTALLATION To level the doors using the adjustable lower hinge:1. Before leveling either door, remove the set screw that locks the door height into position. (The door cannot be adjusted without the set screw removed).2. If the refrigerator door is lower than the freezer door, raise the refrigera-tor door by turning the adjustment screw counterclockwise using a

" wrench. (See illustration.)3. If the freezer door is lower than the refrigerator door, raise the freezer door by turning the adjustment screw counterclockwise using a

" wrench. (See illustration.)

NOTE Some models will not have a set screw. For those models follow steps 2 through 4.10 DOOR REMOVAL To prepare for removing the doors:

1. Make sure the electrical power cord

is unplugged from the wall outlet.

2. Open both doors and remove the

toe grille (as explained in the Instal- lation Instructions that came with your appliance).

3. Remove any food from the door shelves.

1. Remove the 3 screws from the cover

over the door hinge.

2. Lift hinge cover straight up and o.

3. Trace lightly around the door’s top

hinge with a pencil. This makes reinstallation easier. Remove the 2 screws from the top hinge. Lift the door o of the bottom hinge and set it aside. Rear Cover Screw Front Cover Screws Top Hinge Cover Hinge Screws Top Hinge Socket Wrench Set Adjustable WrenchTop HingeCover FrontScrew Top HingeScrewBottomHingeScrewTop HingeCover RearScrew Phillips™HeadTools Necessary:

Flathead Screwdriver To reinstall the refrigerator door, reverse the above steps. Door Hinge Assembly Closer Pin Hinge Screws Adjustable Hinge (some models)

4. Remove the 2 bottom hinge screws

and hinge if necessary.11 DOOR REMOVAL CAUTION Be sure doors are set aside in a secure position where they cannot fall and cause personal injury. Door Hinge AssemblyScrews Water Line Tubing Non-Adjusting Hinge (some models) Closer Pin Hinge Door Water Line TubingScrewsHingeAssembly Adjustable Hinge (some models) To remove the freezer door:

1. Remove the 3 screws from the cover

over the top door hinge.

2. Lift hinge cover straight up and o.

3. Release the wires from the routing clip.

Disconnect the multi-wire cable connector located above the top hinge. Press the cable and lock and separate the 2 cables.

4. Trace lightly around the hinge with a

pencil. This makes reinstallation easier.

5. Detach the water tube from the

connector located below the freezer door. The connector releases when you press its outer sleeve inward.

6. Remove the 2 screws from the top

hinge. Remove the hinge pulling the multi-wire cable through it. Lift the door o the bottom hinge.

8. Lay the door on its side to avoid

damage to the water tube extending from the bottom hinge. To reinstall the freezer door, reverse the above steps. To Disconnect

1. Press outer ring against face of

remove tube Insert tube and push until mark touches face of fitting To Connect IMPORTANT To prevent wire damage, ensure the wires are rerouted through the routing clip when reassembling the hinge cover.12

DOOR HANDLE INSTALLATION

1. Remove handles from carton and

any other protective packaging.

2. Position the freezer handle end caps

over the upper and lower pre-in- stalled shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing toward the refrigerator door.

3. While holding the handle firmly

against door, fasten the upper and lower Allen set screws (B) with the supplied Allen wrench.

4. Repeat steps 2 and 3 to install refrig-

erator handle. Ensure the holes for the set screws are facing towards the freezer door. FreezerUpperEnd Cap Door RefrigeratorUpperEnd Cap Door RefrigeratorLowerEnd Cap Door FreezerLowerEnd Cap Door Ensure Handle Set Screws are Facing Each Other with Doors Closed CAUTION Wear gloves and safety goggles and use extreme CAUTION when installing these handles. The rounded end of the handles may be sharp (some models).

NOTE Tighten and sub-flush all set screws (place the Allen set screw just below the sur- face of the end cap) of the handle end cap. Draw the end caps tight to the freezer and refrigerator doors with no gaps. To avoid scratching the metal door, keep the door open while torquing down the set screws. IMPORTANT To ensure proper installation of handles, please review these instructions and illustrations thoroughly prior to installing the handles. Handles may vary according to model13

WATER SUPPLY CONNECTION

Before Installing The Water Supply Line, You Will Need:

• Basic Tools: adjustable wrench, flat-blade screwdriver, and Phillips

• Access to a household cold water line with water pressure between 30 and 100 psi.

• A water supply line made of ¼" (6.4 mm) OD, copper or stainless steel tubing. To determine the length of tubing needed, measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 7 (2.1 m), so the refrigerator can be moved out for cleaning. To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect the refrigerator from

electrical power source.

2. Place the end of the water supply

line into a sink or bucket. Turn ON the water supply and flush the supply line until the water is clear. Turn OFF the water supply at the shuto valve.

3. Remove the plastic cap from the wa-

ter valve inlet and discard the cap.

4. If you use copper tubing - Slide the

brass compression nut, and then the ferrule (sleeve) onto the water supply line. Push the water supply line into the water valve inlet as far as it will go (¼"/6.4 mm). Slide the ferrule (sleeve) into the valve inlet and finger tighten the compression nut onto the valve. Tighten another half turn with a wrench; DO NOT overtighten. See Figure 1.

• A shuto valve to connect the water supply line to your household water system. DO NOT use a self-piercing type shuto valve.

• Do not reuse compression fitting or use thread seal tape.

• A compression nut and ferrule (sleeve) for connecting a copper water supply line to the ice maker inlet valve. WARNING To avoid electric shock, which can cause death or severe personal injury, disconnect the unit from electrical pow- er source before connecting a water supply line to the appliance. CAUTION To Avoid Property Damage:

• Use Copper or Stainless Steel braid- ed tubing for the water supply line. Frigidaire does not recommend wa- ter supply tubing made of ¼" plastic. Plastic tubing greatly increases the potential for water leaks, and the manufacturer will not be responsible for any damage if plastic tubing is used for the supply line.

• DO NOT install water supply tubing in areas where temperatures fall below freezing.

• Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft water, ensure that the softener is maintained and working properly.

NOTE Check with your local building authori- ty for recommendations on water lines and associated materials prior to in- stalling your new refrigerator . Depend- ing on your local/state building codes, Frigidaire recommends for homes with existing valves its Smart Choice

water line kit 5304490728 (with a 6Stain- less Steel Water Line) and for homes without an existing valve, Frigidaire recommends its Smart Choice

water line kit 5304490717 (with a 20copper water line with self-tapping saddle valve). Please refer to Frigidaire.com for more information. IMPORTANT Ensure your water supply line connections comply with all local plumbing codes.14

WATER SUPPLY CONNECTION

If you use braided flexible stainless steel tubing - The nut is already assembled on the tubing. Slide the nut onto the valve inlet and finger tighten the nut onto valve. Tighten another half turn with a wrench; DO NOT overtighten. See Figure 2. IMPORTANT After connecting the water supply, refer to “Priming the Water Supply System” for important information about priming an empty water supply system. Your refrigerator’s water supply system includes several tubing lines, a water filter, and a water valve. To ensure that your water dispenser works properly, completely fill this system with water when you first connect your refrigerator to the household water supply line.

5. With the steel clamp and screw,

secure the water supply line (copper tubing only) to the rear panel of refrigerator as shown.

6. Coil the excess water supply line

(copper tubing only), about 2½ turns, behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface.

7. Turn ON the water supply at shuto

valve and tighten any connections that leak.

8. Reconnect the refrigerator to elec-

trical power source. A B

Figure 1 A Plastic Water Tubing to Ice Maker Fill Tube B Steel Clamp C Brass Compression Nut D Ferrule (Sleeve) E Copper Water Line F Water Valve Bracket G Valve Inlet H Water Valve I Copper Water Line from Household Water Supply* J Braided Flexible Stainless Steel Water Line K 6 ft. (1.8 m) Braided Flexible Stainless Steel Water Line from Household Water Supply* *Include enough tubing in the loop to allow moving the refrigerator out for cleaning A B

Sleep Mode Sleep mode is default on. When sleep mode is on, the LEDs are not illuminated on the display. Sleep mode can be changed to have the display on full time (Awake Mode). While in sleep mode pressing any key will illuminate LEDs and then go back to sleep after a short time. To turn sleep mode on/o, simultaneously press and hold Crush and for 5 seconds. A tone will confirm. Active Mode Display Sleep Mode Display Active Mode To change from sleep mode (on) to active mode (o), simultaneously press and hold Crush and for 5 seconds. The display will show the current temperature/ice maker status. A tone will confirm.

NOTE Your appliance may have some or all of the features listed below. Become familiar with these features and their use and care.16

CONTROLS AND SETTINGS

WARNING When using the cold drink timer, make sure to remove drinks from freezer compartment when alarm sounds. Carbonated drinks may explode if left in freezer for too long.

Freeze Boost (on/o) Activates a faster rate for freezing food in the freezer. Use this feature when loading several items into the freezer at one time. It automatically deactivates after 12 hours.

Cold Drink Timer Quickly chills a drink inside the freez- er compartment. To enable, touch Cold Drink Timer. A time value will appear on the freezer temp display (in minutes) and can be changed using the +/- buttons. A tone will sound when the time has been input. It ranges from 20-45 minutes in 5 minute intervals. Drinks will freeze if the temperature setting is too low or the timer setting is too long.

Ice Maker Press and hold for 3 seconds to turn the ice maker on/o. When the indicator is lit, the ice maker is on. When the ice maker is o, the ice maker o indicator is lit. When the ice maker is o, it will stop making ice. While o, ice dispensing can continue as long as there is ice in the bucket. When the ice maker is o and ice is dispensing, the indicator above the ice maker button and ice maker OFF will both blink. If the display is in sleep mode, you will have to wake it to confirm the ice maker is on/o.

The lock button can be used to lock the display preventing it from being used in certain situations. Press and hold for 3 seconds to enable/ disable. While in the locked state, no changes can be made to settings on the display. Dispensing ice and water will be disabled. The indicator will flash and an audible warning tone sounds.

Power Outage In the event of a power failure, the Power Outage alert will illuminate once power has been restored, and a tone will sound. Press any button to silence the tone. Display

°F/°C To toggle between Fahrenheit (°F) and Celsius (°C), simultaneously press and hold + and - for 5 seconds on refrigerator side of display. Chill Boost Chill Boost is a faster rate for chilling food in the refrigerator compartment. Use this feature when loading several items into the refrigerator at one time. Deactivates after 6 hours. Air Filter The display shows the current status of the air filter (Good, Order, or Replace). To reset the filter status to Good, press and hold Air Filter for 3 seconds. Water Filter The display shows the current status of the water filter (Good, Order, or Replace). To reset the filter status to Good, press and hold Water Filter for 3 seconds. Toggles dispenser light On and O.

Power Outage In the event of a power out- age, the Power Outage alert will illuminate once power has been restored and a tone will sound. Press any button to silence the tone. Door Open If you leave a door open for 5 minutes or more, an alarm will sound and the Door Open indicator will illuminate on the display. Turn the alarm o by closing the door or pressing any key. The control panel will return to normal operations after you close the door. Alarms

Adjusting Temp Illuminates when temperatures are changed on the display and will remain illuminated until the desired temperatures are reached inside the refrigerator and freezer. Press either the + or - to adjust to desired temperature setting. Freezer temp Control temperatures range from -6°F / -21°C to +4°F / -15°C. Refrigerator temp The Control temperature ranges from +33°F / +1°C to +43°F / +7°C. This unit is designed to operate at 39°F refrigerator/0°F freezer. The unit should stabilize temperatures within 24 hours of installation. Door Open Illuminates whenever the doors are open. If a door is left open for 5 minutes or more, an alarm will sound and the display will be illuminated until the doors are shut. Pressing any button will mute the alarm temporarily. Check to make sure no food is blocking the doorway. Replace Water Filter Display illuminates every 6 months or when filter needs replacing. Replace filter and then press and hold Reset Water Filter for 3 seconds to deactivate warning on display. See “Replacing the Filter” section for more information. Replace Air Filter Display illuminates every 6 months or when filter needs replacing. Replace filter and then press and hold Reset Air Filter for 3 seconds to deactivate warning on display. See “Replacing the Filter” section for more information. Water Press Water to dispense water. An indicator light will be illuminated above the active feature. Cube Press Cube to dispense cubed ice. An indicator light will illuminate above the active feature. Crush Press Crush to dispense crushed ice. An indicator light will illuminate above the active feature.

Sabbath Mode The Sabbath mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community. Turn the Sabbath mode ON and OFF by simultaneously pressing and holding both the - (freezer side) and + (refrigerator side) for 5 seconds. Other than the High Temp alarm, no audible sounds will occur until you exit the Sabbath mode. The dis- play shows Sb while in Sabbath mode. Water Filter The water filter needs to be replaced when the indicator illuminates. Change the water filter every 6 months or after you have dispensed 120 gal- lons of water. To reset, press and hold the button for 3 sec- onds. A tone will then sound. Air Filter The air filter needs to be replaced when the indicator illuminates. Change the air filter every 6 months. To reset, press and hold the button for 3 sec- onds. A tone will then sound. Error Tone An alarm will sound if you try to make a selection that is not available. High Temp In the event of the internal temperature of the refriger- ator rising and staying at a temperature above the safe temp zone for a period of time, HI will display on the corresponding compartment display (refrigerator and/or freezer). An alarm will sound in addition to the display warning every 10 seconds until acknowledged. The refrigerator will automatically try to cool down to improve the condition. However, if the temperature has not cooled after some time, the warning and alarm will appear again. If the problem continues please call 1 [phone]. In the Sabbath mode, the High Temp alarm is active for health reasons. For example, if the door is left ajar the High Temp alarm is activated. The refrigerator will function normally once the door is closed, without any violation of the Sabbath/Holidays. The High Temp alarm is permitted when the cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while the High Temp icon stays lit until you exit the Sabbath mode. For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, please visit the web at star-k.org. Alarms (continued)

NOTE Although you have initiated the Sab- bath mode, the ice maker will complete the cycle it had already started. The ice cube compartment will remain cold and you can make new ice cubes with standard trays.

NOTE While in Sabbath mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deactivated. The refrigerator stays in Sabbath mode after power failure recovery. You must deactivate it with the buttons on the control panel.

NOTE You should exit the Sabbath mode at your earliest convenience as the unit runs more eciently out of the Sab- bath mode.19

AUTOMATIC ICE AND WATER DISPENSER

Priming the water supply system Ice maker operation & care After you properly install the refrigerator and it has cooled for several hours, the ice maker can produce ice within 24hours. The ice maker will fill the ice bin from the rear. You must dispense some ice to force the ice forward in the bin. This will allow the bin to fill completely.

the system by pressing and holding a drinking glass against the water dispenser paddle.

glass in this position until water comes out of the dispenser. It may take about 1½ minutes. Water will sputter until you purge all air from the water lines.

3. Continue dispensing water for about

4 minutes to flush the system and plumbing connections of any impurities (stopping to empty the glass as necessary). Power Outage Cube ICE WATERCrushDoor OpenHigh TempReplace Water Filter Replace Air FilterDispenser(varies by model) CAUTION For proper dispenser operation, the recommended water supply pressure should fall between 30psi and 100psi. Excessive pressure may cause the sys- tem to malfunction. Turning the ice maker on Ice production is controlled by the ice maker's On/O feature on the control panel. Pressing and holding the On/O button toggles the ice maker On/O.

NOTE Dispensed water is not chilled. For colder water, add ice to cup or contain- er before dispensing water.

NOTE The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. Do not use this signal arm to manually stop the ice maker.

NOTE The water dispenser has a built-in de- vice that shuts o the water flow after 3 minutes of continuous use. To reset this shuto device, simply release the dispenser paddle. IMPORTANT Turning o the ice maker simply dis- ables ice making. You will still be able to dispense existing ice, and you will still be able to dispense water.20 Ice Maker/Dispenser Tips

• Ice cubes stored too long may develop an odd flavor. Empty the ice container as explained in Cleaning the Ice Storage Bin.

• Occasionally shake the ice container to keep ice separated.

• If your refrigerator is not connected to a water supply or the water supply is turned o, turn O the ice maker.

• If you need a large quantity of ice at one time, it is best to get cubes directly from the ice container.

• The following sounds are normal when the ice maker is operating: - Motor running - Ice dropping into ice container - Water valve opening or closing - Ice loosening from tray - Running water

• When dispensing ice, you will hear a snapping or clicking sound when the ice chute opens and closes.

• Turn O the ice maker when cleaning the freezer and during vacations. If you turn O the ice maker for a long period of time, you should also turn o the water supply valve. Cleaning the Ice Storage Bin Clean the ice storage bin at regular intervals, particularly before you take a vacation or move. To clean the ice storage bin:

1. Turn O the ice maker.

2. Remove the ice storage bin by lifting

3. Empty and carefully clean the ice

storage bin with mild detergent. Rinse with clear water. Do not use harsh or abrasive cleaners. CAUTION Chemicals from a malfunctioning water softener can damage the ice maker. If the water supply to your refrigerator is softened, be sure the softener is main- tained to work properly. CAUTION NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice storage bin and dispenser mechanism.

4. Allow the ice storage bin to dry com-

pletely before replacing it in the freezer.

5. Remove ice chips and clean the ice

storage bin, shelf and the freezer door chute.

6. Replace the ice storage bin. Turn On

the ice maker to resume ice production. Remove and empty the ice storage bin if:

• An extended power failure (1 hour or longer) causes ice cubes in the ice storage bin to melt and freeze togeth- er, jamming the dispenser mechanism.

• You do not use the ice dispenser frequently. Ice cubes will freeze together in the bin, jamming the dispenser mechanism. Remove the ice storage bin and shake to loosen the cubes or clean as explained above.

AUTOMATIC ICE AND WATER DISPENSER

Auger IMPORTANT When removing or replacing the ice storage bin, avoid rotating the auger in the ice storage bin. If the auger is accidentally rotated, you must realign the auger by turning it in 45 degree turns (see below) until the ice storage bin fits into place with the drive mechanism If the auger is not properly aligned when replacing the ice storage bin, the refrigerator will not dis- pense ice. The freezer door also may not close properly causing warm air to leak into the freezer compartment.21 STORAGE FEATURES Crisper Drawer Crispers Crispers allow you the flexibility to store any manner of items including fruits, veg- etables, nuts, etc. Crispers do not feature humidity controls. Deli Drawer (some models) Some models are equipped with a Deli Drawer for storing luncheon meats, spreads, cheeses and other deli items. This drawer does not have a separate temperature control. Deli Drawer Glass shelves Shelves are easily adjusted to suit individ- ual needs. Before adjusting the shelves, remove all food. Shelves are supported by side rails. See "Glass Shelves" in CARE AND CLEANING for proper shelf removal. Door storage Door bins and shelves are provided for convenient storage of jars, bottles, and cans. You can quickly select frequently used items. Some models have door bins that can accommodate gallon-sized plastic drink containers and economy-sized jars and containers. Some bins are adjustable for maximum storage capacity. The dairy compartment, which is warmer than the general food storage section, is intended for short term storage of cheese, spreads, or butter. Dairy Bin and Door Bin22

NORMAL OPERATING SOUNDS

Understanding the Sounds you may Hear Your new, high-eciency unit may intro- duce unfamiliar sounds. These sounds normally indicate your appliance is oper- ating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable. Following is a list of major components in your unit and the sounds they can cause: A Evaporator Refrigerant through the evaporator may create a boiling or gurgling sound. B Evaporator fan You may hear air be- ing forced through the refrigerator by the evaporator fan. C Defrost heater During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur. D Condenser fan You may hear air be- ing forced through the condenser. E Compressor Modern, high-eciency compressors run much faster than in the past. The compressor may have a high-pitched hum or pulsating sound. F Water valve Makes a buzzing sound each time it opens to fill the ice maker. G Drain pan (not removable) You may hear water dripping into the drain pan during the defrost cycle. H Condenser May create minimal sounds from forced air. I Motorized damper May produce in- termittent humming during operation. J Ice chute When dispensing ice, you will hear a snapping or clicking sound when the solenoid opens and closes the ice chute. K Ice Maker When ice has been pro- duced, you will hear ice cubes falling into the ice bin.

NOTE Energy ecient foam in your refrigera- tor is not a sound insulator.

NOTE During automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal.

K23 FILTER REPLACEMENT Pure Pour™ Water FilterKeep safe, great-tasting water flowing with a Pure Pour™ water filter. Using a Pure Pour™ water filter:• Makes Safe Water Second Nature Pure Pour™ water filters are certifiedto reduce contaminates* and keepgreat-tasting water flowing for youand your family.• Produces Purity You Can TrustKnow for certain your Pure Pour™water filter is a protector.Counterfeits and knockos putyour refrigerator and health at risk.Frigidaire Genuine Filters are thesmarter, safer choice.• Every Drop Gives BackPartnered on sustainability eorts,the use of a Pure Pour™ water filterhelps cut back on the cost and use ofplastic used to produce and packagebottled water*For the complete list, please see PerformanceDataSheet on Frigidaire.comDo not use with water that is microbiologi-cally unsafe or of unknown quality without adequate disinfection before or after the system. Use systems certified for cyst reduction on disinfected waters that may contain filterable cysts.Test & certification results:• Rated Capacity - 125 gal/453 L for Pure Pour

and ice and water filter• Rated service flow - .50 gal/min.• Operating Temp.: Min. 33°F, Max. 100°F• Maximum Rated Pressure - 100 lbs/in.²• Recommended Minimum OperatingPressure: 30 lbs/in²Replacing your Pure Pour™ water filterIt is not necessary to turn the water sup-ply o to change the filter. Be ready to wipe up any small amounts of water released during the filter replacement.1. Turn O the ice maker.2. Remove the filter by pushing on theend/face of the filter.3. Slide the old water filter cartridgestraight out of the housing anddiscard it.4. Unpackage the new filter cartridge.Using the alignment guide, slide itgently into the filter housing until itstops against the snap-in connectorat the back of the housing.Ordering Replacement FiltersTo order your replacement filters, please visit our online store at Frigidaire.com, by calling toll-free at 1 [phone], or by visiting the dealer where you purchased your refrigerator. Frigidaire recommends that you order extra filters when you first in-stall your refrigerator, and that you replace your filters at least once every 6 months.Replacing the Water FilterThe water filter is located at the top right side of the re-frigerator compart-ment. In general, you should change the water filter every 6 months to ensure the highest possible water quality. Water Filter Status on the user interface prompts you to replace the filter after a standard amount of water (125 gal/453 L for Pure- Pour™) has flowed through the system.If you have not used your refrigerator for a period of time (during moving for exam-ple), change the filter before reinstalling the refrigerator. More about your Advanced Water Filter

NOTE When you order your replacement filter, please reorder the same filter type currently in your refrigerator. The Pure Pour™ ice and water filter sys-tem is tested and certified to NSF/ANSI Standards 42, 53, 401 and CSA B483.1 for the reduction of claims specified on the performance data sheet. Visit Frigidaire.com for more information.Here are the product numbers to request when ordering: Pure Pour™ Water Filter Part# FPPWFUO1™24 FILTER REPLACEMENT Pure Air Ultra II™ Air Filter (some models)Some models are pre-loaded with an air filter located at the top of the fresh food compartment, next to the water filter.Replacing the Air FilterYou should change your air filter every 6 months (the filter status light on the control panel prompts you to replace the filter after 6 months) to optimize the reduction of refrigerator odors. Dierent foods will emit various levels of odor. To install your new PAULTRA2

Pure Air Ultra II™ air filter:1. Pull the air filter housing straight out. 2. Remove the old filter and discard it(if applicable).3. Unpack the new filter and place itinside the housing.4. Slide the housing back into position.5. Activate or reset the Air Filter statuslight on the control panel. Pure Air Produce Keeper™ Installing the Pure Air Produce Keeper™:1. Remove the plastic wrapper. Insertunopened packet into the holder inthe Crisper Drawer.2. For optimal results, replace therefill every 6 months along with yourair filter. CAUTION DO NOT OPEN. Contents may irritate eyes or skin. Keep out of reach of children. FIRST AID: Contains potassium perman-ganate. In case of contact with eyes or skin, rinse immediately with water. DO NOT EAT: If swallowed, seek medical treatment immediately.5. Push firmly until the cartridgesnaps into place (you should hear aclick as the cartridge engages thesnap-in connector).6. Press a drinking glass against thewater dispenser while checking forany leaks at the filter housing. Anyspurts and sputters that occur asthe system purges air out of thedispenser system are normal.7. After filling one glass of water, con-tinue flushing the system for about4 minutes.8. Turn On the ice maker.9. Press and hold the Water Filter resetbutton on the Ice & Water Dispensercontrol panel for 3 seconds. Whenthe display changes from red togreen, the status has been reset.Damper/Air Filter HousingIn humid regions certain products stored too close to the damper/air filter housing may freeze. If this scenario occurs, adjust the fresh food temperature settings and reconfigure the top shelf storage to allow for proper air diusion.25

Protecting your investment Keeping your appliance clean maintains appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and refrigerator compart- ments at least twice a year. When clean- ing, take the following precautions:

• Never use CHLORIDE or cleaners with bleach to clean stainless steel.

• Do not wash any removable parts in a dishwasher.

• Always unplug the electrical power cord from the wall outlet before cleaning.

• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the appliance surface.

• Do not remove the serial plate. Do not use abrasive cleaners such as win- dow sprays, scouring cleansers, brushes, flammable fluids, cleaning waxes, concen- trated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior doors, gaskets or cabinet liners. Do not use paper towels, metallic scouring pads, or other abrasive cleaning materials or strong alkaline solutions. CAUTION

• Pull the unit straight out to move it. Shifting it from side to side may damage flooring. Be careful not to move the appliance beyond the plumbing connections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

• Sudden temperature changes can cause glass breakage.

NOTE If you set your temperature controls to turn o cooling, power to lights and other electrical components will contin- ue until you unplug the power cord from the wall outlet. IMPORTANT If you store or move your unit in freez- ing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when you put the unit back into service. Con- tact a service representative to perform this operation.26

Refrigerator Glass Shelf Refrigerator: Shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove all food. Shelves are supported by side rails. To adjust, lift up on the back of the shelf and pull forward. Replace the shelf by sliding it on top of the formed rails on the side walls of the cabinet until the rear plastic hooks of the shelf lock into the rear of the cabinet liner. Glass Shelves Freezer: You can remove the glass freezer shelf for cleaning. Remove all food from the glass shelf. Rotate the front trim down to remove front trim (Figure 1). CAUTION To avoid personal injury or property damage, handle the freezer glass shelves carefully. These shelves are fixed and are not to be used as sliding shelves. Remove both the rear trim and glass by pulling up on the rear tab and sliding the shelf forward (Figure 2) Figure 1 CAUTION To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break sudden- ly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room tem- perature before cleaning. Do not wash in the dishwasher. Figure 2 CAUTION Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in the dishwasher.27

To reassemble the freezer shelf, slide the glass and rear trim along the shelf rails while pressing the shelf downward until it is fully locked into place in the rear (Figure 3). Figure 3 Finally, rotate the front trim upward on the front edge of the glass shelf (Figure 4). Figure 428

• Baking soda and water Use 2 Tbsp of baking soda in 1 qt of warm water. Be sure to wring excess water out of sponge or cloth before cleaning around controls, light bulb or any electrical part. Door Gaskets

• Soap and water Wipe gaskets with a clean soft cloth. Drawers & Bins

• Soap and water Use a soft cloth to clean drawer runners and tracks. Glass Shelves

• Mild liquid sprays See " Glass shelves" in CARE AND CLEANING before cleaning. Allow glass to warm to room temperature before immersing in warm water. Toe Grille • Soap and water

• Vacuum attachment Vacuum dust from front of toe grille. Remove toe grille (see Installation Instructions). Vacuum backside, wipe with sudsy cloth or sponge. Rinse and dry. Exterior & Handles

• Non Abrasive Glass Cleaner Do not use commercial household cleaners containing ammonia, bleach or alcohol to clean handles. Use a soft cloth to clean smooth handles. DO NOT use a dry cloth to clean smooth doors. Exterior & Handles (Stainless Steel Models Only)

• Stainless Steel Cleaners Never use CHLORIDE or cleaners with bleach to clean stainless steel. Clean stainless steel front and handles with non-abrasive soapy water and a dishcloth. Rinse with clean water and a soft cloth. Use a non-abrasive stainless steel cleaner. These cleaners can be purchased at most home improvement or major department stores. Always follow manufacturer’s instructions. Do not use household cleaners containing ammonia or bleach. NOTE: Always clean, wipe and dry with the grain to prevent scratch- ing. Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse well, and wipe dry with a clean soft cloth.29 1-800-265-8352 (Canada) Frigidaire.ca 1-800-374-4432 (United States) Frigidaire.com TROUBLESHOOTING Let us help you troubleshoot your concern! This section will help you with common issues. If you need us, visit our website, chat with an agent, or call us. We may be able to help you avoid a service visit. If you do need service, we can get that started for you!

Ice maker is not making any ice.

• Ice maker is turned o. • Turn on ice maker. Press and hold the "On/O" button for 3 seconds until the indicator light is on. Ice maker is not making enough ice.

• Check to see if water dispenser is dispensing slower than normal.

• Freezer control is set too warm.

• If it is, replace the ice and water filter cartridge.

• Set freezer control to colder setting to improve performance of the ice maker. Allow 24 hours for tempera- ture to stabilize. Ice cubes are freezing to- gether.

• Ice cubes are not being used frequently enough.

• Ice cubes are hollow (partially frozen cubes with water inside).

• Freezer control is set too warm.

• Remove ice container and discard ice from container. Ice maker will produce fresh supply.

• The ice and water filter cartridge may be clogged. Replace filter cartridge.

• Set freezer control to colder setting. Al- low 24 hours for temperature to stabilize. DISPENSER (Ice & Water) Dispenser will not dispense ice.

• Dispenser lock out is engaged.

• There is no ice in the bin to be dispensed.

• The refrigerator doors are not com- pletely closed.

• Dispenser paddle has been pressed too long and the dispenser mo- tor has overheated.

• Not dispensing ice regularly may melt and refreeze ice causing ice clumping. Dispens- ing clumps could dam- age the ice bucket.

• Press and hold control lock for 3 seconds.

• See the “Ice maker is not making any ice” section above.

• Be sure to close the refrigerator completely.

• The motor overload protector will reset in about 3 minutes and then ice can be dispensed.

• Empty the ice bucket monthly or regularly dispense ice. For longer periods of time (vacation or vacant homes) see Ice Maker/Dispenser Tips in the AUTOMATIC ICE AND WATER DISPENSER section to turn o the ice maker. Ice dispenser is jammed.

• Ice has melted and frozen around auger due to infrequent use, temperature fluctuations, and/or power outages.

• Ice cubes are jammed between ice maker and back of ice container.

• Remove ice container, thaw, and emp- ty the contents. Clean container, wipe dry, and replace in proper position. When new ice is made, dispenser should operate. See Cleaning the Ice Storage Bin in the AUTOMATIC ICE AND WATER DISPENSER section.

• Remove ice cubes that are jamming the dispenser.30 TROUBLESHOOTING

CONCERN CAUSE SOLUTION

DISPENSER (Ice & Water) (Continued) Dispenser will not dispense water.

• Water filter not seated properly.

• Water filter is clogged.

• Household water line valve is not open.

• Remove and reinstall the water filter. Be sure to push the filter firmly so that you hear it lock solidly into position.

• Replace filter cartridge. Be sure to remove protective caps and push the filter firmly so that you hear it lock solidly into position.

• Open the household water line valve. Water has an odd taste and/ or odor.

• Water has not been dispensed for an ex- tended period of time.

• Unit not properly connected to cold water line.

• Draw and discard 10-12 glasses of water to freshen the supply.

• Connect unit to cold water line that supplies water to the kitchen faucet. Water pressure is extremely low.

• Cut-o and cut-on pressures are too low (well systems only).

• Reverse osmosis system is in regenerative phase.

• Have someone turn up the cut-o and cut-on pressure on the water pump system (well systems only).

• It is normal for a reverse osmosis system to be below 20 psi during the regenerative phase.

• See the WATER SUPPLY CONNEC- TION section. Water not cold enough.

• As warmer tap water goes through the filter and enters the water tank the chilled water is pushed through to the dispenser. Once the chilled water is used up it will take several hours to bring the freshly replaced water to a cooler temperature.

• Some models are de- signed without a wa- ter tank, these water dispensing systems are not designed to chill water.

• Add ice to cup or container before dispensing water.

• Add ice to cup or container before dispensing water

• Door was closed too hard, causing other door to open slightly.

• Refrigerator is not lev- el. It rocks on the floor when moved slightly.

• Refrigerator is touch- ing a wall or cabinet.

• Close both doors gently.

• Ensure floor is level and solid, and can adequately support the refriger- ator. Contact a carpenter to correct a sagging or sloping floor.

• Ensure floor is level and solid, and can adequately support the refriger- ator. Contact a carpenter to correct a sagging or sloping floor.31 TROUBLESHOOTING

CONCERN CAUSE SOLUTION

OPENING/CLOSING OF DOORS/DRAWERS (Continued) Drawers are dif- ficult to move.

• Food is touching shelf on top of drawer.

• Track that drawers slide on is dirty.

• Remove top layer of items in drawer.

• Ensure drawer is properly installed on track.

• Clean drawer, rollers, and track. See CARE AND CLEANING.

RUNNING OF REFRIGERATOR

Compressor does not run.

• Freezer control is set to “OF” or “0”.

• Refrigerator is in defrost cycle.

• Plug at electrical out- let is disconnected.

• House fuse blown or tripped circuit breaker.

• This is normal for a fully automatic defrost refrigerator. The defrost cy- cle occurs periodically, lasting about 30 minutes.

• Ensure plug is tightly pushed into outlet.

• Check/replace fuse with a 15 amp time-delay fuse. Reset circuit breaker.

• Check house lights. Call local electric company. Refrigerator runs too much or too long.

• Room or outside weather is hot.

• Doors are opened too frequently or too long.

• Refrigerator/freezer door may be slightly open.

• Freezer control is set too cold.

• Refrigerator/freezer gasket is dirty, worn, cracked, or poorly fitted.

• It’s normal for the refrigerator to work longer under these conditions.

• Warm air entering the refrigerator causes it to run more. Open doors less often.

• Ensure refrigerator is level. Keep food and contains from blocking door. See PROBLEM column OPENING/CLOS- ING OF DOORS/DRAWERS.

• Set Refrigerator control to warmer setting until refrigerator temperature is satisfactory. Allow 24 hours for temperature to stabilize.

• Clean or change gasket. Leaks in door seal will cause refrigerator to run longer in order to maintain desired temperatures.

• Clean condenser. See CARE AND CLEANING. Compressor goes o and on frequently.

• Thermostat keeps the refrigerator at a con- stant temperature.

• This is normal. Refrigerator goes on and o to keep temperature constant. Appliance seems to run continuously.

• The applaince is equipped with an energy-ecient variable speed com- pressor. It actually saves energy running more frequently.

Digital tempera- ture displays are flashing.

• Electronic control system has detected a performance problem.

Moisture collects on inside of re- frigerator walls.

• Weather is hot and humid.

• Door is slightly open.

• The rate of frost buildup and internal sweating increases.

• See PROBLEM column OPENING/ CLOSING OF DOORS/DRAWERS. Water collects on bottom side of drawer cover.

• Vegetables contain and give o moisture.

• It is not unusual to have moisture on the bottom side of the cover.

• Move humidity control (some mod- els) to lower setting. Water collects in bottom of drawer.

• Washed vegetables and fruit drain while in the drawer.

• Dry items before putting them in the drawer. Water collecting in bottom of drawer is normal. Stored prod- ucts on top shelf freeze

• Fresh food tempera- ture setting too cold.

• Certain products stored too close to damper / air filter housing.

• Adjust fresh food temperature settings.

• Reconfigure top shelf storage to allow proper diusion of air. See Damper/Air Filter Housing in the FILTER REPLACEMENT section.

WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR

Moisture collects on outside of refrigerator or between doors.

• Door is slightly open, causing cold air from in- side refrigerator to meet warm air from outside.

• This is normal in humid weather. When humidity is lower, the moisture should disappear.

• See PROBLEM column OPENING/ CLOSING OF DOORS/DRAWERS. LED LIGHTING LED is not working.

• LED is burned out. • To replace LEDs, contact a qualified service technician. TROUBLESHOOTING33 LIMITED WARRANTY Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions. Exclusions This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be

2. Product that has been transferred from its original owner to another party or removed

outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or

for appliances not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,

shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other

consumables, or knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls,

tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not

limited to floors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts

other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. If You Need Service Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below. This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice. USA 1-800-374-4432 Frigidaire 10200 David Taylor Drive Charlotte, NC 28262 Canada
