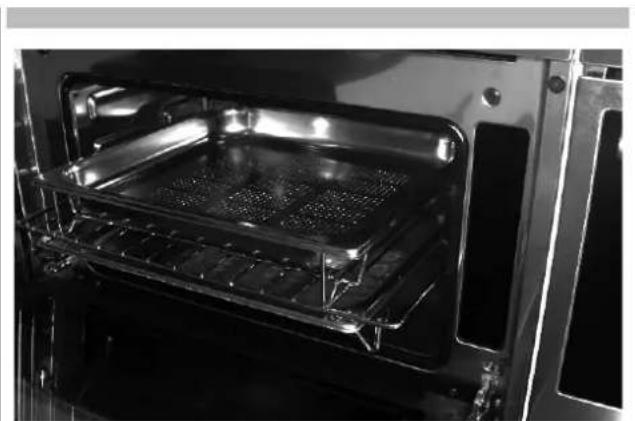

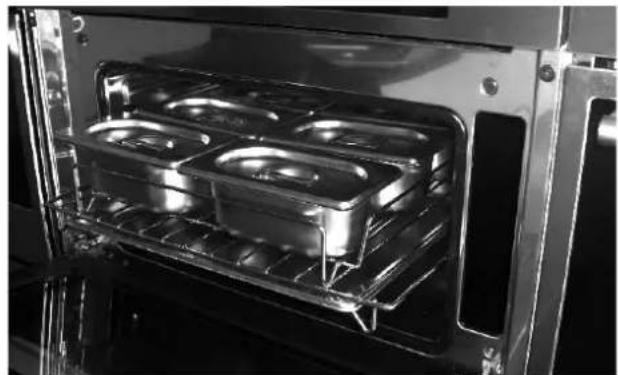

Using the perforated tray

Respect for the Environment

Locking the keyboard

Operational Suggestions

High Altitude Baking

Instructions for initial switch-on

Temperature & Weight

Switching the oven on and off

Selecting the cooking mode

Changing the cooking mode

Changing temperature

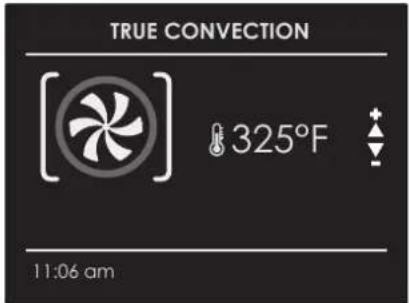

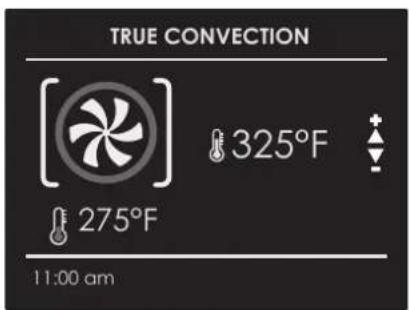

Cooking mode quick menu 15 Pre-heating phase

Combined Steam and Convection Cooking

Steam Assist Function

Time Oven Mode Operation

Setting the Meat Probe (if present)

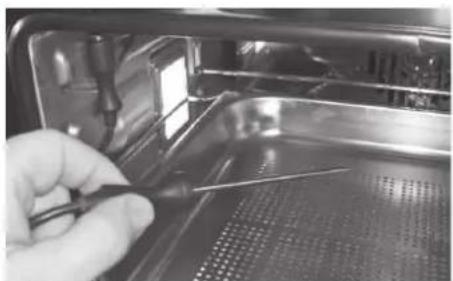

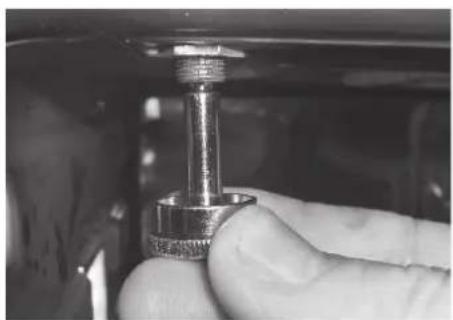

How use the food probe

Oven Care and Cleaning

Replacing the oven Lamp

Installing the oven in a cabinet

Solving Traditional Baking Problems

Solving Operational Problems

Dear Customer, We would like to thank you and congratulate you on your choice. This new product has been carefully designed and built using top quality materials, and meticulously tested to ensure that it meets all your culinary requirements. Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first time you use it. This state-of-the-art appliance comes to you with our very best wishes.

EXPERIENCE OR KNOWLEDGE, UNLESS

THEY ARE SUPERVISED OR INSTRUCTED IN

THE USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

THE APPLIANCE GETS VERY HOT DURING

• If the door or the gasket seals of the door are damaged, the oven may not be used until it is repaired by a qualified service technician;

• This appliance and its internal components, especially electrified parts, may only be repaired, modified or customized by the manufacturer, its service department or similarly qualified persons. Incompetent repairs can cause serious accidents, damage to the appliance and its surroundings and malfunctions.

• Remember that even the replacement of the lamp inside the oven must be performed by qualified personnel who will first disconnect the appliance from the mains.

• If the appliance fails to operate or requires repair, contact our service department.

• Use only original replacement part. IMPORTANT:

• As a safety precaution, before cleaning the oven, always disconnect the plug from the outlet or removetheappliance’spowercord.

• In addition, avoid using acid or alkaline substances (such as lemon, vinegar, salt, tomatoes, etc.). Avoid using products containing chlorine, acids or abrasives, especially for cleaning painted parts. IMPORTANT INSTRUCTIONS

Read carefully and keep for future useEN

• Although the cooking chamber is made of high- quality steel, incorrect maintenance can cause corrosion;

• The oven must be cleaned periodically and all food residues must be removed;

• Do not clean the oven immediately after the dish has been removed because the residual drops of steam are still very hot (danger of burns); check that the display shows a low residual temperature or none.

• Take care when opening the door when the oven is on because the exiting steam can cause burns.

• If the electricity is interrupted, when it comes back on, the oven requires you to empty the circuit even thoughthereshouldn’tbeanywaterinit.

• Do not use rough abrasives or sharp metal scrapers to clean the glass door of the oven because they could scratch the surface and cause the glass to shatter.

• During cleaning, take care that no water enters the appliance.

• Use only slightly damp rags.

• Never spray water inside or outside of the appliance.

• Do not use steam devices for cleaning because water that penetrates could cause damage.

• Do not use the appliance for heating or humidifying the room.

• The appliance must be installed and used in an ambienttemperaturebetween5°Cand35°C.

• If there is a risk of frost, the residual water in the pumps could freeze and damage them.

• Use only the thermal probe recommended for this oven.

• The food probe is an accessory available only in some versions of the product

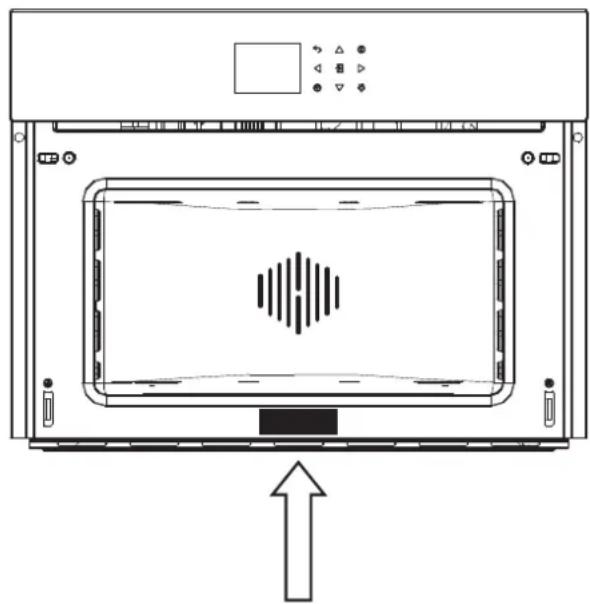

• The set of 6 Gastronorm trays is an accessory available on request IMPORTANT Theoven’sidentificationplateisevenaccessible when the appliance is installed. This identification plate, which is visible when you open the door, shows all the information you will need when requesting replacement parts for the appliance.

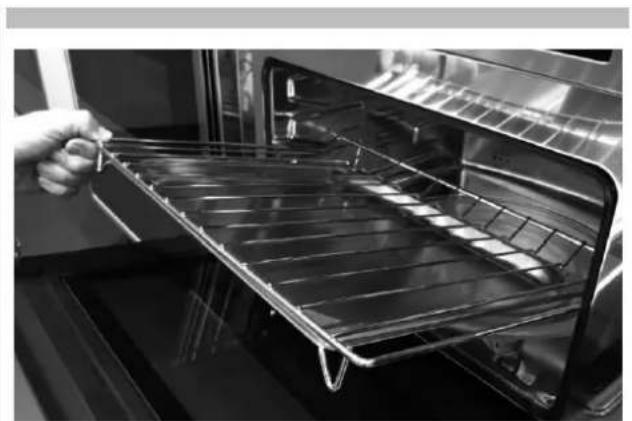

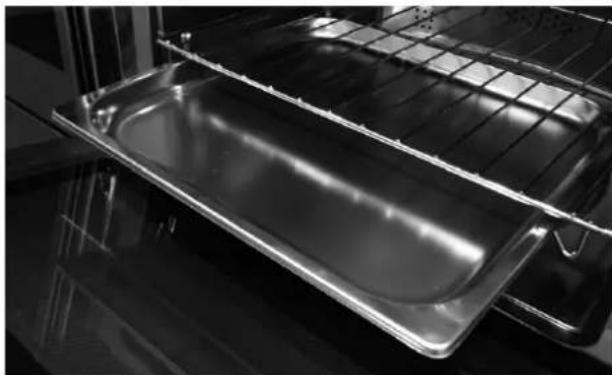

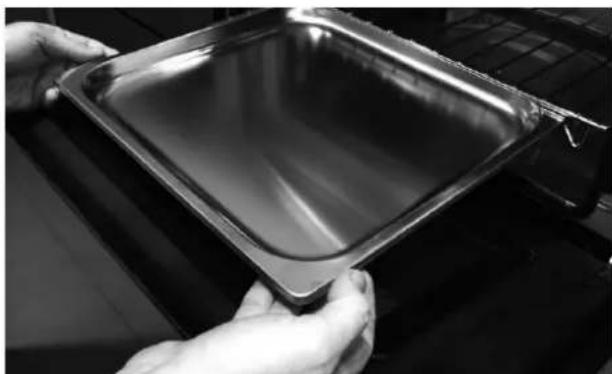

Using the at grill To remove the flat grill, pull the grill towards you until it stops and then lift, by pulling upwards, until it comes completely out. Toinserttheflatgrill,slideitinatanangleof45°untilitlocks and then lower it horizontally and push it all the way in. If the flat grill has a low drip tray, to remove it lift it slightly and slide it towards you. To reinsert it, slide it back until it is correctly seated. Using the perforated tray This tray is used for steam cooking and is positioned on the flat grill together with its support. NOTE: the set of 6 Gastronorm trays is an accessory available on request. We recommend also using it in combination with the drip tray to catch everything the drips from the food during cooking. The oven should be thoroughly cleaned with soap and water and carefully rinsed. Heat the oven for about 30 minutes at the maximum temperature; this eliminates all the residual manufacturing oils that could cause unpleasant odours during cooking. Use the circular plus fan function without accessories in the oven. Before using the accessories for the first time, clean them carefully with a very hot alkaline washing solution and a soft cloth.EN

3 - Respect for the Environment

The documentation for this appliance is printed on paper bleached without chlorine or recycled paper to contribute to protecting the environment. The packaging was designed to prevent damage to the environment; they are ecological products that can be recovered or recycled. Recycling the packing saves raw materials and reduces the volume of industrial and domestic waste. THE PACKING MATERIAL is 100% recyclable and marked with the recycling symbol. Dispose of in conformity with local law. The packing material (plastic bags, polystyrene parts, etc.) must be kept out of the reach of children because it is potentially dangerous. THIS APPLIANCE is marked in conformity with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). By making sure that this product is disposed of correctly, the user contributes to preventing potential negative consequences for the environment and health. THE SYMBOL on the product or accompanying documentation indicates that this product must not be treated as domestic waste but must be delivered to a suitable collection point for the recycling of electrical and electronic equipment. DISPOSAL MUST BE MADE in conformity with local laws on waste disposal. FOR ADDITIONAL INFORMATION about the treatment, recovery and recycling of this product, contact the local office of competence, the domestic waste collection service or the store where the product was purchased. BEFORE SCRAPPING, make it unusable by cutting the electrical cord.EN

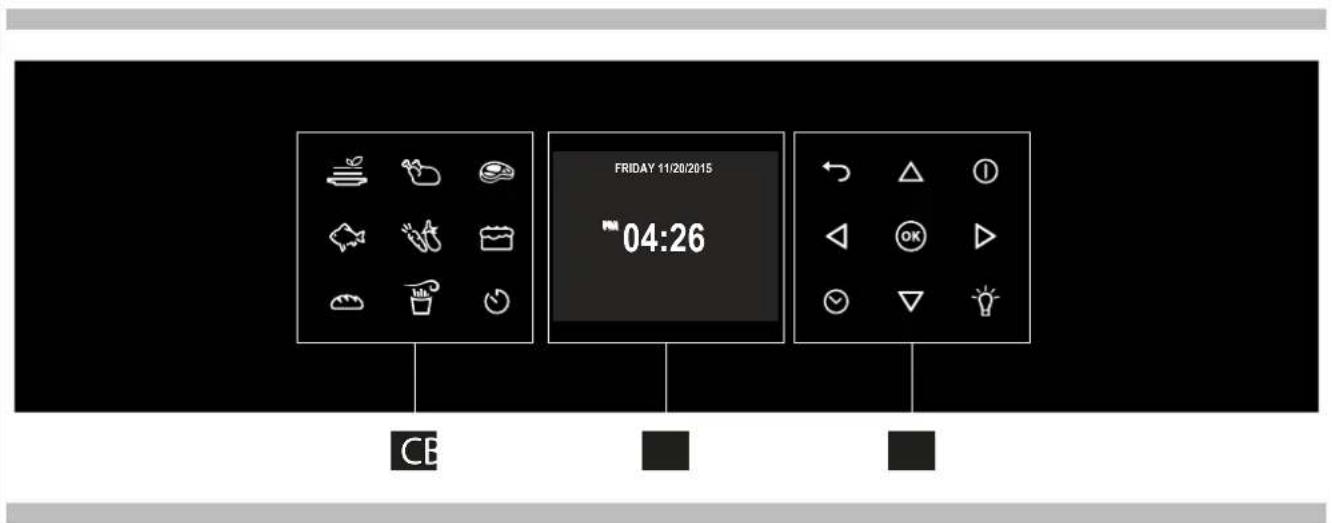

Keypad To operate the key, press gently. The keypad will not work if more than one key is pressed at the same time.- Movement arrows- To set the timer.- Enter the functions menu during cooking.- Switches the inner oven light on and off. The light cannot be switched on during the self-cleaning cycle.- Switches the oven on and off.- Confirms the settings and starts cooking operations. When pressed during a cooking operation, the function is placed in pause. Press again to restart.- Return to previous display page. Keeppressed to return to Home page Control panel Cooking mode quick menuAirfryTimerYour appliance could vary slightly compared to the illustrations below. - Function keypad - Display screen - Shortcut keypad FRIDAY 11/20/2015 04:26

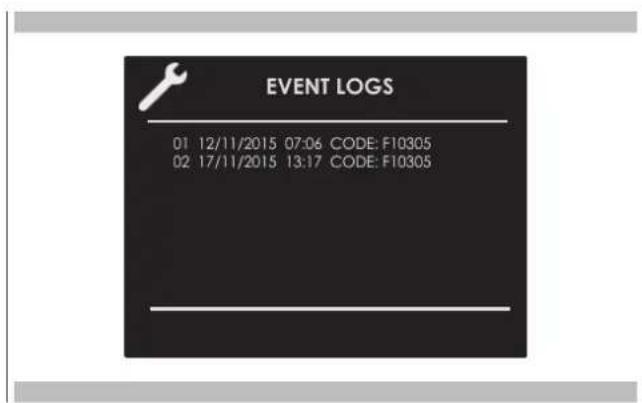

Error codes This code appears in the event of the electronic control indicating a fault. When the error appears, the current function is blocked. If the type of error is related to a safety function, the oven becomes unusable and every time a start attempt is made, the same error appears (in which case call in the after- sales service), while if the error relates to a minor fault, after being restarted the oven can be used for the functions that do not involve the faulty part (e.g., a heating element). Beeps Confirms that the command has been received after a key has been pressed. It also indicates that a time function has been completed (e.g. Timer or Timed Cooking). During the execution of a recipe, an acoustic signal warns the user that the oven is waiting for operation by the user (e.g., insert the dish or turn it over). Beeps also signal an oven fault. Default Settings The cooking modes automatically select a suitable temperature when the cooking mode is selected, these can be changed when a different one is needed. F Failure Number Codes These codes are displayed when the electronic control detects a problem in the oven or in the electronics. The error code is recorded in the Error Log in the Setup menu. This error can be communicated to the service technician so he/she can understand the possible cause of the problem in advance. Preheat Whenever a cooking mode is set and the oven is heating, the preheating starts, during this period, the instantaneous temperature is displayed together with the thermometer icon. Assoonasthe100%isreached,thecontrolsoundsan“endof preheat”toneandthecurrenttemperaturevaluedisappears. Timer WARNING The timer on your oven does not turn the appliance on or off, its only purpose is to alert you through the buzzer. When you want to turn off the oven automatically, use the end-of- cooking or delayed cooking function. NOTE: Pressing the OFF button does not reset or stop the timer.

and set the desired time using the arrows and confirm with the button . To switch the selection between hours and minutes use the arrows

2. The time can be set from 1 minute to 12 hours and 59

minutes and, when set, the remaining time is always visible in the bottom status bar until the time expires or is reset.

3. To change or cancel the time set, you must reset the timer

by pressing and holding the button for a few seconds.

4. Timer format is usually HR:MIN, switching into MIN:SEC

during the last minute.

5. When the time expires, the display shows 00:00 and the

buzzer will sound for one minute or until the button

pressed. Before using your oven for the first time remove all packing and foreign materials from the oven(s). Any material of this sort left inside may melt or burn when the appliance is used.EN

• Selecting a higher temperature does not shorten the preheat time.

• Preheating is necessary for good results when baking cakes, cookies, pastry and breads.

• Preheating will help to sear roasts and seal in meat juices.

• Place oven racks in their proper position before preheating.

• During preheating, the selected cooking temperature is always displayed.

• A beep will confirm that the oven is preheated and the “detectedtemperature”willturnoff. Operational Suggestions

• Do not set pans on the open oven door.

• Use the interior oven lights to view the food through the oven door window rather than opening the door frequently. High Altitude Baking

• When cooking at high altitude, recipes and cooking time will vary from the standard.EN

Instructions for initial switch-on Once the oven has been connected to the power supply for the first time, the control automatically prepares for setting a number of user settings, which remain stored in case of any subsequent switch-on.

• Temperature & Weight

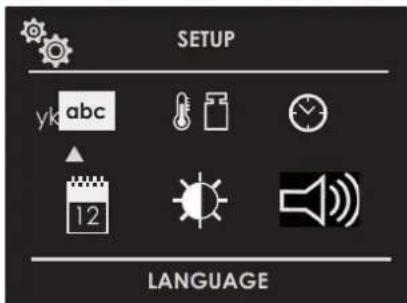

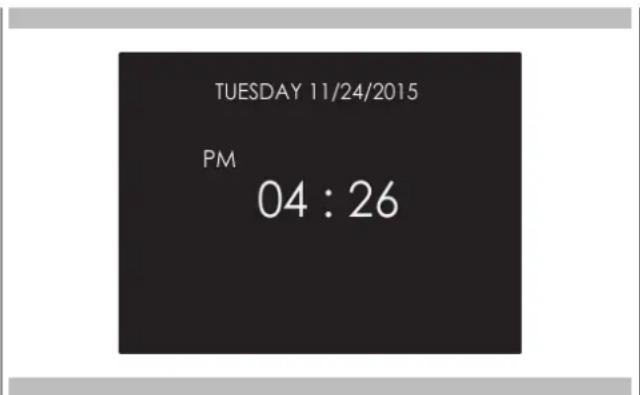

• Date Refer to the USER SETTING paragraph for setting instructions. After making the user settings, the control moves automatically tothe“Standby”displaypage. 04 : 26

With the oven on, select the icon and confirm with the key to enter the SETTINGS menu. This menu permits personalizing the settings of your oven. To make access, no active cooking or any set time functions must be in progress.NOTE: The Setting menù can never be set if any time function is already set: first delete all the active time functions.1. Press the keys to select the sub menu and confirm by means of the key. SETUP

SETTING 2. Use this menu to change the following settings: Press the keys or to select the setting or change a sub menu from among the six available ones and confirm by means of the key.

abc SETUP LANGUAGE Language Press the arrow key to select a language from among those available, and confirm with the key.Temperature & WeightPress the arrow key and to select one of the two temperature options “°C/°F” or weight options Kg/ib andconfirm with the key.

Time Press the arrow key to select the time format between the options“12hAM/PMor24h”andconfirmwiththe key. Subsequently, set the time using the arrows and confirm with the key. 12h 24h

Date Press the arrow key to select the date format from among theoptions“D.M.Y.–Y.M.D.–M.D.Y.”andconfirmwiththe key. Subsequently set the value using the arrows and confirm with the key.

D.M.Y. Y.M.D. M.D.Y.

11/20/2015 Brightness Press the arrow key to choose which luminosity setting to change between ON or STANDBY, then by means of the arrows select the required degree of luminosity and confirm with the key.

STAND-BY LOW MID HIGH DARK MID HIGH Volume Press the arrow to select the desired volume level and confirm by pressing the key. LEVEL LOW MID HIGHEN

With the oven on, select the icon and confirm with the key to enter the SETTINGS menu. This menu permits setting a number of parameters or special functions. It also permits accessing the error events list.

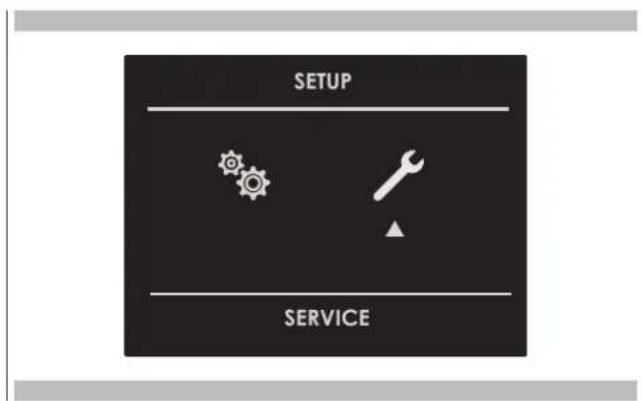

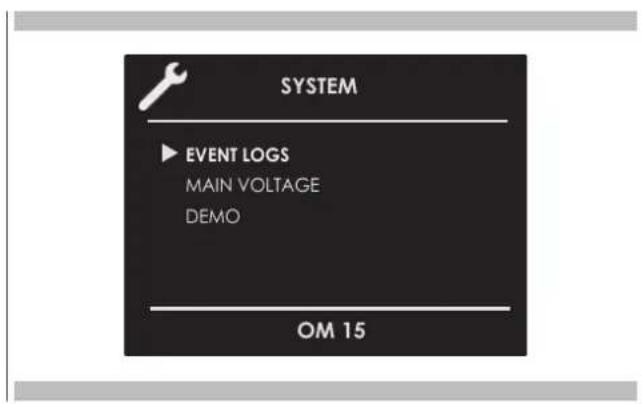

to select the sub menu and confirm with the key. SETUP SERVICE

2. Use this menu to change the following settings:

Press the keys to select the item to be set or to be displayed from among the three available ones and confirm with the key. EVENT LOGS MAIN VOLTAGE SYSTEM DEMO OM 15 Event Log The menu permits checking any recorded errors. These codes can be notified to the after-sales service. 01 12/11/2015 07:06 CODE: F10305 EVENT LOGS 02 17/11/2015 13:17 CODE: F10305 Demo The purpose of this function is to set the DEMO mode, which makes the oven useless for cooking but automatically performs a demonstration of functions.

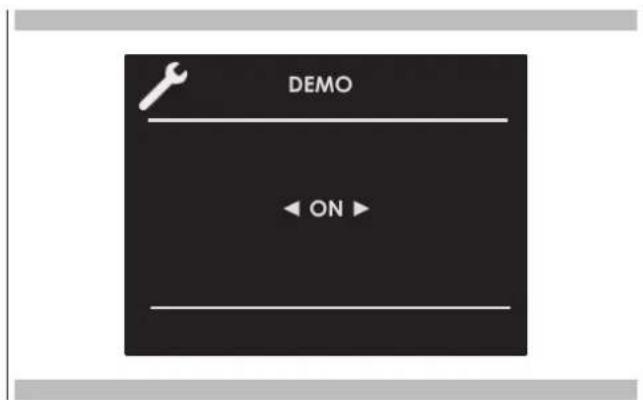

key. After about 30 seconds, the oven starts to operate in this mode. To temporarily stop the DEMO function, simply keep any key pressed for a few seconds until the oven switches to standby. To start it again, press the key. To disable the function, enter the DEMO display page and set OFF. Confirm using the key. NOTE: Once set, the function remains enabled even if the oven is disconnected from the power mains. DEMO ONEN

Switching the oven on and off IMPORTANT

• The key does not stop the function.

• After switching off the oven, the cooling fan could continue to operate until the inner parts of the oven have cooled down. Press to switch the oven on and press again to switch it off. The oven returns to standby mode. Selecting the cooking mode Traditional Cooking TRUE CONVECTION RING & GRILL CONVECTION BROIL BROIL ECOBAKING Steam Cooking STEAM 100

and press the key Select the appropriate cooking mode according to the food to be cooked using the arrows and confirm with the key .

2. On this display page, it is still possible to change the

cooking mode by using the keys.

3. If the proposed temperature is correct, confirm with the

key to start cooking, otherwise, if the key is not pressed within 10 seconds, the oven switches to automatic mode and the cooking mode icon becomes animated.EN

11 - Traditional Cooking

Changing the cooking mode 1. During untimed cooking, a cooking pause can be set by pressing the key. All the settings of the suspended cooking operation remain stored and can be reactivated by pressing the same key again.2. To change the cooking mode while the oven is working, press the key and then the , key. At this point, another cooking mode can be selected from among those available in the group by means of the arrows . AirFry function The AirFry function or frying of food in the oven, thanks to a perfectly distributed air flow, promises to cook crunchy and perfectly cooked food with very little oil and, in some cases, without oil. Eating healthy, cooking dishes in a tasty way and without exaggerating with fats and condiments, is possible.AirFry by Fulgor Milano allows you to set the function and temperature from the control panel, from 150 to 290°C, with a default temperature of 180°C. The special tray, supplied or sold separately, is equipped with small openings which allow the air to circulate uniformly throughout the oven. Changing temperature IMPORTANT

• At the end of a function, the display screen shows the residual compartment heat temperature from the standby page.1. From the cooking mode preview display page, the temperature can be changed by means of the arrows subsequently confirming by means of the key.2. Once cooking has started, the temperature can in any case be changed, at any time, by means of the arrows

Cooking mode quick menu The quick menu function allows you to rapidly select the most suitable cooking modes for the type of dish you want to cook.MAIN COURSESPOULTRY MEAT FISH VEGETABLESDESSERTSBREAD/PIZZA Pre-heating phase While the oven is in pre-heating phase, the instantaneous temperature is displayed underneath the cooking mode icon. 325°F 275°F 11:00 am TRUE CONVECTION

Just as soon as the set temperature is reached, an acoustic signal is heard and the instantaneous temperature indication disappears. 325°F 11:06 am TRUE CONVECTION

Eco This mode is intended to save energy.Ideal for frozen or precooked food, and small portions-meals.The preheat time is very short and cooking tends to be slower. It is not recommended for heavy loads e.g. large portions or big meal preparation.EN

NOTE: it is essential to carefully read the instructions and warnings to ensure correct use. Steam operation Steam cooking is used most for oriental cuisine but it is certainly very useful for our own. It is fat free and has the advantage of preserving the original flavour of the food. In this case, the food is not cooked with water but with water vapour. Steam cooking is different than boiling. In fact, the water vapour works on the inside of the cells, which is fundamentally different from the effect of boiling water. In fact, steam also cooks the food completely but, except for the fat, nothing else comes out of the food. The cell walls and tendons gradually soften, the protein coagulates without coming out, the starches swell and combine and the sugars and minerals remain unchanged. The same goes for odours, which are reduced to a minimum, or coloured substances. Only the fat liquefies due to the heat and, for this reason, it is almost never a good idea to steam cook large cuts of meat or fish. Vitamins are another story because heat generally tends to destroy them; however, depending on the cooking time, some of them are only slightly altered. So, the foods that lend themselves to this cooking method are, generally, those with no fat such as, for example, fish, some types of meat, legumes, potatoes, cereals, eggs, pudding, vegetables, etc. It is not good for vegetables with tough fibres or fruits in general. Useful tips When using the steam oven, always start with the oven cold. Using steam in a hot oven (immediately after traditional cooking) is not recommended because the benefits of cooking with steam will be cancelled out. For steam cooking try to use the perforated stainless steel tray together with the lower stainless steel drip tray as much as possible. The first, resting with its support on the flat grill, allows the steam to fully cook the food while draining everything released by the food during cooking through the holes. The second, lower tray, slid under the grill on its guides, will collect the drippings and keep the oven chamber cleaner. When done cooking, the support of the perforated tray can be used as a support to keep the hot tray off of the counter while you remove the food you just cooked. ATTENTION Before using any steam functions, the water container must be filled. If while the oven is on, the message CHECK WATER CONTAINER appears on the display (acoustic signal will sound), open the door, watching out for the hot steam that will be released, extract the container and refill it. When the door is closed, the oven will go into PAUSE mode. Press the key to continue cooking. NOTE: The steam functions will not start until the door is closed. If the door is open, the message CLOSE THE DOOR will be shown on the display. If the door is opened while the oven is on, the oven will go into pause mode. To restart the function, the door needs to be closed. Select the desired function and confirm using the key , at this point the circuit will be filled. As soon as the water reaches the right temperature, the steam generated by the boiler will enter the cavity. The function can be paused at any time using the key , when it is pressed again the function restarts.

Steam Cooking Steam 100 By way of radial ventilation, the steam is distributed to ensure the food is evenly heated and cooked. This holds the advantage of being able to cook on the three different levels at the same time, taking care to insert the more “full-bodied”foodonthehigherlevel,andlessdensefoods such as vegetables on the lower levels (from the first to the third). NOTE: during steam cooking, always place the lower stainless steel tray underneath the perforated cooking container, to collect any food scraps or condensate that may eventually fall. Steam 130 During regeneration, the cooking chamber is heated with steam and warm air, which allows rapid and consistent heating of the food without drying it. Based on the type of food being reheated, this programme offers the possibility to modify the temperature inside the oven so as to manage this function as you please. This type of function is therefore particularly suitable for:

• Heatingpre-cookedfoodfrom70°Cto130°C;

• Preparing ready and semi-ready meals, frozen foods from 70°Cto130°C NOTE: for these types of meals, remember to insert suitable dishes in the oven (not made from synthetic or similar materials) and to position them above the grill, making sure to remove any lids. ATTENTION Once the functions have been completed, a circuit discharge request will be sent (see WATER DISCHARGE paragraph).EN

Combined Steam and Convection Cooking Thistypeofcookingiscalled“professionalcooking”because the food being cooked is placed into a cold chamber that has not been preheated. After starting the oven, the food is initially exposed to steam (or“steamed”).Afterashortperiodofexposuretothesteam, depending on the filling volume and therefore on the size of the food being cooked, the appliance automatically moves on to the second warm air phase. This type of function is particularly suited to large meat and seafood dishes for example; large sized bread loaves made from white or wholemeal flour, with yeast or yeast dough at 190°Cuntil210°C,aswellasfilledandhollowpuffpastry, whetherfreshorfrozenfrom190°Cto210°C. NOTE: For best results when running two consecutive “professional cooking” programmes, the oven must be cooled before inserting the second dish. ATTENTION Once the functions have been completed, a circuit discharge request will be sent (see WATER DISCHARGE paragraph). Steam Assist Function This particular function can only be used with traditional oven functions. Once the oven has been turned on, the steam assist function will only become available once the internal oven temperature has exceeded 100°C. Only from that moment on will the symbol appear on the lower part of the display. NOTE: THIS FUNCTION IS NOT ENABLED DURING STEAM COOKING. To inject steam inside the cavity, press the key select the icon using the arrows and and confirm using the key . The steam assist function will be enabled and the change in status can be seen on the animated display. The steam assist function will continue for 5 minutes, humidifying the food sothatitdoesn’tdryoutduringcooking.Idealforroastsin general, large meat/seafood dishes and softer cooking. After 5 minutes, the oven returns to the previously set cooking function.EN

A single light key activates the lights. Touch to turn lights on or off . Oven lights turn on automatically when the door is opened. When an oven is in use, oven lights turn on automatically when a mode is started. Oven lights will turn off automatically when the oven mode is cancelled. NOTE: Once switched on, the lights go off automatically after 3 minutes. To switch them back on, press the key or open the door.EN

Be sure that the time-of-day clock is displaying the correct time. The timed mode turns off the oven at the end of the cook time. CAUTION Never leave food in the oven for more than one hour before and after cooking. This could deteriorate the properties of the food itself. NOTE: The time functions cannot be used if the meat probe is on. The maximum cooking time that can be set is 12 h. Cook Time Use the “Cook Time” function to operate the oven for a determinate period of time. The oven starts immediately and switches off automatically once the time has expired. To Set a Timed Mode

1. Select the cooking mode and temperature.

2. There are two ways to set the function.

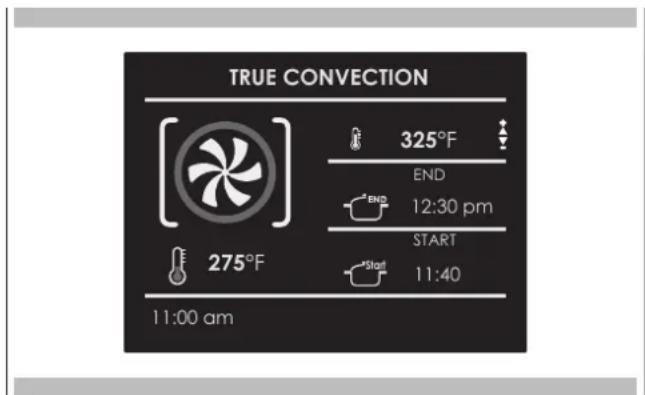

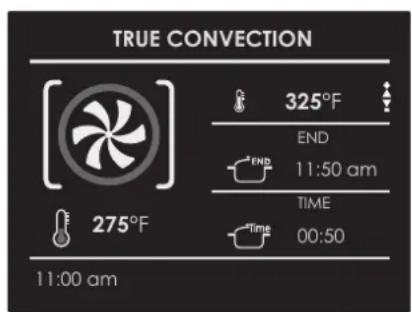

a) Select to set the duration and press . b) Select to set the stop time and press .

3. After selecting one of the two above options, set the time by

means of the arrows and confirm with the key.

4. After pressing the

key, cooking starts and the time cooking information is shown on the display page.

END TIME 11:50 am 00:50 5 After cooking, the oven switches off and an acoustic signal warns that cooking has terminated. To change the cooking time when the oven is already operating, simply press the e key and enter the new cooking time before pressing the key again. Stop Time Use the “Stop Time” function to delay the start of timed cooking. Enter the cooking stop time and the oven will automatically calculate the start time. The oven switches on and off automatically. To Delay the Start of a Timed Mode 1 First of all set the required timed cooking as indicated in the “COOKTIME”paragraph. 2 Select to set the stop time and press . 3 Set the cooking stop time by means the arrows and confirm by means of the key. 4 After pressing the key, the function positions in standby and the postponed cooking details are shown on the screen.

END START 12:30 pm 11:40 Start After cooking, the oven switches off and an acoustic signal warns that cooking has terminated. To change the cooking time and stop time when the oven is already operating, simply press the key and enter the new cooking time or cooking stop time and press the key again.EN

When roasts, steaks or poultry are being cooked, this is the best way to tell when the food is correctly cooked. This oven is optionally provided with the meat probe feature to sense the temperature inside meat and stop cooking as soon as the set value is reached. When the probe is used, the oven automatically checks the cooking time. NOTE : the food probe is an accessory available only in some versions of the product. Tenderness, aroma and flavour are the result of precise, functional control. The food probe is a thermometer which, when inserted into the food, makes it possible to check the internal temperature and use it to establish the end of cooking. For example, meat may look like it is cooked on the outside,butstillbepinkontheinside! The temperature reached by food during cooking is closely linked to problems relating to health and hygiene. Bacteria can be contained in every kind of meat, poultry and fish, as well as raw eggs. Certain types of bacteria make food go off, while others, such as Salmonella, Campylobacter jejuni, Listeria monocytogenes, Escherichia coli and Staphylococcus aureus can be seriously harmful to human health. Bacteria multiply very quickly above atemperatureof4.4°upto60°C.Minceisparticularlyatrisk from this point of view. To prevent bacteria from multiplying, it is necessary to take the following measures:

• Do not defrost food at room temperature, always in the fridge or in the oven using the specific function. In the latter case, cook the food immediately afterwards.

• Stuff chicken just before eating it. Never buy pre-packed ready-stuffed chicken and only buy ready-cooked stuffed chicken when you intend to eat it within 2 hours.

• Marinate food in the fridge, not at room temperature.

• Use a food probe to check the temperature of meat, fish and poultry if they are more than 5 cm thick, to ensure that the minimum cooking temperatures are reached.

• The greatest hazards are posed by poorly cooked chicken, particularly at risk from Salmonella.

• Avoid interrupting the cooking process, i.e., partially cooking food, storing it and completing the cooking process later. This sequence encourages the growth of bacteria due to the “warm”temperaturesreachedinsidethefood.

• Roast meat and poultry in the oven at temperatures of at least165°C. IMPORTANT Use only the meat probe supplied with the appliance. In any case, we recommend that you consult the following table taken from the National Food Safety Database (USA). Food Minimum internal temperature Mince Hamburger 71°C Beef, veal, lamb, pork 74°C Chicken, turkey 74°C Beef, veal, lamb Roasts and steaks: Rare The cooking temperature for rare meat is not indicated by the NFSD as it is unsafe for health reasons Medium-rare 63°C Medium 71°C Well done 77°C Pork Chops, roasts, ribs: Medium 71°C Well done 77°C Fresh ham 71°C Fresh sausages 71°C Poultry Whole chicken or chicken pieces 82°C Duck 82°C Whole turkey (not stuffed) 82°C Turkey breast 77°CEN

• To avoid burns, use a kitchen glove to fit and remove the meat probe when the oven is hot.

• Always remove the probe using the grip. If it is removed by pulling the cable, it could suffer damage.

• Make sure the food is completely de-frozen when the probe is fitted. Otherwise it could suffer damage. NOTE: - The meat probe is not enabled for all functions (meat probe function not available also for Recipes). If it is fitted during one of these functions, a probe removal message appears on the screen. - If the meat probe is accidentally removed during operation, a warning message appears on the screen. - The temperature of the probe can be set between 104°Fand212°F(40°C-100°C). - The oven stores the last temperature set by the user. How use the food probe As you can see from Figure, the probe socket is located in the upper left corner of the oven chamber, protected by a metal cover with plug. Remove the cover and insert the plug of the probe all the way (you will hear a slight confirming click). Insert the probe in the food without touching fatty parts or bones. WARNING Remember that the probe will not work if it is connected whentheovenisalreadyswitchedon! Insert the tip of the probe in the central and thickest part of the meat. Make sure the probe is not in contact with the fat, bone, oven parts or dishes. The meat probe is automatically recognised when it is inserted and the icon appears on the screen. When a cooking mode is started with the probe inserted, the display page for setting the function appears automatically. 11:00 am 325°F

1. Set the required probe temperature by means of the arrows

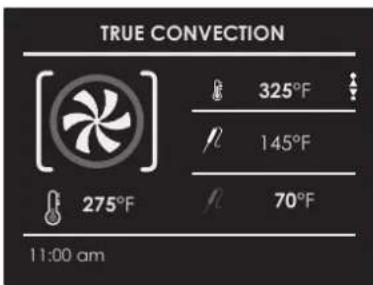

and confirm with the key. 275°F 11:00 am TRUE CONVECTION 325°F

2. After pressing the key, cooking starts and all probe

cooking details appear on the screen.

• Instantaneous probe temperature Once the set probe temperature is reached, the oven switches off and an acoustic signal warns that cooking has terminated. NOTE: After cooking has started, the oven temperature can in any case be changed at any time by means of the arrows

To change the probe temperature, press the key and then the key and finally, the key again.EN

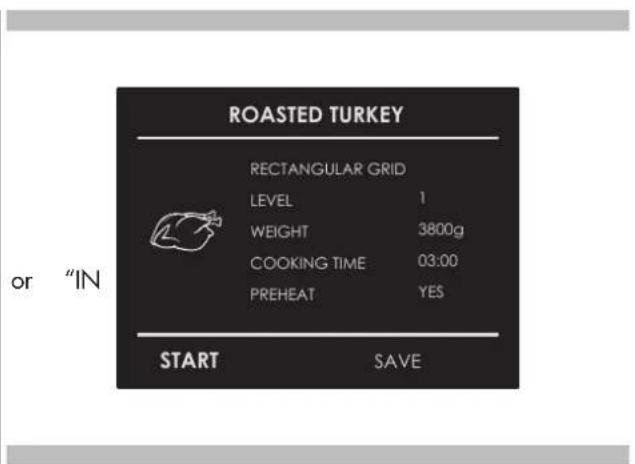

Select an already-set recipe:

3. Choose the type of food to be cooked using the arrows

and the arrows and confirm by means of the key.

choose between “FRESH” or “FROZEN” or in other cases between “WHOLE” or “IN PEICES”andconfirmwiththe key.

5. Select the required recipe by means of the arrows

and confirm using the key.

6. When the recipe is selected, the following display page

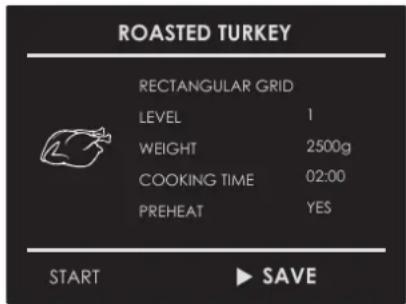

appears on the screen: SAVE ROASTED TURKEY START

RECTANGULAR GRIDLEVELWEIGHTCOOKING TIMEPREHEAT

13800g03:00YES The Recipe function of your oven gives you the chance to cook food without having to set the oven manually every time. By selecting a“SET”recipe,thecookingmode,thetemperatureandthetimeareautomaticallysetaccordingtotherecipeselectedfromthe menu. Recipe List Type of Food Food condi- tion Recipes List Information di- splayed

7. To start the recipe, confirm with the key.

During a recipe, a number of acoustic and visual messages will ask you to perform the following operations. Simply follow the instructions on the screen.

8. Upon termination, the oven switches off and an acoustic

and visual signal warns that the recipe has terminated. Saving a personalized recipe: Oncearecipehasbeenselected,the“Time”and“Weight” setting can be changed and the recipe can be saved among the“PERSONAL”ones.

1. Once a recipe has been selected, press the key

and confirm by means of the key.

2. To change the weight, enter the desired weight by means of

the arrows and confirm by means of the key. POULTRY 3800g WEIGHT

3. The oven switches automatically to the cooking time. To

change this time, use the arrows and confirm again by means of the key. POULTRY 03:00 COOKING TIME

4. At this point, the recipe can be saved in the list of

“PERSONAL”recipesbyselecting“SAVE”andconfirming by means of the key. SAVE ROASTED TURKEY START RECTANGULAR GRID LEVEL WEIGHT COOKING TIME PREHEAT

2500g 02:00 YES NOTE: If the time and weight values are changed and not saved straight away, at the end of the recipe, a message appears which asks whether you want to save it.

5. To start the recipe press the key.

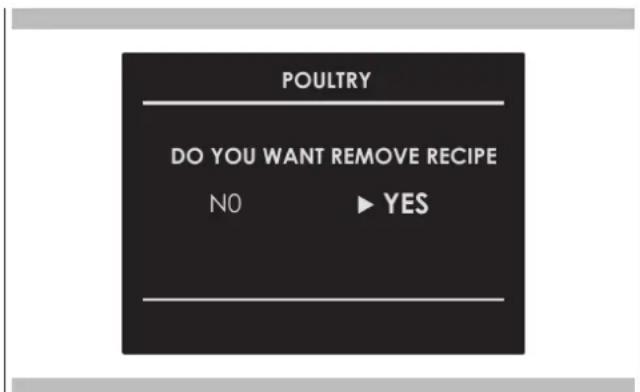

Cancelling a Personalized recipe:

1. To eliminate a recipe from the list of personalized recipes,

and select the choice and confirm with the key. POULTRY YES

DO YOU WANT REMOVE RECIPE

17 - Oven Care and Cleaning

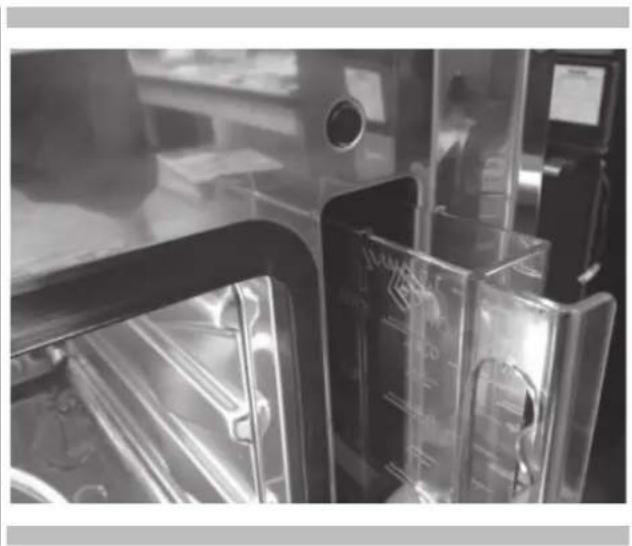

Oven Clean This function performs a cleaning cycle by injecting steam into the cavity for 15 minutes. At the end of the cycle, any crusting that may have formed due to high-temperature cooking inside the oven cavity, will be softened and become much easier to remove. ATTENTION Once the functions have been completed, a circuit discharge request will be sent (see WATER DISCHARGE paragraph). Circuit Clean This function performs a cleaning cycle of the circuit, to keep it clean and efficient over time. ATTENTION Once the functions have been completed, a circuit discharge request will be sent (see WATER DISCHARGE paragraph). This oven is one of its kind insofar as it does not require any descalers to keep the steam generation system running efciently. Circuit discharge At the end of any steam function, when the oven is turned off using the key a circuit discharge is requested. The following message will appear on the display: NEED TO DISCHARGE / OPEN THE DOOR. Open the door, watching out for the hot steam that will be released. A new message will appear on the display with an animated icon, requesting the user to extract the container until the symbol indicated on the same. Press the key to start the steam circuit discharge. At the end of the procedure, the message DISCHARGE ENDED/REMOVEANDEMPTYTHETANKwillappearon the display, confirming that the discharge was successful. If you do not wish to immediately repeat a new steam cooking cycle, it is recommended to empty the container and replace it in its housing, then close the door. The oven is now ready for a new cooking cycle.EN

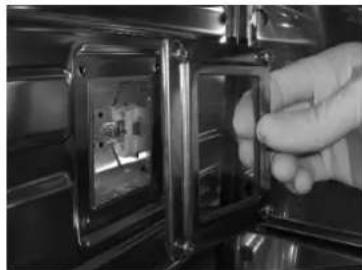

IMPORTANT The oven lamp must have precise characteristics: a)Structuresuitableforhightemperatures(upto300°C); b) Power supply: see the V/Hz value on the serial number plate; c) power 25 W; d) Type G9 connector. Attention: make sure the appliance is off before replacing the lamp to avoid the possibility of electric shock.

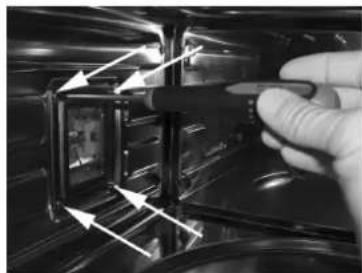

• To avoid damage, spread a tea towel for pots and pans inside the oven;

• Remove the screws holding the steel frame;

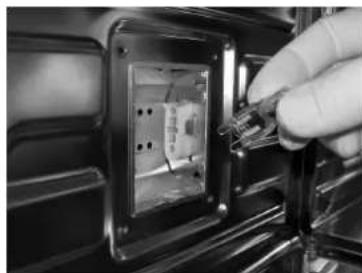

• Remove the old lamp by sliding it out of its seat and taking care not to break it;

• Insert the new bulb taking care not to touch it with your hands (we recommend using a disposable latex glove);

• Replace the stainless steel frame taking care not to pinch the silicone gasket seal;

• Screw in the stainless steel screws you previously removed

• Connect the appliance to the power line.EN

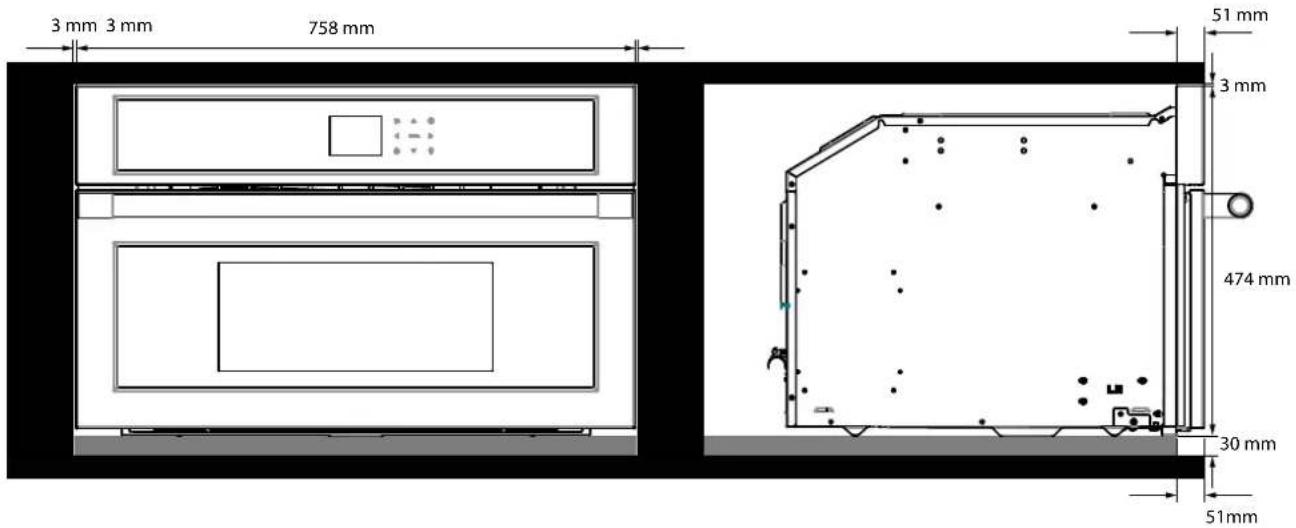

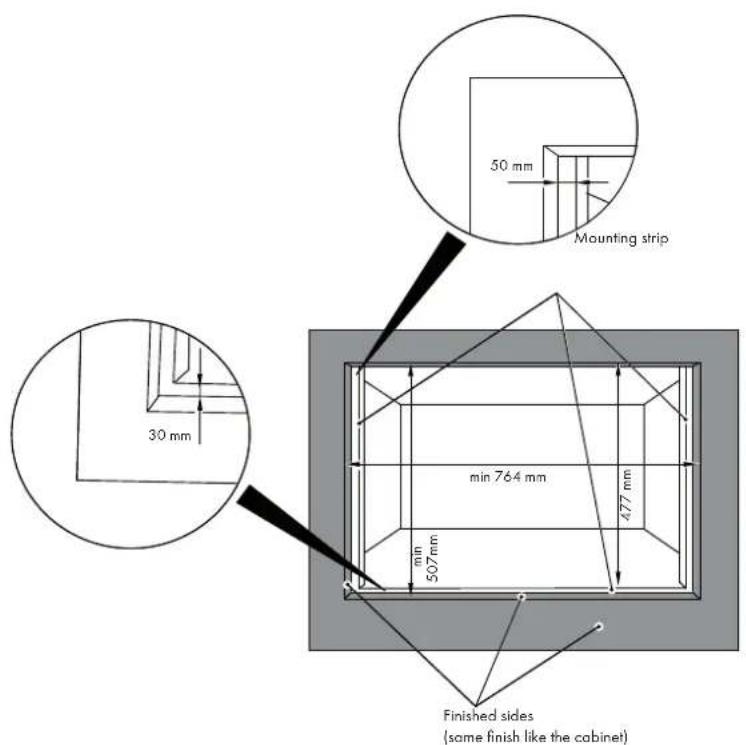

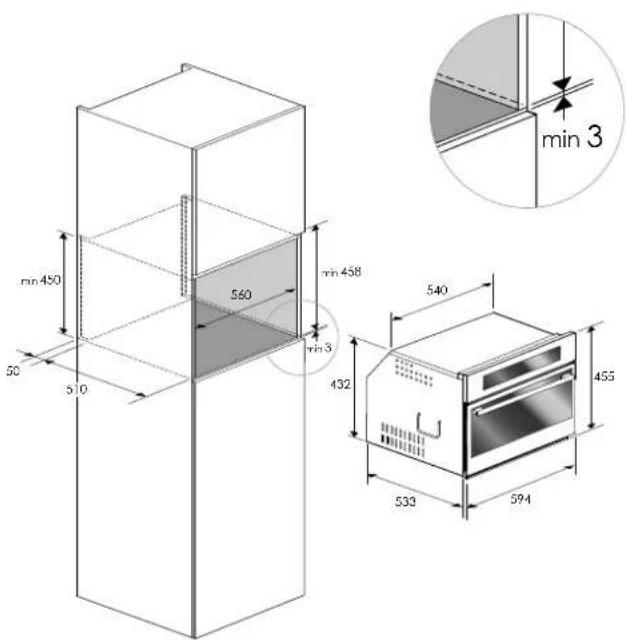

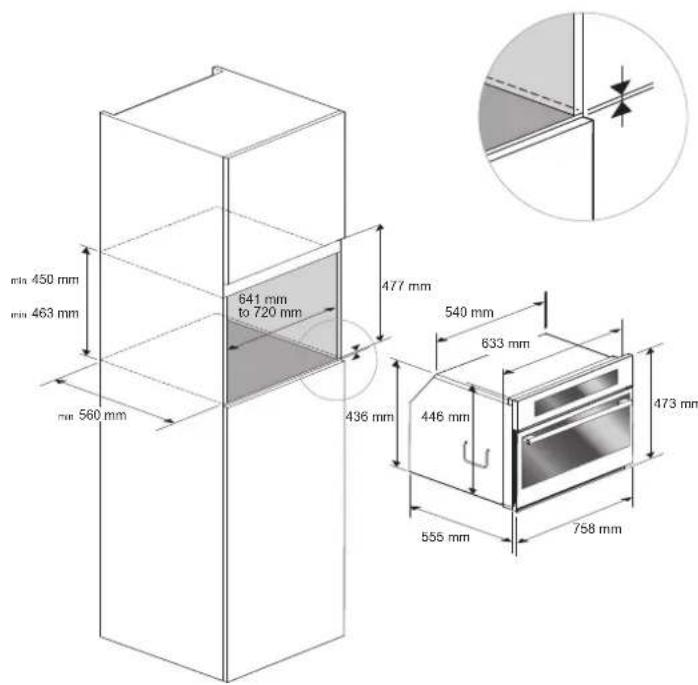

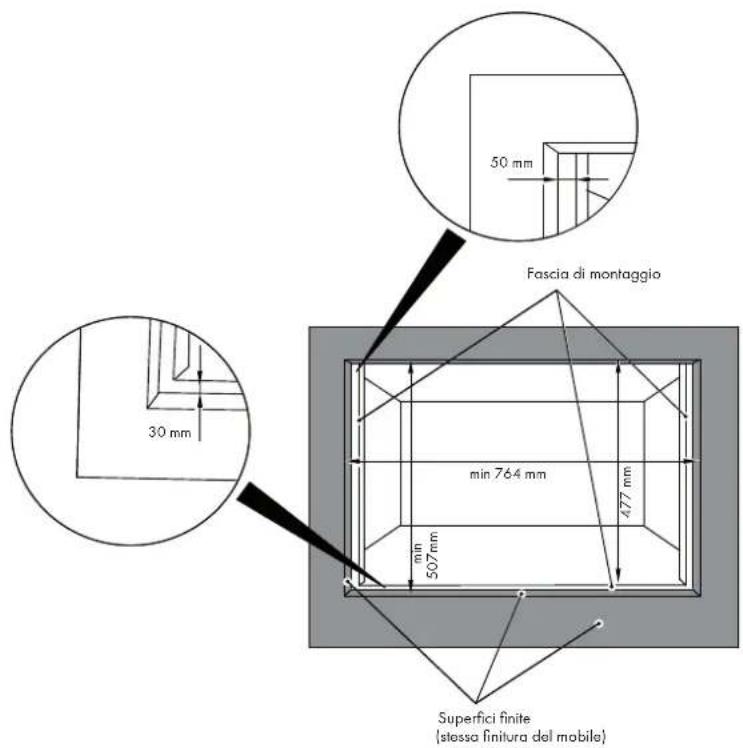

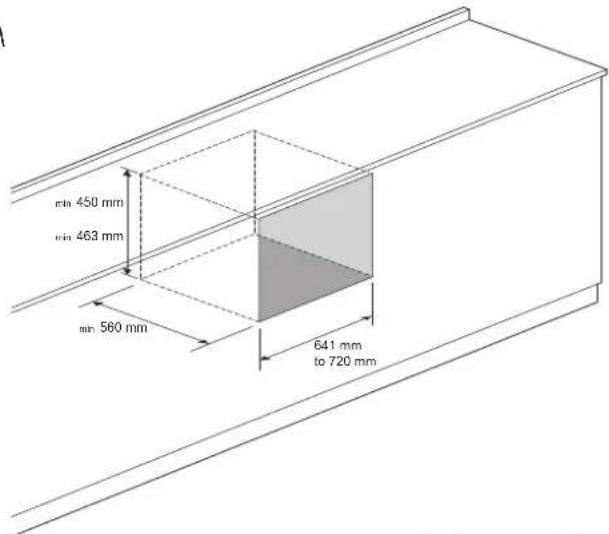

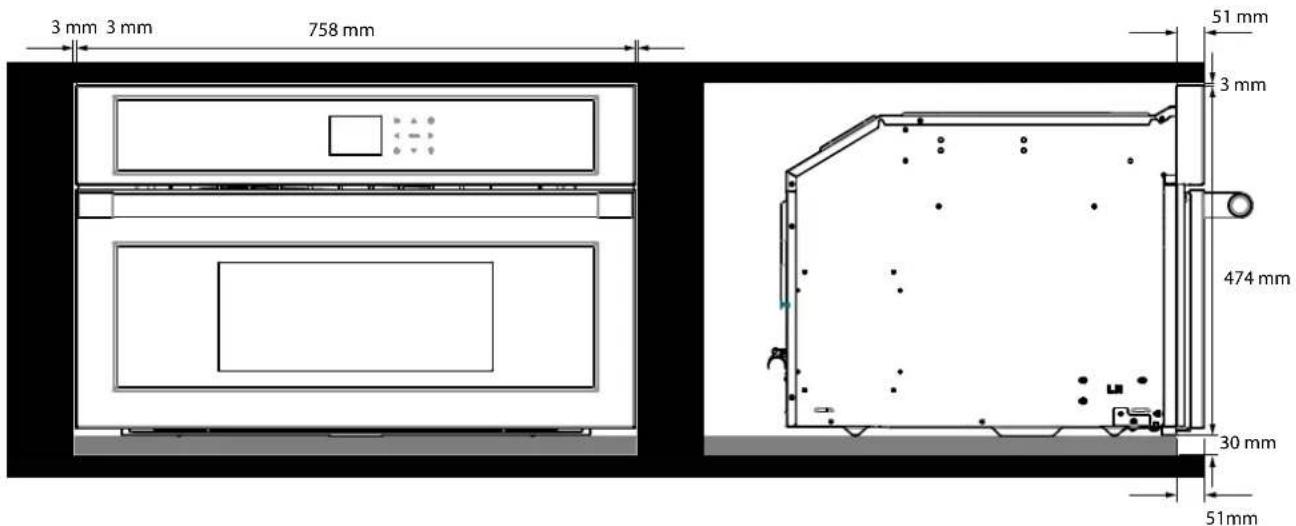

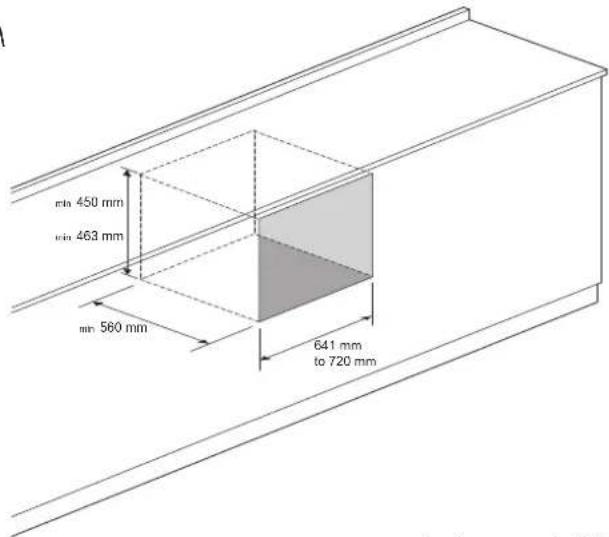

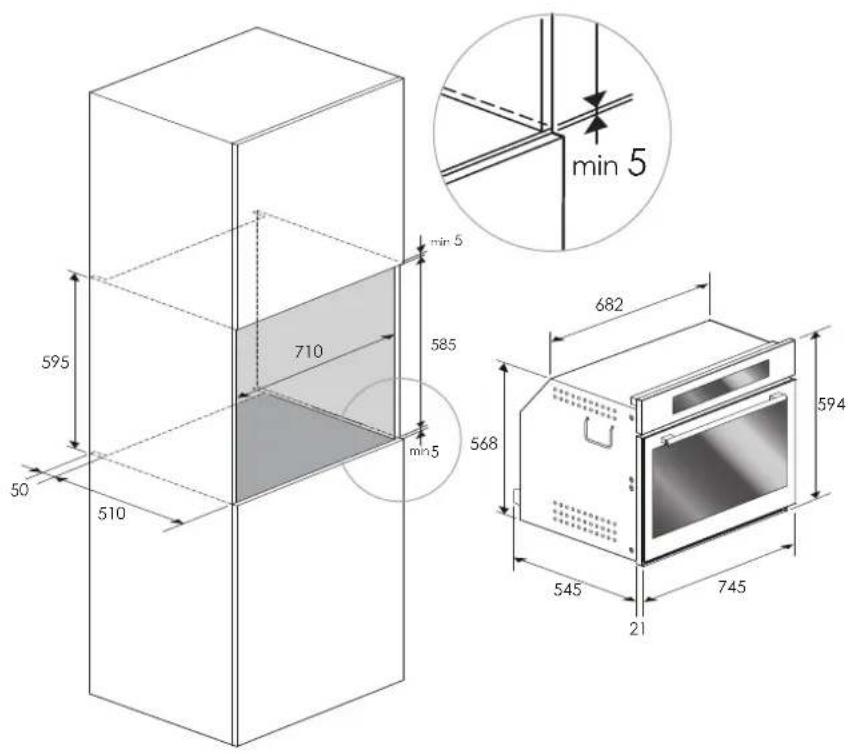

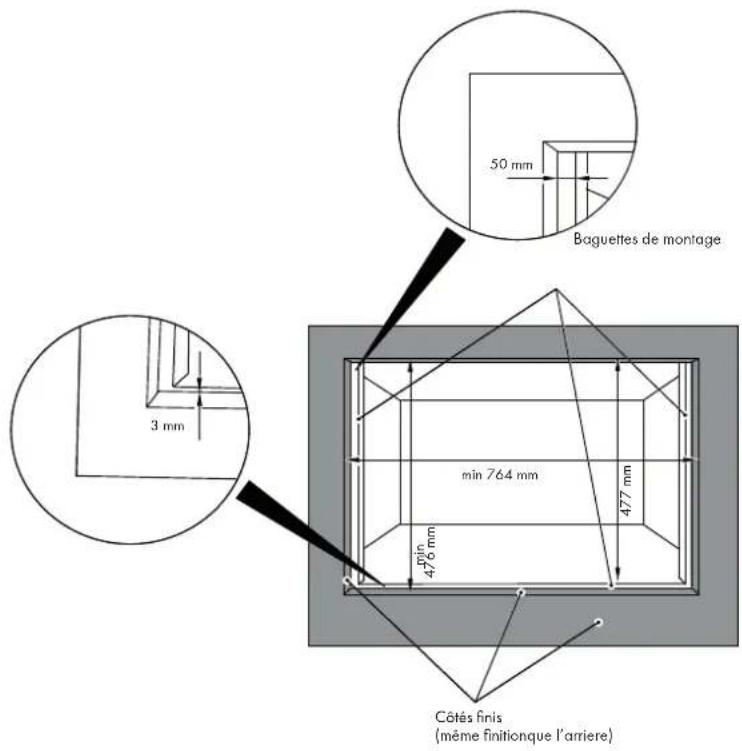

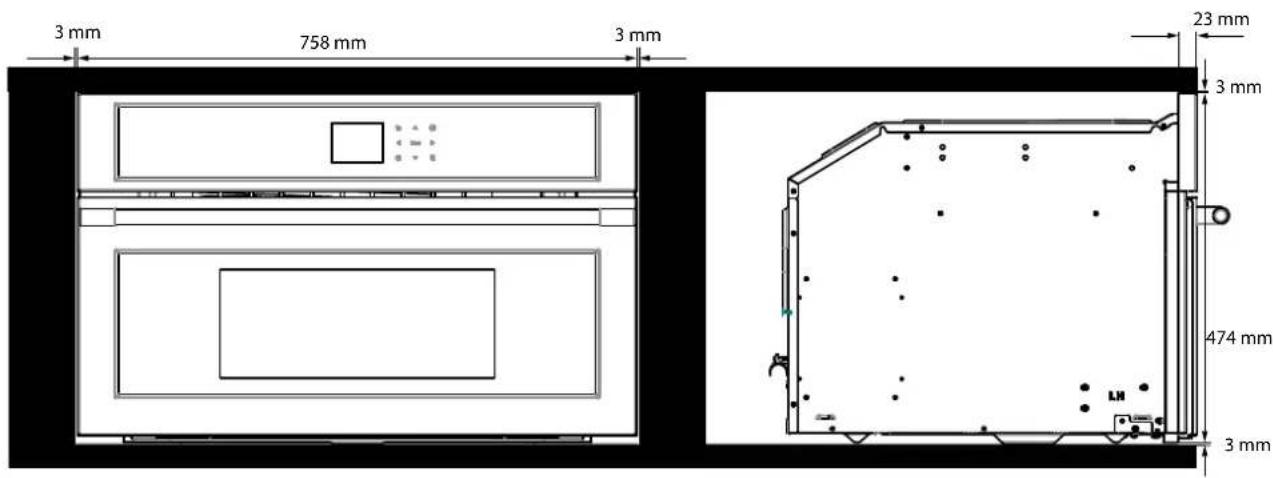

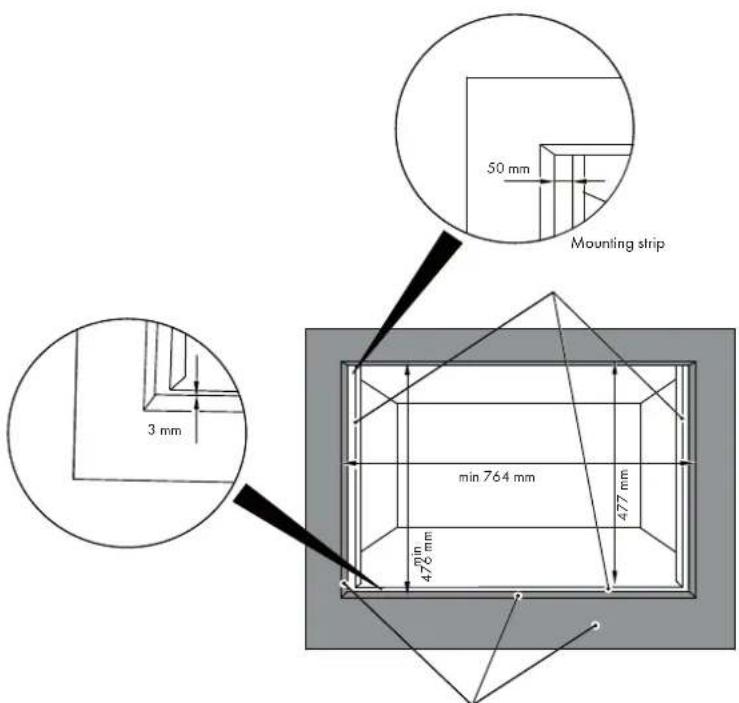

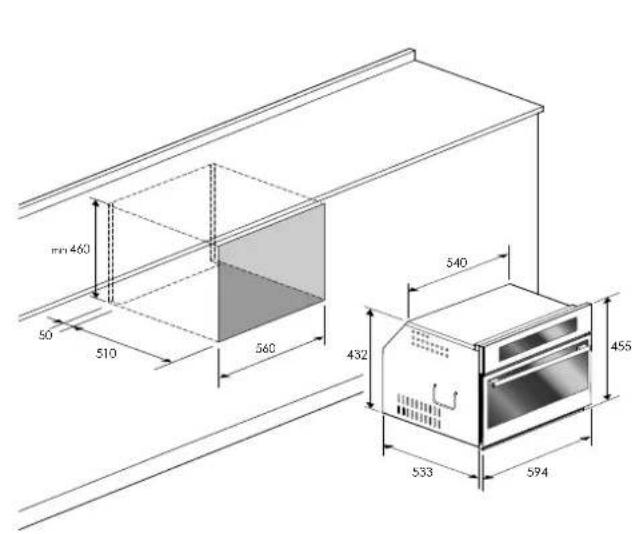

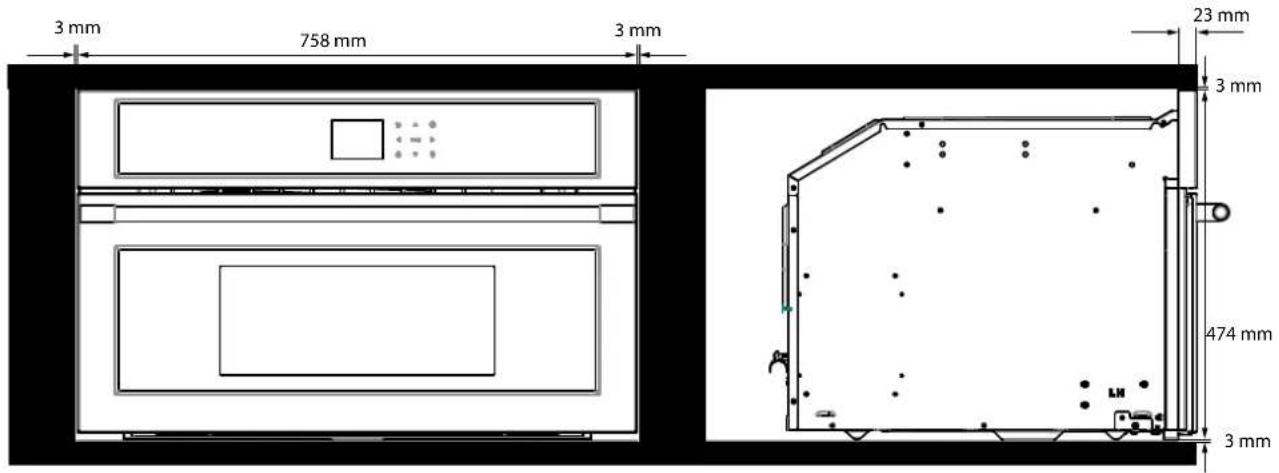

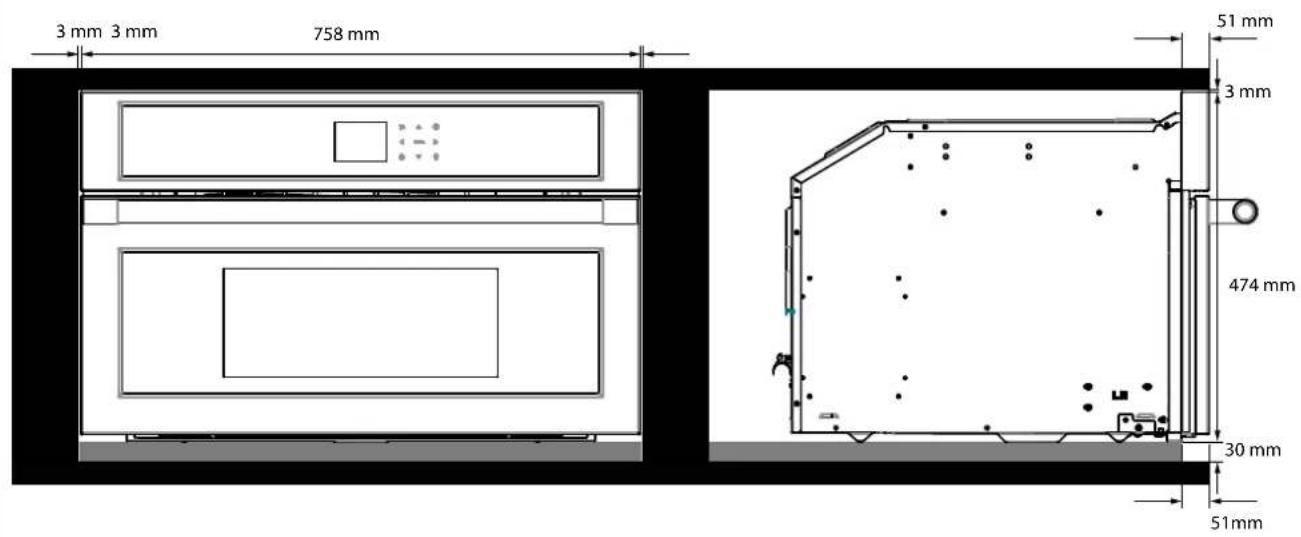

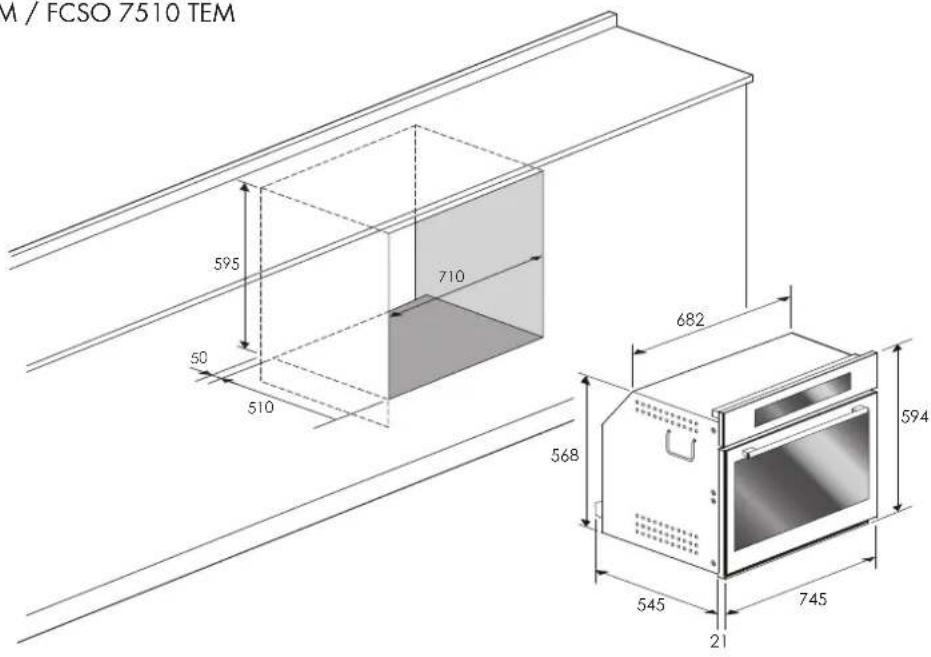

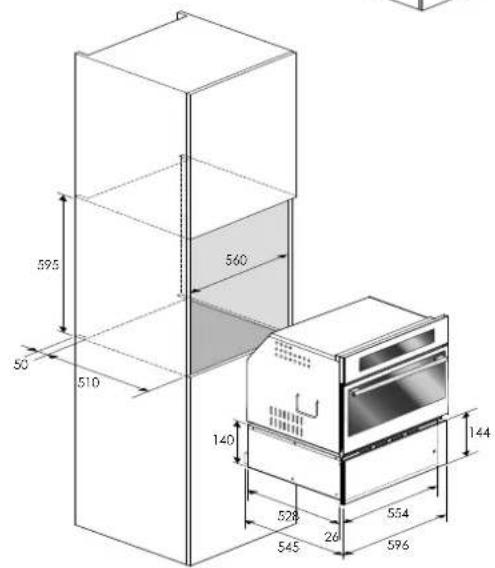

Installing the oven in a cabinet The oven must be installed under a cook top, in a column, or combined with the relative food-warmer drawer. The dimensions of the space must be those shown in the figure. The cabinet material must be able to withstand the heat. The oven must be centred within the walls of the cabinet and fixed with the screws and bushings that are provided. Models:

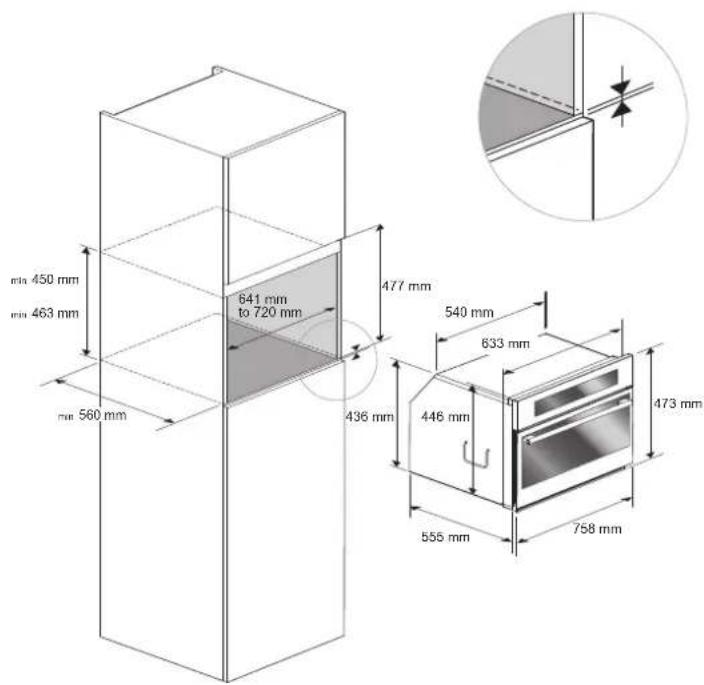

Dimensions are in millimeters Models:

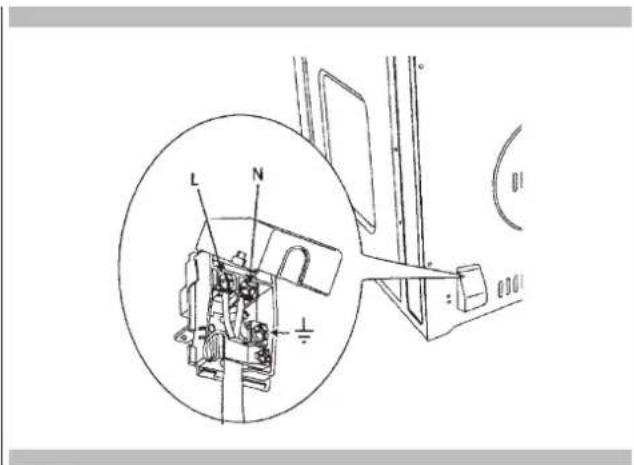

Electrical Hook-Up Before connecting to the electricity, make sure that:

• the characteristics of the electrical system satisfy what is shown on the serial number plate applied to the front of the oven;

• the system has an effective earth connection compliant with current standards and laws. The earth connection is required by law. The cable must not, at anypoint,reachatemperaturegreaterthan50°Cabovethe ambient temperature. This oven must be connected to the electricity through a power supply cable and plug that is compatible with the outlet of the electrical system that powers this oven. If a fixed appliance does not have a power cord and plug, or another device that ensures disconnection from the mains, with an opening distance of the contacts that allows complete disconnection under the conditions of excessive voltage category III, such disconnection devices must be provided in the power supply mains conforming to the installation rules. The omnipolar socket or switch must be easy to reach when the appliance is installed. Note: The manufacturer declines all liability if the usual accident prevention standards and the above instructions are not followed. TYPE AND MINIMUM DIAMETER OF THE CABLES SASO H05RR-F 3x1,5mm² H05RR-F 3x2,5mm² H05VV-F 3x1,5mm² H05VV-F 3x2,5mm² H05RN-F 3x1,5mm² H05RN-F 3x2,5mm² H05V2V2-F 3x1,5mm² H05V2V2-F 3x2,5mm²EN

20 - Solving Traditional Baking Problems

With either Bake or Convection Bake, poor results can occur for many reasons other than a malfunction of the oven. Check the chart below for causes of the most common problems. Since the size, shape and material of baking utensils directly affect the baking results, the best solution may be to replace old baking utensils that have darkened and warped with age and use. Baking Problem Cause Food browns unevenly - Oven not preheated - Aluminum foil on oven rack or oven bottom - Baking utensil too large for recipe - Pans touching each other or oven walls Food too brown on bottom - Oven not preheated - Using glass, dull or darkened metal pans - Incorrect rack position - Pans touching each other or oven walls Food is dry or has shrunk excessively - Oven temperature too low - Oven not preheated - Oven door opened frequently - Tightly sealed with aluminum foil - Pan size too small Food is baking or roasting too slowly - Oven temperature too low - Oven not preheated - Oven door opened frequently - Tightly sealed with aluminum foil - Pan size too small Pie crusts do not brown on bottom or have soggy crust - Baking time not long enough - Using shiny steel pans - Incorrect rack position - Oven temperature is too low Cakes pale, flat and may not be done inside - Oven temperature too low - Incorrect baking time - Cake tested too soon - Oven door opened too often - Pan size may be too large Cakes high in middle with crack on top - Baking temperature too high - Baking time too long - Pans touching each other or oven walls - Incorrect rack position - Pan size too small Pie crust edges too brown - Oven temperature too high - Edges of crust too thinEN

21 - Solving Operational Problems

Before contacting service, check the following to avoid unnecessary service charges. Oven Problem Problem Solving Steps Other F__ Error appears in the display window. Remove power and turn it back on again after a few seconds. If condition persists, note the code number (in the EVENT LOG list) and contact service. The oven display stays OFF Turn off power at the main power supply (fuse or breaker box). Turn breaker back on. If condition persists, call an authorized service. Cooling fan continues to run after oven is turned off The fan turns off automatically when the electronic components have cooled sufficiently. Oven is not heating Check the circuit breaker or fuse box to your house. Make sure there is proper electrical power to the oven. Make sure the oven temperature has been selected. Oven is not cooking evenly Refer to cooking charts for recommended rack position. Always reduce recipe temperature by 25°F (15°C) when baking with Convection Bake mode. Oven light is not working properly Replace or reinsert the light bulb if loose or defective. See Page

25. Avoid touching the bulb glass with bare fingers as finger oil

may cause bulbs to burn out prematurely. Clock and timer are not working properly Make sure there is proper electrical power to the oven.EN

Beforecontactingservice,pleasecheck“Troubleshooting.”It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. Service Data Record For authorized service or parts information see paragraph “WARRANTY for Home Appliances”. For serial tag location see Page 3. Now is a good time to write this information in the space provided below. Keepyourinvoiceforwarrantyvalidation. Service Data Record Model Number _________________________________ Serial Number __________________________________ Date of Installation or Occupancy __________________FR
