USER MANUAL John Deere Ground Loader PEG PEREGO

Do NOT ride vehicle before charging battery for 18 hours. Failure to do this will permanently damage the battery and void your warranty.

ALSO;

Charge the battery immediately after each use, regardless of how long the vehicle was used.

Storing the battery in a discharged state will permanently damage the battery.

When storing, the battery must be recharged every 30 days.

NEED HELP: Call I-800-728-2108

ONLY USE THE PEG PEREGO BATTERY & CHARGER WITH THIS TOY.

As Peg Perego USA, INC. grows, counterfeits and unauthorized distributors and retailers are making non-Peg Perego products and low quality knockoffs that are mistaken for an authentic one. Please avoid use of outside brand - third party accessories and/or products with the Peg Perego brand, which have resulted in damage to the product.

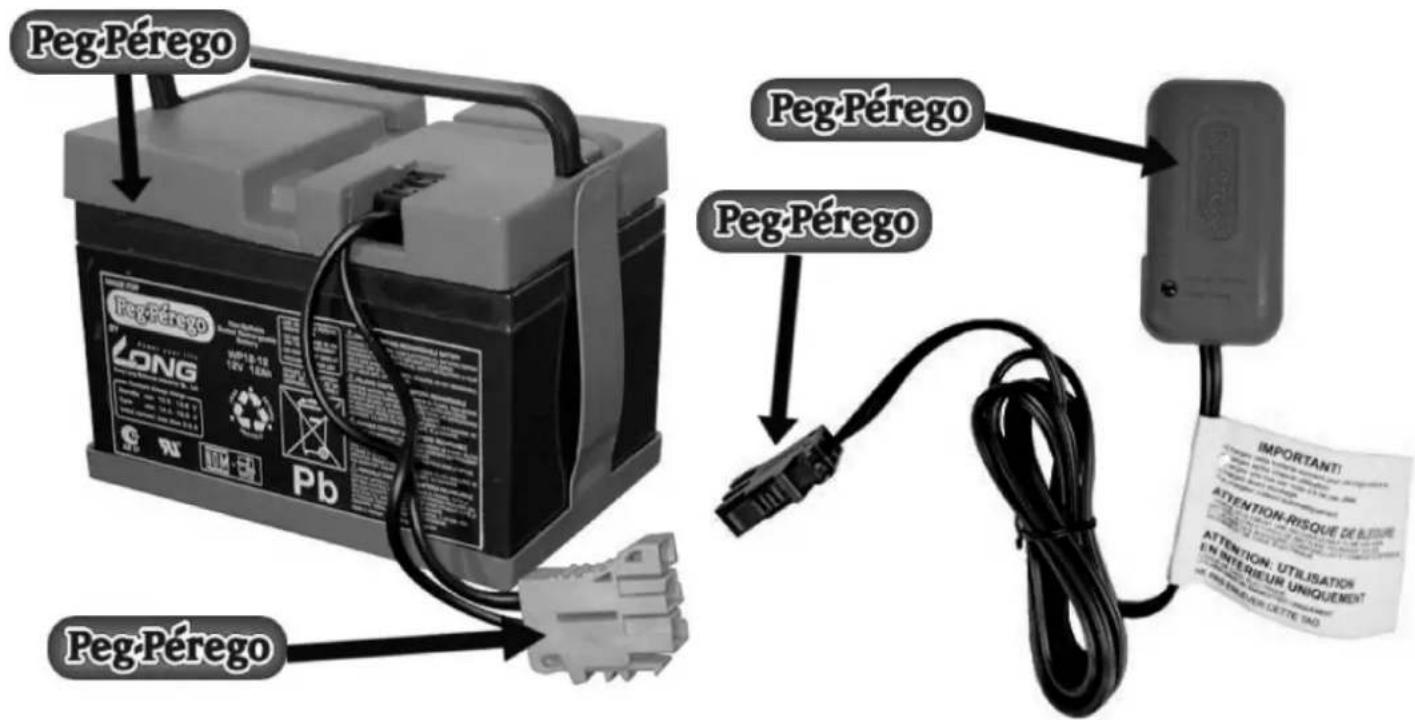

Ways to determine a true Peg Perego battery and/or charger:

1) The Peg Perego logo along the front of the battery itself.
2) The Peg Perego logo along the front of the charger.
3) The Peg Perego logo along the battery and charger connectors.

Peg Pereg0 12 volt battery

Peg Pereg0 12 volt charger

ENGLISH FRAND

A) Plug the battery charger into a power outlet in compliance with the specifications on the label. This power unit is intended to be correctly oriented in a vertical or floor mount position.
B) Connect the charger the battery for 18 hours.
C) If your battery charger is provided with a LED indicator, it means one of the following:
1) When plugging in the charger, as described in A, and no battery is connected, the green LED light will appear, indicating that the device is working correctly.
2) Connect the battery as described in B. If all connections have been made properly and the battery is sufficiently discharged, the start of charging will be confirmed by the orange LED lighting up or by the flashing green LED light.
3) When the battery is almost fully charged, the LED will return to a solid green light.
D) The green LED does not necessarily mean that the battery is charged.
E) If the battery is already charged, the green LED is already on or turns green soon after B is carried out. If the battery life is reduced the next time you use the battery, please contact Customer Service for assistance in checking the battery and battery charger operation.
F) Once the charge is completed and the LED is on, unplug the battery charger from the main outlet first, then the battery terminal. Connect the battery to the electrical system of your toy, which is now ready to use.

The battery charger is fitted with a safety device. In the event of short circuit or overheating, a protection system prevents current peaks, which could damage your battery charger.

In this case, unplug the battery charger from the power outlet, find and remove the cause of short circuit, and re-connect everything to the power outlet.

IS ESPANOL

I -Insert only lead batteries.
2 Do not use with non-rechargeable batteries. Risk of explosion.
3 For adult use only. It is not a toy.
4. Do not use with damaged sheathing, cable or connector.
5 During recharging operations, make sure the battery charger is in a well-ventilated area.
6. Should the battery charger be damaged in any way, do not use it until it is fully repaired.

ATTENTION:

Connect battery charger to a 120vac wall receptacle. Connect battery charger to battery.

INSTALLING BATTERY

If you possess or have purchased a 12V/12Ah Peg Perego battery, you should remove the plastic filler (A) by slipping it off the battery holder.

IS ESPANOL

PREMIERE CHARGE DE BATTERIE

• Put the new battery into place with the battery holder, taking care to insert it sideways into the false motors housing; fix the battery holder in place with the two screws.
• Connect the battery and electrical system plugs. Close the hood by repositioning the lock, as shown before.

BATTERY RECHARGE

WARNING:

WARNING: BATTERY CHARGING AND ANY OTHER OPERATION ON THE ELECTRICAL SYSTEM MUST BE CARRIED OUT BY ADULTS ONLY. THE BATTERY CAN ALSO BE CHARGED WITHOUT REMOving IT FROM THE VEHICLE.

• Insert the battery charger plug in a domestic power socket in accordance with the instructions enclosed with it. Connect plug B with the battery charger plug C. When the battery is charged, remove the battery charger from the domestic socket, then disconnect plug C from plug B.
  Fully insert plug B into plug A, ensuring that they click together. Insert the battery holder. Once finished, always remember to close and lock the lid of the battery compartment.

BATTERY REPLACEMENT

• Open the battery compartment, as shown in before. Disconnect the battery power plugs.
• Unscrew the two screws of the battery holder and remove it as shown in the figure. Extract the battery.

IS ESPÁÑOL

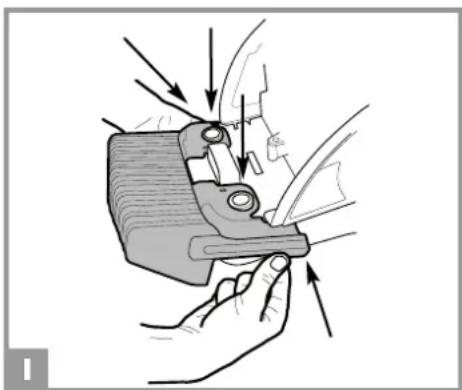

I •Place the green counterweight on the front of the tractor chassis: the hollow pegs onthe chassis should pass through the holes in the counterweight. Secure the lower part of the counterweight by hooking the "C" shaped tabs under the chassis.
2. Fasten the counterweight with the two screws.

IS ESPANOL

THE PRODUCT IS DAMAGED WHEN YOU OPEN THE PACKAGING CONT ATHE SERVICE CENTER AND DO NOT USE THE PRODUCT.

BATTERY IS INCLUDED AND MUST BE CONNECTED.

1. Position the hood by inserting the hinge

into the hinge receiver slots of the chassis (1). Then secure the hinge with a screw (2). Close the hood and use a coin to lock the safety catch (3).
4 Press the two center headlight lenses into place, paying attention to the 3 corresponding tabs.
5. Install the two remaining side headlights, again paying attention to the corresponding tabs. Attention! The center headlights and side headlights are not identical: check that the orientation and shape match before pressing them into place.
6 Press the side inserts onto the chassis.
7 Unscrew the knobs situated under the seat.
8. Place the seat in line with the holes of the seat support.
9 The seat is adjustable in 2 positions depending on the height of the child (see figure).
10. Once the seat is in place, screw the 2 locking knobs back on.
I I •Insert the front tabs of the seat support into the slots of the chassis.
12. Reposition the seat support onto the tractor chassis and secure with 2 screws.

13 •Put the stickers to the back lights position as shown in the figure.
14 Attach the lenses from bottom to top.
15 Install the two caps into the "C" slots on the right and left rear fenders.
16 Press the ring onto the underside of the steering wheel and place the cover on the top of the steering wheel.
17 -Push the steering wheel shaft from under the tractor up until it emerges from the top of the chassis.

ATTENTION:

ASSEMBLAGE PAR UN ADULTRE REQUIS.

OUVRIR LES EMBALLAGES AVEC PRECAUTION CAR LES PIECES A ASSEMBLER PEUVENT COMPORTER DES RISQUES DE COUPURES OU DE BLESSURES.

SI LE PRODUIT EST ENDOMMAGE LORSQUEVOUS OUVREZ L'EMBALLAGE, CONTACTEZ LE SERVICE APRES-VENTE ET N'UTILISEZ PAS LE PRODUIT.

LA BATTERIE EST INCLUSE ET DOIT ETRE CONNECTEE.

1. Hold the shaft in this position and insert the steering wheel.
   19 •Secure the steering wheel with the bolt and nut provided, taking care to insert the bolt into the round hole and the nut into the hexagonal one.
   20 Press the hubcaps onto the wheels; the larger ones go onto the front wheels, the smaller ones onto the rear wheels.
   21 Overturn the bucket as shown. Lay the left and the right loader arms onto the bucket. Carefully remove the tape from the arms, but keep them compressed until the bolt has been installed. Place the spring wire in the slot adjacent to the bucket bracket and press the arm into the bucket bracket and align the bolt holes.
2. Slide a washer onto the bucket bolt and insert it into the corresponding holes to connect the bucket to the loader arm. Slide a second washer onto the bolt, then insert the nut. Tighten (but do not overtighten) with a screwdriver and pliers. Repeat on the opposite side.
3. Install one of the two cross pieces onto the front part of the loader arms, as shown in the figure.
   24 Secure with the two screws provided (one for each side).
4. Insert the second cross piece onto the rear part of the loader arms.
   26 Secure with the two screws provided (one for each side).
   27 •Attach dump bucket control lever to loader frame: Place 7mm (1/4" +) retainer with chrome cover in the red plastic tool as shown, STAR side visible. Place the 4 inch × 7mm rod into the retainer and tap with hammer to seat.

28-Then insert the 4^ rod through the hole in the control lever and through the hole in the loader frame. Hold outside end and firmly press a 2nd 7mm retainer onto the inside end of the rod.
29 Connect control lever to the bucket with the black linkage rod: Place 7mm retainer in the slot on the right side of the bucket, with STAR side visible through the hole.
30 -Hold the linkage rod so the 45^ (1/4) bend is near the control lever. Place the end through the control lever and firmly press a 7mm retainer over the end of the rod. Then firmly insert the bucket end of the linkage rod into the retainer you placed in the bucket. Press down on the plastic handle to test.
31 Place the "U" shaped handle onto the loader frame arms as shown in the figure; the picture in box A shows the CORRECT position of the lower tab, which should be inserted into the slot of the loader arm; the picture in box B shows the INCORRECT position.

FRANÇAIS ESPAIN

1. Insert a nut into the hexagonal hole on the inner part of the handle. Insert a bolt onto the opposite side.
   33 Secure the handle by tightening the bolts. Repeat on the opposite side.
2. Place the loader onto the tractor.
   35 Attach the rear part of the loader, as shown in the figure.
   36 Place a chrome retainer into the red conical installation tool (hole side facing up). Place the steel rod over the retainer opening and tap with a hammer.
3. Line up the holes in the loader frame with the holes in the hood and insert the steel rod.
   38/39 -Place a retainer in the red installation tool and press the retainer on the opposite end of the steel rod while holding the backside of the rod with your hand.
   40 To open the battery compartment (under the hood), use a coin to turn the black hood latch key. Then, push the "U" shaped handle forward to rotate the hood & loader to the open position.
   41 Connect the battery plug to that of the system. Close the battery compartment, taking care that the side parts of the hood are on the outside, and secure by turning the black pin by 180^ . The vehicle is ready for use.

FRANÇAIS ESPAI

VEHICLE FEATURES AND INSTRUCTIONS FOR USE

42 -GEAR SHIFT LEVER. The vehicle has 2 speeds plus reverse. ATTENTION: when it is removed from the packaging, the vehicle only travels in first gear and in reverse. To use 2nd gear, see figure 45.
43. Remove the screw in the second gear lock (fig. A). Turn the lock to the next position (fig. B). Screw the lock back on. All gears are now available.
44-ACCELERATOR PEDAL/ELECTRIC BRAKE. The brake will automatically be applied when the foot is lifted off the pedal.
45. LOADER: To lower the loader, push the handle forward as far as it will go.
46 To raise the loader, pull back the handle and lock into place.
47/48 •Unscrew and remove the bottom of the trailer from the bottom of the tractor.

CHARACTERISTIQUES ET MODE D'EMPLOI DU VEHICULE

12 VOLT TROUBLESHOOTING GUIDE

SYMPTOMS: POSSIBLE CAUSE: SOLUTIONS:
Will not run in any speed. High, Low or Reverse when accelerator pedal is depressed.	Battery not properly connected.	Install battery per instructions. Make sure blue battery plug is connected to black vehicle system plug.
	Battery low or dead.	Chargers with indicator light - Plug charger into outlet. Green light should be on. Plug black charger plug into blue battery plug, green light should go out or turn orange (depending on the charger) to indicate charging. Light will turn green gradually as the battery reaches full charge.
	Battery dead.	The battery life is limited. As the battery ages it will begin to loose capacity or runtime. The overall life of the battery is maximized with proper care. Always charge the battery after each use. Do not store the battery in a discharged state.
	Accelerator switch not operating properly.	Check accelerator switch operation - Remove Accelerator plate from toy. Remove the blue wire from switch, remove red wire and place it on the terminal that had the blue wire. If vehicle runs, then accelerator switch needs to be replaced. Order accelerator plate. Check accelerator switch wire locations- See solution for "Accelerator switch not connected properly" below.
	Motor wire disconnected.	Motor wire check - Place vehicle in low speed. Raise rear wheels off the ground and turn one rear wheel. The other rear wheel should turn in the opposite direction. If other wheel does not turn, then you may have a motor wire off. Reconnect motor wire.
	Shifter wires disconnected.	Check wires on shifter connector block.
Short runtime	Vehicle has too much load.	Reduce the load on the vehicle. Too much weight, steep slopes, thick grass, sand, etc or any combination of these conditions can overload the vehicle causing reduced runtime.
	Battery is low or near end of life.	See solution for "Battery low or dead" above.
	Battery is low.	See solution for "Battery low or dead" above.
One wheel turns but not the other.	Vehicle is in low or reverse.	This is normal when in low speed or reverse because the wheels act like an automotive differential. This makes turning easier. If one wheel is stalled or stopped the other wheel gets all the power. Shift to high speed to get full power to both wheels.
	Motor wire is disconnected.	See solution for "Motor wire disconnected" above.
	Shifter wire disconnected.	Check wires on shifter connector block.
	Bad shifter switch.	Replace shifter switch.
Problems in either High, Low or Reverse speeds.	High Speed is in the "lock-out" position.	Remove the High Speed "lock-out".
	Motor wire is disconnected.	See solution for "Motor wire disconnected" on reverse side.
	Shifter wire disconnected.	Check wires on shifter connector block.
	Bad shifter switch.	Replace shifter switch.
Vehicle stops intermittently. Then restarts after several seconds.	Automatic Circuit Breaker has tripped because of over loading.	Reduce the load on the vehicle. Too much weight, steep slopes, thick grass, sand, etc or any combination of these conditions can overload the vehicle.
Circuit breaker trips when the battery is plugged into the black vehicle harness.	Accelerator switch not connected properly.	Check accelerator switch wire locations. Remove foot board by prying with a screw-driver at its base. The wiring sequence is red, white and blue from the front of vehicle to the back of vehicle.
Loud clicking noise heard when toy is being used.	Gears are stripping.	Replace motor/ gearbox assembly.
Battery makes a bubbling or sizzling noise when charging.	Battery is being charged.	It is normal for some batteries to make some noise during charging. No action is needed.
Wheels spin too much.	Not enough weight on rear wheels.	Add more weight to vehicle.
	Motor wire is disconnected.	See solution for "Motor wire disconnected"
Brake not working.	Accelerator switch not connected properly.	Check accelerator switch wire locations. See solution for "Accelerator switch not connected properly" above.
	Bad accelerator switch	Replace accelerator plate.

ENGLISH

PEG PEREGO® thanks you for choosing this product. For more than 60 years, PEG PEREGO have been taking children for an outing; first with its famous baby carriages and strollers, later with its pedal and battery operated toy vehicles.

Discover our complete range of products, news and other information about the Peg Perego world on our web site www.pegperegoo.com

IMPORTANT INFORMATION

• Read this instruction manual carefully to learn the use of the vehicle and to teach your child safe and enjoyable driving. Please keep this manual (with your original sales receipt) for use as a reference in the future.

DO NOT RETURN YOUR VEHICLE TO THE STORE. This product cannot be returned for a refund after it has been used. If you have ANY questions, need replacement parts or need assistance, call us toll-free; U.S.A., call I-800-728-2108 / CANADA, call I-800-661-5050

• This product meets and/or exceeds all ASTM (American Society for Testing and Materials) TOY SAFETY STANDARDS, including F 963, Consumer Toy Safety Specifications as well as C.R.C, c.931, the Canadian Hazardous Products (Toys) Regulations.
  If you give away the product to third parties, make sure that it is accompanied by the instruction manual.
• Tools needed for assembly: Phillips screwdriver medium, pliers and a hammer (not included)
• Your new vehicle is partially pre-assembled. It will require adult assembly. Please set aside at 45 minutes for assembly.
• Before the vehicle is used for the first time, charge the battery for 18 hours to initiate it. Failure to do this can result in permanent battery damage.
• Use only with the included Peg Perego 12 Volt lead-acid, rechargeable battery and a Peg Perego 12 Volt Charger (both included).

Year 3+

Weight capacity 85 lbs

• Do not exceed the maximum total weight capacity of 85 lbs (38,6 kg).

Contents:

• I John Deere Ground Loader riding vehicle -- partially assembled
• I Rechargeable 12V 8Ah sealed lead-acid battery
• I Charger 12V
  -two 165 W motors -- pre installed
  -assembly hardware
  parts to be assembled
  decals

· Speed in 1st gear 2^1/4 MPH

• Speed in 2nd gear 4^1/2 MPH

Speed in reverse gear 2^1/4 MPH

• To prevent damaging the motor and gears, teach your child to stop the vehicle before switching directions.
• Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Peg Perego will not be responsible for damage to the floor if the vehicle is used indoors.
• Peg Perego reserves the right to modify or change its products. Price, literature, manufacturing processes or locations or any combination of the above mentioned entities may change at any time for any reason without notice with impunity.

CAUTION:

ELECTRIC VEHICLE NOT RECOMMENDED FOR CHILDREN UNDER 3 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. RECHARGER INCLUDED. 120Vac 60Hz 16W INPUT - 12Vdc 12W OUTPUT

CAUTION:

Only adults should recharge batteries never children.

Never allow children to handle batteries.

Only use the batteries specified by the manufacturer. Only use the charger specified by the manufacturer.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

CHARGING THE BATTERY

• Charge the batteries no longer than 24 hours, following the instructions enclosed with the battery charger.
• Charge the battery, as the vehicle shows low power, in this way you will avoid damage to the battery.
• If you don't use your vehicle for a long period of time unplug the battery from the main wire harness of the vehicle. Remember to charge the battery at least every three months.
• Never charge the battery upside down.
• Do not forget batteries during charging! Check them periodically.
• Never use a replacement recharger or batteries unless they are approved by PEG PEREGO.
• Batteries are sealed and maintenance free.
• Battery polarity must be observed when connecting battery to wiring.

WARNING:

BATTERIES CONTAIN TOXIC AND CORROSIVE SUBSTANCES. DO NOT TAMPER WITH THEM.
- Batteries contain an acid-based electrolyte.
- Do not make direct contact between battery terminals, as this can cause an explosion or fire.
- Charging produces explosive gases. Charge batteries in a well ventilated area away from sources of heat and flammable materials.
- Exhausted batteries are to be removed from the vehicle.
- Do not place the batteries near clothing to avoid damage.

IF A LEAK DEVELOPS

Shield your eyes. Avoid direct contact with the electrolyte, protect your hands.

Place battery in a plastic bag and follow directions listed below.

IF ELECTROLYTE COMES IN CONTACT WITH SKIN OR CLOTHING

Flush with cool water for at least 15 minutes.

See a physician at once.

IF ELECTROLYTE IS INJECTED

Give tap water, milk of magnesia or egg whites at once.

Do not induce vomiting.

See a physician at once.

DISPOSAL OF BATTERIES; CONTAINS SEATED LEAD ACID BATTERY. BATTERY MUST BE RECYCLED.

Help protect the environment!

Do not throw used batteries in your regular, household trash.

Disse os bateries at an approved bary dumping station; contact your local Environmental Protection Agency office or call Peg Perego Customer Service for additional information.

DONT STOP THE FUN: purchase a spare battery to have a freshly charged back-up available.

For your child's safety: please read and follow all instructions below before operating.

-ATTENTION:

Check the fastening retainers to be sure they are tight.

• Ist SPEED slow speed (beginner drivers):

With both hands on the steering wheel press down on the accelerator pedal; the vehicle goes forward at 214 mph.
- 2nd SPEED: fast speed (experienced drivers):
With both hands on steering wheel press down on the accelerator pedal; the vehicle goes forward at 4/2 mph.
- REVERSE:

Place the left hand on steering wheel. With the right hand holding the gearshift in reverse, press your foot down on the accelerator; the vehicle reverses at 2/4 mph. (Reverse is spring-loaded for safety).
- BRAKE:

The electric braking system stops the vehicle automatically when your child lifts his foot off the pedal.

Teach your child the proper use of this vehicle for a safe and fun play time.
- Before starting be sure that the way is free from people and objects.
- Drive with both hands on the steering wheel and keep your eyes on the road at all times.
- Stop in time to avoid accidents and immediately release pedal when stuck.
- Use the 2nd speed only after your child has the maturity and the reflexes to operate the vehicle safely.

CAUTION:

• If the vehicle is overloaded, as can happen on soft sand, mud, or very uneven ground, the overload switch will immediately disconnect the power. The power supply will be restored after a few seconds.

VEHICLE MAINTENANCE AND SAFETY

This product meets and/or exceeds all ASTM (American Society for Testing and Materials) TOY SAFETY STANDARDS, including F 963, Consumer Toy Safety Specification.

This vehicle is not intended for use on streets, around traffic or parked cars.

MAINTENANCE AND CARE

• Do not try to repair the vehicle by yourself.
• Regularly check the conditions of the vehicle, particularly the electrical system, the plug connections, the covering caps and the charger. In case of fault, do not try to use the vehicle and the charger. For repair use only original PEG PEREGO's spare parts.
  -PEG PEREGO assumes no liability if the electrical system is tampered with.
• Take care with the battery charger cable. For example, do not pull it to remove the plug, do not pull the vehicle along on its wheels using the cable, do not cover the cable because it may overheat, do not leave it on hot surfaces and be careful about where and how you roll it up.
  Do not leave vehicle or batteries near sources of heat such as radiators, stoves, fireplaces, etc.
• Protect vehicle from water, rain, snow, etc.
• When operating in overload conditions, such as soft deep sand, mud or rough uneven terrain, the overload circuit breaker will automatically disconnect the power. After 30 or more seconds, the circuit breaker will automatically reset, however you must eliminate overload conditions to resume normal driving.
• Periodically lubricate (with a light weight oil) moving parts, such as wheel bearings, steering linkages, where they rotate or touch one another.
• The vehicle's surfaces can be cleaned with a damp cloth. Do not use abrasive cleaners. The cleaning must be carried out by adults only.
• Never disassemble the vehicle mechanisms or motor unless authorized by PEG PEREGO.

SAFETY

WARNING:

• To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than one rider.
• Surfaces that are appropriate for use: grass, dirt or hard surfaces with slopes not to exceed 10% .
  A child must be 3 years of age or older for the necessary coordination and maturation to operate this motorized vehicle safely.

• Never use the vehicle on steep slopes or near steps or stairs. This vehicle is not suitable for use on public highways.
  Children should always wear shoes when riding in or driving a riding vehicle.

• Do not allow children to place their hands, feet or any part of their body, clothing or other articles near the moving parts while vehicle is in operation.

• Do not allow the electrical components, motors, wiring, switches of your motorized vehicle to become wet and never wash it with a hose.
  The vehicle is designed just for one child: never allow more than one rider.
• NEVER STORE GASOLINE OR ANY FLammable Substance WHERE A CHILD CAN ACCESS IT. CHILDREN MAY WANT TO SIMULATE ADULTS BY POURING GASOLINE ON VEHICLE. NEVER ALLOW GASOLINE OR ANY FLammable Substance TO BE NEAR A BATTERY POWERED CHILDREN'S VEHICLE WHEN IT IS BEING RIDDEN.

PROBLEMS?

IF THE VEHICLE DOES NOT OPERATE?

• When operating in overload conditions, such as running the vehicle against a fixed object, through soft deep sand or mud, or over rough or uneven terrain, the overload circuit breaker will automatically disconnect the power. After 10 or more seconds, the circuit breaker will automatically reset, however-you must eliminate overload conditions to resume normal driving.
• Check that all plugs are properly connected.
• Check electrical switches. Replace if necessary.
• Check that the battery is connected to the electrical system.

IF THERE IS NO POWER?

• Fully recharge the battery. If the problem persist, check with an Authorised PEG PEREGO Service Center.

CUSTOMER SERVICE

For your convenience, PEG PEREGO offers after-sales service, directly or through a network of authorized service centers for repairs or replacement parts.

If you have any questions about your Peg Perego vehicle, please call our toll-free service lines at;

U.S.A, call I-800-728-2108

CANADA, call I-800-661-5050

Trained customer service representatives are available to take your call in English or Spanish.

FRANÇAIS

Extended Warranty (for a 2nd Year) with Online Product Registration at www.pegperegousa.com/product-registration

*We respect your privacy. The personal information collected here is used only by Peg Perego and will not be sold to or used by any other company or organization.

Statement of Limited Warranty

One-year limited warranty for Peg Perego vehicles from date of purchase, and/or six-month limited warranty for battery, charger and wheels from date of purchase.

This limited warranty covers your Peg Perego ride-on vehicle and/or the rechargeable battery (if applicable) to the original, noncommercial purchaser who purchased it from Peg Perego or an authorized Peg Perego dealer against defects in materials and/or workmanship, however it does not cover the cost of shipping or handling. If the problem is not covered by this warranty, the consumer must pay for all related expenses associated with parts and services rendered.

This warranty covers normal use and does not cover the vehicle or the battery if it has been damaged by unreasonable use, neglect, accident, abuse, misuse, improper service, modification and/or other causes not arising from defects in materials or workmanship. In no event shall Peg Perego be liable for any other incidental or consequential damages. Except for this limited warranty, Peg Perego makes no other representation or warranty, express or implied, with respect to the products. Peg Perego specifically disclaims all other express and implied warranties, including any implied warranties of merchantability and fitness for a particular purpose.

For Fast & Friendly Service, call I-800-728-2108, or visit www.pegperegco.com.

RegPerego

Do not return your vehicle to the store!

We're a toll-free phone call away and we can help.

If you are missing parts or need assistance, please see the contact information below.

ARRÉTEZ!

Model Number IGOR0079

PEG PEREGO U.S.A Inc.

3625 INDEPENDENCE Dr. FORT WAYNE IN 46808

fax [phone]

call us toll free 1-800-728-2108

llame USA gratis 1-800-225-1558

PEG PEREGO CANADA Inc.

585 GRANITE COURT PICKERING ONT. CANADA LIW3KI

fax [phone]

call us toll free 1·800·661·5050

PEG PEREGO S.p.A.

via A. De Gasperi, 50 20862 ARCORE (MB) ITALIA

www.pegperegoo.com
