USER MANUAL RJS850KA5 RYOBI

Three RYOB1 pushco machines with visible branding and mounting base (no text or symbols on the machines themselves)

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E' importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą konserwacją produktu.
Duležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepouživejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikő található utasitásokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea între operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrło je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Dikkat!	Ürünün montajini, bakimini yapmadan ve ürünü çalıştırmadan önce bu kilavuzda yer alan okumaniz önemlidir.
Проσοχή!	Еівали полú σημαντικό να διαβάσετε τις οδηγίες στο παρόν εγχειρίδιο πριν συναρμολογήσετε, συντηρήσετε ή λειτουργήσετε το προϊόν.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradenė | Подлежи на технически модификации | Є об'єктом для технічних змін | Teknik değişiklik hakki saklıdır | Упó тнүv επιφύλαξη τεχνικών τροποποιήσεων

Safety, performance, and dependability have been given top priority in the design of your jigsaw.

INTENDED USE

The jigsaw is intended to be used only by adults who have read and understood the instructions and warnings in this manual, and can be considered responsible for their actions.

With appropriate blades fitted, the product is designed to cut wood, plastic, drywall, and metal up to the depth described in the specification table.

The product is designed for handheld use. The product is not to be mounted onto a workbench unless specific instructions about how to do this are given by the manufacturer of the product.

Do not use the product for any other purpose. Use of the product for operations different from intended could result in a hazardous situation.

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

JIGSAW SAFETY WARNINGS

• Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

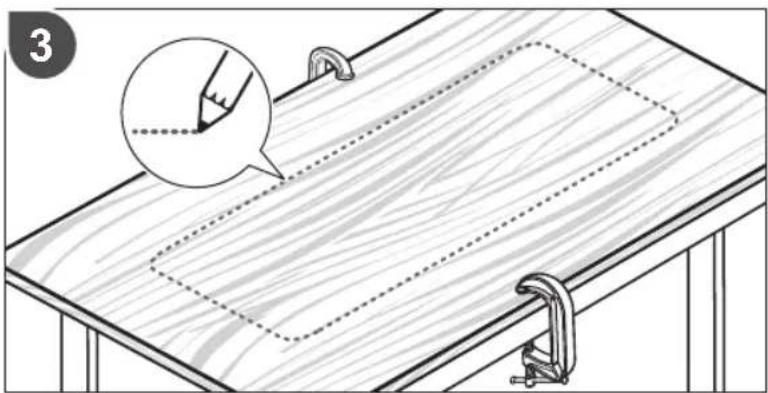

  ■ Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.

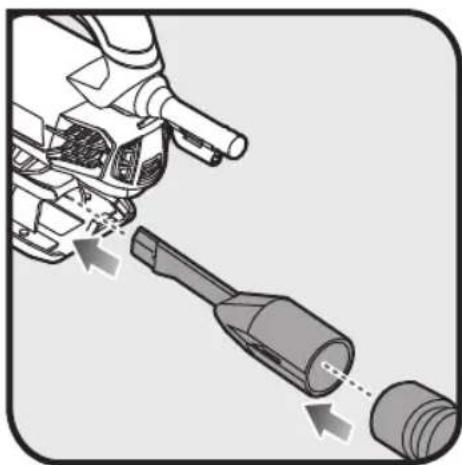

  ■ Use the dust collection device or connect a dust extraction vacuum when operating the product.
• Keep mains lead clear from working range of the machine. Always lead the cable away behind you.
  ■ Wear a dust mask.

Additional safety instructions

■ Avoid running the product at low speeds for extended periods of time. Running at low speeds under constant usage may cause the product to become overheated. If this occurs, cool the product by running it without a load at full speed.

■ Use the correct dust collection system as per the instructions in this manual.

WARNING

Dust from certain paints, coatings, and materials may cause irritation, or allergic reactions to the respiratory system. Dust from wood such as oak, beech, MDF, and others are carcinogenic. Materials containing asbestos should only be worked on or processed by qualified specialist operators.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following:

■ Injury caused by vibration
- Use the lowest speed setting which achieves the cutting, limit exposure. See Risk Reduction.
■ Injury caused by dust
- Dust may enter the eyes or respiratory system. Wear eye protection at all times. Wear appropriate dust control mask with filters suitable for protecting against particles from the material being cut. Do not eat, drink, or smoke in the work area. Ensure adequate ventilation.

■ Injury caused by electric shock

- The blade may contact hidden wiring, causing parts of the product to become live. Always hold the product by the designated handles and take care when blind-cutting into walls and floors where cables may be hidden.

■ Injury caused by contact with the blade

- The blades are very sharp and will become hot during use. Wear gloves when changing blades. Keep hands away from the cutting area at all times. Clamp the workpiece whenever possible.

■ Injury caused by noise

- Noise can damage hearing. When using power tools for an extended period of time, wear hearing protection.

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the

operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.
  ■ After each period of operation, exercise to increase blood circulation.
  ■ Take frequent work breaks. Limit the amount of exposure per day.

If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms.

WARNING

Injuries may be caused or aggravated by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

KNOW YOUR PRODUCT

See page 83.

1. Trigger switch
2. Lock-on button

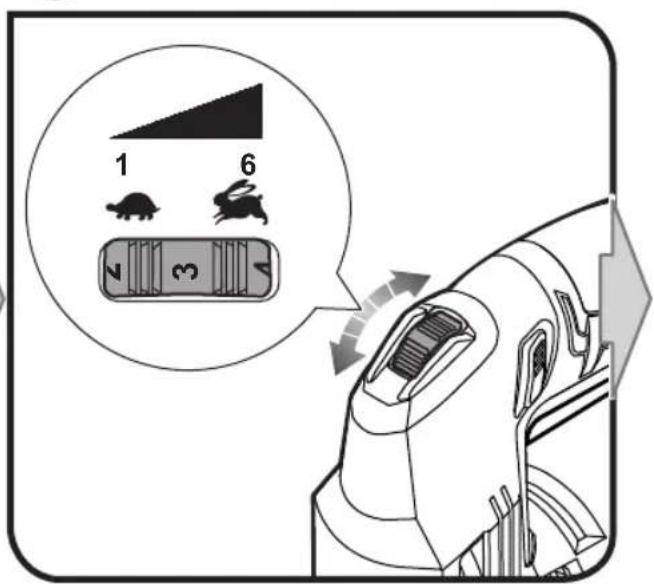

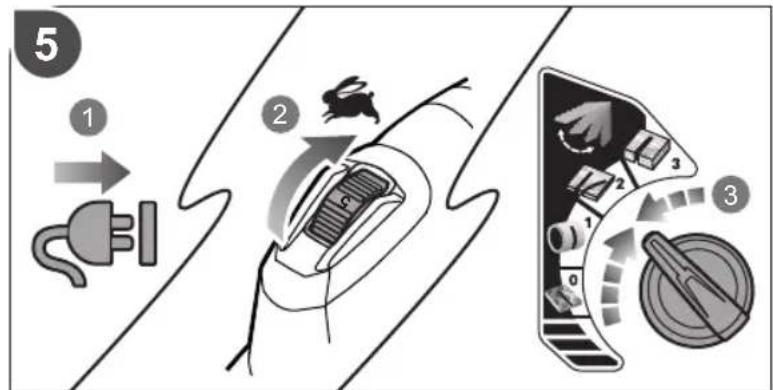

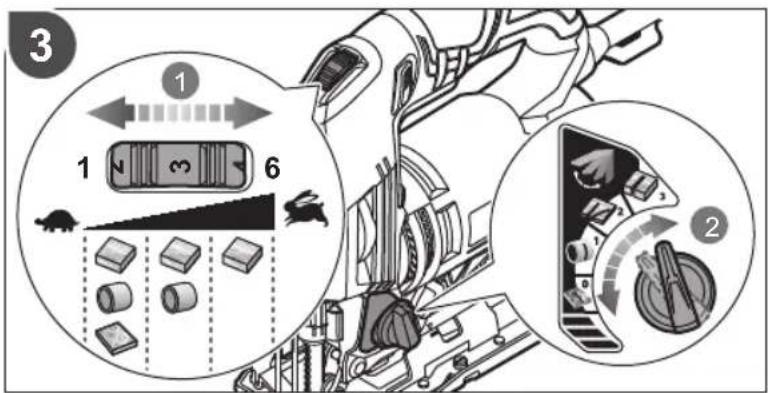

3. Speed control dial

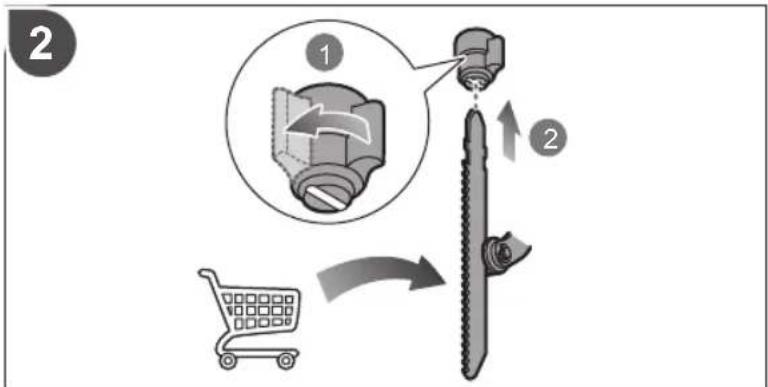

4. Blade clamp releaser
5. Blade guard
6. Blade

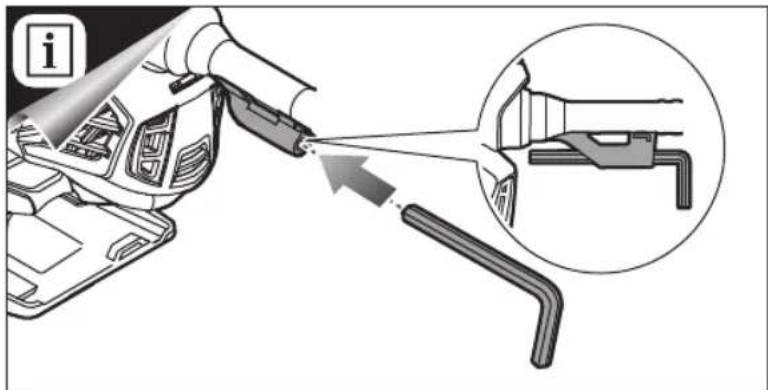

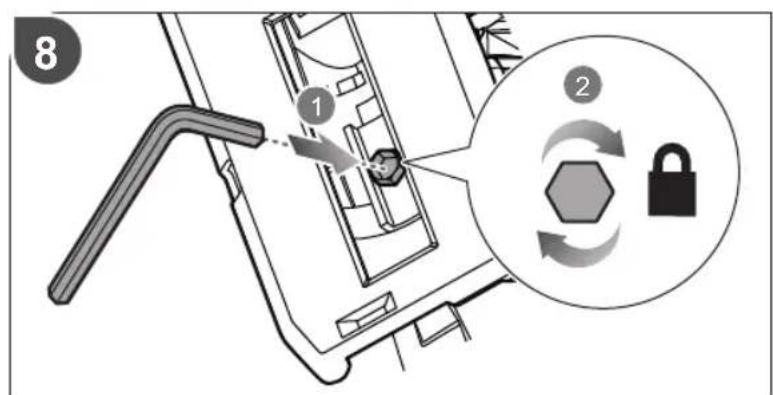

7. Allen key
8. Power cord sleeve

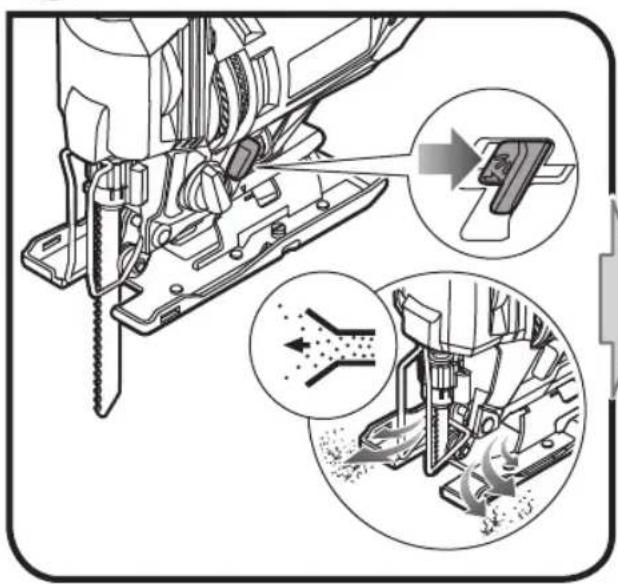

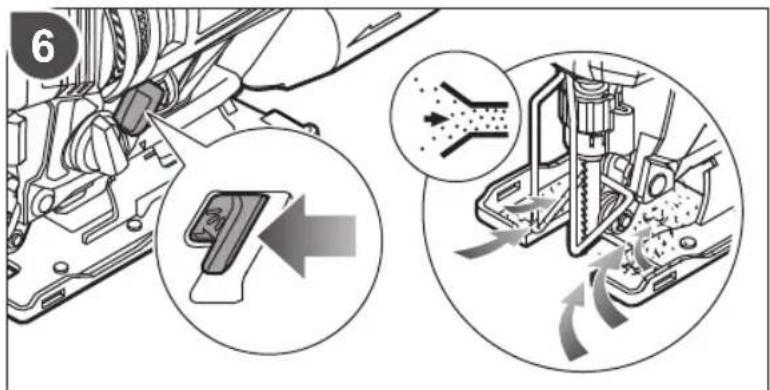

9. Blower switch

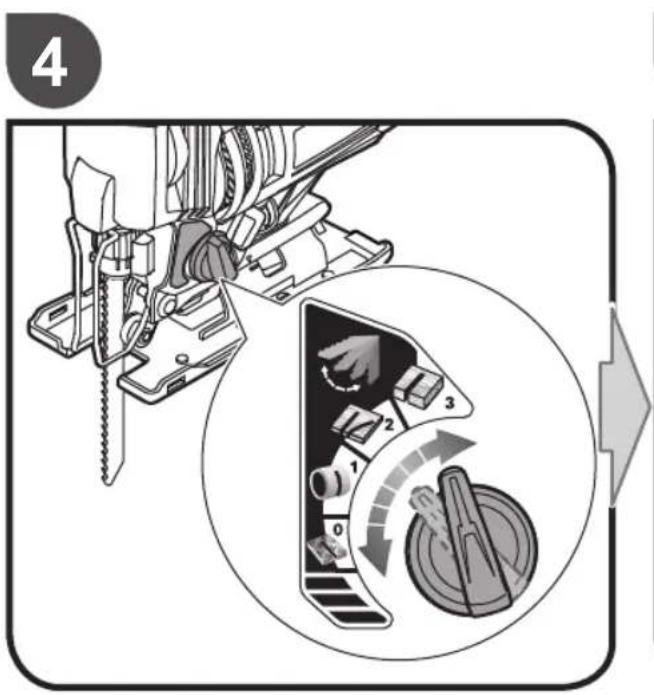

10. Orbital adjustment knob
11. Base assembly

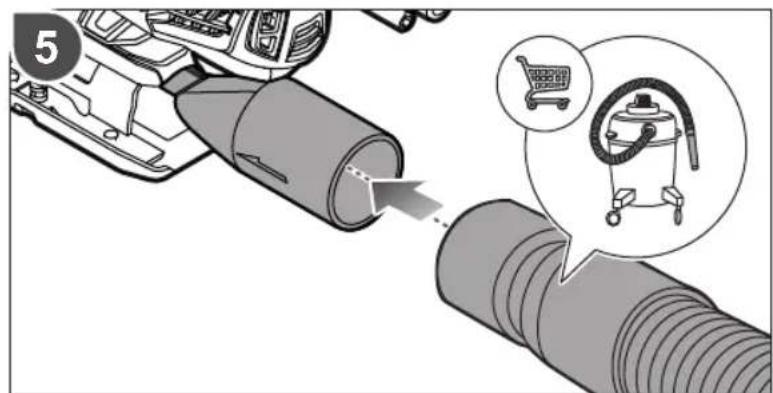

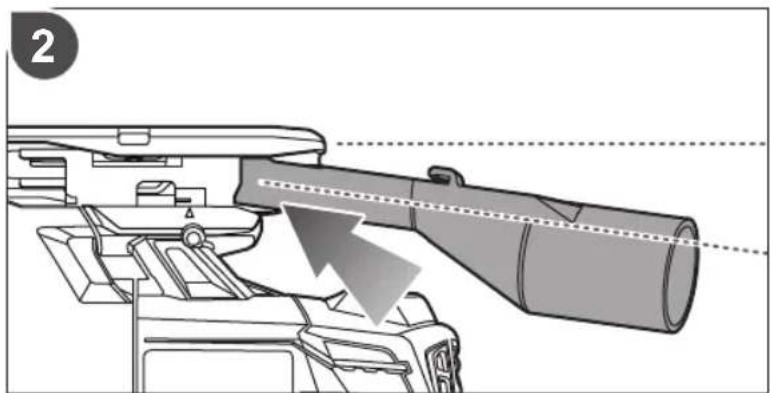

12. Dust port

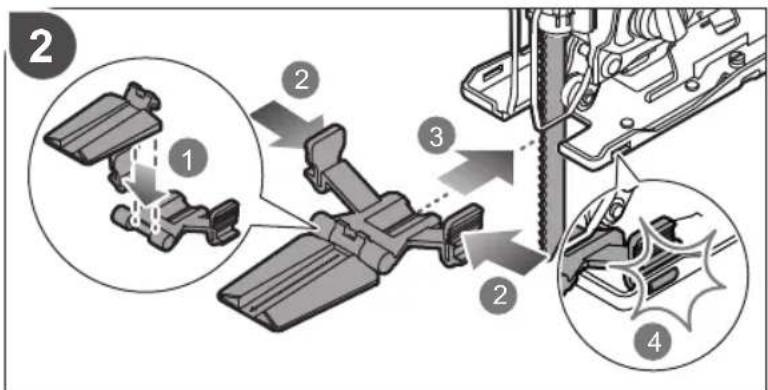

13. Line assist assembly
14. Handle, insulated gripping surface

MAINTENANCE

WARNING

The product should never be connected to a power supply when assembling parts, making adjustments, cleaning, performing maintenance, or when the product is not in use. Disconnecting the product from the power supply will prevent accidental starting that could cause serious injury.

WARNING

When servicing, use only original manufacturer's replacement parts, accessories and attachments. Use of any other parts may create a hazard or cause product damage.

WARNING

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

■ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc.
■ Always wear safety goggles or safety glasses with side shields when operating or cleaning the product. If operation is dusty, also wear a dust mask.
■ Clean the product using a brush or a dust collection system.

WARNING

Do not use compressed air to blow dust/dirt from any power tool. Dirt and grit blown away by compressed air can cause serious eye injury.

■ If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
■ For greater safety and reliability, all repairs should be performed by an authorised service centre.
■ All of the bearings in the product are lubricated with a sufficient amount of high grade lubricant for the life span of the product under normal operating conditions. Therefore, no further lubrication is required.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing of as waste. The machine, accessories, and packaging should be sorted for environment-friendly recycling.

SYMBOLS ON THE PRODUCT

Safety alert

V Volts

Hz Hertz

Alternating current

Watts

n. No-load speed

min ^-1 Revolutions or reciprocations per minute

English

Class II tool, double insulation

Please read the instructions carefully before starting the machine.

CE conformity

EurAsian Conformity Mark.

Ukrainian mark of conformity

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SYMBOLS IN THIS MANUAL

Connect to the power supply.

Disconnect from the power supply.

Parts or accessories sold separately

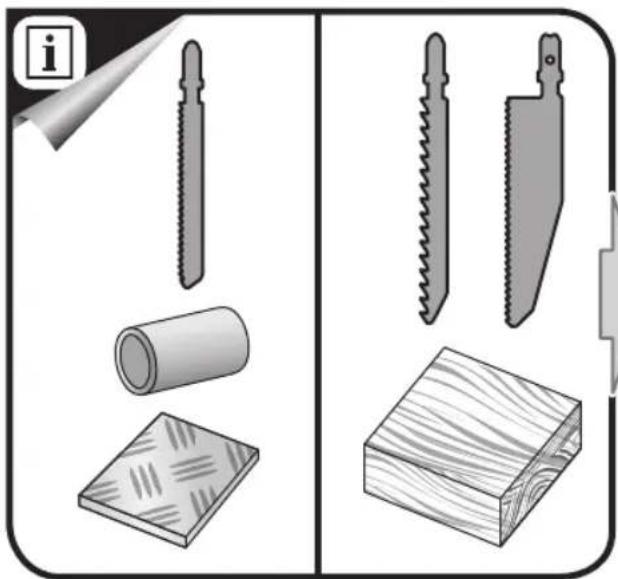

Steel sheet

Metal tube

Thin wood

Thick wood

Speed, minimum

Speed, maximum

Note

Lock

Unlock

Stop the product.

The following signal words and meanings are intended to explain the levels of risk associated with this product:

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

SYMBOLES APPLIQUÉS SUR LE PRODUIT

Alerte de sécurité

V Volts

Hz Hertz

Courant alternatif

Watts

n. Vitesse à vide

min-1

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 83.

SYMBOLE AUF DEM PRODUKT

Sicherheitswarnung

V Volt

Hz Hertz

\~

W

Wechselstrom

W

a

t

-

n. Leerlaufdrehzahl

^-1

VEILIGHEIDSWAARSCHUWINGEN DECOUPEERZAAGMACHINE

SYMBOLER PÅ PRODUKTET

Sikkerhedsadvarsel

V Volt

Hz Hertz

\~

Vekselstrøm

W

W

a

t

[Non-Text]

n. Tomgangshastighed

min^-1

SYMBOLER PÅ PRODUKTEN

Säkerhetsvarning

V Volt

Hz Hertz

\~

Växelström

W

W

a

t

t

SYMBOLER PÅ PRODUKTET

Sikkerhetsadvarsel

V Volt

Hz Hertz

\~

Vekselstrøm

W

W a t t

n. Hastighet ubelastet

min ^-1 Antall omdreininger eller bevegelser pr. Minutt

Norsk

Class II, dobbeltisolert

SYMBOLER I MANUALLEN

Class II tool, double insulation

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Vid' strana 83.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a cylindrical mechanical component with a protruding handle (no text or symbols)

Technical diagram of a mechanical device with numbered parts, including a drill bit and two labeled components.

1

Illustration of various hand tools including a saw, rolled paper, wooden block, and saw blade (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or movement.

2

Technical diagram illustrating mechanical assembly and component disassembly with labeled parts and directional arrows

3

1 6

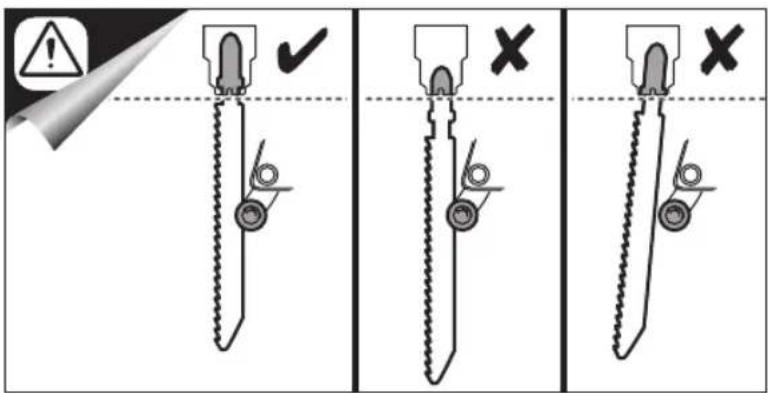

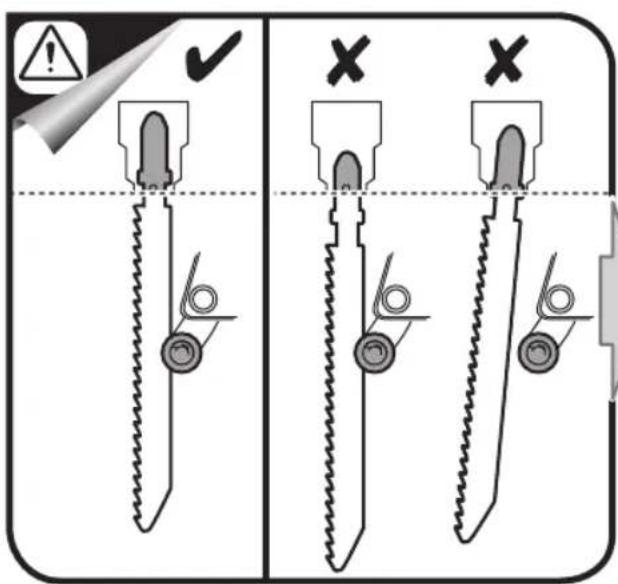

Diagram illustrating three scenarios of a saw tool with checkmark and cross symbols, showing different states of inspection or repair.

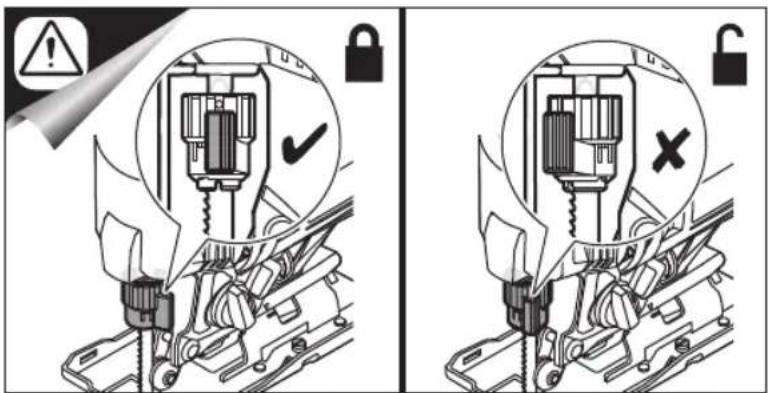

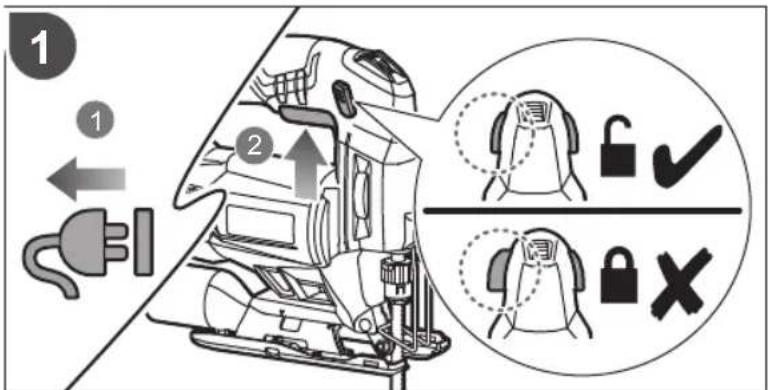

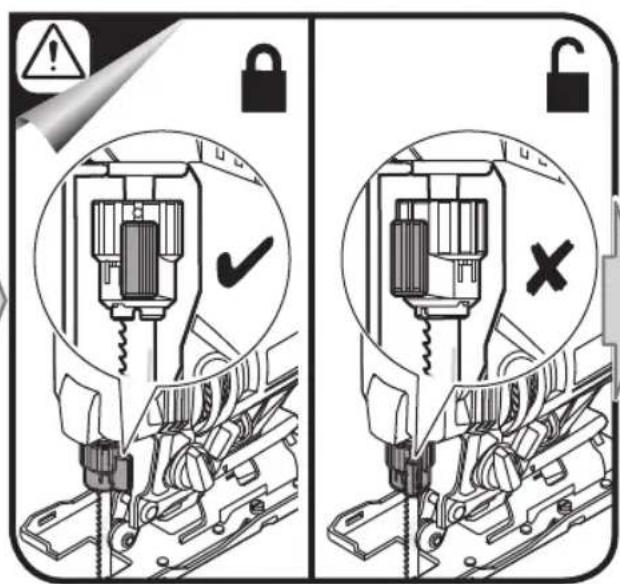

Technical diagram showing correct and incorrect lock status for a mechanical component, with checkmark and cross symbols indicating safety warnings.

4 1 2 3 0

5 1 → 3 2

Diagram showing a robotic arm interacting with a mechanical component, no text or symbols present

Diagram illustrating a device operation with labeled steps and safety icons for lock/unlock operations

Diagram of a firearm with an arrow indicating motion, showing internal components and no text or symbols.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

4

5

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

7 1 2

Technical line drawing of a robotic arm with no visible text or symbols

Diagram illustrating a device operation with labeled steps and safety icons for lock/unlock operations

Technical diagram illustrating mechanical assembly steps with numbered components and directional arrows indicating motion or movement.

Diagram illustrating vehicle safety gear and gear movement, showing numbered components and gear assembly steps

4 1 2

22.5°22.85°45°

Diagram illustrating car safety instructions with numbered steps and corresponding icons for lock, check, and disassembly.

Diagram showing a mechanical component being inserted into a device, with no visible text or symbols.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4 1 2 ✓ ×

5

6 45 22.5 0

7

8 1 2

Diagram illustrating a mechanical assembly with an arrow pointing to a component, accompanied by an inset magnified view of the component.

9 1 2 3 4 5 6

10 ① ②

Line drawing of a sewing machine on a workbench, no text or symbols present

Diagram illustrating a device's electrical circuit, showing plug-in, lock, and switch states with numbered annotations.

2 =0°

3

4

Mechanical assembly diagram showing a screw inserted into a gear mechanism, with a downward arrow indicating force or direction (no text or symbols present)

Diagram illustrating sewing process with numbered steps and magnified detail view

Diagram illustrating three scenarios of a tool or device with checkmark and cross symbols indicating failure or error.

Technical diagram showing two states of a mechanical assembly with warning symbols and checkmark indicators

English Français Deutsch Español Italiano Nederlands Português
Product specifications	Caractéristiques de l'appareil	Produkt-Spezifikationen	Especificaciones del producto	Specifiche prodotto	Productspecificaties	Especificações do produto
Jigsaw	Scie sauleuse	Stichsäge	Sierra de calar	Seghetto alternativo	Decoupeerzaag	Serra de recorte
Model number	Numéro de modèle	Modellnummer	Número de modelo	Numero modello	Modelnummer	Número do modelo
Voltage	Tension	Spannung	Tensión	Voltaggio	Spanning	Voltagem
Input	Alimentation	Eingangsleistung	Tensión nominal	Alimentazione	Input	Admissão
Stroke per minute	Oscillations par minute	Hubzahl pro Minute	Golpe por minuto	Giri al minuto	Slagen per minuut	Traçado por minuto
Stroke length	Longueur de la course	Hublänge	Largo del golpe	Lunghezza utile della corsa	Slaglengte	Comprimento do traçado
Max cutting capacity	Capacité de coupe max.	Max. Schnittleistung	Capacidad máxima de corte	Capacità di taglio max.	Max. zaagcapaciteit	Capacidade de corte máx.
in wood	dans le bois	in Holz	en madera	nel legno	in hout	em madeira
in steel	le métal	in Stahl	en acero	nell'alluminio	in staal	em aço
Weight (According to EPTA procedure 01/2014)	PoidsSelon la procédure EPTA 01/2014	GewichtGemäß EPTA-Verfahren 01/2014	PesoSegún el procedimiento EPTA 01/2014	PesoSecondo quanto indicato dalla EPTA-Procedura 01/2014	GewichtOvereenkomstig de EPTA-procedure 01/2014	PesoDe acordo com o Procedimento EPTA 01/2014
Measured sound values determined according to EN 62841:	Valeurs du son mesuré déterminées selon EN 62841:	Gemäß EN 62841:gemessene Schallwerte	Valores medidos del sonido en función de la norma EN 62841:	Valori del suono misurati determinati secondo lo standard EN 62841:	Gemeten geluidswaarden bepaald in overeenstemming met EN 62841:	Valores medidos do som em função da norma EN 62841:
A-weighted sound pressure level	Niveau de pression sonore pondérée-A	A-bewerteter Schalldruckpegel	Nivel de presión acústica ponderada en A	Livello di pressione sonora pesato A	A-gewogen geluidsdrukniveau	Nivel de pressão sonora ponderada A
Uncertainty K	Incertitude K	Unsicherheit K	Incertidumbre K	Incertezza K	Onzekerheid K	Incerteza K
A-weighted sound power level	Niveau de puissance sonore pondérée-A	A-bewerteter Schallleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A	A-gewogen geluidsniveau	Nivel de potência sonora ponderada A
Uncertainty K	Incertitude K	Unsicherheit K	Incertidumbre K	Incertezza K	Onzekerheid K	Incerteza K
Wear ear protectors.	Portez une protection acoustique.	Tragen Sie Gehörschutz.	Utilice protección auditival	Indossare protezioni acustiche adeguate.	Draag oorbeschermers.	Sempre use a protecção dos ouvidos.
The vibration total values (triaxial vector sum) determined according to EN 62841:	Valeur totale des vibrations (somme vectorielle triaxiale) déterminée selon EN 62841:	Die Vibrationsgesamtwerte (triaxiale Vektorensumme) ermittelt entsprechend EN 62841:	Los valores de vibración total (suma de vectores triax.), determinado según la norma EN 62841:	I valori totali delle vibrazioni (somma di vettori in tre direzioni) sono misurati conformemente alla norma EN 62841:	De totale trillingswaarden (triaxiale verctorsom) vastgesteld in overeenstemming met EN 62841:	Os valores totais de vibração (soma do vector triax) são determinados em conformidade com a EN 62841:
Cutting boards	Coupe des planches	Sägen von Spanplatte	Cortar placas	Tagliare la assi	platen zagen	Cortar placas
Uncertainty K	Incertitude K	Unsicherheit K	Incertidumbre K	Incertezza K	Onzekerheid K	Incerteza K
Cutting metal sheets	Coupe des tôles	Sägen von Metallblech	Cortar láminas de metal	Tagliare la fogli in metallo	metaalplaat zagen	Cortar chapas de metal
Uncertainty K	Incertitude K	Unsicherheit K	Incertidumbre K	Incertezza K	Onzekerheid K	Incerteza K
Replacement parts	Pièces de Rechange	Ersatzteile	Piezas de repuesto	Parti di ricambio	Vervangonderdelen	Peças de substituição
Dust port	Buse d'aspiration	Absaugdüse	Boquilla de aspiración	Ugello di aspirazione	Afzuigmondstuk	Bico de aspiração

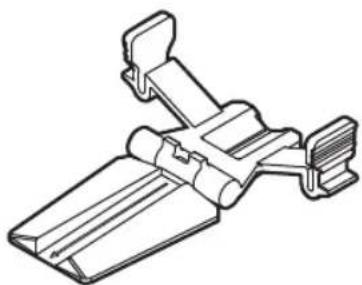

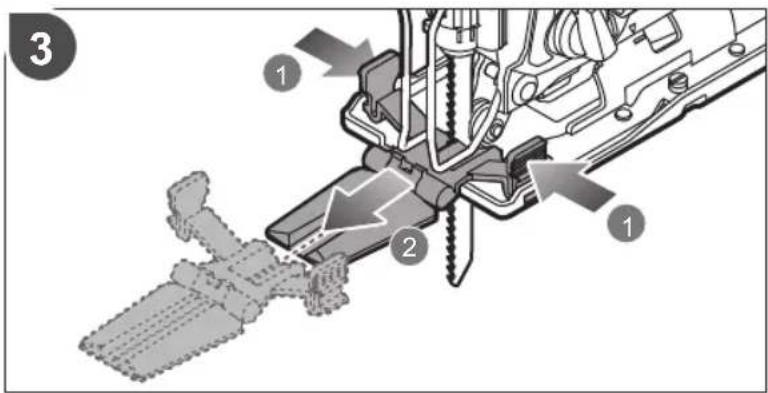

Line assist assembly	Montage de l'élément de suivi de ligne	Montage der Bandunterstützung	Conjunto de guía en línea	Gruppo alimentazione	Lijnhulp	Conjunto do auxiliar de linha

Dansk Svenska Suomi Norsk Pycckii Polski
Produktspecifikationer	Produktspecifikationer	Tuotteen tekniset tiedot Produktspesifikasjoner		Xaharkteristikinizdelia	Parametrytechniczne
Stiksav	Stickság	Kuviosaha	Stikksag	Электрическийручной лобзик	Wyrzynarka
Modelnummer	Modellnummer	Mallinumero	Modellnummer	Номер модели	Numer modelu	RJS850	RJS950 / RJS980
Spænding	Spänning	Jännite	Spenning	Напряжение	Napięcie	220 - 240V~ 50/60Hz	220 - 240V~ 50/60Hz
Strømforsyning	Matningsspänning	Virrankulutus	Input	Питание	Zasilanie	600 W 600 W
Slag pr. minut	Slag per minut	Iskua minuutissa	Slag pr. minutt	Проходов зaminуту	Liczba skokówna minutę	500 - 3100min-1	500 - 3100min-1
Slaglængde	Slaglängd	Iskunpituus	Slaglengde	Длина прохода	Skok elementutnącego	23 mm	23 mm
Største savekapaciteti træi stál	Max. skärkapaciteti tråför stál	Maksimileikkuukapasiteetti puussateräksessä	Maks. Sagekapasiteti trei stál	Максимальнаярежущаяспособностьв древесинев стали	Zakresmożliwościcięciaw drewniew stali	85 mm9 mm	95 mm9 mm
VægtI henhold til EPTA-procedure 01/2014	ViktEnligt EPTA 01/2014	PainoEPTA-menetelmän 01/2014mukaan	VektI henhold til EPTA-prosedyre 01/2014	ВесСоответствуеттребованиямEPTA-Procedure01/2014	WagaZgodnie zprocedurą EPTA01/2014	2,3 kg	2,3 kg
Mälte lydværdierbestemt iht. EN 62841:	Uppmätta ljudvårdenenligt EN 62841:	Mitatut arvot määritetty EN62841: standardin mukaan:	Mälte lydverdierbestemt iht. EN 62841:	Измеренныезначенияпараметров звукопределены всоответствии с EN62841:	Zmierzonewartościakustycznezgodnie z normąEN 62841:
A-vægtet lydtryksniveauUsikkerhed K	A-vägd ljudtrycksnivåOsäkerhet K	A-painotettuäänenpainetasoEpätarkkuus K	A-vektet lydtrykknivåUsikkerhet K	УровеньА-взвешенногозвукового давленияРазброс K	A-ważonypoziom ciśnieniahalasuNiepewnośćpomiaru K	L_WA = 87,5 dB(A)5,0 dB(A)	L_WA = 87,5 dB(A)5,0 dB(A)
A-vægtetlydeffektniveauUsikkerhed K	A-vägd ljudeffektsnivåOsäkerhet K	A-painotettu äänenteho A-vektet lydeffektnivåEpätarkkuus K	Usikkerhet K	УровеньА-взвешеннойзвуковой мощностиРазброс K	A-ważonypoziomnatężenia hałasuNiepewnośćpomiaru K	L_WA = 98,5 dB(A)5,0 dB(A)	L_WA = 98,5 dB(A)5,0 dB(A)
Bær hørevæm. Bär hørselskydd. Käytä korvasudija.		Bruk hørselsven.		Используйтенаушники!	Stosować środkiochrony sluchul
Totale vibrationsværdler(triax vector sum)afgøres ifølge EN62841:	Det totala vibrationsvärdet(treaxelvektorsumma)är framtaget enligt EN62841:	Tärinän kokonaisarvot(kolmiakselinenvektorisumma) määritetynästandardin EN 62841mukaisesti:	De totalevibrasjonsverdiene(triax vektor-sum) erfastsatt i henhold tilEN 62841:	суммарноезначение вибрации(векторнаясумма по тремкоординатам)определено всоответствии состандартом EN62841:	Wartościsumarycznedrgań (sumawektorowaprzyspieszeńmierzonaczujnikiem typutriax) określonezgodnie z normąEN 62841:
Skæring af brædderUsikkerhed K	Skår skivorOsäkerhet K	laudat leikkaamiseenepätarkkuus K	Skjæring av platerUsikkerhet K	Режет доскиРазброс K	Cieście płytNiepewnośćpomiaru K	a_h,B = 8,3 m/s^2 1,5 m/s^2	a_h,B = 8,3 m/s^2 1,5 m/s^2
Skæring af metalpladerUsikkerhed K	Skår metallarkOsäkerhet K	metallilevy leikkaamiseenepätarkkuus K	Skjæring avmetallplateUsikkerhet K	Режет листовойметаллРазброс K	Cieście blachyNiepewnośćpomiaru K	a_h,M = 9,4 m/s^2 1,5 m/s^2	a_h,M = 9,4 m/s^2 1,5 m/s^2
Reservedele	Utbytesdelar	Varaosat	Reservedeler	Запасные части	Wskaźnikgłębokości
Sugedyse	Sugmunstycke	Imusuutin	Sponuttaksstuss	Пыль Порт	Przyłącze doodciągu trocin	5131032143
Linjehjælpesamling	Line assist-enhet	Ohjain	Ledningsfører	Направляющая	Prowadnica	5131032144

Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti	Hrvatski
Technické údaje produktu	Termék müszaki adatai	Specificațiile produsului	Produkta specifikácijas	Gaminio techninės savybės	Toote tehnilised andmed	Specifikacije proizvoda
Přimočará pila	Szúrófúrész	Fierastrau vertical	Figúrzágis	Slaurapjūklis	Tikksaag	Ubodna pila
Číslo modelu	Tlpusszám	Numár serie	Modelja numurs	Modello numeris	Mudeli number	Broj modela
Elektrické napětl	Feszültség	Tensiune	Spriegums	jtampa	Pinge	Napon
Vstup	Bemenet	Intrare	leeja	jvestis	Vooluvõrk	Ulaz
Rázy za minutu	Löket percenként	Curse pe minut	Găjiens minūtė	Smūgiai per minutę	Käikude arv minutis	Poteza po minuti
Délka rázu	Lökethossz	Lungimea cursei	Găjiena garums	Smūgio ilgis	Käigupikkus	Duljina poteza
Maximální profez do dřeva v kovu	Vágásteljesítmény fában acélban	Capacitate de tăiere în lemn în oțel	Maks. zágěšanas kokā těraudā	Didž. pjovimo galia j medieną plieno	Maksimaalnelõikesügavus puidule terase puhul	Maksimalni kapacitet rezanja u drvetu u čeliku
Hmotnost Dle protokolu EPTA 01/2014	Tömeg A 01/2014 EPTA- eljárás szerint	Greutate în conformitate cu Procedura EPTA din 01/2014	Svars Saskaņa ar EPTA procedūru 01/2014	Svoris Pagal Europos elektrinių řrankių asociacijos (EPTA) nustatytą tvarką 01/2014	Mass Vastavalt EPTA-protseduurile 01/2014	Težina Prema EPTA-postupku 01/2014
Naměřené hodnoty hluku zjištěné dle EN 62841:	A hang értékek meghatározása az EN 62841: szerint történt:	Valori de sunet măsurate determinate în conformitate cu EN 62841:	Izmēritās skaņas vērtības ir noteiktas saskaņa ar EN 62841:	Išmatuotos garso vertės nustatytos pagal EN 62841:	Mõõteväärtused on kindlaks määratud vastavalt standardile EN 62841:	Mjerena vrijednost zvuka određena je prema EN 62841:
Hladina akustického tlaku vážená funkcí A Nejistota K	A-súlyozott hangnyomásszint Bizonytalanság K	Nivel de presiune acusticą ponderată A Incertitudine K	A-līmeņa skaņas spiediena līmenis Klūdas vērtība K	A svertinis garso slėgio lygis Nepastovumas K	A-kaalutud helirōhu tase Möõtemääramatus K	Ponderirana razina tlaka zvuka Neodređenost K
Hladina akustického výkonu vážená funkcí A Nejistota K	A-súlyozott hangteljesítményszint Bizonytalanság K	Nivel de putere acusticą ponderată A Incertitudine K	A-līmeņa skaņas jaudas līmenis Klūdas vērtība K	A svertinis garso galios lygis Nepastovumas K	A-kaalutud helivõimsuse tase Möõtemääramatus K	Ponderirana razina zvučne snage Neodređenost K
Použivejte chráníče sluchu.	Viseljen hallásvédót.	Purtați aparatoare de urechi.	Lietojiet dzirdes aizsargus.	Naudokite ausų apsaugos priemones.	Kasutage kuulmiskaitsevahendeid.	Nosite štitnike za uši.
Celkové hodnoty vibraci (tríosý vektorový součet) určené v souladu s EN 62841:	Vibráció teljes értékei (háromtengelyů vektorösszeg), az EN 62841 szerint meghatározva:	Valorile totale ale vibrațiilor (suma vectorială a trei direcții) au fost determinate conform EN 62841:	Vibráciju kopėjās vērtības (trīšasu vekloru summa) tiek noteiktas atbilstoši EN 62841:	Bendros vibracijos vertės (trikampio vektorių suma) nustatomos pagal EN 62841:	Vibratsiooni koguväärtused (kolme suuna vektorsumma) on vastavalt standardile EN 62841 määratud järgmiselt:	Ponderirana energetska vrijednost Ukupne vrijednosti vibracija (troosni vektorski zbir) odreduju se u skladu s EN 62841:
Rezání Karton Nejistota K	deszkák vágása Bizonytalanság K	Tăiere placaje Incertitudine K	dėļi griešana klūdas vērtība K	Pjovimo plokštės Nepastovumas K	plaadid lõikamine Möõtemääramatus K	Rezanje ploče Neodređenost K
Rezání Plech Nejistota K	fémlemezek vágása Bizonytalanság K	Tăiere foaie de metal Incertitudine K	metăla loksnes griešana klūdas vērtība K	Pjovimo metalo lakštas Nepastovumas K	lehtmetall lõikamine Möõtemääramatus K	Rezanje metalni listovi Neodređenost K
Stupnice pro nastavení hloubky	Mélységmérő Jojă de	adâncime	Dziljuma pielāgotājs	Gylio matuoklis	Sūgavuspiiraja	Mjerač dubine
Napojení na odsávání prachu	Porelszívó csonk	Cap de aspirare	Putekļu nopūtējs	Dulkių anga	Tolmuotsak	Prašina Luka
Sestava vodítka pro režání přímek	Vonalvezető szerelvény	Ansamblu ghidaj	Zāgēšanas virziena noturēšanas bloks	Linijos pagalbos blokas	Lõikejoone juhtplaat	Sklop za precizno praćenje linije rezanja

Slovensko	Slovenčina	България	українська мова	Türkçe	Еллінікá
Specifikacije izdelka	Špecifikácie produktu	Технически характеристики	Технічні характеристики продукту	Ürün Özellikleri	Пробідярафєς Проївтос
Vbodna žaga	Lupienková pilka	Прободен трион	Лобзика	Oyma testeresi	Зеуа
Številka modela	Číslo modelu	Номер на модела	Модель	Model numarasi	Арібмос монтелов	RJS850	RJS950 / RJS980
Napetost	Napătie Напрежение		Напряжение	Gerilim Táson		220 - 240 V ~ 50/60 Hz	220 - 240 V ~ 50/60 Hz
Vhod	Vstup	Вход	Введення	Giriş Élódoç peújatoş		600 W	600 W
Gibov na minuto	Záberov za minútu	Брой ходове в минута	Скорость на холостом ходу	Dakikada strok	Перáсмата ауá летпó	500 - 3100 min ^-1	500 - 3100 min ^-1
Dolžina giba	Dížka záberu	Продължителност на удара	Ударів на хвилину	Strok uzunluğu	Мінкос терáсматос	23 mm	23 mm
Maks. Zmogljivost rezanja	Maximalna kapacita rezania	Максимален капацитет на рязане	Максимальна потужність різання (Дерево)	Maksimum kesim kapasitesi	Мéyiστηκανότητα копіг	85 mm	95 mm
za les	do drevа	Дърво	у дерево	odunda	σε щуло	9 mm	9 mm
v jeklo	v oceli	Стомана	в стали	Çelikte	σε ата́ді	9 mm	9 mm
Teža Skladno s postokom EPTA 01/2014	Hmotnost Podla EPTA-Procedure 01/2014	Тегло (Съгласно процедура 01/2014 на EPTA)	Bara (відповідно до процедури EPTA 01/2014)	Ağırlik EPTA-Prosedurů 01/2014'e göre	Вáрос Σύμφωνα με την Διαδικατία EPTA 01/2014	2,3 kg	2,3 kg
Izmerjene zvočne vrednosti določene v skladu s standardom EN 62841:	Namerané hodnoty určené podla EN 62841:	Измерените стойности на звука са определени в съответствие с EN 62841:	Измеренные значения параметров звука определены в соответствии с EN 62841:	EN 62841: e göre hesaplanmiş ses değerleri:	Метріндієв тім'єх їхов о́муфшва не то EN 62841:
A-izmerjena raven zvočnega tlaka	Vážená A hladina akustického tlaku	Ниво на шумово налягане с равнище А	А-зважений рівень звукового тиску	A ağırlıklı ses basınç seviyesi	А-σταθμισμένο επίτεδο πίεσης їхов	L_вв = 87,5 dB(A)	L_вв = 87,5 dB(A)
Nedoloč. K	Odchýlka K	Променливост (К)	Невизначеньсть К	Belirsizlik K	Абєвайо́тта К	5,0 dB(A)	5,0 dB(A)
A-izmerjena raven zvočne moči	Vážená A hladina akustického výkonu	Ниво на силата на шума с равнище А	А-зважений рівень звукової потужності	A ağırlıklı ses gücü seviyesi	А-σταθμισμένο επίτεδο έντασης їхов	L_вв = 98,5 dB(A)	L_вв = 98,5 dB(A)
Nedoloč. K	Odchýlka K	Променливост (К)	Невизначеньсть К	Belirsizlik K	Абєвайо́тта К	5,0 dB(A)	5,0 dB(A)
Nosite ščitnike za ušesa.	Používajte chránice sluchu.	Носете антифони.	Діаметр ріжучої лінії	Kulak koruyucu kullanın.	Форáте штоастібес.
Skupna vrednost vibracij (vektorska vsota treh smeri) določena v skladu z EN 62841:	Celkové hodnoty vibrácií (súhrn triaxiálneho vektora) určuje norma EN 62841:	Общата стойност на вибрациите (трисна векторна сума) е определена в съответствие с EN 62841:	Суммарное значение вибрации (сумма векторов по трем координатным осям) определено в соответствии со стандартом EN 62841:	EN 62841 normuna uygun olarak belirlenmiș titreşim toplam değerleri (triaks vektör toplami):	Συνολικές αξίες крадаємів (триаζονικό διανυσματικό αθροισμα) σύμφωνα με EN 62841:
Rezanje plošče	Rezanie dosky	Рязане на дьски	Дошка для нарізання	tahtalar Kesme	Котні саюбес	a_н.в = 8,3 m/s ^2	a_н.в = 8,3 m/s ^2
Nedoloč. K	Odchýlka K	Променливост (К)	Невизначеньсть К	Belirsizlik K	Абєвайо́тта К	1,5 m/s ^2	1,5 m/s ^2
Rezanje kovinska plošča	Rezanie kovovy plech	Рязане на ламарина	різання металів	metal sac Kesme	Котні фúlla метáллou	a_н.м = 9,4 m/s ^2	a_н.м = 9,4 m/s ^2
Nedoloč. K	Odchýlka K	Променливост (К)	Невизначеньсть К	Belirsizlik K	Абєвайо́тта К	1,5 m/s ^2	1,5 m/s ^2
Globinomer	Hlbkomer	Резервни части	Глибиномір	Derinlik göstergesi	Метрінтіς бáбους
Priključek vrečke za zbiranje prahu	Kanál na prach	Отвор за прах	Отвір для пилу	Emme borusu	Стóмю аварро́фпанс	5131032143
Linijsko vodilo	Podpora vedenia	Механизъм за поддържане на права линия	Отвір для пилу Лінійний агрегат	Hat yardim donanımı	Воңвітнікі бідтаєн евбуура́місің	5131032144

EN WARNING

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

FR AVERTISSEMENT

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance

—any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries

– any product connected to improper power supply (amps, voltage, frequency)

– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
– Power tool accessories provided with the tool or purchased separately, including but not limited to screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide, etc.
Components (parts and accessories) subject to natural wear and tear, including but not limited to service & maintenance kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins & springs, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.

2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected

3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://uk.ryobitools.eu/header/service-and-support/service-agents

FR RYOBI® CONDITIONS D'APPLICATION DE LA GARANTIE

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

Jigsaw

Brand: RYOBI

Model number: RJS850 / RJS950 / RJS980

Serial number range:

RJS850:44427904000001-44427904999999

RJS950: 44428004000001-44428004999999

RJS980: 46278002000001-46278002999999

is in conformity with the following European Directives and harmonised standards 2006/42/EC, 2014/30/EU, 2011/65/EU

EN 55014-1:2017, EN55014-2:2015, EN61000-3-2:2014, EN61000-3-3:2013.

EN 62841-1:2015, EN 62841-2-11:2016

RoHS documentation is compiled according to EN 50581:2012

CE

Todd Chipner

Sr. Director, Regulatory & Safety

Winnenden, Dec. 31, 2018

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DÉCLARATION DE CONFORMITÉ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CONFORMITEITSVERKLARING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

OVERENSSTEMMELSESERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10. 71364 Winnenden, Germany

Vi erklærer hermed, at produktet

Stiksav

Brand: RYOBI

Modelnummer: RJS850 / RJS950 / RJS980

Serienummerområde:

RJS850: 44427904000001-44427904999999

RJS950: 44428004000001-44428004999999

RJS980: 46278002000001-46278002999999

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

KONFORMITETSDEKLARATION

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SAMSVARSERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SÄÄNNÖSTEN NOUDATTAMINEN

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PL DEKLARACJA ZGODNOŚCI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

HU MEGFELELŐSÉGI NYILATKOZAT

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CS PROHLÁŠENÍ O SHODĚ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RO DECLARATIE DE CONFORMITATE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Alexander Krug, Director General

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

LV ATBILSTĪBAS DEKLARĀCIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ET VASTAVUSDEKLARATSIOON

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Kinnitame, et see toode

Tikksaag

Mark: RYOBI

Mudeli number: RJS850 / RJS950 / RJS980

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

LT ATITIKTIES PAREIŠKIMAS

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

HR IZJAVA O USKLAĐENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

IZJAVA O SKLADNOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PREHLÁSENIE O ZHODE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Strasse 10, 71364 Winnenden, Germany

UYGUNLUK BEYANI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Strasse 10, 71364 Winnenden, Germany

ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Winnenden, Dec. 31, 2018

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EN RYOBI is a trademark of Ryobi Limited, and is used under license.

71364 Winnenden, Germany
