USER MANUAL CR 7935 CAMRY

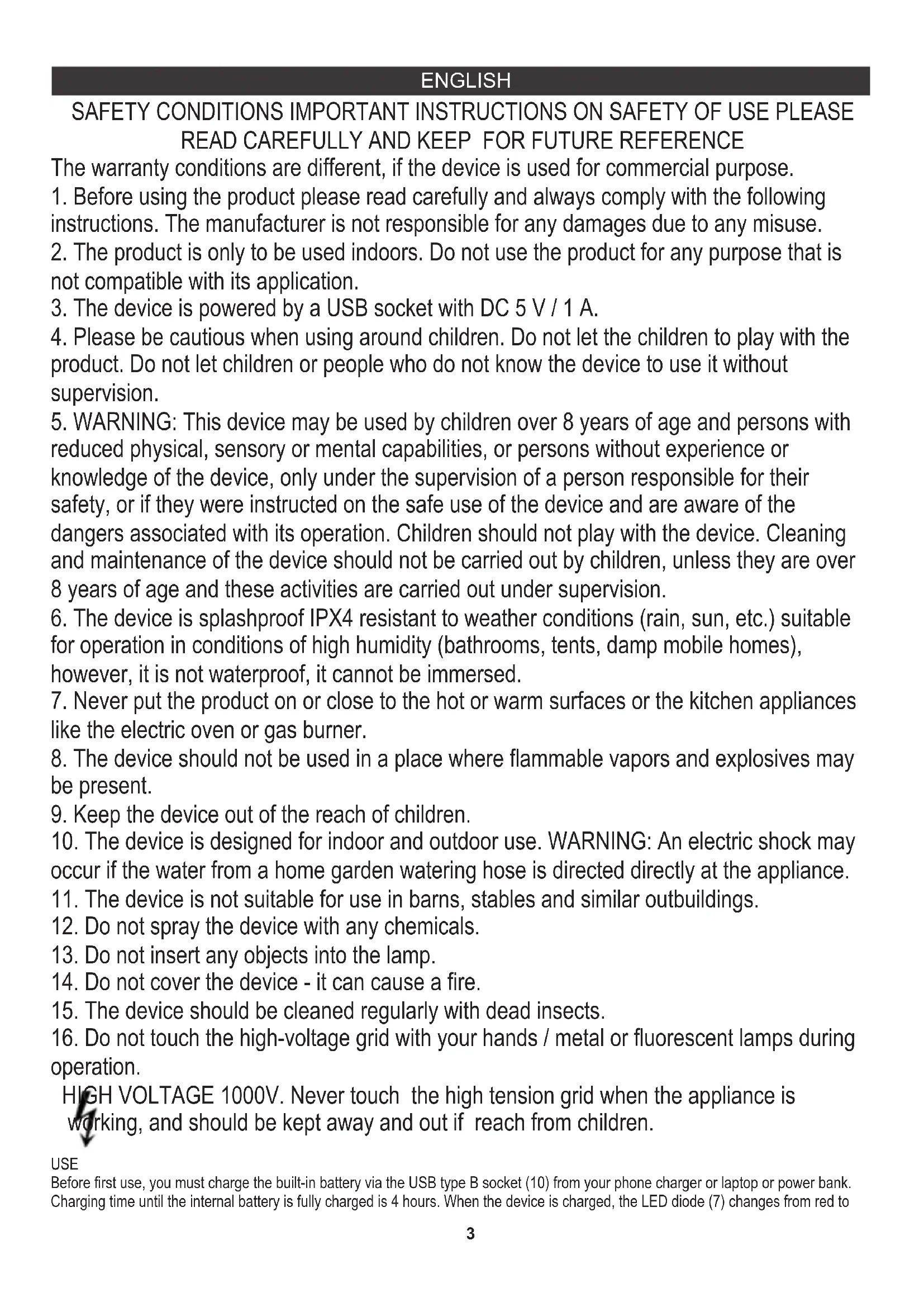

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following

instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is

not compatible with its application.

3. The device is powered by a USB socket with DC 5 V / 1 A.

4. Please be cautious when using around children. Do not let the children to play with the

product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with

reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

6. The device is splashproof IPX4 resistant to weather conditions (rain, sun, etc.) suitable

for operation in conditions of high humidity (bathrooms, tents, damp mobile homes), however, it is not waterproof, it cannot be immersed.

7. Never put the product on or close to the hot or warm surfaces or the kitchen appliances

like the electric oven or gas burner.

8. The device should not be used in a place where flammable vapors and explosives may

9. Keep the device out of the reach of children.

10. The device is designed for indoor and outdoor use. WARNING: An electric shock may

occur if the water from a home garden watering hose is directed directly at the appliance.

11. The device is not suitable for use in barns, stables and similar outbuildings.

12. Do not spray the device with any chemicals.

13. Do not insert any objects into the lamp.

14. Do not cover the device - it can cause a fire.

15. The device should be cleaned regularly with dead insects.

16. Do not touch the high-voltage grid with your hands / metal or fluorescent lamps during

operation. HIGH VOLTAGE 1000V. Never touch the high tension grid when the appliance is working, and should be kept away and out if reach from children. USE Before first use, you must charge the built-in battery via the USB type B socket (10) from your phone charger or laptop or power bank. Charging time until the internal battery is fully charged is 4 hours. When the device is charged, the LED diode (7) changes from red to ENGLISH4 green. Working time is 10-16 hours, it depends on the number of discharges of the insecticide lamp (the number of insects neutralized) and the selected level of light intensity of the camping lamp. The device is resistant to rain, sun and moisture, but do not soak it. DESCRIPTION OF THE DEVICE: CR7935 insecticidal lamp

3. Top ring 4. Bottom of insecticide lamp

5. High voltage grid 6. Lower lampshade

7. LED diode for charging process control 8. Ultra UV LED 595nm lamps for insect killing

9. LED lamps 360-395 nm for lighting a tent or outdoors 10. USB type B socket for charging the built-in battery

PRINCIPLE OF OPERATION OF AN INSECT LAMP The device attracts insects with ultraviolet light (8) with an ULTRA UV 595nm wavelength. The light source is wrapped in a special high voltage grid (5) in front of the light source. High voltage flowing through the grid causes electric shock to insects and leads to their death. A soft click is heard, dead insects fall to the bottom of the insecticide lamp (4), which must be emptied regularly. The method of use is important for performance. Recommended lamp height is 1.5 meters as optimal for moths and 1.0 meter for mosquitoes. Placing the device in a darker place has a positive effect on the efficiency, because the sun's rays weaken the radiation strength of UV diodes. Turn on the device before turning on the light or suddenly turn off all strong lights for 10-20 minutes.

FEATURES: CAMPING LAMP & INSECT KILLING LAMP

Place the device on the table top or hang the device by the built-in hook (2) in the desired location, inside the tent, in the carport or outside. 1. Pressing the switch (11) for the first time will simultaneously activate the 595nm ultra UV LED insect killings lamps (8) and the 360-395 nm LED lamps for tent lighting or outdoor use (9). 2. Pressing the button (11) for the second time will turn off the illumination of the lower shade (6), i.e. turn off the 360-395 nm LED lamps for lighting the tent or for outdoor use (9).

3. Pressing the button (11) for the third time will turn off the 595nm ultra UV LED insect killing lamps (8).

CLEANING AND MAINTENANCE

1. Before cleaning or maintenance, switch off the device from the power supply and the switch (11).

2. Do not use chemical cleaning agents for cleaning. The device is waterproof, however, do not wet clean the device. Clean the high voltage grid (5) with a brush to get rid of the remains of insect bodies.

3. Regularly clean the bottom of the lamp (4) from bodies of dead insects by tilting the lamp and spilling them.

4. Make sure the device is completely dry before switching it on again.

4. Bottom of insecticide lamp

5. High voltage grid

7. LED diode for charging process control

8. Ultra UV LED 595nm lamps for insect killing

9. LED lamps 360-395 nm for lighting a tent or outdoors

10. USB type B socket for charging the built-in battery

PRINCIPLE OF OPERATION OF AN INSECT LAMP The device attracts insects with ultraviolet light (8) with an ULTRA UV 595nm wavelength. The light source is wrapped in a special high voltage grid (5) in front of the light source. High voltage flowing through the grid causes electric shock to insects and leads to their death. A soft click is heard, dead insects fall to the bottom of the insecticide lamp (4), which must be emptied regularly. The method of use is important for performance. Recommended lamp height is 1.5 meters as optimal for moths and 1.0 meter for mosquitoes. Placing the device in a darker place has a positive effect on the efficiency, because the sun's rays weaken the radiation strength of UV diodes. Turn on the device before turning on the light or suddenly turn off all strong lights for 10-20 minutes.

FEATURES: CAMPING LAMP & INSECT KILLING LAMP

Place the device on the table top or hang the device by the built-in hook (2) in the desired location, inside the tent, in the carport or outside. 1. Pressing the switch (11) for the first time will simultaneously activate the 595nm ultra UV LED insect killings lamps (8) and the 360-395 nm LED lamps for tent lighting or outdoor use (9). 2. Pressing the button (11) for the second time will turn off the illumination of the lower shade (6), i.e. turn off the 360-395 nm LED lamps for lighting the tent or for outdoor use (9).

3. Pressing the button (11) for the third time will turn off the 595nm ultra UV LED insect killing lamps (8).

CLEANING AND MAINTENANCE

1. Before cleaning or maintenance, switch off the device from the power supply and the switch (11).

2. Do not use chemical cleaning agents for cleaning. The device is waterproof, however, do not wet clean the device. Clean the high voltage grid (5) with a brush to get rid of the remains of insect bodies.

3. Regularly clean the bottom of the lamp (4) from bodies of dead insects by tilting the lamp and spilling them.

4. Make sure the device is completely dry before switching it on again.
