CR 4606 - Blender CAMRY - Free user manual and instructions

Product Type	Blender
Brand	Camry
Model	CR 4606
Power	500 W
Capacity	1.5 L
Speed Settings	2 speeds + pulse
Jar Material	Plastic
Blade Material	Stainless steel
Voltage	220-240 V, 50/60 Hz
Cord Length	1.0 m
Weight	1.2 kg
Dimensions (H x W x D)	40 x 15 x 15 cm
Safety Features	Locking lid, non-slip feet
Cleaning	Removable blade assembly, easy to clean
Functions	Blending, smoothies, ice crushing
Repairability	Spare parts available from manufacturer

Frequently Asked Questions - CR 4606 CAMRY

How do I clean the blender jar?

Remove the jar from the base. Rinse immediately after use. For deep cleaning, add warm soapy water and run the blender on pulse for 30 seconds. Then rinse thoroughly. Do not immerse the motor base in water.

Can I blend hot liquids?

No, do not blend hot liquids as pressure may build up and cause the lid to pop off. Allow liquids to cool to room temperature before blending.

What is the maximum capacity?

The maximum capacity is 1.5 liters. Do not fill beyond the max line indicated on the jar to avoid spillage.

How do I use the pulse function?

Press the pulse button in short bursts to achieve desired consistency. Release to stop. This is ideal for chopping or mixing ingredients that require short bursts.

Why is the blender not turning on?

Ensure the jar is properly locked onto the motor base. Check that the lid is securely closed. Also verify the power cord is plugged in and the outlet is working.

Can I crush ice in this blender?

Yes, the stainless steel blades can crush ice. Use the pulse setting and add ice cubes gradually. Do not overload.

How often should I replace the blades?

Blades are durable but may dull over time. Replace if you notice difficulty blending or if blades become visibly damaged. Contact Camry for spare parts.

Is the blender dishwasher safe?

The jar and lid are top-rack dishwasher safe. The blade assembly should be hand washed to avoid damage. The motor base must be wiped with a damp cloth only.

What safety features does the blender have?

The blender includes a locking lid that prevents operation when not closed properly, and non-slip feet for stability. Do not operate without the lid.

Where can I get spare parts?

Spare parts such as jar, blade assembly, and lid can be ordered from Camry's official website or authorized service centers. Use the model number CR 4606 for reference.

USER MANUAL CR 4606 CAMRY

Close-up of a stainless steel electric shaver with a black handle and metallic shaft (no visible text or symbols)

Black-and-white photo of kitchen utensils including a blender, whisk, clear glass, and cooking pot (no text or symbols visible)

1
2

3

ENGLISH

SAFETY RULES

!. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.
3. The appliacable voltage is 230V, \~50Hz with grounding. For safety reasons it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.
5. This appliance is not intended use by persons (including children) with reduced physical, sensory or mental capabilities, or instruction concerning use of the appliance by a Person responsible for their safety.
6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!
7. Never leave the product connected to the power source without supervision.
8. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.
9. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.
10. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Damaged device always turn to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.
11. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.
12. Never use the product close to combustibles.
13. Do not let cord hang over edge of counter.
14. Always unplug the device after using and before cleaning.

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.

DEUTSCH

(data sprzedaży)

SERWIS CENTRALNY

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

1. The attachments not recommended or not sold by the manufacturer should not be used because that may cause fire, electrical shock or injury.
2. Do not use the appliance for other than its intended use.
   The blades are very sharp! Care is needed when handling them
3. Never blend hot oil or fat.
4. Keep fingers away from moving parts.
5. Do not cover vents
6. Do not use with wet hands.
7. When changing accessories, be sure that device is NOT connected to electricity.
8. Short-time operating: Use the appliance for no longer than 50 seconds and leave it cooled down completely before using again about 4 minutes.
9. Before first use, clean the device.
10. When cleaning device, do not use aggressive detergent, it may damage the cover of the device.

PRODUCT DESCRIPTION (pic. 1)

a) power regulation b) ON/OFF switch, I speed c) ON/OFF switch, II speed d) blender (removable) e) release button

USING THE DEVICE

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

1. Place blender stick on the motor unit until it is locked.
2. Place the hand blender in the jug. Then press the two level control switch (A1) level I or (A2) switch level II.
3. Press release button (e) and remove blender stick off the motor unit after use.

USING WHISK AND ICE CRUSHER

Whisk: Use the whisk only for whipping cream, beating egg whites and mixing sponges and ready-mix desserts.

Insert the whisk into the whisk holder (fig. 5), and then turn the gear box on the blender until it locks Ice crusher/chopper: Chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes, ice cubes, nutmeg, coffee beans and grains etc.

1. Place the blade on the center pin of the chopper bowl. Always place the chopper bowl on the anti-slip base.
2. Place the food in the chopper bowl.
3. Place the chopper bowl lid on the chopper bowl.
4. Turn the blender on the chopper bowl lid until it locks and plug in the appliance.
5. Press the switch I and choose the speed regulator setting. You can also choose a "TURBO" function by pressing the switch II. During processing, hold the blender with one hand and the chopper bowl with the other.
6. After use, unlpug the appliance and turn the blender off the chopper bowl lid.

CLEANING AND MAINTENANCE

Never put motor part into water and keep away from wet. Before cleaning always switch off and unplug from the socket.

1. Wipe the outside of the motor unit with only a slightly moistened cloth and polish with a soft dry cloth.
2. Wash the detachable accessories in soap water, such as blender sticks, whisk, blade, ice crusher.
   Do not use scouring pads for the plastic materials. Rinse them with clear water and dry them.
3. Do not clean with any abrasive scouring pad or steel wool, as this will damage the finish of the appliance.

TECHNICAL DATA

Power: 800W

Voltage: 230V\~50Hz

Device is made in class II of isolation. Device is compliant with EU directives:

- Low voltage directive (LVD)

Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

DEUTSCH

DESCRIPTION DE L'APPAREIL (IMAGE 1)

Metallic cylindrical object with a lid, possibly a container or tool, shown against a plain background (no text or symbols visible)

White kitchen electric shaver with handle and blade (no visible text or labels)

White ceramic kettle with handle and spout (no visible text or symbols)

White microwave oven with closed lid and control knobs (no visible text or symbols)

White kitchen mixer with a bowl and handle, no visible text or symbols

Close-up of a white ceramic oven with a lid and side handles (no visible text or symbols)

kombiwar Ad63

Metallic bowl-shaped object with a small label showing '60.0' and '50.0" (no other text or symbols visible)

waga kuchenna Ad3134

White portable electronic device with a handle and two small buttons (no visible text or symbols)

Sandwich Ad301

White portable medical kit with handle and side tabs (no visible text or symbols)

Two hair curlers with different designs, one showing a meshed rack and the other a straight cord (no text or symbols visible)

Exterior view of a modern espresso machine with two cups (no visible text or symbols)

Close-up of a steam iron with visible steam drop and handle (no text or symbols)

żelazko Ad5014

Close-up of a circular electronic device with black and gray bands, showing a digital display on top (no visible text or symbols)

Digital kitchen scale with four black buttons and a digital display showing '0.01 - 0.02' (no text or symbols on the scale itself)

White hairless showerhead with mesh grille (no text or symbols visible)

golarka do tkanin Ad9601

White portable electronic device with perforated surface and black buttons (no visible text or symbols)

Exterior view of a portable electronic device with control knobs and a lid (no visible text or symbols)

CR 1101

Black and silver portable food grater with control panel and lid (no visible text or symbols)

CR 1102

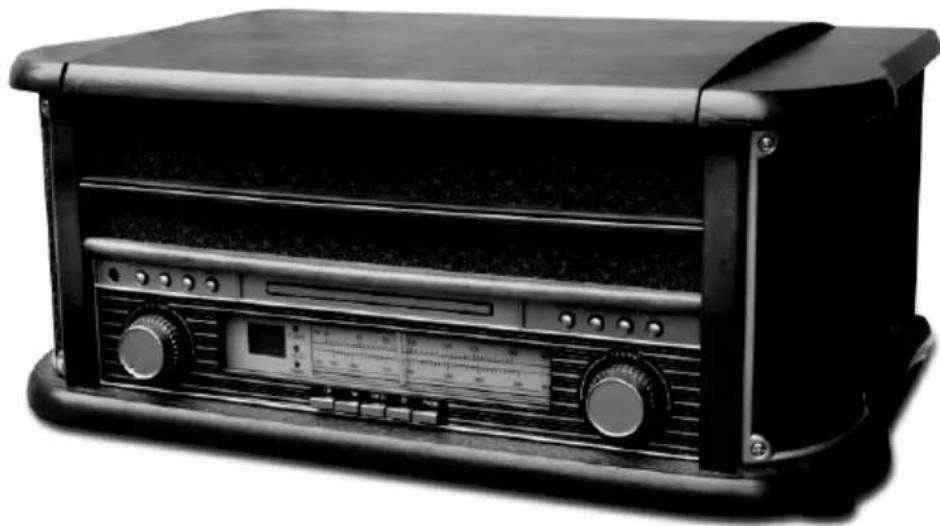

Black vintage radio console with analog dials and control knobs (no visible text or labels)

CR 1105

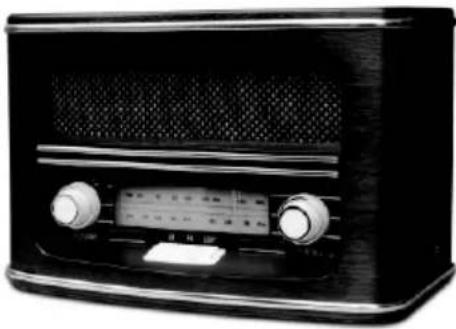

Black vintage radio with two knobs and a digital display (no visible text or symbols)

CR 1103

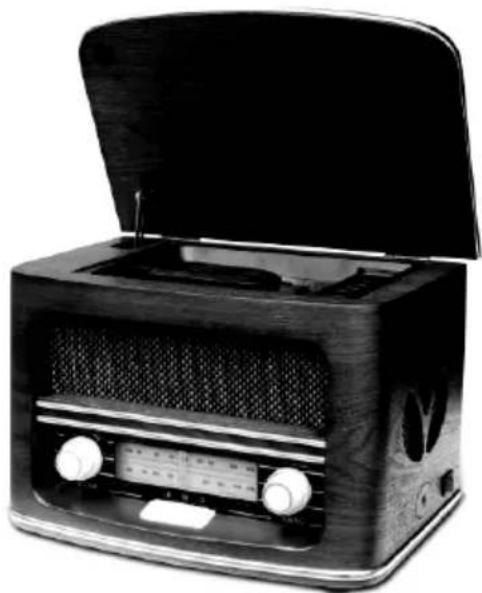

Black-and-white photo of a vintage old radio with open lid and visible signal waves (no text or symbols)
