USER MANUAL PA1500WIFI3 MILL

Assembly and instruction manual Series: Invisible & Glass WiFi panel heater

Please read the instructions carefully before use. Take good care of this manual for later use. FR HR

SLO PL ITThanks for buying Mill @millheat millheat.com Follow us on social media: Our company was founded in Norway in 1992 by Cato Bryn, specializing in distribution of oil filled radiators and other types of heaters. From 1992 to 2009, we had gained significant knowledge and expertise of different type of heaters, thus enabling us to sell to many of the largest retailers in the Nordic countries. In 2010, Cato’s son, Philip joined the company. Philip looked at the heating industry with fresh new eyes and wondered why there had been so little change with the appearance of portable heaters in the last 20 years, especially since interior design in general had changed dramatically over the years. Philip thought consumers should have more styles to choose from other than the typical old-fashioned, traditional heaters. Since heaters are part of so many homes, Philip and Cato decided to use their extensive knowledge to re-invent the design of heaters. They wanted to create beautiful, modern and minimalistic heaters, using the most advanced technology, that would complement people’s homes. They launched the brand “Mill” in 2012. Mill offers revolutionary, innovative Norwegian designs. We are continuously innovating to complement our line of products to meet consumers’ demand. Prospering on our success in the Nordics we decided to promote Mill at some of the world’s largest electronic fairs and home shows, and the feedback from retailers and distributors all over the world were amazing. We are proud to say that consumers in over 25 countries can now keep warm with style!Content P. 2-3 P. 4 P. 4 P. 4 P. 4 P. 5 P. 5 P. 5 P. 5 P. 6 P. 6 P. 6 P. 6 P. 7 P. 7 Important safety informationFirst useMinimum distancesDescription of heaterAssemblyPower indicatorTemperature calibrationResetting the heater Memory function“Open Window” functionInstructions Usage without WiFi connectionUsage with WiFi connection

CASING WITH WET HANDS!

millheat.comWARNING! The heater must not be used if the glass panels are damaged (this applies to the products with model names starting with GL).

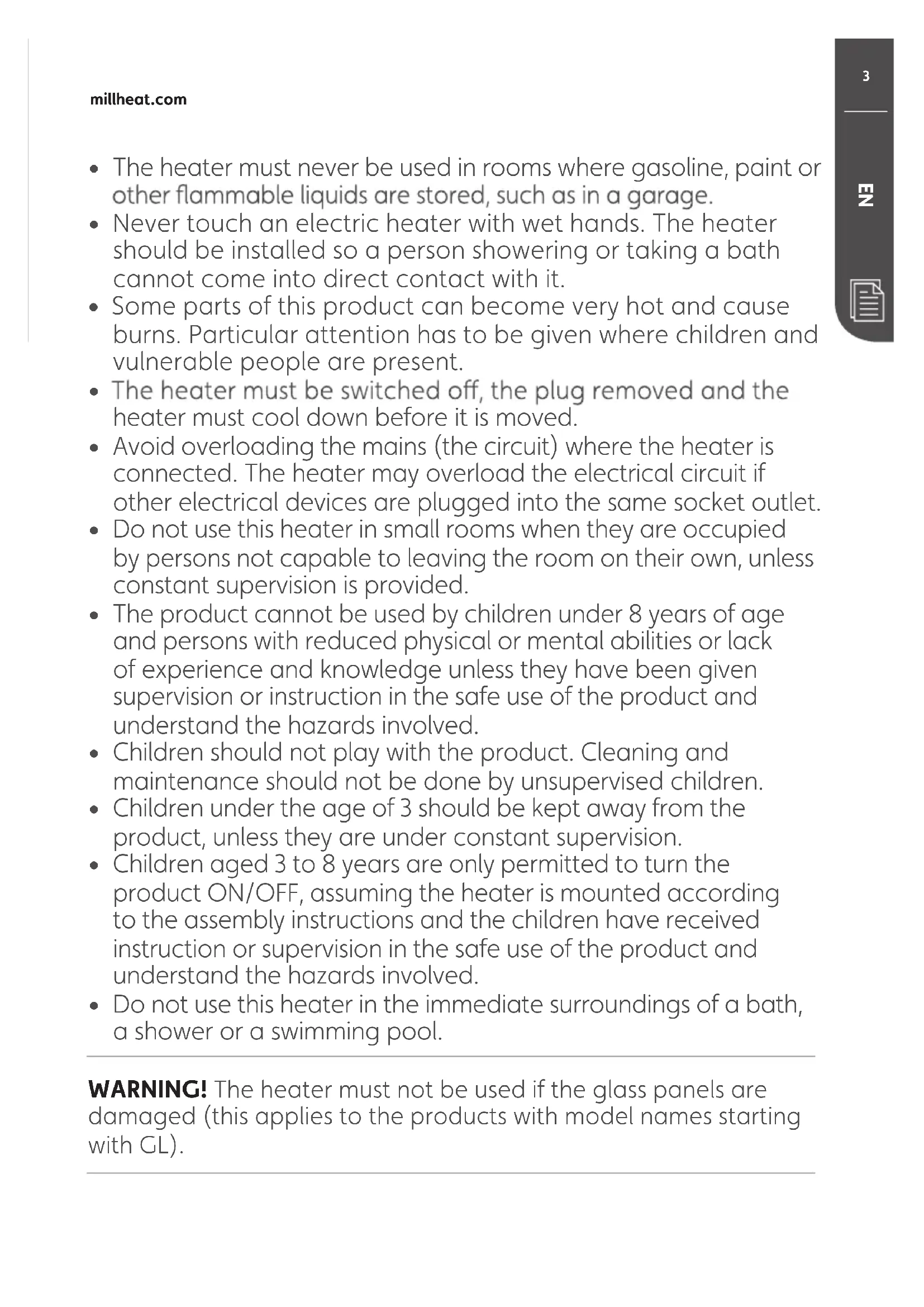

• The heater must never be used in rooms where gasoline, paint or

• Never touch an electric heater with wet hands. The heater should be installed so a person showering or taking a bath cannot come into direct contact with it.

• Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

heater must cool down before it is moved.

• Avoid overloading the mains (the circuit) where the heater is connected. The heater may overload the electrical circuit if other electrical devices are plugged into the same socket outlet.

• Do not use this heater in small rooms when they are occupied by persons not capable to leaving the room on their own, unless constant supervision is provided.

• The product cannot be used by children under 8 years of age and persons with reduced physical or mental abilities or lack of experience and knowledge unless they have been given supervision or instruction in the safe use of the product and understand the hazards involved.

• Children should not play with the product. Cleaning and maintenance should not be done by unsupervised children.

• Children under the age of 3 should be kept away from the product, unless they are under constant supervision.

• Children aged 3 to 8 years are only permitted to turn the product ON/OFF, assuming the heater is mounted according to the assembly instructions and the children have received instruction or supervision in the safe use of the product and understand the hazards involved.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.The heaters are approved for use in zone 2 in wet rooms (IPx4 approved) ATTENTION! The heaters will be connected directly to your WiFi router and it is of active devices connected at the same time. ≥100 mm≥50 mm≥50 mm≥100 mm≥100 mm in front of heater First use Minimum Distances transport. Contact the retailer or importer if you discover any visible damages to the product. Keep the outer packaging to transport the heater in the future. If you want to dispose the packaging, make sure it is done properly. Keep plastic bags away from children. d period without use, the heater can produce a burnt odor for a short time. This is normal. Please read all the instructions carefully before use. Save the instruction manual for future use. It is also normal for the heater to make “sounds” when it warms up or cools down.

(Can be done even if you are connected to WiFi) 5 seconds for automatic confirmation. Description of heater

It may occur deviation between the temperature registered by the heater and the actual temperature in the room. This can be caused by several reasons, however, the most common is that the heater is placed in a fair distance from where you usually reside. When you set the temperature to for example 22 degrees, it is only natural that you expect the same temperature where your sofa is placed for instance. However, the temperature sensor is placed on the product itself, and therefore a deviation in temperature may occur. To adjust this, all Mill heaters are equipped with a calibration function, which enables you to adjust the temperature registered by the heater. N.B! The room must have achieved a stable temperature before any calibration. Drill holes in the wall for holes 1 & 2. Then drill holes in the wall for the topmost holes (holes 3 & 4 by using 6) Insert the wall plugs into the drilled holes and attach the bracket with 4 screws Place the heater on the lower lugs on the bracket, then hang the heater on the upper lugs (li the heater slightly to align the heater with for the upper lugs). Screw in the locking screws on the top of the bracket (clockwise) Attention! Horizontal placement only If the heater uses power (for example, when it heats up), the power indicator is on.6

Resetting the heater Memory function The heater remembers all the temperature settings and will automatically return to the desired temperature aer a power failure. If your heater is connected to WiFi it will automatically reconnect with WiFi (where all temperatures are saved) aer a power cut. Instructions Turn off the heater´s main switch. Turn the heater back on, within 5 seconds press and hold .Aer 20 seconds the display will show "Fr", once you see "Fr" release and the heater will reset to factory settings. Control Panel TIPS! The thermostat can be used as a regular electronic thermostat (i.e. the heater will maintain a constant temperature 24 hours a day). Please see the section explaining usage without WiFi connection for further information ATTENTION! In the event of a power cut, the thermostat will reconnect with WiFi where all the temperatures are saved. WARNING! BEFORE THE HEATER IS TURNED ON, IT MUST BE ATTACHED TO A WALL. IF THE HEATER IS NOT INSTALLED CORRECTLY OR IS INSTALLED ASKEW, THIS MAY CAUSE THE HEATER TO MALFUNCTION OR IN THE WORST CASE, BE DAMAGED.

1. Display (shows the desired room temperature by default)

5. Control button (–) (reduce temperature)

8. LED lights indicating how much power the heater is using

The heater has an “open window” function that is activated instantly when it registers a sudden drop in temperature with more than 5 degrees Celsius in 15 minutes. The heater will automatically stop heating and FO will be visible in the display of the heater. While in open window mode, it will maintain 5°C (to avoid frost damage). The heater will automatically start heating again if temperature increase by at least 3 degrees within 15 minutes. You can switch the heater back to normal mode by pressing the settings button 1 time. Open window function can be disabled/enabled by pressing and holding the settings button for 3 seconds. You can also disable/enable open windows function from the app if configured to WiFi. The heater will stay in open window mode for maximum 1 hour, it then will go back to normal heating mode.7 millheat.com

Usage without WiFi connection Set desired temperature without WiFi connection Press the arrow buttons to set the desired temperature. The heater keeps an even Child lock You can enable/disable child lock from the app. But in addition, you can also enable/disable child lock from the heater itself.Turn off the heater using the main power switch. Turn the heater back on, within 5 seconds press the and hold . Aer 3 seconds the display will show "CHL", once you see "CHL" release and the heater enables/disables child lock. Commercial Lock You can enable and disable commercial lock from inside the app. But in addition, you can enable/disable commercial lock from the heater itself. Turn off the heater using the main power switch. Turn the heater back on, within 5 seconds press the and hold . Aer 10 seconds the display will show "COL", once you see "COL" release and the heater enables/disables commercial lock. Usage with WiFi connection A free app is available for downloading for iOS and Android. By connecting your heaters with the iOS/Android device you can do the following:

• Control all your heaters situated in multiple locations . Everything is controlled with the Millheat-app (with same user)

• Set up weekly programs (or use the standard program already available in the app) by using the 4 modes: Comfort, Sleep, Away and OFF

• Set individual temperature for different modes in each room

• Override the set programs for the whole house, a specific room or a specific heater. There is no need to edit your program if you get home earlier than normal one day

• Enable vacation mode for saving energy while you are away. The app will automatically increase the temperature in your house before you get back home

• Share your house with other family members, making control easy

• If internet is down the heater will follow its weekly program which is stored on the heater. One can easily turn off the WiFi on the heaters and control them manually, so that the heaters keep an even temperature throughout the whole day and night.

• + many other things To download the app search for “millheat” in Appstore or Google Play and install the app on your device. temperature the whole day and night.8

Color codes (WiFi control light) The heater has not been connected to WiFi. The heater keeps an even temperature throughout the whole day and night. The heater is online in the Millheat cloud The heater’s WiFi is deactivated by the user When installing/connecting the Millheat-app and cloud, the light will flash in various speed. This is normal. The heater has a problem connecting to or finding the WiFi signal. Please do the following:

1. Please turn the heater OFF and ON again

2. Please restart the WiFi router

3. Please check the WiFI router to make sure the capacity is sufficient for the

number of active devices connected at the same time

4. Please make sure 2,4 Ghz is activated. If the problem persists please get

in touch with support. The heaters are offline and have no contact with the Millheat cloud any questions regarding the Millheat-app, connecting to WiFi or other relating questions. app when connecting your heaters. The heaters will connect directly to your router via WiFi with 2,4 Ghz mode b/g/n. Bluetooth is needed for provisioning, so make sure its enabled.Minimum OS requirement: iOS 8.0 and Android 5.0 Go to our help desk at www.millheat.com for more information or if you have ATTENTION! The heaters will be connected directly to your WiFi router and it is therefore important to make sure the router has sufficient capacity for the number of active devices connected at the same time. Before use: Be aware that the Millheat-app must be installed before you can connect your heaters to your WiFi network. You can then simply follow the instructions given in the9 millheat.com

EN Reconnecting WiFi Press the WiFi button 1 time. Relevant only if WiFi is already installed. Deactivating WiFi Press 1 time on the WiFi button. The heater can now be used as described on page 7 (usage without WiFi connection). Relevant only if WiFi is already installed. Activating WiFi Press «add heater» on the home screen in the Millheat-app. Follow the instructions in the app. Delete WiFi setting Delete WiFi-settings: Press and hold WiFi button for 5 seconds. heater’s main switch. Turn the heater back on, within 5 seconds press and hold for 5 seconds.Maintenance Warranty Waste disposal Mill International B.V. De Giesel 5 6081 PG Haelen The Netherlands www.millheat.com Maintenance Warranty Waste disposal

1. For cleaning, always unplug the heater and leave it to cool.

2. Wipe the heater regularly with a damp cloth and dry the surface before turning on

3. The heater must be cleaned at least once a month during the heating season.

CAUTION! The heater should never be immersed in water. Avoid using detergents to clean the heater. Never let any water get inside the heater; this can be hazardous.

5. The heater can be stored in a dry and clean place.

6. If the heater stops working, do not attempt to repair it yourself because it can

The warranty is valid for 2 years. The heater will be repaired or replaced during this time should any malfunction occur. The warranty applies if the heater is used according to these instructions and the customer can present a purchase receipt. If the heater malfunctions in any way, please contact the store where it was purchased or the importer. The symbol indicates that this product is not to be disposed of together with household waste. This product must be delivered to a recycling service or container for electrical appliances and electronic equipment. This is done to avoid health risks and prevent harm to the environment. Local businesses (or the environmental station in your neighborhood) are required by law to accept and recycle such products, as a means of environmentally sound disposal.

Seasonal energy e ciency Information requirement for the electric local space heaters Model identifier(s): GL600WIFI3, PA600WIFI3, PA600WIFI3B Item Symbol Value Unit Item Unit Head OutputAuxiliary electricity consumptionType of heat input, for electric storage local space heaters only (select one) Nominal heat output Pnom 0,60 kW No manual heat charge control, with integrated thermostat Contact details Mill International AS Grini Næringspark 10, 1361 Østerås, Norway At nominal heat output At minimum heat output In standby mode elmax elmin elSB N/A kW N/A kW 0,0 kW

Type of heat output/room temperature control (select one)

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control electronic room temperature control plus day timer Yes

Yes electronic room temperature control plus week timer room temperature control, with presence detection room temperature control, with open window detection Other control options (multiple selections possible) ηs 39 % Seasonal space heating energy e ciency Minimum heat output (indicative) Pmin 0,60 kW No manual heat charge control with room and/or outdoor temperature feedback Maximum continuous heat output Pmax,c 0,60 kW

electronic heat charge control with room and/or outdoor tempe- rature feedback

Yes fan assisted heat output with distance control option

with adaptive start control

with working time limitation
