USER MANUAL FHL 900 F5 FLORABEST

PDF online www.lidl-service.com

LANGSTIEL-HECKENSCHERE / ELECTRIC LONG-REACH HEDGE TRIMMER / TAILLE-HAIES SUR PERCHE FHL 900 F5

DE AT CH

LANGSTIEL-HECKENSCHERE

Translation of the original instructions

NL BE

HEGGENSCHAAR MET LANGE STEEL

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Person in protective gear spraying a tall wall with a long tool (no text or symbols visible)

Person spraying a large block of material, no visible text or symbols

Person in protective gear using a mounted antenna on a textured hillside (no text or symbols visible)

Person spraying a hose outdoors, no visible text or symbols

Person spraying a large cylindrical object over a textured, leafy surface (no text or symbols visible)

Inhalt

Einleitung......5

Bestimmungsgemäße

Verwendung......5

Service-Center....19

Importeur ......19

Diagram of a tool interacting with a grid-like structure (no text or symbols)

Intended Use......21

General Description......22

Extent of delivery 22

Overview....22

Function Description....22

Technical Data....22

Notes on Safety 23

Symbols in the manual....23

Symbols on the Equipment .....23

General Notes on Safety......24

General safety instructions for power tools....24

Hedge trimmer safety 27

warnings....27

Assembling the Long-Handled

Hedge Trimmer....28

Operating the Hedge Trimmer....29

Swivelling Out the Blade Beam .....29

Attach the shoulder strap ....29

Switching On and Off 29

Working with the Electric Hedge Trimmer....30

Putting down the device....30

Swivelling the Arm ....30

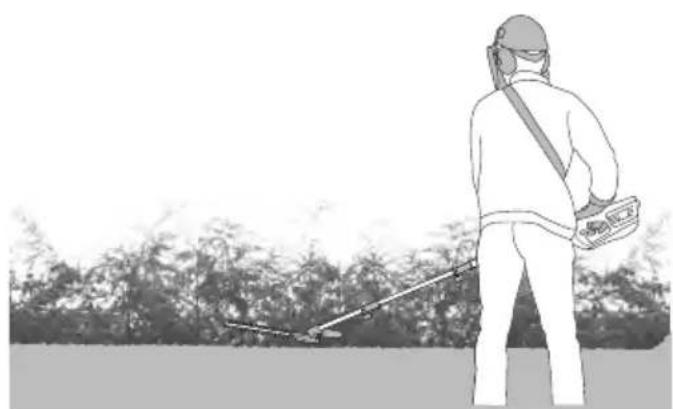

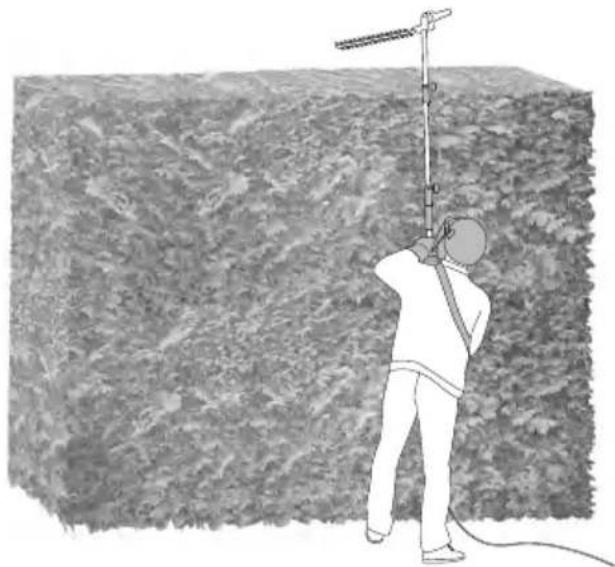

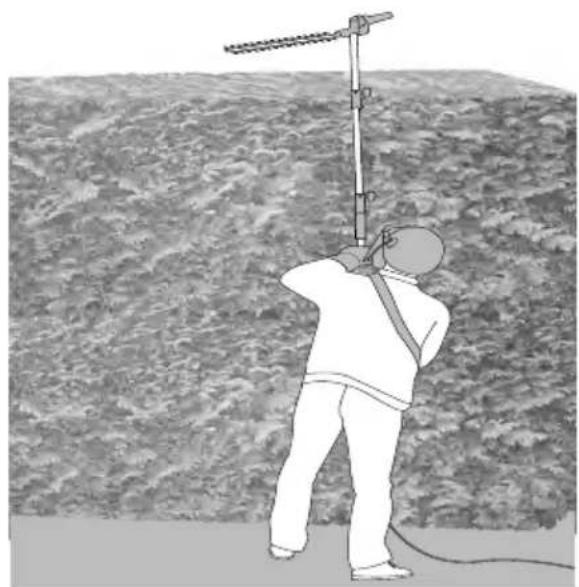

Cutting Techniques 30

Working Safely......31

Maintenance/Cleaning......31

Storage....32

Transport....32

Waste Disposal and

Environmental Protection ......32

Spare Parts/Accessories......33

Trouble Shooting......33

Guarantee 34

Repair Service....35

Service-Center 35

Importer 35

Translation of the original

EC declaration of conformity ....120

Exploded Drawing......125

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of lubricants will remain on or in the equipment in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended Use

The equipment is specified for use only for the cutting and trimming of hedges, bushes and ornamental shrubs in the domestic environment. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.

The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision. Local regulations may specify an age limit for the user. Do not use the hedge trimmer in the rain or on wet hedges.

GB IE

The operator or user is responsible for accidents or damage to other people or their property.

The manufacturer is not liable for damages caused by unspecified use or incorrect operation.

Before use, check that the blades are sharp. Ensure that the blades are sharpened whenever blunt, in order to avoid overstressing of the machine. Damages caused by cutting with blunt blades are not covered by the guarantee.

General Description

The illustration of the principal functioning parts can be found on the front and back foldout pages.

Extent of delivery

• Long-handled hedge trimmer (three-part)
• Blade protection
• Shoulder strap
• Round handle
• Protective goggles
• Mounting material
• Instruction manual

Overview

1 Safety blade

2 Gearbox

3 Safety lever
4 Stop lever
5 Handle for adjusting the blade beam
6 Front tubular shaft
7 Safety button, front arm
8 Pivotal centre, front arm
9 Middle tubular shaft
10 Safety button, extension tube

11 Pivotal centre, extension tube
12 Tubular shaft on the appliance housing
13 Round handle, front handle
14 Safety slide
15 Deadman switch
16 On/off switch (not visible)
17 Mains cable
18 Cable strain relief
19 Shoulder strap
20 Eye (for shoulder strap)
21 Blade protection
22 Protective goggles

23Coveringcap

24Counter-holder

25 Washer (pivotal centre round handle)

26 Pivotal centre (round handle)

Function Description

The electric hedge trimmer is driven by an electronic motor. The equipment is double-insulated for safety and does not require earthing.

The hedge trimmer is equipped with a double-sided safety cutter bar. When cutting, the blades move backwards and forwards in linear motion.

The unit can only be operated with the deadman switch depressed, in order to protect the operator. In addition, the hand guard protects against branches and briars. Please note the following descriptions for the function of the operating components.

Technical Data

Long-Reach Hedge Trimmer..... FHL 900 F5

Input voltage rating ...230-240 V\~, 50 Hz Input power......900 W

Safety class ......☐ II

Degree of protection.....IPXO

Weight (incl. accessories)..approx. 5.7 kg

Cutting length 410 mm

Cutting capacity....20 mm

Acoustic pressure level

(L_pA) 84.5 dB(A); K_pA = 3 dB

Sound power level ( L_WA )

measured ....95.47 dB(A); K_WA=0,93 dB

guaranteed 99 dB(A)

Vibration ( a_h ) at

at the handle....2.083 m/s²

at the round handle....3.132 m/s²

K = 1.5 ~m / s^2

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Notes on Safety

This section deals with the basic safety regulations to be observed when working with the electric hedge trimmer.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Instruction symbols with information on preventing damage.

Always remove the mains plug before working on the appliance.

Help symbols with information on improving tool handling.

Symbols on the Equipment

Caution!

Read through the instruction manual carefully.

Wear personal protective equipment. Basically, wear protective goggles or, even better, face protection, ear protection, safety helmet, cut-protection working clothes.

Wear cut-resistant gloves.

Wear anti-slip safety shoes.

Keep the equipment away from nearby people.

Do not use the hedge trimmer in the rain or on wet hedges.

GB IE

Danger of death by electrocution! Keep at least 10m away from power lines.

Caution! Falling objects. Particularly when cutting overhead.

Caution! Risk of injury from blades in operation.

Pull out the power plug immediately if the cable is damaged, has been badly twisted or is completely cut through and in the event that the device is left unattended for a short time.

Caution! Hot surface. Risk of burns.

Information of the acoustic power level L_WA in dB.

Machines are not to be place with domestic waste.

Safety class II

Cutting length

General Notes on Safety

Before working with the equipment, familiarise yourself with all operating components. Practice handling the equipment and have the function, operation and working methods explained to you by an experienced user or specialist. Ensure that you can shut off the equipment immediately in an emergency. Inappropriate use of the device may result in serious injury.

If an accident or fault occurs during operation, immediately switch off the device and disconnect at the plug. Treat injuries appropriately or consult a doctor. For the correction of faults, read the "Troubleshooting" chapter or contact our service centre.

RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

General safety instructions for power tools

WARNING! Read all safety directions and instructions.

Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

Work area safety

- Keep work area clean and well lit. Cluttered or dark areas invite accidents.

- Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Caution: This is how to avoid accidents and injuries by an electric shock:

- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock

- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from

heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

- If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

- Where possible, connect the equipment only to a plug socket with a leakage-current-operated circuit breaker (FI switch), with a rated current of not more than 30 mA.

- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

Personal safety

Caution: This is how to avoid accidents and injuries:

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

- Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard

GB IE

hat, or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust-ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Carefully inspect the area to be cut and remove all wires or other foreign bodies.
• Carefully inspect the surface to be cut, and remove all wires and other foreign bodies.

- Check the appliance before each use for obvious defects such as loose, worn or damaged parts. Check the appliance for significant damage or defects if it is dropped.

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Hedge trimmer safety warnings

Preparation

- THIS HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES! Read the instructions carefully regarding the correct handling, preparation and maintenance, for starting and stopping the hedge trimmer. Familiarise with all controls and the proper use of the hedge trimmer.

- Caution! Notice overhead power lines.

- Use of the hedge trimmer should be avoided when people, especially children, are nearby.

- If the cutting unit contacts a foreign body or if the operating noises increase or the hedge trimmer vibrates with unusually high force, turn off the motor and let the hedge trimmer come to a standstill. Pull the mains plug and take the following measures:

• check for damages;
• check for loose parts and fasten all loose parts;
• replace damaged parts with equivalent parts or have them repaired.

Operation

- Switch the appliance off and remove the mains plug, before:

- cleaning or removing a blockage;

- inspection, servicing or work on the hedge trimmer;

- adjusting the working position of the cutting unit;

- leaving the hedge trimmer unattended.

- Always ensure that the hedge trimmer is properly placed in one of the indicated working positions before the motor is started.

- Do not use the hedge trimmer with a defective or strongly worn-out cutting unit.

- To avoid the risk of fire, ensure that the motor is free from deposits and leaves.

- Always ensure that all handles and safety devices are mounted when you use the hedge trimmer. Never try to use an incomplete hedge trimmer or a hedge trimmer with impermissible modifications.

- Always use both hands when the hedge trimmer is equipped with two handles.

- Always familiarise with your surroundings and pay attention to potential dangers that you cannot hear because of the noise the hedge trimmer makes.

- Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.

- Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

GB IE

• Children must never use the hedge trimmer.

Maintenance and storage

- If the hedge trimmer is taken out of operation for purposes of maintenance, inspection or storage, turn off the motor, pull the mains plug and make sure that all rotating parts have come to a standstill, and let the machine cool down before you check or adjust it, etc. - Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

Assembling the Long-Handled Hedge Trimmer

Pull out the power plug before carrying out any work on the equipment.

Use only original parts.

The long-shaft hedge trimmer can be used optionally with or without the middle tubular shaft (B 9).

1. Unpack the device and check it for completeness.

Assembly of the middle tubular shaft (B 9) (optional):

1. Remove the cap (23) from the middle tubular shaft (9).

Slide the middle tubular shaft (9) onto the tubular shaft on the appliance housing (12) in a slight rotating movement.

When doing so, the retaining knob (10) locks into place. Fix the two tubular elements in place with the rotary knob (11). To do this, unscrew the nut of the threaded rod of the rotary knob (11) and insert it sideways into the retainer of the tubular shaft. Insert the threaded rod of the rotary knob (11) through the tubular shaft and screw on the rotary knob (11) with the nut.

Only tighten the rotary knob (11) by hand! The use of maximum manual force will damage the tubular shaft.

Assembly of the front tubular shaft (B 6):

1. Remove the cap (23) on the front tubular shaft (6). Loosen the star wheel (8).. Slide the front tubular shaft (6) optionally onto the middle tubular shaft (9) or onto the tubular shaft (12) on the appliance housing in a slight rotating movement. The safety button (7/10) locks into place. Fix the two tubular elements in place with the rotary knob (8/11).

Only tighten the rotary knob (8/11) by hand! The use of maximum manual force will damage the tubular shaft.

1. Place the round handle (13) onto the tubular shaft of the de-

vice housing (12). Fold on the counter-holder (24) of the round handle and screw it on together with the large washer (25) and the rotary knob (26).

The dismantling takes place in reverse order.

Operating the Hedge Trimmer

Do not use the equipment without the hand guard. Wear suitable clothing and work gloves when working with the equipment. Ensure that the equipment is functional before each use. The On/Off switch and the safety switch must not be held closed. They must switch off the motor when on is released. Should a switch be damaged, stop working with the equipment. Ensure that the mains voltage value matches the label on the equipment.

Note noise protection and local specifications. The use of the equipment on certain days (e.g. Sundays and national holidays), at certain times of day (lunch times, night time quiet periods) or in special areas (e.g. health resorts, clinics etc.) is restricted or forbidden.

Swivelling Out the Blade Beam

1. Hold the safety blade beam (A 1) on the handle to adjust the blade beam (5).

2. Unlock the safety lever (3) and keep it pressed.

3. By simultaneously exerting pressure on the lock lever (4), you will loosen the fixation of the cutter bar (A1).
4. The safety blade beam (A 1) can now be swivelled out. Use the stop stages and allow the stop lever (4) to click back in. You can choose 9 stop stages.
5. Then, release the safety lever (3) again and ensure that it latches back into its initial position.

Attach the shoulder strap

Attach the shoulder strap spring clip (A 19) to the carrying eyelet (A 20) on the tubular shank of the device. Set the strap length such that the spring clip on the shoulder strap is roughly at the height of your hip.

Switching On and Off

Ensure that you are standing in a firm position with both hands gripping the hedge trimmer away from the body. Ensure that the trimmer is in contact with no other objects before switching on.

1. Make a loop in the end of the extension cable and suspend this in the cable strain relief (18)
2. Connect the device to the mains voltage.

3. To switch on, hold the safety switch (15) depressed and simultaneously press the on/off switch (16). The hedge trimmer will be run at maximum speed. You can release the safety switch (15) again.

4. The equipment will switch off again when you release on/off switch (16).

Working with the Electric Hedge Trimmer

During cutting work, ensure that no contact is made with objects, e.g. such as wire fencing or main plant stems. This may result in damage to the cutter bar.

• To avoid eye injuries, always wear the supplied safety goggles while working with the hedge trimmer (A 22).

- Always hold the equipment firmly in both hands, with one hand on the rear handle and the other on the front handle (A 13). Thumbs and fingers must be firmly around the handles.

- Check the shoulder strap (A 19) on a pleasant position, which makes it easier for you to hold the hedge trimmer.

- Switch off the equipment immediately in the event that the blades are blocked by solid objects, pull out the power plug then remove the object.

- Always work away from the mains power outlet. Set the cutting direction before starting work. Ensure that the power cable is kept well away from the working area. Never lay the cable over the hedge, where it could easily be caught up in the trimmer blades.

- Avoid overstraining the equipment during work.

Pull out the power plug immediately if the cable is damaged, badly twisted or has been completely cut through.

Putting down the device

• Place the device on the ground with the motor housing first.
• The safety cutter bar (A 1) must be placed on the ground without being subjected to any pressure.
• Do not apply any static pressure whatsoever to the cutter bar (A 1).

Swivelling the Arm

Caution!

gear box (

A 2) becomes

hot during operation. There is a risk of burns. Do not touch the gearbox housing (A 2) or the connecting point to the front tubular shaft (A 6).

1. Release the indexing by pushing the safety slide (14) forward.

2. The tubular shank can now optionally be turned 45^/90^ to the right or the left (see the scale on the device).

Cutting Techniques

• Cut thick branches beforehand using a branch clippers.
• The double-sided cutter bar enables cutting in both directions or, with a swinging action, from one side to the other.
• In case of vertical cutting, move the hedge trimmer uniformly forward or up and down in an arc movement.
• In case of horizontal cutting, move the hedge trimmer in a sickle-shaped movement to the edge of the hedge, so that cut branches fall to the ground.
• In order to achieve long straight lines, the placing of tensioned guiding cords is recommended.

Cutting Shaped Hedges:

It is recommended that hedges be cut in a trapezoidal shape, in order to prevent stripping off of the lower branches. This corresponds to the natural plant growth and allows the hedge to thrive optimally. During cutting, only the new annual growths are reduced and thus a dense branching and a good screen will develop.

1. Cut the sides of a hedge first. To do this, move the hedge trimmer in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which may result in some areas having sparse growth or holes.
2. Cut the top edge, according to taste, in a flat shape, roof shape or rounded shape
3. Trim young plants to the required shape. The main growth should remain undamaged until the hedge has reached the planned height. All other shoots are lopped off to half size.

Care of Free-Growing Hedges:

Free-growing hedges are not shaped when cut, although they must be regularly maintained so the hedge does not become too high.

Working Safely

• Do not use the high pruning saw when standing on a ladder or in an unsafe position.
• Do not be tempted to make unconsidered cuts. Doing so may endanger both yourself and others.
• Children must be supervised to ensure that they do not play with the equipment.

- Long use of the equipment can result in vibration-related circulatory disorders in the hands. However, the length of use can be extended by using suitable gloves or taking regular breaks. Note that a personal tendency for poor circulation, low outdoor temperatures, or high gripping forces during work will reduce the length of use.

Maintenance/Cleaning

Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts.

Pull out the power plug before carrying out any work on the equipment.

Wear gloves while handling the blades.

Carry out the following maintenance and cleaning work regularly. This will guarantee a long and reliable service life.

• Before each use, check the hedge trimmer for obvious defects such as loose, worn or damaged parts. Check the secure seating of the bolts in the cutter bar.
• Do not use the unit if the blades are blunt or worn. This will overstress the motor and gearbox of the machine.
• Check coverings and safety devices for damage and correct seating. Replace these where necessary.
• Keep the ventilation slots and motor housing of the device clean. Use a damp cloth or a brush to do this. Do not wash down the equipment with water, or submerge it in water.

GB IE

- Do not use any cleaning agents or solvents. These could cause irreparable damage to the equipment. Chemical substances can attack the plastic parts of the equipment.

- Clean the cutter bar carefully after each use.

Wipe it off with an oily cloth or spray it with a metal protective spray.

erolly after

- Keep the hedge trim- mer dry and covered with the blade protection supplied and out of reach of children.

• The gears is maintenance free

Storage

- Keep the trimmer in the blade guard supplied, in a dry place and out of reach of children. Store the appliance in horizontal position or secured against toppling over.

- Hang up the advice on the handle for adjusting the blade beam (A 5) for storage.

Transport

Never transport your appli- ance while the appliance is turned on! Risk of injury!

- For transport, always use the blade guard (A 21).

- Always carry the appliance with both hands, with one hand on the back handle and the other hand on the front round handle (A 13).

Waste Disposal and Environmental Protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Electrical machines do not belong in domestic waste.

Take the equipment to a waste disposal site. The plastic and metal parts that are used can be separated out into pure grade, which allows recycling. Ask our Service Centre for details.

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" page 35). Please have the order number mentioned below ready.

Pos. exploded Description Order No. drawing

74+192	Handle with screws for adjusting the blade beam 91102880
178-185	Round handle 91102876
151-153	Carbon brush 91102871

Trouble Shooting

Problem Possible cause Fault correction
Device does not start	Mains voltage not on	Check plug socket, cable, line and plug, where appropriate, have repaired through electrical specialist
	On/Off switch (A 16) defective	Repair by Service Centre
	Worn carbon brushes
	Defective motor
Device runs with inter- rptions	Power cable is damaged	Check the cable and have it changed by the Service Centre if necessary
	Internal loose electrical connection	Repair by Service Centre
	On/Off switch (A 16) defective
Blades become hot	Blades (A 1) are blunt	Have the blades (A 1) sharpened or replaced (Service Centre)
	Blades (A 1) are notched	Have the blades (A 1) checked or replaced (Service Centre)
	Too much friction due to lack of lubrication	Oil the blades (A 1)

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. blades) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 298481) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 298481

IE Service Ireland Service Northern Ireland

TNI: 1890 930 034

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 298481

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service-Center....52

Importateur ....52

Diagram showing a tool interacting with a surface with repeating triangular patterns (no text or symbols)

Rangement

Service-Center......68

Importeur ......68

Diagram of a tool interacting with a serrated surface (no text or symbols)

Service-Center......83

Dovozce....83

Diagram showing a tool interacting with a grid of triangular elements (no text or symbols)

16 Interruptor CON/DESC (no visible)

17 Cable de red

Diagram showing a tool interacting with a textured surface, no text or symbols present

Service-Center......116

Importador......116

GBIE	Translation of the originalEC declaration of conformity
We confirm, that the design type of theLong-Reach Hedge Trimmerdesign series FHL 900 F5serial number 201805000001 - 201805113500conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2000/14/EC • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60745-1:2009+A11:2010EN ISO 10517:2009+A1:2013 • EN ISO 12100:2010EN 55014-1:2017 • EN 55014-2:2015EN 61000-3-2:2014 • EN 61000-3-3:2013
We additionally confirm the followingin accordance with the 2000/14/EC emissions guideline:Guaranteed sound power level: 99 dB(A)Measured sound power level: 95,47 dB(A)Compliance evaluation process carried outin accordance with Appendix V, 2000/14/EC
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 Großostheim, 10.05.2018Germany	Christian FrankDocumentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
