HPBT5055WT - Headphones NEDIS - Free user manual and instructions

Brand	Nedis
Model	HPBT5055WT
Product type	Fully wireless earphones
Bluetooth version	5.0
Frequency range	20 Hz - 20 kHz
Impedance	16 Ω
Speaker size	8 mm
Battery type (earphones)	Lithium-ion
Battery type (case)	Lithium-polymer
Battery capacity (earphones)	2 x 65 mAh
Battery capacity (case)	400 mAh
Charging time	Up to 1.5 hours
Battery life	Up to 6 hours
Case recharges	Up to 3 times
Power supply	5 VDC, 1.0 A via USB-C
Touch control	Yes
Voice control	Siri, Google Assistant
Water resistance	No
Built-in microphone	Yes
Package contents	Earphones, charging case, USB-C cable, 3 pairs of ear tips (S/M/L)
Main features	Bluetooth pairing, touch controls, voice assistant, call management, music control
Care and cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Safety	Do not expose to water or heat. Use at moderate volume to protect hearing.
Spare parts and repairability	Non-removable battery. Replaceable ear tips (S/M/L included).
General information	Compliant with RED Directive 2014/53/EU. Made in China.

Frequently Asked Questions - HPBT5055WT NEDIS

How do I pair the earphones with my phone?

Remove the earphones from the charging case. They automatically enter pairing mode, indicated by the flashing LED. Enable Bluetooth on your phone and select HPBT5055WT or HPBT5055BK from the device list.

How long does it take to fully charge the earphones?

The charging time for the earphones and case is approximately 1.5 hours. The case LED indicates the charge level: green (31-100%), yellow (11-30%), red (1-10%).

What is the battery life of the earphones?

The earphones provide up to 6 hours of continuous playback. The charging case can recharge them up to 3 times, providing a total battery life of approximately 18 hours.

Are the earphones waterproof?

No, the earphones are not waterproof. Avoid any exposure to water or humidity to prevent damage.

How do I control music with the earphones?

Press once on the touch control (left or right) to play/pause. Press twice on the right control to skip to the next track, twice on the left to go back to the previous track.

Can I use the earphones with Siri or Google Assistant?

Yes, press and hold the touch control for 1.5 seconds to activate your phone's voice assistant (Siri or Google Assistant).

How do I reset the earphones to factory settings?

Make sure the earphones are turned off. Press and hold the touch controls on both earphones for 10 seconds until the LED flashes. This resolves connection issues between the earphones.

Which ear tips are included and how do I change them?

The package includes 3 pairs of ear tips in sizes S, M, and L. To change them, gently pull off the existing ear tip and attach the new one onto the speaker nozzle.

Is it safe to use these earphones while driving or cycling?

It is not recommended to use earphones with both ears covered in traffic, as this may reduce your awareness of surrounding sounds. In some regions, it is even illegal.

How do I clean the earphones and case?

Use a soft dry cloth to clean the earphones and case. Do not use liquid or abrasive products. Ensure the charging contacts are clean.

USER MANUAL HPBT5055WT NEDIS

with voice and touch control

HPBT5055BK

HPBT5055WT

EN Quick start guide 4
DE Kurzanleitung 8
FR Guide de démarrage rapide 12
NL Verkorte handleiding 16
IT Guida rapida all'avvio 20
ES Guia de inicio=rápido 24
PT Guia de iniciação rápida 29
(SV) Snabbstartsguide 33
FI Pika-aloitusopas 37
NO Hurtigguide 41
DA Vejledning til hurtig start 45
HU Gyors beüzemelési utmutató 49
PL Przewodnik Szybki start 53
EL O8nyoc ypnyopnc EKKivnonc 57
SK Rychly námod 62
CS Rychly námod 66
RO Ghid rapid de initiere 70

Fully Wireless

Earphones

HPBT5055BK

HPBT5055WT

For more information see

the extended manual online:

ned.is/hpbt5055bk |ned.is/hpbt5055wt

Intended use

The Nedis HPBT5055BK | HPBT5055WT is a pair of fully wireless earphones.

The product can be paired with any Bluetooth enabled audio/video device.

Earphones can be charged up to 3 times in the charging case.

Any modification of the product may have consequences for safety, warranty and proper functioning.

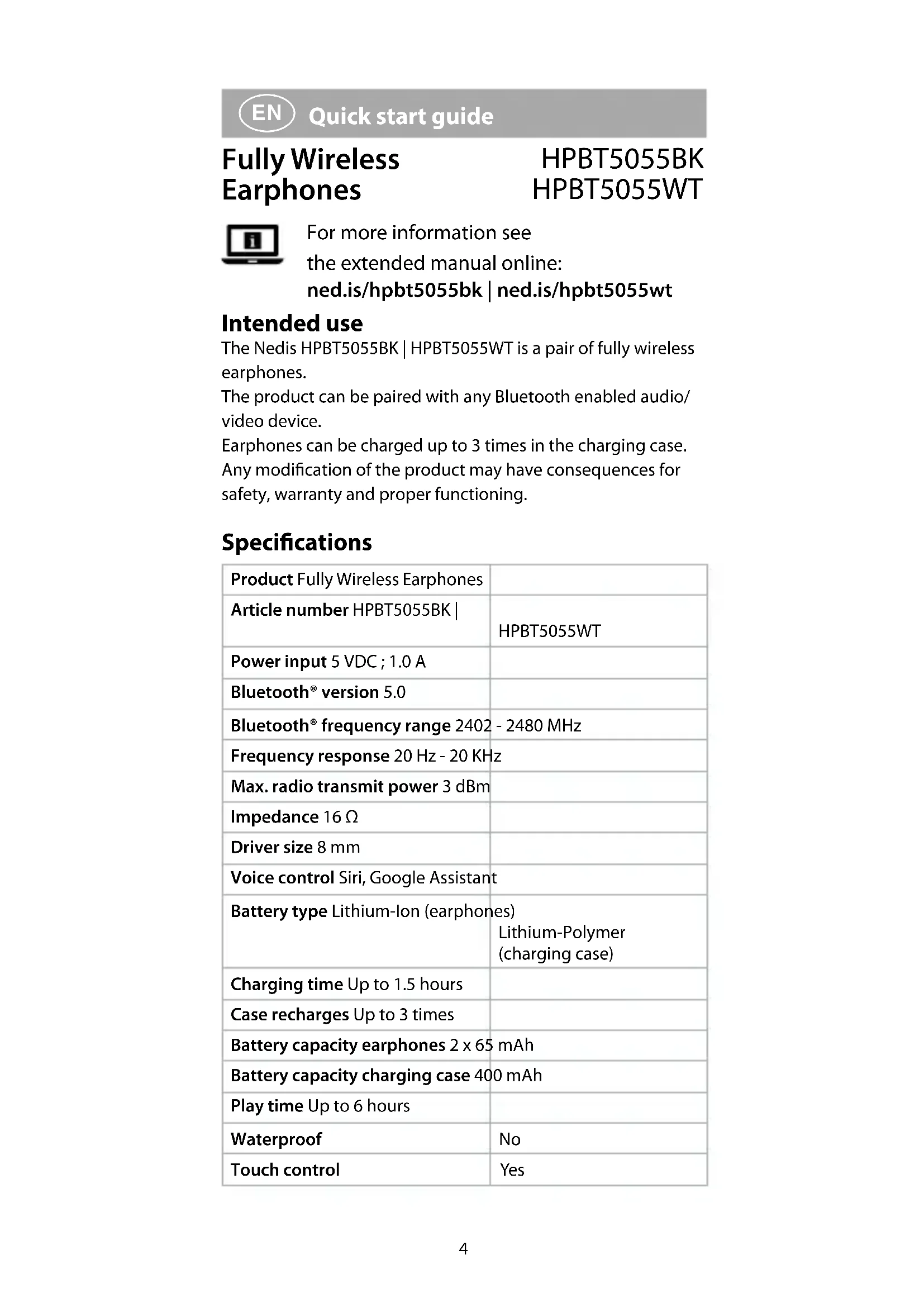

Specifications

Product Fully Wireless Earphones
Article number HPBT5055BK |	HPBT5055WT
Power input 5 VDC; 1.0 A
Bluetooth® version 5.0
Bluetooth® frequency range 2402 - 2480 MHz
Frequency response 20 Hz - 20 KHz
Max. radio transmit power 3 dBm
Impedance 16 Ω
Driver size 8 mm
Voice control Siri, Google Assistant
Battery type Lithium-lon (earphones)
Lithium-Polymer (charging case)
Charging time Up to 1.5 hours
Case recharges Up to 3 times
Battery capacity earphones 2 x 65 mAh
Battery capacity charging case 400 mAh
Play time Up to 6 hours
Waterproof	No
Touch control	Yes

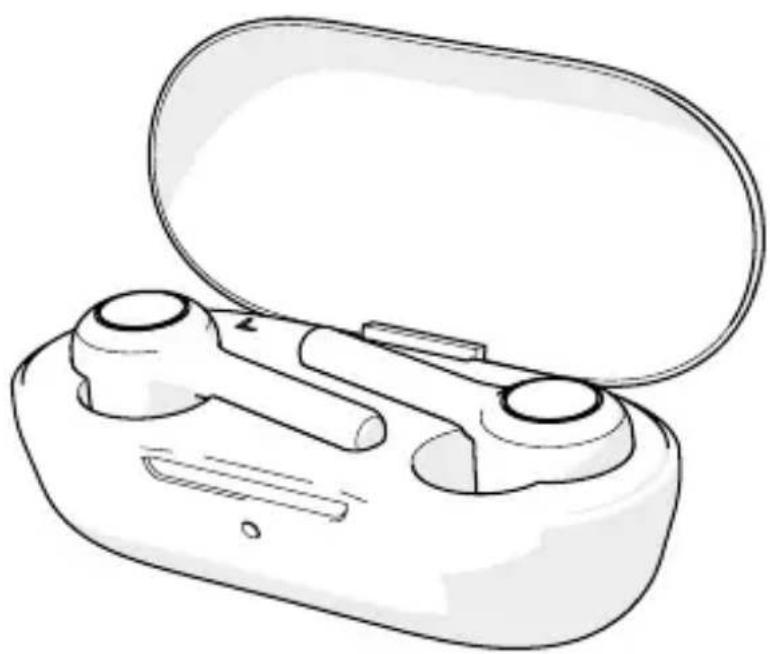

Main parts (image A)

1 Lid
2 USB-C port
3 Left earphone slot
4 Charging indicator LED
Status indicator LED
6 Leftearphone touch control

7 Microphone
8 Rightearphone touch control
9 Rightearphone slot
10 USB-C cable
11 3 Pairs of ear tips (S/M/L)

Safety instructions

WARNING

• Only use the product as described in this manual.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not expose the product to water or moisture.
• Do not drop the product and avoid bumping.
• Do not open the product.
• Keep the product out of reach from children.
• This product is not a toy. Never allow children or pets to play with this product.
• Using earphones with both ears covered while participating in traffic is discouraged and may be illegal in some areas.
• Listening on high volume for a long time will damage your hearing.
• Some wireless devices may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.
• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.
• Do not short circuit.
• Do not repair the product. If damaged, it must be properly disposed of.
• Only use the product as described in this manual.

Pairing the earphones to a Bluetooth audio source

1. Take the earphones out of the charging case. The earphones switch on automatically.

Tap and hold both earphone touch controls A 6 A 8 for 3 seconds to manually switch on the earphones.

1. The status indicator LED A ⑤ starts blinking to indicate pairing mode is active.
2. Enable bluetooth on the device you want to pair the earphones with.
3. Select "HPBT5055WT / HPBT5055BK" from the list of available Bluetooth devices on your device.

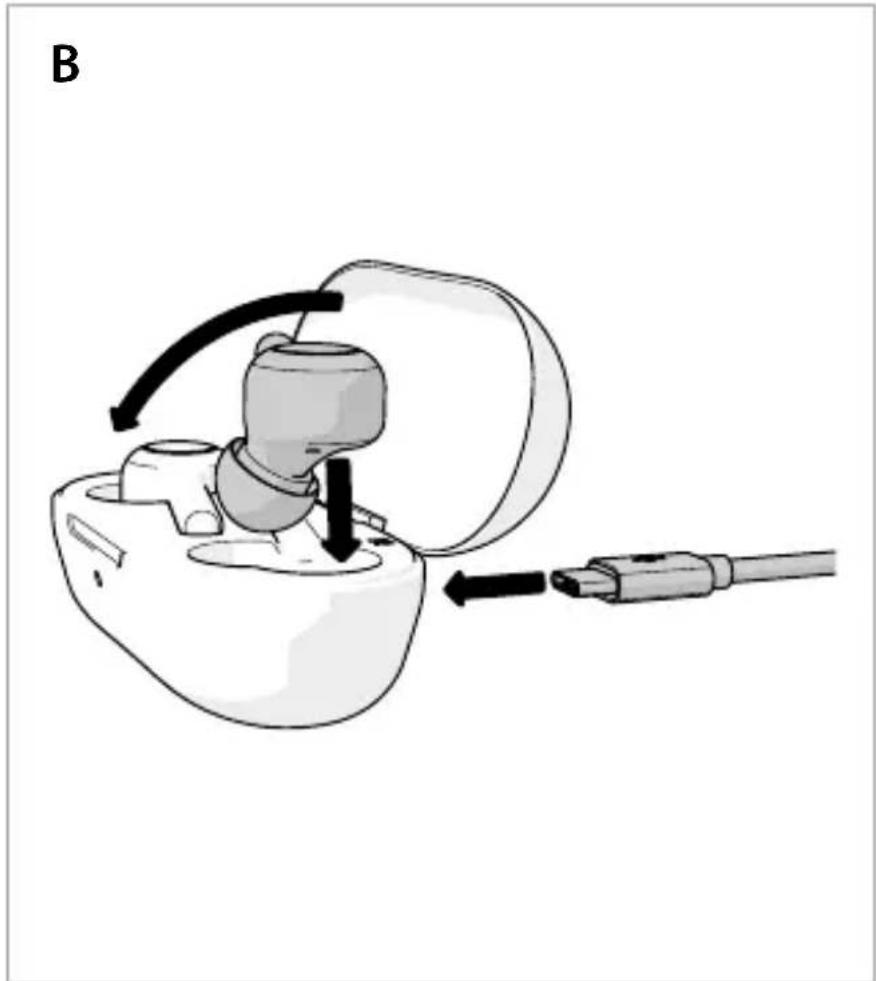

Charging the product (image B)

1. Plug he USB-C cable A ⑩ into the USB-C port A ② of the charging case.
2. Plug the other end of A ⑩ into a computer or power adapter.
3. Plug the power adapter into a power outlet.
4. The charging indicator LED A ④ indicates the charging progress of the battery.
   Green 31% - 100% Yellow 11% - 30% Red 1% - 10%
5. Place the earphones into the respective slots A 3A9 and close the lid A1 to charge the earphones.
6. The status indicator LED A ⑤ on the earphones lights up red.
7. A ⑤ switches off when the earphones are fully charged. The earphones and the charging case can charge simultaneously.

Switching on the product

• Tap and hold A (6) and A (8) for 3 seconds to switch the product on or off.

Making phone calls

With the earphones connected to a mobile phone via Bluetooth, phone calls will automatically be redirected to the earphones.

To answer an incoming call, tap A 6 or A8.
- To reject an incoming call, double tap A ⑥ or A ⑧.
To end a call, tap A 6 or A8.
- To cancel an outgoing phone call, tap A ⑥ or A ⑧.

Controlling the music

• Tap A (6) or A (8) to play or pause the music.
  Double tap A 8 to skip to the next track.
  Double tap A 6 to skip to the previous track.

Add Siri/Google Assistant function

• Tap and hold A ⑥ or A ⑧ for 1.5 seconds to activate Siri/ Google Assistant.

Restore to default settings

1. Make sure that the earphones are switched off.
2. Tap and hold A6 and A8 for 10 seconds.

This function is suggested to be used when the earphones can not connect to each other under the conditions of common use.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product HPBT5055BK | HPBT5055WT from our brand Nedis, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via webshop.nedis.com/hpbt5055bk#support | webshop.nedis. com/hpbt5055wt#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Phone: [phone] (during office hours)

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands

Kabellose Kopfhörer HPBT5055BK HPBT5055WT
