HF 8000 Family - Deep fryer STEBA - Free user manual and instructions

Product type	Oil-free fryer (Air fryer)
Brand	Steba
Model	HF 8000 Family
Maximum capacity	Up to 1.4 kg
Temperature range	80 °C to 200 °C
Timer	1 to 60 minutes
Preset programs	8 programs (French fries, Chop, Scampi, Cake, Poultry, Steak, Fish, Defrost)
Display	Digital with control panel
Cleaning of pot and grid	Dishwasher safe or washable with soapy water
Interior cleaning	Soapy water or oven cleaner
Cleaning of heating element	Brush after turning over the appliance
Safety	Automatic shut-off at end of timer, burn protection (hot surfaces)
Recommended safety distance	10 cm from wall, 70 cm from flammable materials
Usage	Household use only, do not use oil or fat
Included accessories	Pot, grid, handle
Repairs	Only by authorized after-sales service with original parts

Frequently Asked Questions - HF 8000 Family STEBA

How to clean the HF 8000 Family fryer?

Always unplug the appliance and let it cool completely. The pot and grid can be cleaned with soapy water or in the dishwasher. The interior can be cleaned with soapy water or oven cleaner. If the heating element is dirty, turn the appliance over and brush it. Dry the pot and grid in the appliance for about 5 minutes at 80 °C.

Can oil be used in this appliance?

No, this appliance is not a normal fryer. Do not put oil or fat in the pot, as this poses a fire hazard. Food can be lightly oiled before cooking, but not directly in the appliance.

Why does the appliance smoke?

This is usually due to overly fatty foods. Make sure to pat the food dry to remove excess grease. Clean the pot after each use to avoid residue that can smoke.

How to prevent fries from not being crispy?

For crispy fries, use rather thin and well-dried fries before cooking. Add a little oil, salt or spices, and stir halfway through cooking. The recommended temperature for homemade fries is 180 °C for 20-26 minutes depending on thickness.

What is the cooking time for frozen fries?

For thin frozen fries (300-1400 g), allow 10-14 minutes at 200 °C. For thick frozen fries, 14-22 minutes. Stir halfway through for even cooking.

Can I use the appliance without the grid?

No, the grid is essential for proper hot air circulation. Never use the appliance without the grid, otherwise food may burn or not cook properly.

What to do if the pot does not insert correctly?

Check that the basket is not too full. The maximum capacity is about 3/4 of the pot. Make sure the basket is properly inserted into the pot and that there is no obstruction. If the problem persists, reduce the amount of food.

How to change the temperature during cooking?

During operation, you can adjust the temperature between 80 °C and 200 °C using the +/- buttons. Similarly, the time can be adjusted from 1 to 60 minutes. The appliance adapts automatically.

The appliance beeps and does not start, what to do?

Make sure the appliance is plugged in and the timer is set. If the indicator light flashes, check that the pot is correctly inserted. After turning on, select a program or set the temperature and time, then press the start button.

How to defrost food with this appliance?

Use the 'Defrost / reheat' program at 70 °C. The duration depends on the quantity. For quick defrosting, you can also manually set a low temperature. Monitor the food to avoid overcooking.

USER MANUAL HF 8000 Family STEBA

Steba® 18:0°C 14:48 M + - - +

220/240 V\~; 50/60 Hz; 1800 W

Instructions for use 12

Mode d'emploi 22

Line drawing of a portable air fryer with lid and side panel (no text or symbols)

1) 2)

Line drawing of a kitchen appliance with a handle and side panel, no text or symbols present

5)

3) 4)

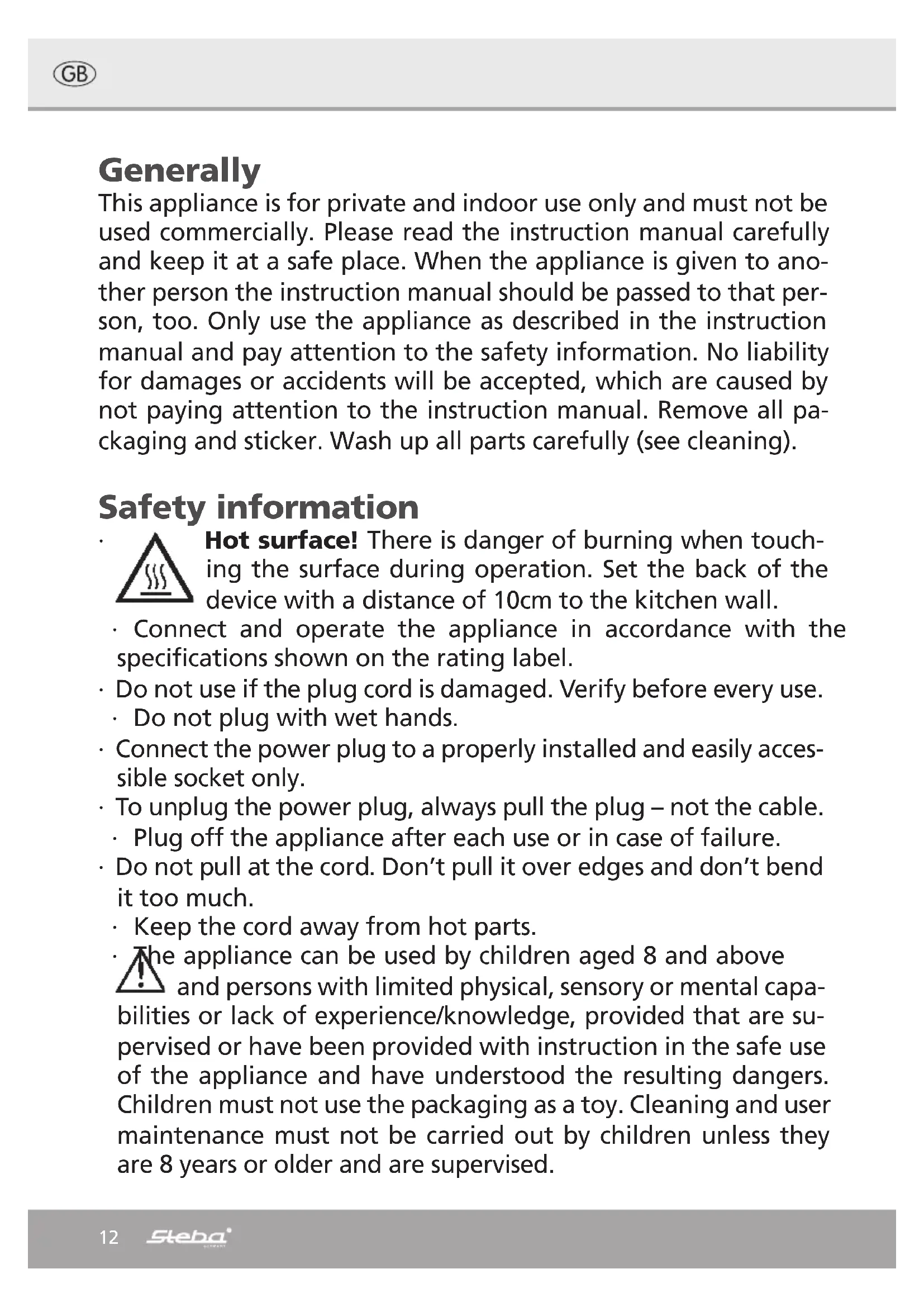

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

Hot surface! There is danger of burning when touching the surface during operation. Set the back of the device with a distance of 10cm to the kitchen wall.
- Connect and operate the appliance in accordance with the specifications shown on the rating label.
- Do not use if the plug cord is damaged. Verify before every use.
- Do not plug with wet hands.
- Connect the power plug to a properly installed and easily accessible socket only.
- To unplug the power plug, always pull the plug – not the cable.
- Plug off the appliance after each use or in case of failure.
- Do not pull at the cord. Don't pull it over edges and don't bend it too much.
- Keep the cord away from hot parts.
The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.

- Never place anything on top of the device and do not cover the ventilation slots.

- Never immerse the unit in water.

- Leave a space of about 10cm around the device.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

• The device gets hot, only transport after it cooled down.

• Only use the device as described in this manual.
  This appliance is not a normal deep fryer. Do not put any oil or fat into the pot. Danger of burns!

- You must not put any materials such as paper, cardboard, plastic etc. into the appliance.

- This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

- Before initial use: clean all parts carefully and leave to dry. Heat up the device for about 15 min. to eliminate the smell of newness.

- Attention! Device gets hot. Danger of burns! Do not

place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm to burnable materials.

- During operation steam emerge. Keep hands and face away. Watch out for steam during cooking and when you pull out the pot. Take appropriate distance to wall cupboards to avoid damage of the veneer.

- If an extension cable is used, it has to have a cross-section of 1,5mm^2 . A cable drum must always be unwound.

- If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.

- Make sure that children do not tease the cable or that a trip hazard occurs.

- The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.

- Hot steam may leave the louvers. Never place any wet food into the device, thaw frozen food slightly.

Hygiene: Please always clean the device to avoid bacteria and mould formation.

Cleaning

Attention! Pull the plug before cleaning and allow the device to cool down.

- Never immerse the unit into water.

- The pot and tray can be cleaned in warm water with usual dish-washing detergents or the dishwasher. Do not use aggressive or abrasive cleaning agents.

• Clean the interior with water and dishwashing detergent, if necessary, use oven cleaner. If the heating element is soiled, turn the device upside down in order to clean the heating elements with a brush.
• Place the pot in the device and leave to dry for 5 minutes at 80^ C .

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a

even, stable and a heat resisting surface. It is important that no inflammable items are

near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

6)

Line drawing of a portable air fryer with lid and side panel (no text or symbols)

1) 2)

Line drawing of a kitchen appliance with a handle and side panel, no text or symbols present

5)

3) 4)

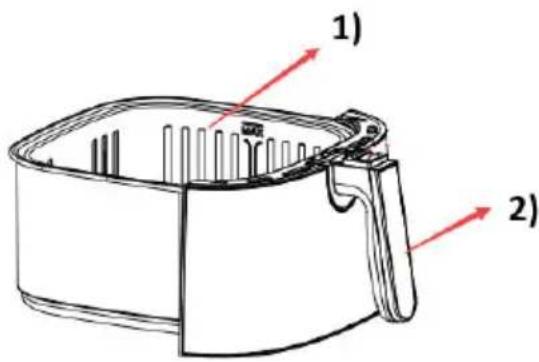

1. Frying pot with tray
2. Handle

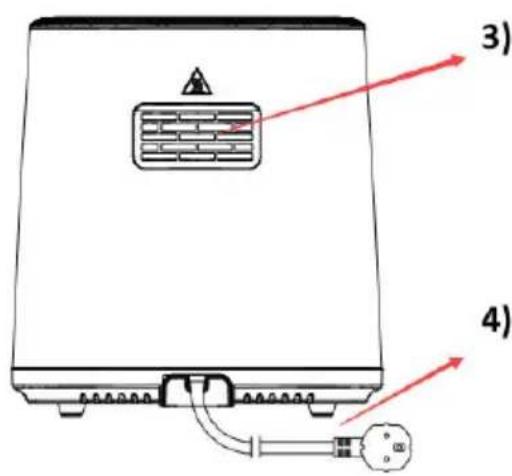

3. Air outlet
4. Power cord

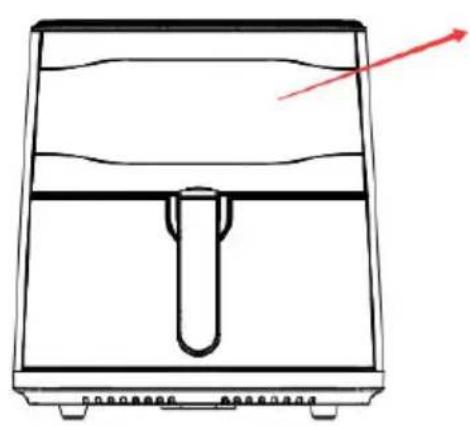

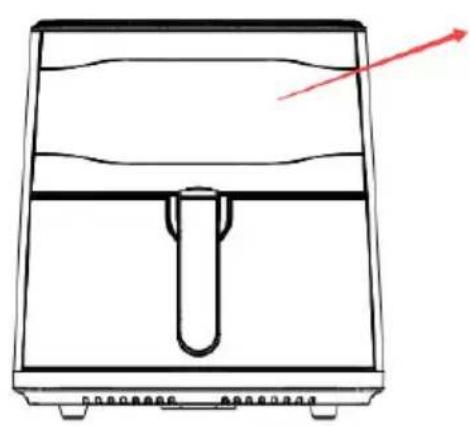

5. Display / Control panel
6. Air intake

Operation

use the device without the tray.

will light up in the display.

- Plug it in the power cord. The device beeps and will light up in the display.

- Place the food in the pot.

- Fill the basket up to 34 in order to avoid any burns on the food and leave space to turn the food.

- Press the button, the display shows 180°C and 15 minutes.

- Select the desired program and start the device by pressing

Programm	Beschreibung Temperatur Zeit in Min.
	Fries 200°C 15
	Rips 180°C 25
	Scampi 200°C 20
	Cake 180°C 20
	Poultry 160°C 20
	Steak	160°C 20
	Fish	160°C 20
	Defreezing / Warming	70°C 12

and heating

Once the tem-

- The display shows the symbols for ventilation and heating. Once the temperature is reached, the heating symbol went out and begins to clock.

- Temperature:

During operation the temperature can be changed from 80 – 200°C by using the +/- buttons.

Time:

During operation the time can be changed from 1 – 60 minutes by using the +/- buttons.

• By pulling out the pot from the device to control the degree of doneness, the heating is interrupted, time is stopped too.
• After the time run out a signal sounds. In order to protect the electronics, the ventilation keeps running for a couple of minutes and stops automatically.
• After the time run out, take out the pot and place it on a heat resisting surface.

Tip

• Less food needs less time.
- Turn the food after half of the time.
- Season fresh fries with oil, some salt and rosemary.
- The fat should be removed out of the pot if highly fatty food is used.
- All foods usable in a deep fryer can be prepared in this device.
- To make crispy fries, use thin fries.
- Preheat the device for 2 minutes before putting the food inside.

Preparation of food

• Many foods from the deep cooling, such as fries, nuggets, cevapcici, breaded vegetables, fish fingers or stuff puff pastry can be prepared in this device.
• Fries can be seasoned in a bowl in advance with a few drops oil, salt, curry or garlic. Mix the fries during the preparation in order to receive an even browning.
• For the preparation of fresh fries, wedges, potatoes cubes etc., dry the cut parts well.
• Scampi in bacon jacket, stuffed mini peppers, stuffed mushrooms, marinated drumsticks, chicken wings or sausage rolls succeed very well, too.
• Due to the intense heat inside the air fryer, the food must be controlled during the cooking.
• Starchy foody (such as potatoes) should not be cooked hotter than 180°C. Burnt foody are harmful.
• Poultry must always be cooked well because of salmonella.

	Capacity time	(Min.)* Temp. °C Shake	food
Thin frozen fries 300 – 1400gr 1	0 – 14 180 X
Thick frozen fries 300 – 1400gr	14 – 22 180 X
Homemade fries 300 – 1400gr 2	0 – 26 180 X
Potato wedges 300 – 1400gr 20	– 24 180 X
Potato cubes 300 – 1400gr 14 –	18 180 X
Cheese sticks, frozen 200 – 600gr	8 – 10 180 X
Chicken Nuggets	100 – 1200gr 9 – 12 200 X
Fish	100 – 1200gr 8 – 10 200
Steak	100 – 1000gr 10 – 15 200
Pork chops	100 – 1000gr 10 – 14 180
Hamburger	100 – 800gr 7 – 14 180
Chicken Wings	100 – 800gr 15 – 20 180
Drumsticks	100 – 800gr 18 – 22 180
Chicken breast	100 – 800gr 15 – 20 200

* Approximate values; depending on your taste, type, quality and temperature of the food

Problem Reason Suggestion
Device does not work	· It is not connected	· Plug in the device
	· The timer is not set	· Set the timer to the desired time
The food is not cooked	· Too little temperature· Too little time· Too much food	· Increase temperature and time and use less food
The food is cooked uneven		· Turn the food into the basket after half of the time
The snacks are not crispy	· You may used food which is suitable for deep frying	· Use snacks suitable for ovens or put some oil to the food
The pot cannot be placed into the device	· Too much food in the basket· The basket is not placed correctly into the pot· The basket is jammed into the pot	· Place the basket correctly into the pot
The device smolders	· You may used oily food	· Wipe out the pot or dab off the food
Fresh fries are not crispy	· The crispness depends on how much water or oil is on the fries	· Dry the fries before adding some oil· Cut the fries a little thinner· Not enough oil

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
