USER MANUAL HB 1000 CASO

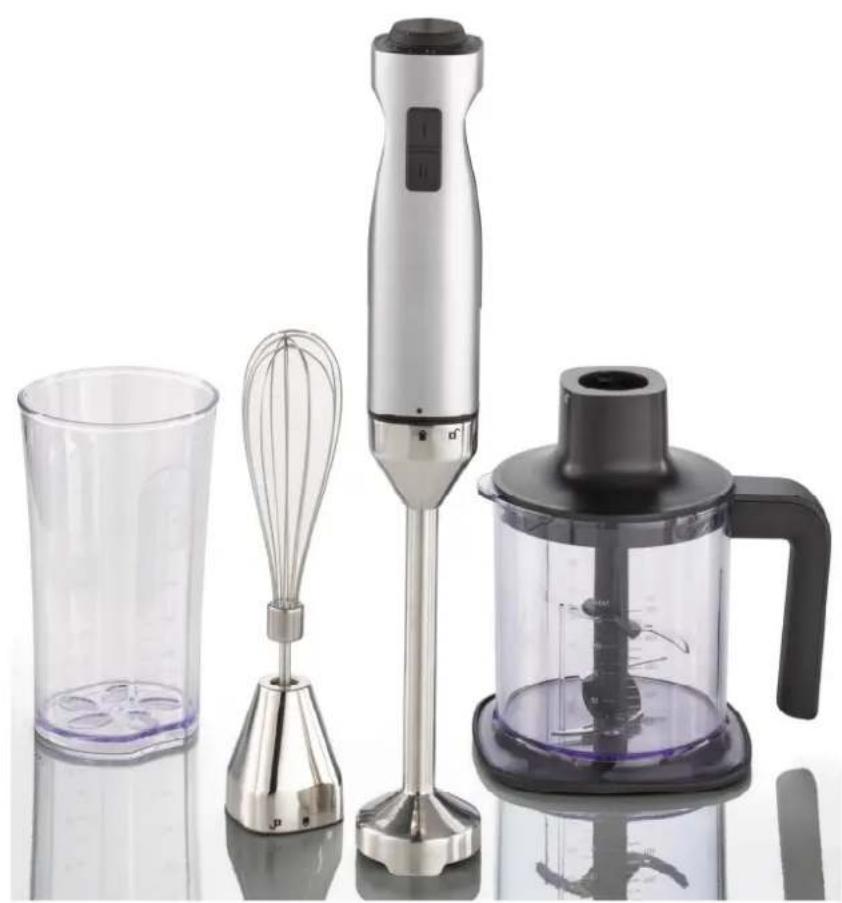

Product photo of a kitchen appliance including a hand mixer, clear glass, and blender (no text or symbols visible)

CE

Artikel-Nr.3603

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

Internet: www.caso-germany.de

11.2 Warning notices....24

11.3 Limitation of liability 25

11.4 Copyright protection ......25

12 Safety 25

12.1 Intended use....25

12.2 General Safety information....26

12.3 Sources of danger 27

12.3.1 Danger of injury....27

12.3.2 Dangers due to electrical power....27

12.4 Commissioning....28

12.5 Safety information 28

12.6 Delivery scope and transport inspection....28

12.7 Unpacking....28

12.8 Disposal of the packaging....29

12.9 Setup location requirements: 29

12.10 Electrical connection....29

13 Design and Function 30

13.1 Overview and Assembly....30

13.2 Rating label....31

14 Operation and Handing 31

14.1 Before initial use....31

14.2 Preparations....31

14.3 Assemble whisk and hand blender 31

14.4 Assemble the chopper 31

14.5 Set speeds....32

14.6 Use whisk and hand blender....32

14.7 Use the chopper....32

15 Cleaning and Maintenance....33

15.1 Safety information ....33

15.2 Cleaning....33

16 Troubleshooting....34

16.1 Security advices....34

16.2 Troubleshooting....34

17 Disposal of the Old Device....34

18 Guarantee ....35

19 Technical Data....35

Labeled diagram of kitchen appliances including blender, stand mixer, and measuring cup with numbered parts

Product photo of a kitchen appliance including a hand mixer, clear glass with liquid, and a side dish (no visible text or symbols)

Item No.3603

CE Home

11 Operating Manual: General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your Hand Blender HB 1000 will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.1 Information on this manual

These Operating Instructions are a component of the Hand Blender HB 1000 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: • Commissioning • Operation

- Troubleshooting and/or - Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.2 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.3 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual

• Uses for non-intended purposes

- Improper repairs

- Technical alterations, modifications of the device

- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.4 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

• Chop food
• Blending liquids and soft food
• Puree food
• Whip cream, egg-whites, etc.

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
  • in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
This appliance is not allowed to be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Children shall not use this device. Keep the device and its cord out of children's reach.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children.
▶ Do not leave the device unsupervised when it is in operation.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.

HINWEIS

Please note

▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Never process hot oil or fat.

12.3 Sources of danger

12.3.1 Danger of injury

⚠GEFAHR

Danger

Careless use of the appliance may result in injury.

Observe the following warnings to avoid injury

▶ Keep fingers, hair, clothing and kitchen utensils well away from moving parts.
▶ Do not touch the blades, especially when the appliance is plugged in. The blades are very sharp.
▶ If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
▶ Be sure the parts are properly assembled to original base and in place.
▶ Unplug from the outlet when not in use and before cleaning and before putting on or taking of parts. Allow to cool before putting on or taking off parts and before cleaning or storing the appliance.

12.3.2 Dangers due to electrical power

⚠️GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

⚠GEFAHR

Danger

▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Never immerse the motor unit, cord or plug in water or other liquids and do not place in the dishwasher.

12.4 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.5 Safety information

⚠️WARNUNG

Warning

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

12.6 Delivery scope and transport inspection

As a rule, the Hand Blender HB 1000 is delivered with the following components:

• Motor unit
• Hand blender
• Whisk and adaptor
• Mixing container
• Chopping container with chopping container blades and lid
• Operating instructions

HINWEIS

Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.7 Unpacking

To unpack the device, proceed as follows:

- Remove the device out of the carton and remove the packaging material.

12.8 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.9 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Do not use the unit outdoors.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.10 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.

- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13 Design and Function

In this chapter, you'll find important information on the design and function of the device.

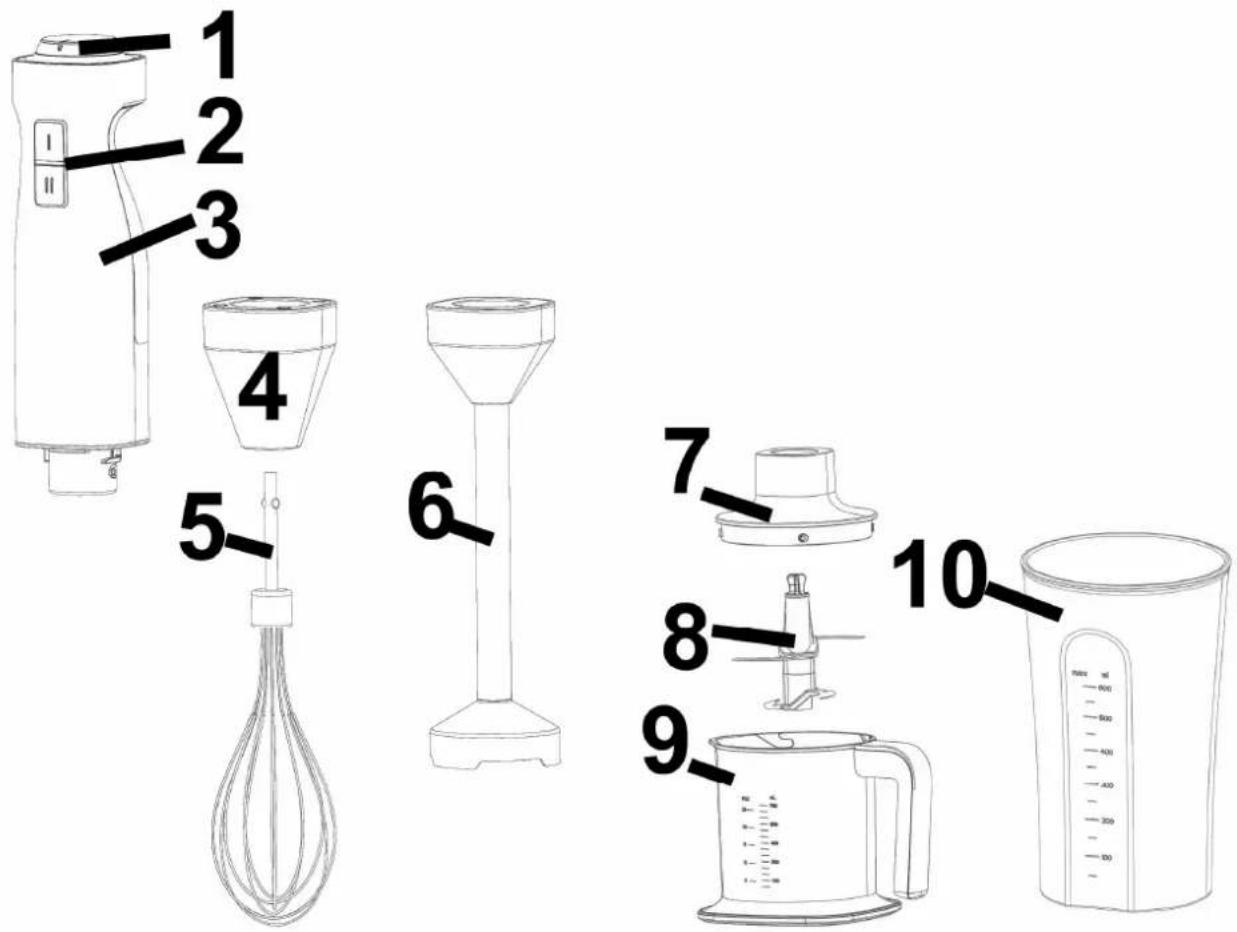

13.1 Overview and Assembly

Labeled diagram of a kitchen appliance showing numbered parts including blender, blender, stand, and measuring cup.

1 Rotary controller to set pushbutton 1 speed
2 Pushbutton I (adjustable via rotary controller) and pushbutton II (max. speed)
3 motor unit
4 Whisk adapter
5 Whisk
6 Hand blender
7 Chopping container lid
8 Blades
9 Chopping container
10 Mixing container

13.2 Rating label

The rating label with the connection and performance data can be found on the back of the device.

14 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

⚠️WARNUNG Warning

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

14.1 Before initial use

1. Thoroughly clean the parts that come into contact with food before you use appliance for the first time (see chapter 'cleaning').

14.2 Preparations

1. Let hot ingredients cool down before you chop them, before you process them (max. temperature 80^ C).
2. Cut large ingredients into smaller pieces before processing them.
3. Assemble the appliance properly before you put the plug in the wall socket.

14.3 Assemble whisk and hand blender

You can use the whisk to whip food like egg whites or cream.

Some ideas for using the hand blender:

• Mix liquid, for instance dairy products, sauces, fruit juice, soups, mixed drinks and shakes.
• Mix soft ingredients, for instance pancake batter, mayonnaise.
• Puree cooked foods, for instance to make baby food.

To fit the whisk, please insert it into the adapter first until it locks.

Then insert the whisk with the adapter or the hand blender into the motor unit such that

is positioned above, then turn until is positioned above.

To de-assemble, reverse the above order.

14.4 Assemble the chopper

The chopper is suitable for chopping up foods such as meat, cheese, onions, garlic, carrots or nuts.

AGEFAHR Danger

▶ Please be careful when handling the blades, they are very sharp. There is a risk of injury.
- Grip blades at the upper end and place into the holder inside the chopping container.

• Cut food into pieces and place them in the chopping container.
• Close lid and turn clockwise until it locks shut. Then place motor unit on the lid such that

is positioned above, then turn until is positioned above.

- To de-assemble, reverse the above order.

14.5 Set speeds

• You can use the rotary controller at the top of the motor unit to seamlessly adjust the pushbutton I speed.
• Pushbutton II always operates the device at maximum speed.

14.6 Use whisk and hand blender

• Assemble device and plug into socket.
• Place desired foods into the mixing container and immerse whisk/hand blender.
• Hold pushbutton I or II, depending on how fast you would like to process your foods.
• Move whisk/hand blender slowly up and down in a rotary motion until your food has achieved the desired consistency.
• Release the pushbutton to finish processing your food.
• Unplug the appliance.

HINWEIS Please note

The whisk should be used continuously for no longer than 1 minute. Then leave to cool for 3 minutes. After 5 processing cycles, leave to cool for 30 minutes.
The hand blender should be used continuously for no longer than 1 minute. Then leave to cool for 3 minutes. After 5 processing cycles, leave to cool for 40 minutes.
▶ If necessary hold the blender with both hands when you process liquids on maximum speed level, as this may cause a strong suction.

14.7 Use the chopper

• Assemble device and plug into socket.
• Hold pushbutton I or II, depending on how fast you would like to process your foods.
• Our Table with examples for processing foods provides you with tips on the recommended quantities, speed settings and recommended maximum operating times. This chopper processes food very quickly. Check your foods if necessary to ensure you don't over-process them, and stop once they reach the desired consistency.
• Release the pushbutton to finish processing your food.
• Unplug the appliance.

HINWEIS Please note

The chopper should be used continuously for no longer than 2 minutes. Then leave to cool for 5 minutes. After 5 processing cycles, leave to cool for 30 minutes.

Table: Examples for processing foods:

Food Recommended	quantity	Speed setting	Recommended maximum operating time
Fresh herbs 30 g Medium setting,		pushbutton I	5 seconds
Meat without bones or gristle	200 g Pushbutton II	5 seconds
Nuts 200 g Pushbutton II 10 seconds
Parmesan (no rind) 200 g Pushbutton II 10 seconds
Carrots 200 g Medium setting,		pushbutton I	5 seconds
Onions 200 g Medium setting,		pushbutton I	5 seconds
Garlic 20 cloves Medium setting,		pushbutton I	5 seconds
Ice cubes 200 g Pushbutton II 3 seconds

For different quantities, adjust speed setting and operating time accordingly.

15 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

▲VORSICHT

Attention

Please observe the safety instructions, before cleaning your device

▶ The blades are really sharp. Handle them with care.
▶ Do not immerse the motor unit in water.

15.2 Cleaning

Unplug the appliance.

Wipe motor unit and whisk adapter as well as the chopping container lid clean with a damp cloth and then dry thoroughly.

Whisk, hand blender, blades, chopping container and mixing container are dishwasher-safe.

Alternatively, you can also clean these parts with warm water and some washing-up liquid.

HINWEIS

Please note

For a quick clean, fill the mixing container with a maximum of 300 ml of warm water with a drop of washing-up liquid and use whisk or hand blender to mix for some 10 seconds. Do not move whisk or hand blender up and down while doing so, but leave at the bottom of the container.
▶ Fill the chopping container with a maximum of 300 ml of warm water with a drop of washing-up liquid and use blades to mix for some 10 seconds.

16 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

16.1 Security advices

▲VORSICHT

Attention

▶ Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

16.2 Troubleshooting

Fault To Rectify
The device does not start.	Please check whether the power plug is properly plugged.

HINWEIS

Please note

▶ If above mentioned steps don't solve the problem, please contact your customer service.
▶ Please clean the device before sending it to customer service.

17 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  ▶ Ensure that your old device is stored safely away from children until it is taken away.

18 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

19 Technical Data

Device Hand Blender HB 1000
Item No.: 3603
Mains data 220-240V; 50-60Hz
Power consumption 1000W
External measurements (W x H x D):	Mixing container 10.5 x 17.5 x 10.5 cmMotor unit with hand blender:6.5 x 41 x 5.5 cmMotor unit with whisk: 6.5 x 43.5 x 5.5 cmMotor unit with chopper: 17 x 38 x 13 cm
Net weight Mixing container: 140 g	Motor unit with hand blender: 840 + 175 gMotor unit with whisk: 840 + 118 gMotor unit with chopper: 840 + 522 g

Mode d'emploi

Batteur HB 1000

Product photo of a kitchen appliance including a hand mixer, clear stand mixer, and glassware (no visible text or symbols)

N°. d'article 3603

20 Mode d'emploi

20.1 Généralités

Labeled diagram of a kitchen appliance with numbered parts including blender, stand, whisk, and measuring cup

Product photo of a kitchen appliance including a hand mixer, whisk, and blender with clear glass (no text or symbols visible)

Articolo-N. 3603

CE □ □

30 Istruzione d'uso

30.1 In generale

Labeled diagram of a kitchen appliance with numbered parts including blender, stand, whisk, and measuring cup

Product photo of a kitchen appliance including a hand mixer, clear glass with liquid, and a blender (no visible text or symbols)

Ref.3603

CE Home

Labeled diagram of kitchen appliances including blender, stand mixer, and measuring cup with numbered parts

Product photo of a kitchen appliance including a hand mixer, clear stand mixer, and glassware with a side panel (no visible text or symbols)

Artikelnummer 3603

CE Home

Labeled diagram of kitchen appliances including blender, stand mixer, and measuring cup with numbered parts
