USER MANUAL CR 1290 CAMRY

White glass coffee maker with a mesh handle and lid, no visible text or symbols on the device itself.

Glass water heater with black handle and metal lid, no visible text or symbols on the device itself

CR 1290

EN	User Manual	3	PL	Instrukcja obsługi	79
DE	Bedienungsanleitung	7	IT	Manuale d'uso	84
FR	Mode d'emploi	12	SV	Bruksanvisning	89
ES	Manual de usuario	17	BG	Ръководство за употреба	93
PT	Manual de Instruções	22	DA	Brugsanvisning	99
LT	Naudojimo instrukcija	27	SK	Použivatel'ská príručka	103
LV	Lietošanas instrukcija	31	BS	Korisnički priručnik	108
ET	Kasutusjuhend	36	MK	Упатство за употреба	112
HU	Használati útmutató	40	HR	Korisnički priručnik	117
RO	Manual de utilizare	45	UK	Керівництво користувача	121
CS	Návod k použití	50	SR	Упутство за употребу	127
RU	Руководство пользователя	54	AR	دليل المستخدم	131
EL	Εγχειρίδιο χρήσης	60	AZ	İstifadəçi təlimatı	135
NL	Gebruikershandleiding	65	SQ	Manuali i përdorimit	140
SL	Navodila za uporabo	70	KA	Общめる数字化	144
FI	Käyttöohje	74

1 2 6 7 4 3 8 5 9 Carry 60-70-80-90% 100% - "A" - "B"

1 Picture :C Picture: D

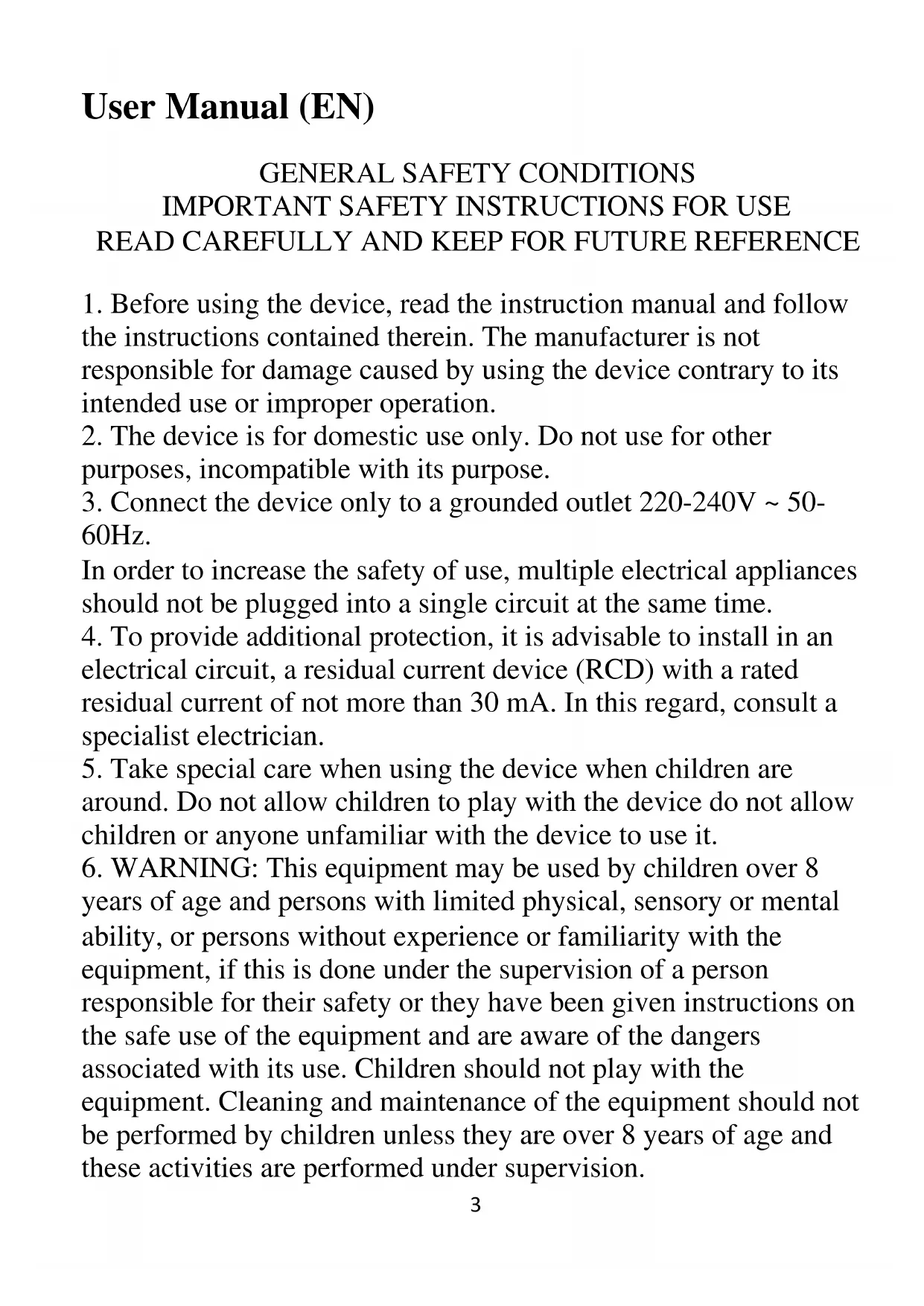

User Manual (EN)

GENERAL SAFETY CONDITIONS IMPORTANT SAFETY INSTRUCTIONS FOR USE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the instruction manual and follow the instructions contained therein. The manufacturer is not responsible for damage caused by using the device contrary to its intended use or improper operation.
2. The device is for domestic use only. Do not use for other purposes, incompatible with its purpose.
3. Connect the device only to a grounded outlet 220-240V \~ 50-60Hz.

In order to increase the safety of use, multiple electrical appliances should not be plugged into a single circuit at the same time.

1. To provide additional protection, it is advisable to install in an electrical circuit, a residual current device (RCD) with a rated residual current of not more than 30 mA. In this regard, consult a specialist electrician.

2. Take special care when using the device when children are around. Do not allow children to play with the device do not allow children or anyone unfamiliar with the device to use it.

3. WARNING: This equipment may be used by children over 8 years of age and persons with limited physical, sensory or mental ability, or persons without experience or familiarity with the equipment, if this is done under the supervision of a person responsible for their safety or they have been given instructions on the safe use of the equipment and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the equipment should not be performed by children unless they are over 8 years of age and these activities are performed under supervision.

4. WARNING: Do not use the device if its housing is cracked.

5. WARNING: Do not open the lid if the water is boiling.
6. WARNING: Do not leave the appliance plugged into an outlet unattended.
7. WARNING: Keep the device out of the reach of children.
8. WARNING: Improper use of the device, may result in injuries such as cuts, abrasions or electric shock, among others.
9. WARNING: Always remove the plug from the power outlet after use by holding the outlet with your hand. DO NOT pull on the power cord.
10. WARNING: Do not move the unit while it is in use.
11. Do not immerse the cord, plug or entire unit in water or other liquid. Do not expose the unit to weather conditions (rain, sun, etc.) or use in high humidity conditions (bathrooms, humid motor homes).
12. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialized repair facility to avoid danger.
13. Do not use the device with a damaged power cord or if it has been dropped or damaged in any other way or is not working properly. Do not repair the device yourself, as there is a risk of electrocution. Return a damaged device to a competent service center for inspection or repair. All repairs may be made only by authorized service centers. Improper repair may cause serious danger
14. Place the appliance on a cool stable, level surface, away from hot kitchen appliances such as: electric stove, gas burner, etc....
15. Do not use the device near flammable materials.
16. The power cord must not hang over the edge of the table or touch hot surfaces.
17. If the kettle is overfilled, boiling water may gush out of it.
18. NOTE: The kettle may only be used with the supplied stand.
19. NOTE: Before lifting the kettle from the stand, make sure that

the kettle is turned off.

1. This equipment is designed to boil clean water for domestic and similar use, such as: staff kitchen areas in stores, offices and other working environments, farm rooms, by customers in hotels, motels and other residential environments of this type, in sleeping and breakfast rooms.

2. Always take special care when boiling water in a kettle. Do not touch the kettle housing or lid. Do not open the lid of the kettle while it is boiling or immediately after the water boils, the escaping steam may cause burns.

3. Carry the kettle only by holding the handle.

4. Do not fill the kettle above the MAX or below the MIN level, as this may cause burns or damage to the kettle.

5. Do not turn on the kettle without water, as this may cause damage to the kettle.

6. Do not use the kettle without a filter or with the lid open, as the circuit breaker will not work then.

7. Periodically, the kettle should be decalcified using means designed for this purpose. Using a kettle with a calcified heater will damage it and void the warranty.

8. To wash the housing of the kettle, do not use aggressive detergents that can damage the kettle or remove the markings on it.

9. The device is not designed to operate with external timers or a separate remote control system.

10. Do not wash the base of the kettle directly in water, only wipe with a dry cloth.

11. Children from 3 to under 8 years of age may turn the appliance on and off only when it is in its normal operating position, is supervised or has been instructed on safe use and understands the resulting risks. Children between the ages of 3 and under 8 must not connect, operate, clean or maintain the appliance themselves.

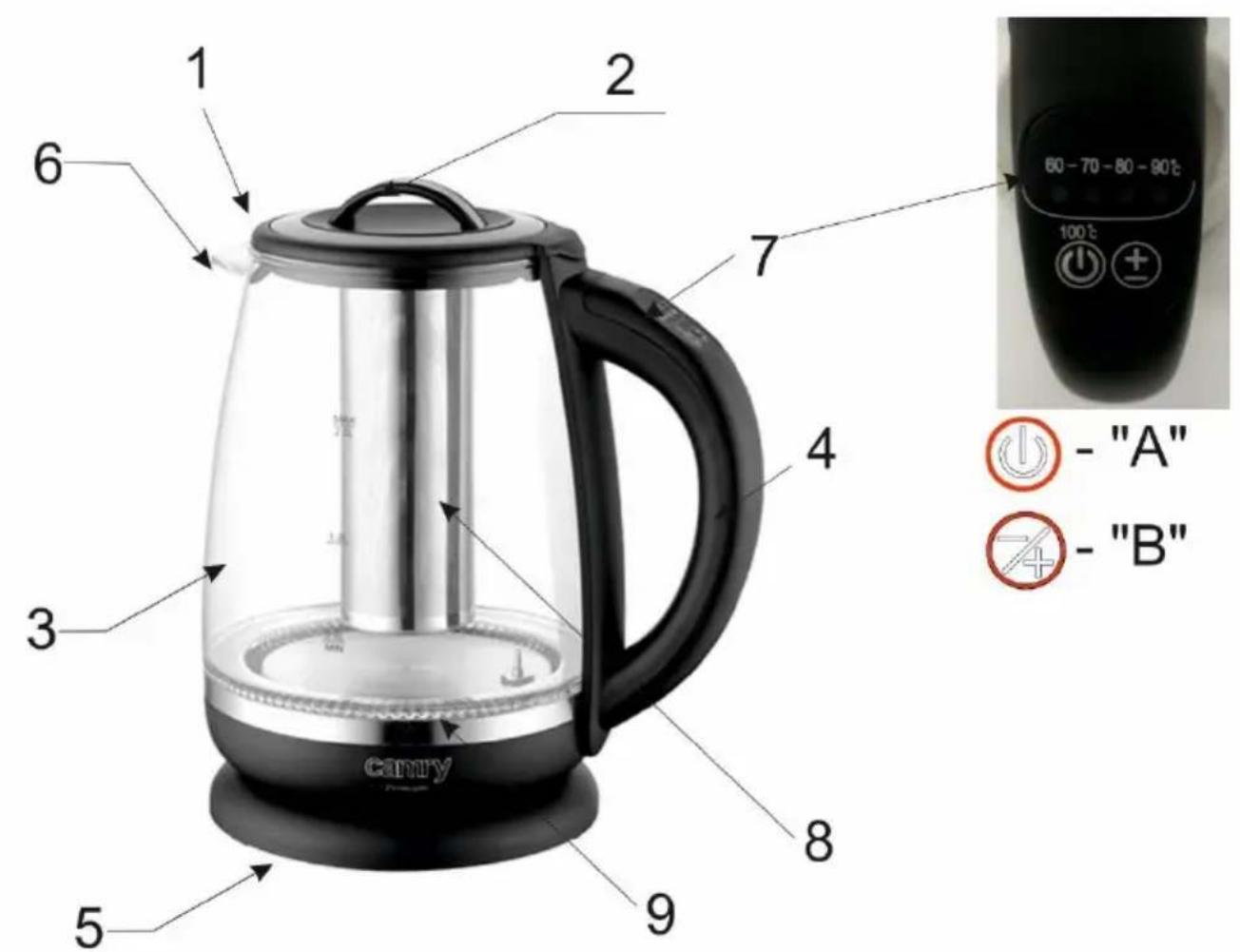

DESCRIPTION 1 - Lid

2 - handle for opening the lid
3 - casing
4 - handle
5 - base
6 - filter
7 - control panel
8 - brewing basket
9 - indicator light

USE OF THE ELECTRIC KETTLE

BEFORE FIRST USE: Fill the kettle with water, boil and pour. Repeat three times. To remove any factory odor, boil the water in the kettle several times.

1. Fill the kettle with water. Make sure the cooktop is completely submerged in water.
2. Place the appliance on a flat, level and heat-resistant surface.
3. Connect the kettle to the mains 220-240 V \~ 50/60 Hz, press the ON / OFF button (A). The indicator light will illuminate.
4. After the water boils, the kettle will turn off automatically.
5. Make sure the kettle is turned off before removing it from the base.
6. The kettle can be manually turned off at any time using the ON / OFF switch (A).
7. The lid of the kettle must be closed during cooking. Only then will the automatic switch work.
8. The kettle can be turned on again approximately 2 minutes after the last use.
9. Switching on an empty kettle or one insufficiently filled with insufficient water will automatically turn off the device. In this case, wait several minutes. Pour the appropriate amount of water and turn the kettle on again.
10. Do not leave the switched-on kettle unattended.
    11 When the water is heated to the appropriate temperature, the device will signal this with a single beep.
11. The kettle is an electrical appliance and is not designed to hold water or other liquids. Before each use, fill the kettle with fresh water above the minimum and below the maximum level.

BASIC OPERATION:

SINGLE BOIL UP TO 100 °C

Press the "A" button briefly, at the sound of "di.", the kettle starts to work.

After the water boils, the indicator light goes off, and the beeper simultaneously emits a "di" sound.

ADVANCED OPERATION:

BOILING WATER 60 °C - 90 °C

Press the "B" button once / two / three / four, then the indicator light will show the temperature of 60 ^ / 70 ^ / 80 ^ / 90 ^ with green / blue / yellow / purple LED. This means that the kettle will stop heating when the water temperature reaches 60 ^ / 70 ^ / 80 ^ / 90 ^

KEEP WARM FUNCTION 100 °C

Press the "A" button for 3 seconds, the beeper will send a "di" sound, the water heating function will start, the LED light will glow red, and when the water boils, the kettle will maintain the water temperature for 2 hours with the indicator light on. During the 2 hour operation, the water heating function will continue when the temperature reaches 85 °C

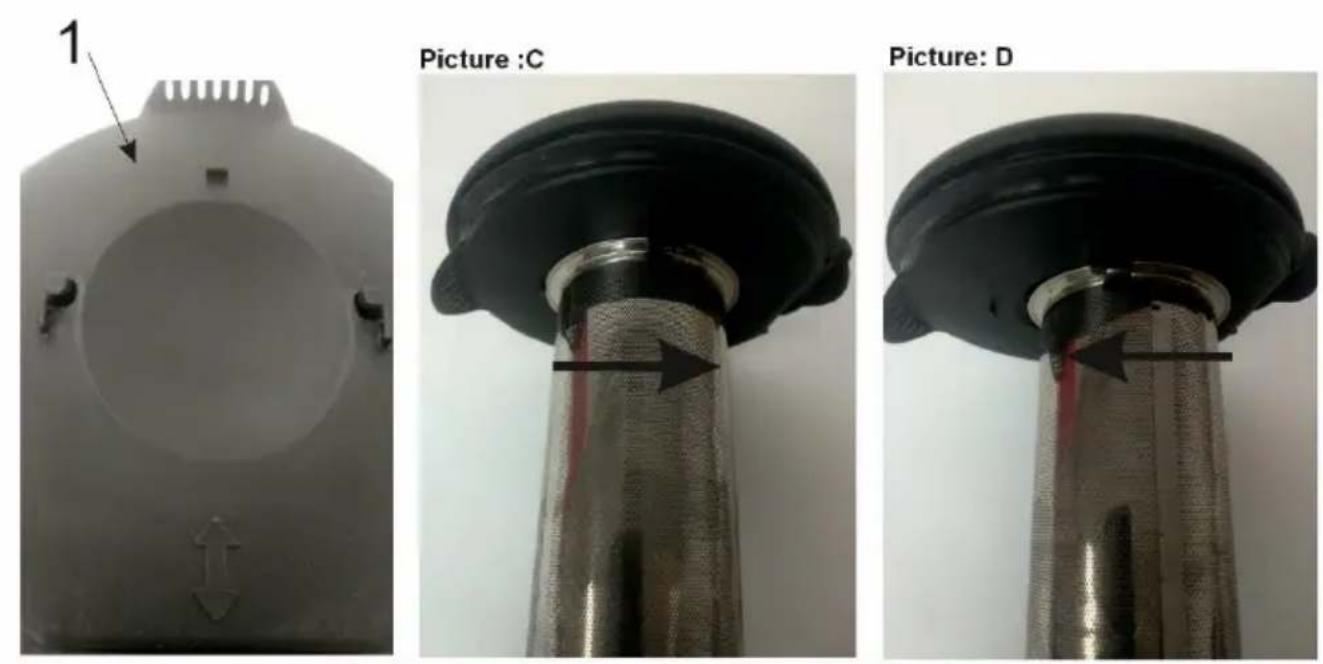

BREWING BASKET (8)

Open the kettle lid (1) by pulling the handle (2).

To remove the brewing basket, remove the basket as shown in figure "C".

To insert the steaming basket, insert the basket as shown in figure "D"

CLEANING MAINTENANCE

Decalcify the kettle regularly. Decalcification is not part of the warranty service. Failure to decalcify regularly will damage the appliance components and void the product warranty. Use descaler to descale the kettle.

Sediment may appear in the kettle and brew basket.

Caution hot surface:

TECHNICAL DATA:

Capacity max: 2.0l min: 0.5l

Voltage: 220-240 V \~ 50/60 Hz

Power: 1850-2200 W

Standby power consumption 0.4 W

For the sake of the environment. Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description. If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment. The marking on the product indicates that the device should not be disposed of in the container with municipal waste. Waste electrical equipment, is waste that contains substances harmful to humans, animals and the environment. These substances can lead to contamination of the soil, water or air, and through this they can get into the human body and lead to numerous health ailments, such as: vision, hearing, speech disorders, they can also lead to kidney, liver and heart damage, and cause skin diseases. Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the complained of soils, and products made from them may risk the above-mentioned health effects. Do not dispose of the device in the municipal waste container!!!

Service If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt.
