IAN 068592 - Scrub brush PARKSIDE - Free user manual and instructions

Product Type	High-pressure floor brush
Brand	Parkside
Model	IAN 068592
Intended Use	Water cleaning of smooth surfaces (tiles, paving stones, slabs, stairs, floor drains)
Compatibility with high-pressure cleaners	Parkside PHD 100 A1, PHD 100 B2, PHD 100 C2, PHD 100 D2, PHD 100 E2, PHD 110 A1, PHD 150 A1, PHD 150 B2, PHD 150 C2, PHD 150 D3, PHD 150 E4, PHD 150 F4; adapter compatible with other brands
Maximum working pressure	16 MPa / 2320 psi
Nominal working pressure	11 MPa / 1595 psi
Maximum flow rate	450 l/h
Maximum inlet temperature	60 °C / 140 °F
Package contents	High-pressure floor brush, adapter, user manual
Main components	High-pressure connection on gun side, cap nut, upper extension tube, lower extension tube, brush, extraction lip, adapter, adapter connection nut
Assembly	Screw the brush onto the lower tube, then the lower tube onto the upper tube; connect to the cleaner with or without the adapter
Maintenance	Clean with a damp cloth; maintenance-free; store frost-free
Safety instructions	Do not direct the jet at people, animals, electrical equipment; use only original accessories
Spare parts available	Adapter (ref. 30300505) via www.grizzly-service.eu
Warranty	3 years
Commercial use	Not suitable; any commercial use voids the warranty
Country of origin	Not specified

Frequently Asked Questions - IAN 068592 PARKSIDE

Which Parkside high-pressure cleaners are compatible with this floor brush?

This floor brush is compatible with Parkside models PHD 100 A1, PHD 100 B2, PHD 100 C2, PHD 100 D2, PHD 100 E2, PHD 110 A1, PHD 150 A1, PHD 150 B2, PHD 150 C2, PHD 150 D3, PHD 150 E4 and PHD 150 F4. The supplied adapter also allows compatibility with other common brands.

Can I use this floor brush on fragile surfaces?

No, this device is not suitable for fragile surfaces. It is designed for cleaning robust smooth surfaces such as tiles, paving stones, slabs or stairs.

How do I assemble the floor brush?

Screw the brush (5) onto the lower extension tube (4), then screw this tube onto the upper extension tube (3). Then connect the assembly to the high-pressure cleaner's gun: either directly by bayonet lock, or via the included adapter.

How do I connect the adapter?

Slide the adapter (7) onto the high-pressure connection (1) and rotate 90° until it clicks. Screw the connection nut (2) onto the upper extension (3) against the adapter. Close the spray gun and screw the adapter connection nut (8) onto the gun.

What is the maximum supported pressure?

The maximum working pressure is 16 MPa (2320 psi). The nominal pressure is 11 MPa (1595 psi). Do not exceed these values.

How do I clean and maintain the floor brush?

Clean the device with a damp cloth. It is maintenance-free. Store it in a frost-free place after use.

Can I use this floor brush with a high-pressure cleaner of another brand?

Yes, the supplied adapter is compatible with common high-pressure cleaners from other manufacturers. Ensure that pressure and flow rate remain within the specified limits.

What safety instructions must be observed?

Never direct the jet at people, animals or electrical equipment. Use only original accessories. Also observe the safety instructions of your high-pressure cleaner.

Where can I get spare parts?

Spare parts, such as the adapter (ref. 30300505), are available at www.grizzly-service.eu. You can also contact Parkside customer service.

Is this floor brush covered by warranty?

Yes, it comes with a 3-year warranty from the date of purchase. Keep your receipt. The warranty does not cover normal wear (e.g., adapter) and is void in case of commercial use.

USER MANUAL IAN 068592 PARKSIDE

HOCHDRUCKSCHRUBBER / HIGH-PRESS SCRUBBER / BALAI-BROSSE HAUTE PRESSION

DE AT CH

HOCHDRUCKSCHRUBBER

Translation of the original instructions

NL BE

HOGEDRUKBORSTEL

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Extent of the delivery. 8

Overview. 9

Safety information 9

Technical specifications...9

Initial Operation. 9

Cleaning/maintenance/storage..10

Waste disposal

and environmental protection ....10

Spare parts/Accessories. 10

Guarantee 11

Service-Center 11

Importer 11

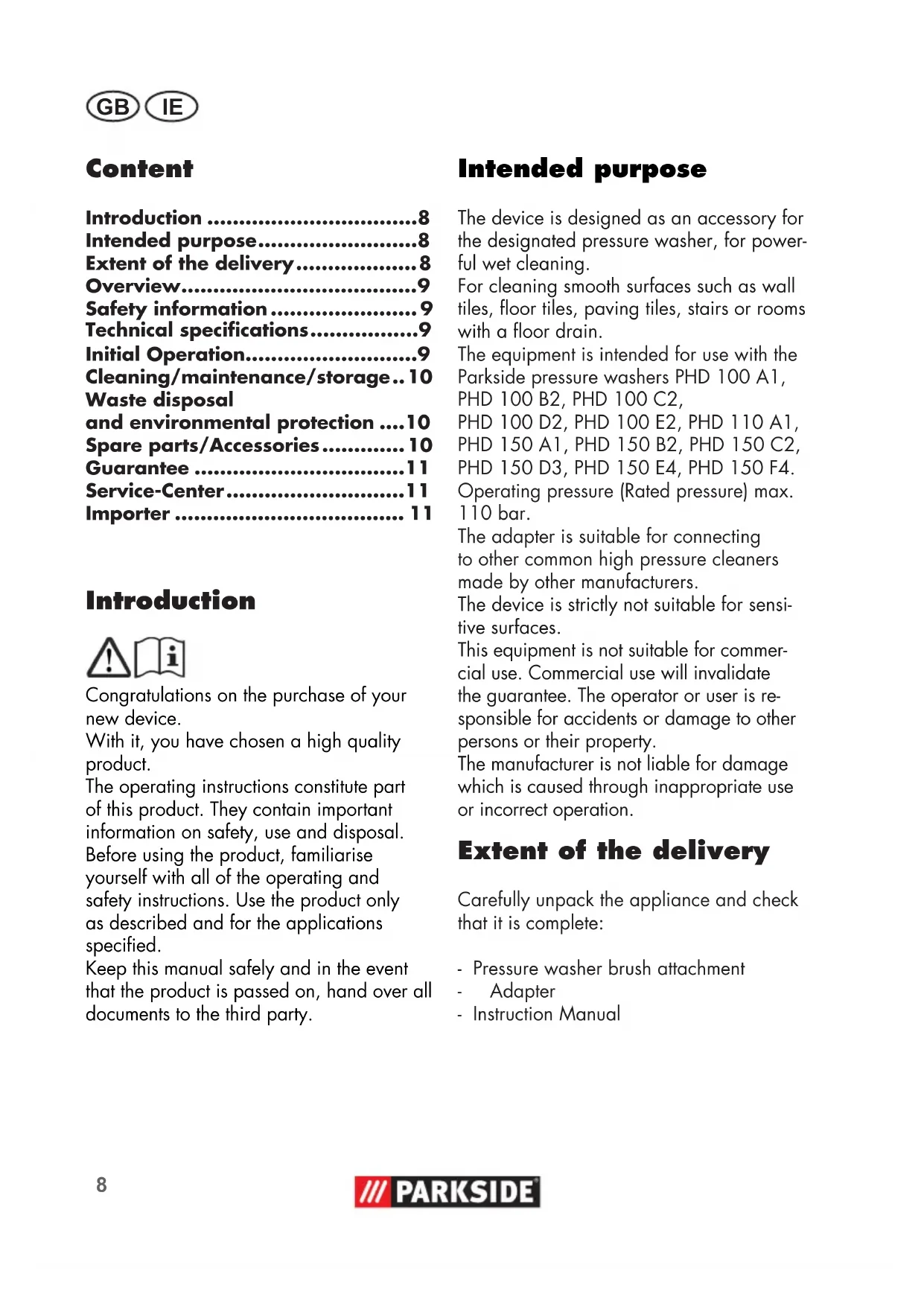

Introduction

Congratulations on the purchase of your new device.

With it, you have chosen a high quality product.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The device is designed as an accessory for the designated pressure washer, for powerful wet cleaning.

For cleaning smooth surfaces such as wall tiles, floor tiles, paving tiles, stairs or rooms with a floor drain.

The equipment is intended for use with the Parkside pressure washers PHD 100 A1, PHD 100 B2, PHD 100 C2,

PHD 100 D2, PHD 100 E2, PHD 110 A1, PHD 150 A1, PHD 150 B2, PHD 150 C2, PHD 150 D3, PHD 150 E4, PHD 150 F4.

Operating pressure (Rated pressure) max. 110 bar.

The adapter is suitable for connecting to other common high pressure cleaners made by other manufacturers.

The device is strictly not suitable for sensitive surfaces.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee. The operator or user is responsible for accidents or damage to other persons or their property.

The manufacturer is not liable for damage which is caused through inappropriate use or incorrect operation.

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Pressure washer brush attachment
• Adapter
• Instruction Manual

Overview

1 High pressure connection on the gun side
2 Cap nut
3 Top extension pipe
4 Bottom extension pipe
5 Brush
6 Pull-out lip
7 Adapter
8 Cap nut adapter

Safety information

Also observe the safety instruction for your pressure washer.

Pressure washers can be dangerous if used incorrectly. Do not direct the jet at people, ani

mals, live electrical equipment or the equipment itself.

• To prevent damage, please also note the manufacturer's instructions for the object being cleaned.
• Use only original accessories and do not carry out any modifications.

Technical specifications

Pressure washer brush attachment:

Suitable for high pressure cleaners with the following performance data:

Rated pressure (p). 11 MPa / 1595 psi Max. pressure (p max) 16 MPa / 2320 psi Max. flow rate (Q max) 450 l/h Max. inlet temperature (T max) 60 °C / 140 °F

Adapter:

Suitable for high pressure cleaners with the following performance data:

Rated pressure (p) .11 MPa / 1595 psi Max. pressure (p max).16 MPa / 2320 psi Max. flow rate (Q max) .450 l/h Max. inlet temperature (T max) .60 °C / 140 °F

Initial Operation

Assembly:

1. Screw the brush (5) onto the bottom extension pipe (4).
2. Screw the bottom extension pipe (4) onto the top extension pipe (3).

Connecting without adapter:

1. Plug in and twist (Bayonet locking device) to connect the pressure scrubber to the spray gun of your PARKSIDE pressure washer via the high pressure connection on the gun side (1).
2. Screw the cap nut (2) against the spray gun for a firm grip.

Connecting with adapter:

1. Attach the adapter (7) to the high-pressure connection (1) and turn it through 90^ until it locks into place (bayonet locking device).
2. Screw the cap nut (2) on to the upper extension tube (3) against the adapter (7).
3. Connect the spray gun of the high pressure cleaner (bayonet locking device) and screw the cap nut (8) of the adapter (7) against the spray gun.

On all surfaces, test the brush (5) initially on a location that is not visible, in order to ensure compatibility.

Disconnecting:

Removal of the pressure scrubber is in the reverse order.

1. Release the cap nut (8) on the adapter (7) and the cap nut (2) on the upper extension tube (3).
2. Release the locking devices by pressing and turning through 90^ in the opposite direction (bayonet locking device).

Cleaning/maintenance/storage

Always remove the mains plug of the high pressure cleaner before working on the device. Otherwise, there is a risk of electric shock.

• Clean the equipment with a damp cloth.
  The equipment is maintenance free.
• Store the equipment in a frost-proof room.

Waste disposal and environmental protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Spare parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center", page 11). Please have the order number mentioned below ready.

Adapter 30300505

Guarantee

This equipment is provided with a 3-year guarantee from the date of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. adapter) or to cover damage to breakable parts.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

Please have the receipt and item number (IAN 291645) ready as proof of purchase for all enquiries.

Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

Service-Center

GB Service Great Britain Tel.:[phone] (E.0.10/Min.) E-Mail: [e-mail] IAN 291645

IE Service Ireland Tel.:[phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 291645

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.
