Product type	Table circular saw
Brand / Model	Parkside PTK 2000 D3
Power supply	230 V~, 50 Hz, 2000 W
No-load speed	4800 min-1
Included saw blade	ø 254 x ø 30 x 2.8 mm, carbide 24 teeth (mounted) + 48 teeth (additional)
Max. cutting height	73 mm at 0°, 63 mm at 45°
Table dimensions	630 x 445 mm
Table extensions	Side extensions 620 x 250 mm each, rear extension 435 x 320 mm
Cutting angle adjustment	0° to 45° (left tilt)
Total weight	Approx. 21.5 kg
Guide laser	Class 2, 650 nm, < 1 mW, powered by 2 AAA batteries
Dust extraction connection	Diameter 34 mm
Operating mode	S6 40% (intermittent operation)
Sound level	LpA 93.7 dB(A); guaranteed LWA 108 dB(A)
Included fence	Parallel fence, cross fence
Blade guard	Upper protective cover, riving knife
Safety devices	On/off switch, anti-restart protection, brake? (not specified)
Cleaning and maintenance	Clean with damp cloth, oil rotating parts monthly, do not immerse
Spare parts available	Yes (blade, table, fences, laser, etc.) via www.grizzly-service.eu
Warranty	3 years

Frequently Asked Questions - PTK 2000 D3 PARKSIDE

How to assemble the table circular saw PTK 2000 D3?

Follow the steps in the manual: attach the legs (21), the central crossbars (22), the support brackets (24), then the table extensions (7) and extension (17). Use the provided mounting hardware (screws, washers, nuts). Tighten all screws after positioning the assembly.

How to change the saw blade?

Unplug the machine, wear gloves. Remove the protective cover and the table plate. Use an Allen key (HX6) and a fork wrench (SW22) to loosen the flange screw. Remove the old blade, clean the flange, install the new blade respecting the rotation direction (teeth point forward). Screw back and reassemble the table and guard.

How to adjust the cutting laser?

Set the laser switch to '0', remove the protective cover. Adjust the screws (z) of the laser module so that the beam touches the teeth of the blade. Check after adjustment by performing a test cut.

What are the essential safety instructions?

Always wear safety glasses, hearing protection, and a dust mask. Do not wear loose clothing. Use the push stick for narrow pieces. Never remove scraps while the blade is rotating. Unplug before any adjustments.

How to clean and maintain the saw?

Clean with a damp cloth and a little black soap. Do not use solvents. Oil the rotating parts once a month. Regularly check cables and protective devices. Store in a dry place.

What is the maximum cut depth?

At 0° tilt, the cutting height is 73 mm. At 45°, it is 63 mm. It is recommended to adjust the blade so it protrudes about 5 mm above the workpiece.

How to use the parallel fence for a rip cut?

Mount the parallel fence on the guide rail to the right of the blade. Set the desired width on the scale. For narrow pieces (<120 mm), absolutely use the push stick. For very narrow pieces (<30 mm), use an additional push block.

How to perform a bevel cut?

Loosen the locking handle and turn the handwheel to tilt the blade from 0° to 45°. Use the parallel fence to guide the workpiece. Check that there is no collision between the fence and the blade.

What to do if the motor does not start?

Check the mains fuse, extension cable, and connections. If the motor overheats, wait for it to cool down (thermal protection). If the problem persists, contact customer service.

Where to find spare parts and the manual?

Spare parts are available at www.grizzly-service.eu. The complete manual is available for free download on sites like notice-facile.com. For service, contact France number: 0800 919270 or Belgium: 070 270 171.

USER MANUAL PTK 2000 D3 PARKSIDE

PDF online www.lidl-service.com

TISCHKREISSÄGE / TABLE SAW / SCIE CIRCULAIRE SUR TABLE PTK 2000 D3

DE AT CH

TISCHKREISSÄGE

STOLOVÁ KOTOUČOVÁ PILA

Translation of the original instructions

NL BE

TAFELCIRKELZAAG

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Service-Center....19

Importeur 19

• (h) Innensechskantschlüssel HX 6
• (k) Ringschlüssel SW 10/22
• (i) Gabelschlüssel SW 8/10

Intended purpose....20

General description......21

Extent of the delivery 21

Overview....21

Functional description....22

Technical data 22

Safety instructions....22

Symbols and icons 22

Symbols on the appliance 22

Graphical symbol additionally on the saw blades....22

Symbols in the manual....23

Safe operation....23

Additional safety instructions....24

Safety instructions for handling saw blades 24

Assembly and Attachment of Tools and Tool Parts 25

Safety Instructions for Handling the Laser 25

Safety Instructions for Handling Batteries 25

Residual Risks 25

Electrical Connection....25

Important Instructions....26

Faulty Electrical Connection Cable 26

Alternating Current Motor 26

Assembly....26

Assembling the frame and table width extender with length extender 26

Mounting / adjusting the Riving Knife; Insert the battery ....26

Mounting / dismounting the Saw Blade Guard .....27

Replacing the Table Insert....27

Attaching/changing the Saw Blade....27

Connect the suction device....27

Before putting into operation 27

Operation 28

Switching on and off 28

Adjusting the Cutting Depth....28

Working with the Parallel Stop....28

Adjusting the Stop Height 28

Turning the Stop Rail....28

Adjusting the Cutting Width 28

Adjusting the Stop Length....28

Adjusting the Parallel Stop 28

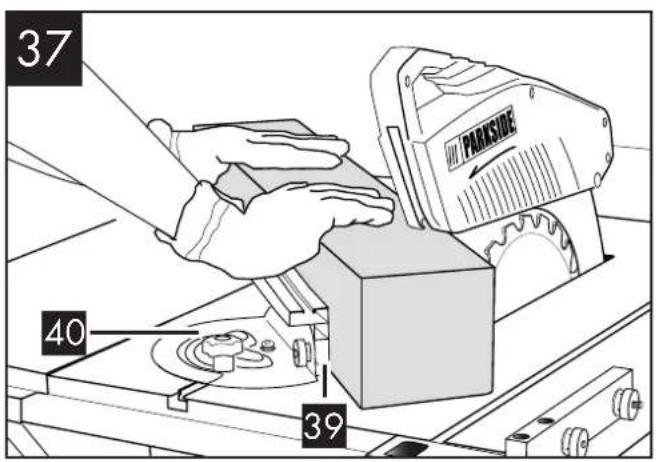

Transverse stop 28

Adjusting the Scale of the Parallel Stop....28

Angle Adjustment....29

Adjusting the Laser 29

Using the Laser 29

Use 29

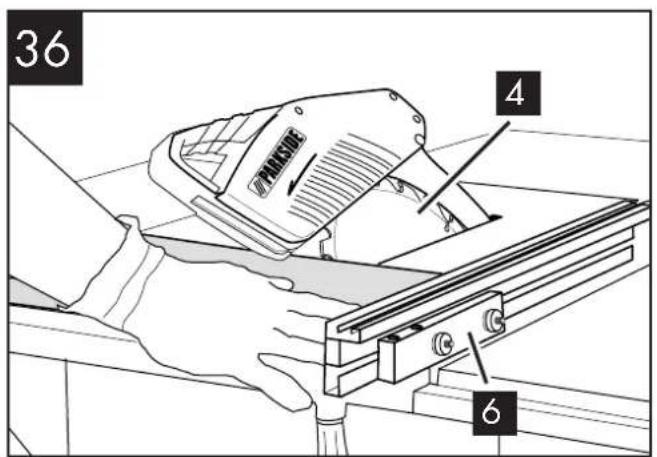

Performing Longitudinal Cuts 29

Cutting narrow Workpieces 29

Cutting very narrow Workpieces....29

Performing Bevel Cuts....30

Performing Transverse Cuts 30

Cutting Chipboard 30

Collection bag for wood residues....30

Transport 30

Cleaning and Servicing.... 30

Cleaning....30

Storage....30

Waste disposal and environmental protection ..... 30

Trouble shooting 31

Spare parts/Accessories 31

Guarantee 31

Repair Service....32

Service-Center 32

Importer 32

Translation of the original EC declaration of conformity .... 100

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The table circular saw is used for cutting all types of wood lengthwise and crosswise (only with the transverse stop), depending on the machine size. All types of round timbers must not be cut with it. The machine may be used only for its prescribed purpose. Any other use beyond that is considered to be not in accordance with the designated purpose. The user/operator is liable for all types of resulting damage or injury and not the manufacturer. The only saw blades which may be used are those which are suitable for the machine (HM or CV saw blades).

The use of any type of HSS saw blades and cutting discs is prohibited. Use in accordance with the designated purpose is also deemed to include observance of the safety instructions, as well as the assembly and operating instructions in the operating manual. Individuals who operate and maintain the machine must be familiar with it and must have been instructed in possible hazards. Moreover, the latest accident prevention regulations must be strictly observed. Other general rules in the fields of occupational health and safety technology must be complied with.

Caution! When using equipment, certain safety precautions must be complied with in order to avoid injuries and damage. You should therefore read these operating instructions / safety instructions carefully. Keep these in a safe place so that the information is available to you at all times. Should you give the device to anyone else, please give them these operating instructions / safety instructions as well. We assume no liability for accidents or damage caused by failure to observe these instructions or the safety instructions. Changes to the machine will cause the manufacturer's liability with respect to any resulting damage to be completely excluded. Even when the device is used in accordance with the designated purpose, it is nevertheless not possible to completely eliminate certain residual risk factors. Due to the design and structure of the machine, the following risks may occur:

• Touching the saw blade in the area of the saw which is not covered;
• Reaching into the running saw blade (cuts)
• Kickback of workpieces and workpiece parts.
• Saw blade breaks.
• Ejection of faulty hard metal parts of the saw blade.
• Hearing damage if the necessary hearing protection is not used.
• Emissions of wood dust which are harmful to the health when used in closed rooms.

Please note that the use of our devices in accordance with the designated purpose does not include commercial, handicraft or industrial applications. We assume no warranty if the device is used in commercial, handicraft or industrial businesses or for equivalent purposes.

General description

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Saw table with pre-assembled carbide-tipped saw blade with 24 teeth carbide-tipped saw blade with 48 teeth (additionally enclosed)
• Blade guard
• Riving knife with laser
• Batteries 1.5V AAA (2x)
• Parallel stop
• Stop rail
• Transverse stop
• Table width extender (2x)
• Table length extender
• Push stick
• Legs (4x)
• Central struts (4x)
• Rubber feet (4x)
• Stand brackets (2x)
• Table supports, short (4x)
• Table supports, long (2x)
• Instruction for use

Mounting Material

- Bag A for base frame, centre struts and stand brackets: (a) Hexagonal bolt with collar, 8 pieces;

(b) Carriage bolt, 12 pieces;

(c) Washer, 12 pieces;

• Bag B for table length/width extension and collection bag:
  (f) Hexagonal bolt with Phillips head with mounted /spring washer, 12 pieces;
  (c) Washer, 6 pieces;
  (e) Nuts, 6 pieces;
  (g) Carriage bolt, small with two nuts, 4 pieces

Tools

• (h) Hexagon socket wrench HX 6
• (k) Ring spanner AF 10/22
• (i) Open-ended spanner AF 8/10

Additional tools required

- Phillips screwdriver

The illustrations are on the fold-out pages.

Overview

1 Saw table aw blade guard
3 Riving knife (not visible)
4 Saw blade (not visible)
5 Table insert
6 Parallel stop
7 Table width extender
8 Cam lever
9 Locking handle
10 Scale
11 Handwheel
12 Crank handle
13 Base frame
14 On/off switch
15 Collection bag for wood residues
16 Guide rail
17 Table length extender

18 Suction adapter
19 Push stick

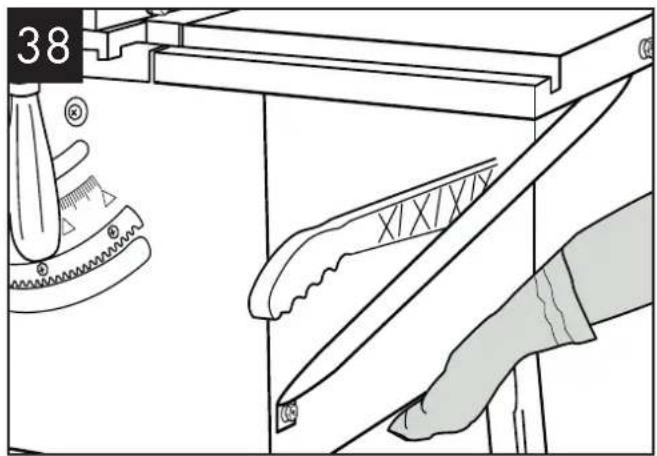

20 Bracket for saw blade storage

21 Legs (4x)
22 Central struts (4x)
23 Rubber feet (4x)
24 Stand brackets (2x)

5 25 Attachment points

10 26 Table brackets, short
27 Table supports, long

16 28 Countersunk screws of the table insert

17 29 Fixing screws of the riving knife

18 30 Slot in the riving knife

19 31 Knurled nut with screw

26 32 Cam lever

29 Groove knurled screw

31 35 Laser laser switch

32 37 Screw for battery compartment battery cover

37 Stop rail 40 Transverse stop

Functional description

The table circular saw is used for cutting all types of wood lengthwise and crosswise (only with the transverse stop), depending on the machine size. All types of round timbers must not be cut with it.

Technical data

Bench circular saw.... PTK 2000 D3

AC motor 230 V\~50Hz

Power 2000 Watt

Operating mode S6 40%*

Safety class ....

Protection category.... IPXO

Idling speed 4800 min ^-1

Carbide saw blade ....∅ 254 x ∅ 30 x 2.8 mm

Idling speed saw blade, n max. 7000 min ^-1

Number of teeth....24 / 48

Thickness riving knife 2.5 mm

min. Workpiece size WxLxH 10x50x1 mm

Table size....630 x 445 mm

Table width extender left/right 620 x 250 mm

Table length extender rear 435 x 320 mm

Cutting height max. 90°....73 mm

Cutting height max. 45°....63 mm

Height adjustment 0 - 73 mm

Saw blade, swivelling....0 - 45°

Extraction connection....ø 34 mm

Weight (including accessories), approx 21.5 kg

Laser class....2

Laser wavelength 650 nm

* Operating mode S6 40%: Continuous operation with intermittent load (cycle time 10 min). In order not to heat the motor more than permitted,

the motor may only be operated for 40% of the cycle time with the stated nominal power and must then continue running for 60% of the cycle time without a load.

Technical and optical changes may be undertaken in the course of further development without notice. All dimensions, references and information in this instruction manual are therefore not guaranteed. Legal claims made on the basis of the instruction manual can therefore not be considered as valid.

Safety instructions

CAUTION! The following basic safety precautions must be observed while using electric tools to protect against electric shock, injury and risk of fire. Please read all instructions before using this electric tool and keep the safety instructions in a safe place.

Symbols and icons

Symbols on the appliance:

Carefully read these Operating Instructions.

Wear eye protection.

Wear ear protection.

Wear breathing protection.

Caution - Risk of injury. Never reach into the running blade.

Do not expose the unit to rain. The device must not be wet, nor should it be operated in a moist environment.

Caution! - Laser radiation. Do not look into the beam.

Laser class 2

Achtung! - Laserstrahlung Nicht in den Strahl blicken! Laser Klasse 2 Laserspezifikation nach EN 60825-1:2014 λ= 650 nm P₀ < 1 mW Attention! - laser radiation Do not stare into beam! class 2 laser product laser specification according to EN 60825-1:2014 λ= 650 nm P₀ < 1 mW

This label is attached to the saw blade guard.

Information of the acoustic power level L_WA in dB.

Safety class II (Double Isolated)

Electrical appliances must not be disposed of with the domestic waste.

Graphical symbol additionally on the saw blades

Caution - a damaged blade must not be used under any circumstances. Replace the saw blade immediately.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

Hazard symbol with information on the prevention of personal injury caused by electric shock..

Warning! Electric shock hazard. Always unplug the device before working on it.

Safe operation

1 Keep work area clear.

- Cluttered areas and benches invite injuries.

2 Consider work area

environment.

• Do not expose tools to rain.
• Do not use tools in damp or wet locations.
• Keep work area well lit.
• Do not use tools in the presence of flammable liquids or gases.

3 Guard against electric shock

- Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators).

4 Keep other persons away!

- Do not let persons, especially children, not involved in the work touch the tool or the extension cord and keep them away from the work area.

5 Store idle tools

- When not in use, tools should be stored in a dry locked-up place, out of the reach of children.

6 Do not force the tool.

- It will do the job better and safer at the rate for which it was intended.

7 Use the right tool.

• Do not force small tools to do the job of a heavy tool.
• Do not use the power tool for such purposes for which it is not intended. Use for example no circular saws to cut tree branches or logs.
• Do not use the electric tool to the firewood saws.

8 Dress properly.

• Do not wear loose clothing or jewellery, they can be caught in moving parts.
• Non-skid footwear is recommended when working outdoors.
• Wear protective hair covering to contain long hair.

9 Use protective equipment.

• Use safety glasses.
• Use face or dust mask if working operations create dust.

10 Connect dust extraction

equipment

- If the tool is provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used.

- Indoor operation is permitted only with a suitable extraction system.

11 Do not abuse the cord.

- Never yank the cord do disconnect it from the socket. Keep the cord away from heat, oil and sham edges.

12 Secure work.

• For long workpieces, an additional supporting surface (table, trestles, etc.) is required in order to prevent tipping of the machine.
• Always press the workpiece firmly against the working surface and stop in order to prevent wobbling or twisting of the workpiece.

13 Do not overreach

• Keep proper footing and balance at all times.
• Avoid awkward hand positions in which one or both hands could touch the saw blade as the result of a sudden slip.

14 Maintain tools with care

• Keep cutting tools sharp and clean for better and safer performance.
  – Follow instruction for lubricating and changing accessories.
• Inspect tool cords periodically and if damaged have them repaired by an authorized service facility.
• Inspect extension cords periodically and replace if damaged.
• Keep handles dry, clean and free from oil and grease.

15 Disconnect tools.

• Never remove loose splinters, chips or jammed pieces of wood when the saw blade is running.
• When the electric tool is not in use, before maintenance and when changing tools such as the saw blade, drill bit, milling cutter.

16 Remove adjusting keys and wrenches

- Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on.

17 Avoid unintentional starting.

- Ensure switch is in "off" position when plugging in.

18 Use outdoor extension leads.

• When the tool is used outdoors, use only extension cords intended for outdoor use and so marked.
• Use the cable drum only in the unrolled state.

19 Stay alert.

Watch what you are doing, use common sense and do not operate the tool when you are tired.

20 Check damaged parts.

• Before further use of tool, it should be carefully checked to determine that it will operate properly and perform its intended function.
• Check whether the moving parts are working properly and are not becoming jammed or whether parts are damaged. All parts must be correctly fitted and satisfy all conditions to ensure the proper operation of the power tool.
• The movable guard must not be clamped when it is open.
• A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre unless otherwise indicated in this instruction manual.
• Have defective switches replaced by an authorized service centre.
• Do not use any faulty or damaged connection cables.
• Do not use the tool if the switch does not turn it on and off.

21 Warning!

- The use of any accessory or attachment other than one recommended in this instruction manual may present a risk of personal injury.

22 Have your tool repaired by a qualified person.

- This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

Additional safety instructions

1 Safety Precautions

- Warning! Do not use damaged, cracked or deformed saw blades.

- Replace a worn table insert. Regrinding is not allowed.

- Only use saw blades recommended by the manufacturer which conform to EN 847-1. Warning! When changing the saw blade ensure that the cutting width is not smaller and the main blade thickness of the saw blade not greater than the thickness of the riving knife!

- Make sure that a saw blade is selected which is appropriate for the material to be cut.

- Wear appropriate personal protective equipment. This includes: Hearing protection to reduce the risk of becoming hard of hearing, breathing respirator to reduce the risk of inhaling hazardous dust.

- Wear gloves when handling saw blades and rough materials.

- Whenever practicable, saw blades should be carried in a container.

- Wear safety goggles. Any splinters, chips and dusts which are ejected from the device when it is in operation may cause sight loss.

- Connect the power tool to a dust collection device when sawing wood. Among other things, the emission of dust is affected by the type of material to be machined, the importance of local deposition (capture or source) and the correct setting of hoods/deflector plates/guide mechanisms.

- Do not use any saw blades made of high-alloy high-speed steel (HSS).

- Always store the push stick or push block in its holder on the power tool when not in use.

2 Maintenance and Servicing

- Always remove the mains plug when carrying out any adjustments or maintenance work.

- The cause of the noise is influenced by various factors, including the properties of the blades, the condition of the saw blade and power tool. If possible, use saw blades that are designed to reduce the noise level, service the power tool and tool attachments regularly and repair them if necessary to reduce noise.

- Report any faults to the power tool, safety devices or the tool attachment as soon as they are discovered to the person responsible for safety.

3 Safe Working

- Use the push stick or the handle with push block to pass the workpiece safely past the saw blade.

- Make sure that the riving knife is always used and that this is correctly adjusted.

- Use the upper blade guard and adjust it correctly.

- Use only saw blades whose maximum speed is not lower than the maximum spindle speed of the tool being used and which are suitable for the material to be cut.

- Do not create any rebates or grooves unless a suitable protective device, such as a tunnel guard, is attached above the saw table.

- Circular saws must not be used for slotting (cutting grooves which end in the workpiece).

- When transporting the power tool, use only the transport devices supplied. Never use the guards for handling or transporting the tool.

- During transport, make sure that the top part of the saw blade is covered, for example with the guard.

- Ensure that the only spacer washers and spindle rings which are used are suitable for the purpose stated by the manufacturer.

- The floor around the machine must be flat, clean and free of loose particles such as chips and cutting residues.

- Working position always to the side of the saw blade.

- Do not remove any cutting residues or other parts of the workpiece from the cutting area for as long as the machine is running and the sawing unit is not yet in the rest position.

- Secure long workpieces against tilting at the end of the cutting operation (e.g. unwinding stand or roller stand).

- Caution! long workpieces against tilting at the end of the cutting operation (e.g. unwinding stand or roller stand).

- Caution! Never remove any loose splinters, chips or jammed pieces of wood when the saw blade is still running.

- Always switch off the machine and remove the plug before repairing any faults or removing jammed pieces of wood.

- Always switch off the motor and remove the plug before carrying out any conversions or adjustment, measurement and cleaning work.

- Before switching on, check that the spanners and adjustment tools have been removed.

Warning! During operation, this power tool produces an electromagnetic field. Under certain circumstances, this field may negatively affect active or passive medical implants. In order to reduce the danger of serious or fatal injuries, we recommend that individuals who wear medical implants should consult their doctor and the manufacturer of the implant before operating the power tool.

Safety instructions for handling saw blades

1 Only use tools which you know how to handle.

2 Pay attention to the maximum speed. The maximum speed stated on the tool being used must not be exceeded. Keep within the speed range if one is specified.

3 Note the direction of rotation of the motor and saw blade.

4 Circular saw blades with cracks in them must be taken out of service (repair is not permitted).

5 Tools with visible cracks must not be used.

6 Tools must be cleaned regularly.

7 Handle the tools used with care. It is best to store these in their original packaging or special containers. Always wear protective gloves to improve your grip and further reduce the

risk of injury.

8 Before using any of the tools, ensure that all protective devices are correctly attached.
9 Before use, ensure that all of the tools used by you fulfil the technical requirements of this power tool and are properly attached.
10 The saw blade supplied should only be used for sawing wood and never for working metal.

Assembly and Attachment of Tools and Tool Parts

a) Tools and tool bodies must be tightened in such a way that they cannot become loose during operation.
b) Attachment bolts and nuts are to be tightened to the torques specified by the manufacturer using appropriate spanners etc.
c) Extending a spanner or tightening with the help of hammer blows is not permitted.
d) The tightening surfaces must be cleaned to remove any dirt, grease, oil and water.
e) Tensioning bolts must be tightened in accordance with the manufacturer's instructions.
f) In order to adjust the borehole diameter of circular saw blades to the spindle diameter of the machine, only firmly inserted rings, e.g. rings which have been pressed into place or which are held in place by means of an adhesive bond, may be used. The use of loose rings is not permitted.
g) Ensure that fixed reducing rings are positioned parallel to one another.

Safety Instructions for Handling the Laser

• Caution: Laser radiation - Do not look into the beam - Laser class 2
• The label is attached to the saw blade guard (2) near the laser (34).

Safety Instructions for Handling Batteries

1 Ensure at all times that the batteries are inserted with the correct polarity (+ and -), as shown on the battery itself.
2 Do not short-circuit the batteries.
3 Do not charge up rechargeable batteries.
4 Do not overcharge the battery!
5 Do not mix old and new batteries or batteries of a different type or from different manufacturers! Replace all batteries of a set at the same time.
6 Remove used batteries immediately out of the device and dispose of them correctly!
7 Do not heat the batteries!
8 Do not carry out any welding or soldering work directly to the batteries!
9 Do not take the batteries apart!
10 Do not deform the batteries!
11 Do not throw the batteries into the fire!
12 Store the batteries out of the reach of children.
13 Do not allow children to replace the batteries without supervision!
14 Do not store the batteries close to a fire, cookers or other sources of heat. Do not place the battery in direct sunlight

and do not use or store it in motor vehicles in hot weather.

15 Store used batteries in the original packaging and keep them away from metal objects. Do not mix (up) unpacked batteries! Otherwise this may cause the battery to short-circuit, resulting in damage, burns or even the danger of fire.
16 Remove batteries from the device if this is not going to be used for a prolonged period, unless it is to be used in emergencies!
17 NEVER touch batteries which have leaked without appropriate protection. If the leaked liquid comes into contact with the skin, you should rinse off this area of the skin immediately under running water. Make sure at all events that your eyes and mouth do not come into contact with the liquid. If they do, seek medical advice immediately.
18 Clean the battery contacts and the equivalent contacts in the device before inserting the batteries.

Residual Risks

This power tool has been constructed in accordance with the latest technology and the generally recognised safety regulations. Nevertheless, it is possible that individual residual risks may occur during operation.

• Electrical hazard if improper electrical connection cables are used.
• In addition, concealed residual risks may be present in spite of all the precautions that have been taken.
• Residual risks can be minimised by observing the „Safety instructions“ and „Use in accordance with the designated purpose“, as well as the operating instructions.
• Do not put any unnecessary stresses on the machine: excessive pressure during sawing will quickly damage the saw blade. This may result in a reduction in the performance of the machine, as well as a reduction in the cutting accuracy.
• Avoid switching the machine on by accident: when inserting the plug into the socket, the power button must not be pressed.
• Use the tool which is recommended in this manual. This will ensure the optimal performance of your saw.
• Keep your hands away from the working area when the machine is in operation.
• Before you carry out any adjustments or servicing work, turn the device off and remove the mains plug.

Electrical Connection

The installed electric motor is connected ready for operation. The connection complies with the relevant VDE and DIN regulations. The customer's network connection and any extension cable used must comply with these regulations.

• The product meets the requirements of EN 61000-3-11 and is subject to special connection conditions. This means that its use at freely selectable connection points is not permitted.
• If the network conditions are unfavourable, the device may result in temporary voltage fluctuations.
• The maximum permitted mains impedance at the electrical connection point of 0.107 ohm must not be exceeded.
• As the user, you must ensure – in consultation with your electricity supply company if necessary – that the continuous current carrying capacity of the network at the connection

point to the public mains is sufficient for the connection of the product.

Important Instructions

If the motor is overloaded, it switches itself off automatically. After cooling down (times vary), the motor can be switched on again.

Faulty Electrical Connection Cable

Insulation damage often occurs to electrical connection cables.

The causes of this may be as follows:

• Pressure points if connection cables are routed through windows or door gaps.
• Kinks caused by improper attachment or routing of the connection cable.
• Cut surfaces caused by vehicles driving over the connection cable.
  • Insulation damage caused by tearing out of the wall socket.
• Cracks resulting from the insulation becoming old.
  Such faulty electrical connections must not be used and may endanger life due to the damage to the insulation.
  Electrical connection cables should be checked regularly for damage. Ensure that during such checks, the connection cable is not connected to the mains.
  Electrical connection cables must comply with the relevant VDE and DIN regulations. Only use connection cables with the marking H05VV-F.
  It is stipulated by law that the type of connection cable must be printed on it.

Alternating Current Motor

• The mains voltage must be 230 V\~.
- Extension cables up to 25 m in length must have a cross-section of 2.5 mm ^4 .

Connections and repairs to the electrical equipment may only be performed by a qualified electrician. If you have any queries, please provide the following information:

• Current type of the engine
  • Data from the machine type plate
  • Data from the motor type plate

Assembly

Prior to first use, check the tightness of the r flange of the saw blade.

Assembly, Replacement of Parts and Adjustments Caution! The mains plug must be removed before all servicing, retooling and assembly work.

Place all of the parts supplied on a flat surface. Form groups of the parts which are similar.

Note: If connections are secured with a bolt (round head/or hexagonal), hexagonal nuts and a washer, the washer must be placed under the nut.

Insert the bolts from the outside to the inside in each case, securing the connections with nuts from the inside.

Note: Tighten the nuts and bolts during assembly only to the extent that they cannot fall off. If you tighten the nuts and bolts any further before final assembly, it is not possible for final assembly to be carried out.

Assembling the frame and table width extender with length extender (Figures. 4-13)

1. Turn the table circular saw over and place it on the floor.
2. Insert the four legs (21) at the corner positions into the device housing. Do not place any screws yet.
3. Now loosely screw the central struts (22) onto the legs (21). Use the carriage bolts (b), the washers (c), the spring washers (d) and the nuts (e) (Fig. 7).
4. Screw the stand brackets (21) into the rear legs using the drill holes. Assembly material for each: 2 carriage bolts (b), the washers (c), the spring washers (d) and the nuts (e) (Fig. 9). Caution! Both stand brackets must be attached to the rear of the machine at attachment points 25! (Abb. 5).
5. Loosely tighten the table width extender (7) and table length extender (17) on the saw table (1) using the hexagon bolts with Phillips head (f). (Fig. 11). The 'Parkside' logo on the table extensions (7) points away from the saw table (1).
6. Loosely tighten the table supports (26, 27) on the housing of the table circular saw. Use the hexagonal bolts with collar (a) from bag A. Use the table width extender (7)/table length extender (17), hexagonal bolts (f), washers (c) and nuts (e) from bag B. The short supports (26) are for the table widening extension, the long supports (27) are for the length extension, (Fig. 12, 13). Screw the four legs (21) and the table supports (26, 27) onto the housing.
7. Align the table width and length extension flush with the saw table.
8. Next, tighten all the screws of the legs (21) and the table width extender (7)/table length extender (17).
9. Now attach the rubber feet (23) to the legs (21) (Figure 8).
10. Place the table circular saw on the base frame (13).
11. Screw one nut on each of the screws (g). Screw the four screws with pre-mounted nuts onto the side of the table width extender (7) or table length extender (17) (see Fig. 2). Affix these with four additional nuts. Suspend the collection bag for wood residues (15) onto the four screws.
12. Inserting the batteries (Figure 15):
13. Turn the laser on/off switch (36) to the 0 position (laser off).
14. Remove the battery compartment cover (38) by loosening the screw (37). Now remove the battery compartment cover (38) by bending at the side.
15. Insert the batteries supplied (type AAA), ensuring the correct polarity (see Figure 15).
16. Put the battery compartment cover (38) back in position and tighten it with the screw (37). Notes concerning the batteries:
17. If you are not going to use the laser for a prolonged period, please remove the batteries from the battery compartment.

Mounting / adjusting the Riving Knife Insert the battery (Figures 15-20)

Caution! Remove the mains plug! The setting of the saw blade (4) must be checked whenever a blade has been replaced.

Otherwise, the leaking of battery fluid might damage the device.

- Do not place the batteries on radiators or expose them for a prolonged period to strong sunlight; temperatures above 45^ could damage the device.

1. Initial mounting of the laser module:

- Mount the laser using the two Phillips head screws (z), Fig. 15.

(Figures 16-20)

1. Adjust the saw blade (4) to a max. cutting depth, move to the 0^ position and lock in place.
2. Dismantle the saw blade guard (2) (not during initial assembly).
3. Release the two attachment bolts (28) and remove the table insert.
4. Loosen the fixing screw (29) (use the open-ended spanner AF8 supplied).
5. Push the riving knife (3) upwards.
6. The distance between the saw blade and riving knife (3) should be between 3 mm and max. 5 mm, (Figure 18).
7. Retighten the attachment bolts (29) and mount the table insert (5).
8. Reattach the saw blade guard (2).

Mounting / dismounting the Saw Blade Guard (Figures 19)

On first assembly, the assembly of the saw blade protection has already been carried out in the previous assembly step.

1. Loosen the knurled nut and wing nut (31) of the saw blade guard (2). Place the saw blade guard (2) from the top onto the riving knife (3).
2. Mount the bolt with the knurled nut and washer (31) so that the bolt sits firmly in the slot.
3. Do not overtighten the bolt (31). The saw blade guard must be able to move freely.
4. Dismantling is carried out in reverse order. Caution! Before you start sawing, the saw blade guard (2) has to be lowered onto the item being sawn.

Replacing the Table Insert (Figures 16 and 20)

1. If it is worn or damaged, the table insert (5) has to be replaced, as otherwise there is an increased risk of injury.
2. Remove the 2 countersunk screws (28).
3. Take out the table insert (5).
4. The new table insert (Order-Nr.: 91104566) is mounted in reverse order.

Attaching/changing the Saw Blade (Figure 21)

1. Caution! Remove the mains plug and wear protective gloves.
2. Dismantle the saw blade guard (2).
3. Remove the table insert (5) by releasing the two countersunk screws (28).
4. Place the hexagon socket key (h) (HX 6) on the bolt and use the jaw spanner (k) (SW 22) to stop the motor spindle from turning.
5. Caution! Turn the bolt in the direction of rotation of the saw blade. Remove the loosened screw.
6. Remove the outer flange and take the old saw blade off the inner flange by pulling downwards and diagonally.
7. Clean the saw blade flanges carefully with a wire brush before attaching the new saw blade.
8. Insert and tighten the new saw blade in reverse order. Caution! Note the direction of motion; the slope of the cutting edge of the teeth must face the direction of motion, i.e. forwards (see the arrow on the saw blade guard.
9. Reattach and adjust the table insert (5) and the saw blade guard (2).
10. Before you work with the saw again, a check must be carried out to ensure that the protective devices are working properly.

Connect the suction device (Fig. 14)

1. Attach a suction hose to the suction adapter (18). If necessary, secure the suction hose with a hose clamp to prevent it from slipping off the suction adapter (18).
2. A household vacuum cleaner is not suitable as a suction device. Use a multi-purpose vacuum cleaner or a swarf extraction machine.

Before putting into operation

• The machine must be set up on a stable surface, i.e. on the base or similar item. For this, use the drill holes which are located in the frame of the machine. For safe use on a work bench, four mounted rubber feet are provided (fig. 8).
• Before the machine is put into operation, all covers and safety devices must be properly attached.
  • The saw blade must be able to move freely.
• In the case of wood which has already been worked with, check for foreign bodies such as nails or screws etc.
• Before pressing the on/off switch, make sure that the saw blade is correctly attached and that moving parts are free-running.
• Before connecting the machine, check that the data on the type plate matches those of the mains system.
• The machine must only be connected to a properly installed safety socket which is protected by a fuse of at least 16A.
• If possible, connect the device only to a socket with a residual current circuit breaker (RCCB) with a tripping current of not more than 30 mA.

Prior to first use, check the tightness of the outer flange of the saw blade.

Operation

Switching on and off (Figure 3)

• The saw can be switched on by pressing the green pushbutton „l“. Before you start sawing, wait until the saw blade has reached its maximum speed.
• In order to switch the saw off again, the red pushbutton „0“ has to be pressed.

Adjusting the Cutting Depth (Figure 3)

By turning the crank handle (12), the saw blade can be set to the desired cutting depth (continuous).

• Clockwise: increases the cutting depth
• Anticlockwise: reduces the cutting depth
  Adjust the saw blade so that it protrudes approximately 5 mm above the material to be cut. Check the adjustment by means of a test cut.

Working with the Parallel Stop

Adjusting the Stop Height (Figures 22 and 24)

• The stop rail (39) of the parallel stop (6) has two guide surfaces at different heights.
• Depending on the thickness of the materials to be cut, the stop rail (39) has to be used differently. For thin material (workpiece thickness less than 25 mm), use Figure 22. For thick material (workpiece thickness more than 25 mm), use Figure 24.

Turning the Stop Rail (Figures 22-24)

• In order to turn the stop rail (39), first release the two knurled nuts (m).
• Now the stop rail (39) can be pulled off the guide rail (16) and pushed back over it again with the groove.
• Tighten the knurled nuts (m) again.

Adjusting the Cutting Width (Figures 25-26)

• When wooden pieces are being cut lengthwise, the parallel stop (6) has to be used.
• The parallel stop should be mounted on the right-hand side of the saw blade (4).
• Insert the parallel stop into the side of the guide rail (16) (Figure 26).
• On the guide rail for the parallel stop (6) there are 2 scales (o/n). These show the distance between the stop rail (39) and saw blade (4) (Figure 25).
• Select the suitable scale according to whether the stop rail (39) has been turned around for working with thick or thin material:
  High stop rail (thick material): scale (o) Low stop rail (thin material): scale (n)

- Adjust the parallel stop (6) to the desired level on the sight glass (p) and fix in place with the cam lever (32).

Adjusting the Stop Length (Figure 27)

• In order to prevent the material being cut from jamming, the stop rail (39) can be moved in the longitudinal direction.
• Rule of thumb: the rear end of the stop abuts on an imaginary line. This begins at about the middle of the saw blade and runs towards the back at an angle of 45^ .
• Adjust the required cutting width.
• Release the knurled nuts (m) and push the stop rail (39) forward until the imaginary 45° line is touched.
• Tighten the knurled nuts (m) again.

Adjusting the Parallel Stop (Figure 28)

• Caution! Remove the guard.
• Adjust the saw blade (4) to the maximum cutting depth.
• Adjust the parallel stop (6) such that the stop rail (39) touches the saw blade (adjustment for thick material.
• If the parallel stop (6) is not parallel to the saw blade (4), please proceed as follows. Release the screws (r) on the parallel stop until the parallel stop (6) can be aligned to be parallel with the saw blade (4) (Figure 28).
• Retighten the screws (r).

Transverse stop (Figure 29)

• When the wood is being cut to size, the transverse stop (40) must be extended with the stop rail (39) of the parallel stop (6) (Figure 29)
• Push the transverse stop (40) into a groove (33) of the saw table.
• Loosen the knurled screw (34).
• Turn the transverse stop (40) until the desired angle is set. The notch on the guide bar shows the angle that has been set.
• Retighten the knurled screw (34).
• In order to extend the transverse stop (40) with the stop rail (39), the stop rail (39) has to be removed from the parallel stop (6). Now the stop rail has to be mounted as shown in Figure 29; use the knurled nuts (m) for this purpose.

Caution!

• Do not push the stop rail (39) too far in the direction of the saw blade.
• The distance between the stop rail (39) and saw blade (4) should be approximately 2 cm.

Adjusting the scale of the parallel stop (Figure 30)

• Check whether the display on the sight glass (p) of the parallel stop (6) shows the correct values with respect to the cutting line. If this is not the case, please proceed as follows:
• Release the screw (q) with which the display on the sight glass (p) of the parallel stop (6) is attached. The sight glass (p) display can now be set to the correct position.
• Now, retighten screw (q) on the sight glass (p).

Angle Adjustment (Figure 29 and 3)

With the table circular saw it is possible to make bevel cuts to the left at an angle of 0^ to 45^ to the stop rail. Before each cut, make sure that no collision is possible between the stop rail (39), cross-cutting gauge and the saw blade (4).

• Release the locking handle (9)
• Turn the handwheel (11) to set the desired angle on the scale (10).
• Lock the locking handle (9) in the desired angular position.

Adjusting the Laser (Figure 32)

If the laser (35) no longer shows the correct cutting line, this can be readjusted. To do this, open the screws (z). Adjust the laser so that the laser beam hits the cutting teeth of the saw blade (4). Tighten the screws (z) again.

Using the Laser (Figures 31-32)

• The laser (35) enables you to carry out precision cuts with your circular saw.
• The laser light is produced by a laser diode supplied by two batteries. The laser light is expanded to form a line and is emitted through the laser exit aperture. You can then use the line as an optical marking for the cutting line of the precision cut. Please note the laser safety information.

- Insert the batteries

- Switch on the laser: turn the laser on/off switch (36) to 1. When the saw blade guard (2) is mounted, the laser on/off switch (36) is accessible through a recess in the guard (Figure 31). A red laser beam is now projected out of the laser exit aperture. If you guide the laser beam along the cutting line mark while sawing, you will achieve clean cuts.

- Switch the laser off: turn the laser on/off switch (36) to 0. The laser beam goes off. Please always turn the laser off when it is not required in order to save the batteries.

- The laser beam may be blocked by dust deposits and chips. You should therefore remove these particles from the laser exit aperture after every use (with the device switched off).

Use

Working Instructions

After each new adjustment, we recommend a trial cut in order to check the set dimensions. After the saw has been switched on, wait until the saw blade has reached its maximum speed before you carry out the cut.

Secure long workpieces against tilting at the end of the cutting process (e.g. unwinding stand etc.)

Caution with incision cutting.

Operate the device only with a suction system. Check and clean the suction channels regularly.

Suitability of the saw blades:

- 24 teeth: soft materials, high chip removal, rough cut image

- 48 teeth: hard materials, lower chip removal, finer cut image

Performing Longitudinal Cuts (Figure 33)

Here, a workpiece is cut in its longitudinal direction. One edge of the workpiece is pressed against the parallel stop (6) while the flat side lies on the saw table (1). The saw blade guard (2) must always be lowered onto the workpiece. The working position during longitudinal cutting must never be in a straight line with the cutting line.

• Adjust the parallel stop (6) according to the workpiece height and the desired width.
• Switch on the saw.
• Place your hands with the fingers closed together flat on the workpiece and push the workpiece along the parallel stop (6) into the saw blade (4).
• Guide from the side with your left or right hand (depending on the position of the parallel stop) only up to the front edge of the saw blade guard (2).
• Always push the workpiece through to the end of the riving knife (3).
• The cutting waste remains on the saw table (1) until the saw blade (4) is back in its resting position.
• Secure long workpieces against tilting at the end of the cutting process! (e.g. unwinding stand etc.)

Cutting narrow Workpieces (Figure 34)

Longitudinal cuts of workpieces with a width of less than 120 mm always have to be cut with the help of a push stick (19). The push stick is included in the scope of delivery. Replace a worn or damaged push immediately.

• Adjust the parallel stop according to the planned workpiece width.
• Advance the workpiece with both hands, making sure that you use a push stick (19) as a pushing aid in the vicinity of the saw blade.
• Always push the workpiece through to the end of the riving knife.

Caution! In the case of short workpieces, the push stick should be used from the beginning of the cutting process.

Cutting very narrow Workpieces (Figure 35)

For longitudinal cuts of very narrow workpieces with a width of 30 mm and less, a push block must be used without fail. There is no push block included in the scope of delivery! (Available from specialist shops) Replace a worn push block as soon as possible.

• The parallel stop should be adjusted to the cutting width of the workpiece.
• Press the workpiece with the push block against the stop rail and push the workpiece with the push stick (19) through to the end of the riving knife.

Performing Bevel Cuts (Figure 36)

All bevel cuts are made using the parallel stop (6).

- Adjust the saw blade (4) to the desired angle.

- Adjust the parallel stop (6) according to the workpiece width and height.

- Perform the cut according to the workpiece width

Performing Transverse Cuts (Figures 29, 37)

- Push the transverse stop (40) into one of the two grooves (33) of the saw table. Adjust to the desired angle. The left groove (33) is to be used if the saw blade (4) also has to be positioned at an oblique angle. This will prevent your hand and the transverse stop from coming into contact with the saw blade guard.

- Use the stop rail (39).

- Press the workpiece firmly against the transverse stop (40).

- Switch on the saw.

- Push the transverse stop (40) and workpiece in the direction of the saw blade in order to perform the cut.

- Caution: Always hold the guided workpiece firmly and never the free workpiece which is cut off.

- Always push the transverse stop (40) so far forwards until the workpiece is completely cut through.

- Switch the saw off again. Only remove sawing waste when the saw blade has come to a standstill.

Cutting Chipboard

In order to prevent the cut edges chipping when the chipboard is cut, the saw blade (4) should be adjusted so that it is not more than 5 mm above the thickness of the workpiece.

Collection bag for wood residues

The collection bag is only intended for small wood residues. They can be collected directly from the saw table to keep it clean and free from obstructions. Under no circumstances may the wood residues in the collection bag protrude beyond the collection bag itself. This would prevent the saw table from being fully usable. This poses a security risk.

Transport

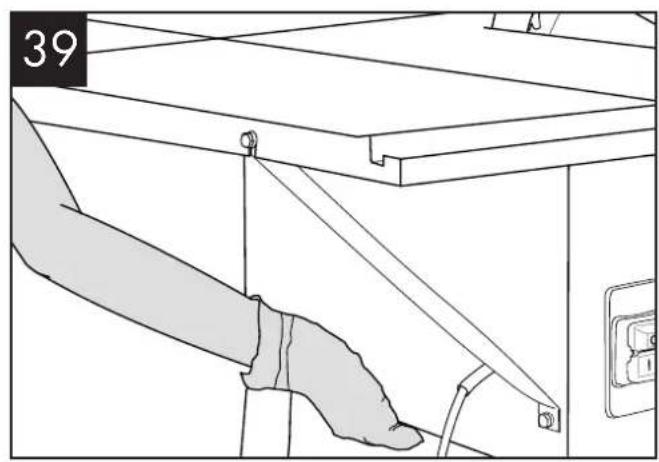

(Fig. 38/39)

1. Turn the power tool off before it is transported and disconnect it from the power supply.

2. Pull off any suction hose, that may be connected, from the suction adapter (18).

3. Insert the saw blade with the help of the crank handle (12). By turning the saw blade (4) anticlockwise, it moves downwards.

4. At least two people should carry the power tool. Do not hold the power tool by the table width extensions. Please only use the points as shown in (Fig. 38/39) to transport the machine.

5. Protect the power tool against knocks, jolts and strong vibrations, e.g. when it is transported in motor vehicles.

6. Secure the power tool against tilting and sliding.
7. Never use the protective devices for handling or transport.

Cleaning and Servicing

Remove the mains plug before carrying out any adjustments, maintenance or repair work.

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original parts.

Perform the following cleaning and maintenance work regularly. This guarantees reliable use for a long time.

Cleaning

The device must not be sprayed with water or placed in water. Otherwise there is a risk of electric shock.

• Keep the safety devices, air vents and motor housing as free of dust and dirt as possible. Wipe the device off with a clean cloth or blow it out with compressed air at a low pressure.
• We recommend that you clean the device immediately after every use.
• Clean the device regularly with a damp cloth and some soft soap. Do not use any detergents or solvents; these might attack the plastic parts of the device. Make sure that no water can get into the interior of the device.
• Oil the moving parts once a month in order to extend the tool life. Do not oil the motor.

Storage

- Store the appliance in a dry place well out of reach of children.

Waste disposal and environmental protection

Take the batteries out of the device and recycle the device, batteries, accessories and packaging in an environmentally friendly manner.

Electrical machines do not belong with domestic waste.

• Dispose of the batteries according to local standards. Hand in the batteries at a used battery collection point where they are recycled in an environmentally friendly manner. For more information, please contact your local waste management provider or our service centre.
• Defective units returned to us will be disposed of for free.

Trouble shooting

Problem	Possible cause	Fault correction
1. Blade dissolves after swit-ching off the engine	To slightly tightened fastening nut Tighten the right hand thread nut
2. Engine will not start a) Failure	mains fuse a) Check mains fuse
	b) Defective extension cable b) Replace extension card
	c) Connections on motor or switch not in order c) Repair by electrical specialist
	d) Motor or switch faulty d) Repair by electrical specialist
3. Motor wrong direction of rotation	a) Capacitor faulty a) Repair by electrical specialist
	b) Wrong connection b) Exchange polarity of outlet by an qualified electrician
4. Motor will not work, the fuse is activ	a) Cross section of the extension cable does not sufficiently	a) see „Electrical connection"
	b) Overload by a blunt saw blade b) Change saw blade
5. Fire marks on the cutting surface	a) blunt saw blade a) Sharpen or change saw blade
	b) wrong saw blade	b) Change saw blade

Spare parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" page 32). Please have the order number mentioned below ready.

(6) Parallel stop, complete .... Order-No. 91103530
(40) Transverse stop. Order-No. 91103531
(2) Blade guard, complete .... Order-No. 91104563
(17) Table length extender .... Order-No. 91104557
(5) Table insert.... Order-No. 91104566
(7) Table width extender (right) .... Order-No. 91104561
(7) Table width extender (left)...... Order-No. 91104562
(35) Laser.... Order-No. 91104558
(3) Riving knife.... Order-No. 91104559

(11) Handwheel, complete .... Order-No. 91104560
(19) Push stick.... Order-No. 91104950
(14) On/off switch, complete .... Order-No. 91104952
(24) Stand brackets (both sides) .... Order-No. 91103542
(23) Rubber feet.... Order-No. 91104951
(4) Saw blade 24 Teeth.... Order-No. 13800400
(4) Saw blade 48 Teeth.... Order-No. 13800401
(15) Collection bag.... Order-No. 91104556

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. filters or attachments) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

- Please have the receipt and identification number (IAN 298657) ready as proof of purchase for all enquiries.

- Please find the item number on the rating plate.

- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 298657

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 298657

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service-Center....59

Importeur 59

Foutopsporing....59

Service-Center....71

Dovozce....71

Hledání chyb....72

Attention! - laser radiation Do not stare into beam! class 2 laser product

laser specification according to EN 60825-1:2014 =650 nm P_0<1 mW

GBIE	Translation of the original EC declaration of conformity
We hereby confirm that theTable circular sawDesign Series PTK 2000 D3Serial number 201804000001 - 201804072200conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 61029-1:2009/A11:2010 • EN 61029-2-1:2012 • EN 55014-1:2017 • EN 55014-2:2015EN 61000-3-2:2014 • EN 61000-3-11:2000 • EN ISO 12100:2010 • EN 61010-1:2010EN 60825-1:2014 • EN 847-1:2013
Registered Office: TÜV Süd, NB 0123Design Type Certificate No.: M6A 18 01 55256 643
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 GroßostheimGermany30.04.2018	CEChristian FrankDocumentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Line drawing of a hand using a tool to lift or adjust a wooden plank, no text or symbols present

36 4 6

37 40 39 PARKSIDE

38

Line drawing of a hand gripping a wall-mounted device with a numbered label '39' (no text or symbols on the diagram itself)

GRIZZLY TOOLS GMBH & CO. KG
