USER MANUAL BDWD15 BLACK & DECKER

SCAN FOR BLACK+ DECKER PHRACY.FLOWCODE.COM MANUAL + FILTER REPLACEMENTS

HHVK320J

HHVK515J

If you have a question or experience a problem with your BLACK+DECKER purchase, go to: http://www.blackanddecker.com. If you can't find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. – Fri. to speak with an agent. Please have the CATALOG NUMBER available when you call.

To register your new product, visit www.BlackandDecker.com/NewOwner

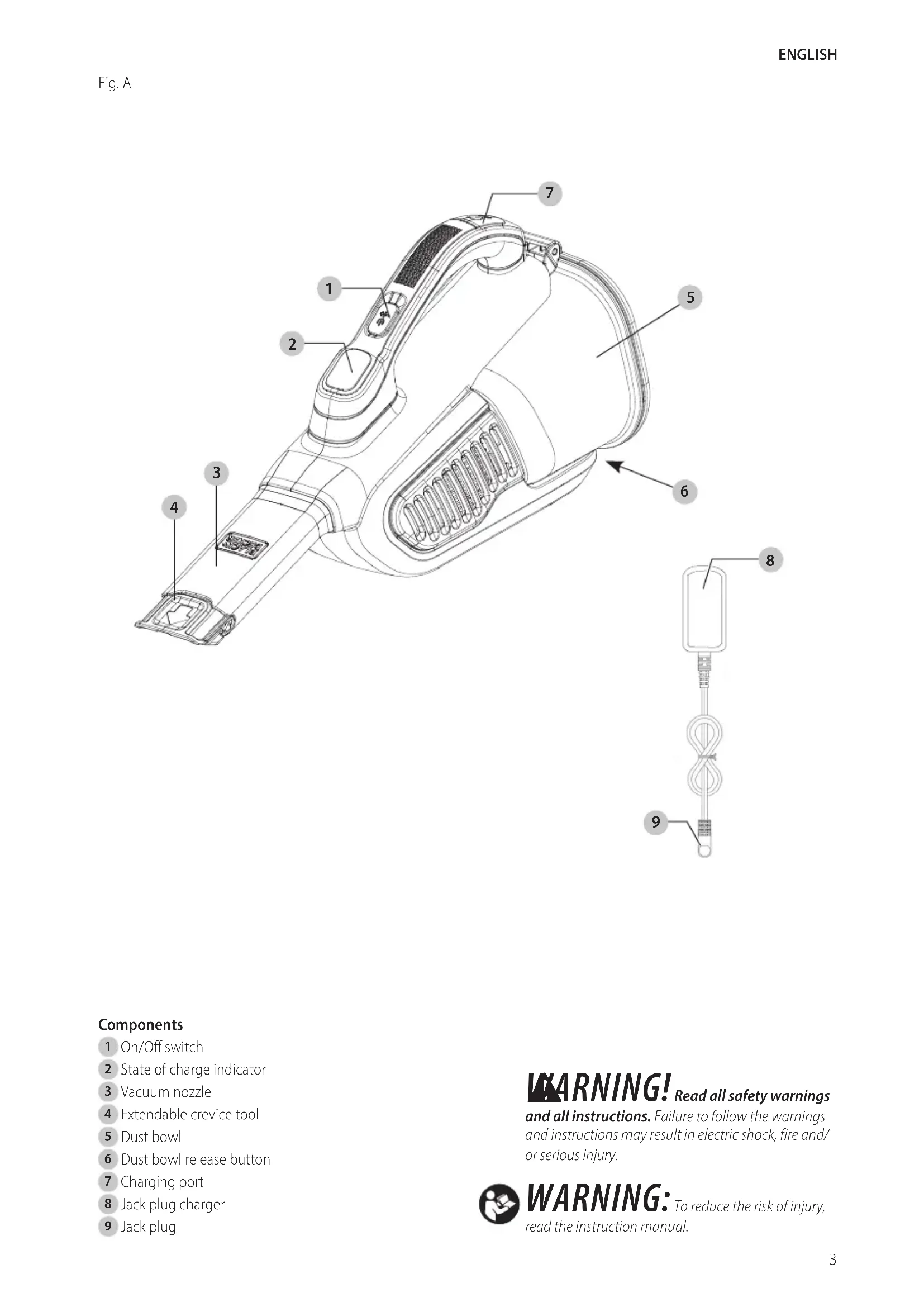

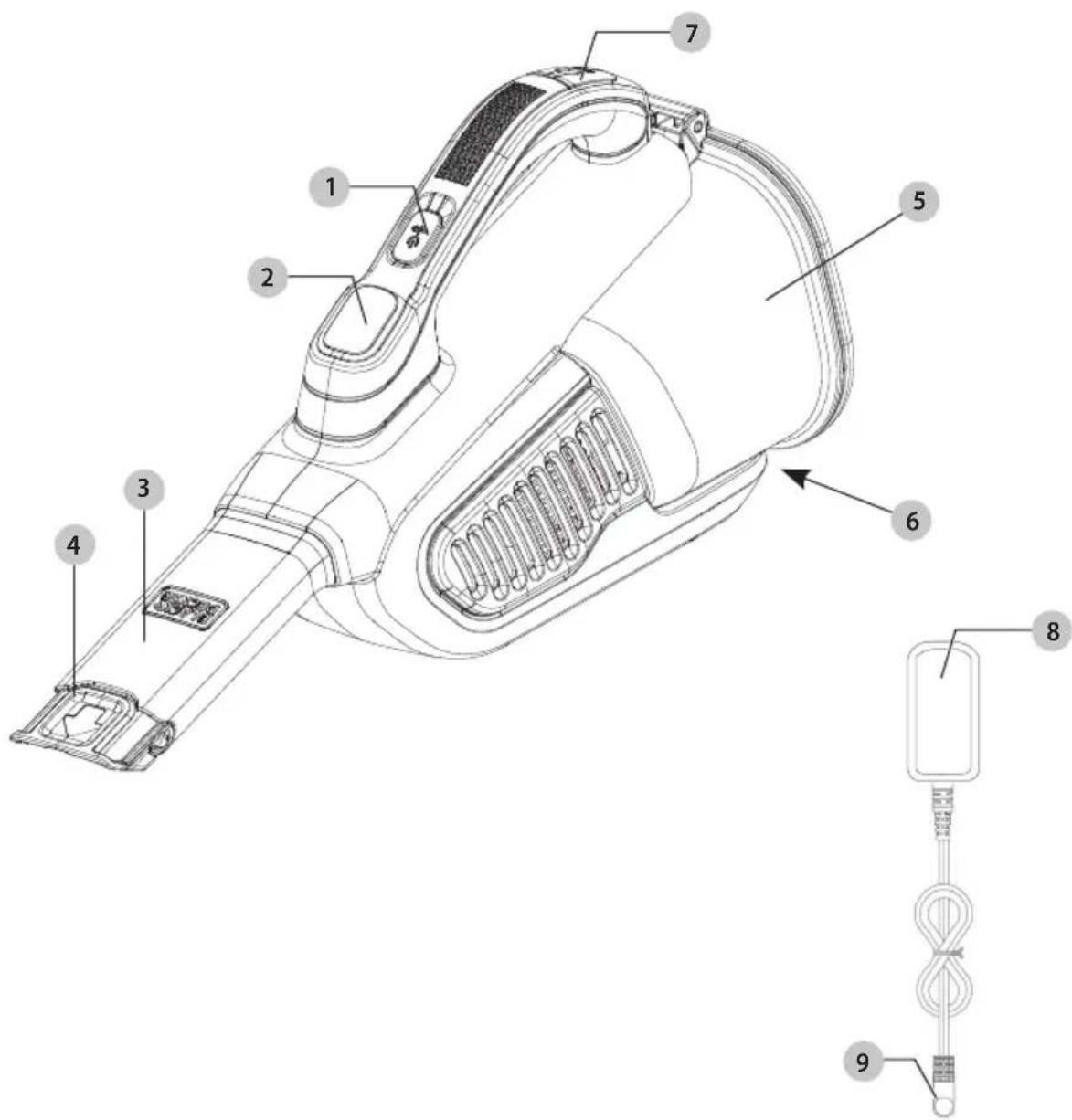

Technical diagram of a handheld vacuum cleaner with numbered parts and labeled parts

Components

1 On/Off switch
2 State of charge indicator
3 Vacuum nozzle
4 Extendable crevice tool
5 Dust bowl
6 Dust bowl release button
7 Charging port
8 Jack plug charger
9 Jack plug

WARNING! Read all safety warnings

and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

English

Intended Use

Your BLACK+DECKER vacuum has been designed for vacuuming everyday dry messes. This appliance is intended for household use only.

DEFINITIONS: SAFETY ALERT SYMBOLS AND WORDS

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER:

Indicates an imminently

hazardous situation which, if not avoided, will result in death or serious injury.

WARNING:

Indicates a potentially

hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION:

Indicates a potentially hazardous

situation which, if not avoided, may result in minor or moderate injury.

NOTICE:

Indicates a practice not related to

personal injury which, if not avoided, may result in property damage.

(Used without word) Indicates a safety related message.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING:

Some household dust

contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm such as asbestos and lead in lead based paint.

WARNING:

Do not attempt to modify or

repair the appliance.

WARNING:

Do not charge the battery at

ambient temperatures below 39 °F ( 4 °C ) or above 104 °F ( 40 °C ). Follow all charging instructions and do not charge the appliance outside of the temperature range specified in the instructions. Charging improperly or at

temperatures outside of the specified range may damage the battery and increase risk of fire.

WARNING:

To reduce the risk of fire,

electrical shock or injury:

• Shock Hazard. To protect against risk of electrical shock, do not put charging base in water or other liquid.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle charger, including charger plug, and charger terminals with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag and/or filters in place.
• Do not charge the unit outdoors.
• Use only the charger supplied by the manufacturer to recharge.
• Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.
• This appliance is intended for household use only and not for commercial or industrial use.
• Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces.
• The unit should be placed or mounted away from sinks and hot surfaces.
• Plug the charger directly into an electrical outlet.
• Use the charger only in a standard electrical outlet (120V/60Hz).
• Unplug the charger from outlet before any routine cleaning or maintenance.
• Do not look into the air vents when the unit is switched on, as sometimes there is a possibility of small debris being discharged from the air vents, especially after cleaning / replacement of the filters as debris inside the unit can be disturbed.
• This product includes rechargeable li-ion batteries. Do not incinerate batteries as they will explode at high temperatures.

- Leaks from battery cells can occur under extreme conditions. If the liquid, which is a 20-35% solution of potassium hydroxide, gets on the skin (1) wash quickly with soap and water or (2) neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

SAVE THESE INSTRUCTIONS

Additional Safety Warnings

a) Prevent unintentional starting. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing an appliance that has the switch on, invites accidents.
b) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
c) Use appliance only with specifically designed battery packs. Use of any other battery packs may create a risk of injury and fire.
d) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
e) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
f) Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
g) Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266 °F (130 °C) may cause explosion.
h) Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
i) Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
j) Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
k) Only for use with these chargers: HHVK320J: S010QU1400040/SSC-140040US HHVK515J: S010QU2300040/SSC-230040US.

Additional Safety Information

WARNING:

Never modify the appliance or r personal injury could result.

• Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals. Direct particles away from face and body.
  • Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min......minutes

- - - or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

Class II Construction (double insulated)

n_0 ......no load speed

n......rated speed

PSI.....pounds per square inch

earthing terminal

⚠️ ____ safety alert symbol

▲......visible radiation—do not stare into the light

E....wearrespiratory protection

wear eye protection

○....wearhearing protection

read all documentation

do not expose to rain

The RBRC® Seal

Please take your spent battery packs to an authorized BLACK+DECKER service center or to your local retailer for recycling.

In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org or call the toll-free number in the RBRC® Seal.

RBRC ^® is a registered trademark of Call 2 Recycle, Inc.

ASSEMBLY

WARNING:

Do not attempt to modify or

repair the appliance.

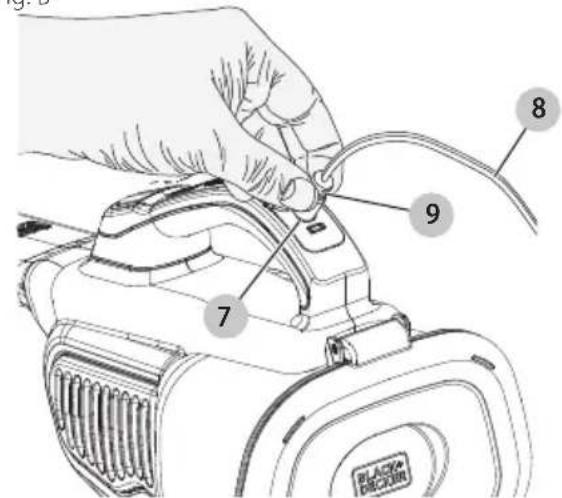

Charging the battery (Fig. B)

WARNING:

For use only with the supplied

charger.

ENGLISH

WARNING: Before charging, be sure to empty all contents and dry thoroughly if needed to avoid damage to your appliance.

1. Before first use, the battery must be charged for at least 5 hours.
2. Make sure the appliance is switched off.
3. Fig. B - Plug the jack plug 9 of the jack plug charger 8 into the charging port 7 of the vacuum.
4. Plug the charger into any standard 120 Volt 60 Hz electrical outlet.

Fig. B

Diagram of a hairdryer with numbered parts labeled 7, 8, and 9 indicating different components or parts.

NOTE: While charging, the charger may become warm. This is normal and does not indicate a problem. The appliance can be left connected to the charger indefinitely.

WARNING: Do not charge the battery at ambient temperatures below 39 °F (4 °C) or above 104 °F (40 °C).

Charging Indicator LED

1. While charging, the white LEDs on the charger 8 will flash and increase in sections.
2. When charging is completed, the white LEDs will turn off.

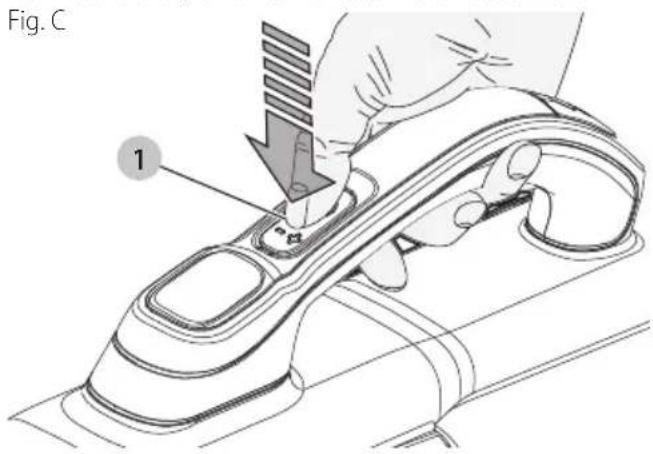

Switching On/Off (Fig. C)

1. To switch the appliance ON, press the On/Off switch 1.
2. Press the On/Off switch 1 again to engage boost mode.
3. Press the On/Off switch 1 to turn the vacuum Off.

Fig. C 1

State of charge indicator

This appliance includes a state of charge indicator 2 which consists of three white LED lights 10 that indicate the level of charge remaining in the battery. This feature is only activated when the vacuum is powered on.

The state of charge indicator is an indication of approximate levels of charge remaining in the battery pack according to the following indicators:

The LED battery indicator displays the remaining charge and warns you when the battery is low. The final LED will flash continuously when there is only 1 minute of runtime remaining. All LEDs will flash when the unit is discharged.

NOTE: The state of charge indicator is only an indication of the charge left on the battery. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

Fig. D

10 2

Extendable Crevice Tool

1. To extend the crevice tool 4, pull it out from the vacuum nozzle 3 until it clicks in place.
2. To collapse the crevice tool 4, push it into the vacuum nozzle 3 until it clicks in place.

Dry pick up

For everyday spills of dry material.

- Do not fill the dust bowl 5 beyond the end of the filter.

Optimizing the suction force

In order to keep the suction force optimized, the filters must be cleared regularly during use.

Emptying and cleaning the product

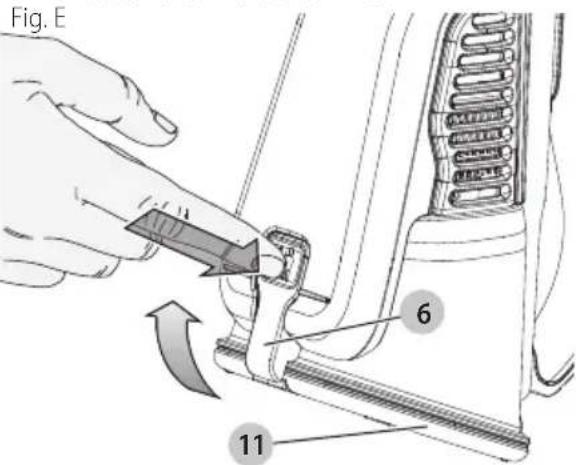

Removing the dust bowl and filter (Fig. E, F)

WARNING: The filter is reusable and should be cleaned regularly.

1. Hold the dust bowl over a trash can before pressing the dust bowl release button 6 to release the dust bowl access door 11 as shown in Figure E.
2. While holding the dust bowl over a trash can, lightly shake it to empty the dust bowl 5.

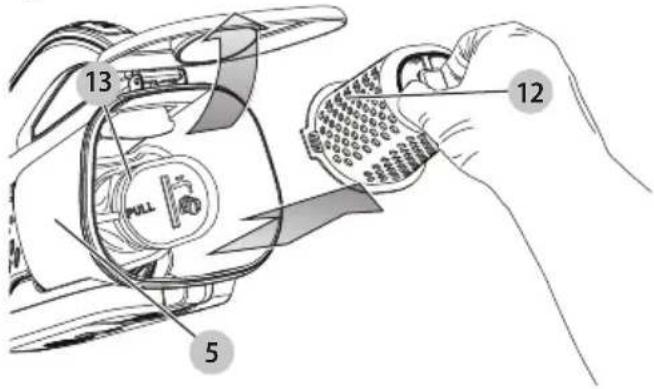

3. Lift the prefilter 12 out of the dust bowl 5 as shown in Figure F.

4. Lift the filter 13 out of the dust bowl 5.

5. While holding the dust bowl over a trash can, empty the dust bowl 5.

6. Install the filter 13 into the dust bowl 5, then install the prefilter 12 into the dust bowl 5.

7. Close the dust bowl access door 11 until it clicks firmly into place.

WARNING:

Never use the appliance

without the filters. Optimum dust collection will only be achieved with a clean filter.

Fig. E 6 11

Fig. F

13 12 5

Cleaning the dust bowl and filter

1. The prefilter 12 and filter 13 can be washed in warm soapy water. The dust bowl 5 can be wiped clean with a dry cloth.

2. Make sure the filter 13, prefilter 12 and the dust bowl 5 are dry before installing.

Replacing the filters

The filters should be replaced every 6 to 9 months and whenever worn or damaged. Replacement filters are available from your BLACK+DECKER dealer.

Visit www.blackanddecker.com to locate dealers.

• Remove the old filters as described in Emptying and Cleaning the Product.
• Fit the new filters as described in Emptying and Cleaning the Product.

(cat. no: HHVKF10)

These fit all units. When these filters reach the end of their lifespan they must be disposed of at a local recycling center.

MAINTENANCE

Use only mild soap and damp cloth to clean the vac. Never let any liquid get inside the vac; never immerse any part of the vac into a liquid.

WARNING:

Make sure the vacuum is

completely dry before using it.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts.

TROUBLESHOOTING

If the product does not work, check the following:

• The charger was correctly plugged in for recharge. (It feels slightly warm to the touch.)
  • The charger cord is not damaged and is correctly attached.
  • The charger is plugged into a working electrical outlet. For assistance with your product, visit our website

www.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at 1-800-544-6986.

Battery Removal and Disposal

This product uses Lithium Ion rechargeable and recyclable batteries. When the batteries no longer hold a charge, they should be removed from the vacuum and recycled. They must not be incinerated or composted.

The batteries can be taken for disposal to a BLACK+DECKER Company-Owned or Authorized Service Center. Some local retailers are also participating in a national recycling program (see "RBRC® Seal"). Call your local retailer for details. If you bring the batteries to a BLACK+DECKER Company-Owned or Authorized Service Center, the Center will arrange to recycle old batteries. Or, contact your local municipality for proper disposal instructions in your city/town.

To remove the battery pack for disposal:

1. First, before attempting to disassemble the product, turn it on and leave it on until the motor completely stops insuring a complete discharge of the batteries.
2. Using a hex screwdriver, remove the seven screws securing the two housing halves.
3. Lift the housing cover away from the assembly.
4. Detach all lead connections from battery pack.
5. Remove battery pack and dispose of as per recommended guidelines.

Accessories

WARNING:

Since accessories, other

than those offered by BLACK+DECKER, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only BLACK+DECKER recommended accessories should be used with this product.

ENGLISH

Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact BLACK+DECKER. Call 1-800-544-6986.

Repairs

WARNING: To assure product SAFETY and

RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a factory service center or an authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  • FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.BlackandDecker.com/NewOwner.

SERVICE INFORMATION

All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com

Two-Year Limited Warranty

For warranty terms, go to https://www.blackanddecker.com/support/warranty-policy.

To request a written copy of the warranty terms, contact: Customer Service at Black & Decker, 701 East Joppa Road, Towson, MD 21286 or call 1-800-544-6986.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country-specific warranty information contained in the packaging, call the local company or see the website for such information.

Imported by: Black & Decker (U.S.) Inc.

701 E. Joppa Rd.

Towson, MD 21286

BlackandDecker.com

(1-800-544-6986)

Fig. A

Technical diagram of a handheld vacuum cleaner with numbered parts and labeled parts

Composants

Technical diagram of a handheld vacuum cleaner with numbered parts and labeled connectors

Componentes

--- o CD.....corriente directa

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Black & Decker (U.S.) Inc.

701 East Joppa Road, Towson, MD 21286

Part No. NA366155

HHVK320J, HHVK515J

JUN23
