USER MANUAL SHBS 500 E3 SILVERCREST

Operating instructions

6.2 Changing the cutting attachments .............. 40

6.3 Changing the comb attachments................ 41

6.8 Trimming nose and ear hair...................... 44

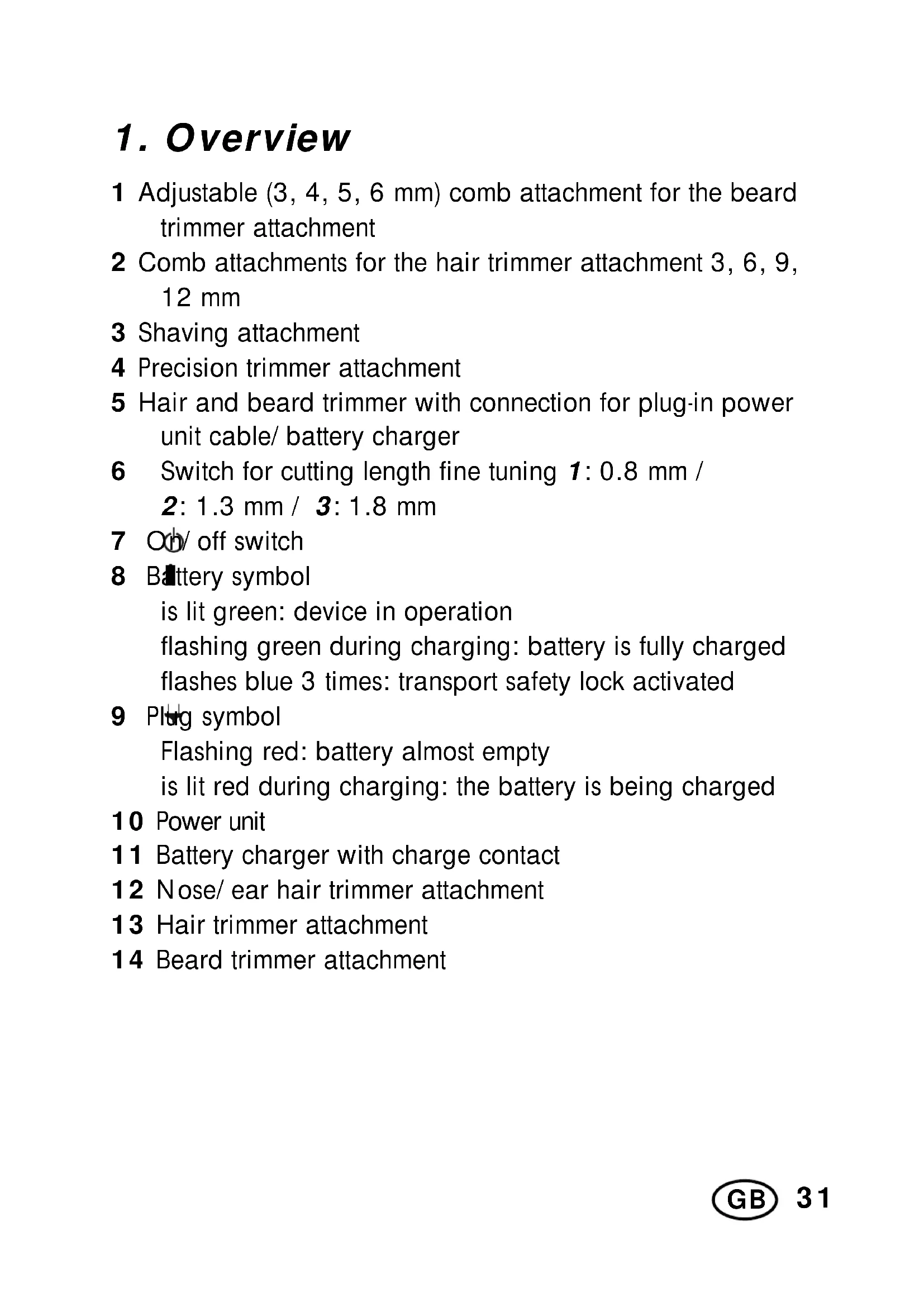

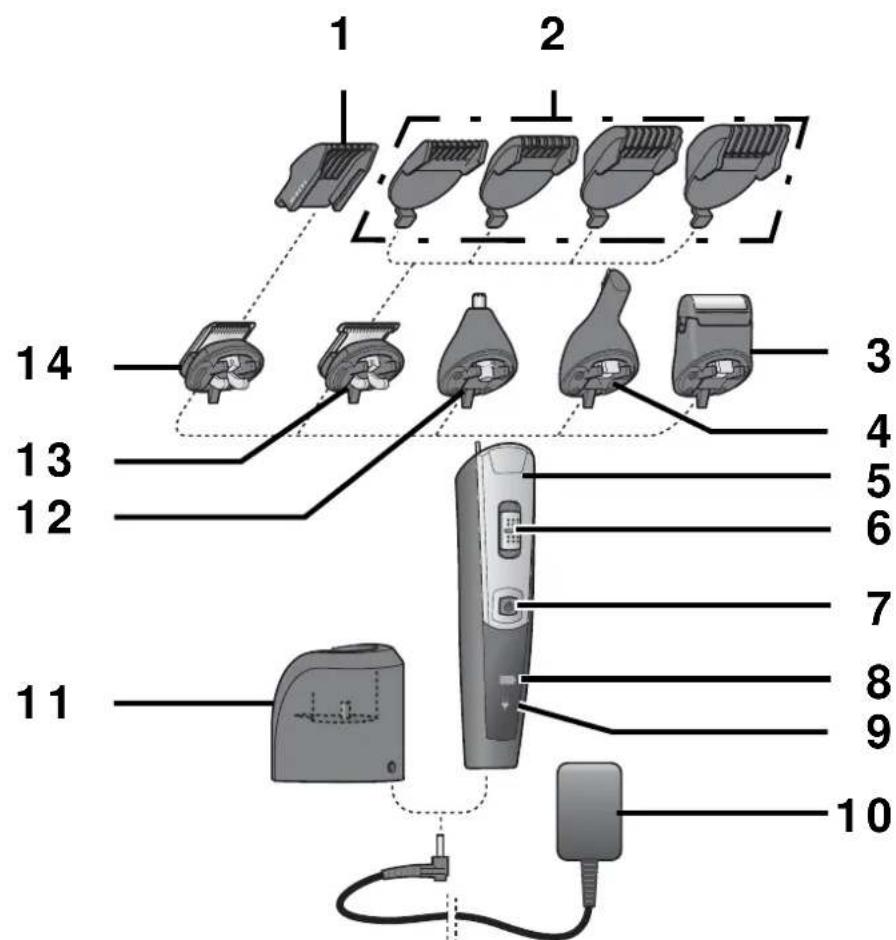

1 Adjustable (3, 4, 5, 6 mm) comb attachment for the beard trimmer attachment 2 Comb attachments for the hair trimmer attachment 3, 6, 9, 12 mm 3 Shaving attachment 4 Precision trimmer attachment 5 Hair and beard trimmer with connection for plug-in power unit cable/battery charger 6 Switch for cutting length fine tuning 1: 0.8 mm / 2: 1.3 mm / 3: 1.8 mm 7 On/off switch 8 Battery symbol is lit green: device in operation flashing green during charging: battery is fully charged flashes blue 3 times: transport safety lock activated 9 Plug symbol Flashing red: battery almost empty is lit red during charging: the battery is being charged 10 Power unit 11 Battery charger with charge contact 12 Nose/ear hair trimmer attachment 13 Hair trimmer attachment 14 Beard trimmer attachment32

not shown: 15 Scissors 16 Blade oil 17 Cleaning brush 18 Comb 19 Storage bag (for the hair and beard trimmer and its acces- sories) Thank you for your trust! Congratulations on your new 5in1 hair and beard trimmer. For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions pri- or to initial commissioning.

• Above all, observe the safety instructions!

• The device should only be used as described in these operating instructions.

• Keep these operating instructions for reference.

• If you pass the device on to someone else, please include these operating instructions. We hope you enjoy your new 5in1 hair and beard trimmer!33

The 5in1 hair and beard trimmer is intended exclusively for trim- ming human hair. Only use the device for dry hair. The device is designed for private home use and must not be used for commercial purposes. The device must only be used indoors. Foreseeable misuse WARNING! Risk of material damage! ~ Do not use the device to cut artificial hair or animal hair.

3. Safety information

Warnings If necessary, the following warnings will be used in these operat- ing instructions: DANGER! High risk: failure to observe this warning may result in injury to life and limb. WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or material damage. NOTE: circumstances and specifics that must be observed when handling the device.34

Instructions for safe operation

This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people with- out adequate experience and/or understand- ing, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting danger. Children must not play with the device. Cleaning and maintenance by the user must not be performed by children without supervision.

This device may be used by children aged 3 years or above with adult supervision.

Only use the included original power adaptor for mains operation. ~ WARNING! Keep the device dry. DANGER for children ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: There is a risk of suffocation! ~ Keep the device out of the reach of children. DANGER to and from pets and livestock ~ Electrical devices can represent a hazard to pets and live- stock. In addition, animals can also cause damage to the de-35

vice. For this reason you should keep animals away from electrical devices at all times. DANGER! Risk of electric shock due to moisture ~ Protect the device from moisture, water drops and water splashes. ~ Never touch the device with wet hands. ~ The device, the battery charger and the power unit must not fall into water or other liquids and must not be rinsed under running water. ~ If the device has fallen into water, pull out the power unit im- mediately, and only then remove the device from the water. Do not use the device again, but have this checked by a spe- cialist. ~ Should liquid enter the device, have it checked before start- ing the device up again. ~ If the device is used in a bathroom, the power unit must be pulled out after use, as the proximity of water represents a hazard, even when the device is switched off. ~ Installation of a residual current device (FI/RCD) with a rated residual operating current of no more than 30|mA is recom- mended to provide additional protection. Ask your electri- cian for advice. The installation should only be carried out by a qualified electrician. DANGER! Risk of electric shock ~ Never put the device into operation if there are visible dam- ages to the device, the battery charger or the cable or if the device has been dropped before. ~ Connect the cable to the device/battery charger before plug- ging the power unit into a wall socket.36

~ Only connect the power unit to a properly installed, easily accessible wall socket, the voltage of which corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in. ~ Ensure that the cable cannot be damaged by sharp edges or hot surfaces. ~ Ensure that the cable is not trapped or crushed. ~ When removing the power unit from the wall socket, always pull the power unit and never the cable. ~ Pull the power unit out of the wall socket, … … after every use, … after each charging process, … if there is a fault, … before connecting the device to the cable, … before you clean the device and … during thunderstorms. ~ To avoid any risk, do not make modifications to the device. Repairs must be carried out by a specialist workshop or the Service Centre. DANGER from batteries

Protect the battery against mechanical damages. Fire hazard! ~ Do not expose the device to direct sunshine or heat. The am- bient temperature should not be lower than -10 °C and higher than +40 °C. ~ The charge contacts on the device must not be connected by metallic objects. ~ The battery may only be charged with the original accessory (power unit).37

~ Should the electrolyte solution leak out of the battery, avoid contact with eyes, mucous membranes and skin. Rinse imme- diately with plenty of clean water and consult a doctor. The electrolyte solution can cause irritation. ~ The device is provided with a lithium-ion battery. - The battery cannot be removed! - This device must not be opened! - The device with the installed battery must be disposed of properly. WARNING! Risk of injury from cutting ~ The points of the comb attachments, the hair trimmer attach- ment, the beard trimmer attachment and the precision trim- mer attachment are sharp. Handle with care. ~ Do not use the device if the attachment shows damages. ~ Switch off the device before pinning up or changing the at- tachments and each time before cleaning. WARNING! Risk of injury ~ Place the cable in such a way that no one trips over it or steps on it. ~ Do not push the nose/ear hair trimmer attachment too deep into the nostril or the ear canal. ~ Do not use the device on open wounds, cuts, sunburn or blis- ters. WARNING! Risk of material damage

The battery charger is fitted with non-slip silicon feet. As furni- ture is coated with a variety of different varnishes and acrylics and treated with different cleaning agents, we cannot rule out that some of these substances could damage and soften the rubber feet. If necessary, place a non-slip mat under the bat- tery charger. ~ Use the original accessories only.38

~ Never place the device on hot surfaces (e.g. hob plates) or near heat sources or open fire. ~ Do not cover the power unit to prevent overheating. ~ Do not exert too much pressure on the shaving foil of the shaving attachment, to avoid damaging the shaving foil. ~ Do not detach the shaving foil from the shaving foil frame, and do not clean it using the brush. ~ Do not use any astringent or abrasive cleaning agents.

1 5in1 hair and beard trimmer|5 1Power unit|10 1Battery charger|11 5Interchangeable cutting attachments: hair trimmer attachment|13 beard trimmer attachment|14 precision trimmer attachment|4 nose/ear hair trimmer attachment|12 shaving attachment|3 4Comb attachments|2 for the hair trimmer attachment 3, 6, 9, 12 mm 1Adjustable (3, 4, 5, 6 mm) comb attachment|1 for the beard trimmer attachment|14 1Comb|18 1Scissors|15 1 Cleaning brush|17 1Blade oil|16 1Storage bag (for the hair and beard trimmer and its accesso- ries)|19 1 Operating Instructions39

• Before first use (without cable), and for every charging pro- cedure afterwards, charge the hair and beard trimmer|5 for approx. 90 minutes.

• When the batteries are almost empty, the plug symbol|9 flashes in red. The device can then only be used for a short time without being connected to the electricity supply.

1. Place the battery charger|11 on a level surface.

2. Connect the power unit|10 to the battery charger|11.

3. Switch off the device with the on/off switch|7 if necessary.

4. Insert the power unit|10 into a readily accessible wall sock-

et whose voltage matches the voltage stated on the rating plate.

5. Put the hair and beard trimmer|5 into the battery charg-

6. The plug symbol|9 is lit red and the battery is charged.

When the battery is fully charged, the battery symbol|8 flashes in green. When the battery is fully charged, the de- vice can be used for approximately 60 minutes without be- ing connected to the power supply.40

Regardless of the charging state of the battery, the 5in1 hair and beard trimmer can always be mains-operated.

1. For mains operation, ensure that the hair and beard trim-

mer|5 is switched off.

2. Connect the power unit|10 to the connector of the hair and

into a readily accessible wall socket whose voltage matches the voltage stated on the rating plate.

4. Switch on the device with the on/off switch|7.

6.1 Transport safety lock

When the transport safety lock is activated, the battery symbol|8 flashes blue 3 times.

• Press and hold the on/off switch|7 for approx. 3 seconds to activate/deactivate the transport safety lock.

• By connecting the power unit|10, the transport safety lock is deactivated, and also cannot be activated while plugged in to the power supply.

6.2 Changing the cutting attachments

WARNING! Risk of injury! ~ Switch off the hair and beard trimmer|5, before you attach or remove the attachments.

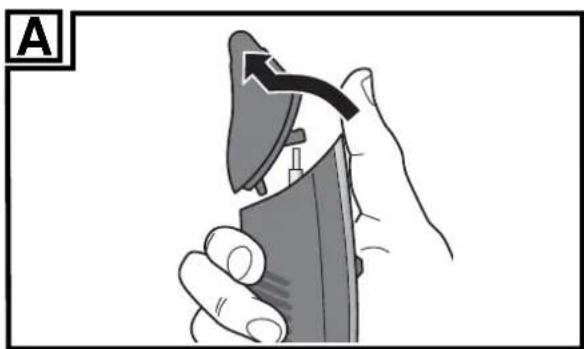

• Figure A: to remove the attachments|13,|3,|4,|12, 14 use your thumbs to press the attachment towards the rear of the hair and beard trimmer|5.41

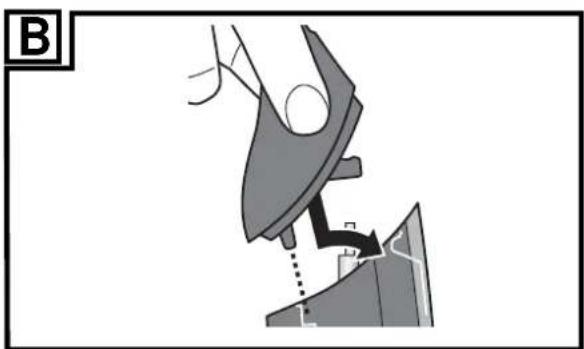

• Figure B: to attach the attachments, put the lower flap of the attachment|13,|3,|4,|12,|14 into the slot in the hair and beard trimmer|5 and press the upper part of the attach- ment against the hair and beard trimmer until it audibly locks into place and sits firmly in position.

6.3 Changing the comb attachments

• To attach the comb attachments|2 +|1 carefully slide the ap- propriate comb attachment over the hair or beard trimmer at- tachment|13 /|14. Press the lower part of the comb attachments|2 firmly until they lock into place. Removing

• To remove the comb attachments|2 loosen the comb attach- ment at its lower end and pull it off the hair and beard trim- mer|5.

• Slide the comb attachment|1 for the beard trimmer attach- ment|14 upwards from the hair and beard trimmer|5.

• The hair to be dressed must be dry.

• The cutting length may deviate depending on the cutting angle.

• Place a sheet or cape around throat and neck to prevent cut- off hair from dropping into the collar.

• Comb the hair well.42

• First, start with a comb attachment|2 with a longer cutting length and then, in the course of the cutting process, use shorter cutting lengths step by step.

• Start by cutting the hair in the neck or on the sides and cut towards the centre of the head. Then, cut the front section of the hair towards the centre of the head.

• Hold the hair and beard trimmer|5 in such a way that the comb attachment|2 lies as flat as possible on the head. Move the device evenly through the hair.

• If possible, cut against direction of hair growth.

• In order to catch all the hair, move the hair and beard trim- mer|5 several times through each section of the hair.

• Comb the hair repeatedly and well.

• In order to achieve a straight cutting line for cutting lengths over 12 mm, the hair and beard trimmer|5 should be passed through the hair several times from different directions.

6.5 Trimming a beard

Beard trimmer attachment|14 NOTE: please note that the cutting lengths will only be achieved if the switch for cutting length fine tuning|6 is at position 1 and the hair and beard trimmer|5 is held at a right angle to the skin surface.

• Comb the beard in the direction that it grows.

• Trim the beard downwards from ear to chin. First trim one side, then the other.

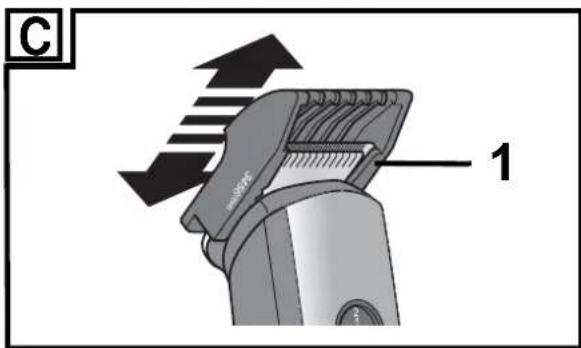

• Comb attachment|1 Figure C: adjust the cutting length with the slider according to the desired hair length and read off the cutting length us-43

ing the marking on the side of the comb attachment|1 (3, 4, 5, 6 mm). Now, shorten your beard step-by-step.

• Use the beard trimmer attachment|14 without a comb attach- ment|1, to cut the beard very short or to cut a moustache and hairline.

• Using the switch for cutting length fine tuning|

the cutting length can be slightly varied with three levels (

• To trim your moustache, first comb it straight downwards. Then use either the beard trimmer attachment|14 or the pre- cision trimmer attachment|4. Start at the centre above the mouth and trim first one side, then the other.

6.6 Cutting a hairline

Precision trimmer attachment|4

• Use the precision trimmer attachment|4 to shorten and shape moustaches, whiskers, sideburns or eyebrows.

• Put the edge of the attachment at the desired hairline height and move the hair and beard trimmer|5 downwards.

Shaving attachment|3 NOTE: your skin must be clean and dry.

• Hold the hair and beard trimmer|5 at a right angle to the skin surface and gently guide it over your face.

• Shave against the direction of your beard growth.44

• Stretch your skin in complicated areas, such as the chin, to achieve better results.

6.8 Trimming nose and ear hair

Nose/ear hair trimmer attachment|12

• Insert only the metal tip slowly into a nostril or an ear.

• Slowly move the hair and beard trimmer|5 with a circular motion to trim the hair.

7. Cleaning and care

DANGER! Risk of electric shock! ~ Unplug the power unit|10 from the wall socket before clean- ing the hair and beard trimmer|5 and the battery charg- er|11. WARNING! Risk of injury! ~ Always switch the hair and beard trimmer|5 off before cleaning. WARNING! Risk of material damage! ~ Do not use any astringent or abrasive cleaning agents. NOTE: clean and oil the device after every use. Hair and beard trimmer|

and battery charger|

• Wipe the casing of the hair and beard trimmer and the bat- tery charger with a damp cloth.45

Comb attachments|2,|1

• Remove the comb attachment. Rinse the comb attachment with water and let it dry before using it again. Hair trimmer, beard trimmer and precision trim- mer attachments| 13,|14,|4

1. Figure A: remove the attachment from the hair and beard

trimmer|5 by pressing it with the thumb towards the rear.

2. Remove the hair remnants from the attachment using the

cleaning brush|17 included in the delivery.

3. Apply a few drops of blade oil|16 to the cutting edge of the

attachment. Using a soft cloth, wipe off the surplus oil, if necessary. Only use acid-free oil, such as e.g. sewing ma- chine oil. Nose/ear hair trimmer attachment|12

• Remove the nose/ear hair trimmer attachment|12. Rinse it with water and let it dry completely before using it again. Shaving attachment|3 WARNING! ~ Do not detach the shaving foil from the shaving foil frame, and do not clean it using the cleaning brush|17. NOTE: from time to time, oil the cutting blade with a few drops of acid-free oil (e.g. sewing machine oil). Attach the shaving at- tachment to the hair and beard trimmer|5 and let it run for a few seconds without using it. Using a soft cloth, wipe off the surplus oil, if necessary.46

1. Remove the shaving attachment|3.

2. Press the button on the side of the shaving attachment and

remove the shaving foil frame. While removing the shaving foil frame, only hold it at the side and do not press against the shaving foil.

3. Clean the cutting blade using the included cleaning

4. Clean the shaving foil in the shaving foil frame under run-

ning water and allow it to dry completely before putting it back on the shaving attachment|3.

5. Put the shaving foil frame back onto the shaving attach-

. While attaching the frame, make sure that the fasten- ing tabs on the shaving foil frame fit into the appropriate recesses on the shaving attachment, and press the shaving foil frame gently downwards until it audibly locks into place.

• For storage … … put the hair and beard trimmer|5 in the battery charg- er|11 or … use the included storage bag|19.47

You can subsequently order the shaving attachment|3. Online ordering shop.hoyerhandel.com

1. Scan the QR code with your smartphone/tablet.

2. The QR code will take you to a website where you can reor-

The battery integrated into this device must not be disposed of in household waste. The device must be disposed of properly with the battery installed. This product is subject to the provisions of Europe- an Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products iden- tified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the con- sumption of raw materials and protect the environ- ment. Packaging When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country. Li-ions49

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! ~ Do not attempt to repair the device yourself under any cir- cumstances. Fault Possible causes / Action No function

• Has the device been connected to the power supply?

• Is the battery empty? The cutting attachments|13, 3, 4, 12, 14 are not run- ning smoothly

• Have the attachments been cleaned, and oiled if neces- sary?50

Technical Symbols Subject to technical modifications. Certified Safety. Devices must comply with the generally ac- knowledged rules of technology and the German Product Safety Act (Produktsicherheitsgesetz - ProdSG). With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines. Devices with this symbol may only be operated indoors (dry environment). This symbol reminds you to dispose of the packaging in an environmentally friendly manner. Recyclable materials: cardboard (except corrugated card- board) Direct current Symbol for polarity52

HOYER Handel|GmbH Dear Customer, your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a ma- terial or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defec- tive device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.53

Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery. The warranty applies to material or factory defects. Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufac- tured from glass. This warranty expires if the product is damaged, not used as in- tended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be ob- served carefully. Any form of use and handling that is advised against in the operating instructions or warned against must al- ways be avoided. The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Cen- tre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please ob- serve the following notes:

• Please keep the article number IAN: 288911 and the pur- chase receipt as a purchase verification for all inquiries.

• The article number can be found on the rating plate, an en- graving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.

• If faulty operation or other defects occur, first contact the Ser- vice Centre listed in the following by telephone or email.

• Then, you are able to send a product reported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the information on the defect and when it occurred.54
