LADE- UND DATENKABEL/CHARGING AND DATA CABLE / CÂBLE DE CHARGE ET SYNCHRONISATION

DE AT CH

LADE- UND DATENKABEL

CHARGING AND DATA CABLE

Operation and Safety Notes

FR BE

CÂBLE DE CHARGE ET SYNCHRONISATION

GB / IE Operation and Safety Notes Page 28

Kondensation): 10% - 70%

List of pictograms used and warnings......Page 29

Introduction......Page 29
Intended use......Page 30
Warnings and symbols used......Page 30
Trademark notice Page 32
Scope of delivery......Page 32
Before use......Page 32
Parts description......Page 33
Technical data......Page 33

Safety notices......Page 34

Operation and use ......Page 38
Charging the power bank......Page 38
Checking the battery status......Page 40
Charging mobile devices with the power bank......Page 41
Data transfer ......Page 42
Usage as a charging cable......Page 42

Troubleshooting......Page 42

Cleaning and care......Page 44

Storage during non-use .....Page 45

Disposal Page 45

Note to Declaration of conformity....Page 47

Warranty Page 47

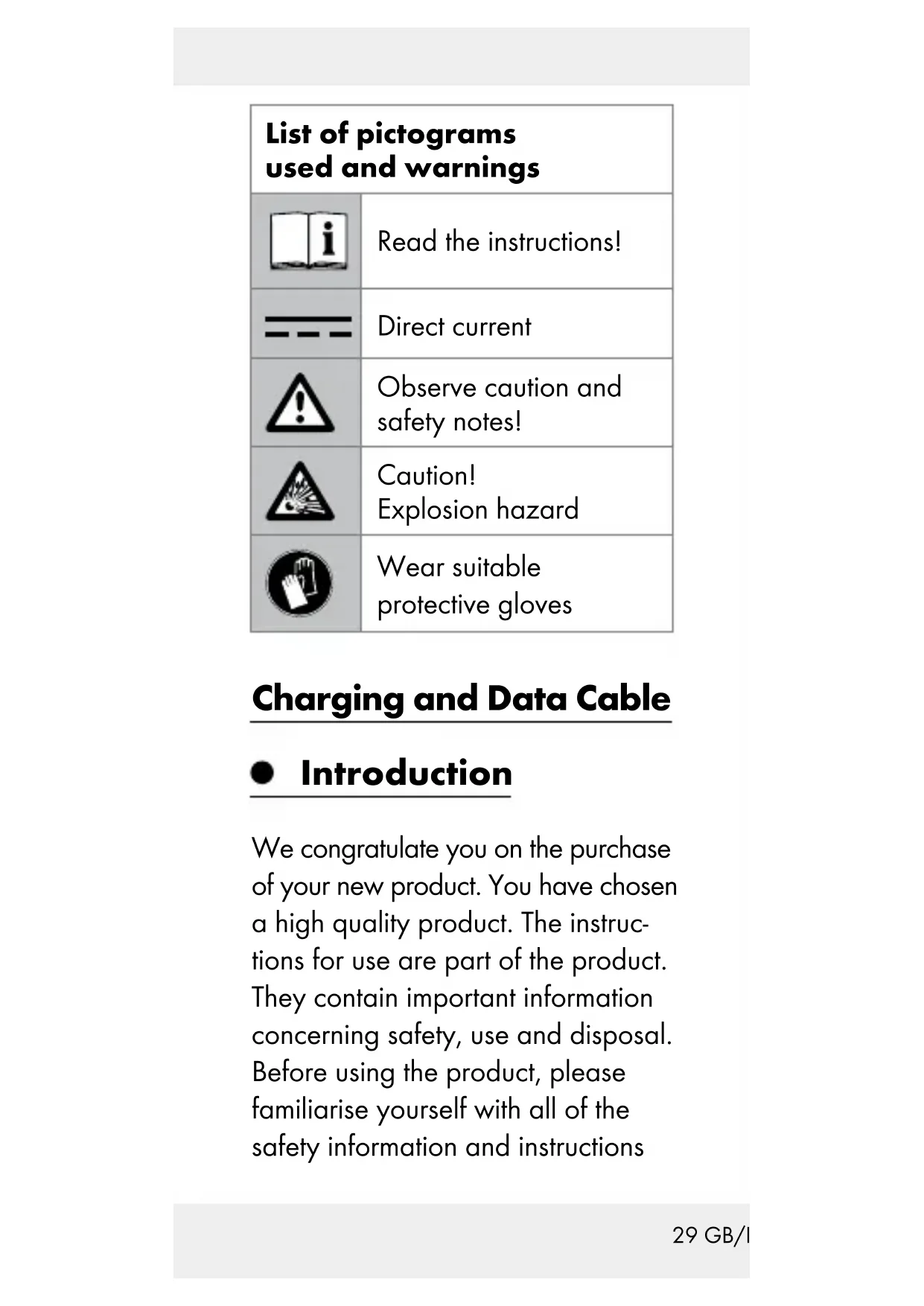

List of pictograms used and warnings
	Read the instructions!
	Direct current
	Observe caution and safety notes!
	Caution! Explosion hazard
	Wear suitable protective gloves

Charging and Data Cable

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions

for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is an IT device which is solely intended to be used to charge mobile devices which are normally charged through a USB port. This product is not intended for commercial use. Manufacturer is not liable for damages, which result from non-Intended use.

Any claims resulting from improper use or due to unauthorised modification of the product will be considered un-warranted. Any such use is at your own risk.

- Warnings and symbols used

These instructions for use contain the following warnings:

DANGER

This symbol in conjunction with the „danger“ note indicates an imminent dangerous situation which, if not prevented, could result in serious injury or even death.

WARNING

This symbol in conjunction with the „warning“ note indicates important information for safe operation of the device and the safety of the user.

CAUTION!

This symbol with the signal word indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTE

This symbol with the signal word provides additional useful information.

Trademark notice

-USB ^® is a registered trademark of USB Implementers Forum, Inc.

• The SilverCrest trademark and trade name is the property of their respective owners.
• Lightning is a trademark of Apple Inc.
• Any other names and products may be trademarks or registered trademarks of their respective owners.

Scope of delivery

1 Charging and Data Cable
1 Instructions for use

Before use

Note: All parts have to be un-packed and the packaging material has to be removed completely.

☐ Please also check the content of delivery inside packaging to see if any damages. If you notice any damage or missing parts, please contact the dealer who sold this product.

Parts description

Please refer to fold out page front/rear.

1 Lightning charging plug
2 Micro-USB plug
3 USB type A plug
4 LED indicator
5 Power- / status button
6 Power bank
7 Instructions for use

Technical data

Built-in battery: 3.7 V / 450 mAh (Lithium polymer)

Input voltage/

current:5V ===, max. 500 mA

Output voltage/

current:5V =, 1 A

Minimum output

current: approx. 80 m

Operating

temperature: 5^ C - 35^ C

Storage

temperature: 0^ C - 45^ C

Humidity

(no condensation): 10% - 70%

Dimension

(Length x Diameter): approx.

103 × 17mm

Weight: approx. 40 g

Cable length: 1 meter

Safety notices

Please familiarise yourself with all instructions for use and Safety notices before using the product for the first time. When passing this product on to third parties, please be sure to include all documentation.

- Check the product for visible external damage before use. Do not use the product if damaged or dropped.

This product may be used by children age 8 years and up, as well as by persons with physical, sensory or mental impairments or lacking experience and / or knowledge, provided they are supervised or instructed in the safe use of the product and

understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.

DANGER! Packaging materials are not a toy. Keep all packaging materials out of the reach of children. Suffocation hazard!

- Do not expose the product to direct sunlight or high temperatures. It may otherwise overheat and be damaged beyond repair.

- Do not operate the product near heat sources such as radiators or other devices producing heat.

- Do not operate the product near open flames, e.g. candles, open flames.

The product is not designed for use in rooms with high temperatures or humidity (i.e bathrooms) or those in which a great amount of dust is generated.

- Do not expose the product to extremely high temperatures. This applies in particular if you are thinking about storing the

product in your car. Over a prolonged period of time, the car and the glove compartment could become extremely hot. Remove electric and electronic devices from the car.

Do not use the product immediately after it has brought from a cold room to a warm room. Allow the product to acclimatise before you switch it on.

DANGER! Never open the product casing. This product has no internal parts requiring maintenance.

■ Do not independently convert or modify the product.

■ Repairs to the product must be performed by authorised specialised companies or customer service. Improper repairs may place the user in considerable danger. They will also void the warranty.

- Do not expose the product to dripping water or splashing water and do not place containers filled with liquids such as vases

or open drinks on top of or beside the product.

Immediately switch the product off and remove the charging cable from the product if you smell burning or see smoke. Have the product examined by a qualified technician before using it again.

If you use a USB power supply, the socket used must always be easily accessible so that the USB power supply can be quickly removed from the socket in the case of emergency. Please also refer to the USB Power supply manufacturer's instruction manual.

DANGER! Improper handling of lithium polymer batteries can result in fire, explosions, hazardous substances leaking, or other dangerous situations! Do not throw the product into the fire, as this could lead to the built-in battery exploding.

- Observe the usage restrictions and prohibitions of use for

battery-operated products in situations which may be hazardous such as at petrol stations, airports, hospitals, etc.

WARNING! During charging process, please be noticed that the product must not be covered.

- Operation and use

- Charging the power bank

The built-in rechargeable battery must be fully charged before using the product. The required charging time for the power bank 6 depends on the charging source and its output power.

☐ To charge the power bank only use power supplies with an output voltage of 5 V and an output current of at least 500 mA.

Connect the one end of this product 3 (USB Type A) to a USB power supply (not included in the scope of delivery).

The battery status will be shown by LED indicator 4 and different LED color refer to power bank battery capacity level during the charging process.

To check with the power bank battery capacity level, press the power button / status button 5, LED indicator 4 will light up to show the relevant bank power battery level refer to below table, LED indicator will automatically off after 5 seconds.

Table A - Checking battery status battery power level indication	LED light status
57% - 100% Blue light up
15% - 56% Green light up
6% - 14% Red light up
0% - 5% Red flashing
Table B - Under Charging mode battery power level indication	LED light status
99% - 100% Blue light up
66% - 98% Green light up
33% - 65% Red light up
0% - 32% Red flashing

Checking the battery status

You can check the battery status on the LED indicator 4 anytime.

Lightly press the Power / status button 5. The LED indicator 4 shows the current battery status of the power bank 6 for approx. 5 seconds in terms of LED indicator's color, details refer to table A.

Note: If battery power level of the power bank 6 is lower than 5%, the LED indicator 4 will automatically flash to show

power level is low, the product need to charge up now.

Charging mobile devices with the power bank

Connect charging USB cable 2 micro-USB port or Lightning charging plug 1 to device to be charged. The charging process will start automatically.

In case if the charging process does not begin immediately, press the Power / status Button 5 lightly to begin the charging process. The current battery status of the power bank 6 is indicated during the charging process by the LED indicator 4, please refer to Table B for more details.

To end the charging process, separate the USB charging cable Or lightning cable plug 1 from the mobile device and the power bank 6. The LED indicator 4 will switch off after approx. 5 seconds.

Data transfer

☐ Use this product as a data cable to transfer files directly through your devices to computers or other devices

Usage as a charging cable

☐ In this case, higher charging current are possible to charge up tablet computer as well. But it depends on the tablet computer charging current and voltage requirements, details please check with tablet manufacturer user manual before charging your tablet to make sure your tablet device compatible with this charging cable

Troubleshooting

● = Problem
● = Cause
O = Solution

● The power bank 6 is not being charged.

It may be that the power bank is not connected properly.

○ Check that it is connected.

● A connected device is not being charged.

The battery is drained.

○ Charge the battery.

The device is not connected.

- Check that it is connected. Lightly press the power / status button 5 to begin the charging process.

The current consumption of the connected device might be too low.

- Check with your connected device manual and see if your connected device current consumption comply with this product.

● The power bank 6 does not react when the button is pressed or when a device is connected, even though the battery is charged

The power consumption of the connected devices is too high. Therefore, the internal overcurrent protection device was activated. At the moment, unplug the connected device and power bank will automatically remove fault condition.

- Cleaning and care

This product has no internal parts requiring maintenance. Moisture entering the product may result in damage.

■ Ensure no moisture enters the product during cleaning to prevent damaging the product beyond repair.

Do not use abrasive, solvent-based or aggressive cleaners. These can damage the surface of the product.

Only clean the product with a slightly damp cloth and mild washing-up liquid.

●Storageduring non-use

Store the product in a dry, dust-free location, protected from direct sunlight.
☐ If the product is not used for a long time, the built-in battery should be fully charged to prolong its operating life. Regularly charge the built-in battery if you do not use the product for a long period of time. This is necessary to preserve the battery.

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a

crossed out dustbin on wheels indicates this

device is subject to Directive

2012/19/EU. This directive states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose properly.

The built-in rechargeable battery cannot be removed for disposal. Return the product completely to a collection site for used electronics.

• Note to Declaration of conformity

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product: Power Bank, Model No.: HG02990, to which this declaration refers, this device complies with the basic standards and other relevant requirements of EMC directive 2014/30/EU and the RoHs Directive 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are

not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
