USER MANUAL MKE06 MPM

We wish you satisfaction from us- ing the product and invite you to check a wide range of other appli- ances

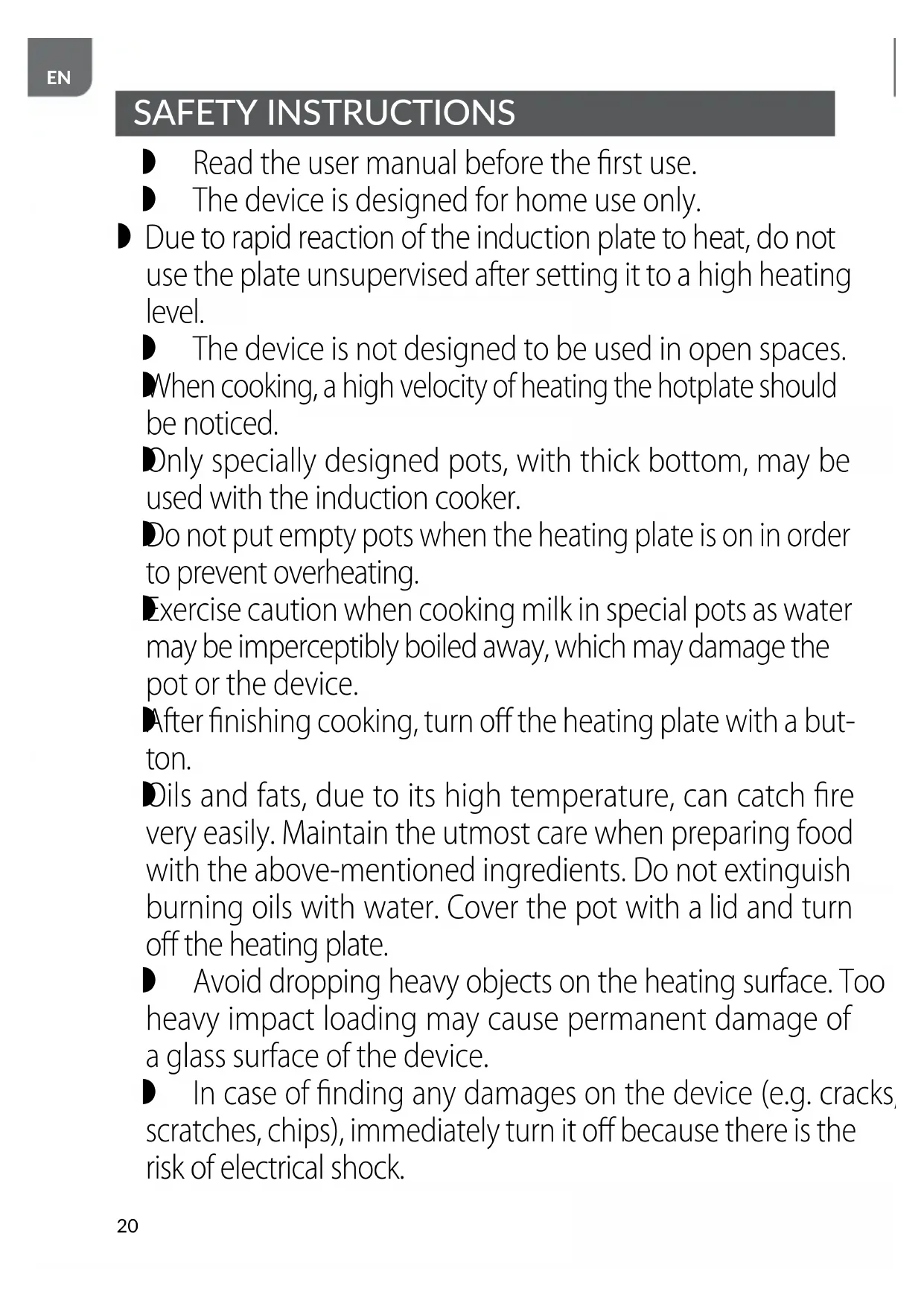

SAFETY INSTRUCTIONS Read the user manual before the first use. The device is designed for home use only. Due to rapid reaction of the induction plate to heat, do not use the plate unsupervised after setting it to ahigh heating level. The device is not designed to be used in open spaces.

When cooking, ahigh velocity of heating the hotplate should be noticed.

Only specially designed pots, with thick bottom, may be used with the induction cooker.

Do not put empty pots when the heating plate is on in order to prevent overheating.

Exercise caution when cooking milk in special pots as water may be imperceptibly boiled away, which may damage the pot or the device.

After finishing cooking, turn off the heating plate with abut- ton.

Oils and fats, due to its high temperature, can catch fire very easily. Maintain the utmost care when preparing food with the above-mentioned ingredients. Do not extinguish burning oils with water. Cover the pot with alid and turn off the heating plate. Avoid dropping heavy objects on the heating surface. Too heavy impact loading may cause permanent damage of aglass surface of the device. In case of finding any damages on the device (e.g. cracks, scratches, chips), immediately turn it off because there is the risk of electrical shock.21

If, for some reason, it is impossible to turn off the heating plate (e.g. the control module is broken), disconnect the plug or turn off the fuses and inform the service about the failure.

The power cord cannot have contact with the heating zones. The cooker is not designed for storing any objects. Before using put the cooker on ahard, flat and dry surface.

The heating plate is equipped in asafety system which disconnects the power of the heating zone when moving or removing the pot from the heating zone.

Do not put any flammable objects under the heating plate, as they may cause fire.

Note any carried metal objects (e.g. keys, decorations). They may be heated up and cause burns. This does not apply only to objects with magnetic characteristics (e.g. silver, gold).

Do not heat up closed cans or other containers as the in- crease of thermal energy inside the containers may lead to sudden burst. Keep the sensor buttons clean. Do not put any objects on them.

If the content of the pot is boiled over on the sensor buttons, disconnect the plate and clean it. The heating surface is hot. Take particular caution if there are children near the device. After long operation, the heating surface of the plate may still be hot. Do not touch the surface as there is adanger of burn.

Regular checking whether there are any objects near the air outlets, which may impede the airflow, is recommended.

The power cord should be regularly checked whether there are any damages. Do not use the device if the power cord is22

damaged. In such acase necessarily contact your authorized service to repair the damage. Do not use the device in places where the air temperature is high, e.g. near gas cookers. Clean the heating plate regularly.

The device is not designed to work with external time switches or a separate remote control system. This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction con- cerning use of the appliance in a safe way and if they under- stand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Store the appliance and its cord out of reach of children under 8 years of age.

Pay attention to children to prevent playing with the device. Do not pull the plug by holding the power cord. Do not connect the power plug with wet hands.

Note! Turn off the device if the surface is cracked to avoid electric shock.

Note! Do not put metal objects on the cooker, such as: knives, forks, spoons and lids, as they may be- come hot. WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard! Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).23

3. Control panel lock

5. Seng power and heang

8. Control panel indicang the readiness

1. Put the cooker on a hard, at and dry surface.

2. Insert the plug of the power cord

3. Put an appropriate cooking pot on the heang plate of the cooker

and set the following parameters: HEATING POWER: Select the heang power buon

of the device and then set an appropriate value using the value adjustment buons

in the scope from 200 to 1800W. The higher the power, the faster the device heats up, which appreciably reduces the me of preparaon. You can adjust the power sengs at any me during cooking. Aer selecng the heang pow- er funcon, it is not possible to set the temperature funcon at the same me. TEMPERATURE: Select the heang power buon

of the device and then set an appropriate value using the value adjustment buons

in the scope from 60 to 240

C. You can adjust the power sengs at any me during cooking. Aer selecng the heang power funcon, it is not possible to set the temperature funcon at the same me. TIMER: Select the mer buon

and set the appropriate me using the value adjustment buons

in the scope from 0 to 180 min. Aer the me set, the cooker automacally turns o. FUNCTION PANEL LOCK: Aer seng the temperature and me of the cooker, the lock buon of the funcon pan- el may be used

. The lock prevents accidental changes in sengs of previously selected parameters. WARNING! When the heang process is over, take the pot/pan away from the heang zones but do not unplug the hob from the mains while the fans cooling the inside of the appliance connue to work. You can safely unplug the hob only aer the cooling fans stop.

AUTOMATIC TURN OFF AFTER POTS REMOVAL

Automac turning o works when liing or removing pots/pans from the heang plate, Aer pung the pot/pan again on the heang plate within 40 seconds, the cooker starts operang with the same previously set values. When the indicated me is longer, the cooker automacally turns o.24

CLEANING AND MAINTENANCE

Clean the device aer each use. Disconnect the device and wait unl it gets cooler. Do not use petrol, thinners, brushes and paste to clean the device. Wipe the device with damp cloth with some dishwash. Using the vacuum cleaner remove the dirt from the air ducts and the fan grid. Clean the ceramic surface and the control panel with so cloth and delicate means for cleaning ceramic surfaces. Take care and prevent running water on the device (water may cause the damage of the device). Never immerse the device and the power cord in water or other liquid. TECHNICAL SPECIFICATION Technical parameters are indicated on the product nameplate. Length of power cord: 1,45 m NOTE! MPM agd S.A. company reserves the right to technical changes. Proper disposal of the product (waste electrical and electronic equipment) Marking on the product indicates that aer the service-life of the product expires, it should not be dis- posed with other type of municipal waste. Used equipment may have a negave impact on the environ- ment and health of people due to potenally containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health. Used equipment should be handed-over to a point for collecon of electric waste. In order to obtain detailed informaon regarding the electric waste collecon points, the user should contact the municipal point of electric waste collecon or used equipment processing department.25
