WIFICDP20GY - Doorbells NEDIS - Free user manual and instructions

Product type	Rechargeable video doorbell
Brand	Nedis
Model	WIFICDP20GY
Dimensions (L × W × H)	141 × 50 × 32 mm
Weight	Approx. 200 g (with batteries)
Video resolution	1920 × 1080 pixels (Full HD)
Video compression	H.264
Viewing angle	180°
Night vision	Up to 5 meters (6 infrared LEDs)
Motion sensor	PIR sensor, range 3 meters
Internal memory	microSD card up to 128 GB (not included)
Protection rating	IP54 (splash-proof)
Battery type	2 × 18650 Li-ion (included)
Battery capacity	5200 mAh
Battery life	Up to 4 months standby or 400 recordings
Power supply	5 V DC, 2 A (micro USB port)
Standby consumption	2 mA
Wi-Fi connectivity	2.4 GHz (2412 - 2472 MHz)
Additional connectivity	433 MHz (compatible chime)
Max. radio power	18 dBm
Compatible indoor chime	Nedis WIFICDPC10xx
Max. range with chime	20 - 30 meters
Operating temperature	-20 °C to 50 °C
Maintenance and cleaning	Soft dry cloth; no harsh chemicals
Safety	Do not disassemble battery; avoid short circuits; follow safety instructions
Spare parts and repairability	Replaceable batteries; other parts not specified

Frequently Asked Questions - WIFICDP20GY NEDIS

How to install the Nedis WIFICDP20GY doorbell?

Attach the wall mount with the provided screws, insert the 18650 batteries, then close the cover. For more details, refer to the quick start guide.

How to connect the doorbell to the Nedis SmartLife app?

Download the Nedis SmartLife app, create an account, tap '+' and select the device type. Make sure the LED indicator flashes blue, then follow the instructions for the QR code.

What to do if the LED indicator does not flash blue?

Reset the doorbell by pressing and holding the reset button for 5 seconds with a pin. Then the indicator should flash.

What is the battery life?

With two 18650 batteries of 5200 mAh, the doorbell can last up to 4 months on standby or 400 recordings, depending on usage.

Can I use a microSD card with this doorbell?

Yes, the doorbell has a microSD card slot up to 128 GB (not included) to store recordings locally.

Is the doorbell water-resistant?

Yes, it has an IP54 rating, which protects against splashes and dust, allowing outdoor use.

How does night vision work?

The doorbell is equipped with 6 infrared LEDs that provide night vision up to 5 meters, even in total darkness.

Which indoor chime is compatible?

The Nedis WIFICDPC10xx chime is compatible and can be connected wirelessly up to 20-30 meters away.

How to clean the doorbell?

Use a soft dry cloth to clean the exterior. Avoid harsh chemical cleaners like ammonia, acid, or acetone.

What to do if the doorbell does not turn on?

Check that the batteries are inserted correctly with the right polarity. If necessary, recharge the batteries via the micro USB port (5V/2A) or replace them.

USER MANUAL WIFICDP20GY NEDIS

Rechargeable Video Doorbell

100% wireless solution

WIFICDP20WT / WIFICDP20GY

EN Quick start guide 4

DE Kurzanleitung 8

Rechargeable Video Doorbell

WIFICDP20WT

WIFICDP20GY

For more information see the extended manual online:

ned.is/wificdp20wtned.is/wificdp20gy

Intended use

The Nedis WIFICDP20XX is a Wi-Fi based Video Doorbell that streams recorded video and audio directly to your smartphone or tablet.

This product is intended for indoor and outdoor use.

Consult the local laws and regulations for security cameras before using and installing.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Rechargeable Video Doorbell
Article number WIFICDP20WT WIFICDP20GY
Dimensions (I x w x h) 141 x 50 x 32 mm
Video resolution 1280 px - 720 px 1920 px - 1080 px
Video Compression H.264
Viewing angle 100° 180°
Image sensor 1/4" CMOS sensor 1/2.7" CMOS sensor
Night vision range 5.0 m
Memory MicroSD card: Up to 128 GB (not included)
IP rating IP54 (splash proof)
Working temperature -20 - 50 °C
Battery type	1 x 18650 (Li-ion)	2 x 18650 (Li-ion)
Battery capacity	2600 mAh	5200 mAh

Battery lifetime Up to 2 months in standby or 200 recordings	Up to 4 months in standby or 400 recordings
Power input 5 VDC; 2 A (Micro USB)
Standby power 2 mA
Wi-Fi frequency range 2412 - 2472 MHz
Wireless connections Wi-Fi & 433 MHz
Max. radio transmit power	18 dBm
Compatible indoor chime	WIFICDPC10xx
Max. distance between doorbell and indoor chime	20 - 30 m
Infrared LEDs 6pcs Infrared LEDs with 5 meters visibility
PIR sensor 3 m

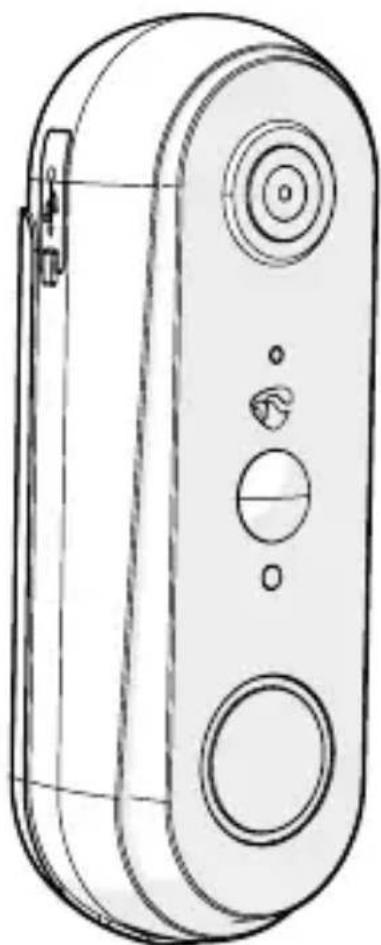

Main parts (image A)

1 Battery cover
2 Mounting holes
3 Mounting bracket
4 Hexagonal bolt
Micro USB port
Reset button

7 Charging indicator LED
8 Camera lens
9 Microphone
10 PIR sensor
11 Call button
Status indicator LED

13 Speaker
14 MicroSD card slot
15 Battery compartment
Micro USB cable
17 Batteries

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.

• Disconnect the product from the power source and other equipment if problems occur.

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

• Do not drop the product and avoid bumping.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Do not use any cell or battery that is not designed for use with the product.
• Do not dismantle, open or shred secondary cells or batteries.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• Seek medical advice immediately if a cell or a battery has been swallowed.
• Do not short-circuit a cell or a battery.
• Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
• Do not subject cells or batteries to mechanical shock.
• Use only the cell or battery in the application for which it was intended.
• Do not mix cells of different manufacture, capacity, size or type within a product.
• Wipe the cell or battery terminals with a clean dry cloth if they become dirty.
• Battery usage by children should be supervised.
• Observe the plus (+) and minus (-) marks on the cell, battery and equipment and ensure correct use.
• Do not leave a battery on prolonged charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.
• Disconnect the power supply before making or breaking the connections to the battery.
• During charging, the battery must be placed in a well-ventilated area.
• Dispose of the cell or battery properly.
• When possible, remove the battery from the product when not in use.
• Clean the product regularly with a soft, clean, dry cloth. Avoid abrasives that can damage the surface.
• Do not use aggressive chemical cleaning agents such as ammonia, acid or acetone when cleaning the product.
• Consult the local laws and regulations for this product before installing and using.

Preparing the product

1. Unscrew the hexagonal bolt A4 from the bottom of the bracket
2. Unscrew the battery cover A to open the product.
3. Optional: insert a microSD card (not included) into the microSD card slot A14, to locally store recordings.
4. Insert the required batteries into the battery compartment A 15.

Observe the plus (+) and minus (-) marks on the cell, battery and equipment and ensure correct use.

Installing the Nedis SmartLife app

1. Download the Nedis Smartlife app for Android or iOS on your phone via Google Play or the Apple App Store.
2. Open the Nedis Smartlife app on your phone.
3. Create an account with your e-mail address and tap Continue.

You will receive a verification code on your e-mail address.

1. Enter the received verification code.
2. Create a password and tap Done.
3. Tap Add Home to create a SmartLife Home.
4. Set your location, choose the rooms you want to connect with and tap Done.

Connecting the app

1. Tap + in the top right corner in the Nedis SmartLife app.
2. Select the product type you want to add from the list.
3. Confirm the status indicator LED A 12 is blinking.

If A12 doesn't blink blue, reset the product by holding the reset button A6 with a pin for 5 seconds.

1. Enter the Wi-Fi network data and tap Confirm.
2. Tap Continue and a QR-code will appear.
3. Hold your phone with a 15 - 20cm distance in front of the camera.

If the camera has detected the QR-code, you will hear a sound.

1. Tap to confirm you heard the sound.
2. Give the product a name and tap Done. A12 turns blue. The product is now ready for use.

Making video recordings and screenshots

• You can make video recordings and screenshots on your phone, by tapping Record and Screenshot.

Playing back motion detected videos

Motion detected videos are automatically saved on the microSD card, if inserted.

1. Tap Playback to open the stored videos.
2. Select the day of the recording.
3. Zoom and drag the timeline to select the recording.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product WIFICDP20WT | WIFICDP20GY from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/WIFICDP20WT#support

nedis.com/WIFICDP20GY#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC's-Hertogenbosch, the Netherlands
