Product type	Portable battery with heating pad
Brand	Beurer
Model	HK 47
Charger power supply	5 V ⎓ 1 A (USB)
Power bank charging time	Approximately 6 hours (empty)
Charge indicator	Flashing green LED (charging), solid (full)
Main functions	Smartphone charging, 3-level heating pad
Heat levels	3 (green: low, yellow: medium, red: high)
Automatic shut-off	After approximately 110 minutes
Safety system	Automatic safety shut-off in case of overheating
Operating temperature	0 °C to +45 °C
Storage temperature	-10 °C to +45 °C
Cleaning the pad	Machine washable at 30 °C (wool cycle), max 10 washes
Cleaning the power bank	Dry, lint-free cloth
Box contents	Power bank, heating pad, pouch, charging cable, instruction manual
Available spare parts	Power bank (ref. 163.296), charging cable (ref. 163.297)
Intended use	Heating of the human body, charging of mobile devices
Smartphone compatibility	Via original USB cable of the smartphone
Power bank capacity	Not specified in the manual

Frequently Asked Questions - HK 47 BEURER

How long does it take to fully charge the power bank?

If the power bank is completely empty, full charging takes approximately 6 hours with a 5 V/1 A USB charger.

How do I use the heating pad?

Place the power bank in the pocket of the heating pad, connect the cable, then press the On/Off button to select the heat level (green: low, yellow: medium, red: high).

Can I charge my smartphone while using the heating pad?

Yes, the power bank can charge a smartphone via its USB port, but it must not be charged and discharged at the same time. Use your smartphone's USB cable.

The heating pad turns off by itself, is that normal?

Yes, the heating pad has an automatic shut-off after approximately 110 minutes. It may also be that the power bank is discharged; then recharge it.

How do I clean the heating pad?

First unplug the power bank. Machine wash the pad at 30 °C (wool cycle) in a pillowcase. Do not tumble dry, do not iron. Let it dry flat. Maximum 10 washes during its lifespan.

How do I clean the power bank?

Use a dry, lint-free cloth. Never get it in contact with water or liquids.

What are the important safety precautions?

Do not use the heating pad folded or creased, do not insert needles, do not use it wet. Do not leave children unattended. The power bank must not be exposed to extreme heat or fire.

How do I store the device?

Unplug the power bank, let the pad cool down, roll it gently and place it with the power bank in the provided storage pouch. Store in a dry, cool place away from sunlight.

What if the heating pad does not turn on?

Check if the power bank is charged (the power bank LED should be solid). If the power bank is charged and the pad does not turn on, the safety system may have triggered: let it cool to room temperature then try again. If the problem persists, contact customer service.

Can I use a different USB power supply than the one provided?

Yes, but it must be a 5 V/1 A USB charger compliant with IEC/EN 60335. Never charge the power bank via a computer's USB port.

USER MANUAL HK 47 BEURER

Instructions for use 10-17

Coussin chauffant

Mode d'emploi 18-25

E Almohadilla electrica

1. Included in delivery 11
   1.1 Device description 11
2. Important information Retain for future reference 11
3. Intended use 13
4. Operation 13
   4.1 Safety. 13
   4.2 Charging the powerbank 14
   4.3 Charging a smartphone via powerbank.....14
   4.4 Operating the heating pad 14

4.5 Switching on 14
4.6 Setting the temperature 15
4.7 Switching off 15
4.8 Automatic switch-off time.. 15

1. Cleaning and maintenance. 15
   6.Storage 16
   7.Disposal. 16
   8.What if there are problems? 17
2. Technical data 17
3. Replacement parts 17

Signs and symbols

	Read instructions! Extra deli cate cycle	at 30°C
		Do not bleach
Do not insert pins! Do not turn off dry
		Do not iron
Do not use when folded or bunched up!		Do not dry clean
Must not be used by very young children (0-3 years old)!
WARNING; warning instruction indicating a risk of injury or damage to health
IMPORTANT; safety note indicating possible damage to the unit/accessory
NOTE; note on important information

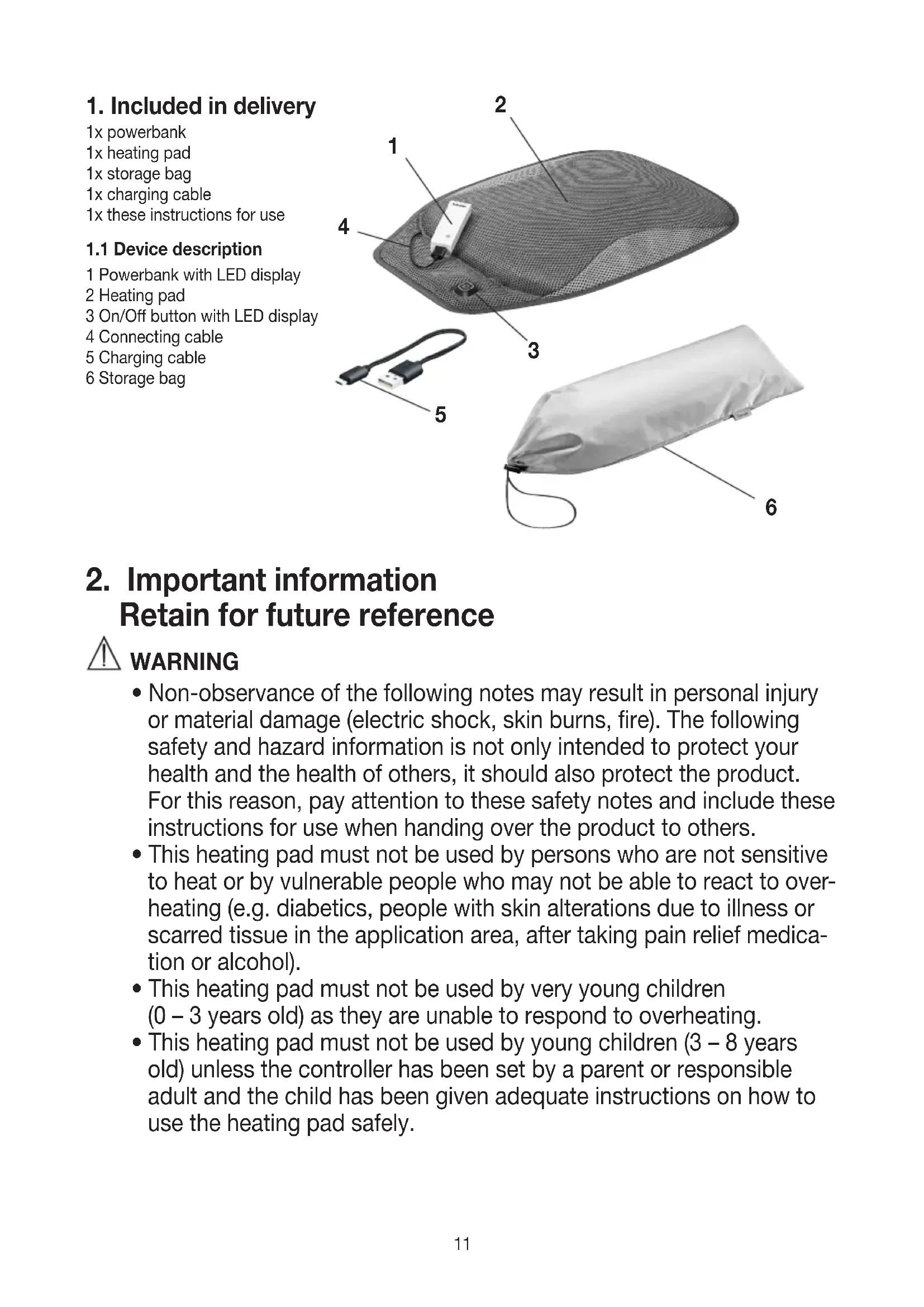

1. Included in delivery

1x powerbank
1x heating pad
1x storage bag
1x charging cable
1x these instructions for use

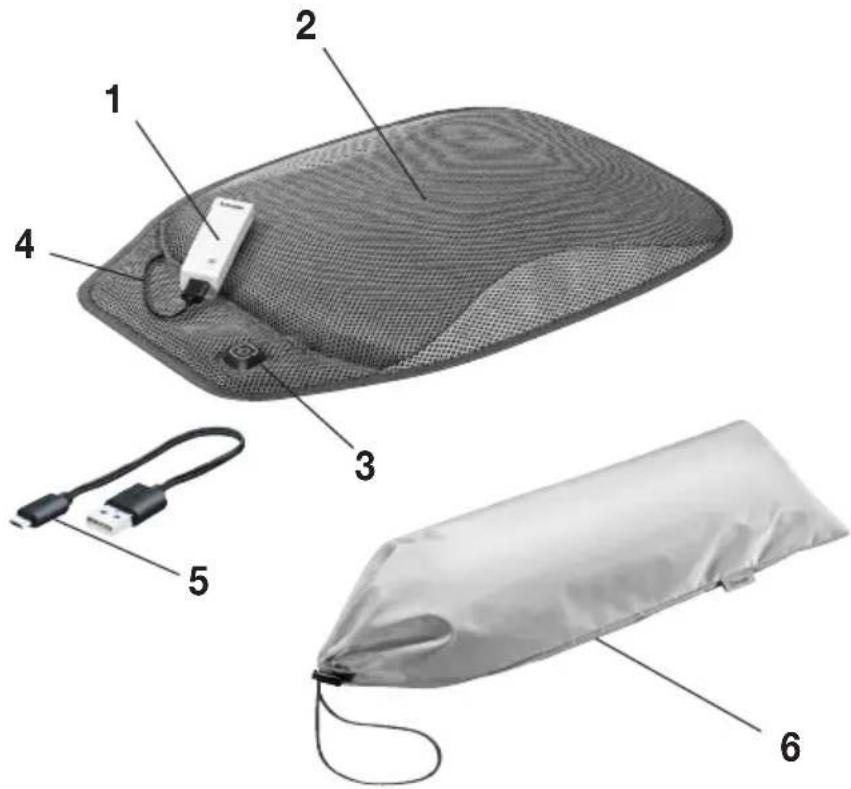

1.1 Device description

1 Powerbank with LED display
2 Heating pad
3 On/Off button with LED display
4 Connecting cable
5 Charging cable
6 Storage bag

2. Important information Retain for future reference

WARNING

• Non-observation of the following notes may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. For this reason, pay attention to these safety notes and include these instructions for use when handing over the product to others.
• This heating pad must not be used by persons who are not sensitive to heat or by vulnerable people who may not be able to react to overheating (e.g. diabetics, people with skin alterations due to illness or scarred tissue in the application area, after taking pain relief medication or alcohol).
• This heating pad must not be used by very young children (0 - 3 years old) as they are unable to respond to overheating.

• This heating pad must not be used by young children (3 - 8 years old) unless the controller has been set by a parent or responsible adult and the child has been given adequate instructions on how to use the heating pad safely.

• This heating pad may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised and have been instructed on how to use the heating pad safely, and are fully aware of the consequent risks of use.
  Children must not play with the heating pad or the powerbank.

• Cleaning and maintenance carried out by the user must not be performed by children unless supervised.
• This heating pad is not designed for use in hospitals.
• Do not insert needles.
• Do not use when folded or bunched up.
• Do not use if wet.
• This heating pad may only be used in conjunction with the batterypack/powerbank specified on the label.
• The electrical and magnetic fields emitted by this heating pad may interfere with the function of a pacemaker. However, they are still well below the limits: electrical field strength: max. 5000V / m , magnetic field strength: max. 80A / m , magnetic flux density: max. 0.1 millitesla. Please consult your doctor and the manufacturer of your pacemaker before using this heating pad.
• Do not pull, twist or make sharp bends in the cables.
• Please check the heating pad and powerbank frequently for signs of wear and tear or damage. If any such signs are evident or if the heating pad or powerbank have been used incorrectly, they must be checked by the manufacturer before being switched on again.
• If the connection cable of this heating pad is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person to avoid any risk.
• When this heating pad is switched on:
• Do not place any objects on it (e.g. suitcase or washing basket)
• Heat sources, such as hot water bottles, heating pads or similar must not be placed on the pad.
• Do not expose the powerbank to direct sunlight or high temperatures. Otherwise the powerbank could overheat and be damaged irreparably.

• Never expose the powerbank to extreme heat. This applies in particular to storage in a car. Extreme temperatures can occur inside the vehicle and in the glove compartment when the vehicle is parked for a long period of time. Therefore, remove the powerbank from the vehicle.

• The powerbank must never be charged and run down at the same time.

• Never charge the powerbank using the USB port on your computer, as this could become overloaded.
• Do not cover the powerbank with covers, cushions, or similar during charging in order to prevent overheating.
• When using a USB mains part, the socket used must always be easily accessible, so that the USB mains part can be disconnected from the socket quickly in a hazardous situation. For more information, please see the instructions for use of the USB part.
• Risk of explosion! Incorrect handling of batteries can lead to fire, explosions, leakage of hazardous substances or other hazardous situations! Do not throw the powerbank into fire, as the integrated battery could explode.
• Do not disassemble, split or crush the rechargeable batteries.
• Only use chargers specified in the instructions for use.
• Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications in these instructions for use regarding correct charging must be observed at all times.
• Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).
• If you should have any questions about using our devices, please contact our Customer Services department.

3. Intended use

IMPORTANT

This heating pad is only designed to warm up the human body.

This heating pad is suitable for personal use only, not for medical or commercial purposes.

4. Operation

4.1 Safety

IMPORTANT

The heating pad is fitted with a SAFETY SWITCH-OFF. The safety system prevents overheating of the heating pad through automatic switch-off in the event of an error. Once the SAFETY SWITCH-OFF has taken place, the On/Off button on the heating pad (3) and the blue LED display on the powerbank (1) that is shown when switched on are no longer lit up. After cooling down to room temperature, the heating pad can be switched on again.

4.2 Charging the powerbank

IMPORTANT

Before you begin charging the powerbank (1), please note the information in section 2 "Important information".

The powerbank must be charged fully prior to initial use or if the device has not been used for a long period. If the powerbank is completely run down, the charging process will take approx. 6 hours until it is fully charged again. To charge the powerbank fully, proceed as follows:

• Insert the charging cable (5) provided into the connection socket of the powerbank.
• Connect the other end of the charging cable to a USB charger via the USB port (USB charger with 5V / 1A SELV in accordance with the requirements of IEC/EN 60335, not included). Whilst charging, the LED display on the powerbank flashes green.
• As soon as the LED display on the powerbank lights up permanently green, the powerbank is fully charged (after approx. 6 hours from empty). Then disconnect the powerbank from the charger.
• The green LED display on the powerbank goes out once the powerbank has been disconnected from the USB charger.
• The powerbank should be charged at least once a year to retain its capacity.
• Do not cover the powerbank with covers, cushions or similar during the charging process in order to prevent overheating.
• Only charge the powerbank in a dry environment and at normal room temperature.

4.3 Charging a smartphone via powerbank

The powerbank can be used for more than just operating the heating pad - it can also be used to charge the battery of a smartphone. To charge your smartphone using the powerbank, proceed as follows:

• Connect the powerbank to your smartphone using the original USB charging cable from your smartphone manufacturer.

4.4 Operating the heating pad

• Place the charged powerbank (1) into the integrated pocket on the heating pad (2).
• Then insert the connector plug for the connection cable (4) of the heating pad into the connection socket on the powerbank. The LED display of the On/Off button (3) on the heating pad briefly lights up white twice. The heating pad is now ready for use.

IMPORTANT

Ensure that the heating pad will not bunch up or become folded during use.

4.5 Switching on

• Press the On/Off button (3) to switch on the heating pad (2). The LED display of the On/Off button lights up green (minimum heat). The LED display on the powerbank (1) lights up blue.
• If you press the On/Off button again, the temperature setting will increase (medium heat). The LED display of the On/Off button lights up yellow.
• If you press the On/Off button again, the heating pad switches to the maximum temperature setting (maximum heat). The LED display of the On/Off button lights up red.
• If you press the On/Off button again, the heating pad switches off. The LED display of the On/Off button and the LED indicator on the powerbank go out.

WARNING

If the heating pad is being used over several hours, we recommend that you set the lowest temperature setting on the controller to avoid overheating the heated body part, which may lead to burns to the skin.

NOTE

When the powerbank (1) has been almost completely run down, the heating pad is switched off automatically to protect the powerbank. The powerbank must then be charged.

4.6 Setting the temperature

OFF: On/Off button (3) not lit

Setting 1: Minimum heat (LED display of the On/Off button lights up green)
Setting 2: Medium heat (LED display of the On/Off button lights up yellow)
Setting 3: Maximum heat (LED display of the On/Off button lights up red)

4.7 Switching off

Press the On/Off button (3) to switch off the heating pad (2). The switching sequence is 1-2-3-OFF ...

The LED display of the On/Off button and the LED display on the powerbank (1) go out when the heating pad is switched off.

NOTE

Please note that the powerbank (1) must be protected against extreme cold (placed under clothing where appropriate) to maintain its full performance.

4.8 Automatic switch-off time

This heating pad (2) is equipped with an automatic switch-off function. This turns off the heat supply approx. 110 minutes after the initial use. The On/Off button on the heating pad (3) and the blue LED display on the powerbank go out.

You can switch the heating pad on again immediately by pressing the On/Off button on the heating pad. If it is no longer possible to switch the heating pad on, then the powerbank has been run down.

5. Cleaning and maintenance

IMPORTANT

• Before cleaning, always first disconnect the powerbank (1) from the heating pad (2). Remove the powerbank from the heating pad's pocket. otherwise there is a risk of damage.

IMPORTANT

• The powerbank (1) must never come into contact with water or other liquids as this may cause damage.

To clean the powerbank (1), use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.

IMPORTANT

• Please note that the heating pad (2) may not be chemically cleaned, wrung out, tumble dried, put through a mangle or ironed. Otherwise the heating pad may be damaged.

This heating pad is machine-washable. For this purpose, close the hook-and-loop fastener of the heating pad and place it in a pillow case. Set the washing machine to a particularly gentle wash cycle at 30^ (wool cycle). For ecological reasons, always wash the heating pad (2) together with other textiles.

Use a delicate laundry detergent and measure it out according to the manufacturer's instructions.

IMPORTANT

• Please note that washing the heating pad (2) too frequently has a negative effect on the product.

The heating pad should therefore be washed in a washing machine a maximum of 10 times during its life. Let the heating pad dry flat on a clothes horse.

IMPORTANT

• Do not use pegs or similar items to attach the heating pad (2) to the clothes horse. Otherwise the heating pad may be damaged.
• Only reconnect the heating pad to the powerbank (1) once the heating pad and the connector plug of the connection cable (4) are completely dry. Otherwise the powerbank and the heating pad could be damaged.

6. Storage

A storage bag is provided for taking the heating pad with you on journeys. Remove the powerbank (1). Carefully roll up the heating pad (2) and then also place the powerbank in the storage bag.

If you do not plan to use the heating pad for a long period of time, we recommend that you store it in the storage bag. Always remove the powerbank before storing the rolled up heating pad in the storage bag. Never fold the heating pad.

IMPORTANT

Please allow the heating pad (2) to cool down before storing, otherwise the heating pad may be damaged.

To avoid sharp folds in the heating pad, do not place any objects on top of it while it is being stored.

IMPORTANT

Place the powerbank (1) in a dry, dust-free and cool place, away from direct sunlight. The powerbank should be charged once a year to retain its capacity.

7. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispos of the device at a suitable local collection or recycling point. Dispos of the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

The empty, completely flat rechargeable batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers. You are legally required to dispose of the rechargeable batteries.

8. What if there are problems?

Problem Cause Solution
The LED display of the On/Off button (3) on the heating pad (2) and the blue LED display on the powerbank (1) do not light up when: - the powerbank is connected to the heating pad and - the On/Off button has been pressed.	The powerbank has been fully run down.	Charge the powerbank.
	There was a SAFETY SWITCH-OFF due to an error in the heating pad.	Allow the heating pad to cool down to room temperature and switch on again.
The LED display of the On/Off button (3) on the heating pad (2) and the blue LED display (1) on the powerbank do not light up when: -thefully charged powerbank is connected to the heating pad and - the On/Off button has been pressed.	The heating pad or the powerbank is faulty.	Send the heating pad and the powerbank for servicing.

9. Technical data

Powerbank:

Operating temperature: 0 to +45^

Storage temperature: -10^ to +45^

Recommended storage temperature: -10^ to +25^

For technical data, see the type plate label on the heating pad and on the powerbank.

10. Replacement parts

You can obtain the following replacement parts directly from Customer Services:

Powerbank (item no.163.296)
- Charging cable (item no. 163.297)

USB® is a registered trademark of USB Implementers Forum Inc.
