Product type	Evaporative air cooler
Brand	TriStar
Model	AT5446
Power supply	220-240 V ~ 50 Hz
Number of speeds	3 (low, medium, high)
Timer	1 to 7 hours
Oscillation	Yes
Cooling function	Evaporative with water tank and cooling blocks
Water tank capacity	Approximately 4 liters (estimate)
Air filter	Washable, removable
Evaporation pad	Washable, removable
Remote control	Yes, with CR2025 battery (3V)
Insulation class	Class II (double insulation)
Swivel wheels	Yes
Water level indicator	Yes
Intended use	Indoor only
Maintenance	Regular cleaning of filter and evaporation pad, drain and clean tank every 3 days
Safety	Unplug before cleaning, do not immerse, do not use by children <8 years without supervision
Approximate weight	4.5 kg (estimate)
Approximate dimensions (WxDxH)	30 x 30 x 70 cm (estimate)
Noise level	Approximately 55 dB (estimate)
Material	Plastic

Frequently Asked Questions - AT5446 TRISTAR

How to fill the water tank?

Turn the small button to release the tank, remove it, add water up to the maximum level (do not exceed), then put it back.
Important: the level must be at least the minimum to avoid damaging the pump.

How to use the cooling blocks?

Place the cooling blocks in the freezer until completely frozen, then put them in the water tank before activating the cooling function. This further lowers the temperature of the blown air.

How to clean the air filter and evaporation pad?

Unplug the appliance, remove the filter and pad from the back. Wash them with warm water and mild detergent using a soft brush. Attention: do not pierce the pad. Dry them before putting back.

How often should I empty and clean the water tank?

It is recommended to empty the tank and clean it every three days during use. Before refilling, clean inside with tap water or mild detergent, then dry all surfaces to prevent scale and bacteria.

What to do if the appliance does not cool well?

Check that the water tank is filled at least to the minimum level, that the cooling blocks are properly frozen and placed in the water, and that the air filter is clean. Make sure the cooling function is activated via the dedicated button.

How to set the timer?

When the appliance is on, press the timer button several times to select an operating time from 1 to 7 hours. The appliance will turn off automatically at the end of the selected time.

The remote control does not work, what to do?

Check that the CR2025 button battery is correctly inserted (respect polarity). Replace if necessary. Also ensure there is no obstacle between the remote and the appliance's receiver.

Can I use the appliance outdoors?

No, this appliance is designed for indoor use only. Outdoor installation or installation in a closed cabinet is not recommended.
Note: allow at least 10 cm clearance around the appliance.

What to do if the water tank leaks?

Check that the tank is properly engaged and that the evaporation pad is installed flat. Clean the gasket and the tank. If the leak persists, contact after-sales service.

How to store the appliance at the end of the season?

Empty and thoroughly clean the water tank and evaporation pad. Dry all parts. Store the appliance in a dry place. Important: never leave water in the tank for an extended period.

USER MANUAL AT5446 TRISTAR

White portable air conditioner unit with grid-patterned ventilation slots and wheels (no visible text or symbols)

EN | Instruction manual

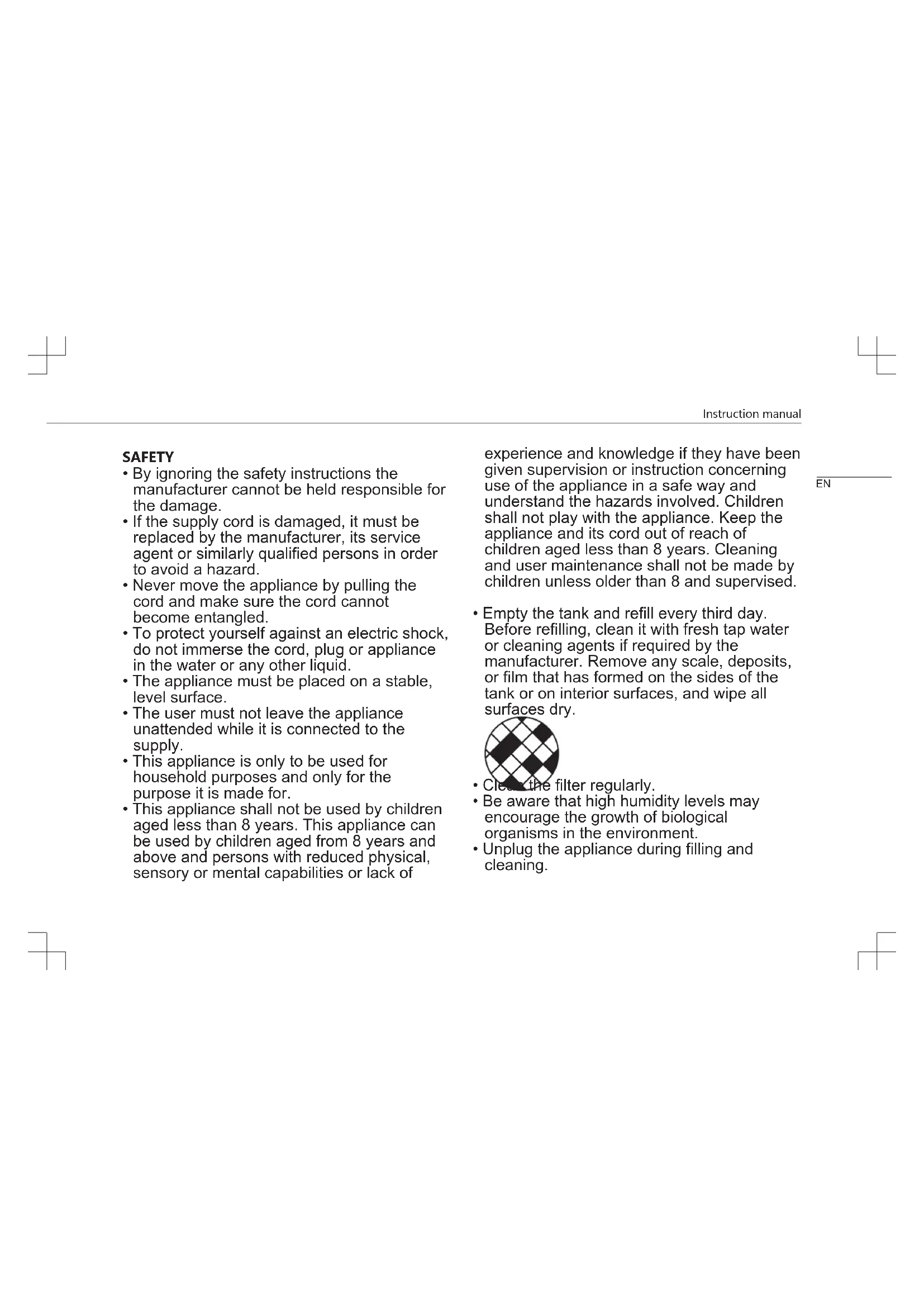

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• The appliance must be placed on a stable, level surface.
• The user must not leave the appliance unattended while it is connected to the supply.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

- Empty the tank and refill every third day. Before refilling, clean it with fresh tap water or cleaning agents if required by the manufacturer. Remove any scale, deposits, or film that has formed on the sides of the tank or on interior surfaces, and wipe all surfaces dry.

• Clear the filter regularly.
• Be aware that high humidity levels may encourage the growth of biological organisms in the environment.
• Unplug the appliance during filling and cleaning.

Instruction manual

• Never leave water in the reservoir when the appliance is not in use.
• Empty and clean the air cooler before storage. Clean the air cooler before next use.
• WARNING: Microorganisms can grow in the water reservoir and be blown in the air causing serious health risks when the water is not renewed and the tank is not cleaned regularly and properly.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local Authority or local store for recycling advice.

This product complies with conformity requirements of the applicable European regulations or directives.

The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of

Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.

The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.

In a double-insulated appliance, two insulation systems are provided instead of an earth wire. No earthing means is provided on a double-insulated appliance, nor should a means for earthing be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should only be done by qualified service personnel. The replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is labelled with the words 'CLASS II' or 'DOUBLE INSULATED'. It can also be identified with the double insulation symbol.

The product and packaging materials are recyclable, subject to extended manufacturer responsibility. Dispose it separately, following the illustrated packaging symbols, for better waste treatment. The Triman logo is valid in France only.

Cleaning and maintenance

• Always disconnect the power cord from the socket before any cleaning.
- Clean the outside with a damp cloth. Never use harsh and abrasive cleaners, steel wool or a scouring pad as this will damage the device. Do not immerse in water or other liquid.
- Removable air filter and evaporation pad. Remove them from the back of the unit, then wash them in warm water with a mild detergent and a soft brush. Take care not to pierce the pad and filter.
- Please ensure that the unit and all of its parts are cleaned regularly to reduce the risk of limescale and bacteria forming. The evaporation pad must be installed flatly, in order to avoid leaking.
- If the fan will not be used for a long period of time, drain the condensate water and store it in a dry place.
- This electrical appliance was manufactured in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

PARTS DESCRIPTION

1. Control panel
2. Air outlet
3. Water level indicator
4. Caster wheel
5. Remote control
6. Ice boxes

Remote control

• The remote control use one button cells battery, model No. CR2025 (3V). We recommend the use of Lithium type battery for longer use.
• Ensure the battery is inserted in the correct direction.
• Press the corresponding buttons as explained in the use part to operate the cooler.

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
- Place the device on a flat stable surface and ensure a minimum of 10cm . free space around the device. This device is not suitable for installation in a cabinet or for outside use.
- Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50Hz)
- Fill the water tank.

Instruction manual

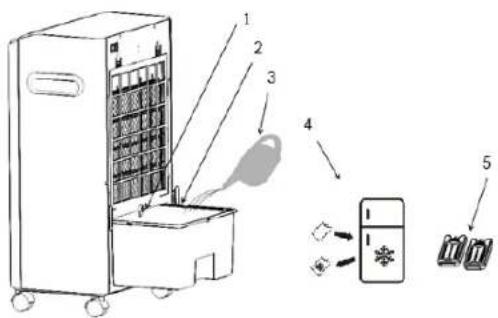

1. Rotate the small knob to release the water tank.
2. Pull out the water tank.
3. Add water into the tank to at least the minimum level but don't exceed the maximum level indicator.
4. Pour water into the ice box and put in the freezer until it is completely frozen.
5. Put the frozen ice boxes into the water tank.
6. The frozen ice boxes can be put in the water tank to increase the cooling effect.

Do not use the cooling / evaporator function if the water tank is empty or if the water level is below the minimum mark. If the water reservoir is less than MIN filled and there is no water in the pipe, it can severely damage the pump.

USE

• Press the on/off button to turn the fan on or off.
• Press the speed button to select the desired airflow speed. There are three levels to choose from (high, medium and low speed).
• Use the swing button to turn on the oscillation mode. The airflow will now move from side to side. Press the button again to turn it off.
• When the unit is in on, press the timer button repeatedly to have the fan automatically stop after 1 to 7 hours.
• Press the cool button to turn on the cooling function. The unit will act as a evaporator now. If combined with the ice boxes, this unit can lower its surrounding temperature even more.
• Use the mode button to select a type of airflow. You can choose between normal airflow, a natural mode and a sleep mode. The natural mode will try to simulate natural wind, while the sleep mode provides a more constant airflow. Experiment with these functions to see what you prefer.
• If you want to use the ice boxes, remember to put it in the freezer beforehand. Use them when they are completely frozen.

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

The European directive for batteries (2006/66/EC) states that it is not permitted to throw batteries away with the household waste. They may contain substances which are harmful to the environment. Empty batteries can be handed over to a local, public collection point or a local recycling centre. To avoid overheating as a result of a short circuit, lithium batteries must be removed from the product and the poles must be protected using insulation tape or some other means against short-circuiting.

You can find all available information and spare parts at www.tristar.eu!
