USER MANUAL AEM14AV GE

• Safety Instructions p. 2
• , 3 Operating Instructions Controls p. 4
• –6 Care and Cleaning Air Filter p. 6
• Outdoor Coils p. 6
• Installation Instructions p. 7
• –14 Troubleshooting Tips p. 15
• Normal Operating Sounds Consumer Support Consumer Support p. 15
• Back CoverWarranty -7721-1 11-15 GE Owner’s Manual and Installation Instructions Write the model and serial numbers here:Model # _________________________Serial # __________________________Find these numbers on a label on the side of the air conditioner. Air Conditioners GEAppliances.com Room Acondicionador de aire Manual del propietario y instrucciones de instalación La sección en español empieza en la página 17AEM14AEM182 IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury. Use this appliance only for its intended purpose as described in this Owner’s Manual. This air conditioner must be properly installed in accordance with the Installation Instructions before it is used. Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle. Replace immediately all electric service cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end. Turn the unit OFF and unplug your air conditioner before cleaning. GE does not support any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself. For your safety…do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. All air conditioners contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do. If the receptacle does not match the plug, the receptacle must be changed out by a qualified electrician. These R410A air conditioning systems require contractors and technicians to use tools, equipment and safety standards approved for use with this refrigerant. DO NOT use equipment certified for R22 refrigerant only. SAFETY PRECAUTIONS This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are defined as: Indicates a hazardous situation which, if not avoided, will result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. SAFETY INFORMATION WARNING DANGER CAUTION WARNING3 Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. DO NOT use an adapter plug with this appliance. The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements. p. 1649

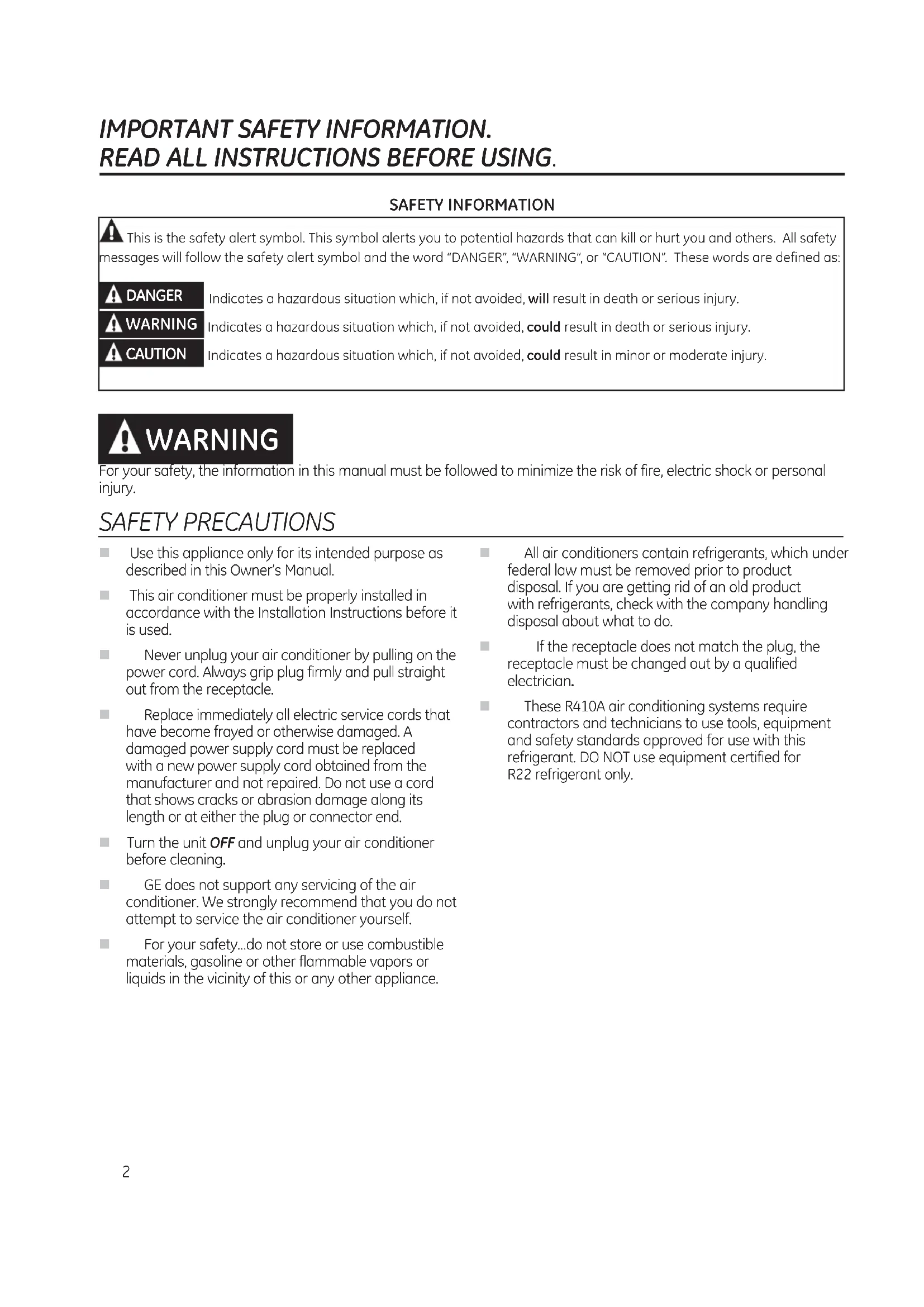

READ AND FOLLOW THIS SAFETY INFORMATION

SAVE THESE INSTRUCTIONS

RISK OF FIRE. Could cause serious injury or death.

• DO NOT use an extension cord with this Window Air Conditioner.

• DO NOT use surge protectors or multi-outlet adaptors with this Window Air Conditioner. RECYCLING INFORMATION For appliance recycling information please visit www. geappliances.com/recycling. WARNING4 About the controls on the air conditioner. Features and appearance will vary. Lights next to the touch pads on the air conditioner control panel indicate the selected settings. Fan Fan Delay 1–24hr Delay timer DecreaseMode selectFan speed DecreaseTemperature set Increase and Decrease Delay timer Increase Auto Fan Fan speed Increase Unit power on/off Air Conditioner Controls Controls Power Pad Turns air conditioner on and off. When turned on, the display will show the room temperature. Display Shows the room temperature or time remaining on the Delay timer. Shows the Set temperature while setting the temperature in Cool or Energy Saver modes. The Set light will turn on while setting. Temp Increase Ÿ /Decrease ź Pads Use to set temperature when in Cool or Energy Saver mode. The Set light will turn on while setting. Delay Timer IncreaseŸ (+) /Decrease ź(–) Pads Each touch of the Increase Ÿ / Decrease ź pads on the unit or the Increase + / Decrease – pads on the remote control will set the delay time when using the Delay 1–24hr timer. The Set light will turn on while setting. Fan Speed Pads Use to set the fan speed to Low, Med, High or Auto on the unit. NOTE: On the remote control, use the fan speed Increase + / Decrease – pads to set the fan speeds to Low, Med or High. Use the Auto pad to turn Auto fan on. Mode Pad Use to set the air conditioner to Cool, Energy Saver or Fan Only mode. Delay Pads/Delay 1-24hr Pad 'HOD\21³When the air conditioner is off, it can be set to automatically come on in 1 to 24 hours at its previous mode and fan settings. 'HOD\2))³When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours. How to set:Press the Delay 1–24hr pad on the unit or the Delay pad on the remote control. Each touch of the Increase Ÿ / Decreaseźpads on the unit or the Increase + / Decrease – pads on the remote control will set the timer in 1-hour intervals. The Set light will turn on while setting.To review the remaining time on the Delay 1–24hr timer, press the Delay 1–24hr pad on the unit or the Delay pad on the remote control. Use the Increase Ÿ / Decrease ź pads on the unit or the Increase + / Decrease – pads on the remote control to set a new time if desired.To cancel the timer, press the Delay 1–24hr pad until the light on the Delay 1–24hr pad goes off. Reset Filter LED will turn on when fan has accumulated 250 hours of run time as a reminder to clean filter. Press Reset Filter to turn off the LED and reset the accumulated run time. Note: The default temperature reading on the display is degree Fahrenheit ( °F). To change the display to degree Celcius (°C), press the Temp Increase Ÿ and Temp Decrease ź buttons together and hold for 3 seconds. Repeat the process to change back to degree Fahrenheit (°F)NOTE: The display always shows the room temperature except when setting the Set temperature or the Delay timer.PowerOn/OffFan Mode Auto ResetFilter High Med Low Cool Fan OnlyEnergy SaverDelay1-24 Hrs Set

Light indicates the delay timer is set.Light indicates the unit is in the temperature or delay time Set mode. Remote Control5 Cool Mode Use the Cool mode at Low, Med, High or Auto Fan Speed for cooling. Use the Temperature Increase Ÿ / Decrease ź pads to set the desired temperature between 64°F and 86°F in 1°F increments. An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer. NOTE: If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin. Cooling Descriptions For Normal Cooling³6HOHFWWKHCool mode and High or Med fan with a middle set temperature. For Maximum Cooling³6HOHFWWKH Cool mode and High fan with a lower set temperature. For Quieter and Nighttime Cooling³6HOHFWWKH Cool mode and Low fan with a middle set temperature. Fan Only Mode Use the Fan Only Mode at Low, Med or High fan speed to provide air circulation and filtering without cooling. Since fan-only settings do not provide cooling, a Set temperature cannot be entered. The room temperature will appear in the display. NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode. Energy Saver Mode In the case of a power outage or interruption, the unit will automatically restart in the settings last used after the power is restored. If the Delay 1–24hr feature was set, it will resume countdown. You may need to set a new time if desired. Power Outage Recovery Feature Set to Auto fan speed for the fan speed to automatically set to the speed needed to provide optimum comfort settings with the set temperature. If the room needs more cooling, the fan speed will automatically increase. If the room needs less cooling, the fan speed will automatically decrease. NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode. Auto Fan Speed Do Not Operate in Freezing Outdoor Conditions This cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used in freezing outdoor conditions. To ensure proper operation, aim the remote control at the signal receiver on the air conditioner. Make sure nothing is between the air conditioner and the remote control that could block the signal. The remote control signal has a range of up to 20 feet. Make sure batteries are fresh and installed correctly as indicated on the remote control. Remote contains a magnet allowing it to attach to metal surfaces. Remote Control This mode optimizes the cooling power of your air conditioner, thereby saving you energy. Once the set point temperature has been reached, the fan will cycle off to save energy. The fan will cycle back on periodically to insure all cooling capacity in the system is used. This mode is the default mode for the unit. Each time the unit is powered off, it will restart in Energy Saver mode ON. This includes Delay timer mode. The first time the unit is turned on, the settings will be 70° and Low fan. You can adjust the fan speed and temperature to your personal comfort. Energy Saver ON³Helps minimize electricity use. It is normal for the fan to cycle off and then back on in this mode. This on/off cycle can repeat multiple times. Because the fan will cycle off, you may notice a variation in room temperature and humidity. Energy Saver OFF³When this mode is not engaged, the fan will run continuously, and in Cool mode the compressor will cycle on and off to maintain room temperature.6 Air Direction Use the lever to adjust the air direction left and right only. About the controls on the air conditioner Additional important information. Turn the air conditioner off and remove the plug from the wall outlet before cleaning. To clean, use water and a mild detergent. Do not use bleach or abrasives. Grille and Case Care and cleaning of the air conditioner. Outdoor Coils The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.

Remove the battery cover by sliding it according to the arrow direction.

Insert new batteries, making sure that the (+) and (–) of battery are installed correctly.

Reattach the cover by sliding it back into position. NOTES: Use 2 “AAA” (1.5 volt) alkaline batteries. Do not use rechargeable batteries. Remove the batteries from the remote control if the system is not going to be used for a long time. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries. How to Insert the Batteries in the Remote Control Air Filter The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary. To remove: Open the inlet grille by pulling downward on the tabs at the top upper corners of the inlet grille until the grille is in a 45º position. Remove the filter. Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher. CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance. Tab TabBEFORE YOU BEGIN Read these instructions completely and carefully.

IMPORTANT ³ Save these instructions for local inspector’s use.

IMPORTANT ³ Observe all governing codes and ordinances. Note to Installer – Be sure to leave these instructions with the Consumer.• Note to Consumer – Keep these instructions for future reference.• Skill level – Installation of this appliance requires basic mechanical skills.• Completion time – Approximately 1 hour• We recommend that two people install this product.• Proper installation is the responsibility of the installer.• Product failure due to improper installation is not covered under the Warranty.• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner. Installation Air Conditioner

Instructions Some models require a 115/120-volt AC, 60-Hz grounded outlet protected with a 15-amp time-delay fuse or circuit breaker.The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet. Some models require 230/208-volt AC, protected with a time-delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires. ELECTRICAL REQUIREMENTS CAUTION: Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.Do not change the plug on the power cord of this air conditioner.Aluminum house wiring may present special SUREOHPV³FRQVXOWDTXDOLILHGHOHFWULFLDQ

Phillips head screwdriverRuler or tape measurePencilLevelScissors or knifeFlat-blade screwdriver Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com8 Installation Instructions Sill angle bracket (2) Right accordion panel Left accordion panel Side rail (2) PARTS INCLUDED (Appearance may vary) Type E bolt with nut (4) Type A screws (10) Type B screws (2) Type C screws (4) Type F bolt with nut (2) V-supports (2) Top mounting rail Air conditioner Top mounting rail seal strip Foam top window gasket Accordion panel seal (2) Window sill and sash seal (2) Foam Insulation (2) Window/accordion frame locking bracket (2)STORM WINDOW REQUIREMENTS A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the sill. WOOD PIECES WIDTH: 2” LENGTH: Long enough to fit inside the window frame. THICKNESS: To determine the thickness, place a piece of wood on the sill to make it 1/2s higher than the top of the storm window frame or the vinyl frame. Attach securely with nails or screws provided by the installer. Installation Instructions WINDOW REQUIREMENTS

• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.

• All supporting parts must be secured to firm wood, masonry or metal.

• The electrical outlet must be within reach of the power cord.

• Follow the dimensions in the table and illustration for your model.

18 1/2”(With accordion panels)

PREPARE THE AIR CONDITIONER

Pull down the front panel and remove the filter. Remove the front panel by lifting up at an angle. Remove the four front screws. Save them for reinstalling the front housing. Grasp the lower corners of the grille while pressing in on the case sides with your finger tips. Pull out to release and lift it up. NOTE: Do not pull the bottom edge toward you more than 3s or you may damage the tabs of the grille. When the front grille is removed the control panel will still be attached by a harness. Turn the grille around so you can see the back side of the grille. Remove the 2 screws to separate the control panel housing from the grille. NOTE: Be sure to save these screws. You will need them later in the installation.

26”- 41” 1/2shigher than storm window frameStorm window frame Wood Sill 1/2shigher than vinyl frame (on some windows)Vinyl frame

(continues) Remove the ground screw from the left side of the case. Keep it in a safe location. NOTE: Be sure to save this screw. You will need it later in the installation. Slide the air conditioner from the case by gripping the base pan handle and pulling forward while bracing the case. Do not pull or lift on the foam discharge area.

FRONT Do not pull or lift in this DUHD³ damage to the unit may result

Slide each side retainer onto the edge of each according panel. The figure shows teh orientation of each accordion panel and side retainer assembly relative to the case from a top view of the unit. Remove the backing from the accordion seal (two short strips). Stick one sealing strip respectively on the left side and right side of the accordion panels, as shown. Slide the left and right accordion panels into the top and bottom mounting rails. Attach the side retainers to the case using 6 type A screws.

Attach the top rail gasket to the bottom of the top rail. Install the top mounting rail with 4 type A screws from the inside of the case. Press firmly to drive the screws into the gasket and through the top mounting rail.

Top left Top right Top mounting rail Bottom mounting rail

FPREPARE THE WINDOW AND INSTALL

THE CASE Cut the window seal (2 long strips) to the proper length. Peel off the backing and attach the seal to the underside of the window sash. One attached to sash and one attached to sill. Open the window and mark the center of the window sill. Carefully slide the case into the window and center the case. Lower the window behind the top mounting rail. Pull the bottom of the case forward so that the bottom mounting rail is tight against the back of the window stool. Mount the case to the window sill using 2 type B screws. Drill pilot holes, if necessary. Assemble the V-support and V-support bracket with Type F nut and bolt.

THE CASE (continues) Position the V-supports on the case bottom so that they will be near the outside wall. Attach a V-support to each side of the bottom of the case with Type E bolts, 2 for each support. Adjust sill angle brackets to rest on sill. Extend the left and right accordion panels to the vertical window sashes. Drill pilot holes and attach the top corners with 2 type C screws.

Installation Instructions

Left Sill angle bracket V-support Type F bolt and nut Right Type E bolt and nut

Sealing Strip (with adhesive) Type C screw Type C screw12

THE CASE (continues) Cut the foam top window gasket to the window width. Stuff the foam between the glass and the window to prevent air and insects from getting into the room. NOTE: If the gasket supplied does not fit your window, obtain appropriate material locally to provide a proper installation seal.

CAUTION: To prevent broken glass or damage to windows, on vinyl or other similarly constructed windows, attach the window locking bracket to the window side jamb. Attach the window locking bracket with one Type C screw. This unit contains two window locking brackets.

IN THE CASE (continues) Replace the 1 screw removed earlier, in the side of the case.

IMPORTANT: THE GROUND SCREW MUST BE

REINSTALLED TO ENSURE PROPER GROUND. Reinstall the control to the panel housing by replacing the 2 screws you removed earlier.Attach the front grille to the case by inserting the tabs on the grille into the slots on the front top of the case. Push the grille in. Replace the screws. Install the filter and the front grille. Plug in the air conditioner.

Slide the air conditioner into the case by the base pan. Do not push on the controls, foam air discharge housing or the finned coils. Make sure the air conditioner is firmly seated.

Do not press on WKHVHDUHDV³damage to the unit may resultBase Pan

Installation Instructions

Additional insulation is provided with your window air conditioner to reduce heat leakage into the home, reducing overall energy usage. After the air conditioner is installed in the window measure the length of the accordion for both sides. Cut the foam insulation to the measured length of the left and right side accordion. NOTE: Be sure to measure each accordion because the length could be different on each side. Remove adhesive from back of foam insulation. Stick the foam insulation onto the left and right accordion, and inside of the frames. NOTE: be careful to cover the entire accordion.

The case may be installed through-the-wall in both existing and new construction. Read completely, then follow step-by-step. NOTE: Obtain all materials locally for mounting the air conditioner through-the-wall. IMPORTANT Through-the-wall installation is not appropriate if any of the side or top louvers in the case will be obstructed by the wall. All side and top louvers in the case must project on the outdoor side of the wall. The room side of the case must project into the room far enough to maximize the balance of the unit. The case must be installed level from side-to- side and with a slight tilt from front to rear. Use a level; no more than a 1/2 bubble will be the correct case slant to the outside. /LQWHODQJOHLVUHTXLUHGWRVXSSRUWEULFNVRU blocks above opening. )ODVKLQJLVUHTXLUHGDQGVKRXOGH[WHQGWKH length of the opening to ensure no inside cavity leakage occurs. Remove the air conditioner from the case. For specific instruction, refer to the Window Installation Instructions. Make certain that a wall receptacle is available close to the hole location or make arrangements to install a receptacle. Place the case in the wall opening and place wood support strips between the case bottom and the flashing on both sides of the bottom rail. They should be the same height as the bottom rail and the same length as the wall opening.

Caulk all four sides on the outdoor side of the case to prevent moisture from getting through to the interior wall. Use of flashing (drip rail) will further prevent water from dripping inside the wall and down the outside of the building. Place the air conditioner into the case. For specific instruction, refer to the Window Installation Instructions.

IMPORTANT (cont.) Secure with 14 wood screws anchored at least an inch into the wall support structure. NOTE: Drill pilot holes, if necessary, for proper installation. If the frame is oversized, use shims to prevent case distortion.

Lintel angle Plaster line Trim molding (if desired) INSIDE Bottom rail Wood filler and caulking (above and below the flashing) Air louvers (top and sides must project on the outdoor side of the wall) OUTSIDE Flashing (Drip rail) Case bottom Bottom rail Flashing (Drip rail) Wood support strips Caulking C15 Troubleshooting Tips. Normal Operating Sounds You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency. You may hear the thermostat click when the compressor cycles on and off. Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit. The fan may run even when the compressor does not. Problem Possible Causes What To Do Air conditioner The air conditioner • Make sure the air conditioner plug is pushed does not start is unplugged. completely into the outlet. The fuse is blown/circuit • Check the house fuse/circuit breaker box and replace breaker is tripped. the fuse or reset the breaker. Power failure. •The unit will automatically restart in the settings last used after the power is restored.

• There is a protective time delay (approximately 3 minutes) to prevent tripping of the compressor overload. For this reason, the unit may not start normal cooling for 3 minutes after it is turned back on. The current interrupter •Press the RESET button located on the power cord plug. device is tripped.

• If the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician. Air conditioner does Airflow is restricted. • Make sure there are no curtains, blinds or furniture not cool as it should blocking the front of the air conditioner. The temp control may • In the Cool mode, press the Decrease dpad. not be set correctly. The air filter is dirty. • Clean the filter at least every 30 days. See the Care and Cleaning section. The room may have been hot. • When the air conditioner is first turned on, you need to allow time for the room to cool down. Cold air is escaping. • Check for open furnace registers and cold air returns. Cooling coils have iced up. •See “Air conditioner freezing up” below. Air conditioner Ice blocks the air flow • Set the controls at High Fan or High Cool and set the freezing up and stops the air conditioner thermostat to a higher temperature. from cooling the room. The remote control The batteries are inserted • Check the position of the batteries. They should be is not working incorrectly. inserted in the opposite (+) and (–) direction. The batteries may be dead. • Replace the batteries. Water drips outside Hot, humid weather. • This is normal. Water drips indoors The air conditioner is not • For proper water disposal, make sure the air conditioner tilted to the outside. slants slightly from the case front to the rear. Water collects in Moisture removed from air • This is normal for a short period in areas with little base pan and drains into base pan. humidity; normal for a longer period in very humid areas.16 Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

*($LU&RQGLWLRQHU³2QH<HDU/LPLWHG:DUUDQW\

For The Period Of: GE Will Replace: One Year Any part of the air conditioner which fails due to a defect in materials or workmanship. From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and related original purchase service to replace the defective part. All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, visit us on-line at ge.com, or call 800.GE.CARES (800.432.2737). Have serial number and model number available when calling for service. Service trips to your home to teach you how to use the product. Improper installation, delivery or maintenance. If you have an installation problem, or if the air conditioner is of improper cooling capacity for the intended use, contact your dealer or installer. You are responsible IRUSURYLGLQJDGHTXDWHHOHFWULFDOFRQQHFWLQJIDFLOLWLHV Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance. In commercial locations, labor necessary to move the unit to a location where it is accessible for service by an individual technician. Replacement of house fuses or resetting of circuit breakers. Failure due to corrosion on models not corrosion- protected. Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God. ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\SRVVLEOH defects with this air conditioner. Damage caused after delivery. What Is Not Covered: This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. Louisville, KY 40225

(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQ

people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD. GEAC (800.833.4322). Parts and Accessories GEApplianceParts.com Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours. Instructions contained in this manual cover procedures to be performed by any user. GE does not support any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself. Contact Us GEAppliances.com If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225
