RAK150VF2 - Air Conditioning GE - Free user manual and instructions

Product Type	Thermostat for heating and cooling system
Brand	GE
Model	RAK150VF2
Power Supply	24 V AC (18-30 V AC)
Max current per terminal	1 A
Max total current	4 A
Operating temperature range	4 °C to 37 °C (40 °F to 99 °F)
Temperature setpoint range	15 °C to 29 °C (60 °F to 85 °F)
Accuracy	±0.5 °C (±1 °F)
System configurations	2-stage heat / 1-stage cool (default); 1-stage heat / 1-stage cool (optional)
Maximum number of wires	8 wires (for 3-stage heat / 2-stage cool system)
Maximum wiring length (AWG18)	20 m (66 ft)
Maximum wiring length (AWG20)	18 m (60 ft)
Recommended installation height	1.5 m above floor
Package contents	Cover, base, wiring labels, screws, wall anchors
Features	Digital display, configuration mode, compressor short-cycle protection (3 min), continuous fan operation
Safety	Disconnect power before installation; do not exceed 30 V AC
Warranty	1 year (full thermostat replacement)
Required installation tools	Drill (5 mm bit), hammer, screwdriver, putty

Frequently Asked Questions - RAK150VF2 GE

How to install the RAK150VF2 thermostat?

First, turn off power at the circuit breaker. Remove the old thermostat, labeling the wires. Mount the new thermostat base at 1.5 m above the floor, using wall anchors and screws. Route the wires through the opening, connect them to the corresponding terminals according to the wiring diagram, then replace the cover and restore power.

How to configure the thermostat for my system?

Make sure the thermostat is in OFF position. Remove the cover, press CONFIG for about 2 seconds to enter configuration mode. Use + and - buttons to change settings, FAN to advance to the next screen, and MODE to go back. Settings include temperature scale, temperature differentials, system type (HP b2, HP b1, ELC), temperature limits, etc. Press CONFIG again to save and exit.

Why is the display not turning on?

Check that the power supply voltage is 24 V AC. Without this voltage, the display will not operate. Also ensure the circuit breaker is on and connections are correct.

The compressor does not start or turns off immediately, what to do?

The thermostat imposes a 3-minute delay when starting and stopping the compressor. Wait this delay before considering a problem. If the issue persists, check the wiring and system configuration.

How to adjust the temperature differential to avoid too frequent cycling?

Access configuration mode (CONFIG for 2 sec). Use + and - buttons to change the temperature differential for stage 1 (default 1 °F / 0.5 °C) and stage 2 (if applicable). A larger differential reduces cycling frequency.

The fan does not stop, what to check?

Check the fan Auto/On switch. If it is in ON position, the fan runs continuously. Press the FAN button to switch to Auto mode. In configuration mode, step 9 allows disabling the continuous fan option.

How to calibrate the displayed room temperature?

In configuration mode, step 8 allows adjusting a room temperature offset from +9 °F to -9 °F (+5 °C to -5 °C). Adjust this value until the display matches the actual temperature measured with a reliable thermometer.

What tools are needed for installation?

You will need a drill with a 5 mm (3/16 inch) bit, a hammer, a screwdriver, and putty or insulation to seal the hole in the wall behind the thermostat.

What to do if the thermostat does not respond to any button?

Ensure the power supply voltage is 24 V AC. If the display is off or frozen, press the Reset button (if present) once to reset the microprocessor. If the problem persists, check the wiring.

The thermostat displays an incorrect temperature, what to do?

First, check that the hole in the wall is properly sealed with putty or insulation to prevent drafts. Then, adjust the room temperature offset in configuration mode (step 8) to calibrate the display.

USER MANUAL RAK150VF2 GE

SAFETY INFORMATION. 2

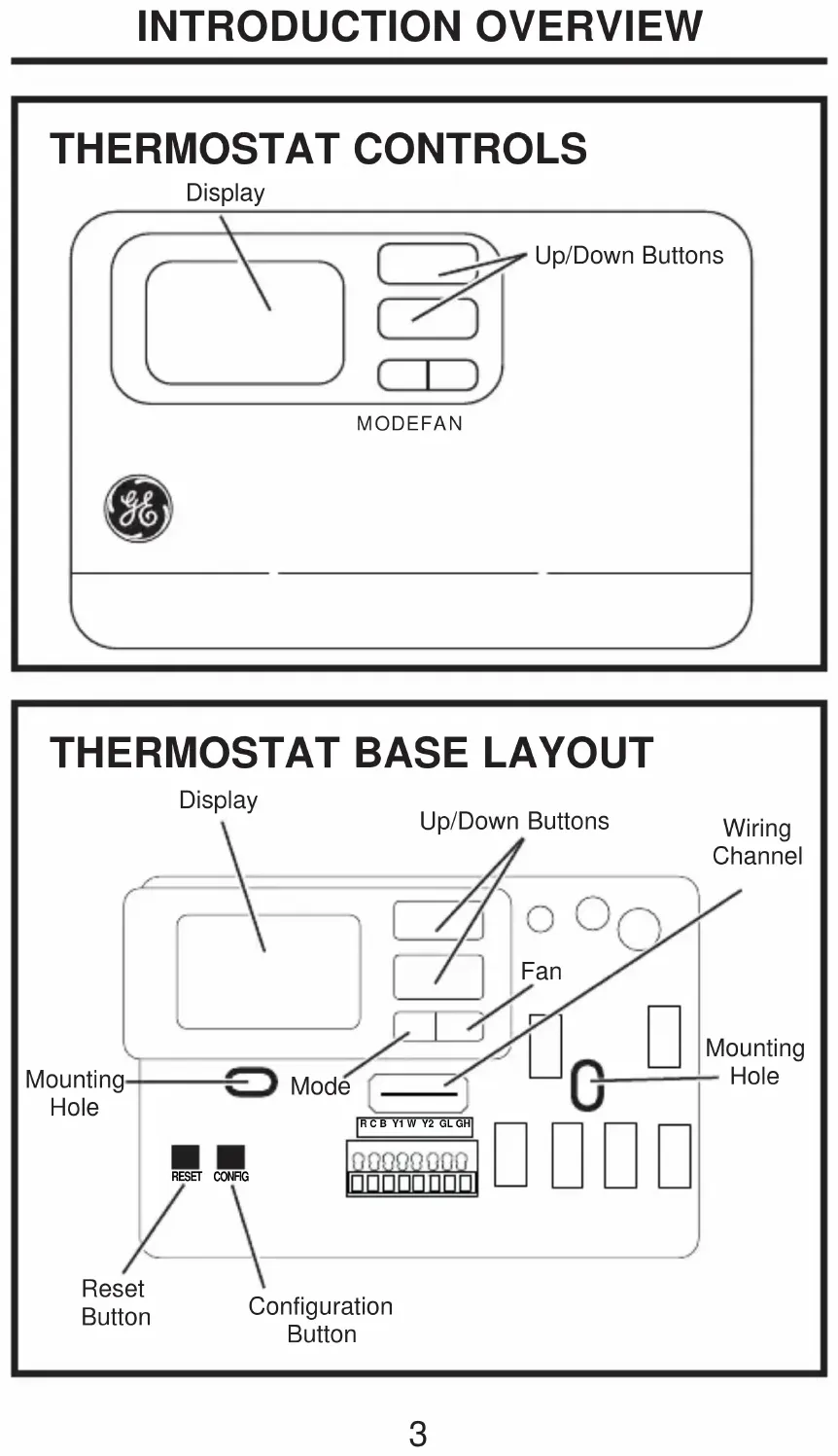

OVERVIEW 3

INSTALLATION 4

WIRING DIAGRAMS 8

CONFIGURATION MODE 10

OPERATING FUNCTIONS. 13

TROUBLESHOOTING 15

WARRANTY 16

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING

WARNING

FIRE AND SHOCK HAZARD

• Always turn off power at the main power supply before installing, cleaning or removing the thermostat. Failure to do so could result in electrical shock hazard.
• Do not use on voltages over 30 VAC. Higher voltages will damage the thermostat and could cause shock or fire hazard.

NOTICE

• All wiring must conform to local and national electrical and building codes.
• Use this thermostat only as described in this manual.

Specifications

Electrical rating: 24 VAC (18-30 VAC)

Operating temperature range: 40^ - 99^ (4^ - 37^)

Temperature set range: 60^ - 85^ (15^ - 29^)

Accuracy: ± 1^ (± 0.5^)

System configurations:

• Factory Setting: 3-stage heat (heat pump low, heat pump high, resistance heat), 2-stage cool (cool low, cool high), 2-speed fan
• Alternate Setting: 2-stage heat (heat pump/resistance heat), 1-stage cool, 2-speed fan
  Alternate Setting: 1-stage heat (resistance heat), 1-stage cool, 2-speed fan

Terminations: R, C, B, Y1, W, Y2, GL, GH

Wiring: Maximum wiring length is 66ft (20 meters) for AWG18. Maximum wiring length is 60ft (18 meters) for AWG20

WARNING

ELECTRICAL SHOCK HAZARD — Turn off power by unplugging the unit or by removing the fuse or switching the appropriate circuit breaker to the OFF position before removing the existing thermostat. Failure to do so could result in risk of electric shock.

PACKAGE CONTENTS/TOOLS REQUIRED:

Package includes:

Thermostat base
Thermostat cover
- Wiring labels
- Screws
- Wall anchors

Tools needed:

• Drill with 3/16'' bit
• Hammer
• Screwdriver
• Putty

TO REMOVE EXISTING THERMOSTAT

1. Turn off power to heating and cooling system by removing the fuse or switching off the appropriate circuit breaker.
2. Remove cover of old thermostat. This should expose the wires.
3. Label the existing wires with the enclosed wire labels before removing wires.
4. After labeling wires, remove wires from wire terminals.
5. Remove existing thermostat base from wall.
6. Refer to the following section for instructions on how to install this thermostat.

TO INSTALL THERMOSTAT

IMPORTANT: Thermostat installation must conform to local and national building and electrical codes and ordinances.

NOTE: Mount the thermostat about five feet above the floor. Do not mount the thermostat on an outside wall, in direct sunlight, behind a door or in an area affected by a vent or duct.

1. Turn off power to the heating and cooling system by removing the fuse or switching off the appropriate circuit breaker.
2. Remove the cover by inserting and twisting a coin or screwdriver in the slots on the top of the thermostat.
3. Put thermostat base against the wall where you plan to mount it. Make sure wires will feed through the wire opening in the base of the thermostat.
4. With the base level, mark the placement of the mounting holes.
5. Set thermostat base and cover away from working area.
6. Using a 3/16" drill bit, drill holes in the locations you have marked for mounting.
7. Use a hammer to tap supplied anchors in mounting holes.
8. Align thermostat base with mounting holes and feed the control wires through the wire opening.

TO INSTALL THERMOSTAT (cont.)

1. Seal hole for wires behind thermostat with non-flammable insulation or putty, or use a wall plate obtainable from a local hardware or home building store.
2. Use supplied screws to mount thermostat base to wall.
3. Insert stripped, labeled wires in matching wire terminals by pressing on the corresponding terminal contact. See the "Wiring Diagrams" section of this manual.

NOTICE

Make sure exposed portion of wires do not touch other wires.

1. Gently tug wire to be sure of proper connection. Double check that each wire is connected to the proper terminal.
2. Replace cover on thermostat by snapping it in place.
3. Plug the unit in or turn on power to the system at the main service panel.
4. Test thermostat operation.

Table 1: Terminals for eight wires. 3-stage heat/2-stage cool system

RC BY1 W Y2 GL GH
24 VAC HOT	24 VAC COMMON	REVERSING VALVE	STAGE 1 COMPRESSOR	HEAT-ELECTRIC	STAGE 2 COMPRESSOR	INDOOR FAN-LOW
						INDOOR FAN-HIGH

Table 2: Terminals for seven wires. 2-stage heat/1-stage cool system

RC BY1 W Y2 GL GH
24 VAC HOT	24 VAC COMMON	REVERSING VALVE	STAGE 1 COMPRESSOR	HEAT-ELECTRIC	INDOOR FAN-LOW	INDOOR FAN-HIGH

Table 3: Terminals for six wires. 1-stage heat/1-stage cool system

RC BY1 W Y2 GL GH
24 VAC HOT	24 VAC COMMON	STAGE 1 COMPRESSOR
		HEAT-ELECTRIC
		INDOOR FAN-LOW
		INDOOR FAN-HIGH

The configuration mode is used to set the RAK150VF2 to match the heating/cooling system. The default setting of this thermostat is for 2-stage cooling with a 3-stage heat pump system. For an alternate configuration, see #7 in the Configuration Mode Settings below.

To configure the RAK150VF2, perform the following steps:

1. Ensure thermostat is in OFF mode.
2. Remove the thermostat's front cover.
3. To enter the configuration mode, hold CONFIG for 2 seconds.

4. Once in the configuration mode, press the or button to change settings within each screen.

5. Press the FAN (right) button to advance to the next screen.

6. Press the MODE (left) button to return to the previous screen.

NOTE: Hold CONFIG button for 2 seconds to save changes and exit configuration menu.

Configuration Mode Settings

The setup screens for Configuration Mode are as follows:

1. Temperature Scale (°F or °C)—Choose Fahrenheit or Celsius.
2. Press the or button to select.
3. Press the FAN (right) button to advance to the next screen. NOTE: Default factory setting is Fahrenheit.
4. Temperature Differential—Stage 1—(1-9°F) (.5-4.5°C)

Set the number of degrees between the "setpoint" temperature

and the "turn on" temperature for first stage.

• Press the or button to set differential value.

• Press the FAN (right) button to advance to the next screen.

Note: Default factory setting is 1^ / .5^

1. Temperature Differential—Stage 2 (1-9°F) (.5-4.5°C)

Set the number of degrees between when stage 1 turns on

and stage 2 turns on.

• Press the or button to set differential value.

• Press the FAN (right) button to advance to the next screen.
• Note: Default factory setting is 1^ / .5^ .

4. Temperature Differential—Stage 3 (1-9°F) (.5-4.5°C)

Set the number of degrees between when stage 2 turns on

and stage 3 turns on

• Press the or button to set differential value.

• Press the FAN (right) button to advance to the next screen.
• Note: Default factory setting is 1^ / .5^ .

5. System - Select appropriate cooling/heating system based on model selection

• HP b2: two stage cooling / two stage (B type) heat pump with a backup 3rd stage of resistance heat.

Use for AZ9V models.

• HP b1: single stage cooling / single stage (B type) heat pump with a backup 2nd stage of resistance heat.

Use for AZ95H and AZ65H models.

• ELC: single stage cooling / single stage resistance heating.

Use for AZ95E and AZ45E Models.

• Press the or button to change selection.
• Press the FAN (right) button to advance to the next screen.
• Note: Default factory setting is HP b2.

6. Minimum Cool Setpoint (60, 64, 66, 68, 70, 72, 74, 76^ ) (15, 17, 19, 20, 21, 22, 23, 24^ )

Adjust to control the minimum Cool set temperature allowed.

• Press the or button to select.

• Press the FAN (right) button to advance to the next screen.

Note: Default factory setting is 60^ / 15^

1. Maximum Heat Setpoint (65, 70, 72, 74, 76, 78, 80, 85^ ) (18, 21, 22, 23, 24, 26, 27, 29^ )

Adjust to control the maximum Heat set temperature allowed.

• Press the or button to select.
• Press the FAN (right) button to advance to the next screen.

Note: Default factory setting is 85^ F/29^ C .

1. Room Temperature Offset (+9^ to -9^) (+5^ to -5^)

Adjust to calibrate displayed room temperature to match actual room temperature.

• Press the or button to select.
• Press the FAN (right) button to advance to the next screen.

Note: Default factory setting is 0^ / 0^

1. Continuous Fan

This setting controls the availability of the continuous fan options available for selection by the thermostat user. Continuous fan options allow for the fan to be operated all the time if selected.

• Press the or button to change selection.

Note: Default factory setting is ON (1). 1=ON, 0=OFF

Off

• In this mode, the thermostat will not turn on the heating or cooling devices (manual fan can operate if Continuous Fan mode is enabled).
• Off is also used to access Configuration mode.

Heat

• In this mode, the thermostat controls the heating system.
• Press the or button to set the desired temperature.

Cool

• In this mode, the thermostat controls the cooling system.
• Press the or button to set the desired temperature.

Fan

Fan operation is available in either low or high speed.
- Press the or button to select a fan option. Selection will be locked in after 8 seconds.
- "Auto" options operate the fan only during a cooling or heating cycle.
- Continuous ("On") options operate the fan all the time including while in "OFF" mode. These options can be disabled in the thermostat configuration (Config #9).

Auto, Low Speed:

Auto, High Speed:

Continuous, Low Speed:

Continuous, High Speed:

TROUBLESHOOTING TIPS

Problem Solution
No Display Check for 24 VAC; display is blank when 24 VAC is not present
System fan does not come on properly	Verify that wiring is correct.
All thermostat buttons are inoperative	Verify that 24 VAC is present; unit will not operate when 24 VAC is not present.
Thermostat turns on and off too frequently	Adjust temperature differential (see Configuration Mode - Setting Temperature Differential, Stage 1, Stage 2, and Stage 3 section).
Fan runs continuously	Check fan selection. If set to ON, fan will run.
Room temperature is not correct	Verify that wall hole is plugged with putty or insulation to prevent airflow from the wall cavity. Adjust Temperature Offset (see Configuration Mode - Room temperature offset section).
Compressor doesn't run or turn off immediately when changing function or setting	There is a 3 minute time delay and a 3 minute minimum run time for the compressor when it turns on/off.
Fan doesn't run or turn off immediately when changing function or setting	This is normal. On some models, the fan may have a minimum run time/off time delay.
Problem not listed above	Press the Reset button once to reset the thermostat microprocessor.

THERMOSTAT WARRANTY

Staple your receipt here. Proof of the original purchase date is needed to validate the warranty.

For The Period Of: GE Appliances Will Replace:

One Year Full Replacement of the thermostat which fails From the date of the due to a defect in materials or workmanship. original purchase For Warranty replacement, contact your distributor.

What GE Appliances Will Not Cover:

Service trips to your location.
- Improper installation. If you have an installation problem, contact your installer. You are responsible for providing adequate electrical connections to the product.
Failure of the product resulting from modifications to the product or due to unreasonable use, including failure to provide reasonable and necessary maintenance.
In commercial locations, labor necessary to move the unit, after it has been initially installed, to a location where it is accessible for service by an individual technician; or, if the instructions included in this manual have been disregarded.
Replacement of location fuses or the resetting of circuit breakers.
- Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
- Incidental or consequential damage caused by possible defects with this thermostat.

EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for use within the USA and Canada. In Alaska, the warranty excludes the cost of shipping or service calls to your site.

Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province. To know what your legal rights are, consult your local, state or provincial consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier company
Louisville, KY 40225

NUMérique THERMOSTAT

Instructions D'installation

RAK150VF2

RENSEIGNEMENTS IMPORTANTS

CONCERNANT LA SÉCURIT 2

VUE D'ENSEMBLE 3

INSTALLATION 4

SCHEMAS DE CÁBLAGE 8

CONFIGURATION MODE 10

FONCTIONS D'UTILISATION 13

CONSEILS DE DÉPANNAGE 15

GARANTIE LIMITEE 16

RENSEIGNEMENTS IMPORTANTS CONCERNANT LA SECURITE

LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER CET APPAREIL

AVENTISSEMENT

RISQUE D'INCENDIE ET D'ÉLECTROCUTION

Garant : GE Appliances, Louisville, KY 40225
